REVISION DATE: 08-Apr-2015 14:59:04

Mike collected 5 Dark (shutter closed) and 5 Background (shutter not closed) files to see if we could use the Backgrounds rather than darks. Backgrounds are much easier to collect. Looking at the data below they look close enough to be to use for most purposes. My question is what is the bump on Track 8??? So I created a image of one of the Backgournd files and there is a bright spot. Interesting.

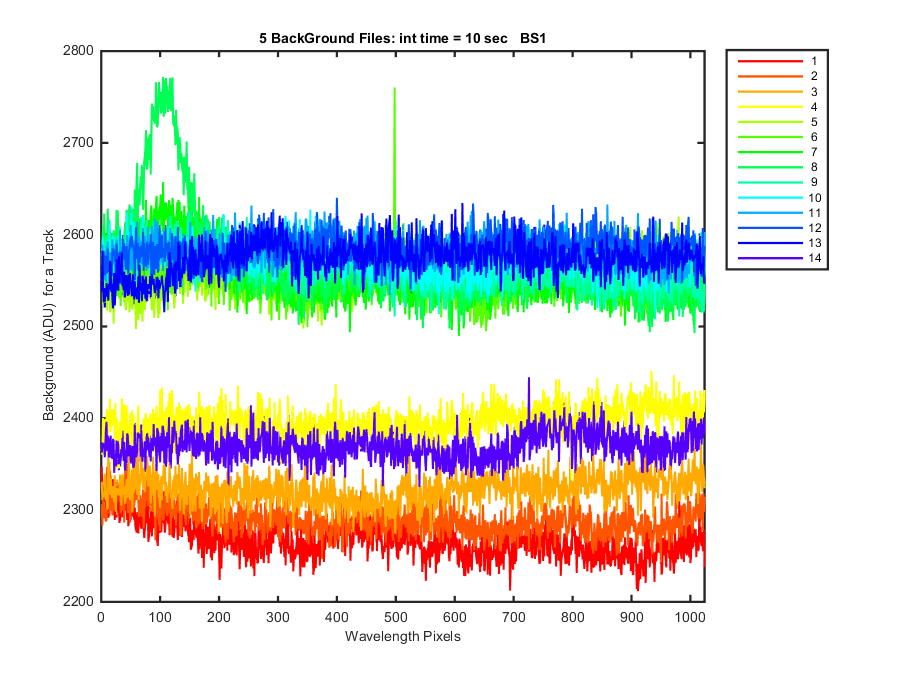

Figure 1

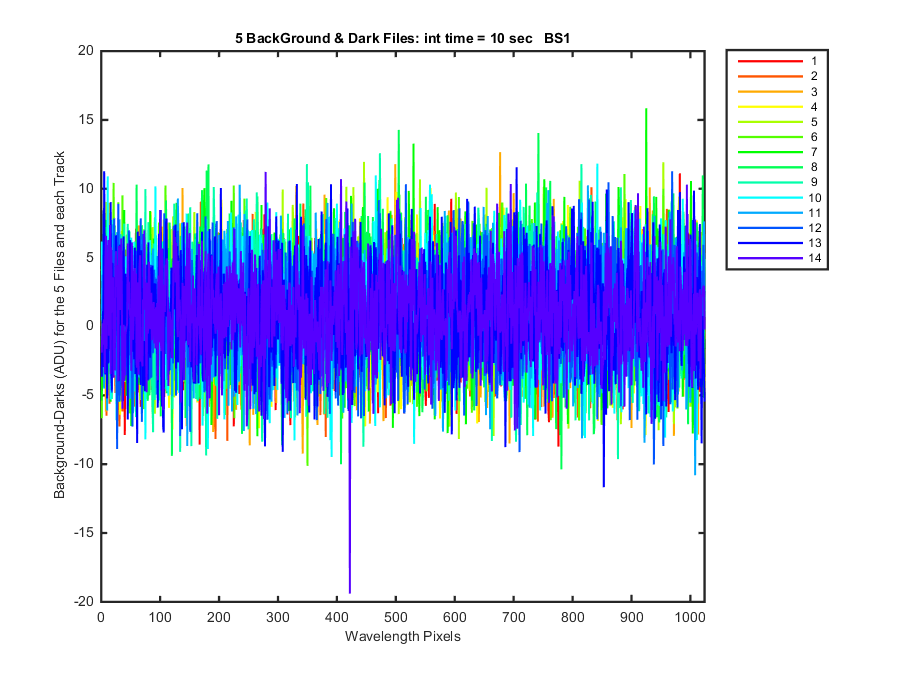

Figure 2

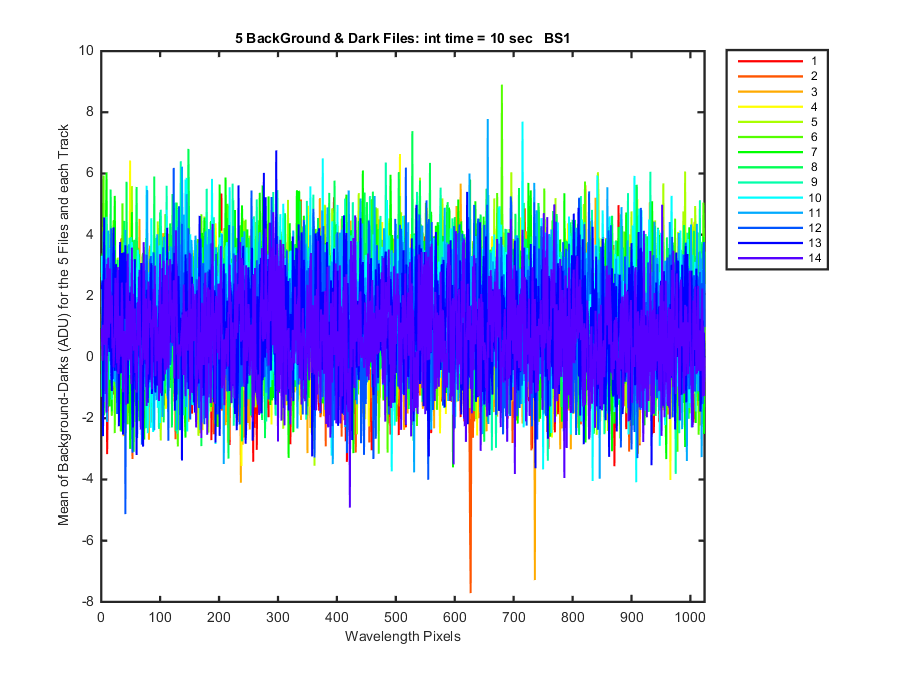

Figure 3

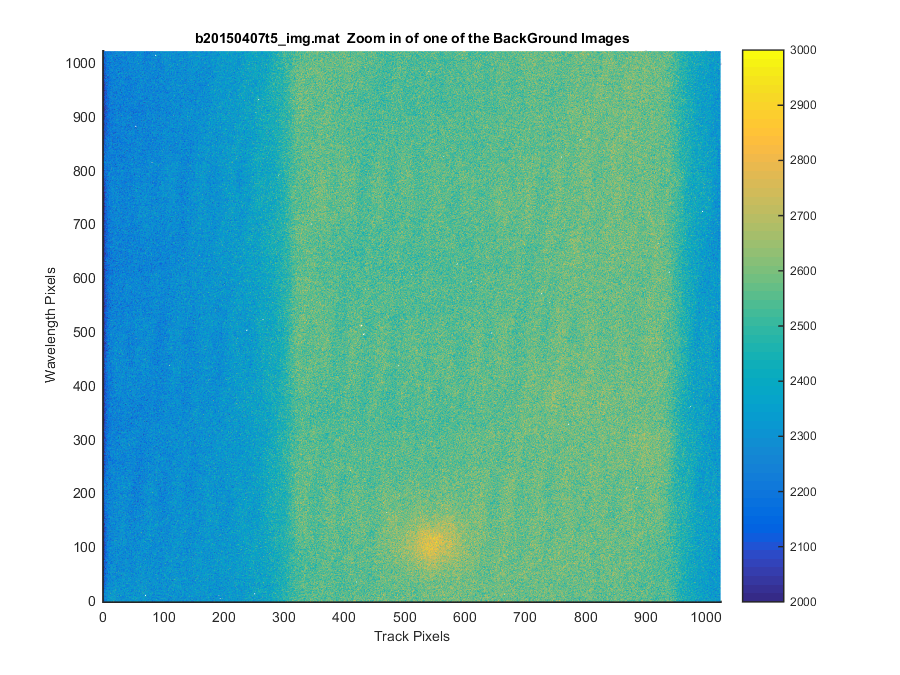

Figure 4


Figure 5


pwd: C:\zflora\mldata\mobynet\characterizations\intial\Hawaii-2015-01\andor\day1
Date: 08-Apr-2015 14:59:04
Created from pltcmp_bkg_darks_(1)
