REVISION DATE: 09-Apr-2015 13:50:22
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | NEXT | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Laser Wavelength (nm) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2015040939_img | Signal | NaN | 1 | Single Scan | -40 | 0 | F | 2015-04-09T07:16:30 | 4 | Image | 63142 | 9906.63 | 134.25 |

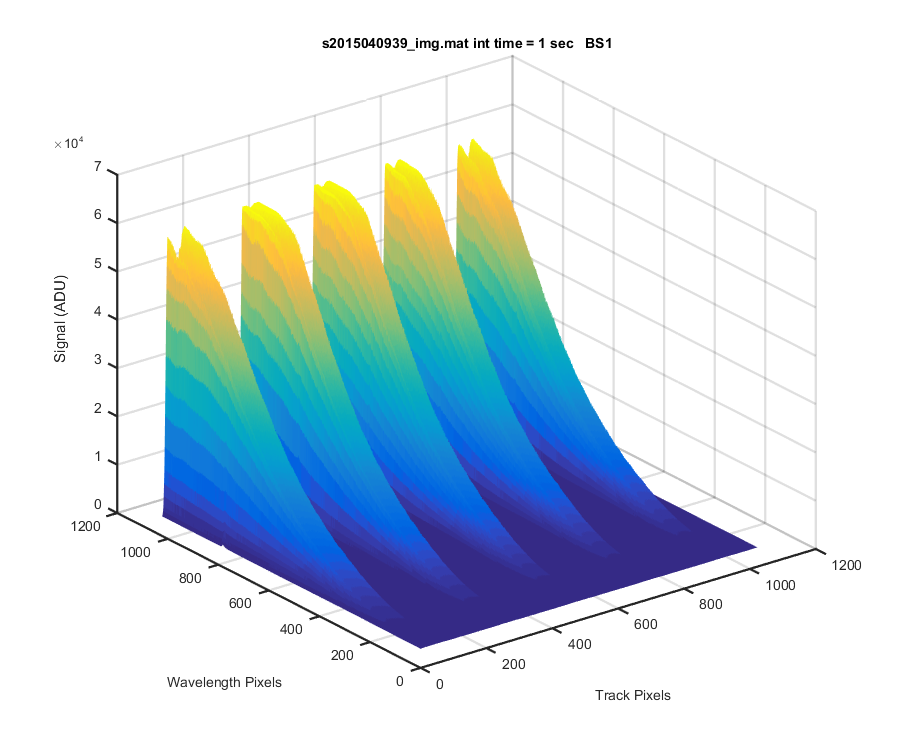

Figure 1

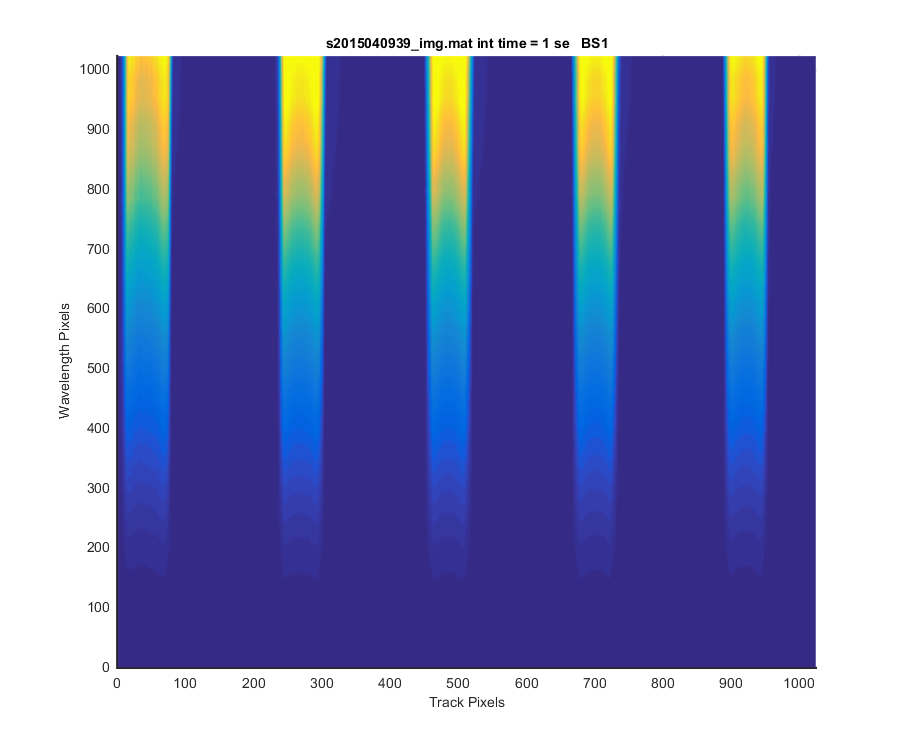

Figure 2

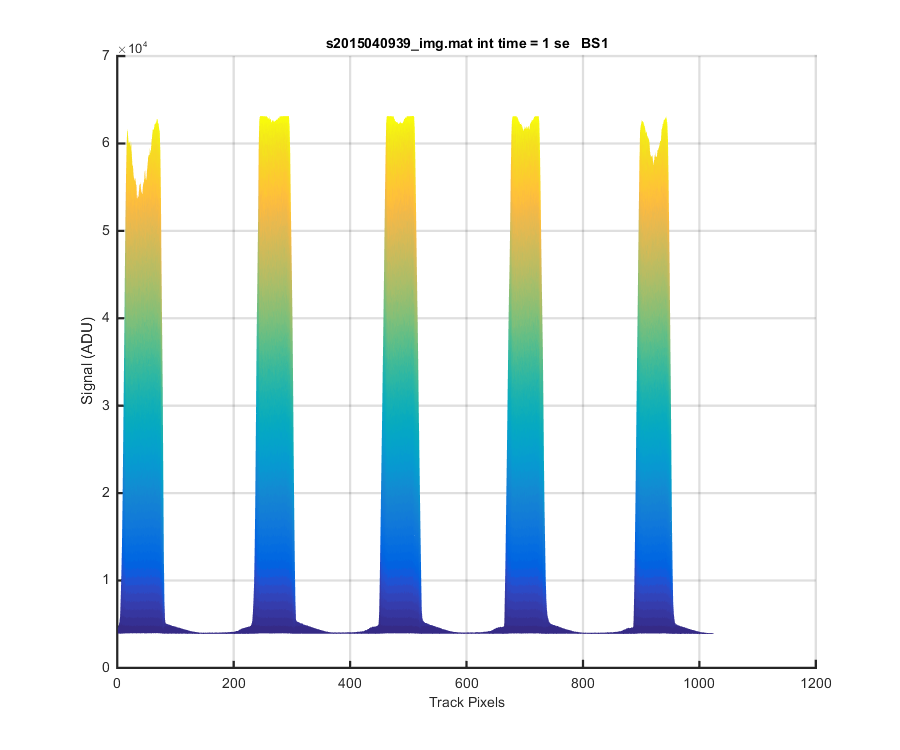

Figure 3

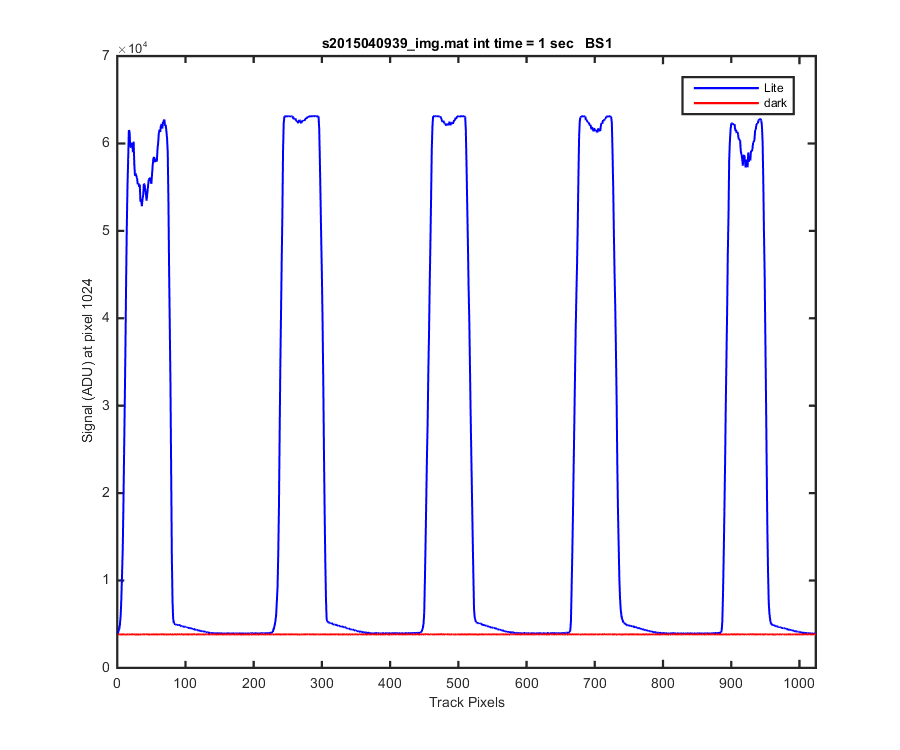

Figure 4

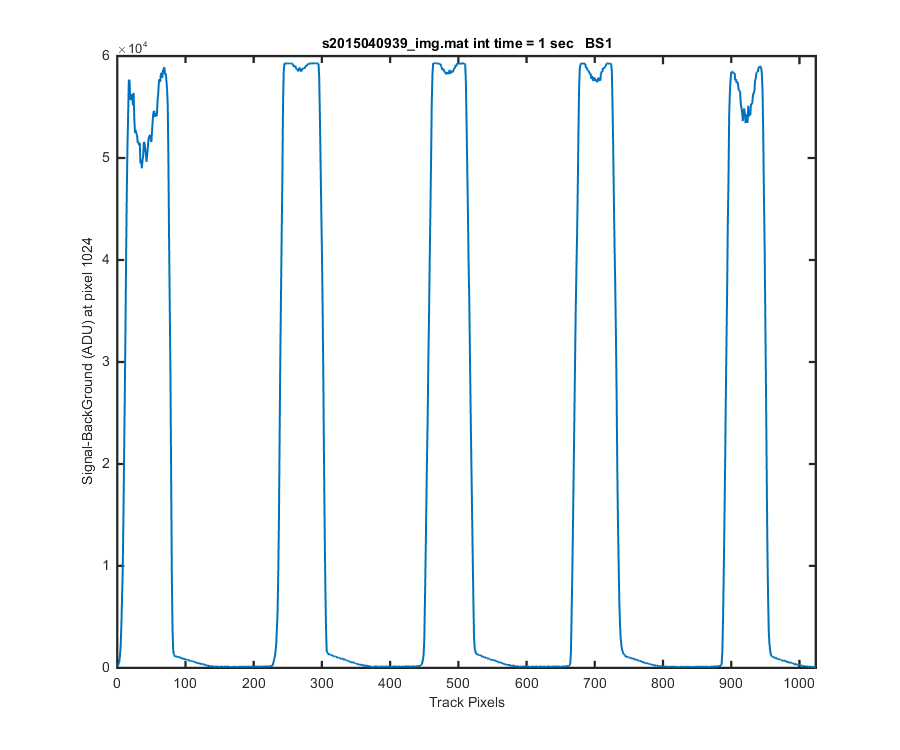

Figure 5

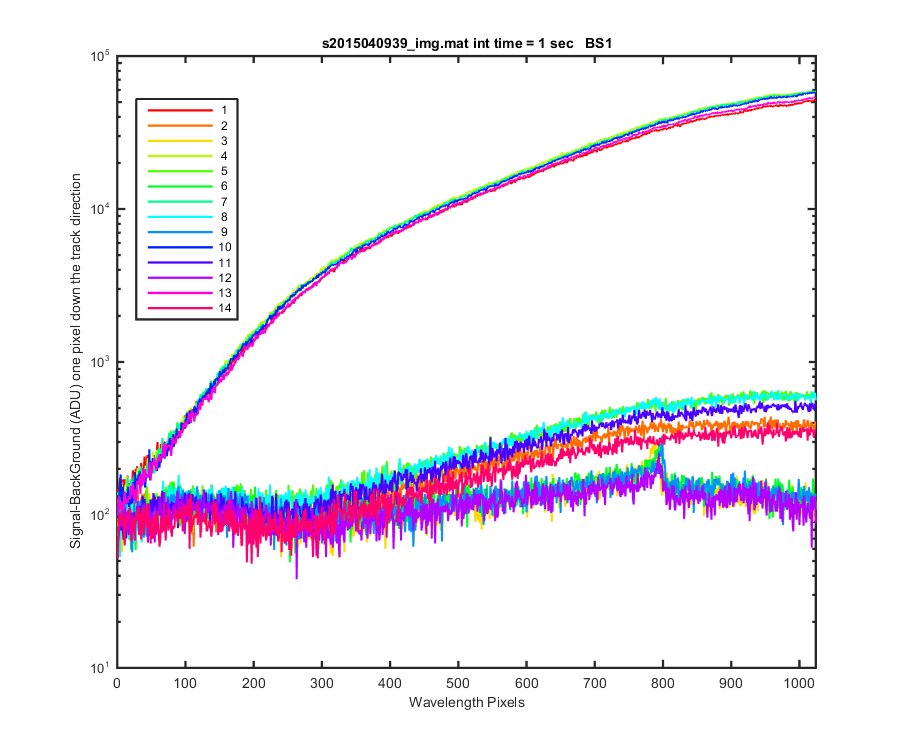

Figure 6
