REVISION DATE: 09-Apr-2015 13:50:23
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | NEXT | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Laser Wavelength (nm) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2015040944_img | Signal | NaN | 1.4 | Single Scan | -40 | 0 | F | 2015-04-09T07:19:27 | 4 | Image | 63259 | 11670.29 | 140.92 |

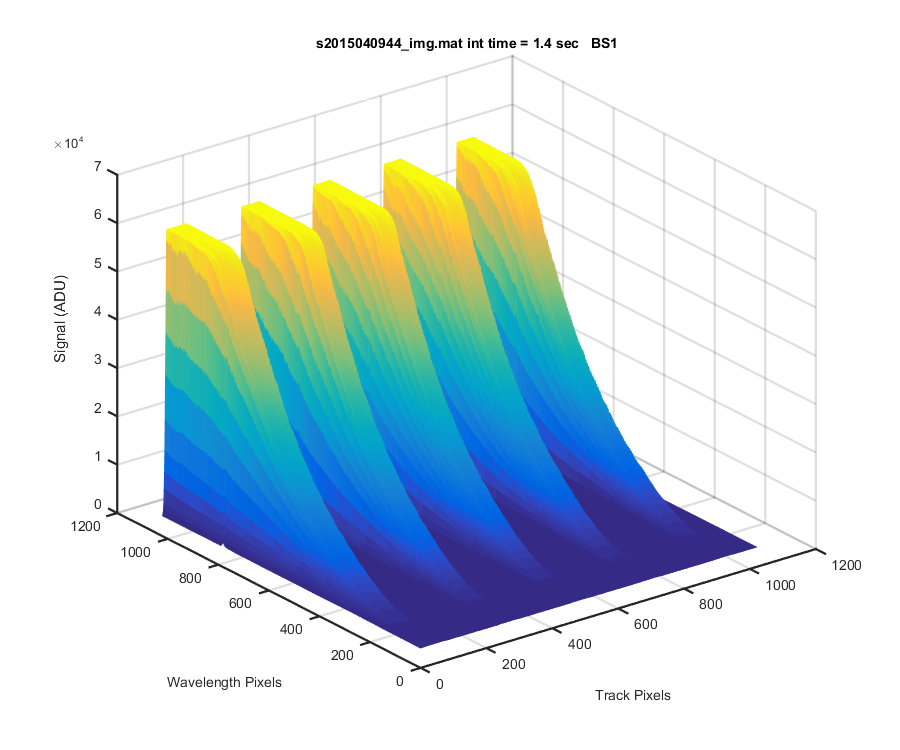

Figure 1

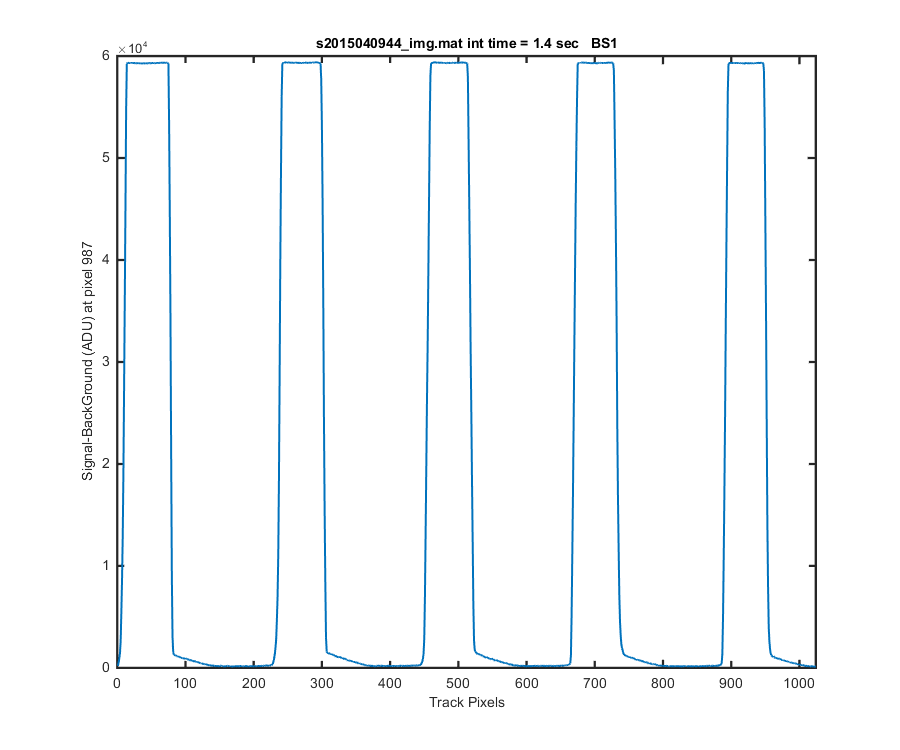

Figure 2

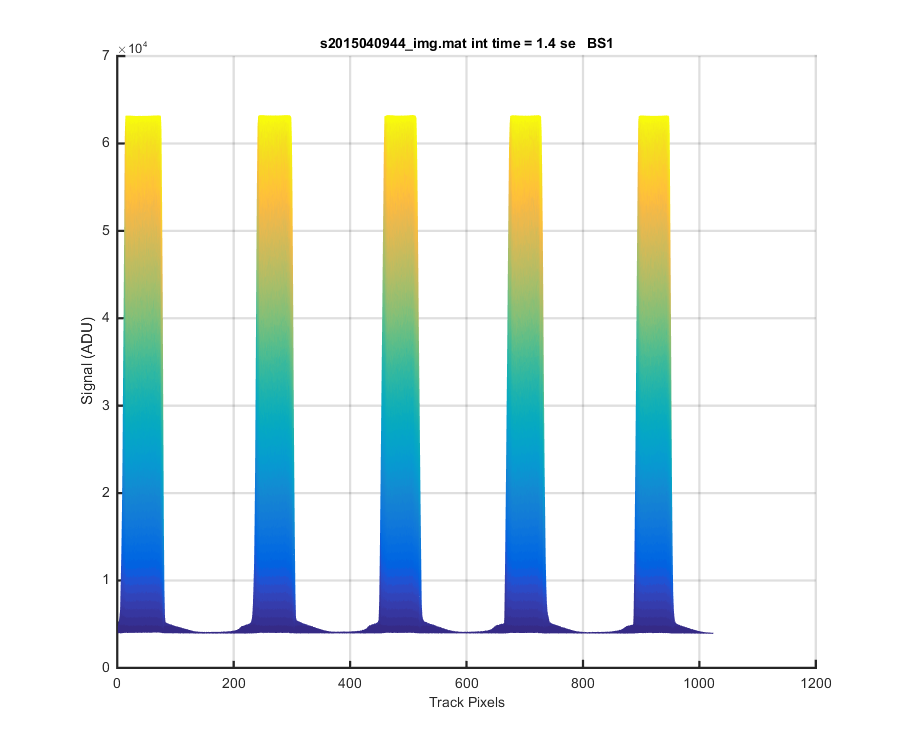

Figure 3

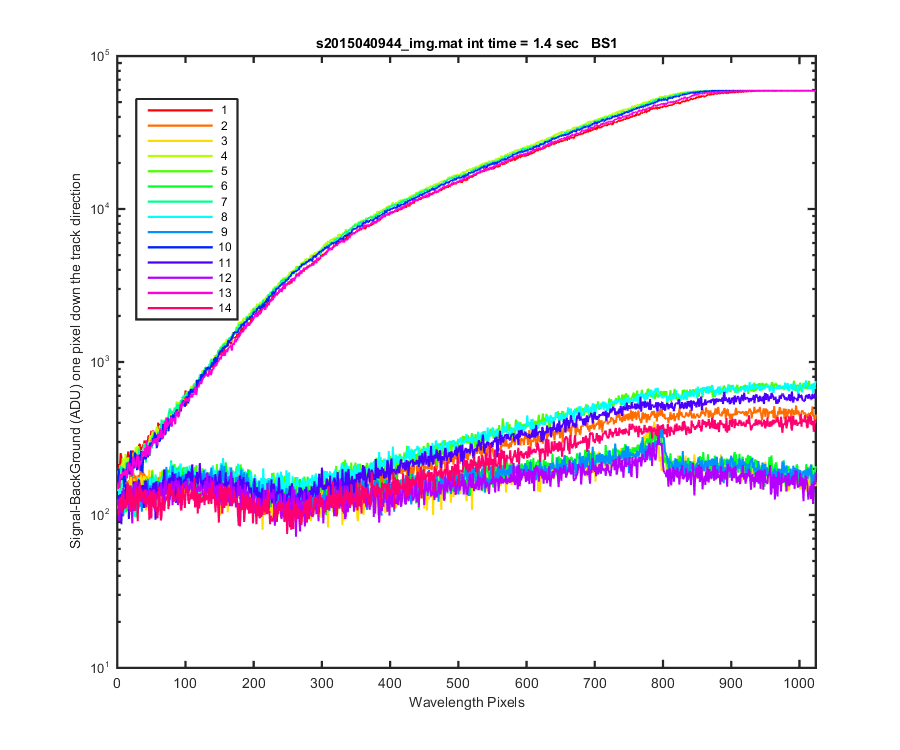

Figure 4

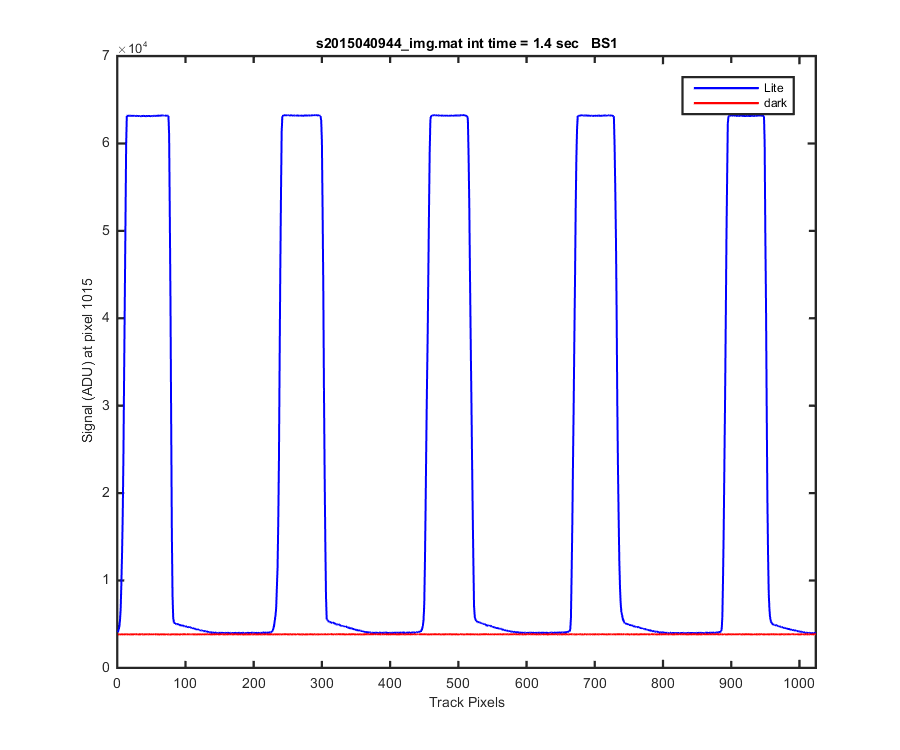

Figure 5

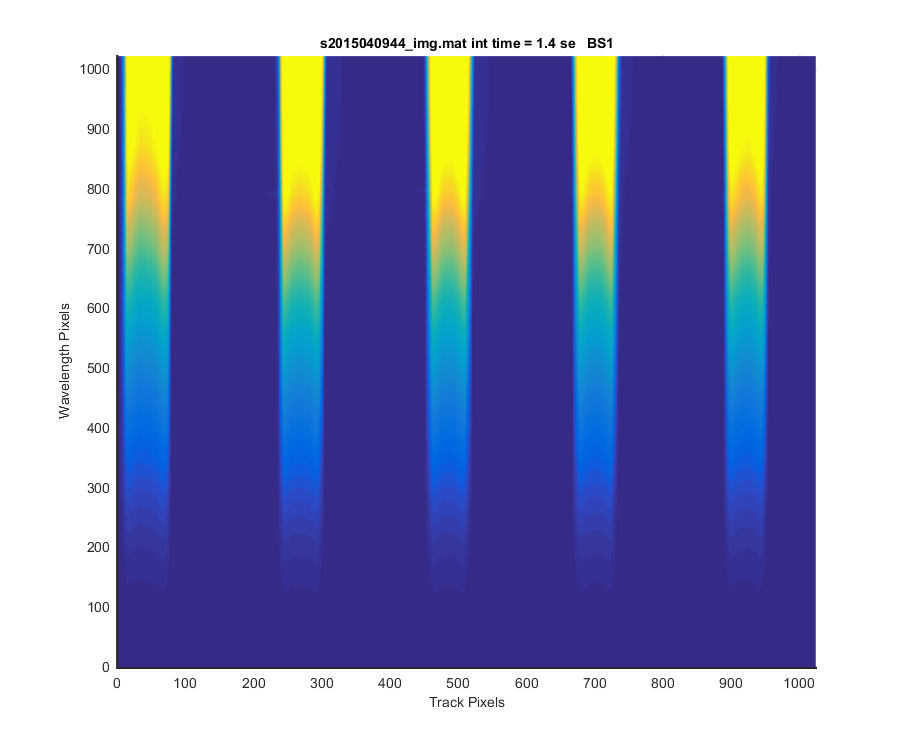

Figure 6
