REVISION DATE: 10-Apr-2015 10:30:49
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | NEXT | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Laser Wavelength (nm) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2015041026_img | Signal | 500 | 0.5 | Single Scan | -40 | 0 | F | 2015-04-10T04:35:40 | 4 | Image | 35592 | 3826.51 | 7.63 |

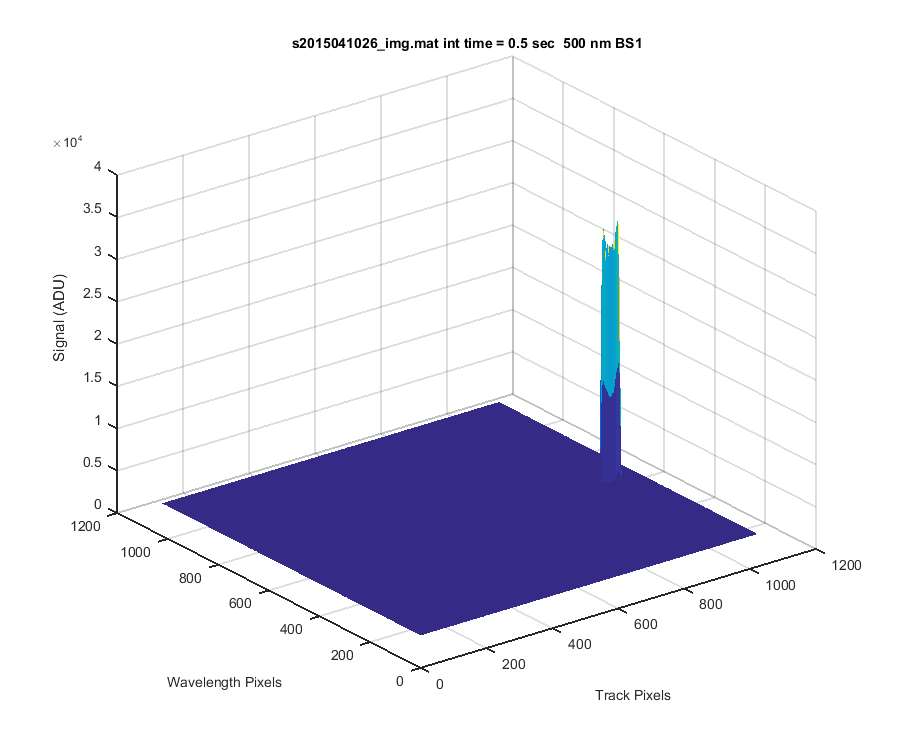

Figure 1

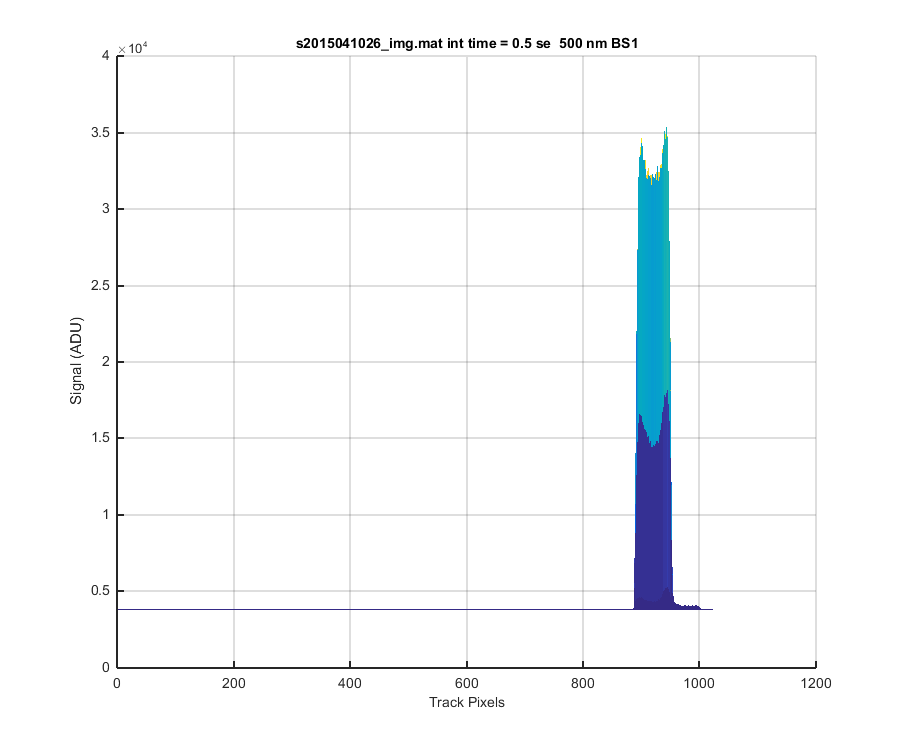

Figure 2

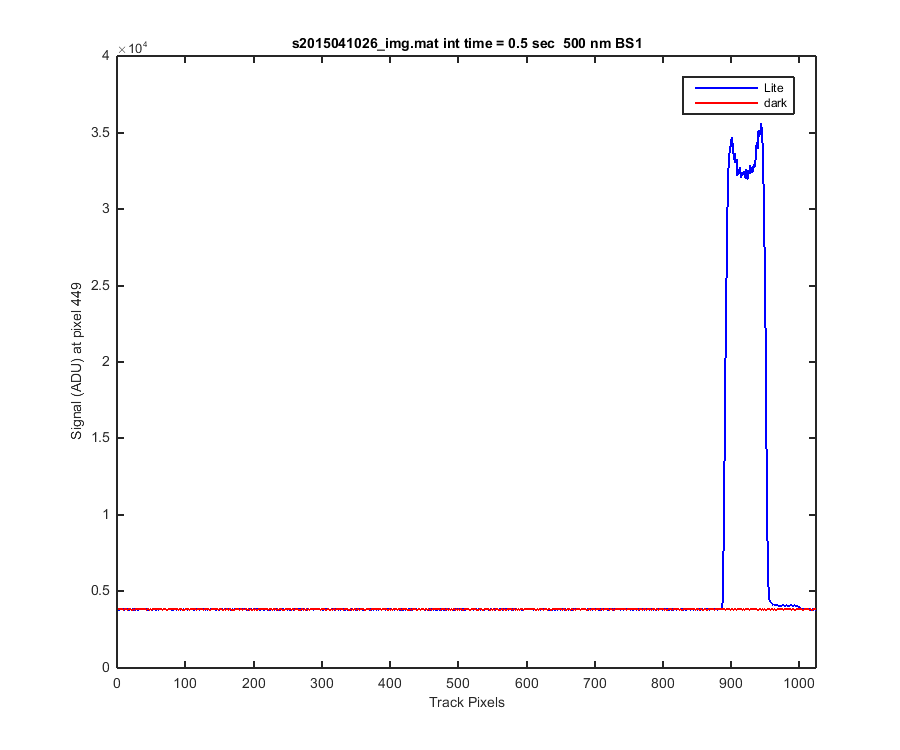

Figure 3

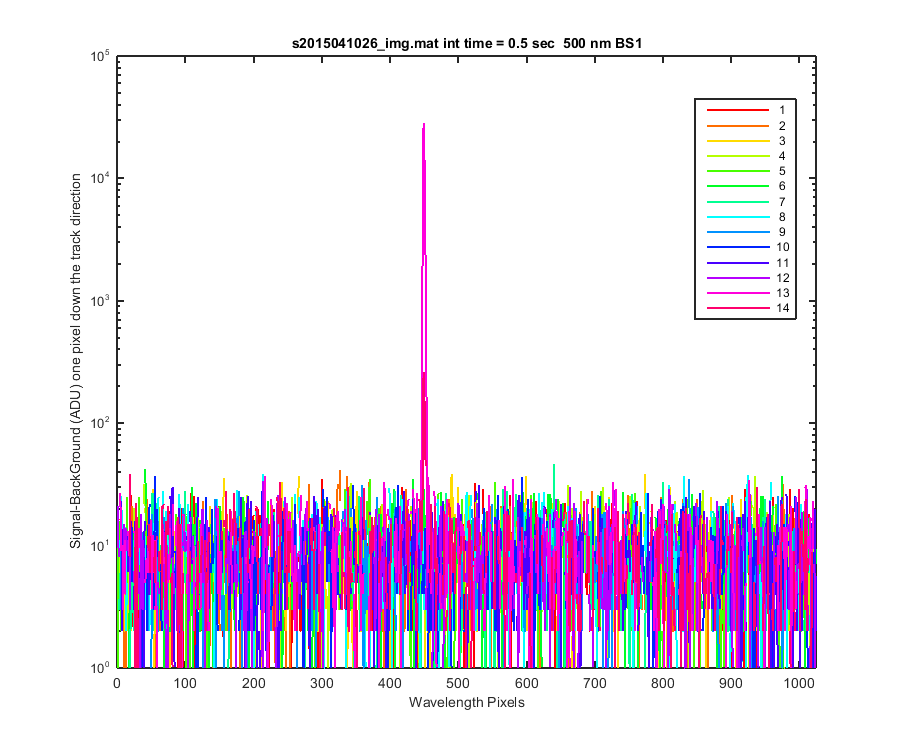

Figure 4

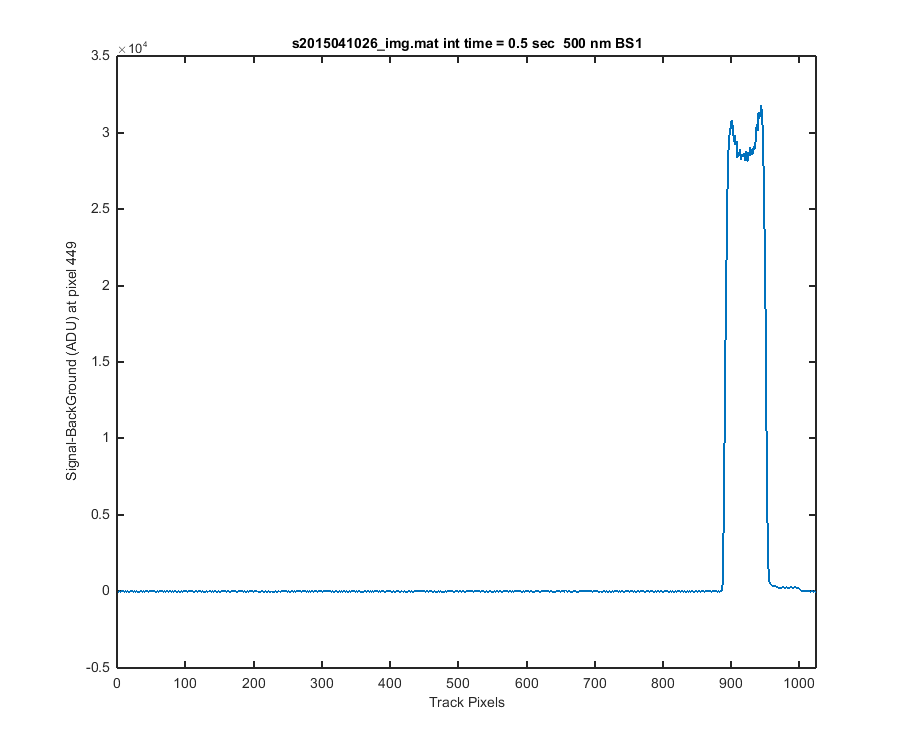

Figure 5
Figure 6
