plt_day13_polarization_ - BS1

REVISION DATE: 20-Aug-2015 13:10:10

Polarizing Test: Files where collected with the polarizer, which is a filter on a rotation stage, illuminated by the Oriel incandescent source via the Spectralon sphere. This has the MOBY Es Head #40 cleaned and connected to long FO #500. Mike suggested recreating the polarization parameter, P from the SIRREX7 section 7.3.3 and compare with their Table 11 results. The table at the bottom recreates the table 11 from the SIRREX7 paper. The plots of the data below show not polarization effect.

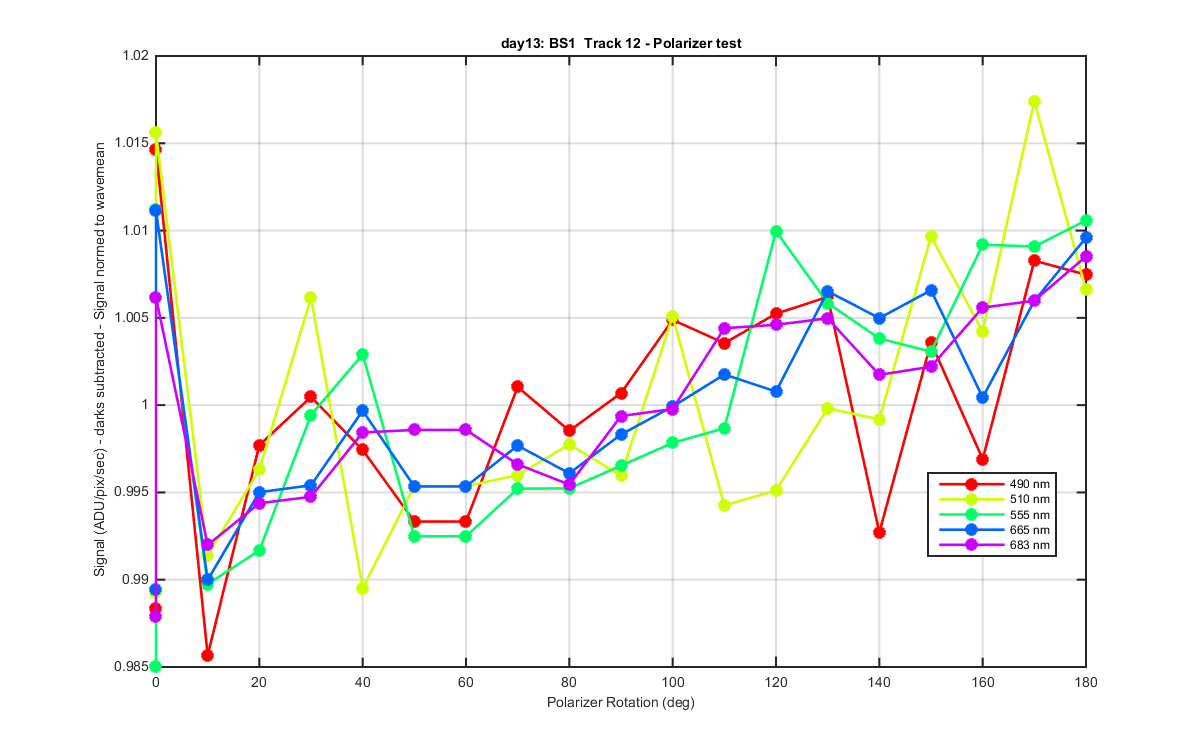

Figure 1

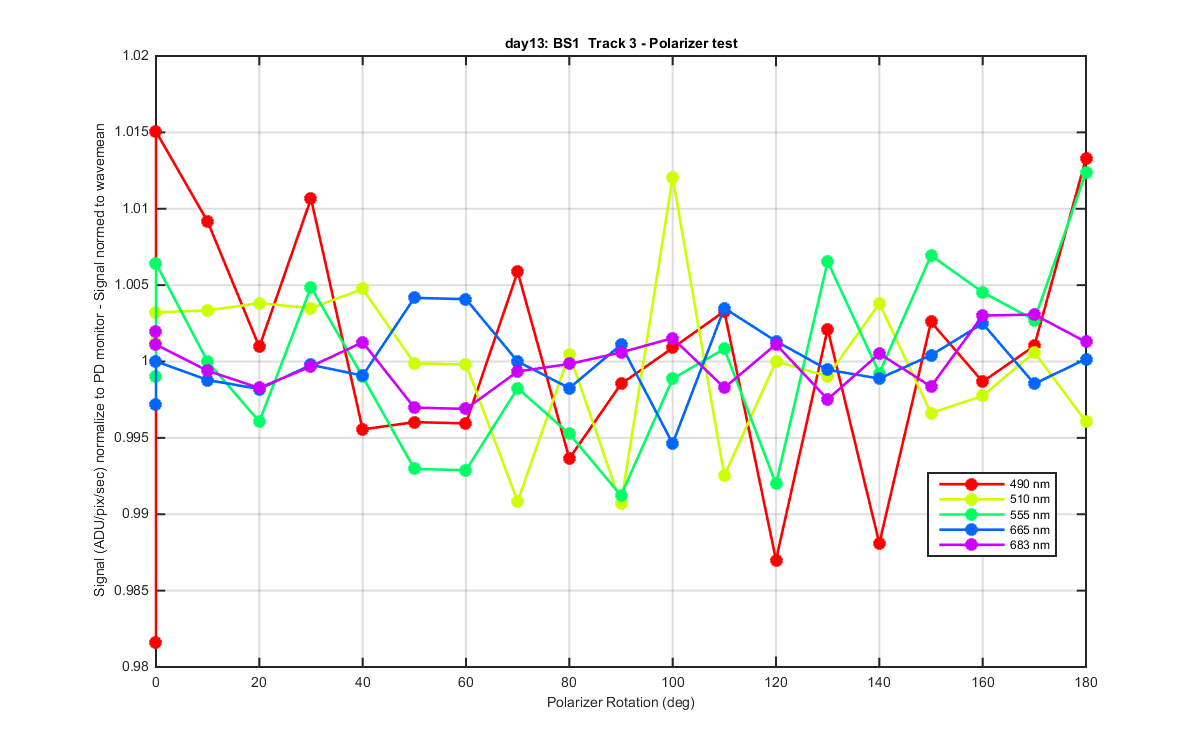

Figure 2

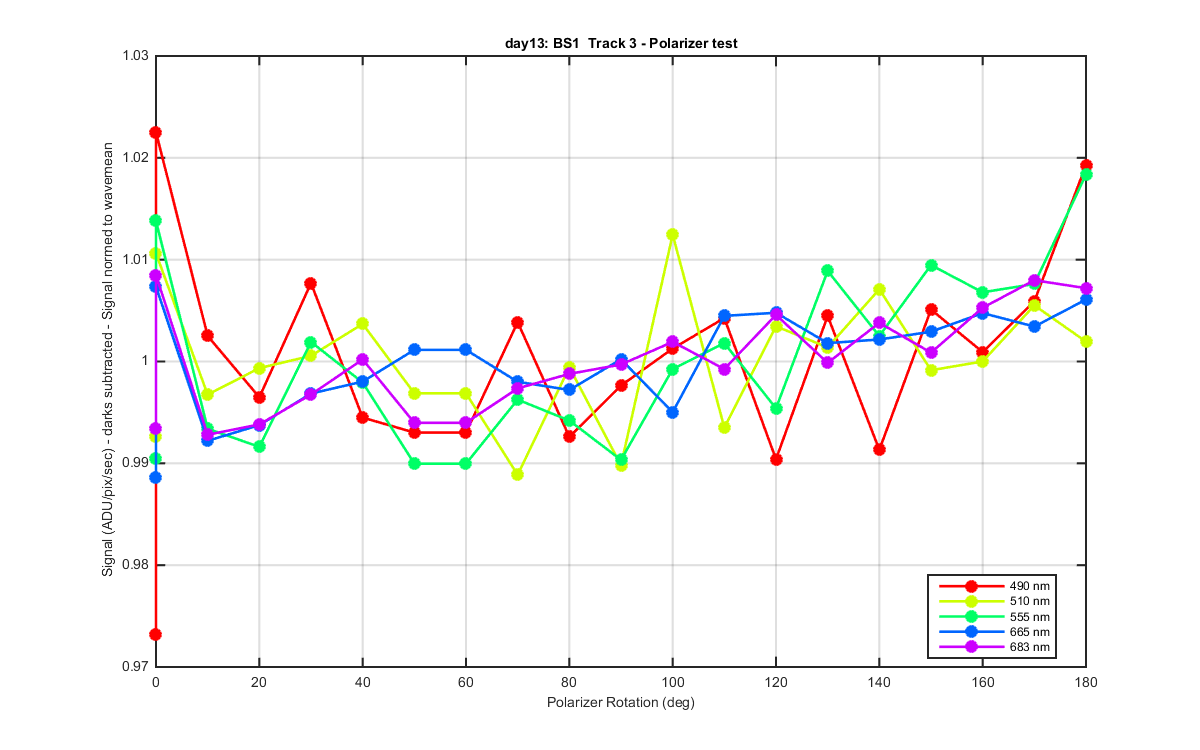

Figure 3

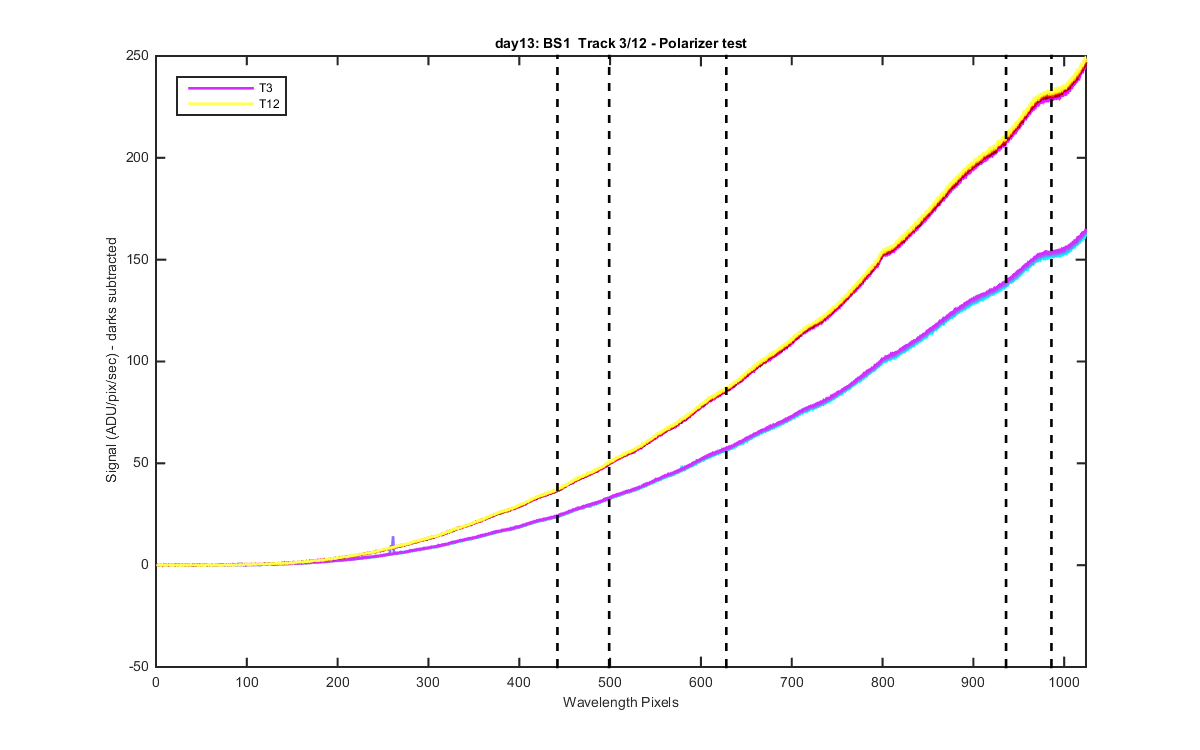

Figure 4

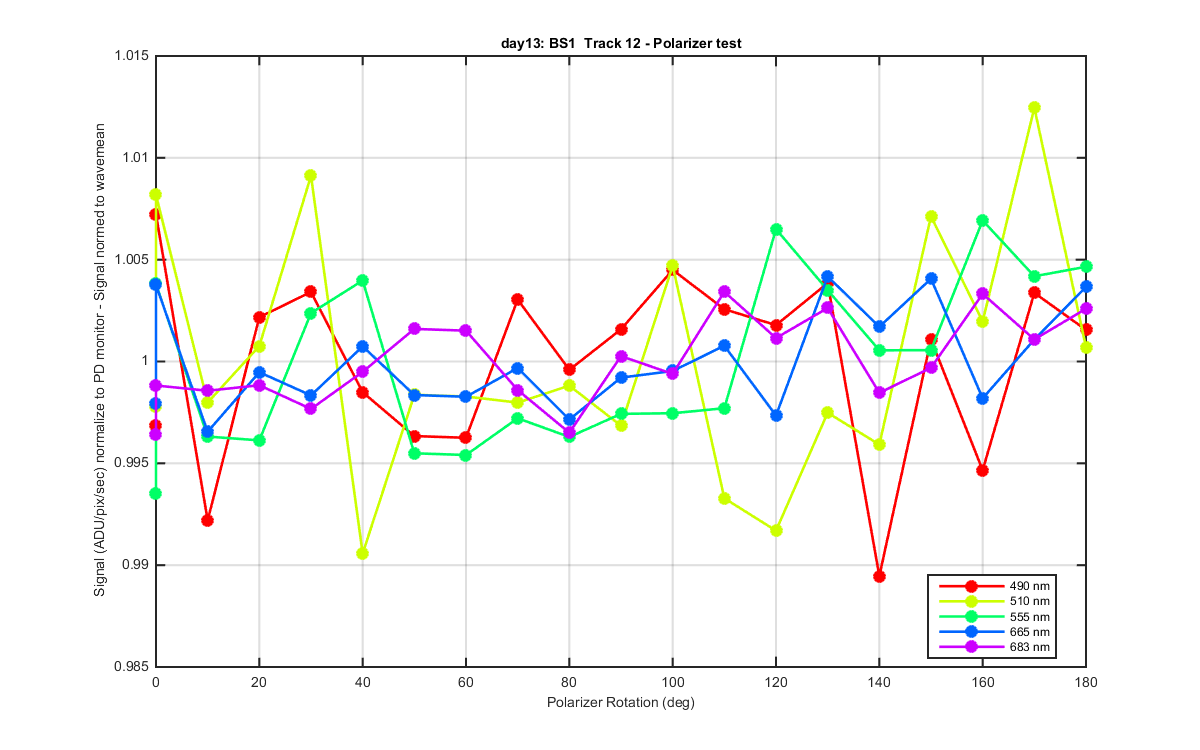

Figure 5

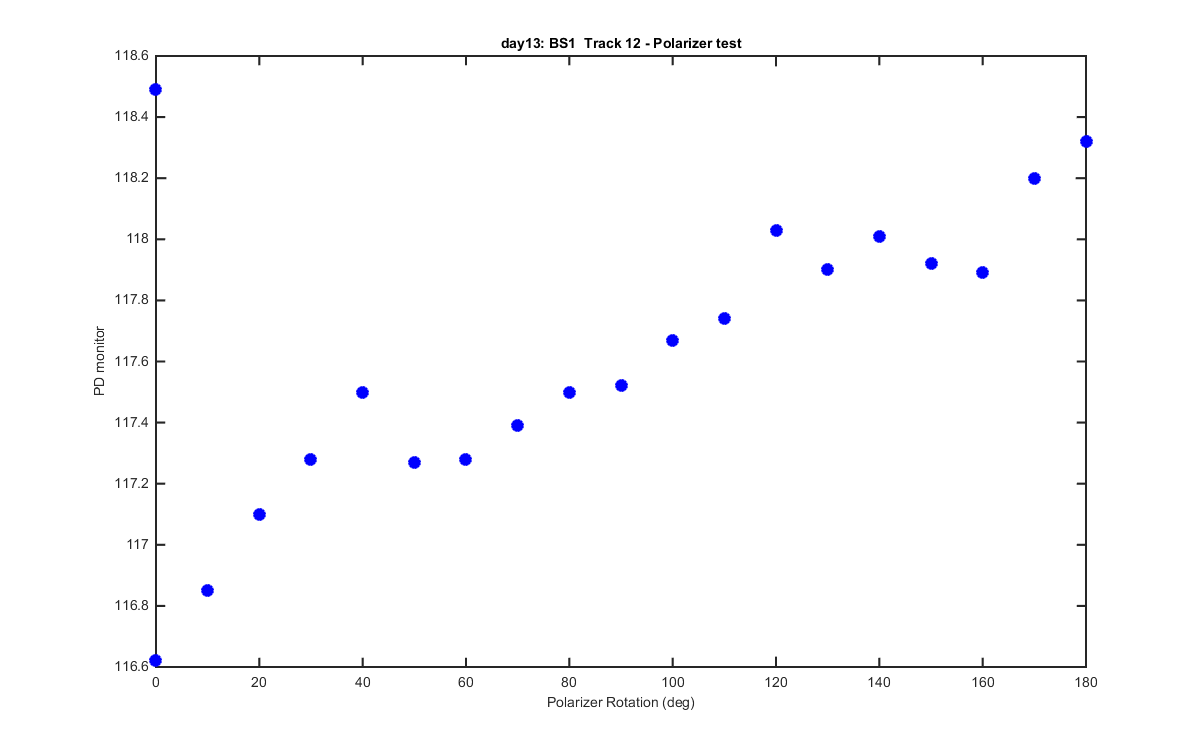

Figure 6


Polarization Parameter: Calculated using data from FIgures 5 and 6 above. Data was normalized to the PD monitor and to the wavelengths data mean. Before min and maxs where calculated.
Wavelength (nm) Track Polarization Parameter
490 3 1.612
510 3 1.072
555 3 0.964
665 3 0.725
683 3 0.837
490 12 1.025
510 12 1.190
555 12 0.442
665 12 0.632
683 12 0.684
pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2015-03\BS1cal\day13
Date: 20-Aug-2015 13:10:10
Created from plt_day13_polarization_(1)
