plt_day14_polarization_ - BS1

REVISION DATE: 25-Aug-2015 10:07:02

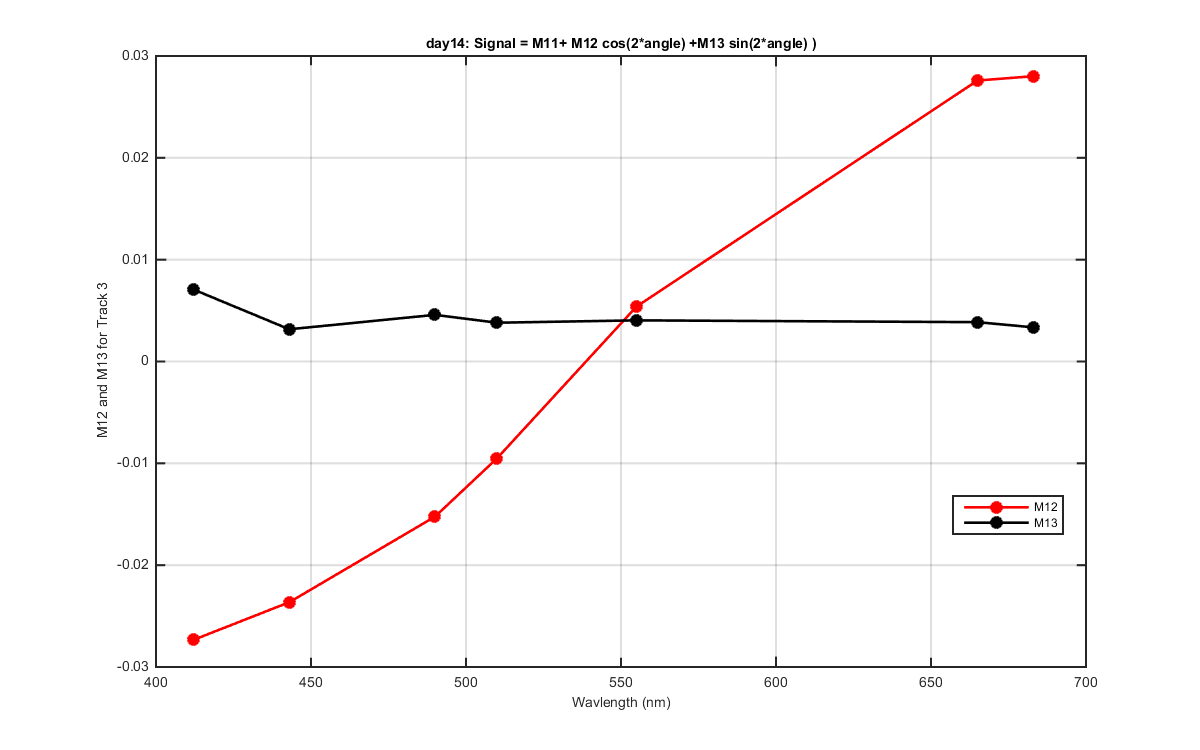

Polarizing Test: Files where collected with the polarizer, which is a filter on a rotation stage, illuminated by the Oriel incandescent source via the Spectralon sphere. This has the MOBY Lu Head #42 (MOBY247,LuBot) cleaned and connected to long FO #500. Mike suggested recreating the polarization parameter, P from the SIRREX7 section 7.3.3 and compare with their Table 11 results. The table at the bottom recreates the table 11 from the SIRREX7 paper. The plots of the data below show not polarization effect. The last graph is the fitted polarization parameters M12 and M13 (from Ken documentation).

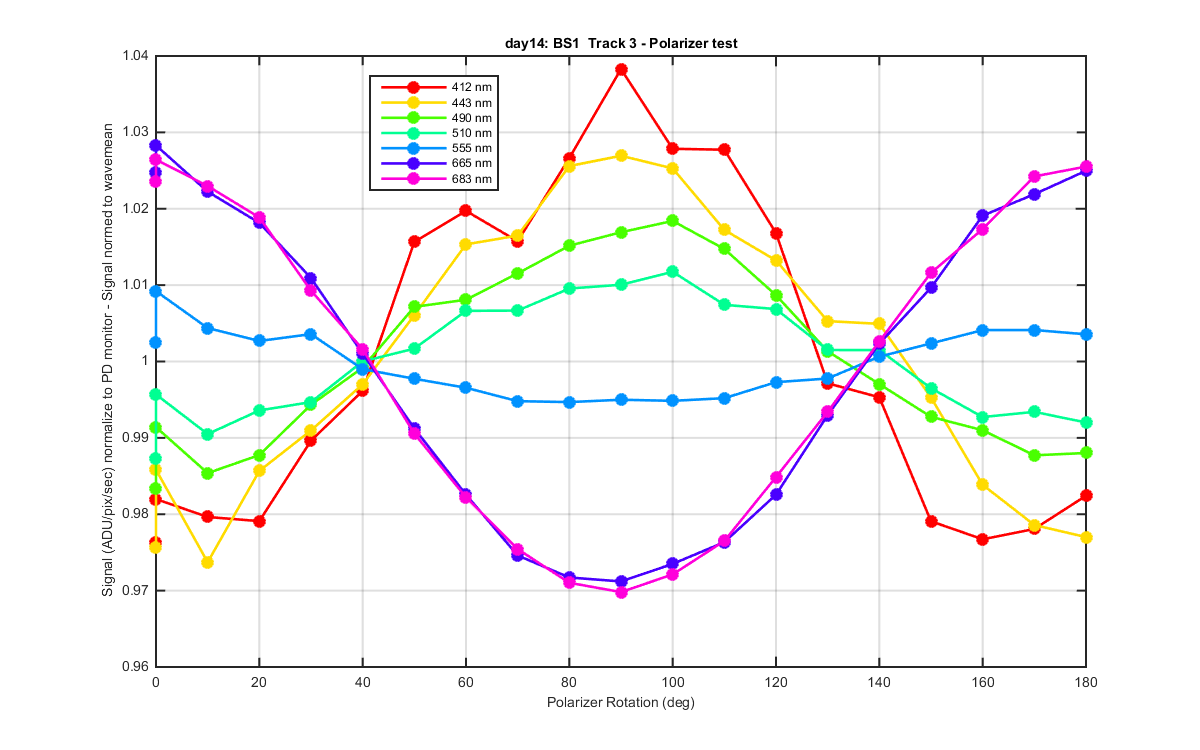

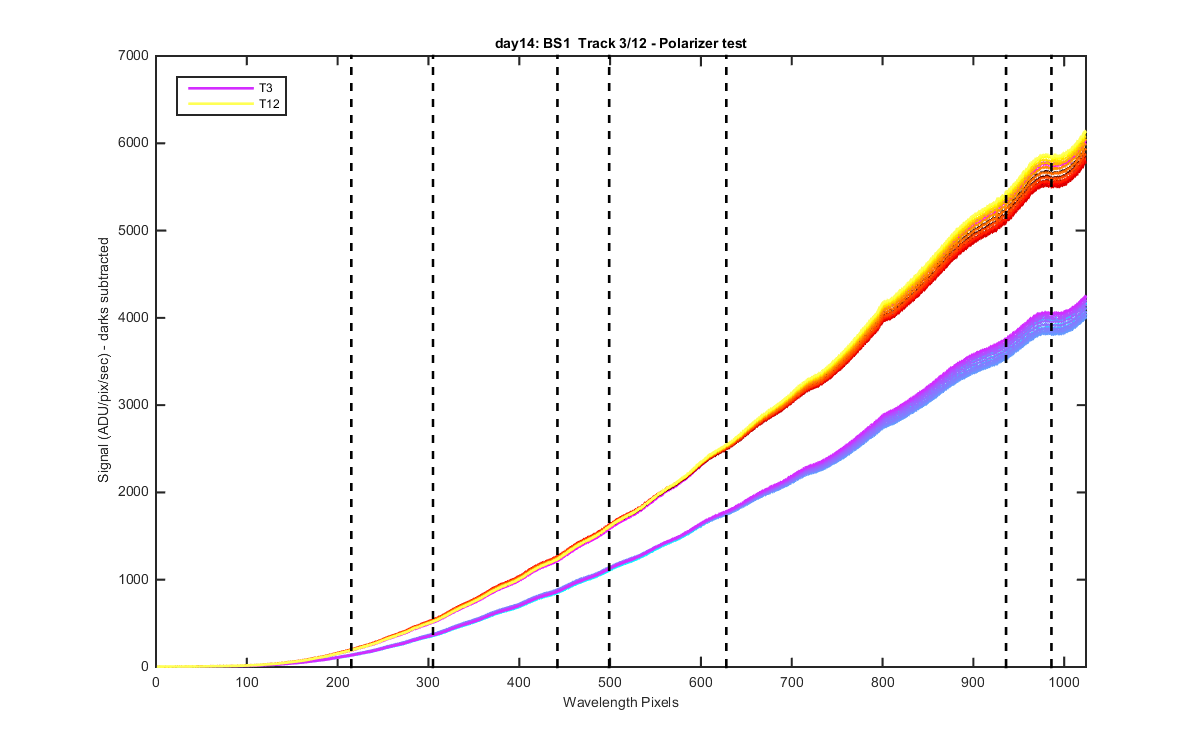

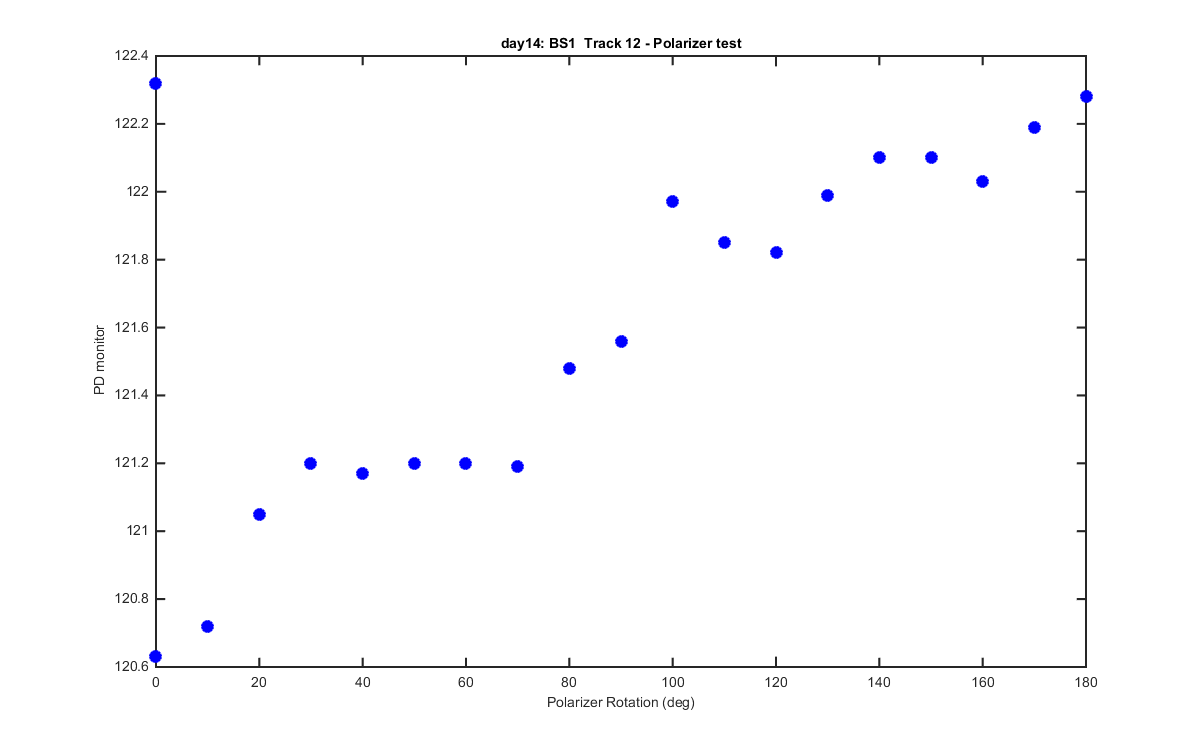

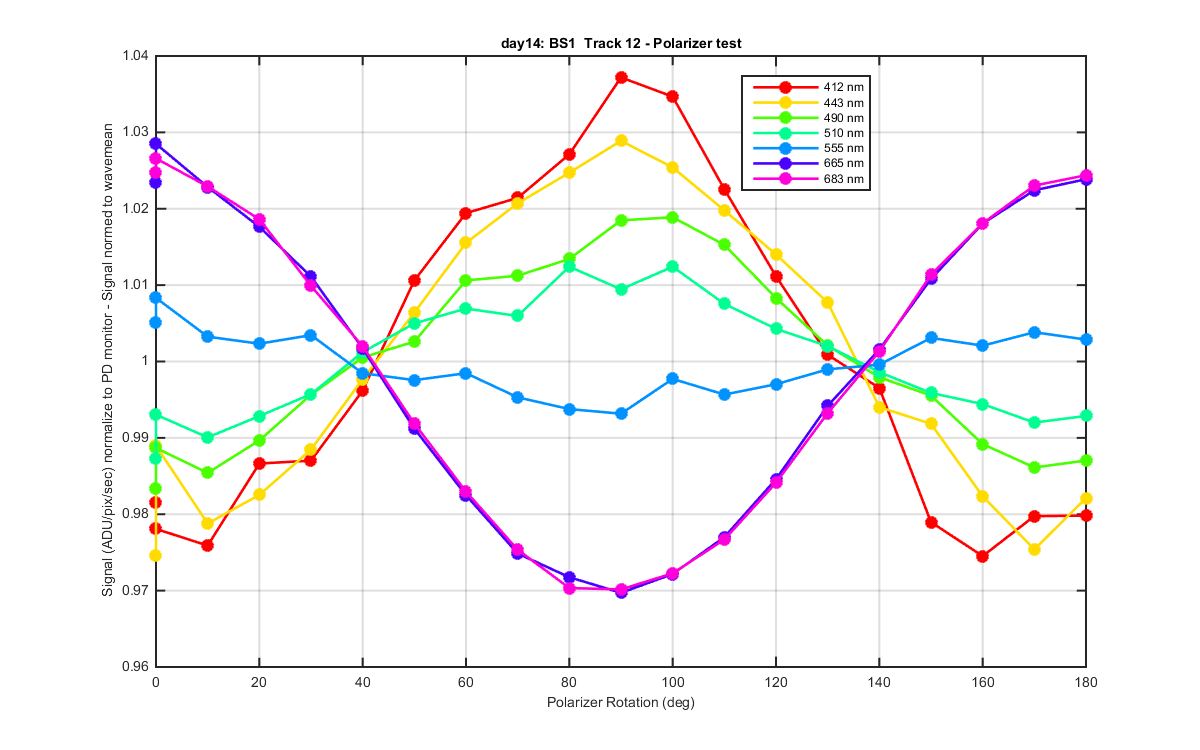

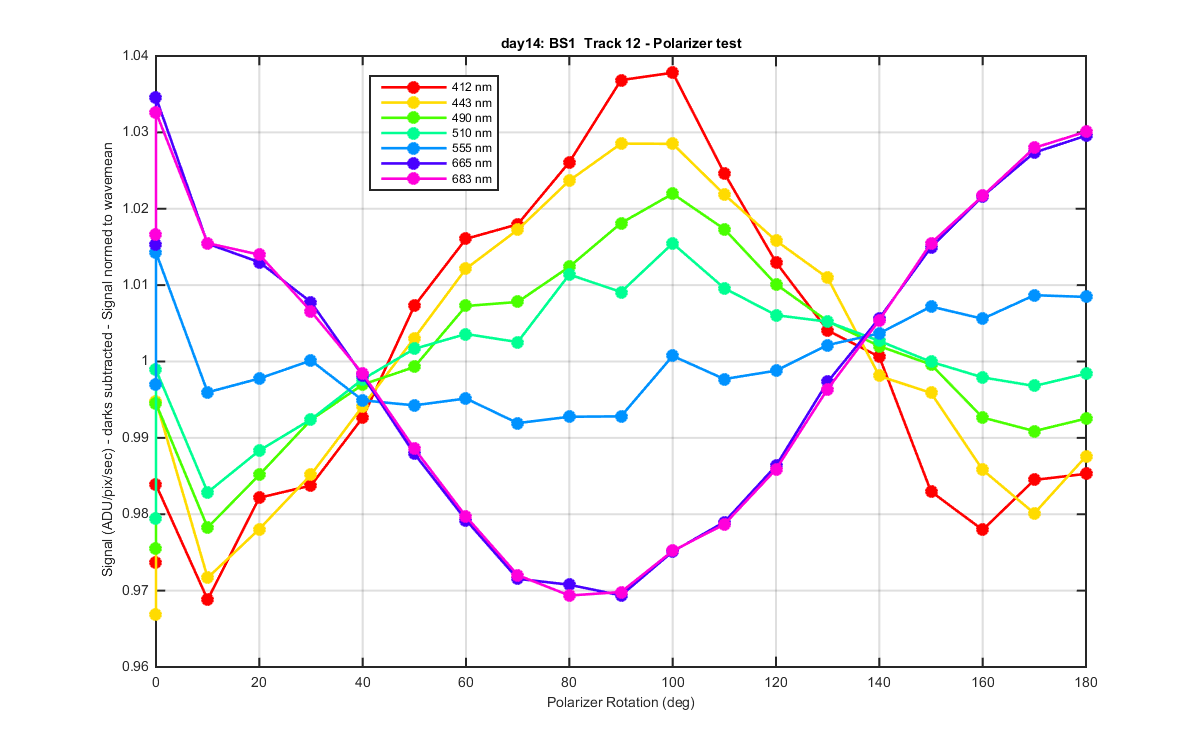

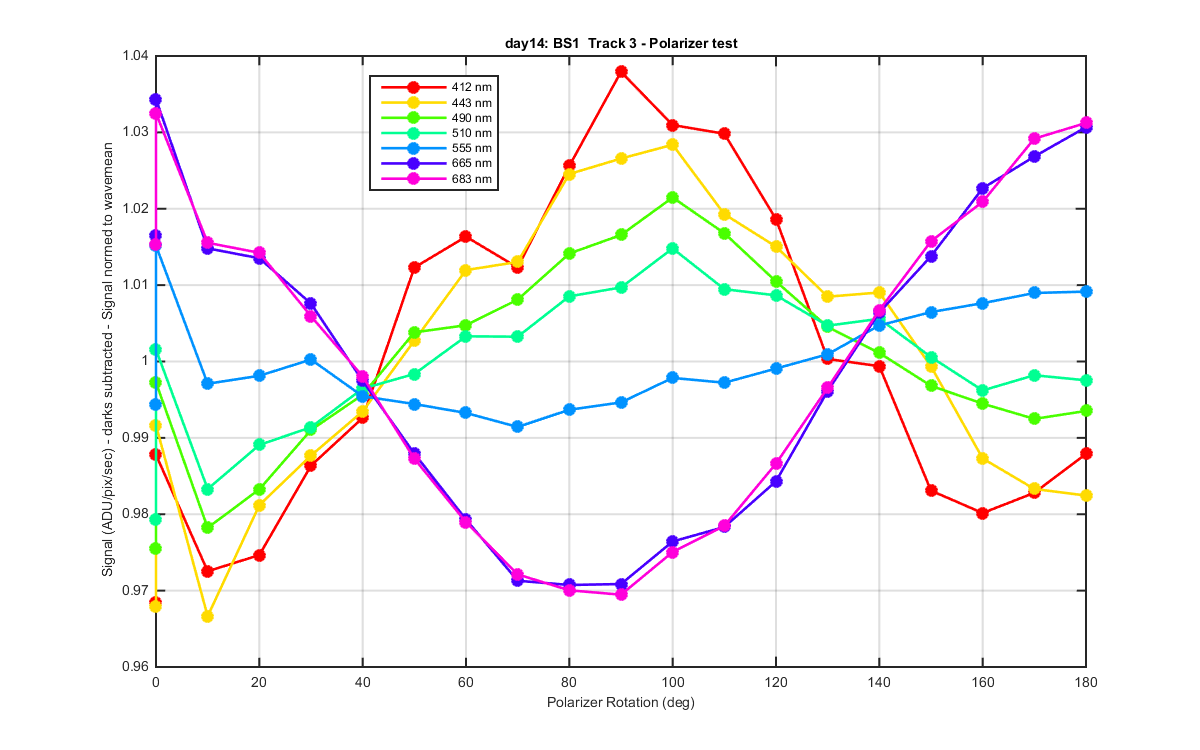

Figure 1


Figure 2


Figure 3


Figure 4


Figure 5


Figure 6


Figure 7


Polarization Parameter: Calculated using data from FIgures 5 and 6 above. Data was normalized to the PD monitor and to the wavelengths data mean. Before min and maxs where calculated.
Wavelength (nm) Track Polarization Parameter M12 M13
412 3 3.248 -0.02735 0.00708
443 3 2.787 -0.02364 0.00316
490 3 1.737 -0.01524 0.00458
510 3 1.205 -0.00951 0.00381
555 3 0.992 0.00540 0.00404
665 3 3.114 0.02759 0.00386
683 3 3.129 0.02802 0.00335
412 12 3.308 -0.02726 0.00730
443 12 2.927 -0.02459 0.00458
490 12 1.872 -0.01537 0.00439
510 12 1.311 -0.00969 0.00484
555 12 0.979 0.00511 0.00406
665 12 3.123 0.02753 0.00362
683 12 3.182 0.02787 0.00392
pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2015-03\BS1cal\day14
Date: 25-Aug-2015 10:07:02
Created from plt_day14_polarization_(1)
