plt_day15_polarization_ - BS1

REVISION DATE: 25-Aug-2015 10:08:53

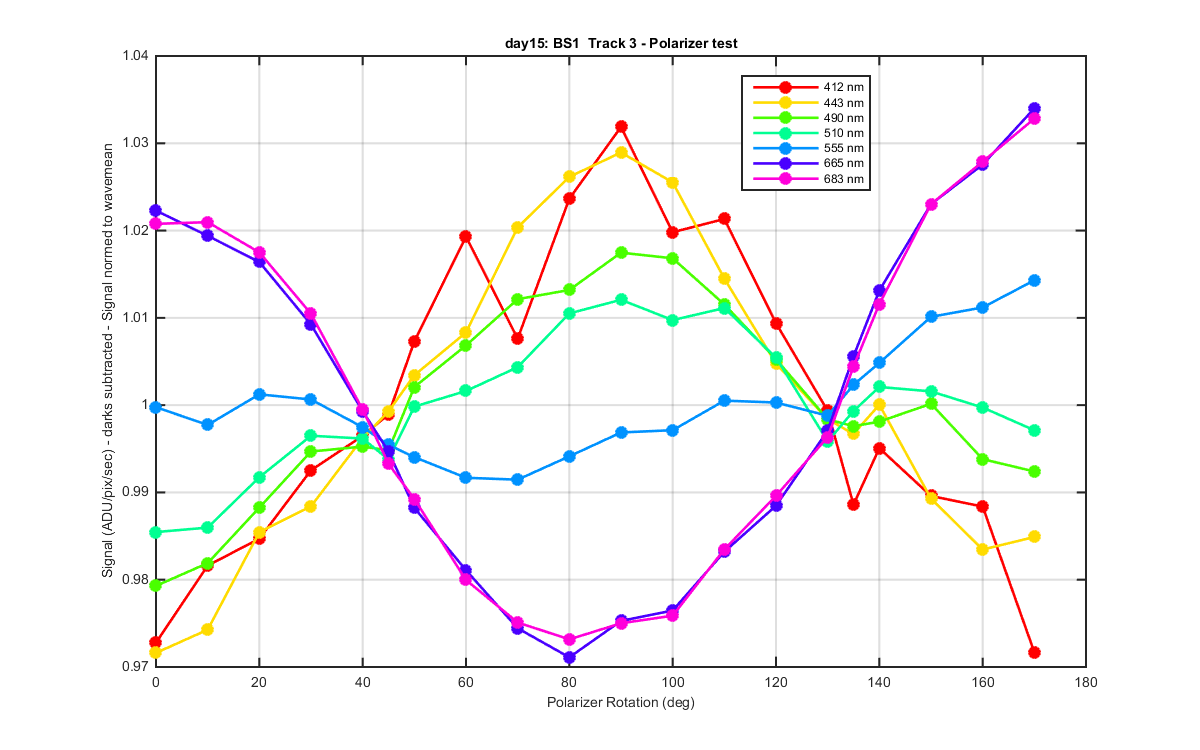

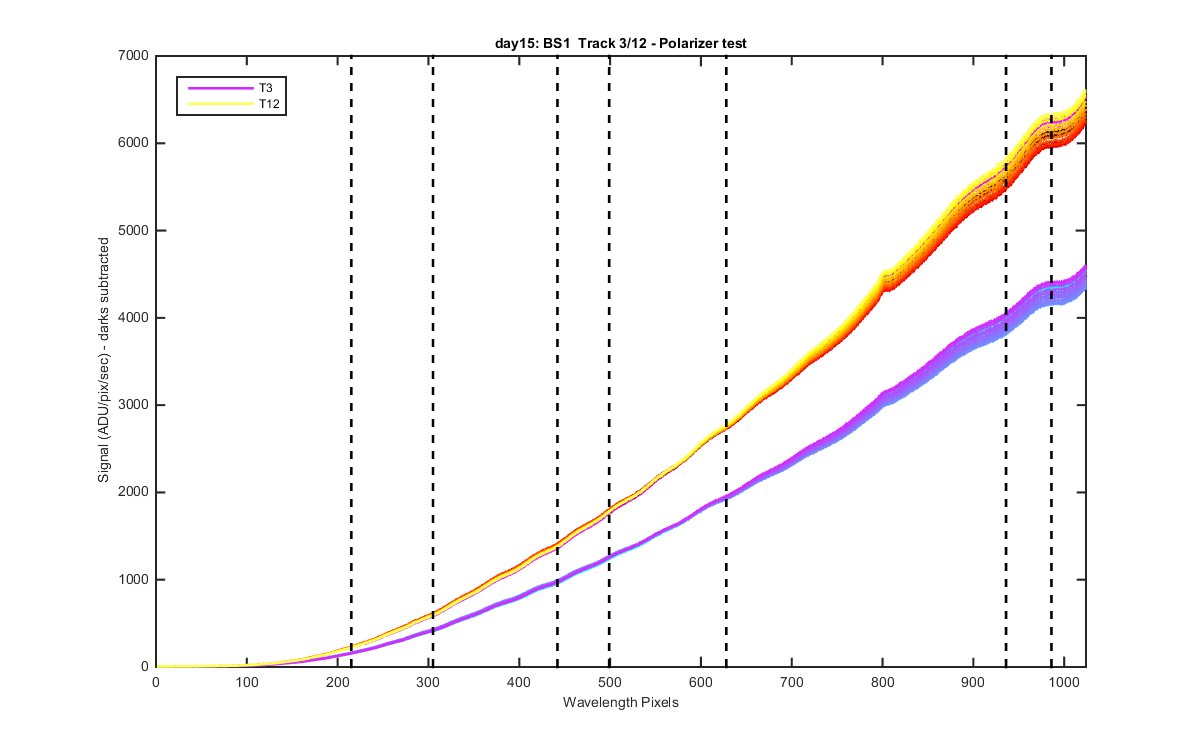

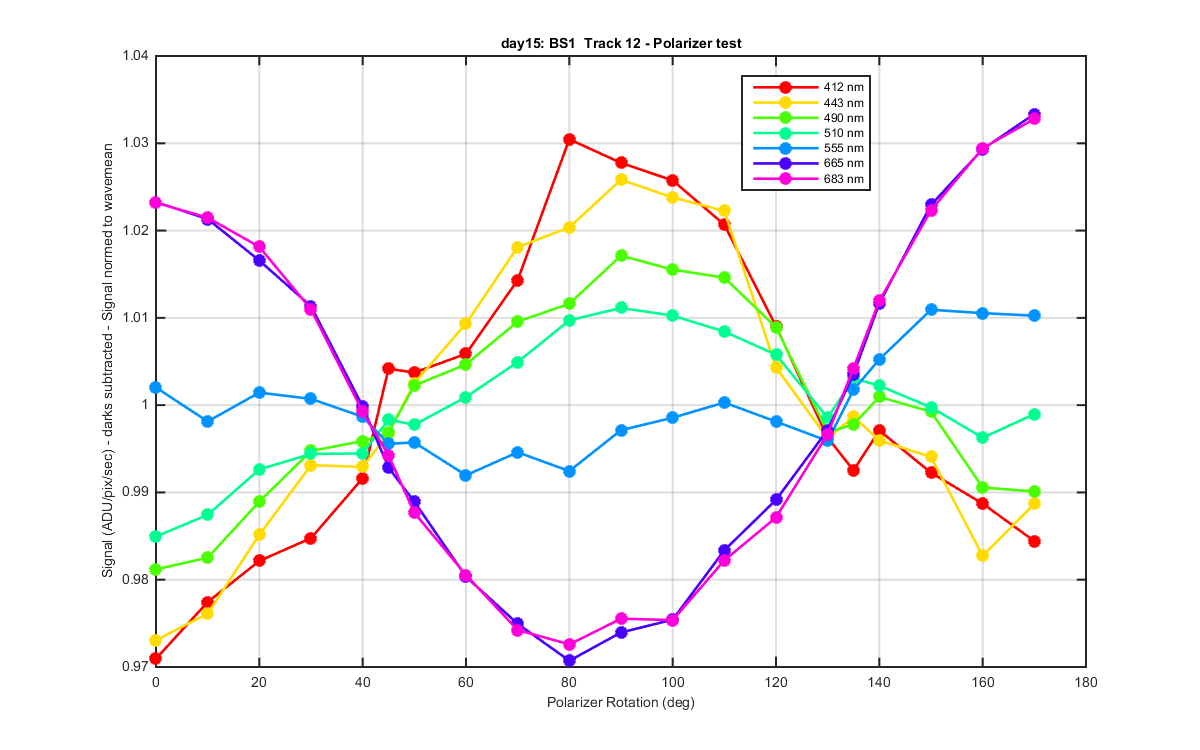

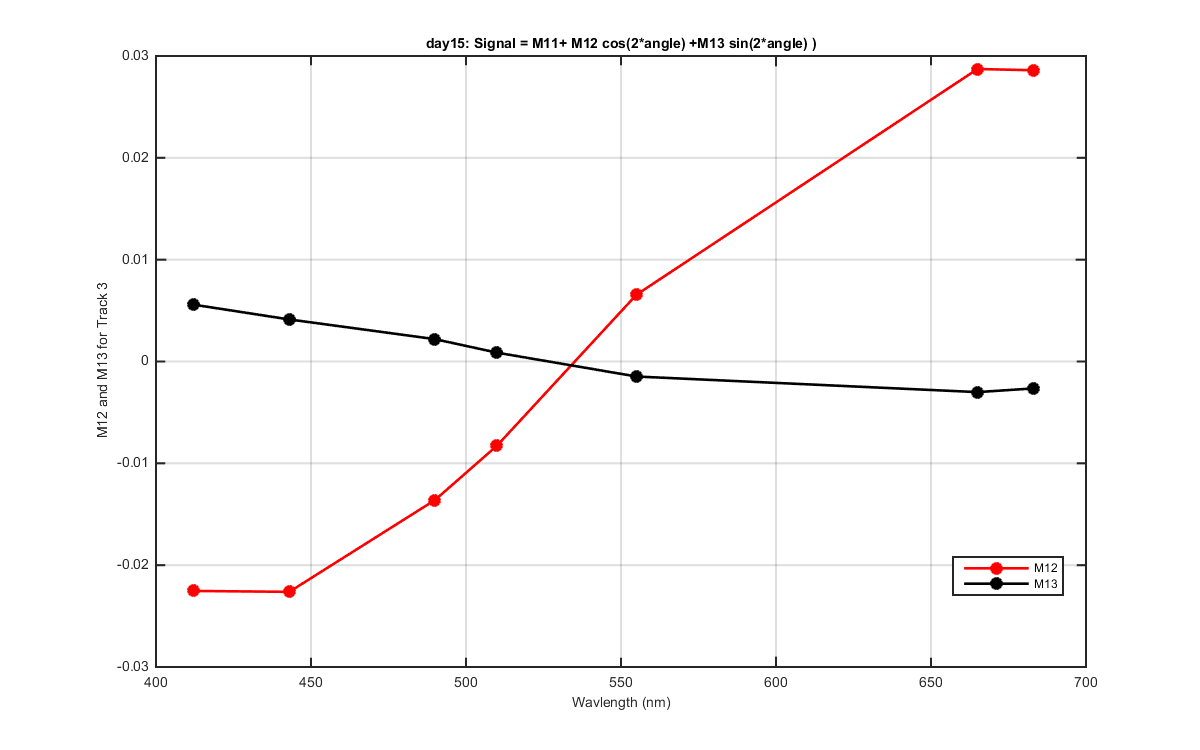

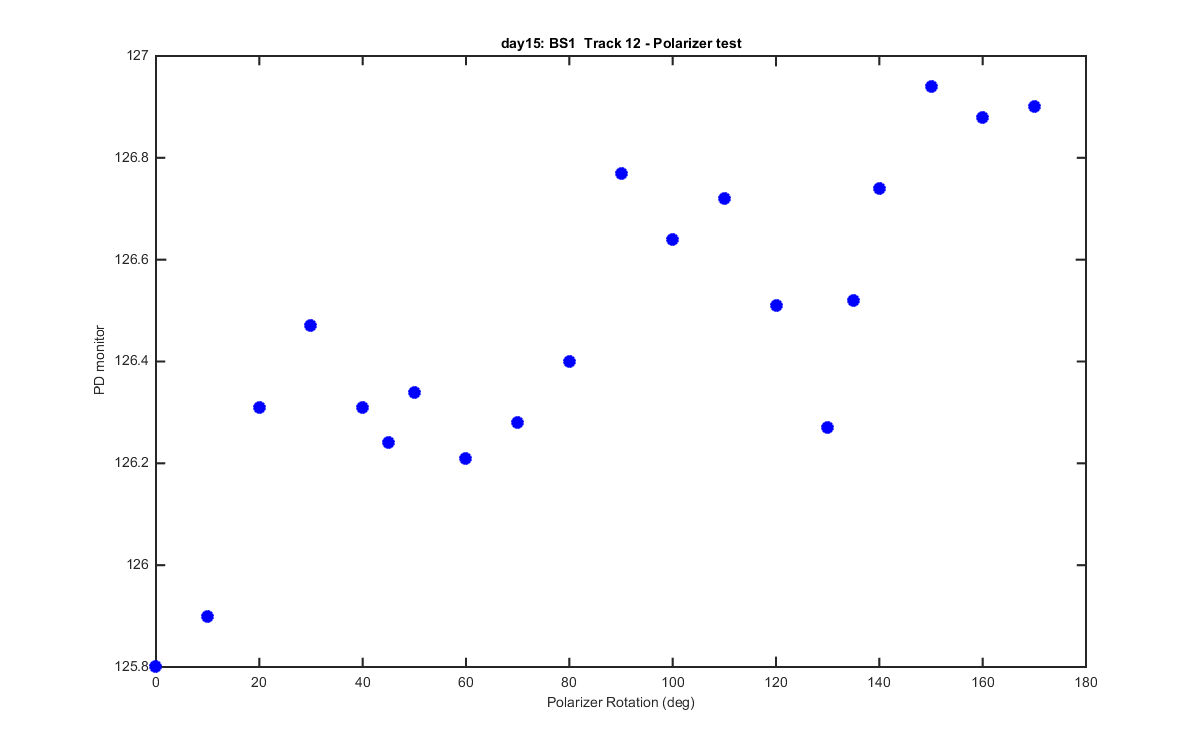

Polarizing Test: Day14 = long FO and day15 = short FO. Mike changed the fiber from a long to a short fiber added the 45 adn 135 degree angles. Files where collected with the polarizer, which is a filter on a rotation stage, illuminated by the Oriel incandescent source via the Spectralon sphere. This has the MOBY Lu Head #42 (MOBY247,LuBot) cleaned and connected to short FO #500. Mike suggested recreating the polarization parameter, P from the SIRREX7 section 7.3.3 and compare with their Table 11 results. The table at the bottom recreates the table 11 from the SIRREX7 paper. The plots of the data below show not polarization effect. The last graph is the fitted polarization parameters M12 and M13 (from Ken documentation).

Figure 1


Figure 2


Figure 3


Figure 4


Figure 5


Figure 6


Figure 7

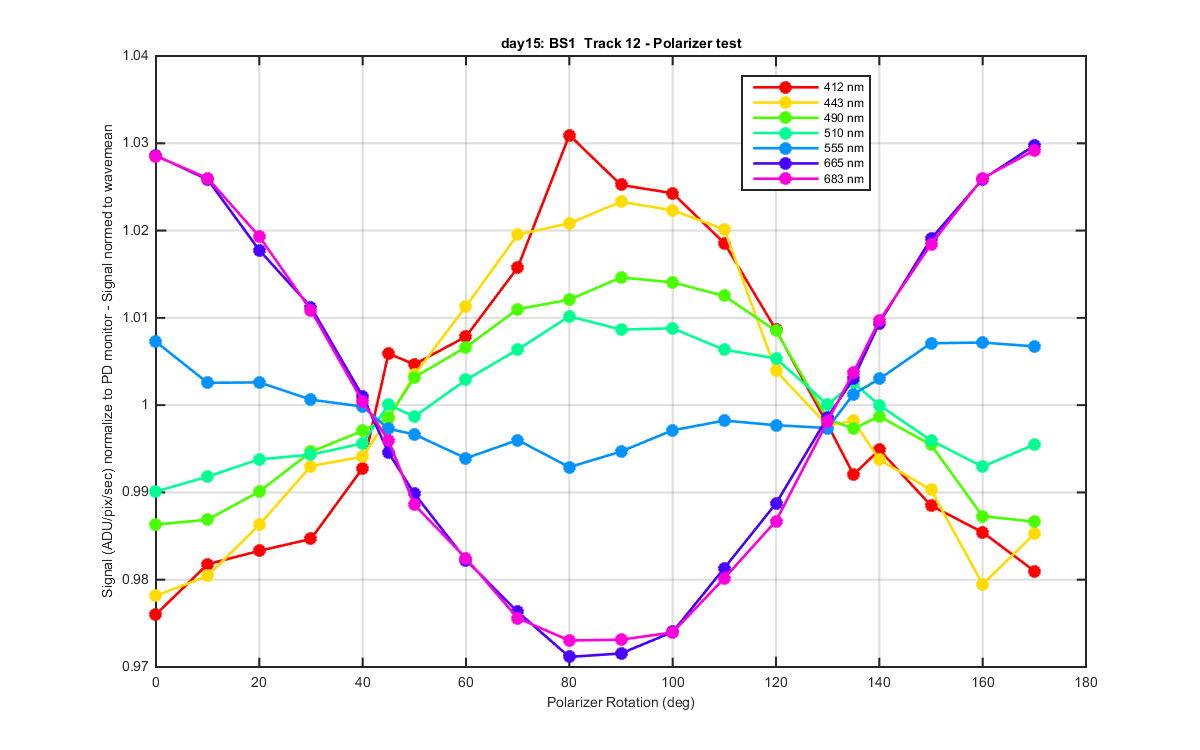

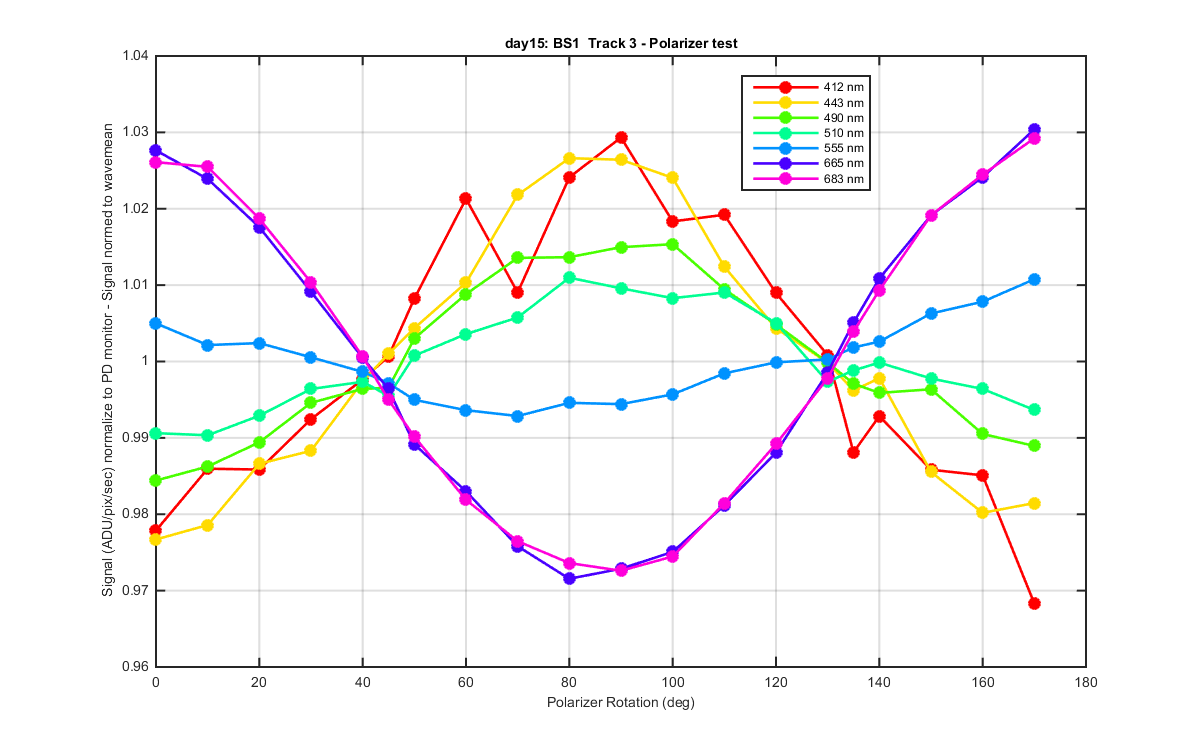

Polarization Parameter: Calculated using data from FIgures 5 and 6 above. Data was normalized to the PD monitor and to the wavelengths data mean. Before min and maxs where calculated.
Wavelength (nm) Track Polarization Parameter M12 M13
412 3 3.106 -0.02253 0.00559
443 3 2.503 -0.02262 0.00413
490 3 1.474 -0.01360 0.00219
510 3 1.061 -0.00826 0.00087
555 3 0.913 0.00656 -0.00147
665 3 3.121 0.02872 -0.00301
683 3 3.060 0.02860 -0.00264
412 12 2.680 -0.02280 0.00296
443 12 2.257 -0.02083 0.00323
490 12 1.472 -0.01354 0.00192
510 12 1.050 -0.00805 0.00059
555 12 1.012 0.00636 -0.00042
665 12 3.236 0.02944 -0.00271
683 12 3.152 0.02940 -0.00242
pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2015-03\BS1cal\day15
Date: 25-Aug-2015 10:08:53
Created from plt_day15_polarization_(1)
