plt_day17_polarization_ - BS1
REVISION DATE: 25-Aug-2015 16:28:02
Polarizing Test: Day17 with a Thorlabs quartz depolarizer DPU-25-A behind/inside Lu Window. So this should removed the polarization in the data???.
See Mike Depolarizing Alignment image at the bottom of this page for more details in Lu installation.

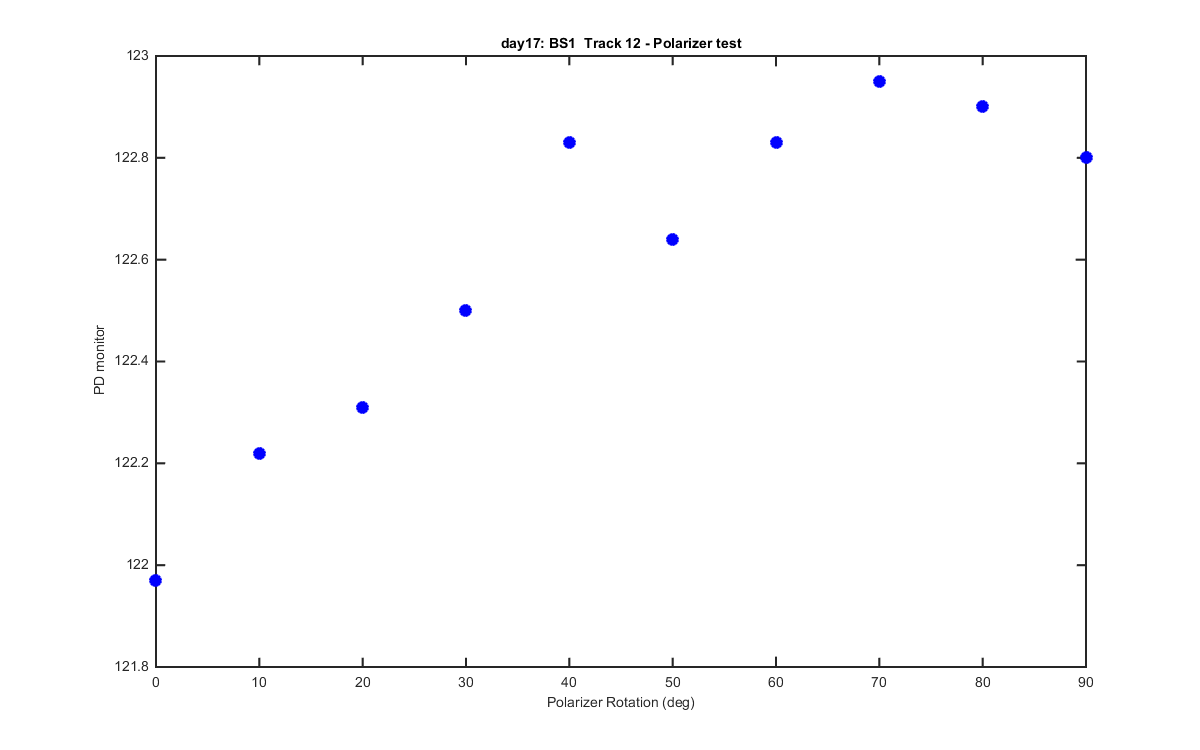

Figure 1

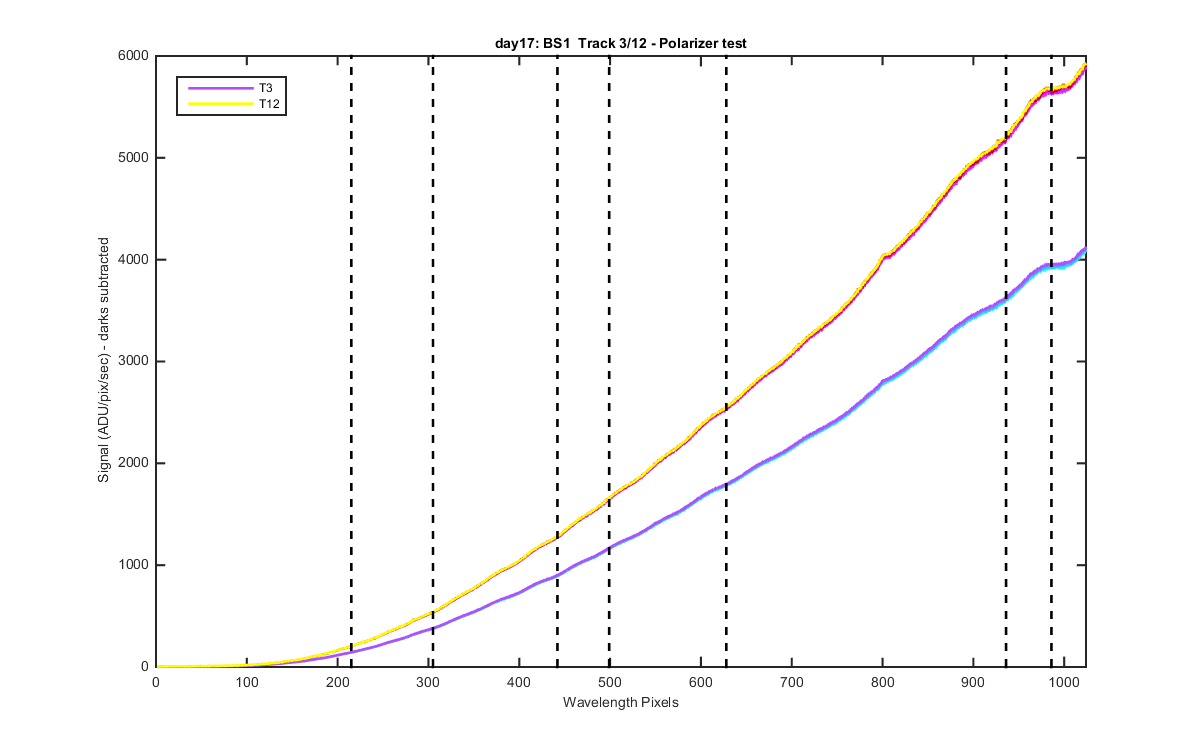

Figure 2

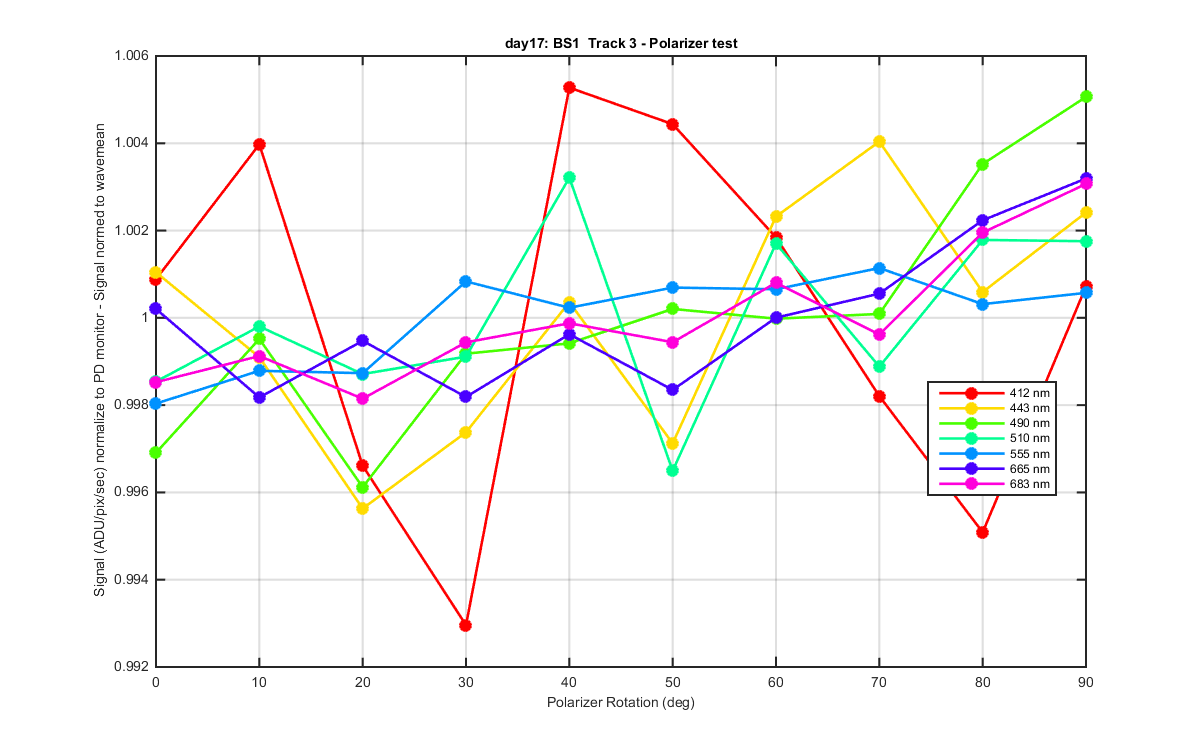

Figure 3

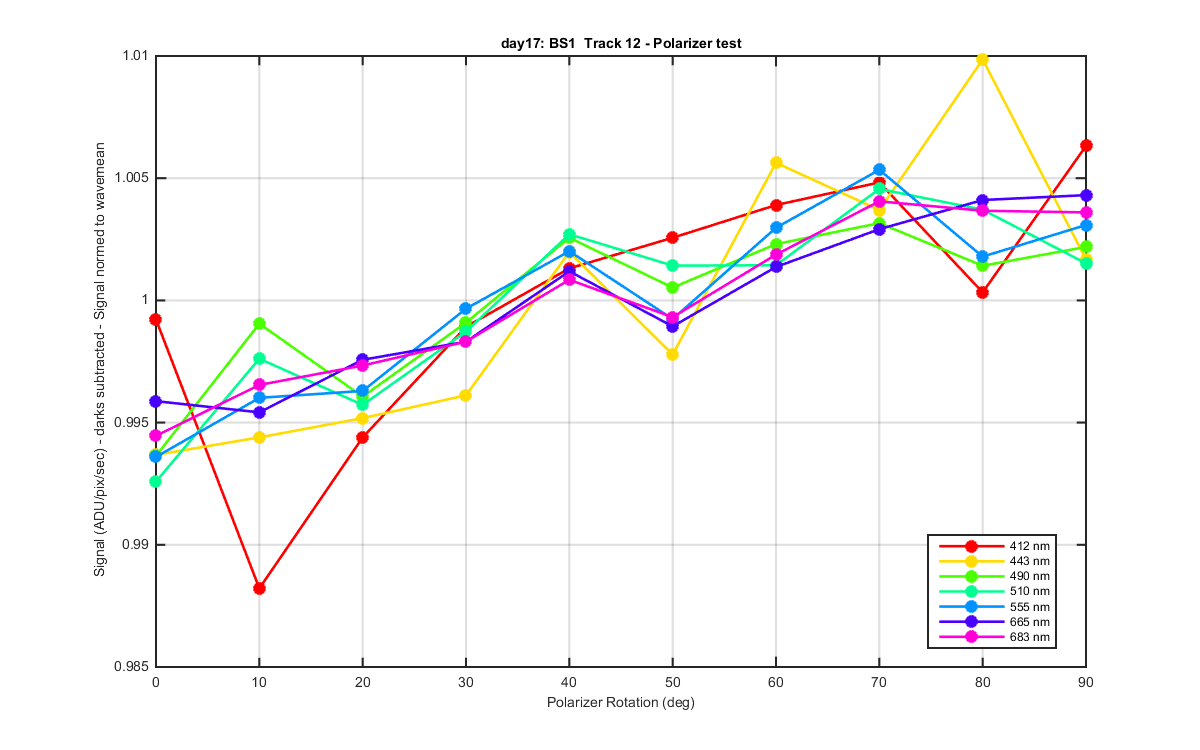

Figure 4

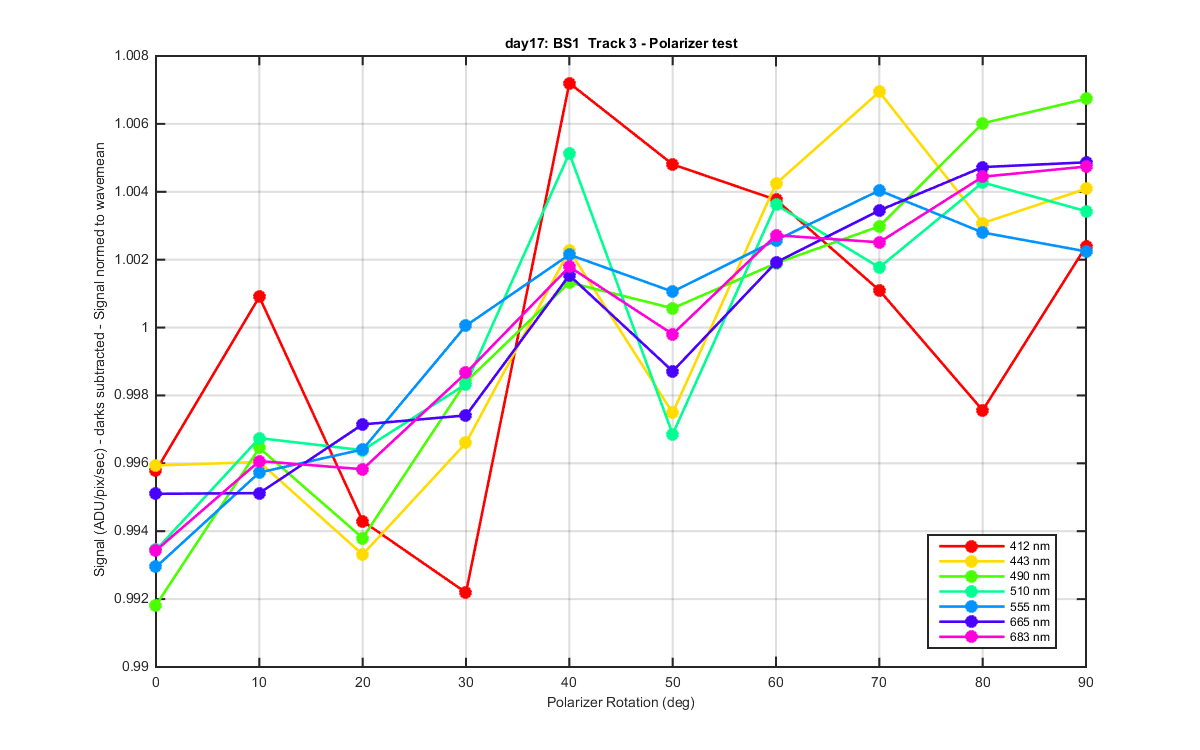

Figure 5

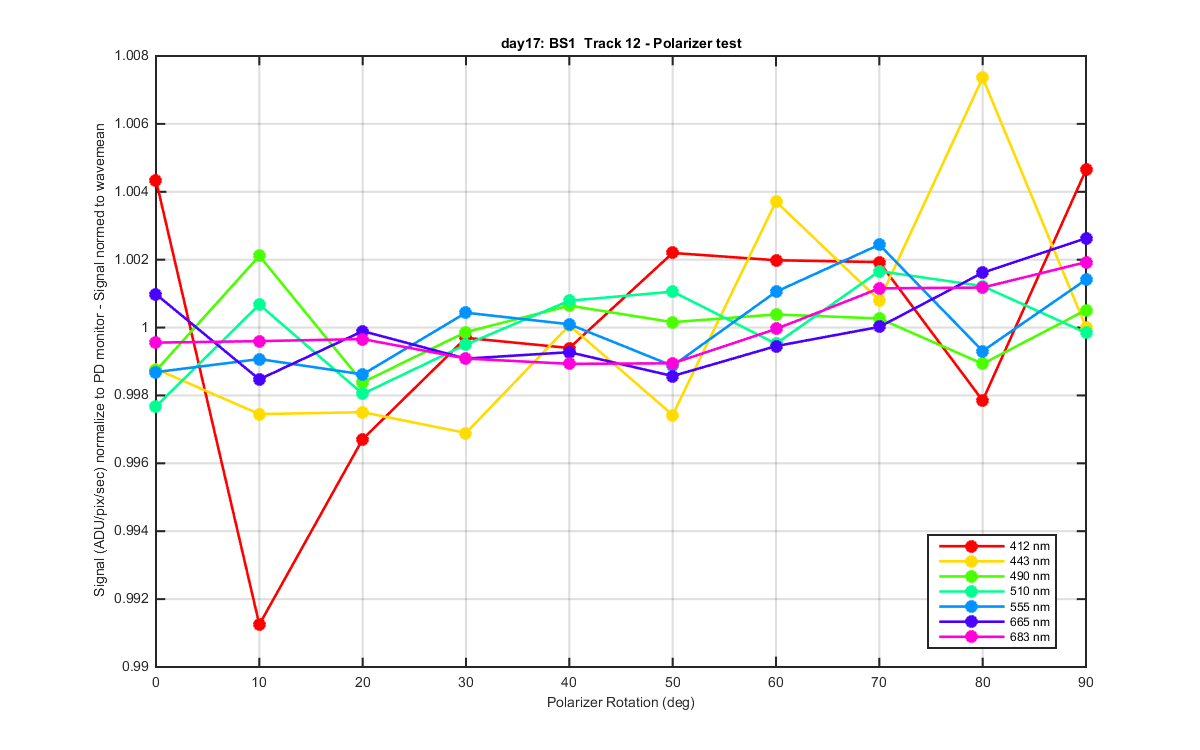

Figure 6

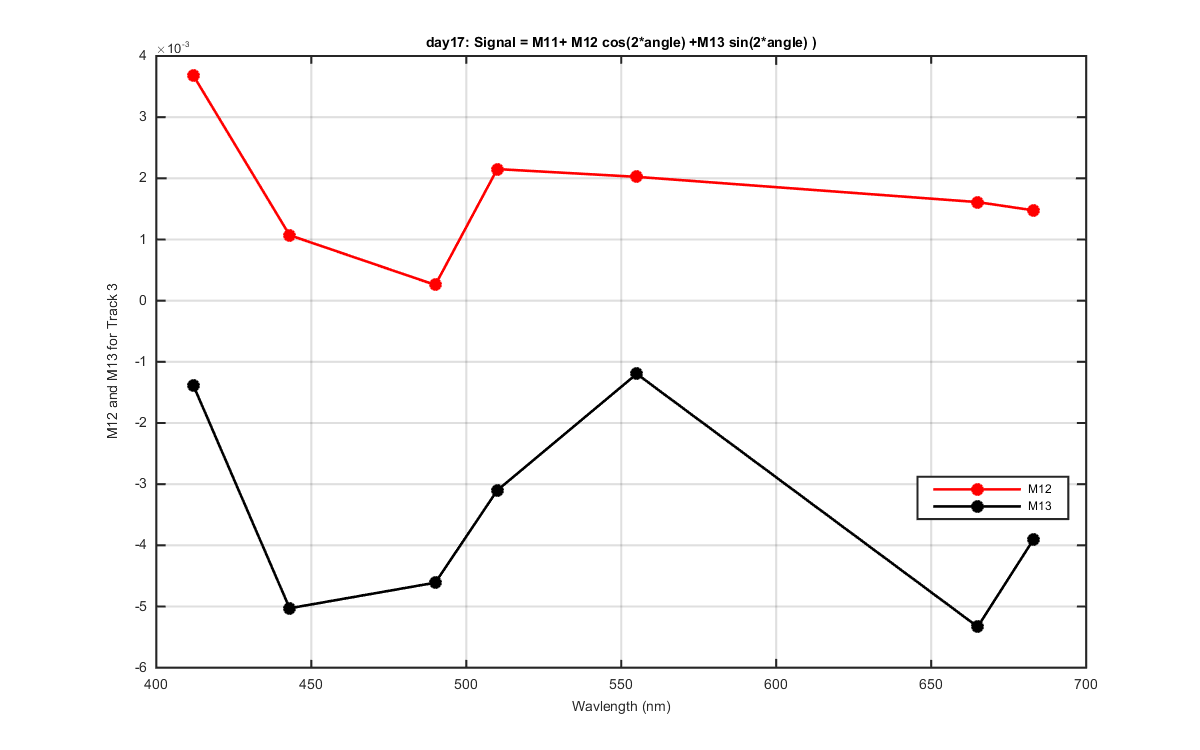

Figure 7

Polarization Parameter: Calculated using data from FIgures 5 and 6 above. Data was normalized to the PD monitor and to the wavelengths data mean.
Before min and maxs where calculated.
Wavelength (nm) |
Track |
Polarization Parameter |
M12 |
M13 |
412 |
3 |
0.722 |
0.00368 |
-0.00139 |
443 |
3 |
0.470 |
0.00107 |
-0.00503 |
490 |
3 |
0.309 |
0.00026 |
-0.00461 |
510 |
3 |
0.383 |
0.00215 |
-0.00310 |
555 |
3 |
0.266 |
0.00202 |
-0.00120 |
665 |
3 |
0.383 |
0.00161 |
-0.00533 |
683 |
3 |
0.345 |
0.00148 |
-0.00390 |
412 |
12 |
0.758 |
0.00088 |
-0.00391 |
443 |
12 |
0.390 |
0.00022 |
-0.00377 |
490 |
12 |
0.436 |
0.00310 |
-0.00205 |
510 |
12 |
0.307 |
0.00214 |
-0.00153 |
555 |
12 |
0.349 |
0.00201 |
-0.00233 |
665 |
12 |
0.448 |
0.00224 |
-0.00536 |
683 |
12 |
0.383 |
0.00216 |
-0.00431 |
pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2015-03\BS1cal\day17
Date: 25-Aug-2015 16:28:02
Created from plt_day17_polarization_(1)
