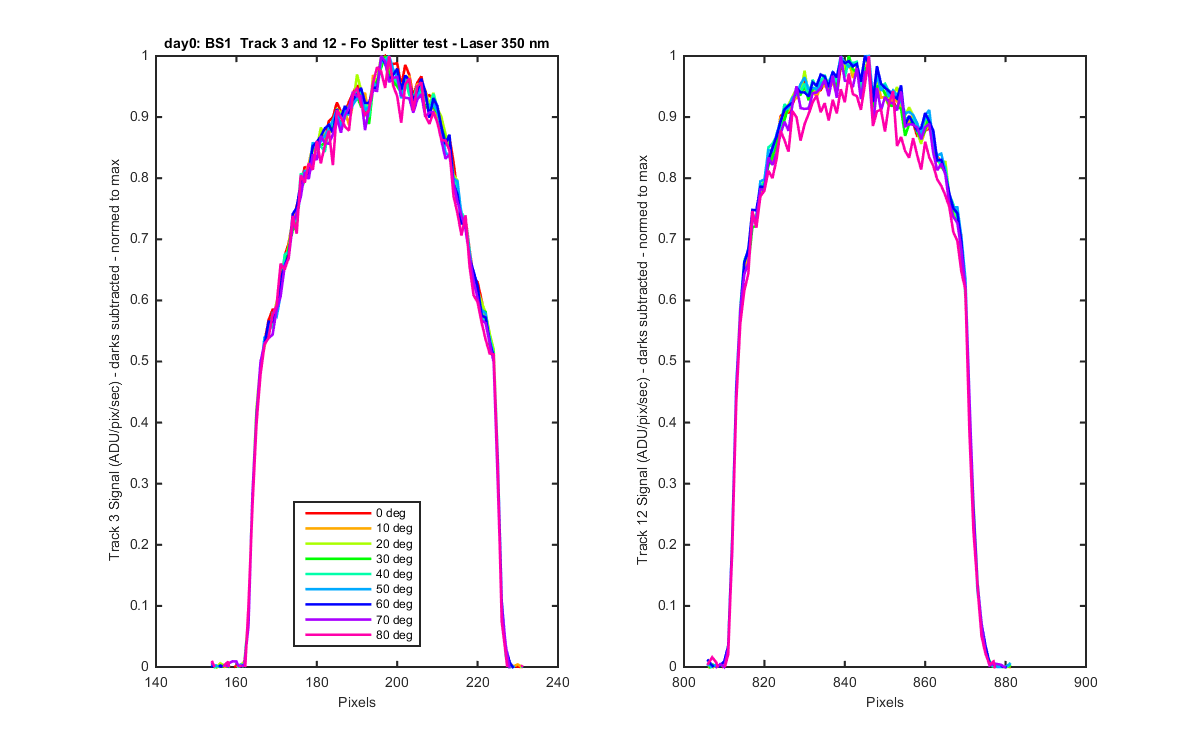

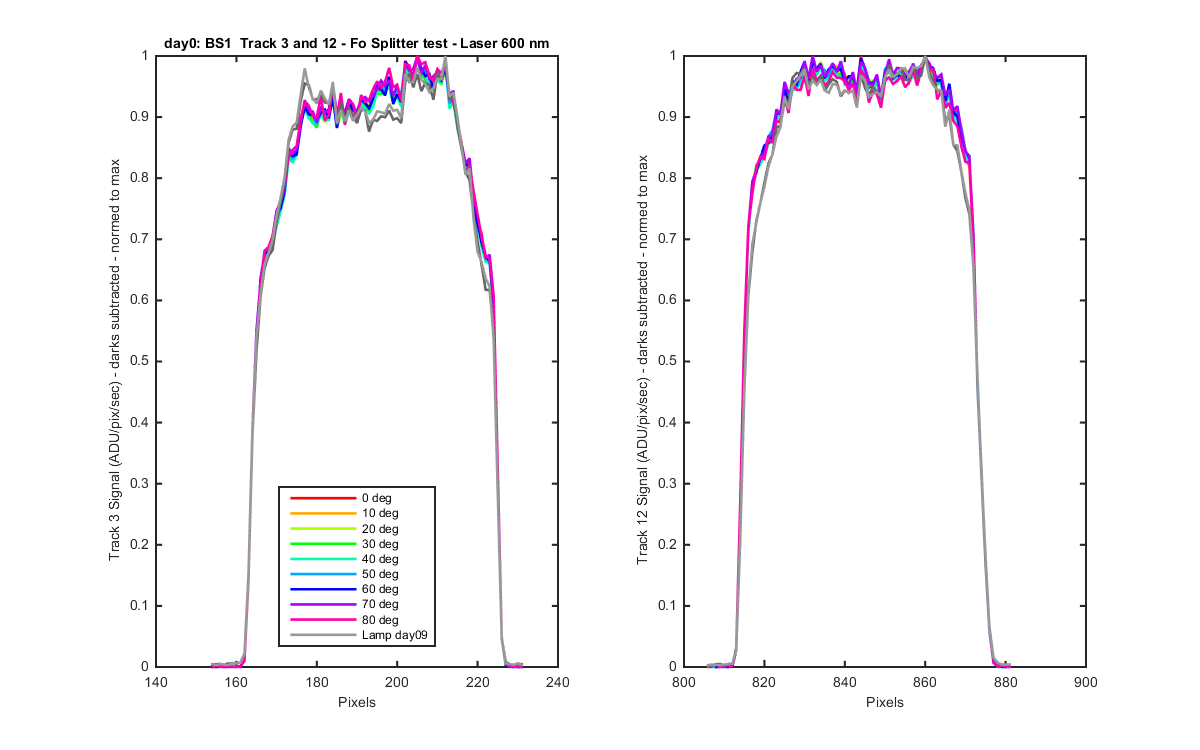

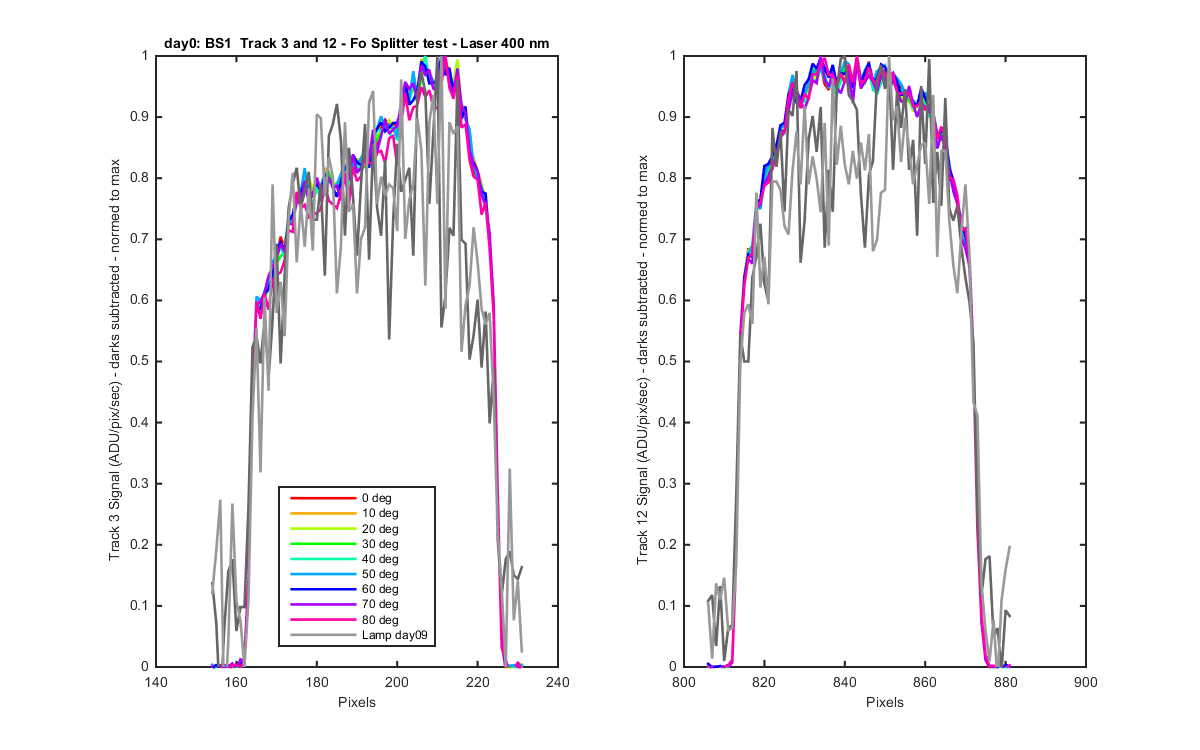

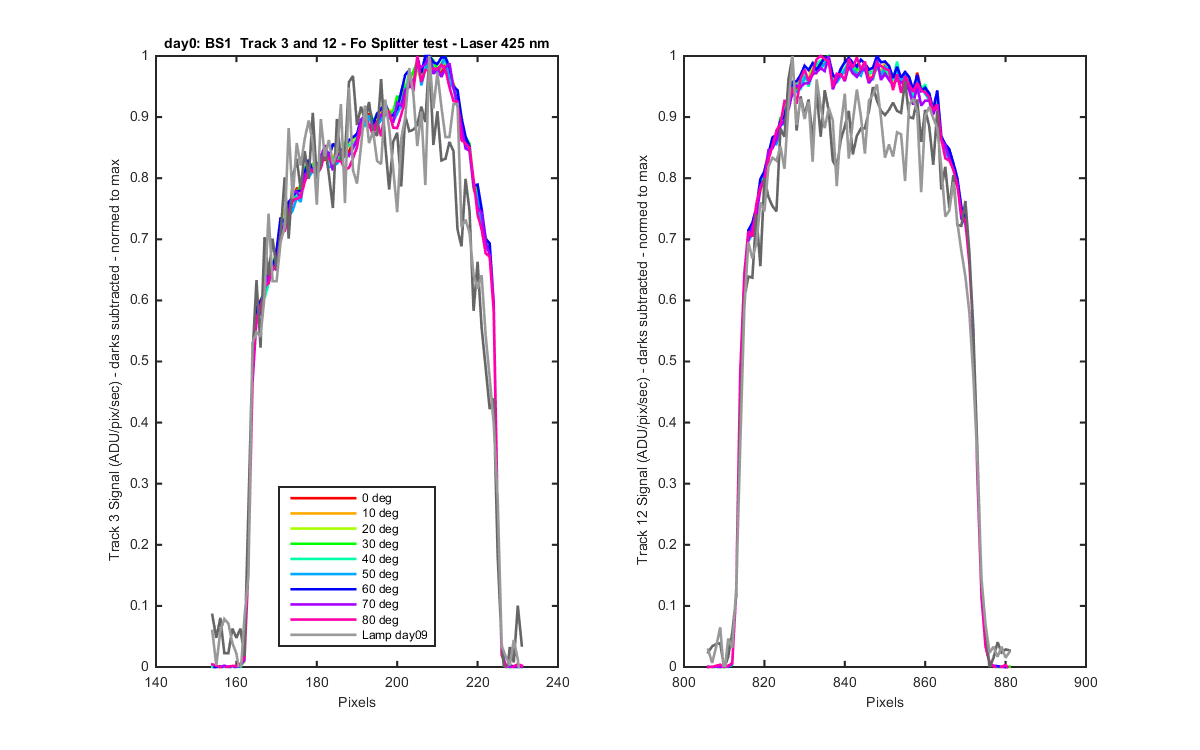

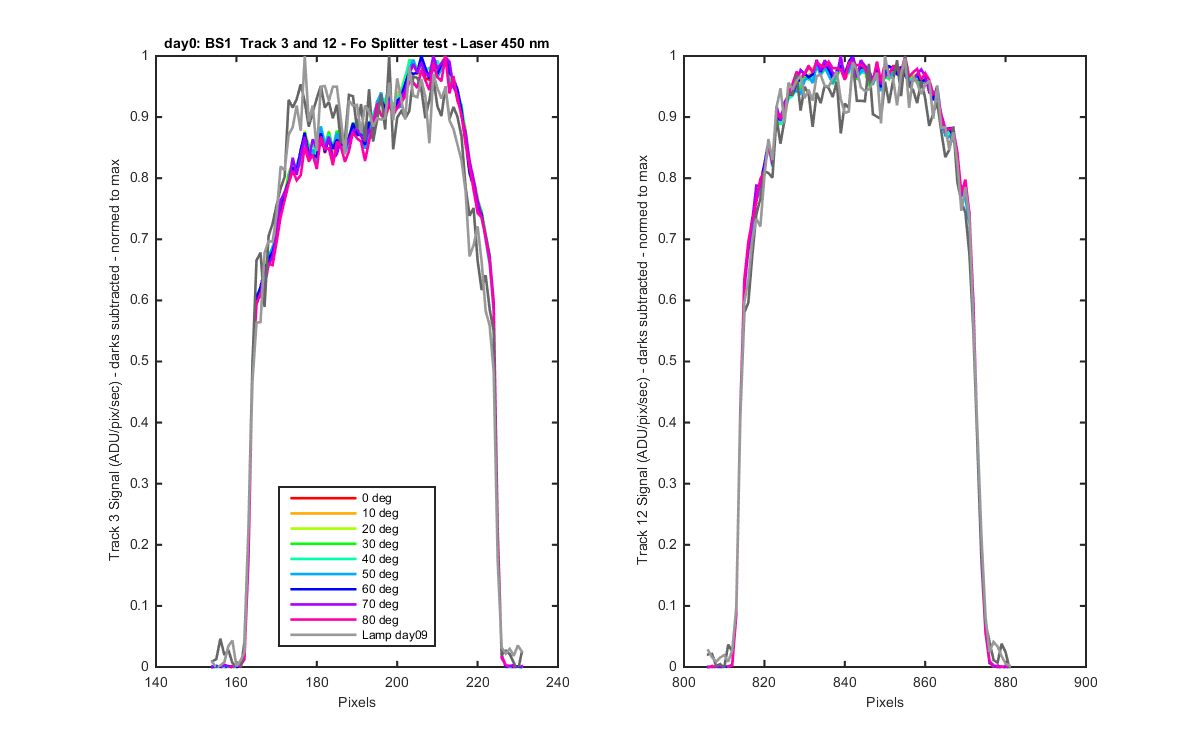

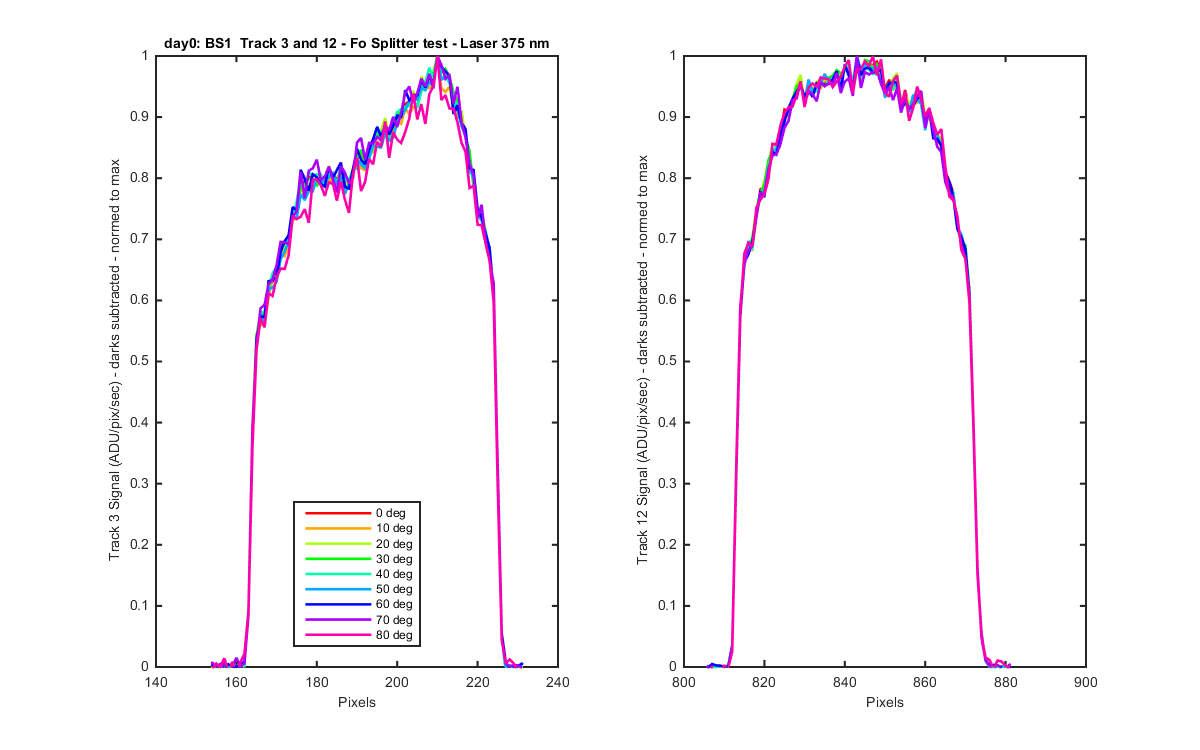

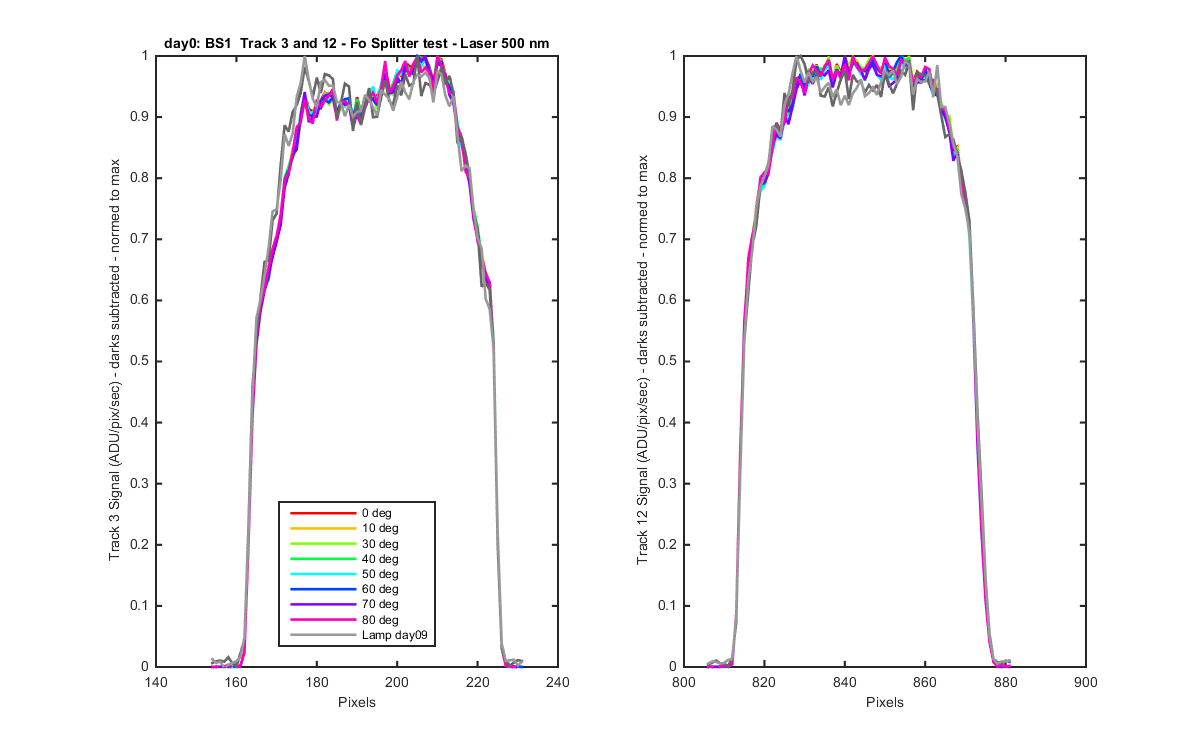

Using the Fiber Optic Splitter Test to look at Saddle shape change. Each of the first 7 graphs show one laser wavelength at each rotation angle (excluding 90 degrees). Looks like the saddle shape is pretty constant. The last graphs shows how the track shape changes with wavelength.

I have added the day09 File number 21 and 31 lamp data to the graphs for the same pixel as the laser peak for comparison.

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7
