pltcrosstrack_day2_ - BS1

REVISION DATE: 02-Jul-2015 18:32:36

Mike took these data at different shutter close times. In software Mike only changed the "Shutter open & close delay" time (msec). We can see that the shoulder is clearly caused but a shutter delay that is too low. Next step would be to find the lowest shutter delay that works for all wavelengths.

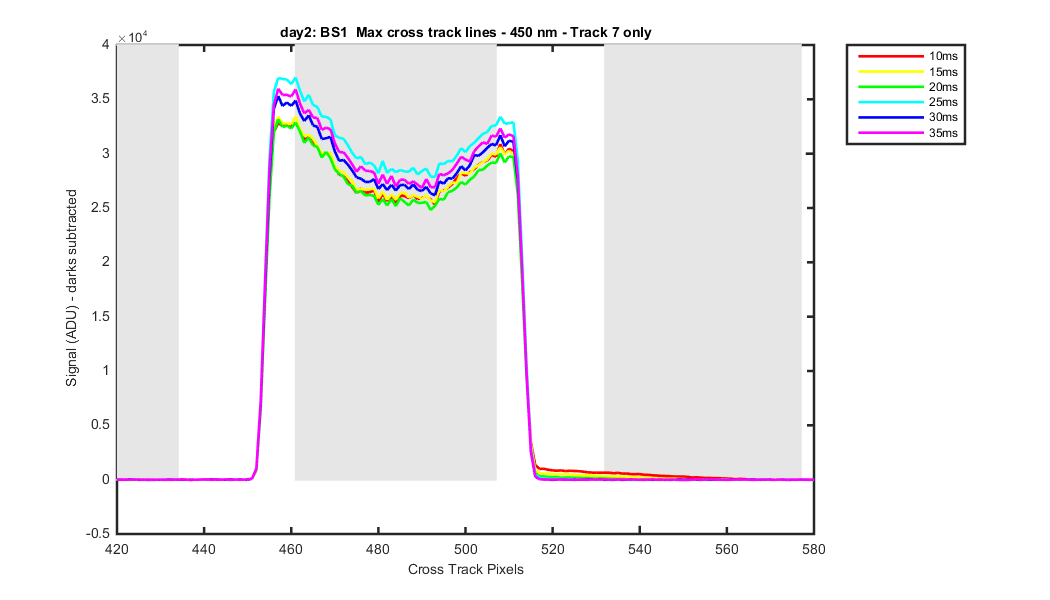

Figure 1

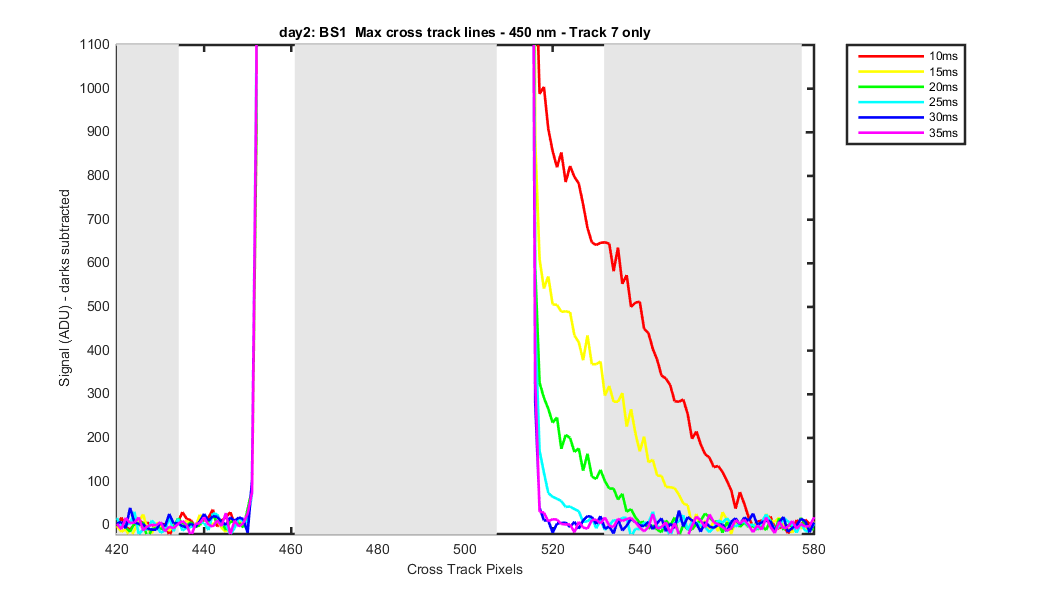

Figure 2


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2015-03\BS1cal\day02
Date: 02-Jul-2015 18:32:36
Created from pltcrosstrack_day2_(1)
