REVISION DATE: 28-Jul-2015 13:22:33

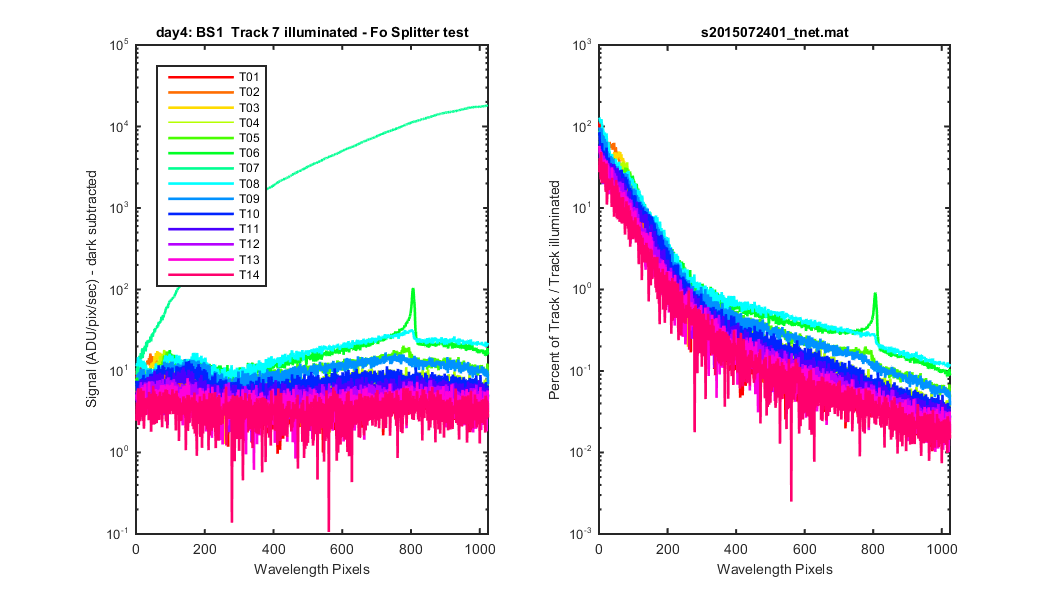

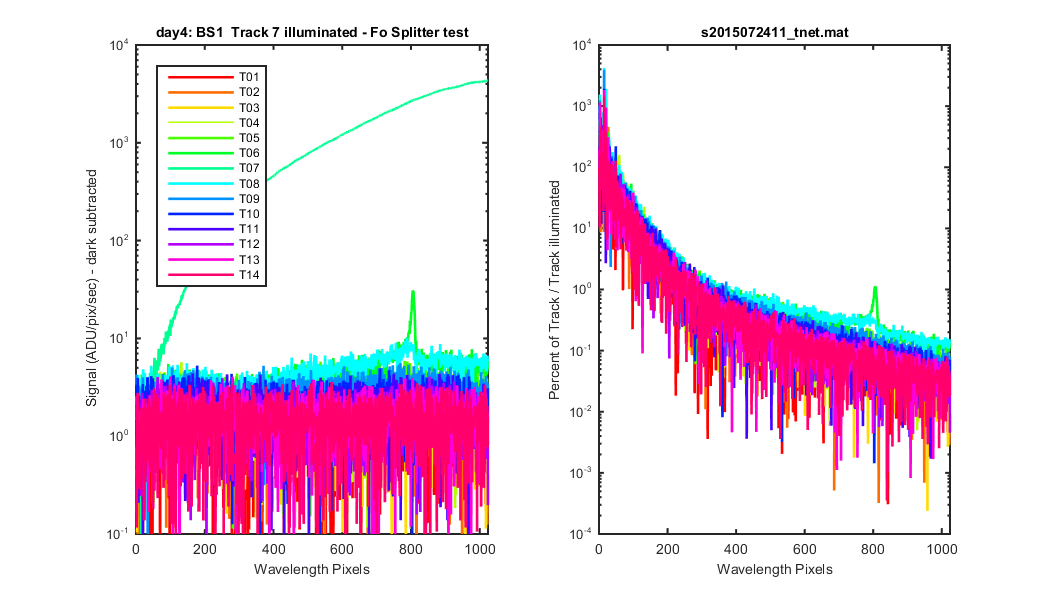

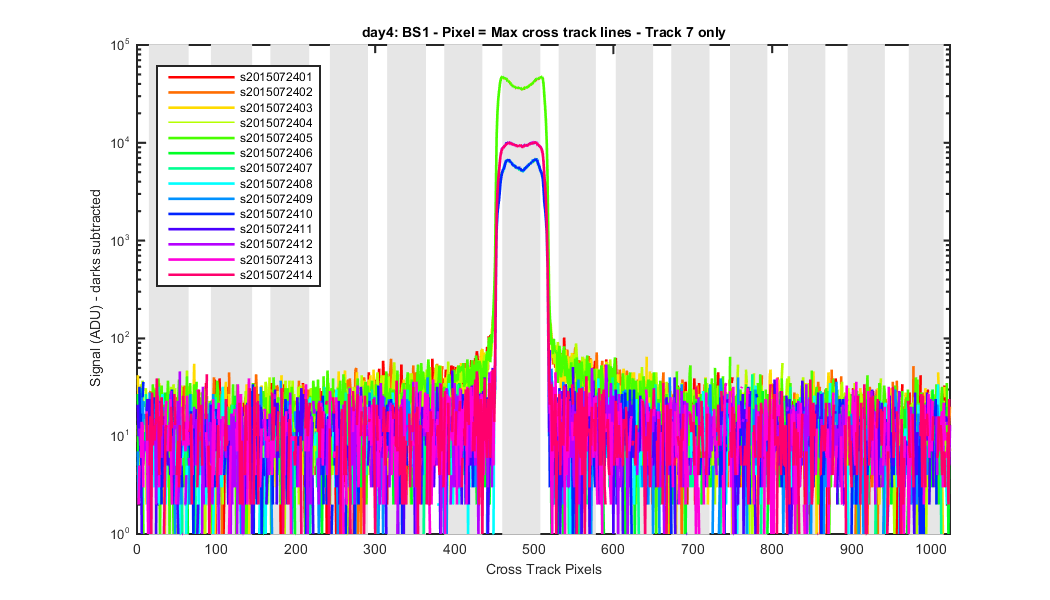

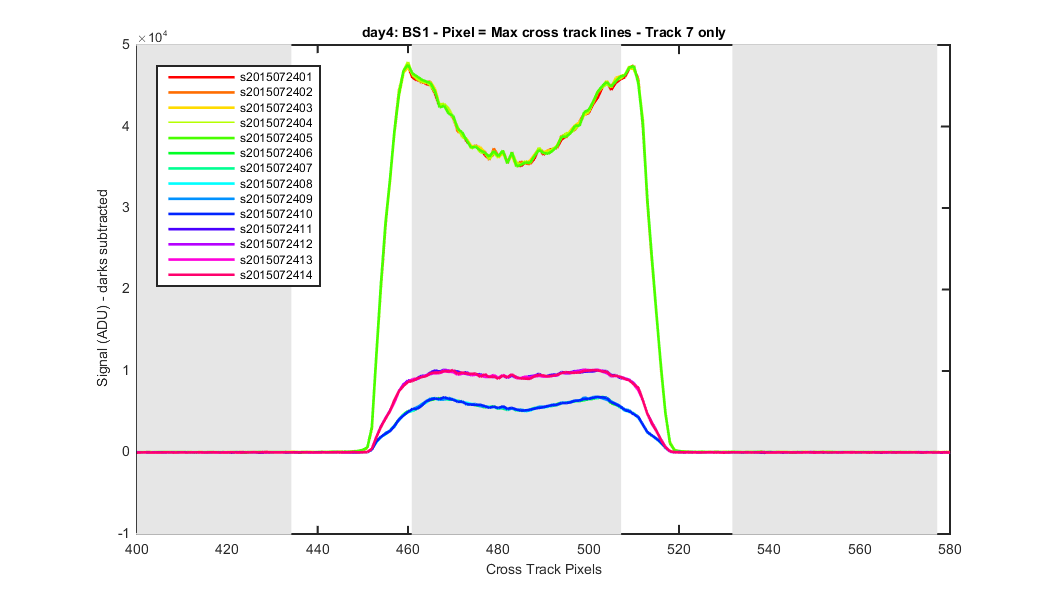

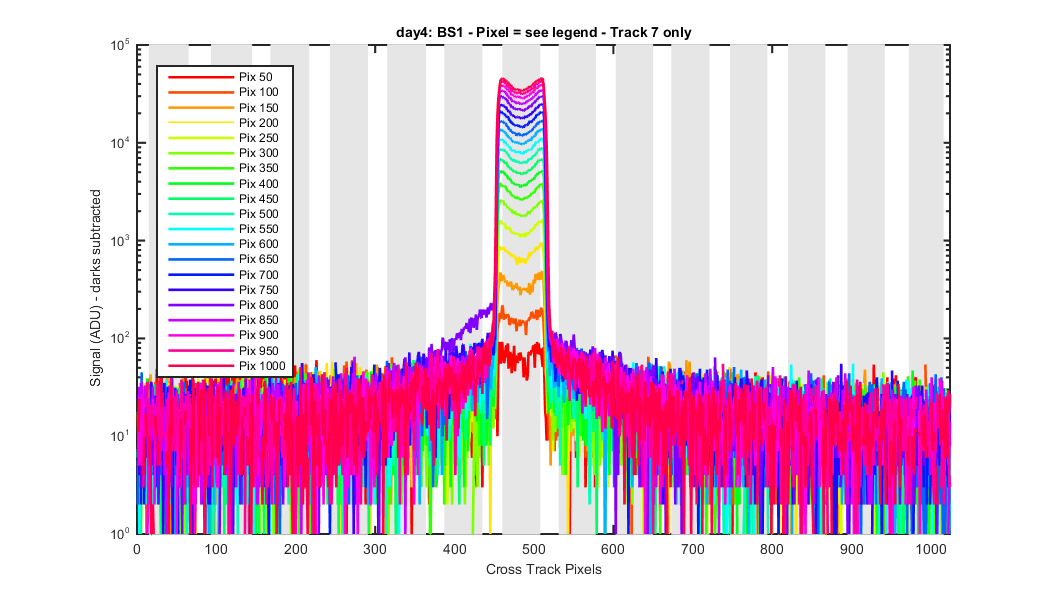

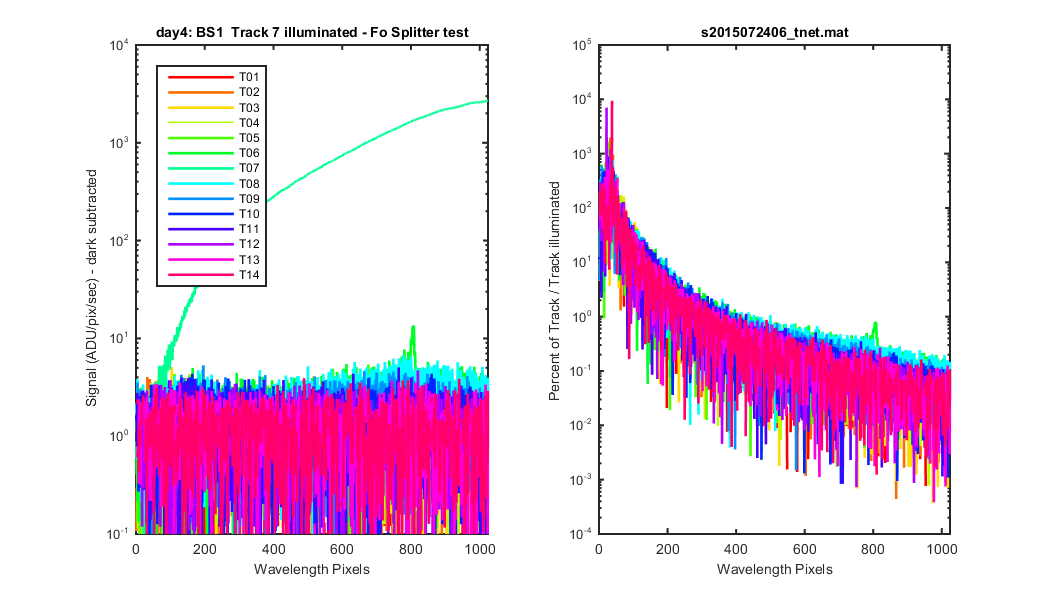

Using the Fo splitter Oriel 60000 lamp data I wanted to look at the cross-track stray light. The first 4 graphs are lines across the tracks a different pixels. If the title says Max cross track lines, then the pixel chosen is the pixel with the maximum light in the track direction. For this data that would be pixels on the 1024 end of the array. If the title says Pixel 200 then that is the pixel that is plotted. In the case of figure 4 many pixels are plotted for the first file to see the change by wavelenght/pixel. After this are the cross track graphs with track means and showing the light from track 7 onto the other tracks. The three figures are each from one file in the three FO spliiter tests.

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7
