REVISION DATE: 02-Jul-2015 14:05:41
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | NEXT | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Laser Wavelength (nm) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2015070101_img | Signal | 450 | 1 | Single Scan | -40 | 0 | F | 2015-07-01T04:52:39 | 4 | Image | 27379 | 3505.69 | 19.29 |

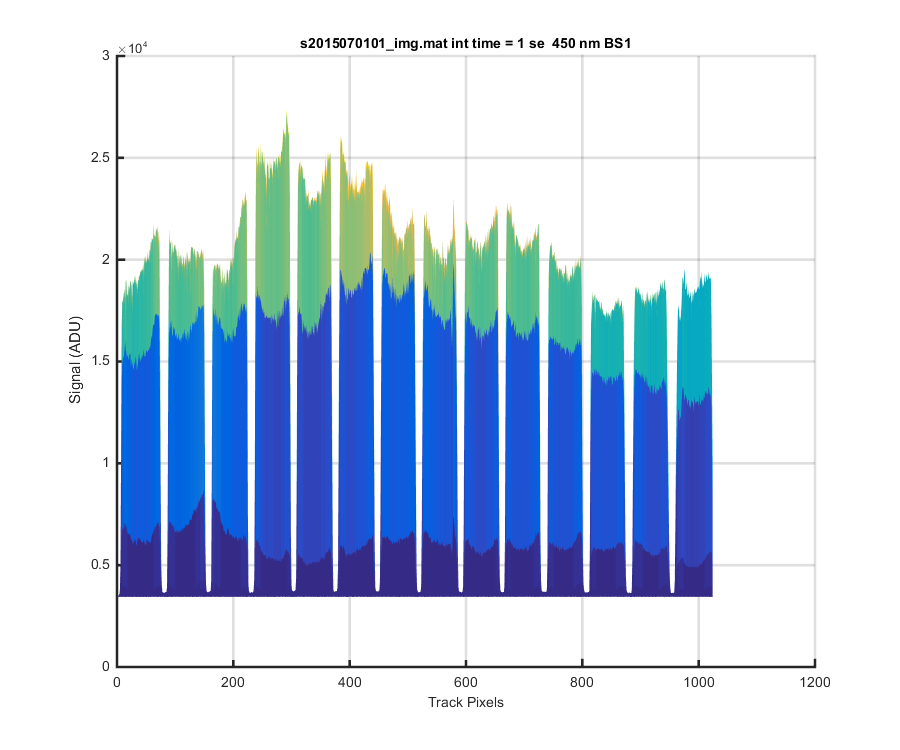

Figure 1

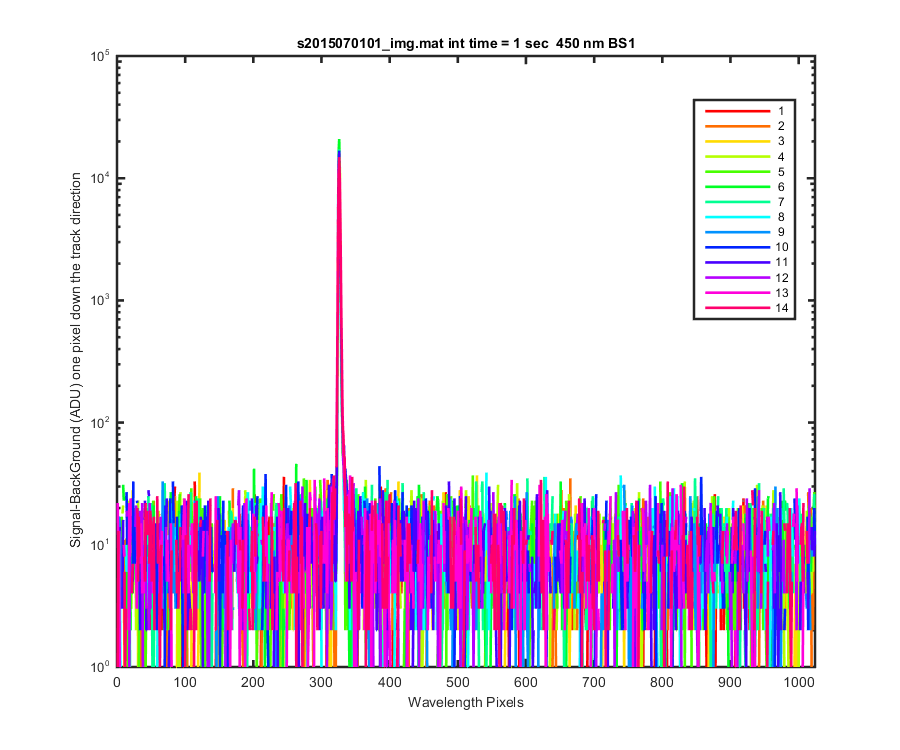

Figure 2

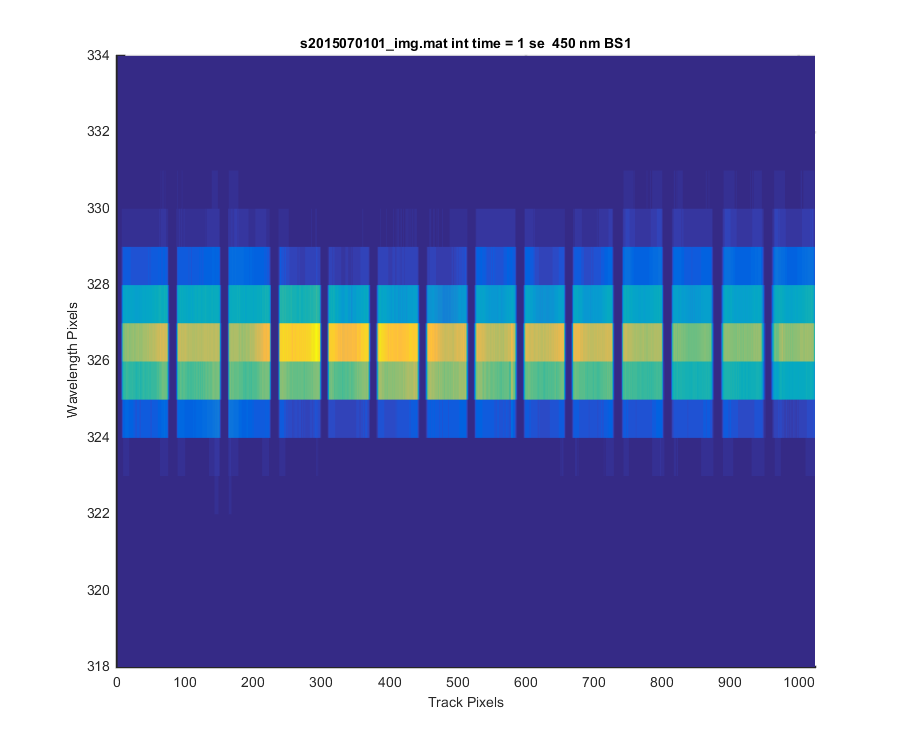

Figure 3

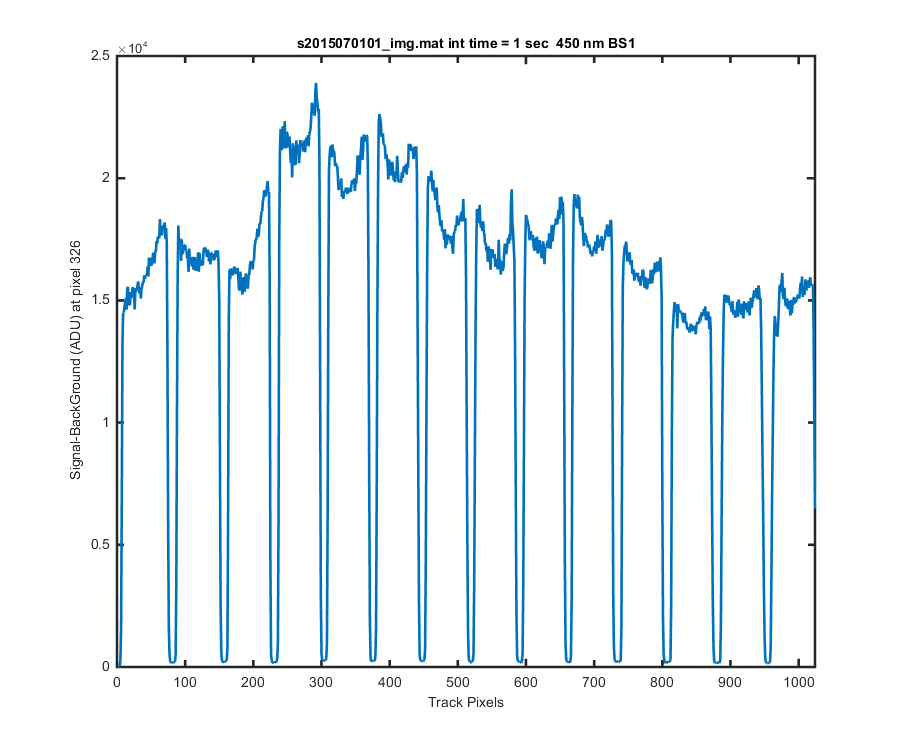

Figure 4

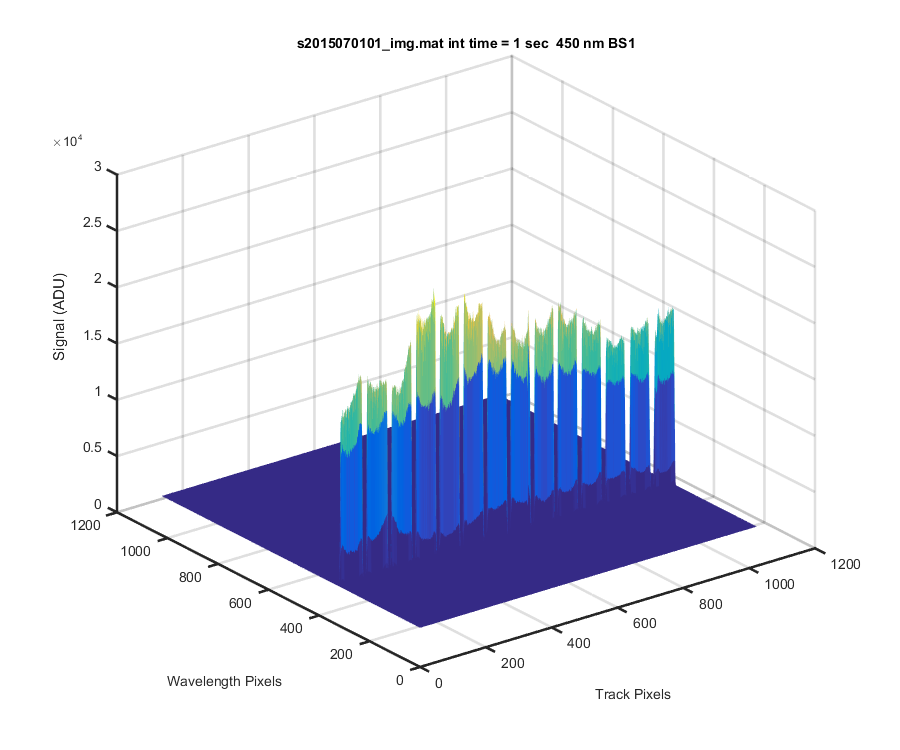

Figure 5

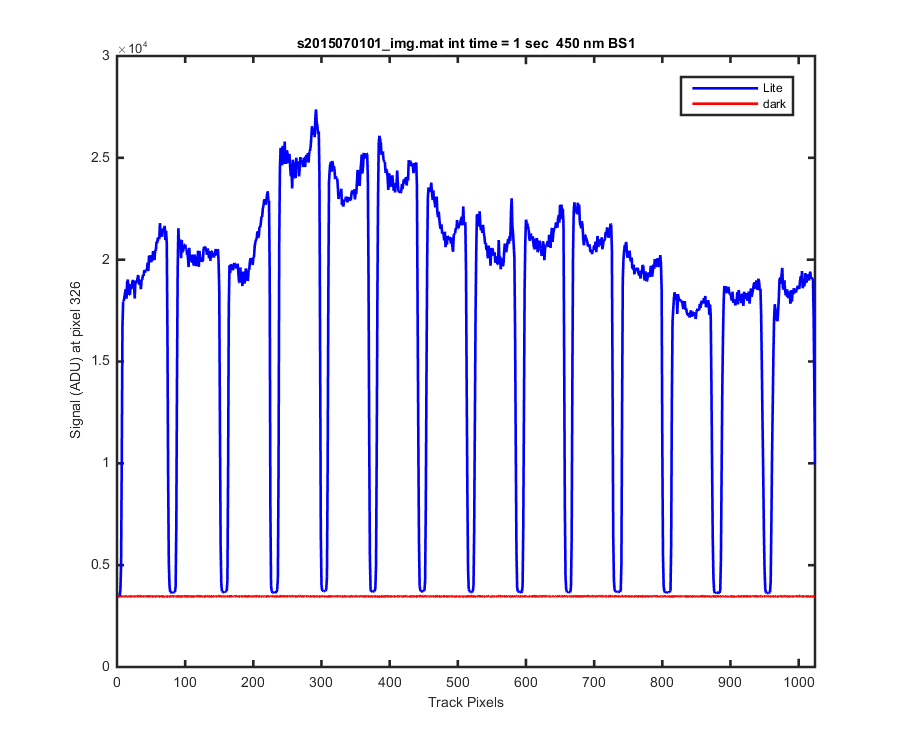

Figure 6
