REVISION DATE: 16-Aug-2015 19:58:35
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | NEXT | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Rotaton (deg) |
Wavelength (nm)(deg) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2015081506_img | Signal | 0 | 400 | 20 | Single Scan | -40 | 0 | F | 2015-08-15T03:35:31 | 4 | Image | 24285 | 3789.97 | 5.49 |

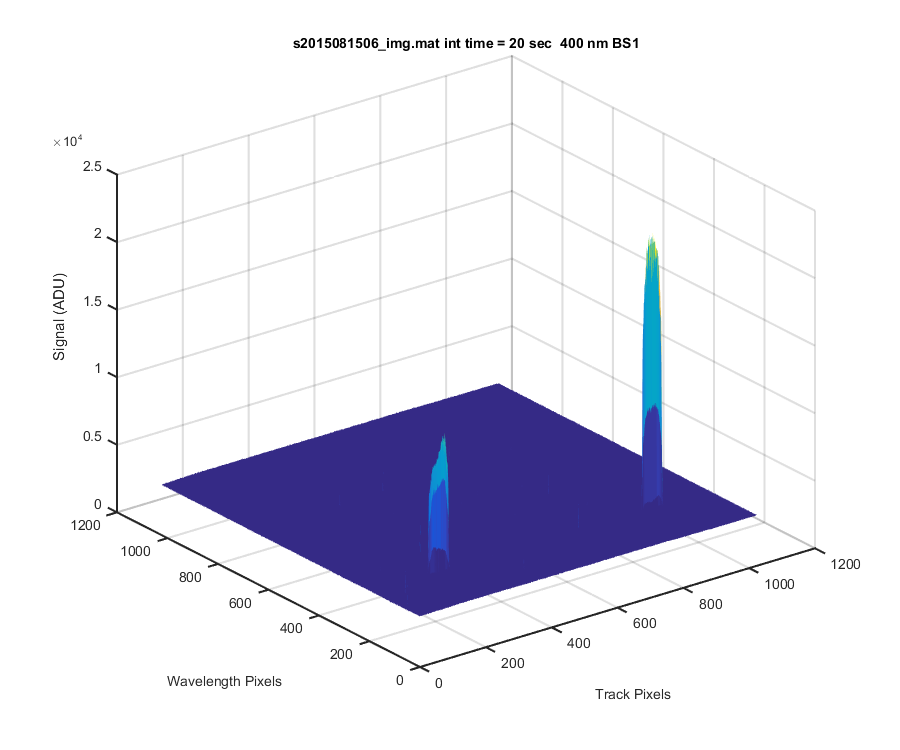

Figure 1

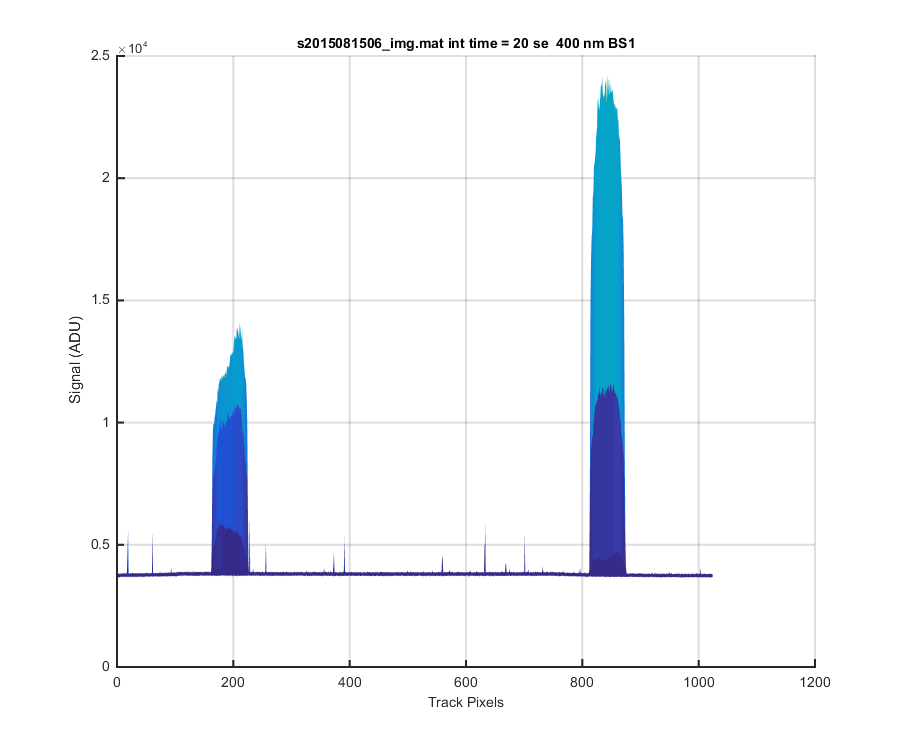

Figure 2
Figure 3

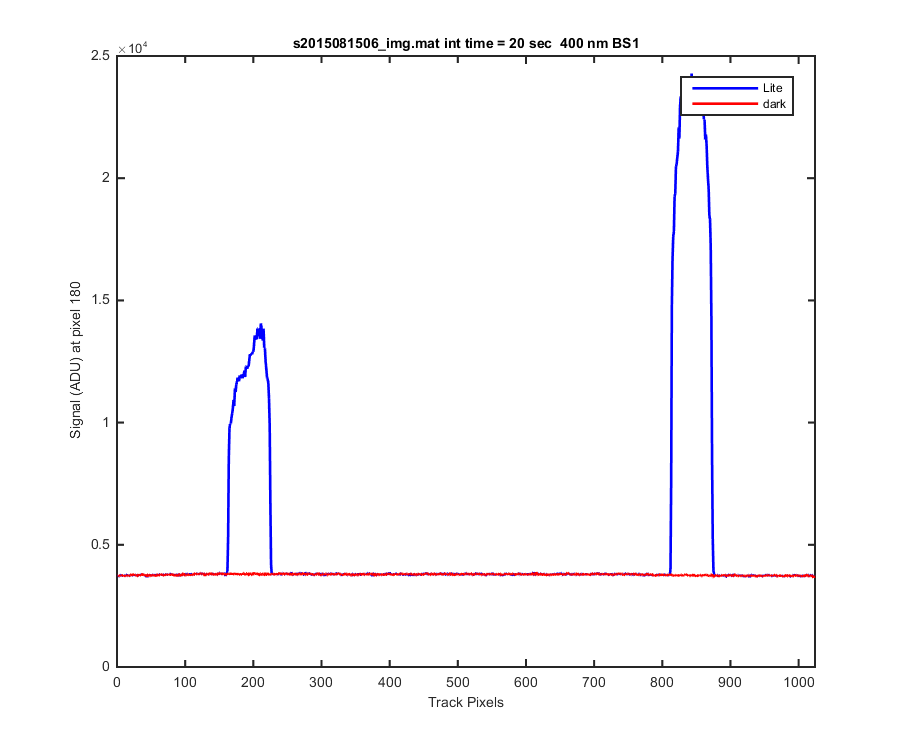

Figure 4

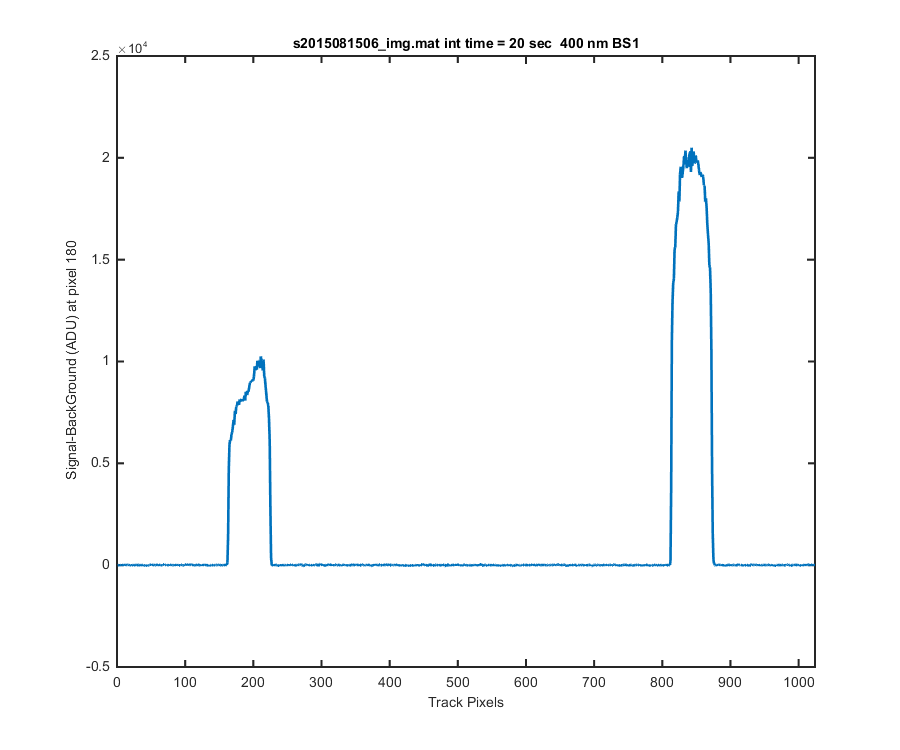

Figure 5

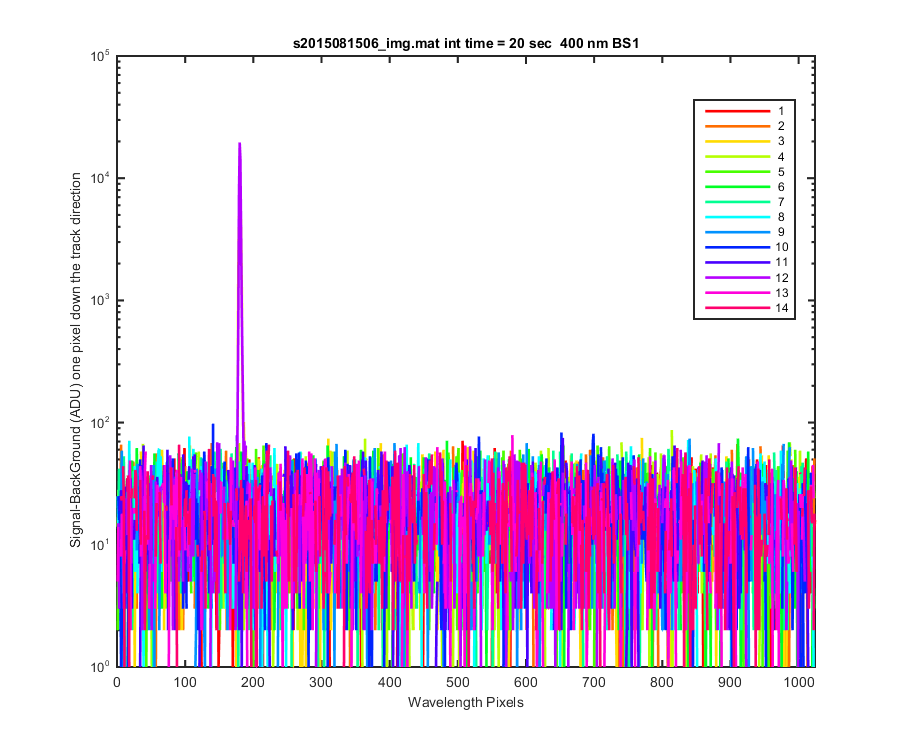

Figure 6
