REVISION DATE: 16-Aug-2015 19:58:36
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | NEXT | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Rotaton (deg) |
Wavelength (nm)(deg) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2015081524_img | Signal | 0 | 690 | 3.5 | Single Scan | -40 | 0 | F | 2015-08-15T04:44:49 | 4 | Image | 42046 | 3516.71 | 11.44 |

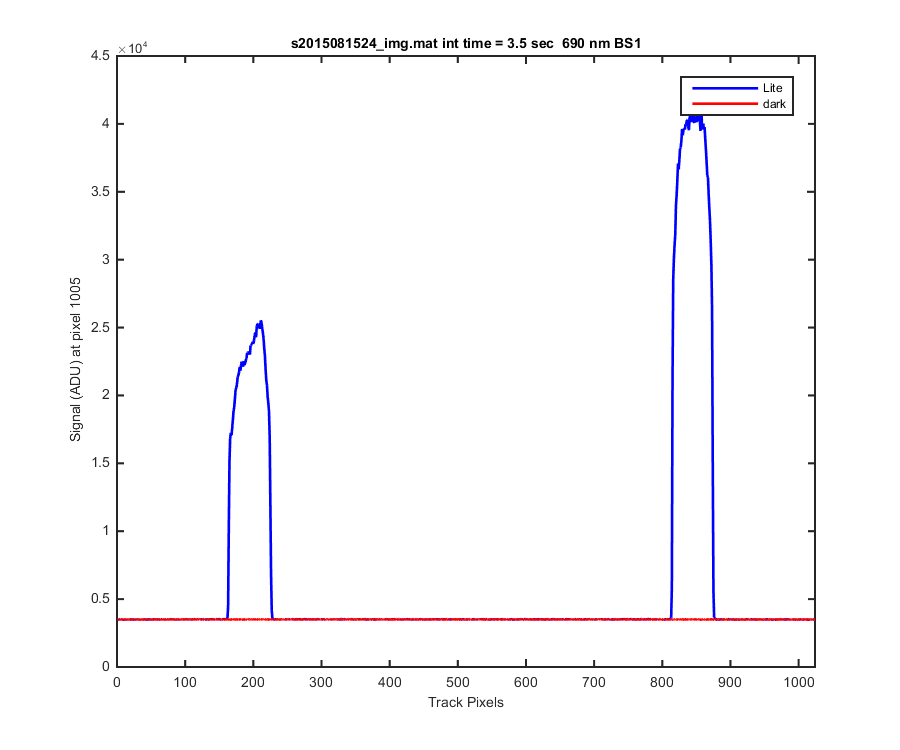

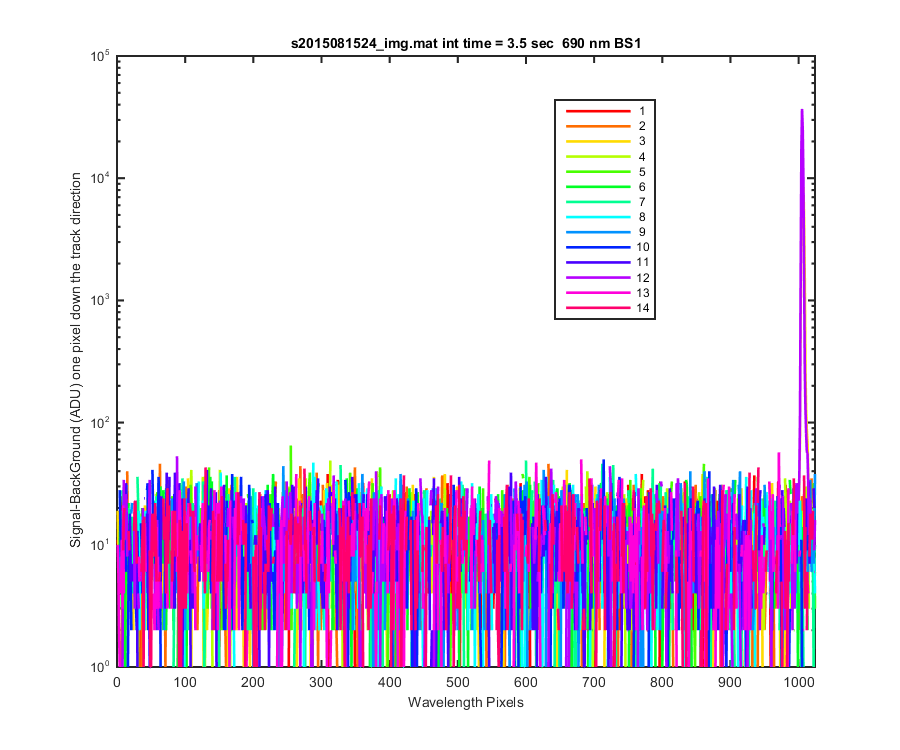

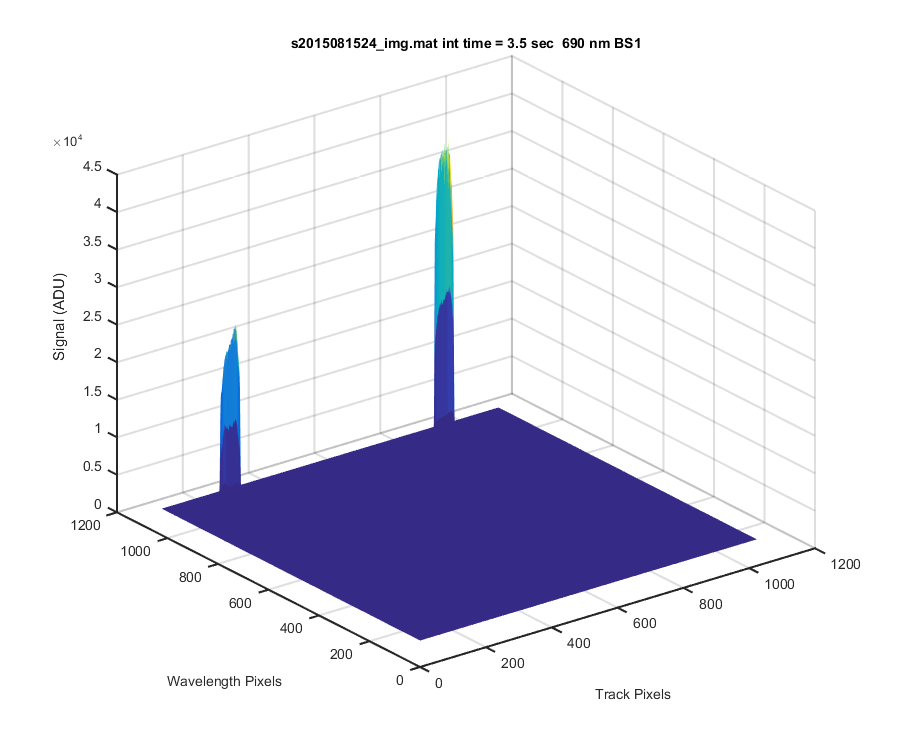

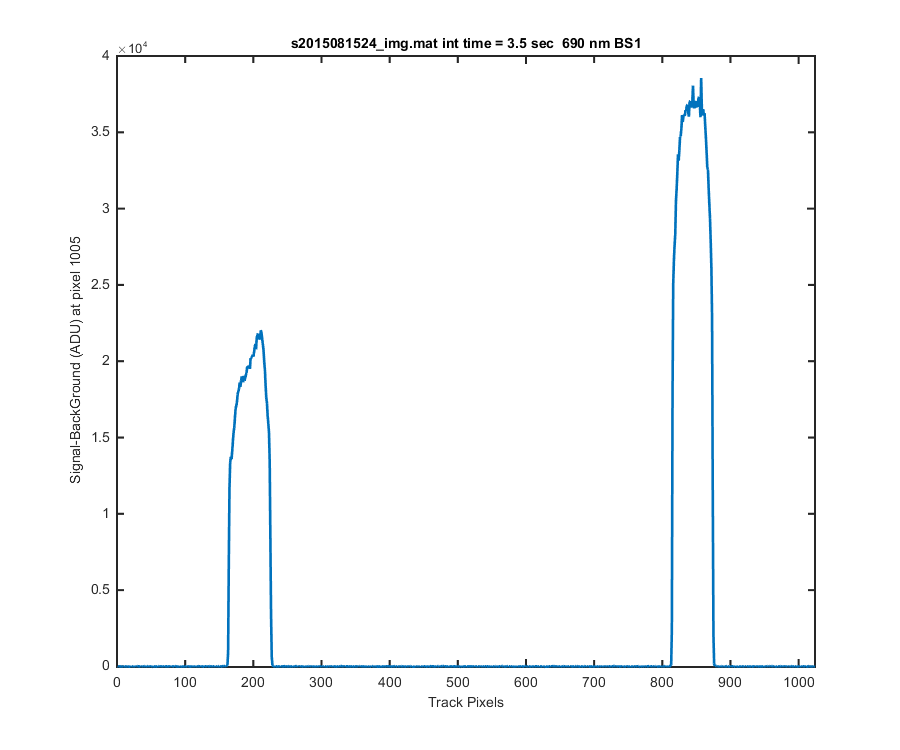

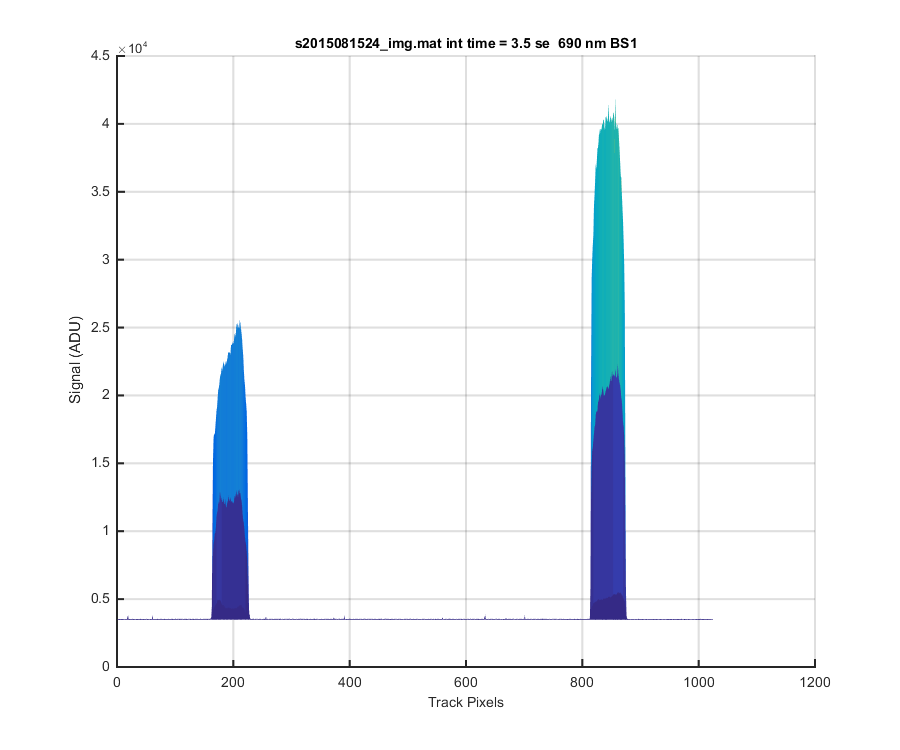

Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
