s2015081529_img

REVISION DATE: 16-Aug-2015 19:58:36

Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.

Table caption: Andor Ikon Camera data, NOT divided by intgration time (no darks are subtractd)
Previous HOME RAW HTML
Filename Type Rotaton
(deg)
Wavelength (nm)(deg) Total Exposure Time Acquisition mode Temperature Gain Baseline Clamp file creation date Pre Amplifier Gain Readout mode Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
s2015081529_img Signal 0 955 30 Single Scan -40 0 F 2015-08-15T05:03:27 4 Image 8913 3936.62 1.33

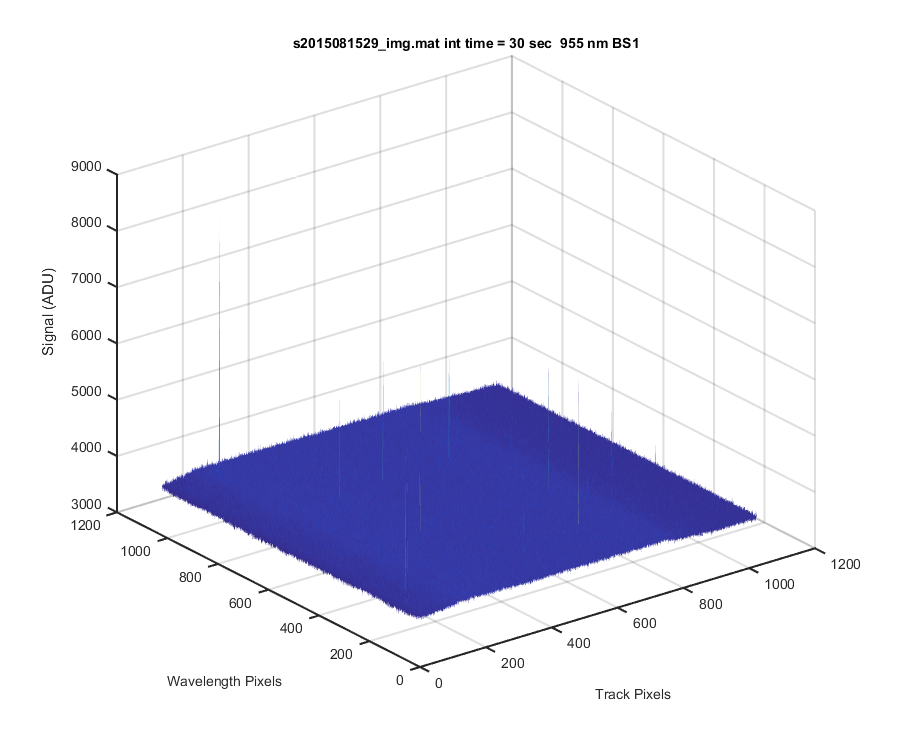

Figure 1

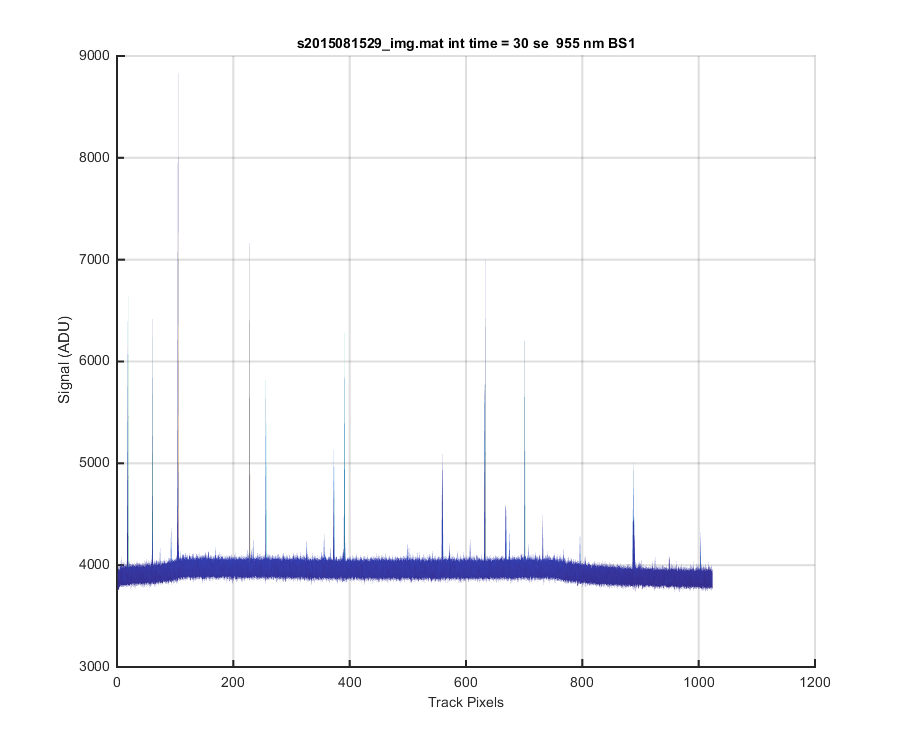

Figure 2

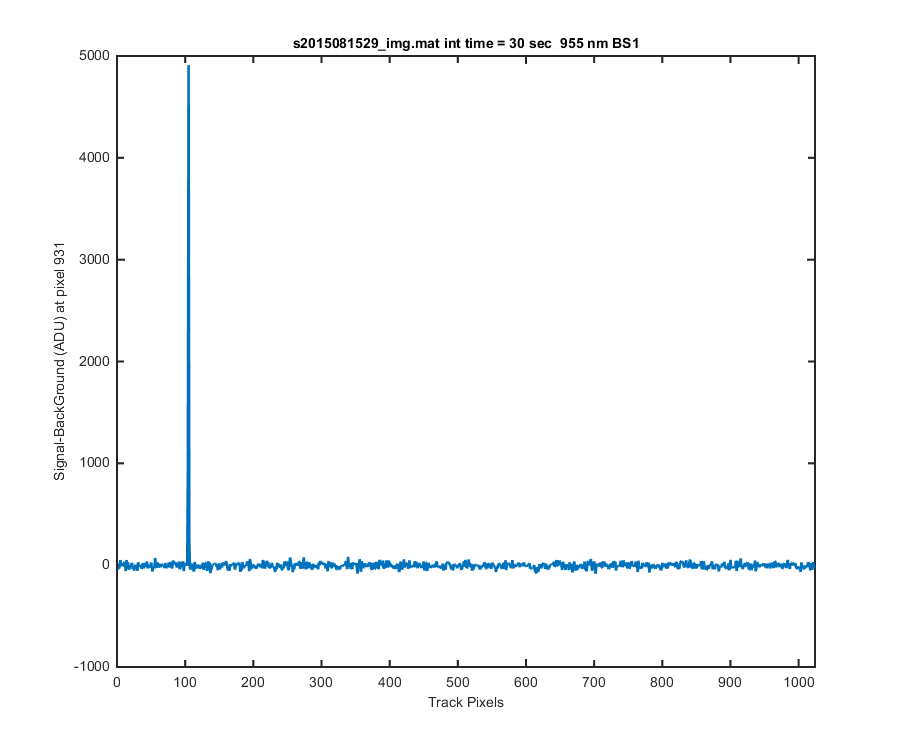

Figure 3

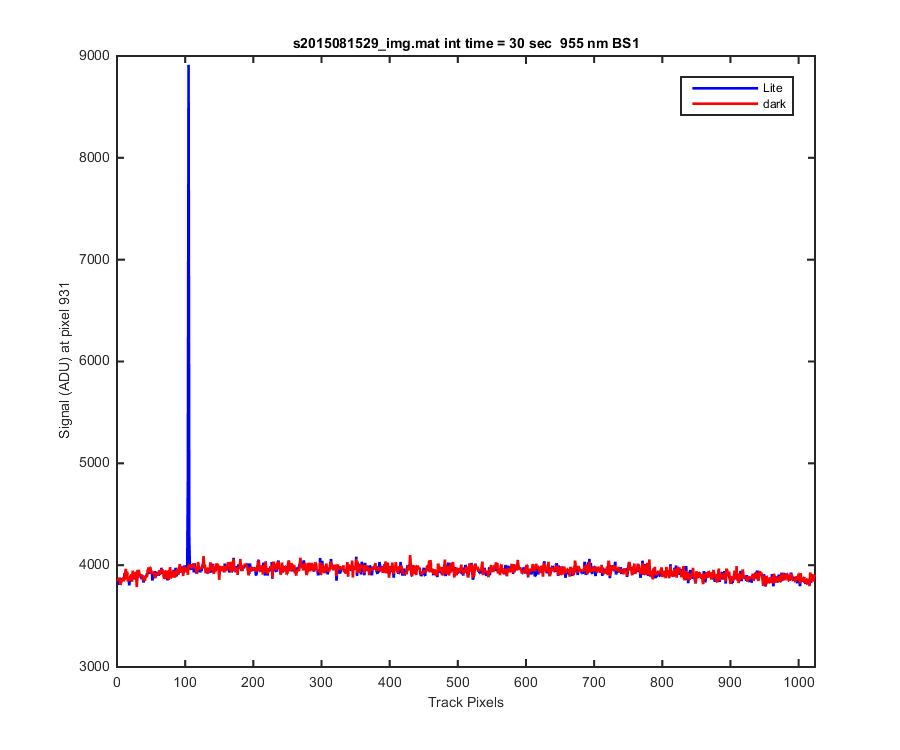

Figure 4

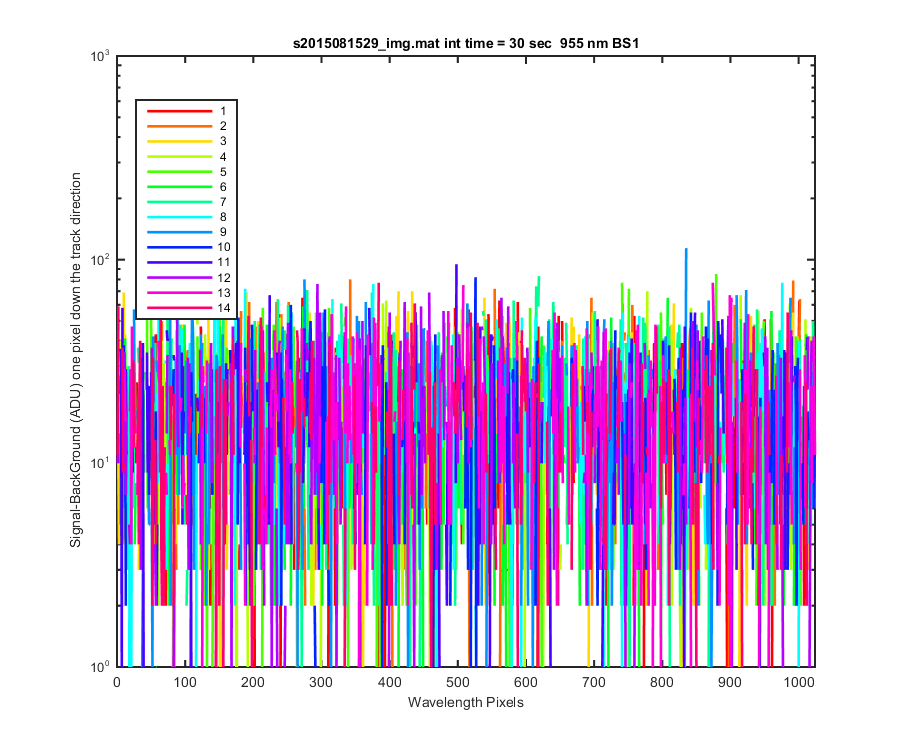

Figure 5


Figure 6


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2015-03\BS1cal\day12
Date: 16-Aug-2015 19:58:37
Created from mkhtml_(1)
