s2015082020_img

REVISION DATE: 21-Aug-2015 12:01:56

Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.

Table caption: Andor Ikon Camera data, NOT divided by intgration time (no darks are subtractd)
Previous HOME RAW HTML
Filename Type Rotaton
(deg)
Wavelength (nm)(deg) Total Exposure Time Acquisition mode Temperature Gain Baseline Clamp file creation date Pre Amplifier Gain Readout mode Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
s2015082020_img Signal 0 NaN 7 Single Scan -40 0 F 2015-08-20T04:25:21 4 Image 48527 5033.29 110.24

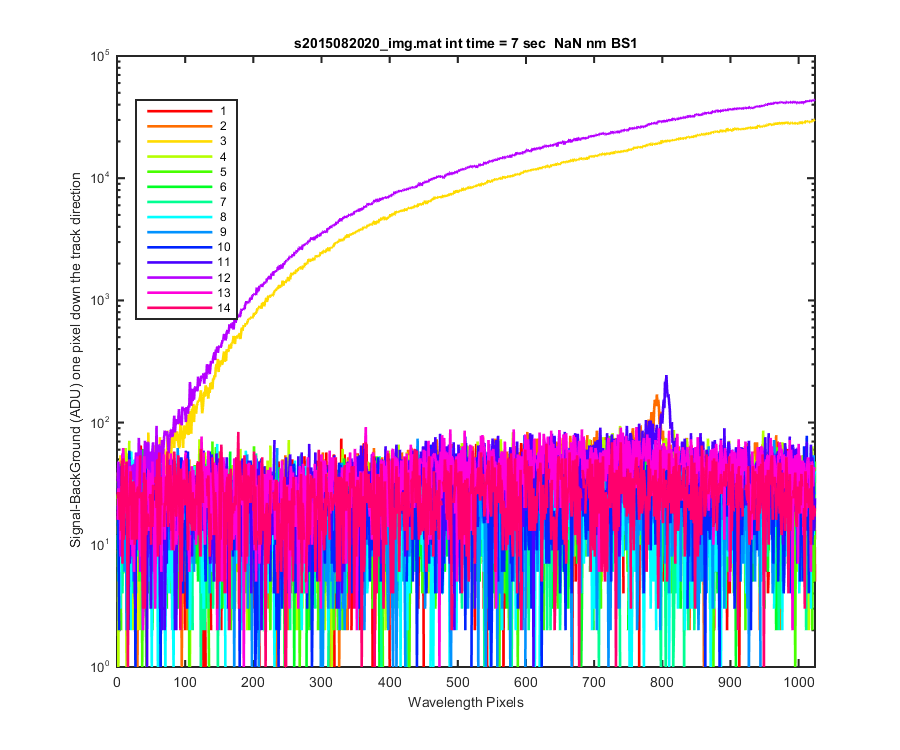

Figure 1

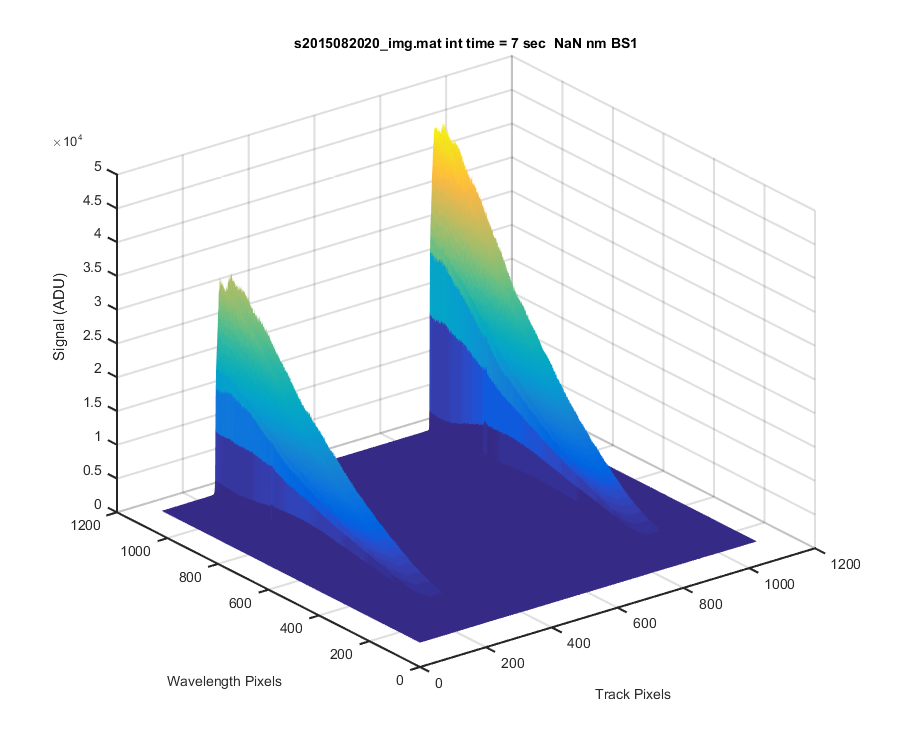

Figure 2

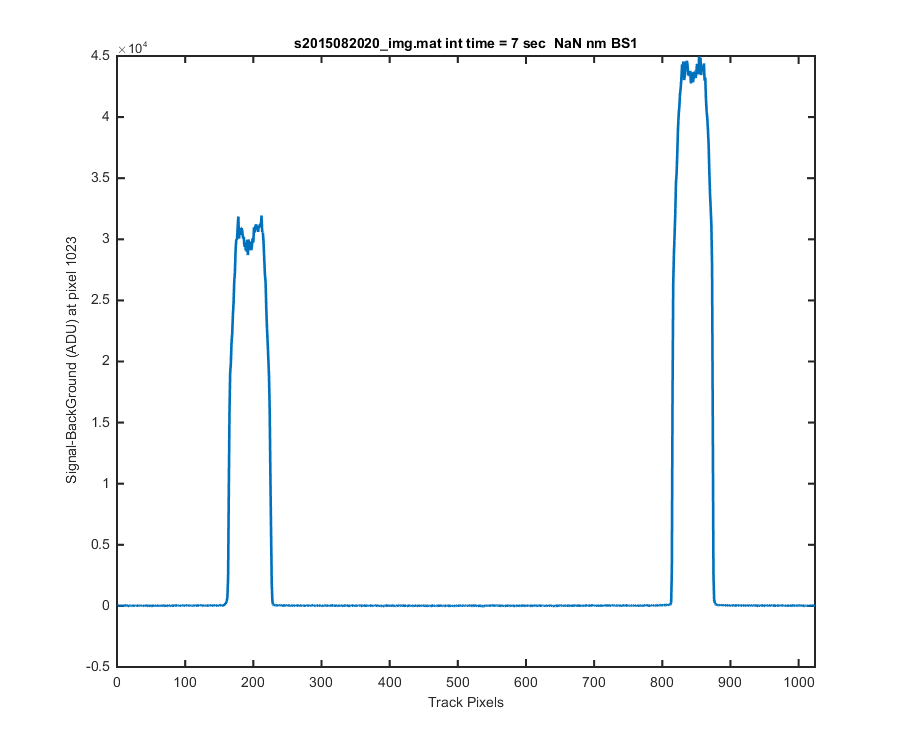

Figure 3

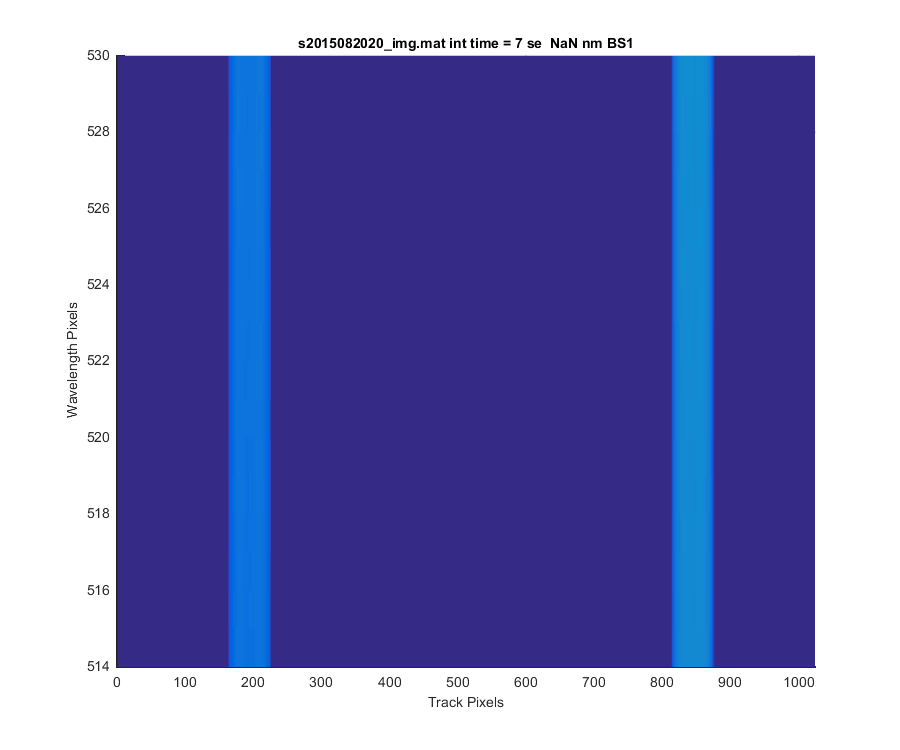

Figure 4

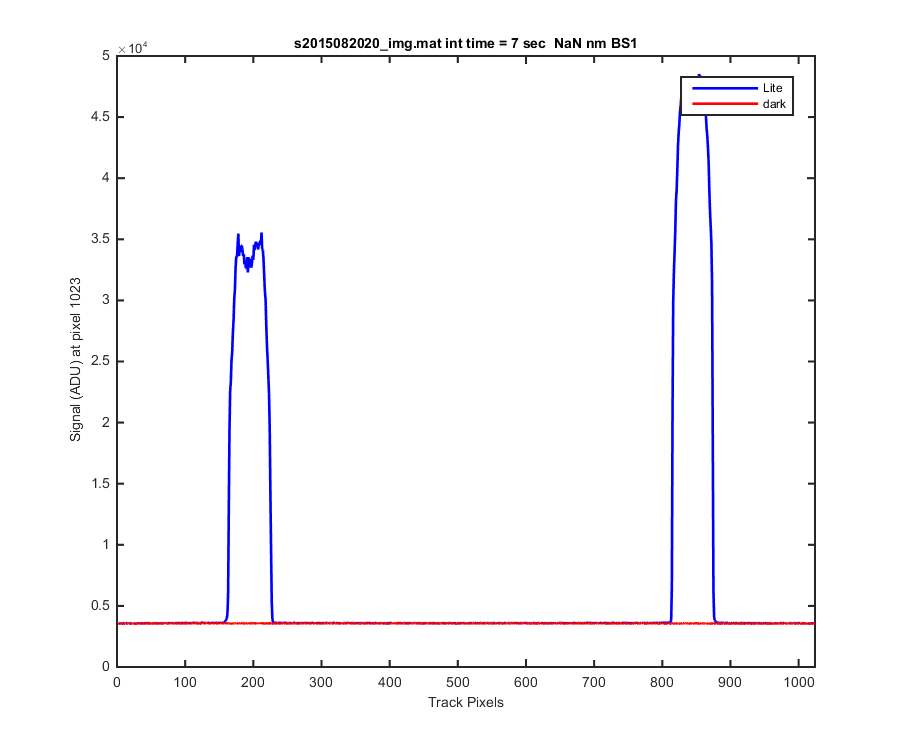

Figure 5

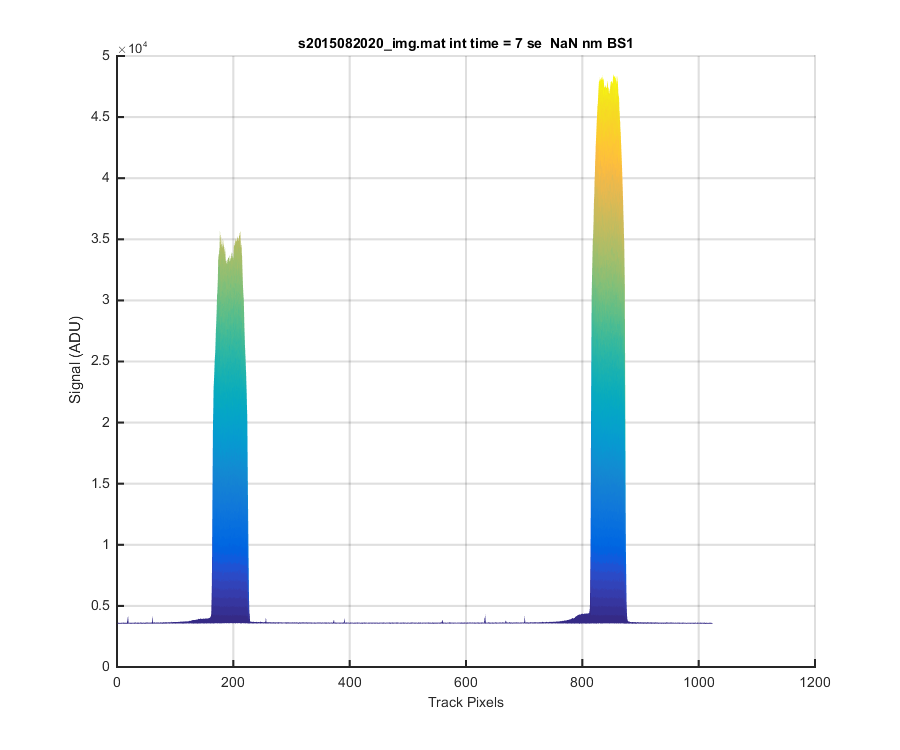

Figure 6


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2015-03\BS1cal\day14
Date: 21-Aug-2015 12:01:56
