s2015082106_img

REVISION DATE: 21-Aug-2015 09:41:42

Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.

Table caption: Andor Ikon Camera data, NOT divided by intgration time (no darks are subtractd)
Previous HOME NEXT
Filename Type Rotaton
(deg)
Wavelength (nm)(deg) Total Exposure Time Acquisition mode Temperature Gain Baseline Clamp file creation date Pre Amplifier Gain Readout mode Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
s2015082106_img Signal 40 NaN 6.5 Single Scan -40 0 F 2015-08-21T05:33:31 4 Image 47579 5010.63 108.14

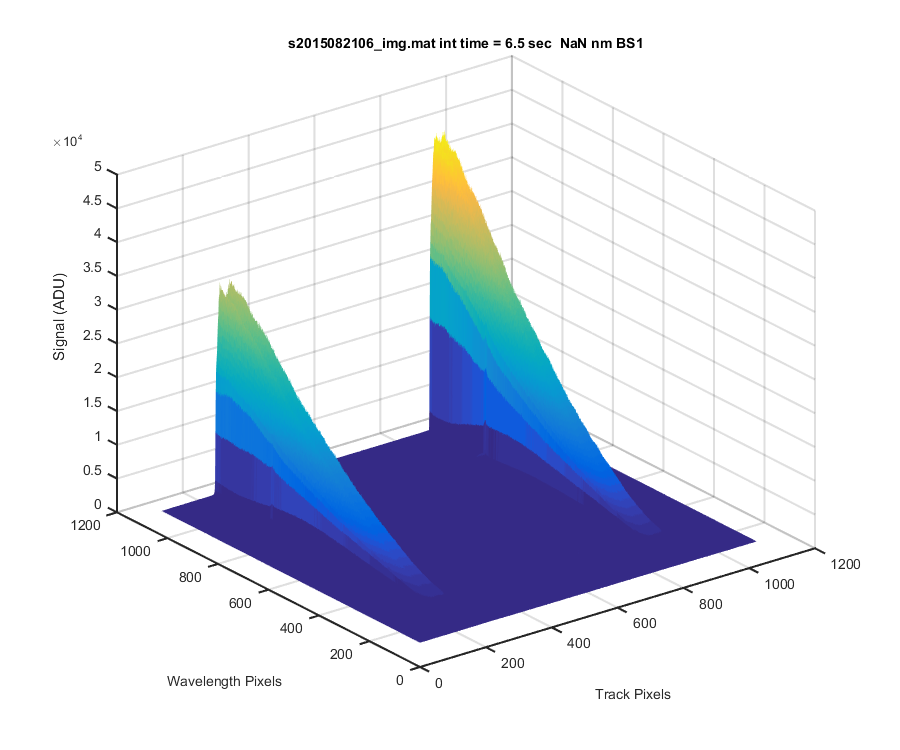

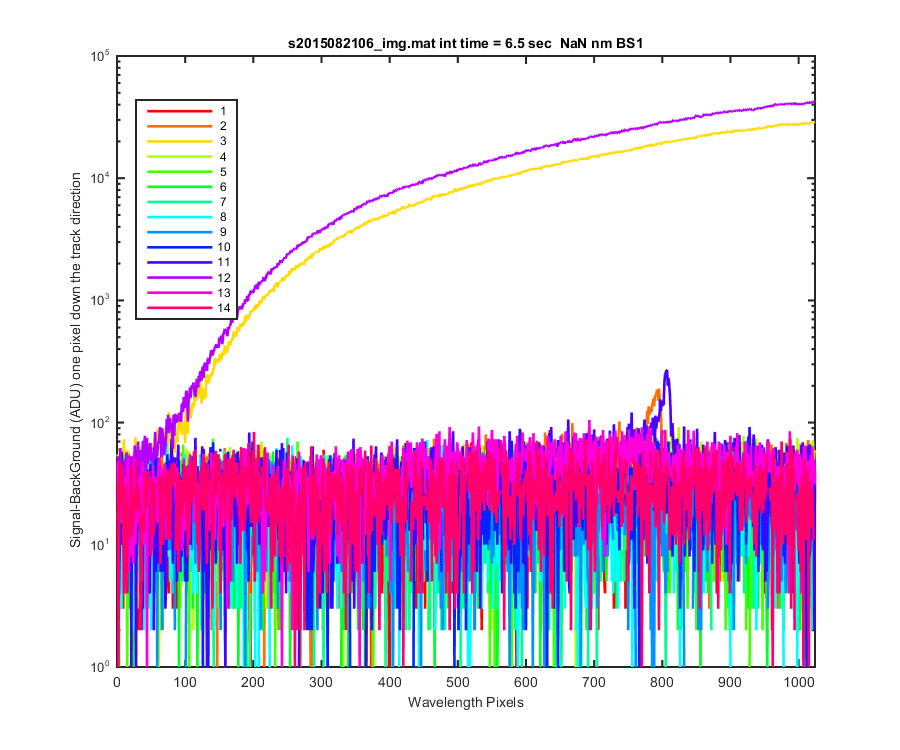

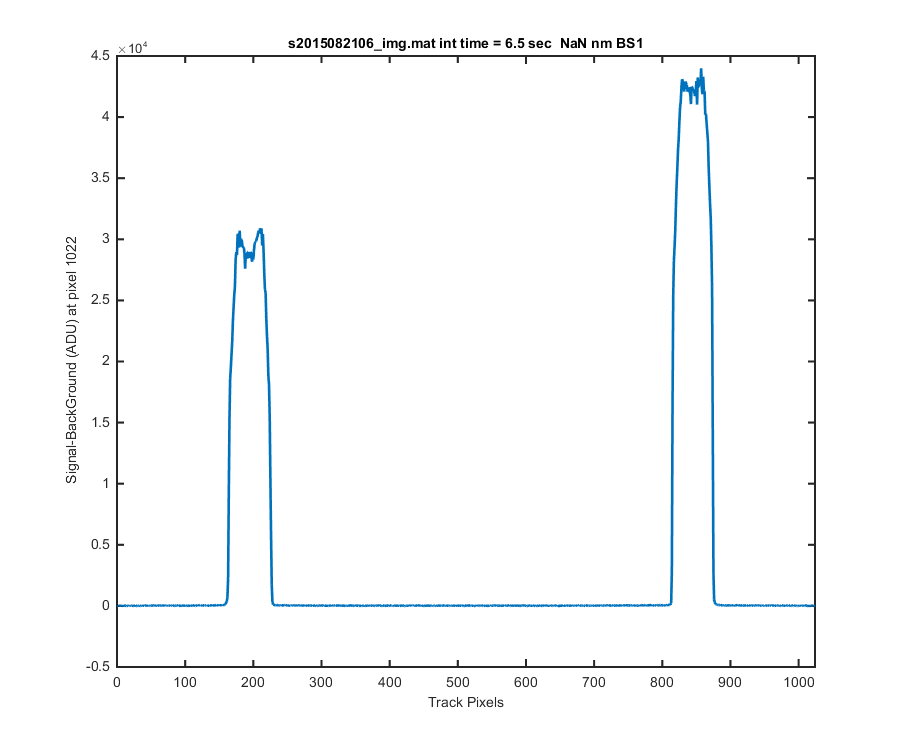

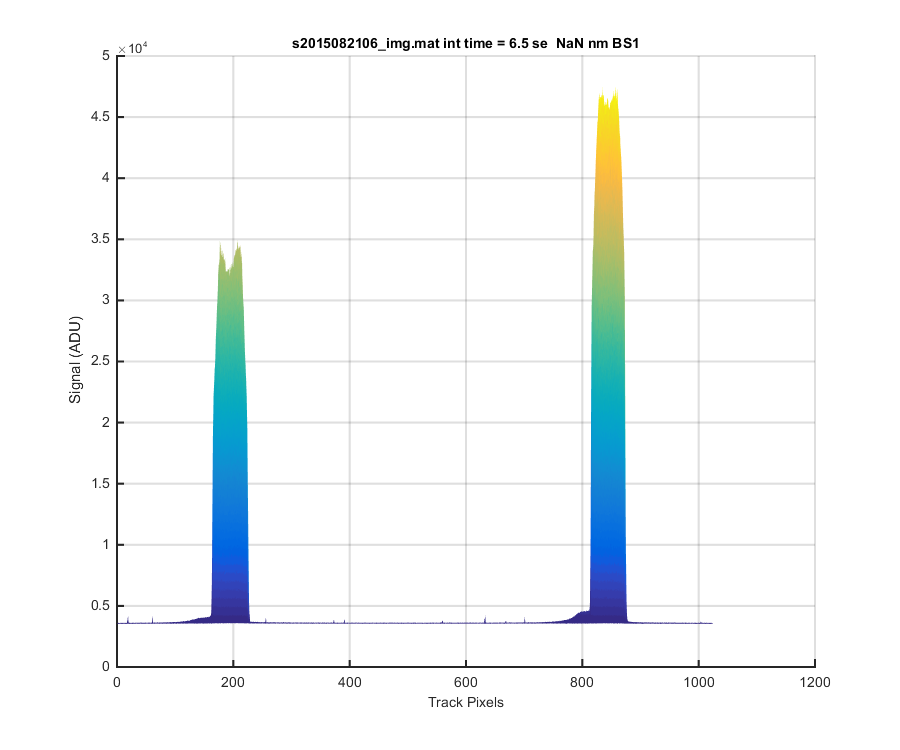

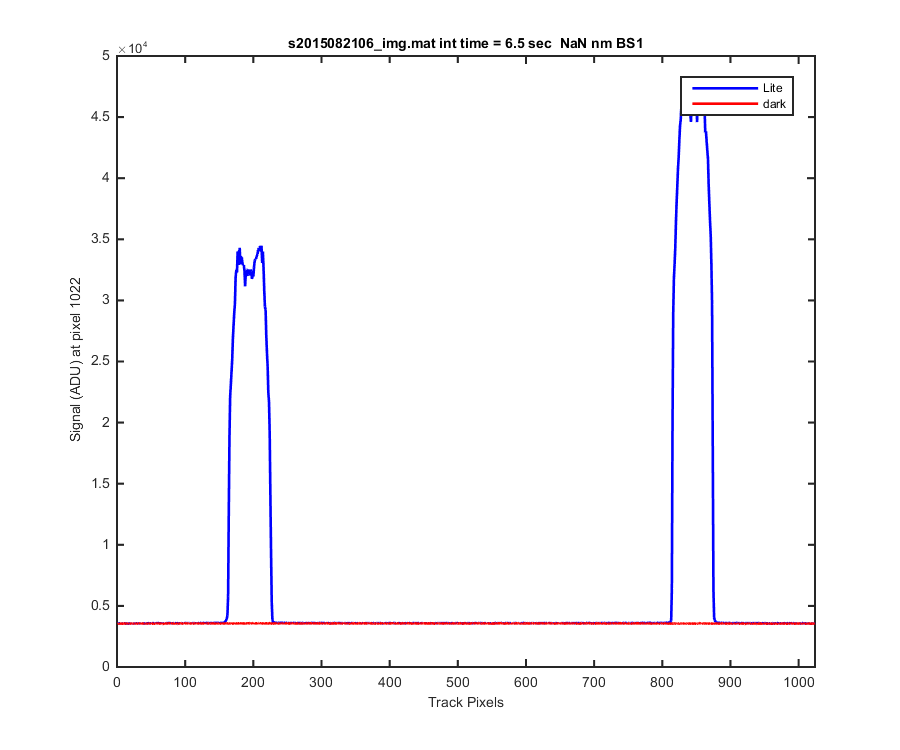

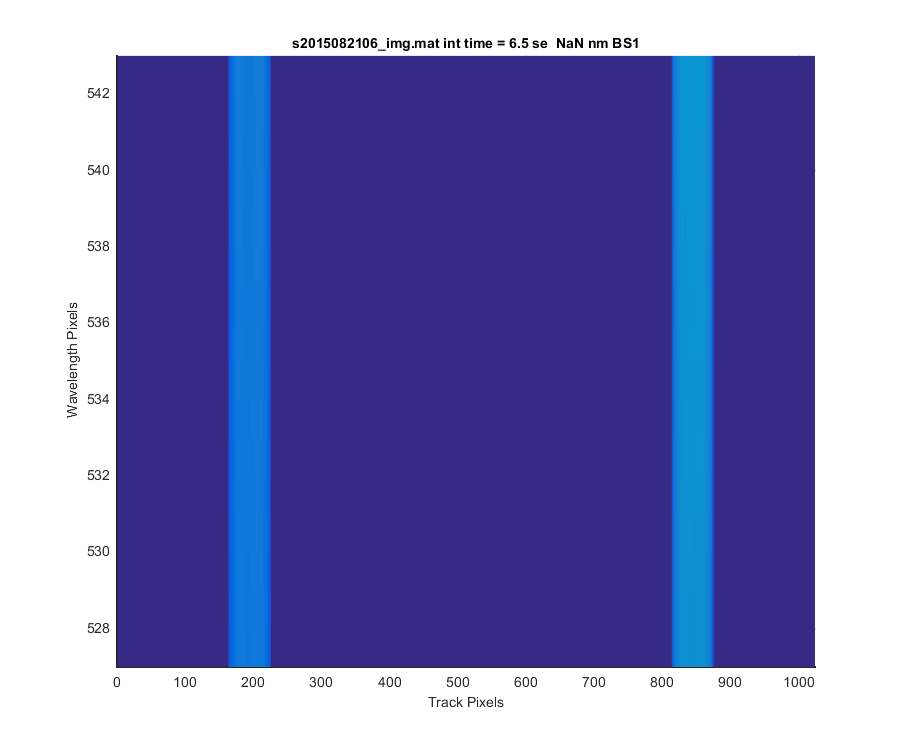

Figure 1


Figure 2


Figure 3


Figure 4


Figure 5


Figure 6


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2015-03\BS1cal\day15
Date: 21-Aug-2015 09:41:43
Created from mkhtml_(1)
