s2015082505_img

REVISION DATE: 28-Aug-2015 09:50:37

Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.

Table caption: Andor Ikon Camera data, NOT divided by intgration time (no darks are subtractd)
Previous HOME NEXT
Filename Type Rotaton
(deg)
Wavelength (nm)(deg) Total Exposure Time Acquisition mode Temperature Gain Baseline Clamp file creation date Pre Amplifier Gain Readout mode Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
s2015082505_img Signal 40 NaN 7.5 Single Scan -40 0 F 2015-08-25T04:08:08 4 Image 50302 5118.97 112.89

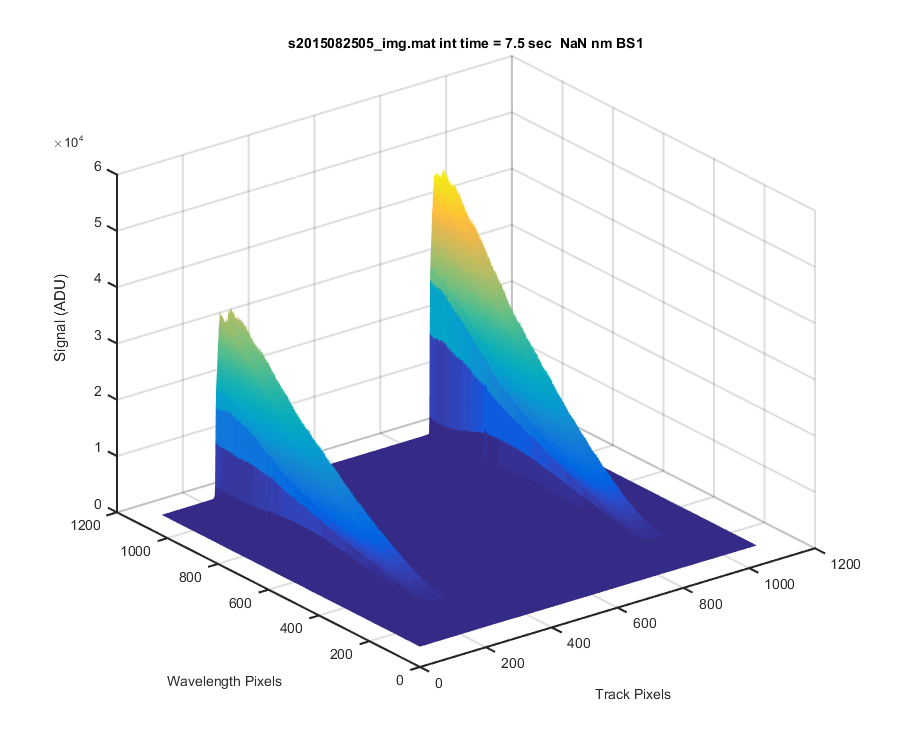

Figure 1

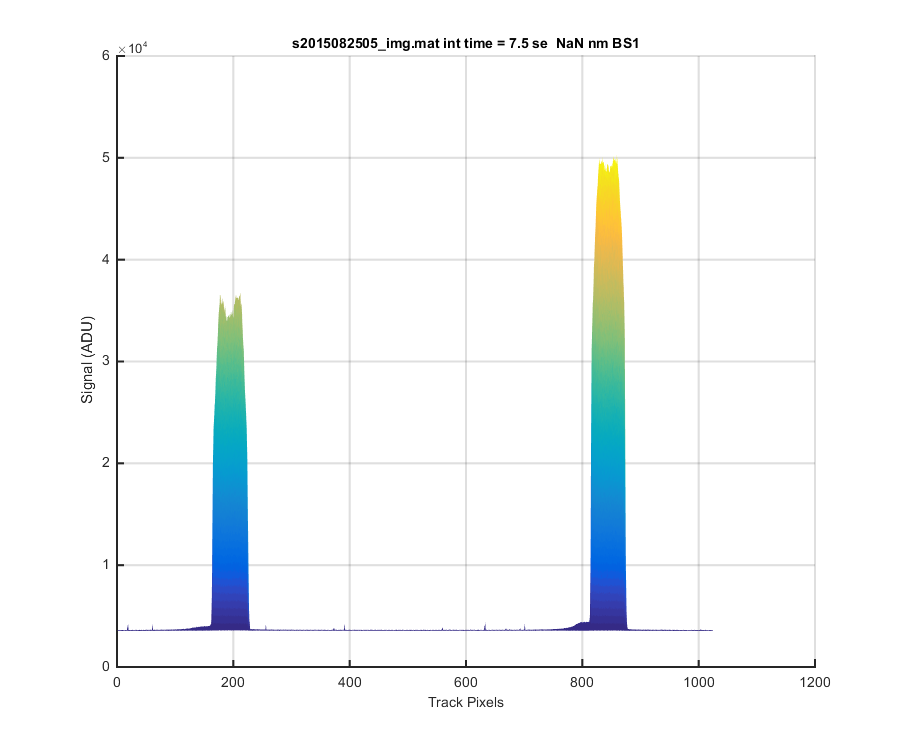

Figure 2

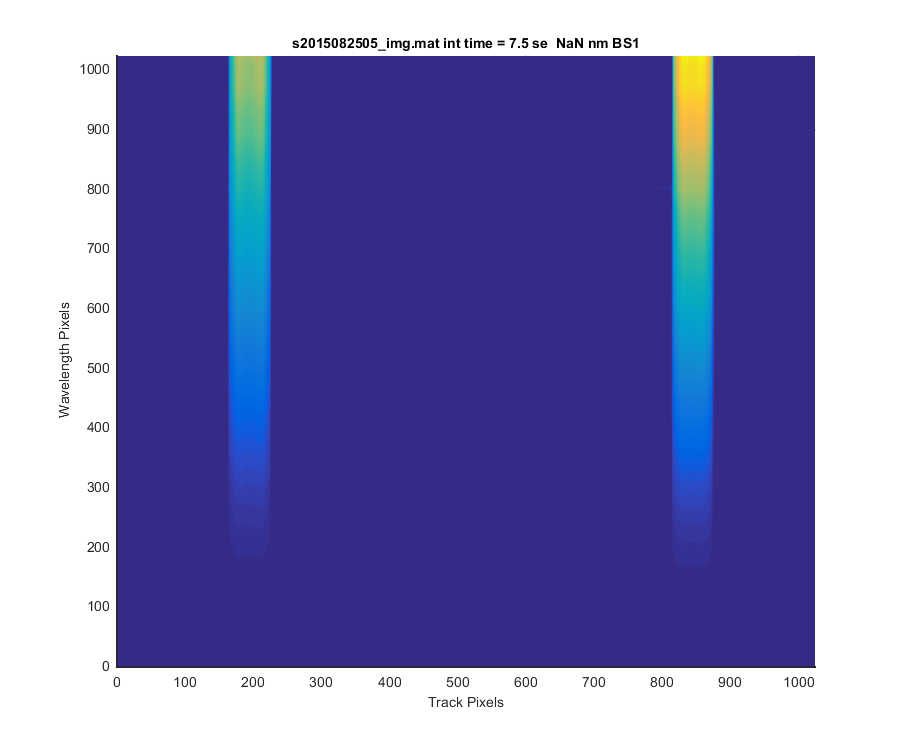

Figure 3

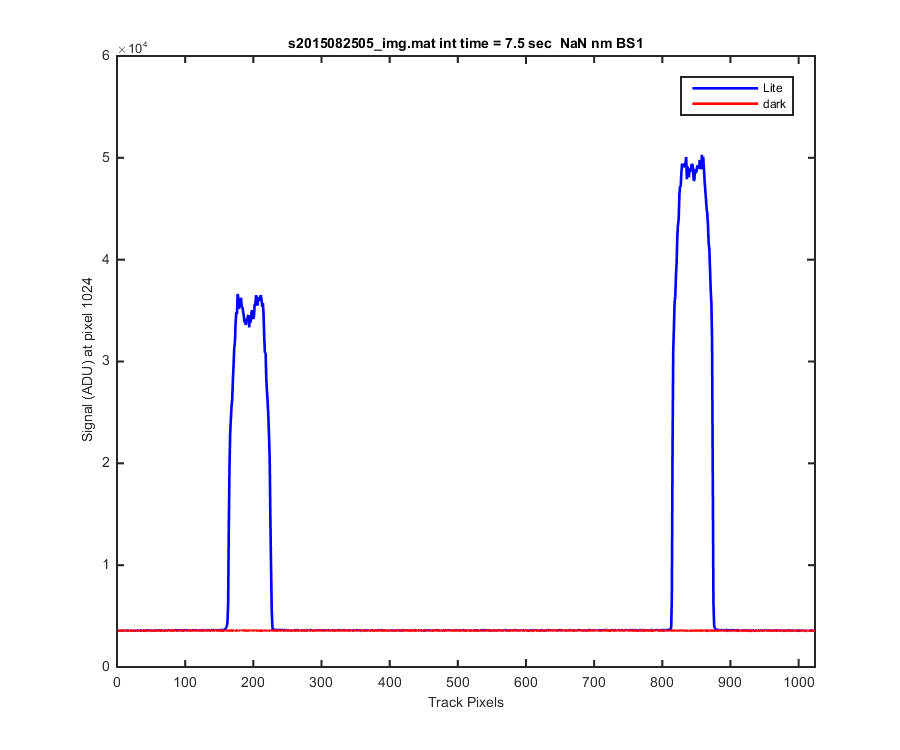

Figure 4

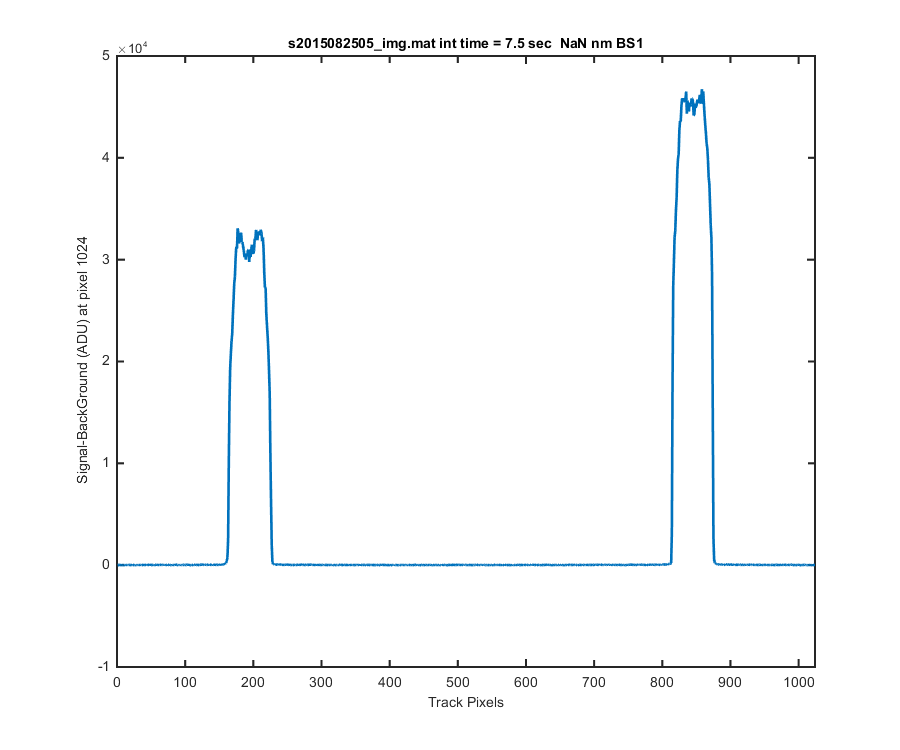

Figure 5

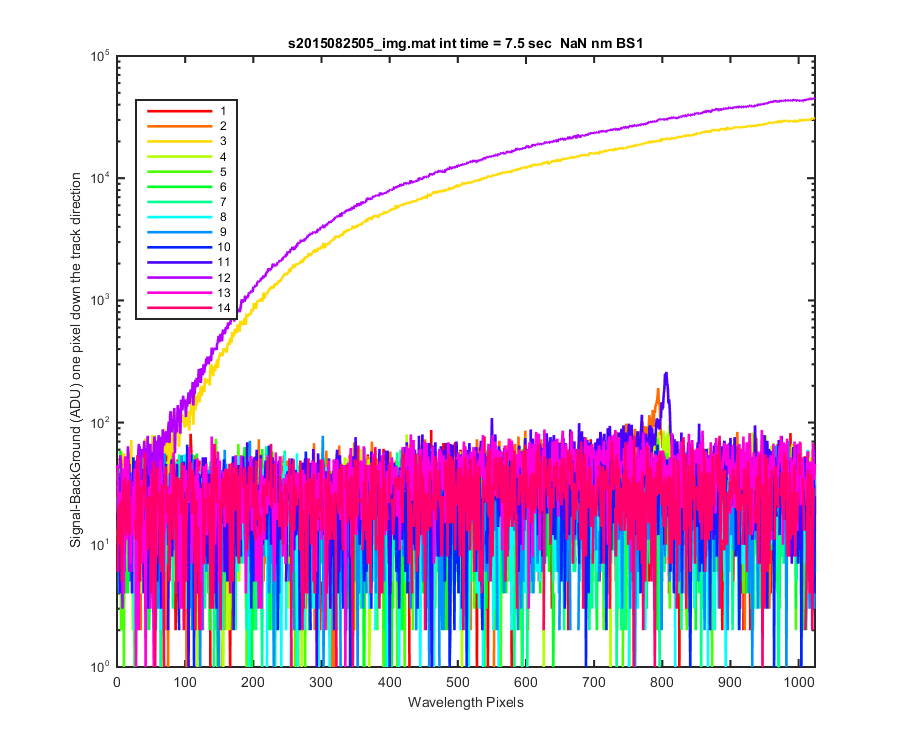

Figure 6
