REVISION DATE: 04-Sep-2015 09:24:35
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | NEXT | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Wavelength (nm)(deg) | Total Exposure Time | Acquisition mode | Temperature | READTIME | VSHIFT | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2015090213_img | Signal | 460 | 2 | Single Scan | -40 | 5000000 | 6.425e-05 | 2015-09-02T04:44:10 | 4 | Image | 47189 | 2849.26 | 18.77 |

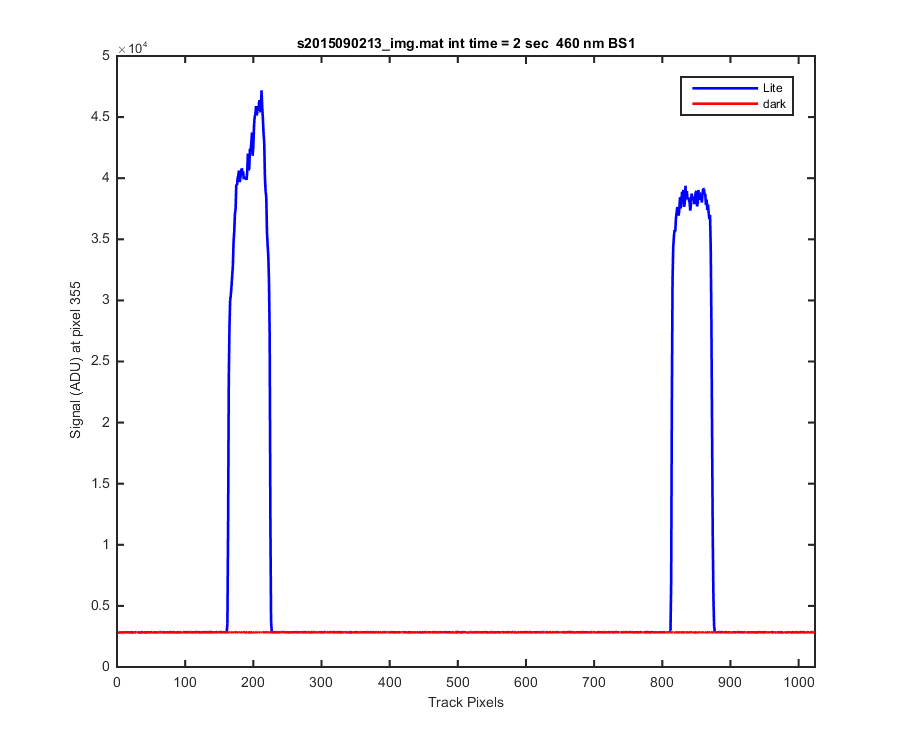

Figure 1

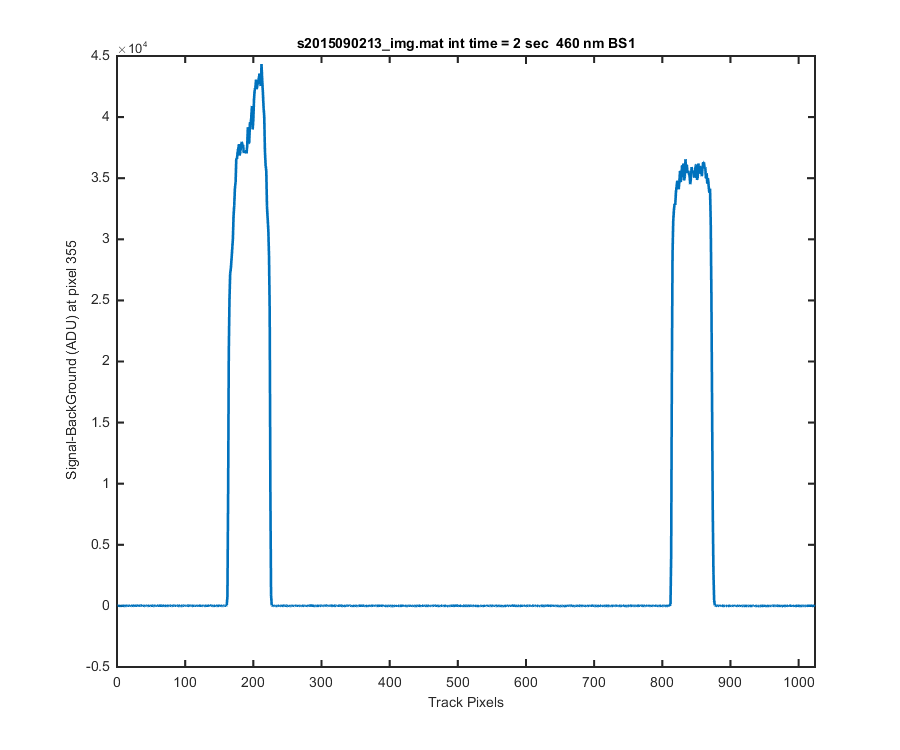

Figure 2

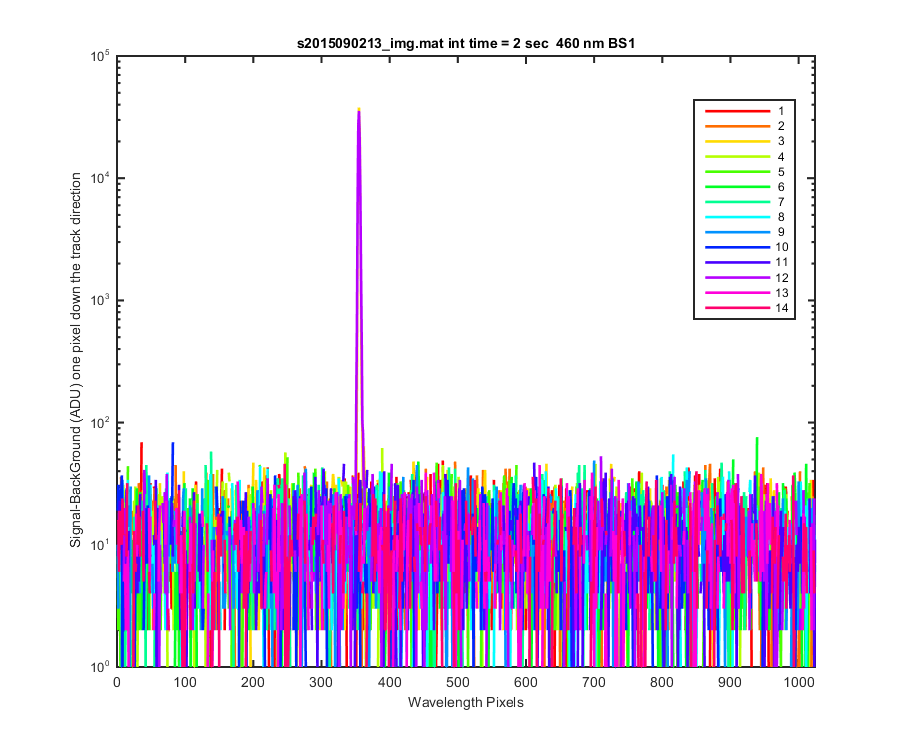

Figure 3

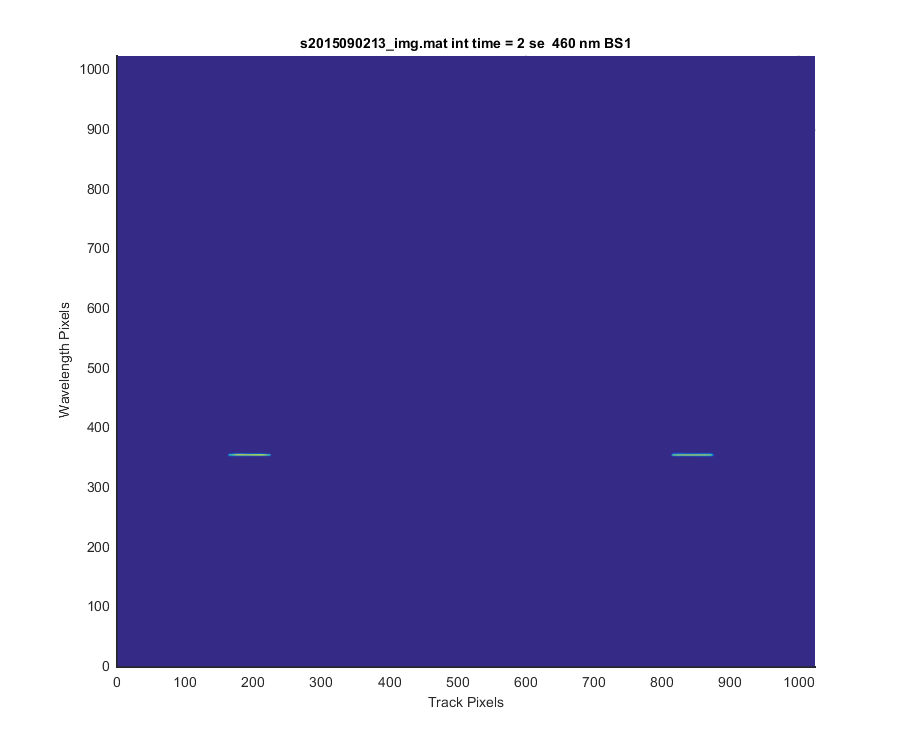

Figure 4

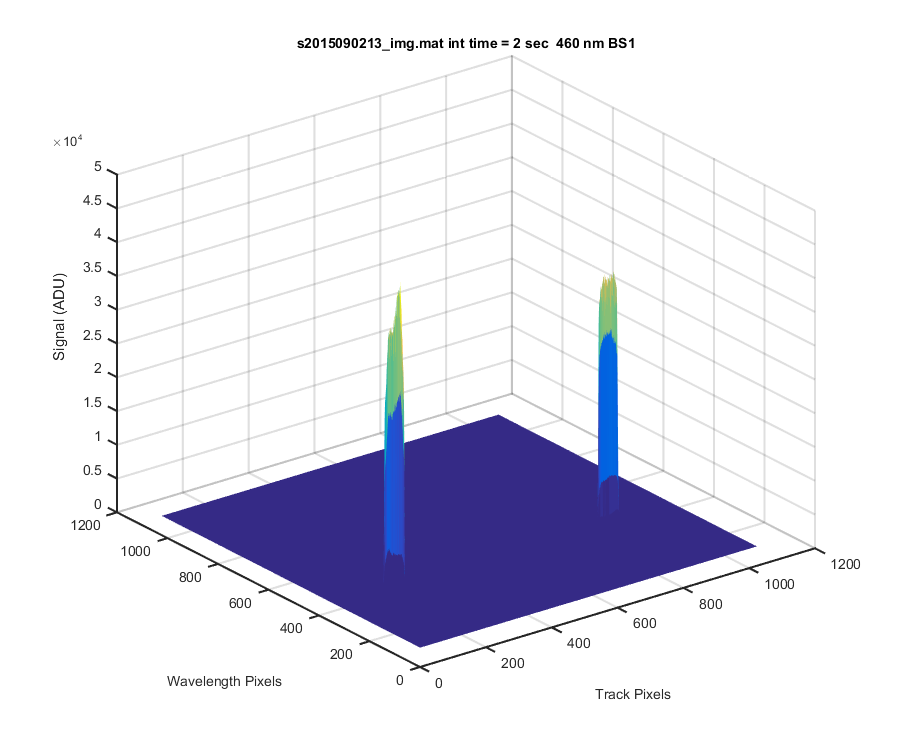

Figure 5

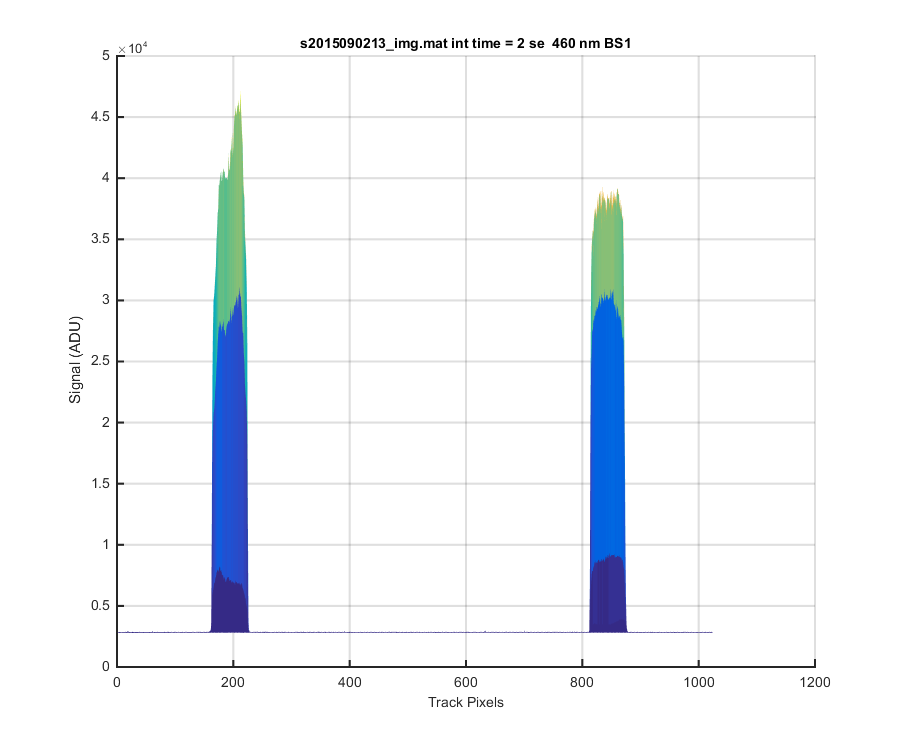

Figure 6
