REVISION DATE: 12-Apr-2016 15:42:44

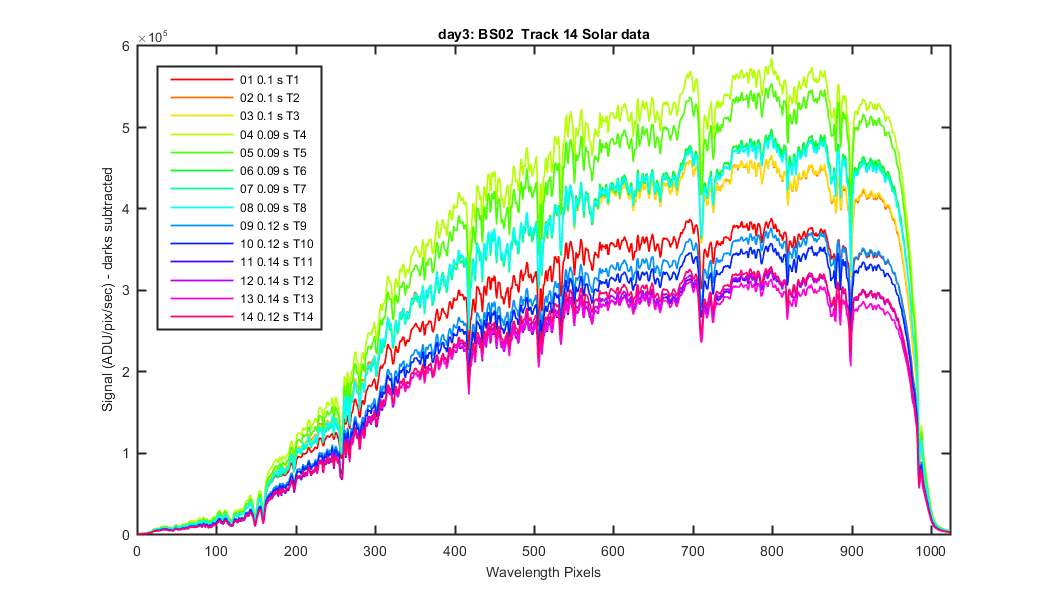

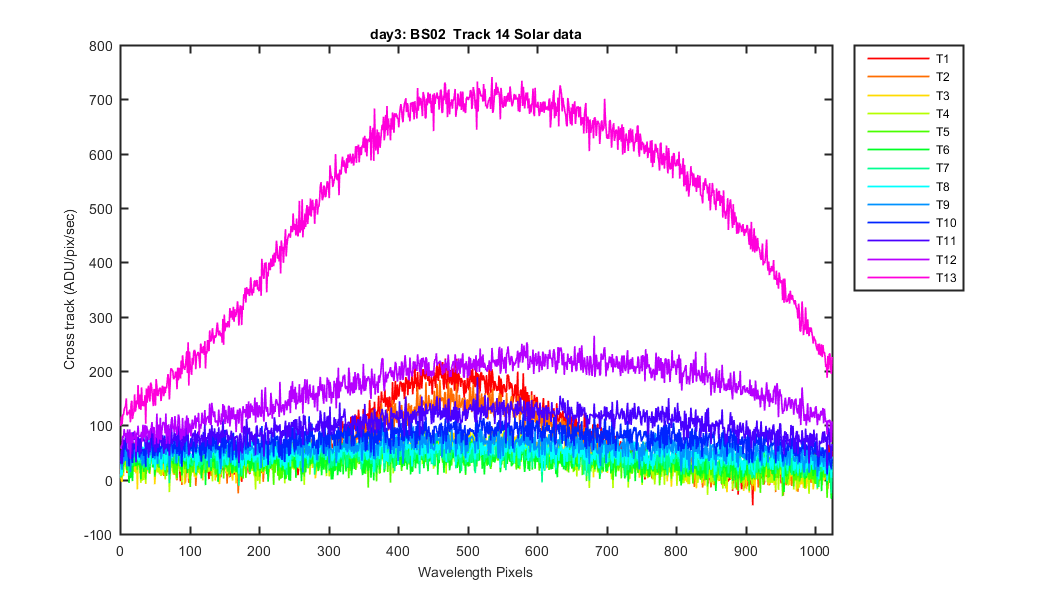

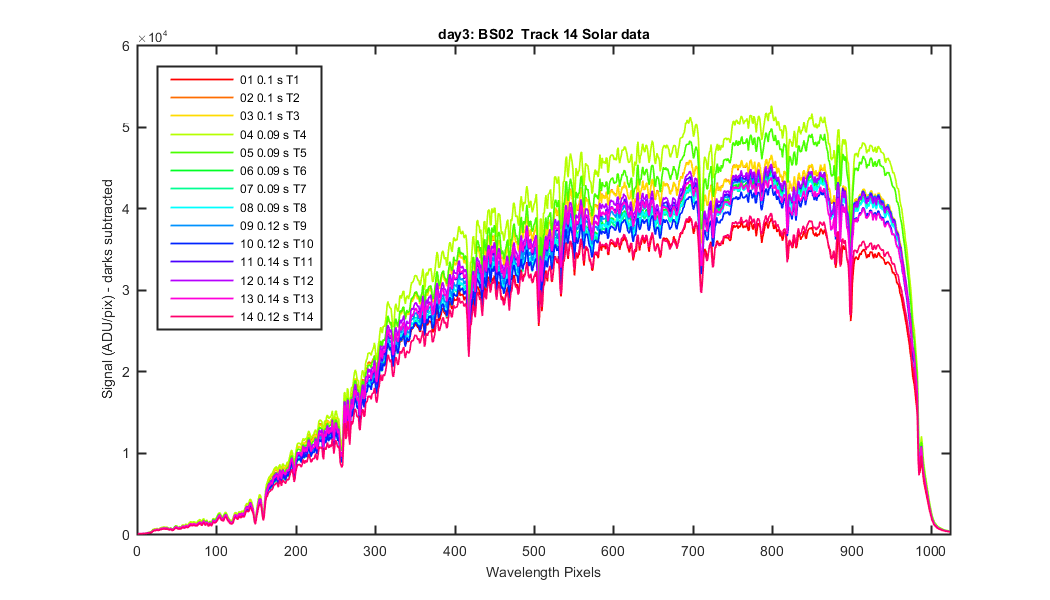

I used the long M259 Es FO#700 before Terry installs it in M261. FO#700 bare tip was pointed at the gray plaque under somewhat cloudy skys, then each of the 14x FOs from the BS02 bundle were connected to the other end, and I scanned sig & bac at somewhat differing exposure times to keep ~50k ADU signal. So there are 14x sig,bac scan pairs, plus one amb at the end called #14.

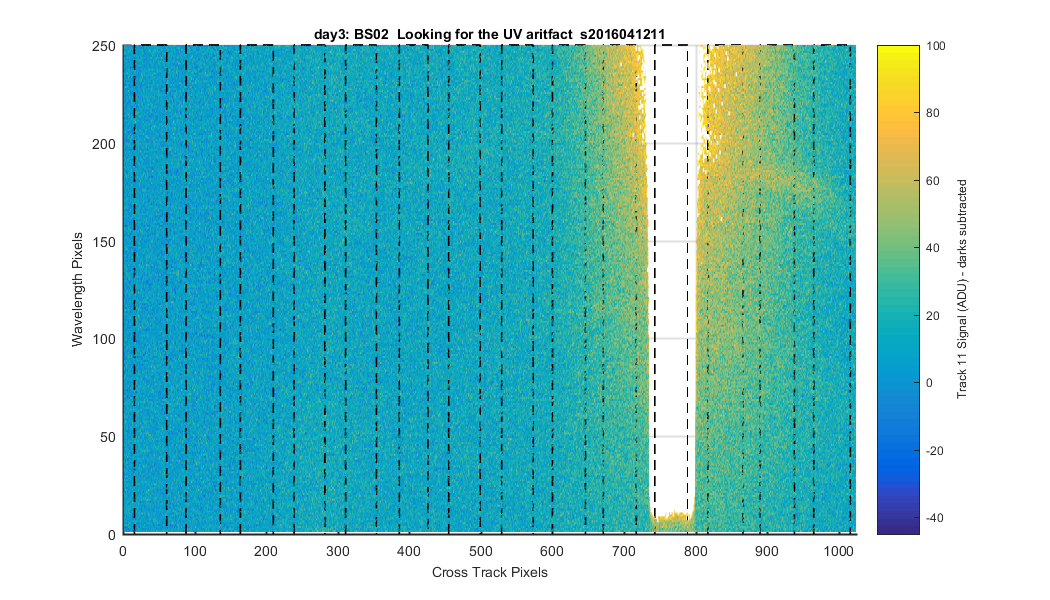

During Hawaii-2016-02 while collecting data with the BS01cfg003 we saw a UV artifact at pixels 0-30 when the spec was looking at the grey plaque outside. The BS1 needed to be shipped to Hawaii so we did the same experiment with BS2 but this time with all the tracks one at a time looking at the grey plaque. Below are the results. The graphs should look very similar to the day06 and 07 data on Page Num 7.01 and 8.01 from the Hawaii-2016-02 pages.

Issues/questions.

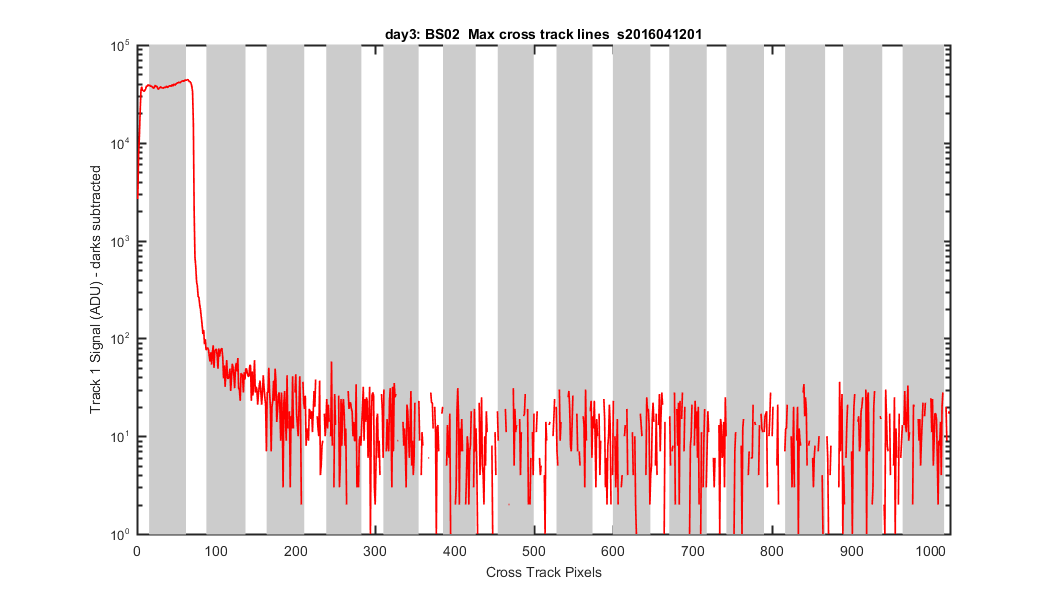

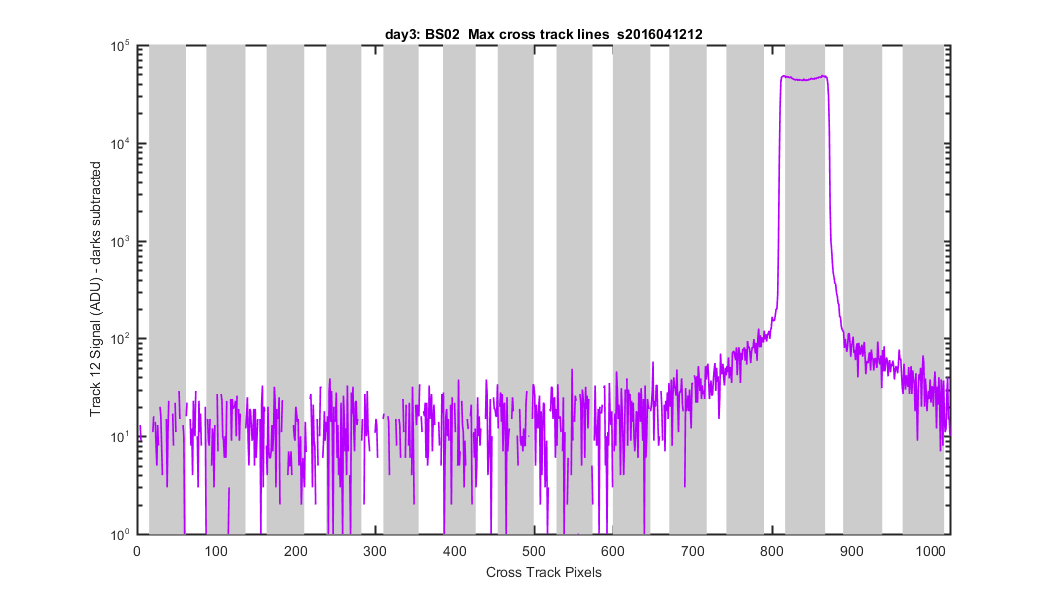

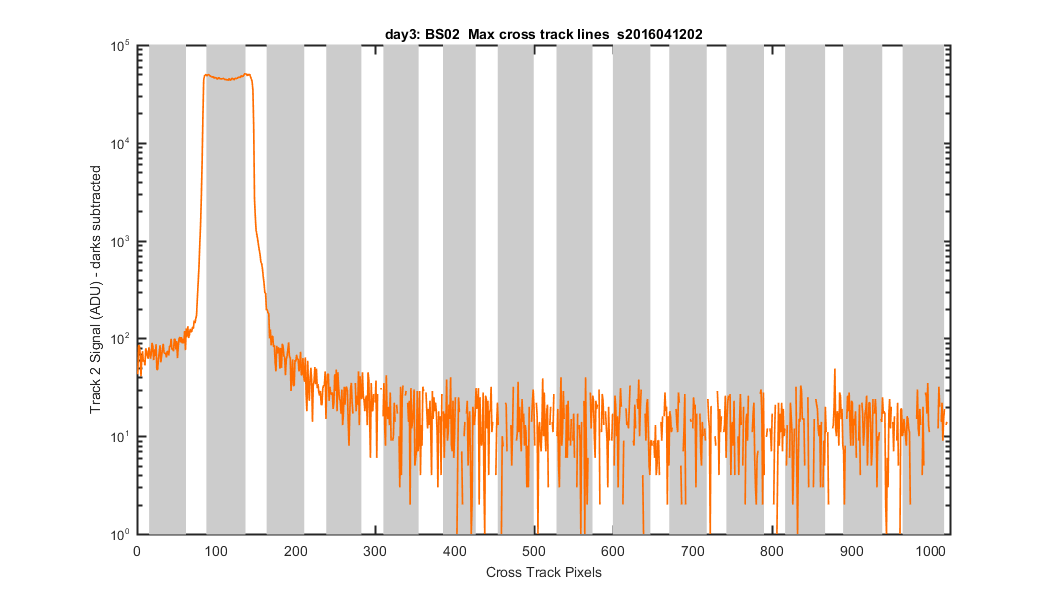

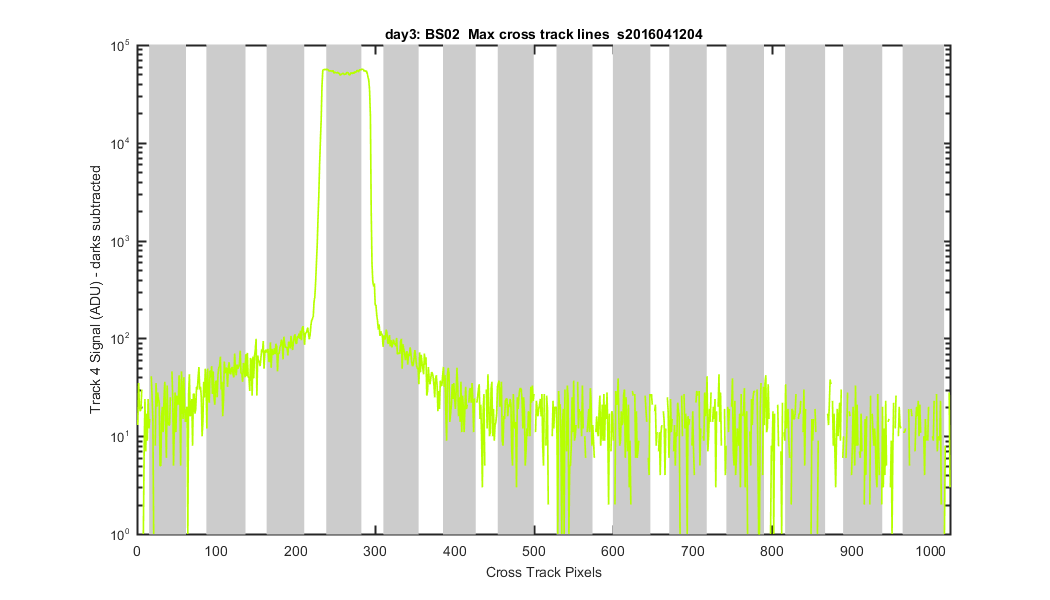

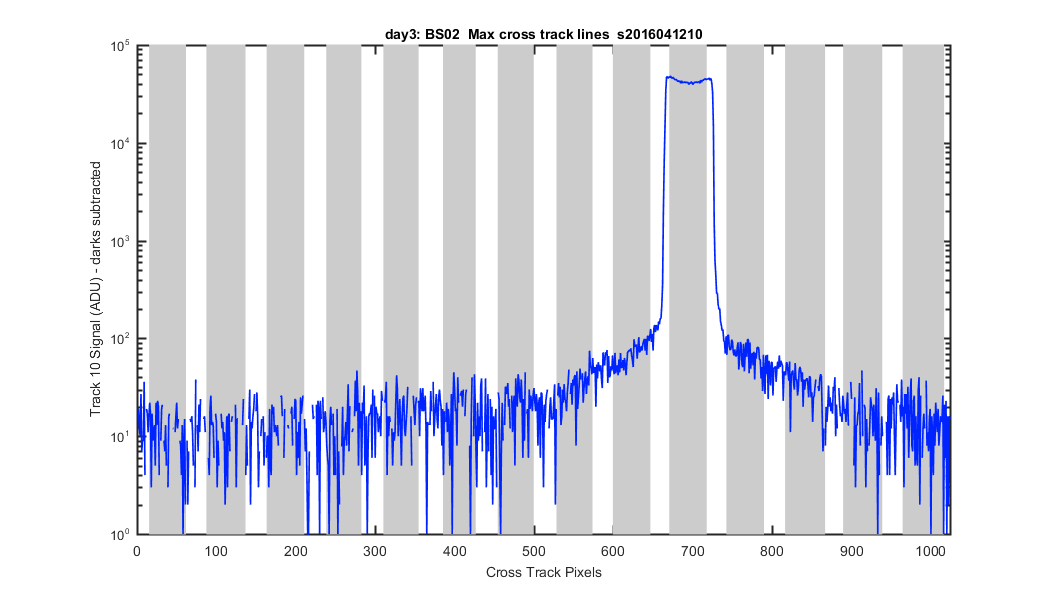

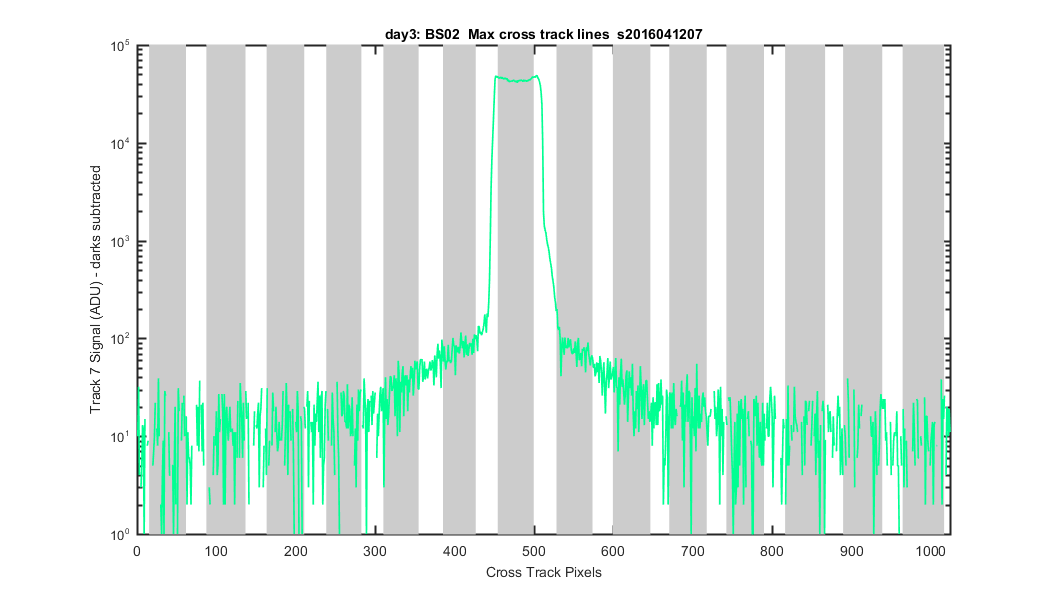

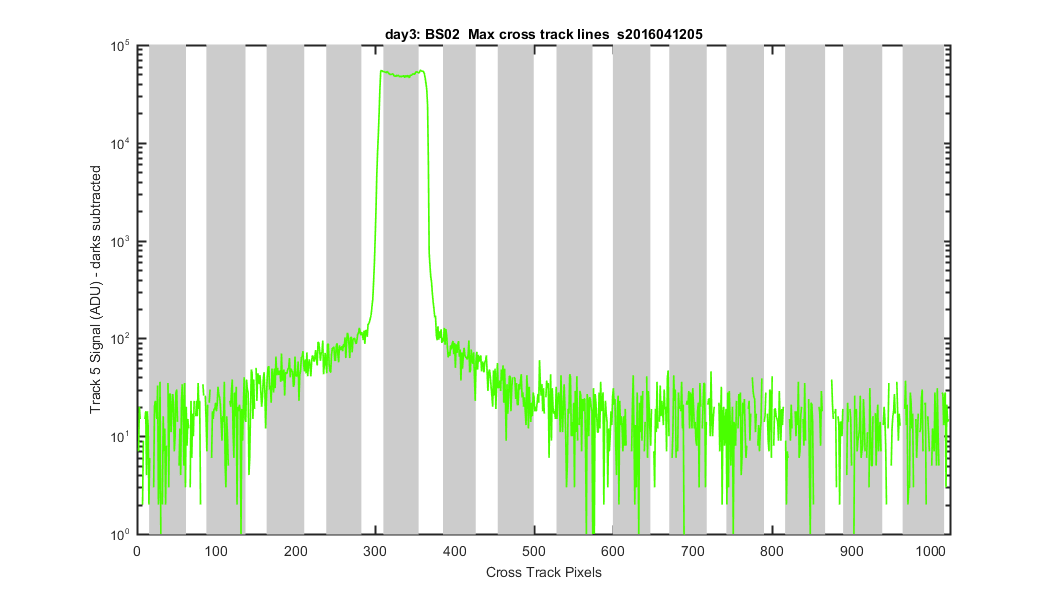

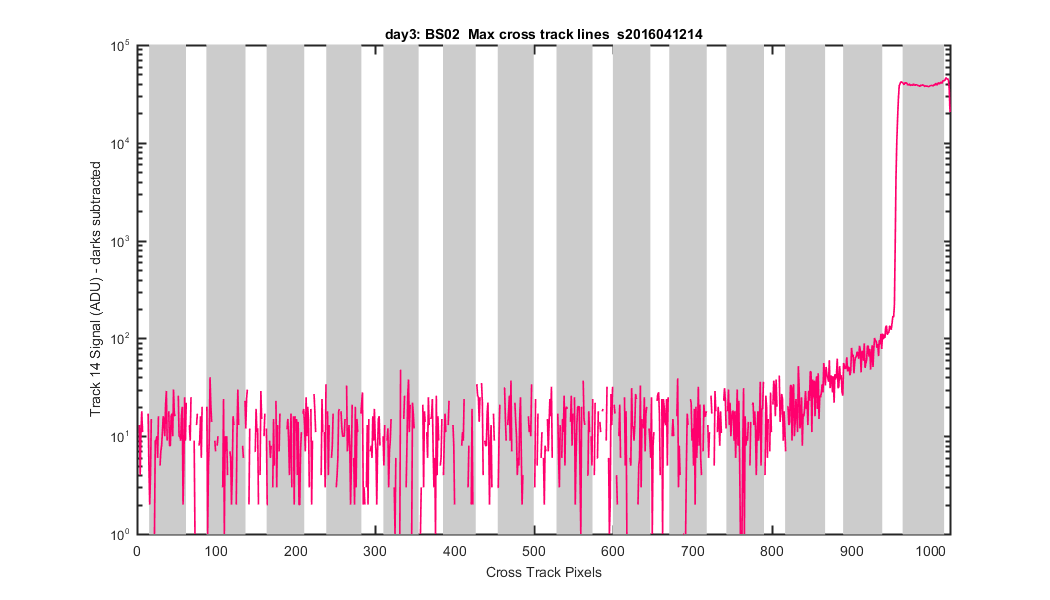

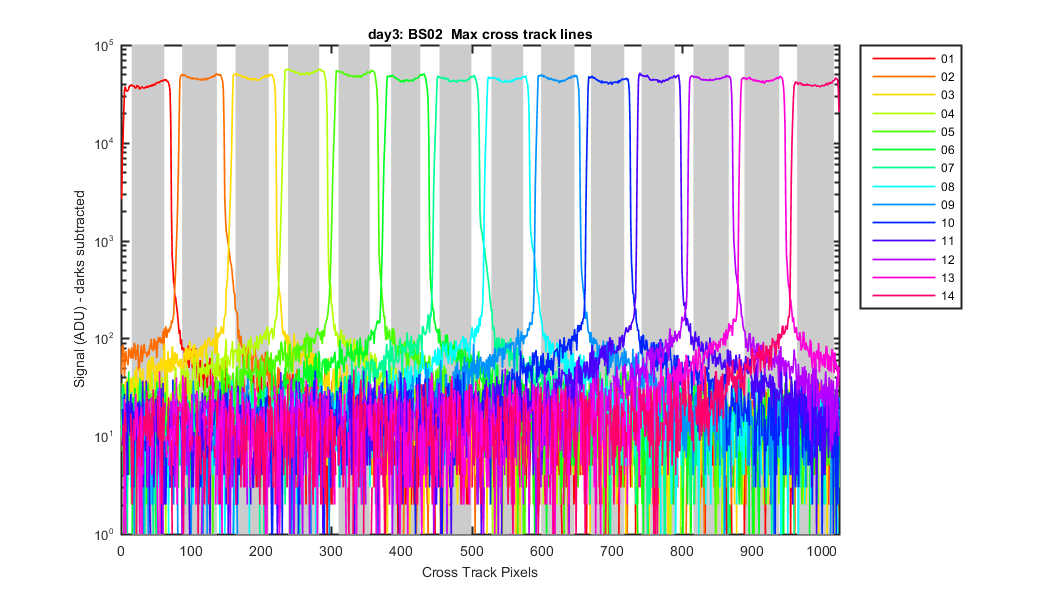

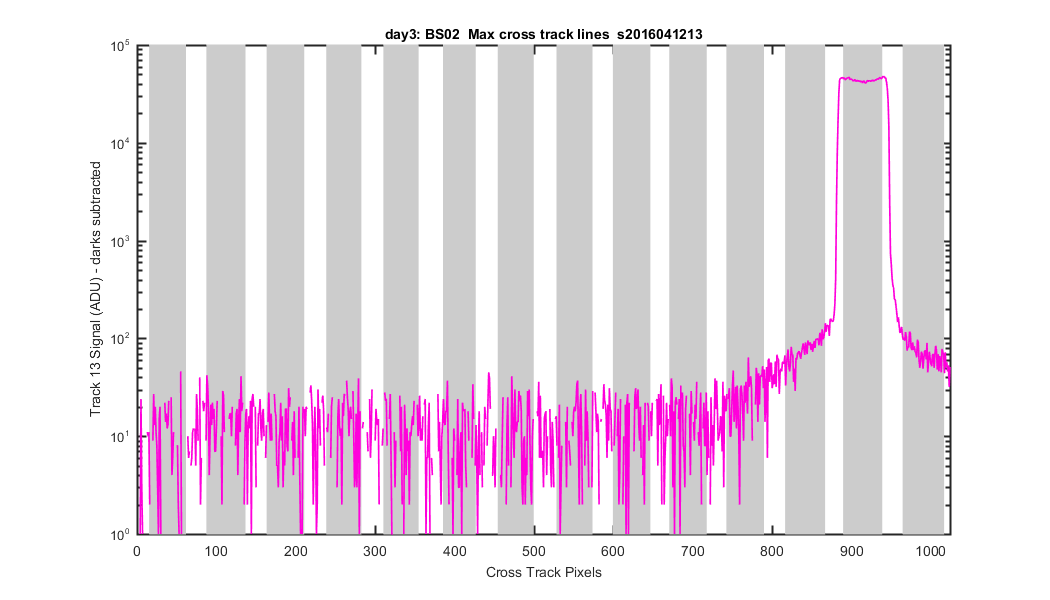

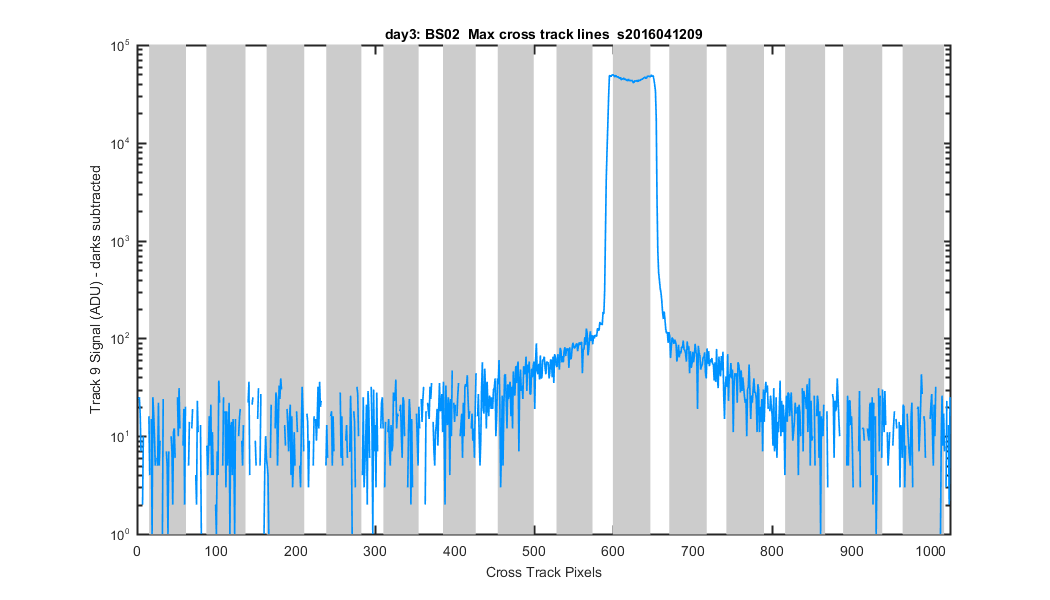

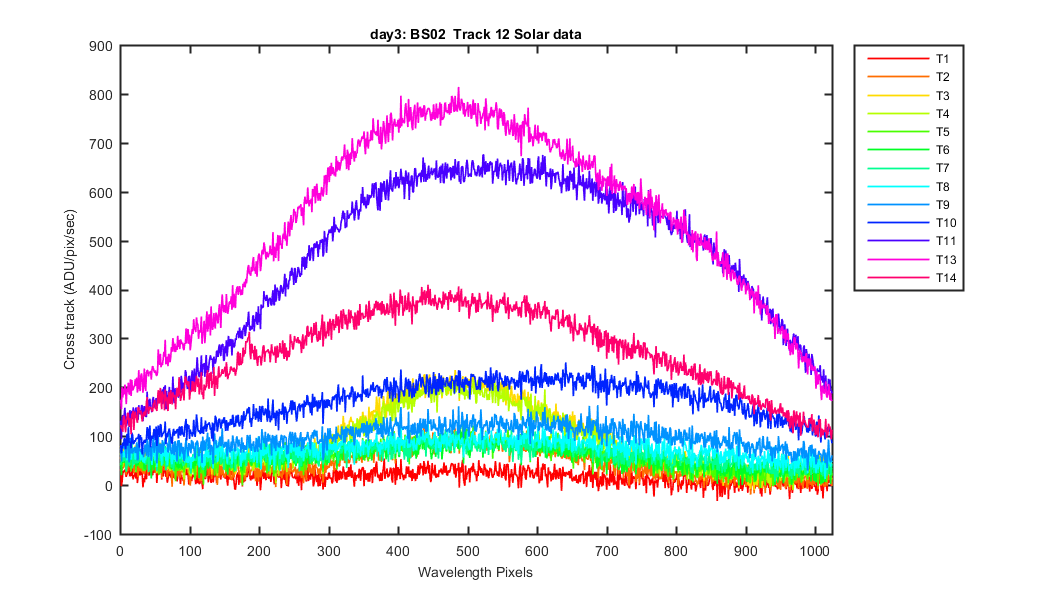

1. Why is there a shoulder on the tracks again? What is the "Shutter open & close delay" for this data set?

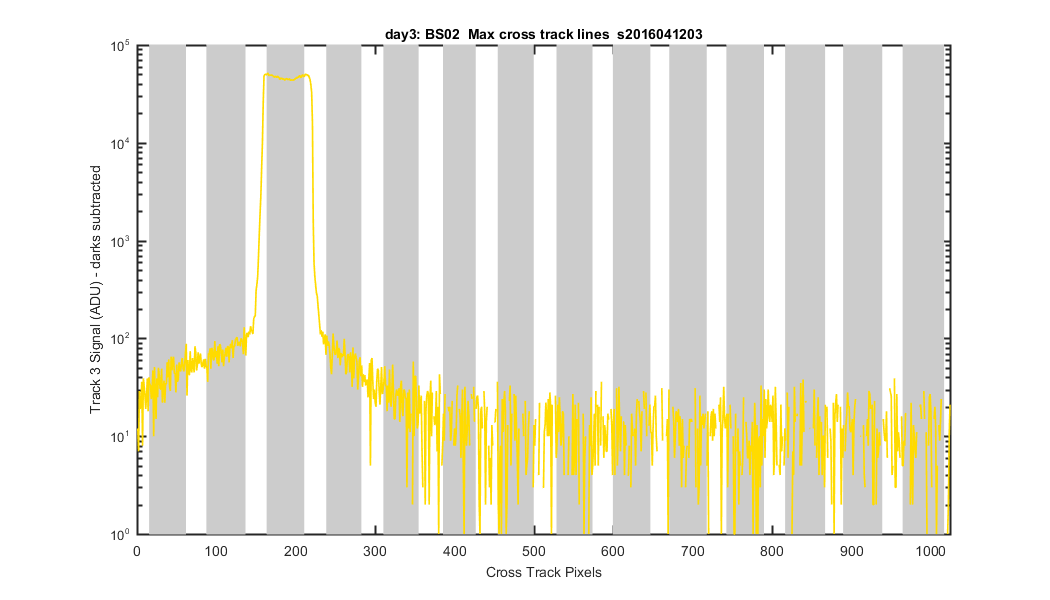

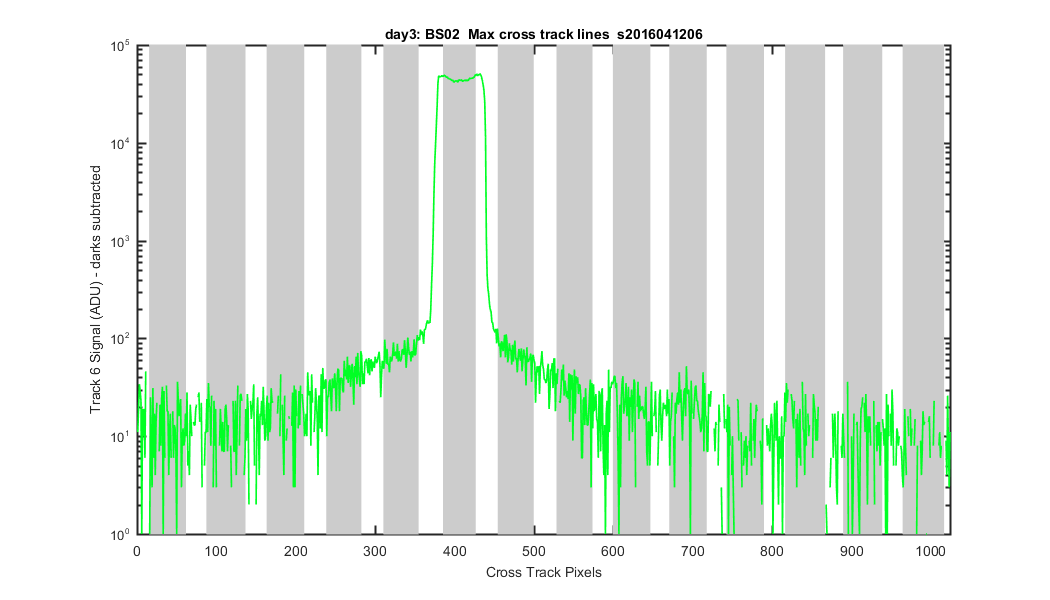

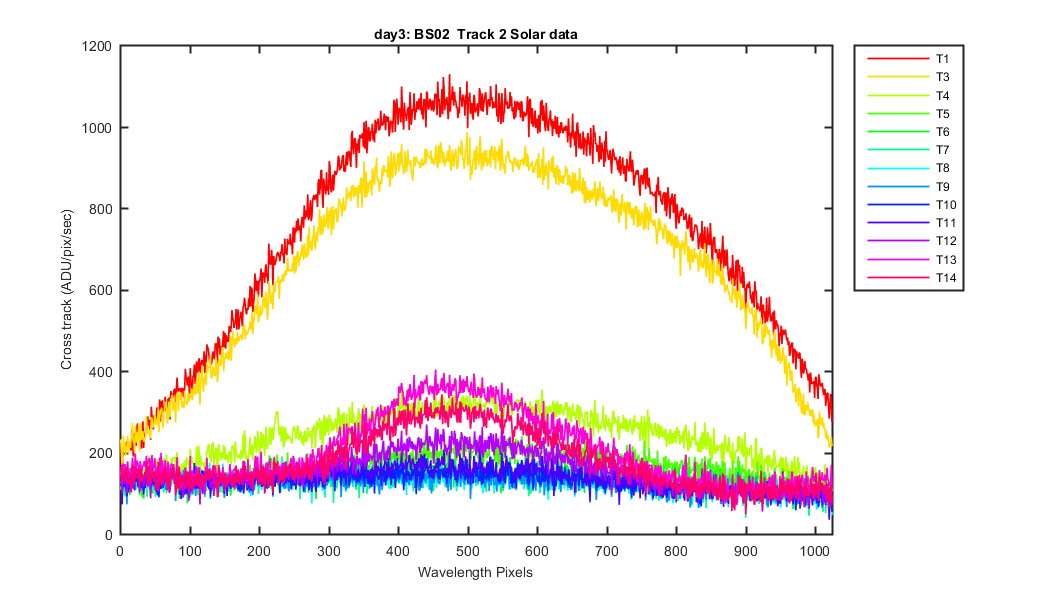

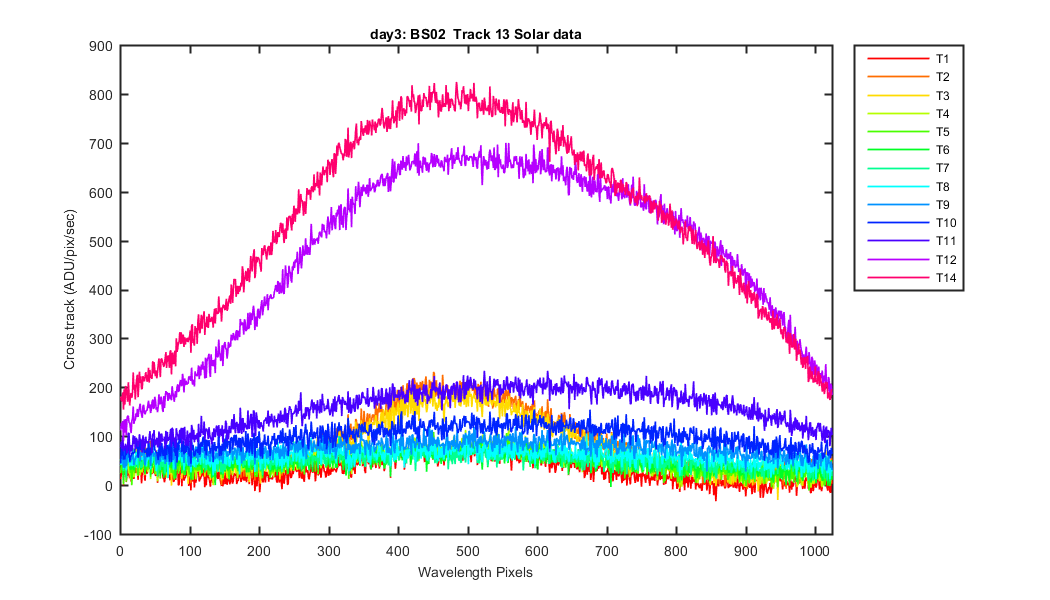

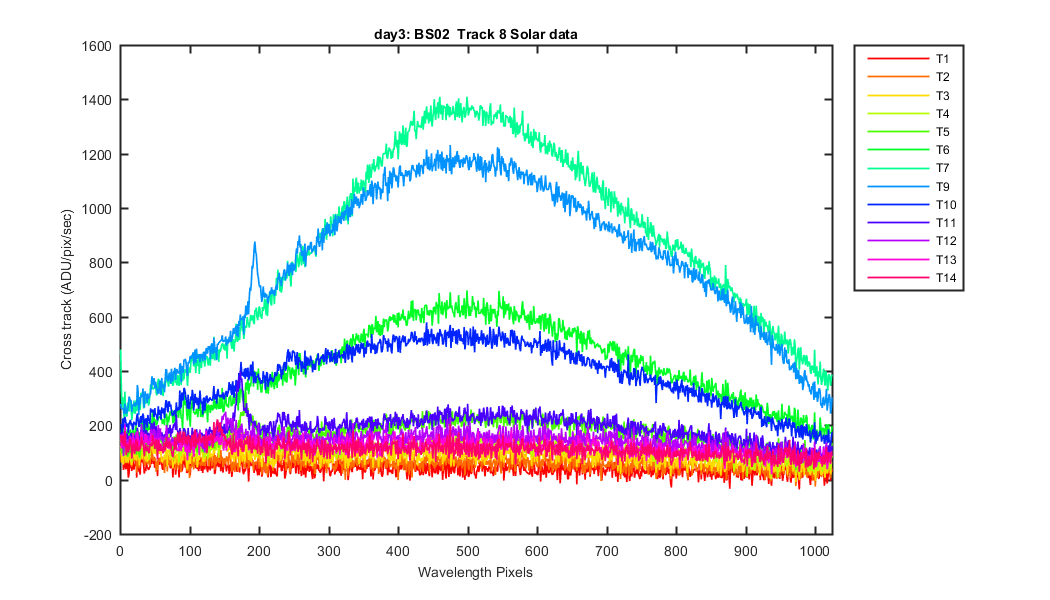

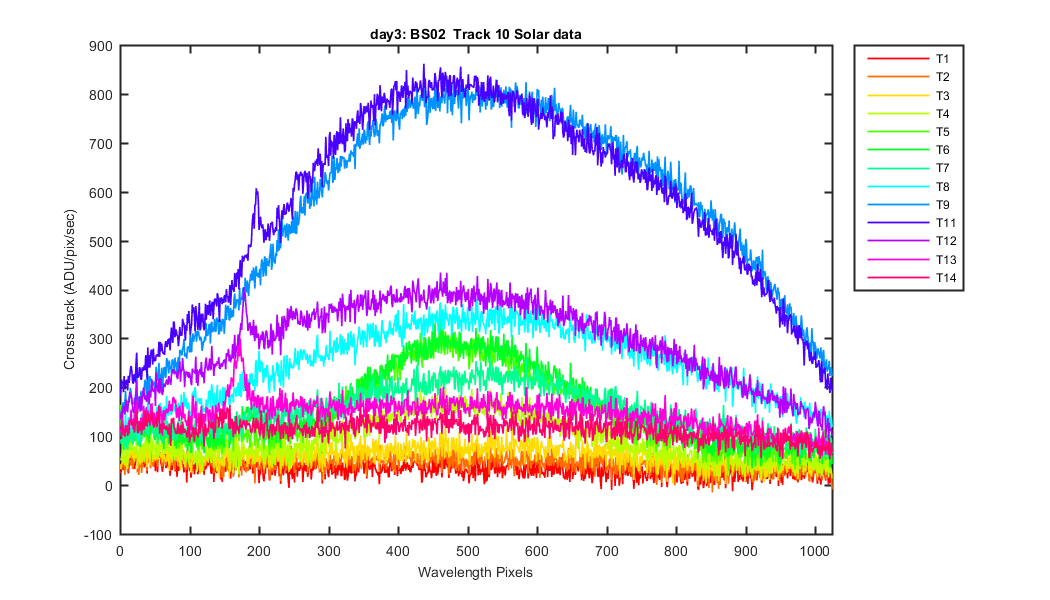

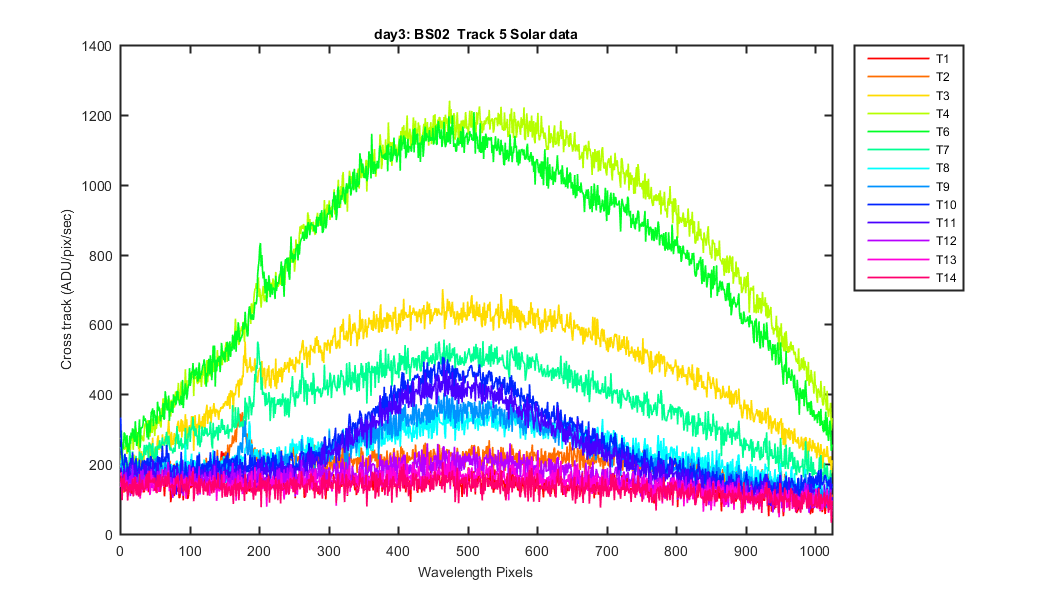

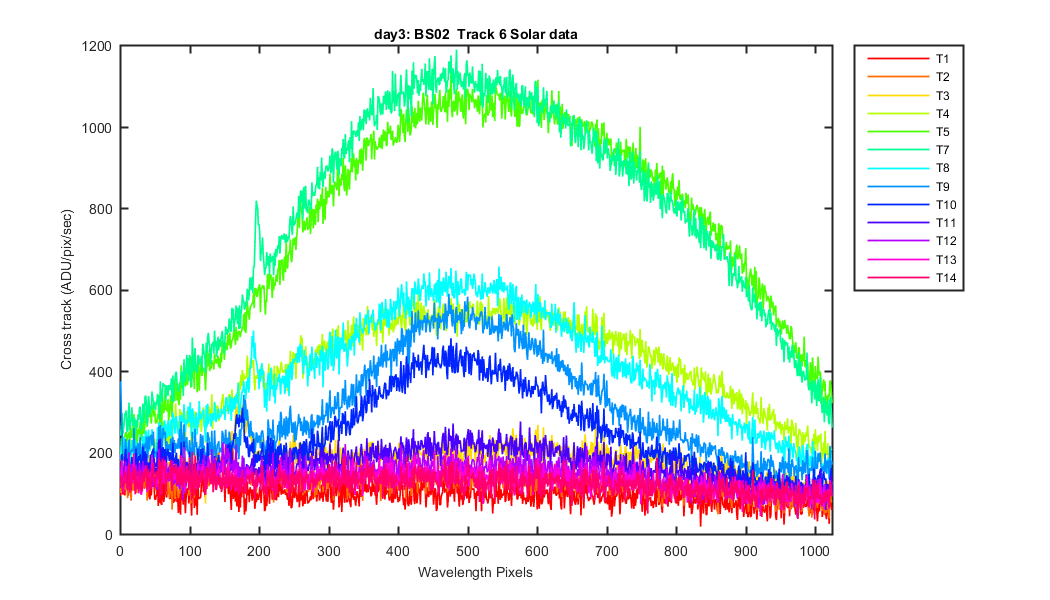

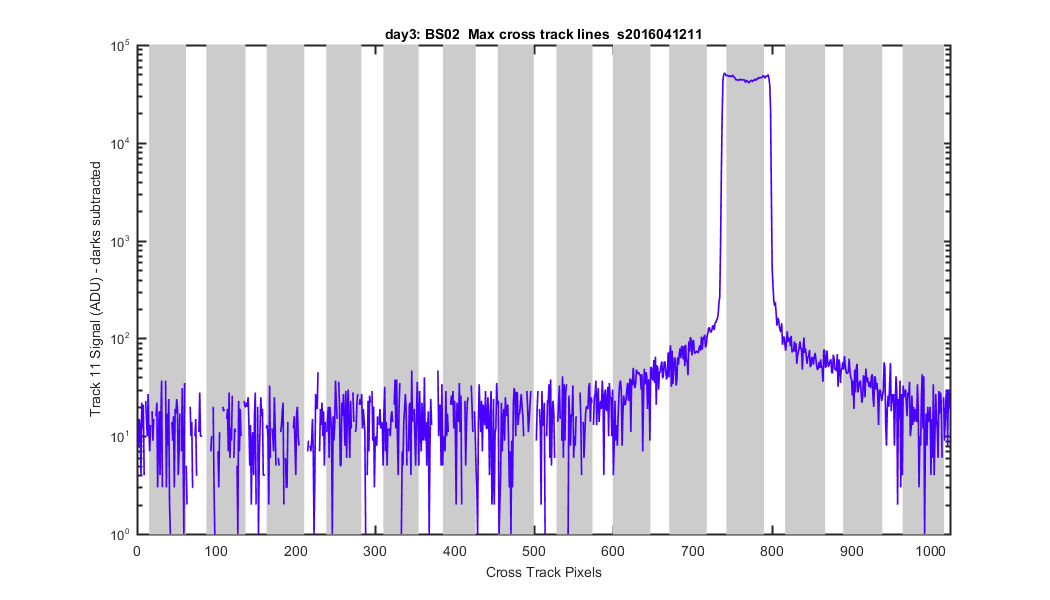

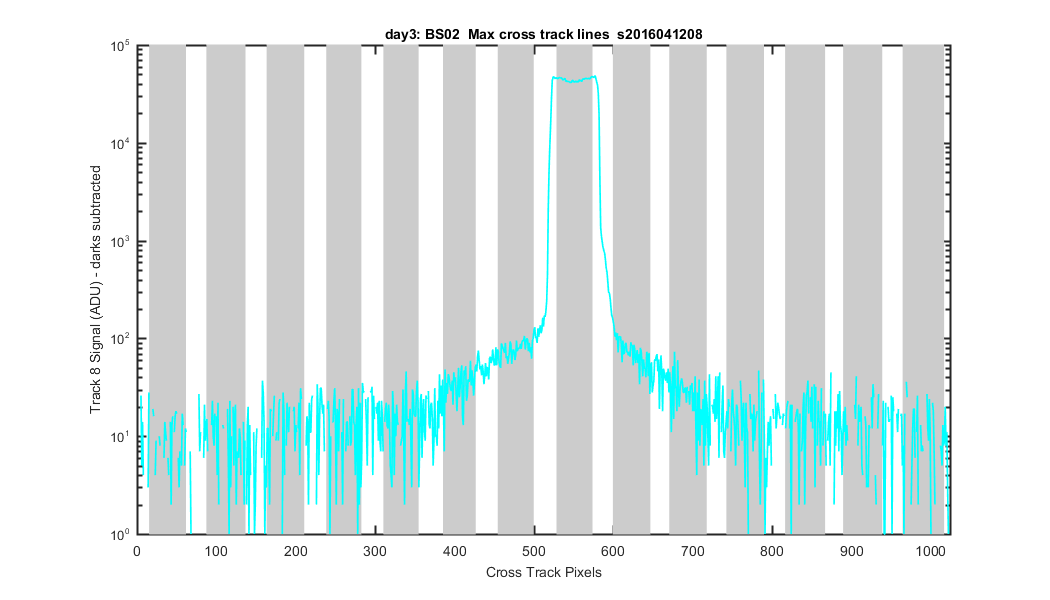

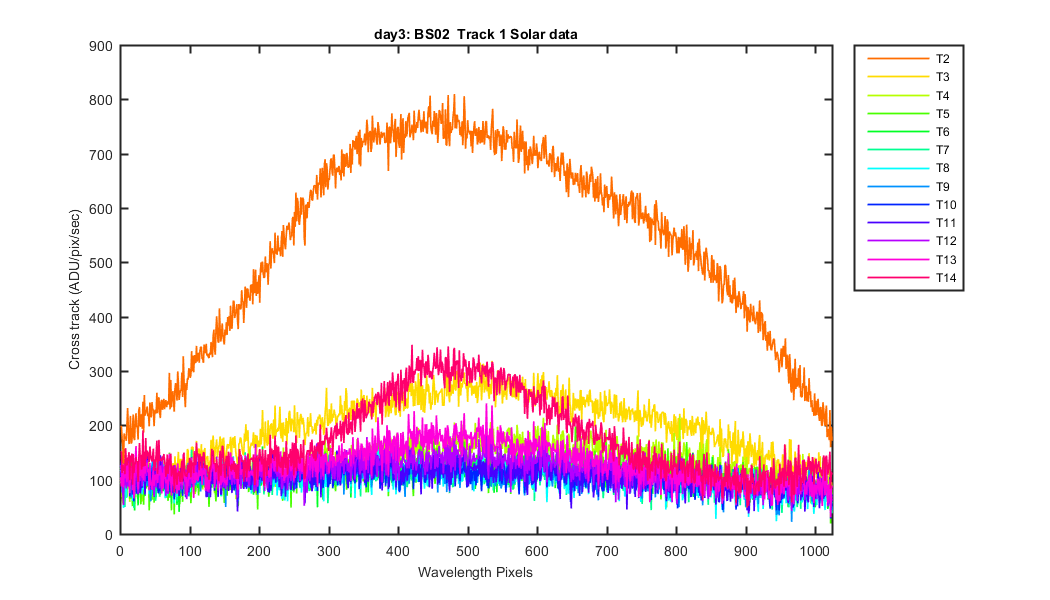

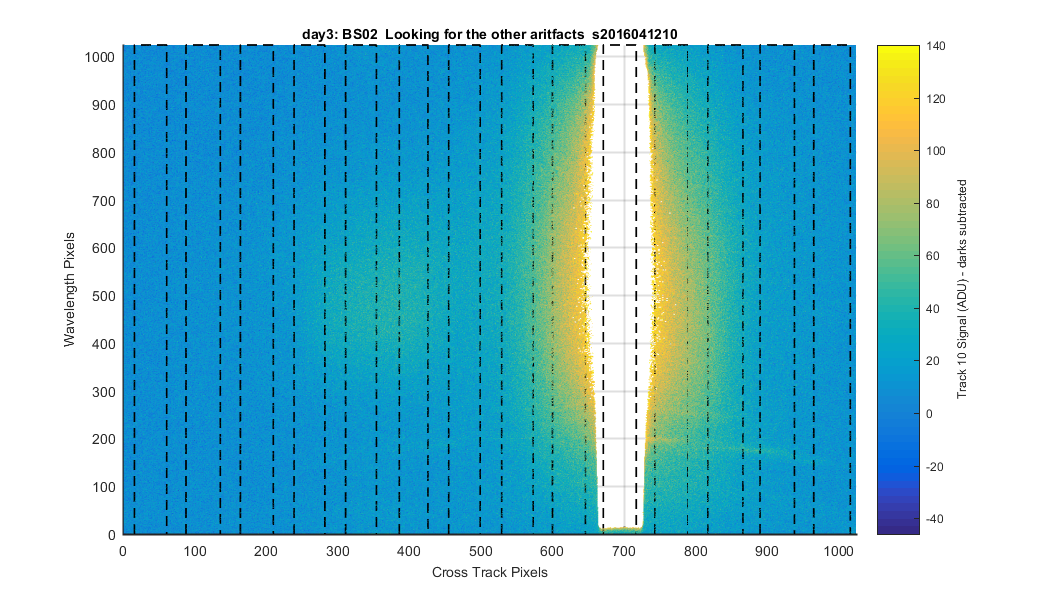

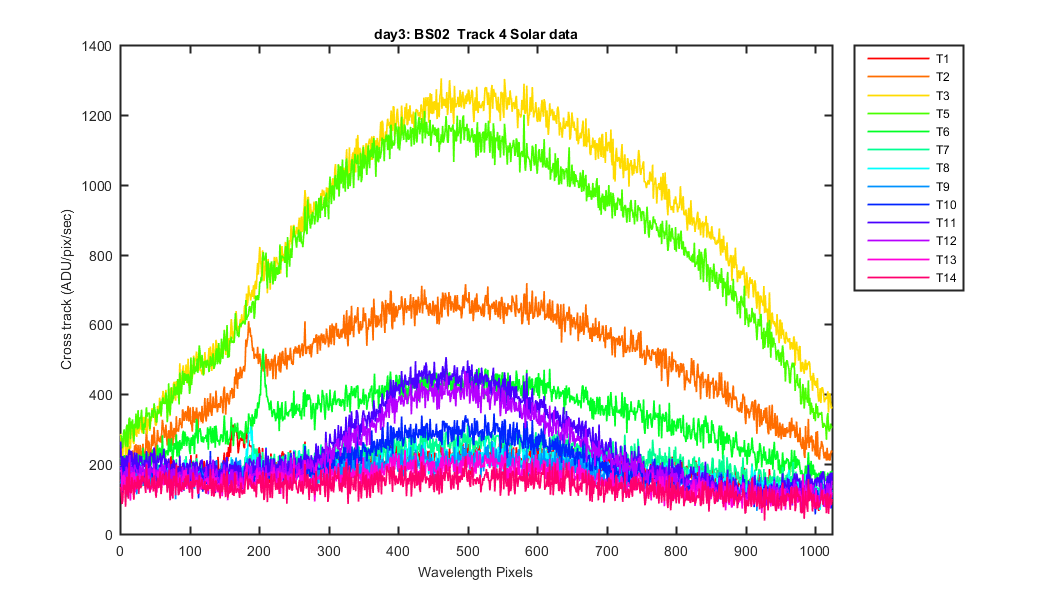

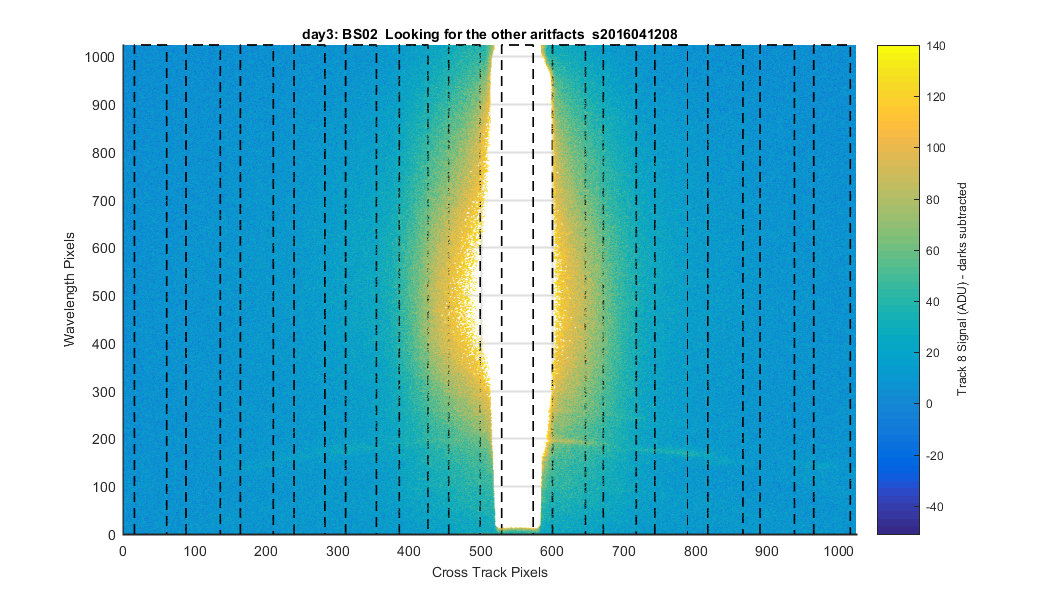

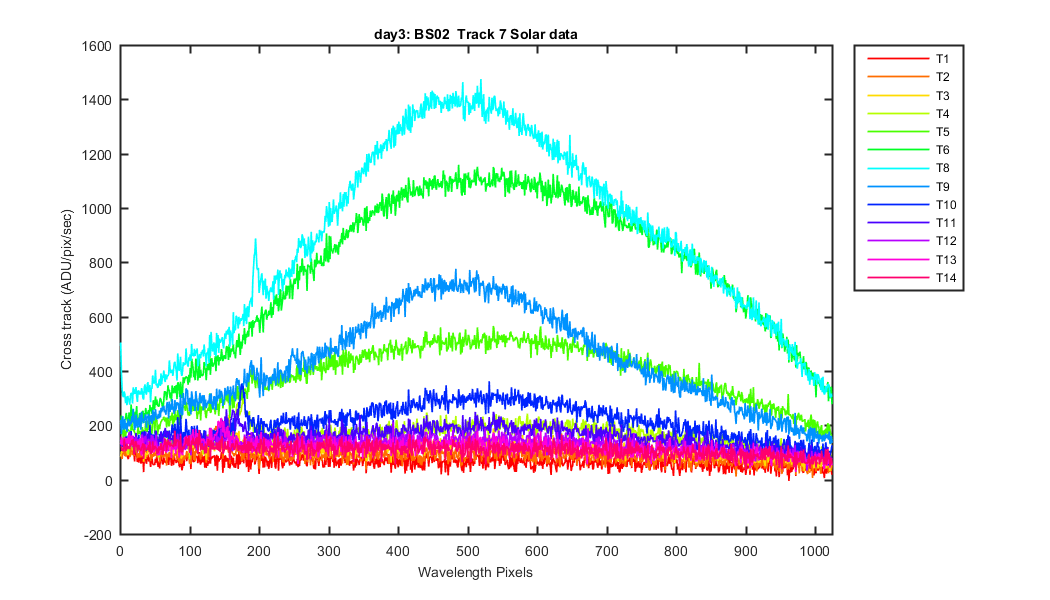

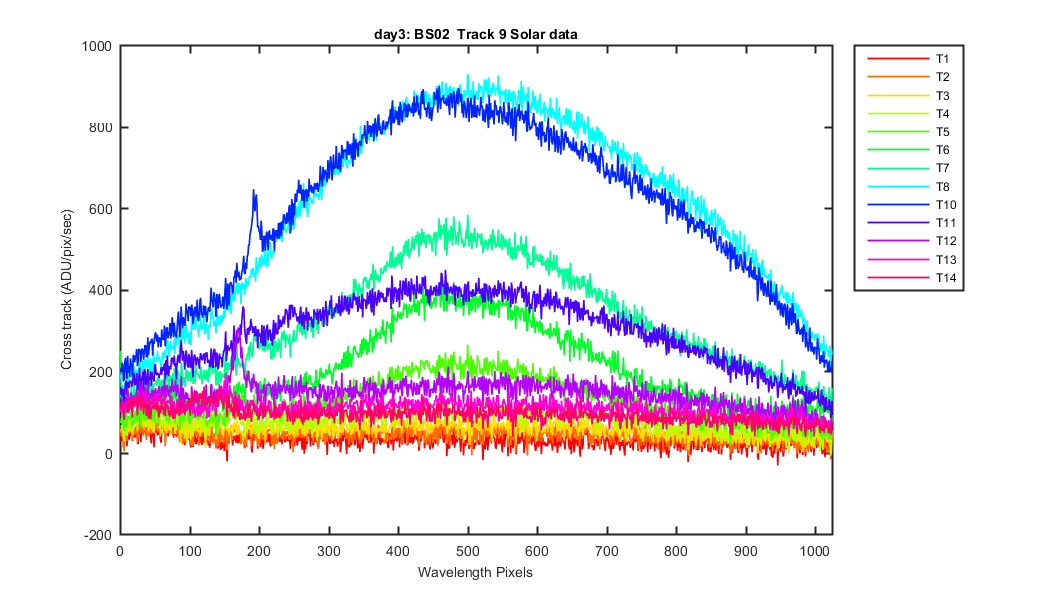

2. There is a new peak in the cross track data around pixel 200 for tracks 2-11. This is an arched feature in the surface plots

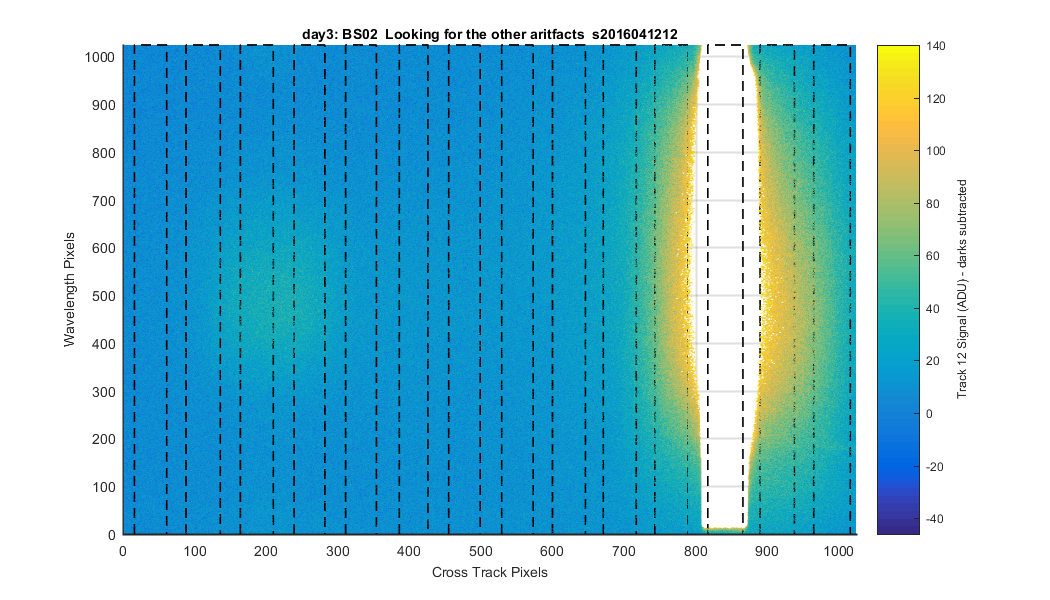

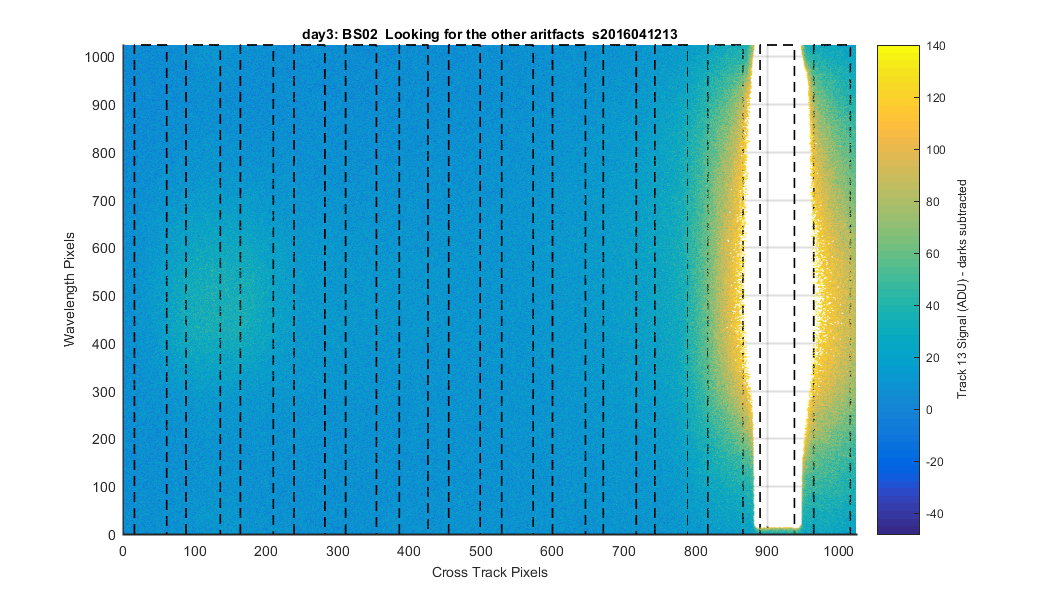

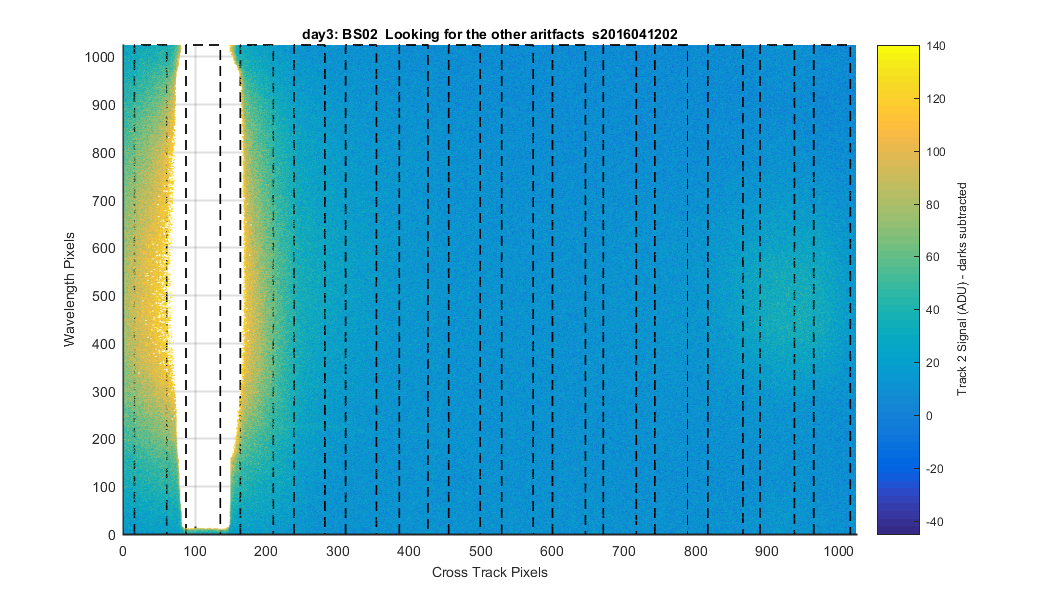

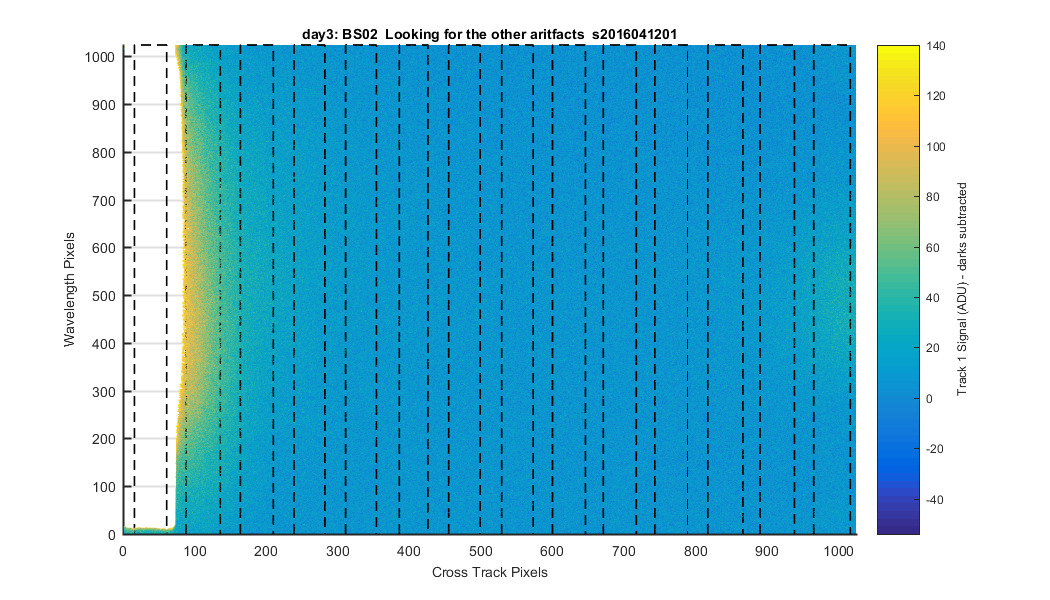

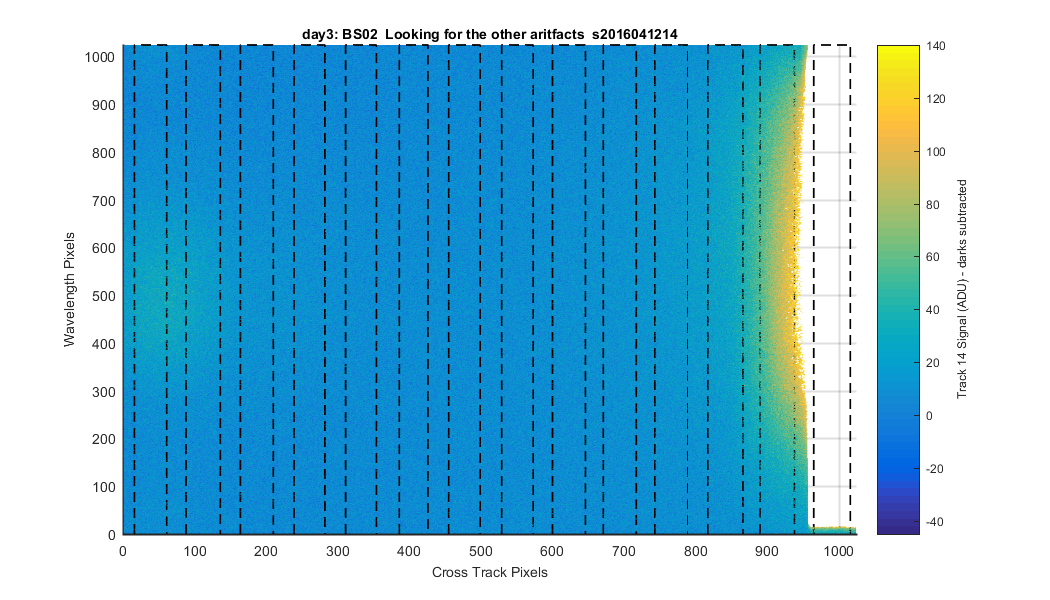

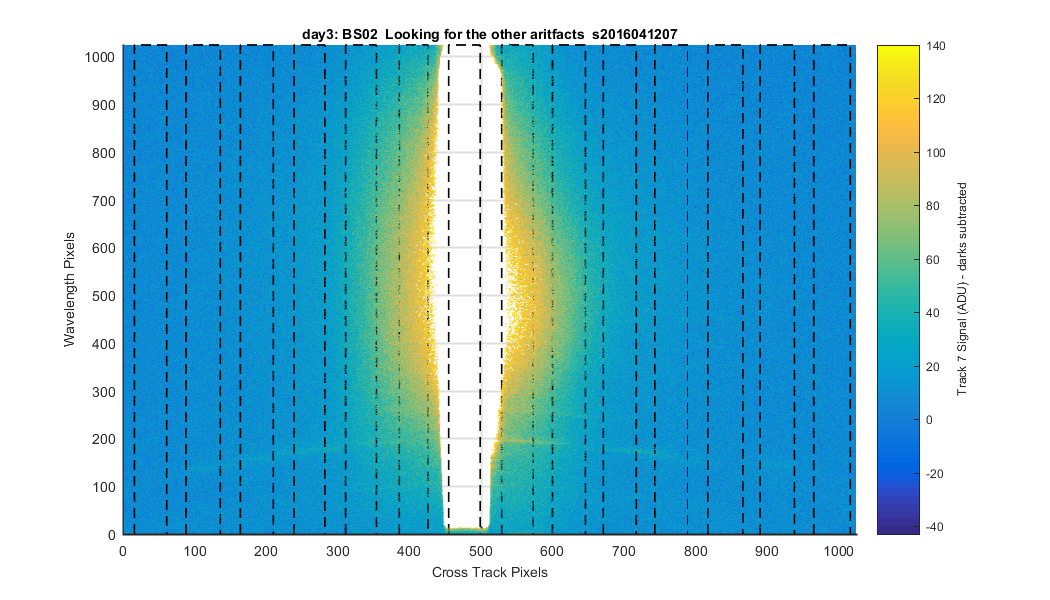

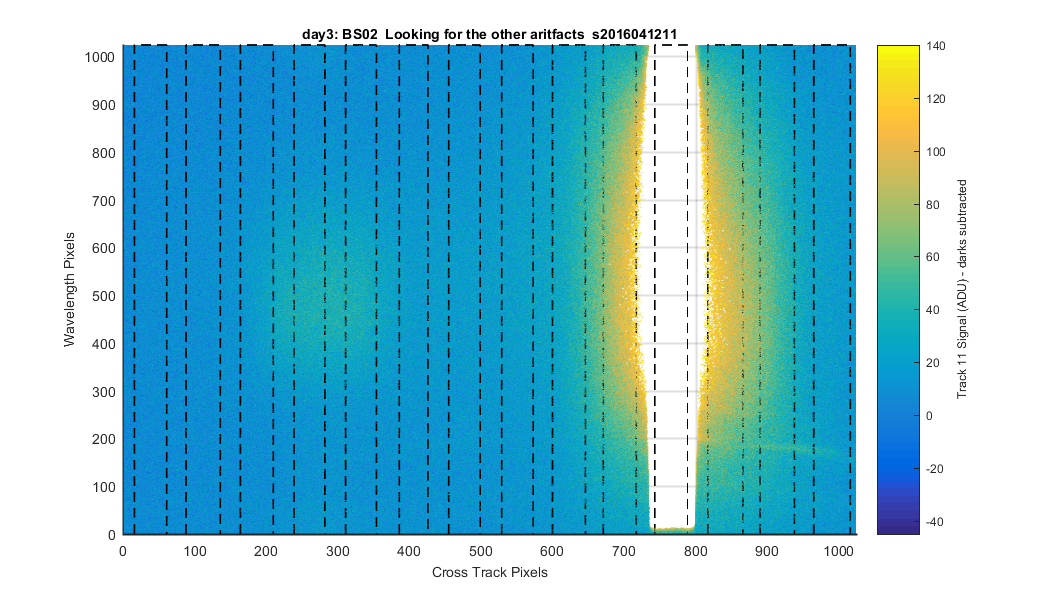

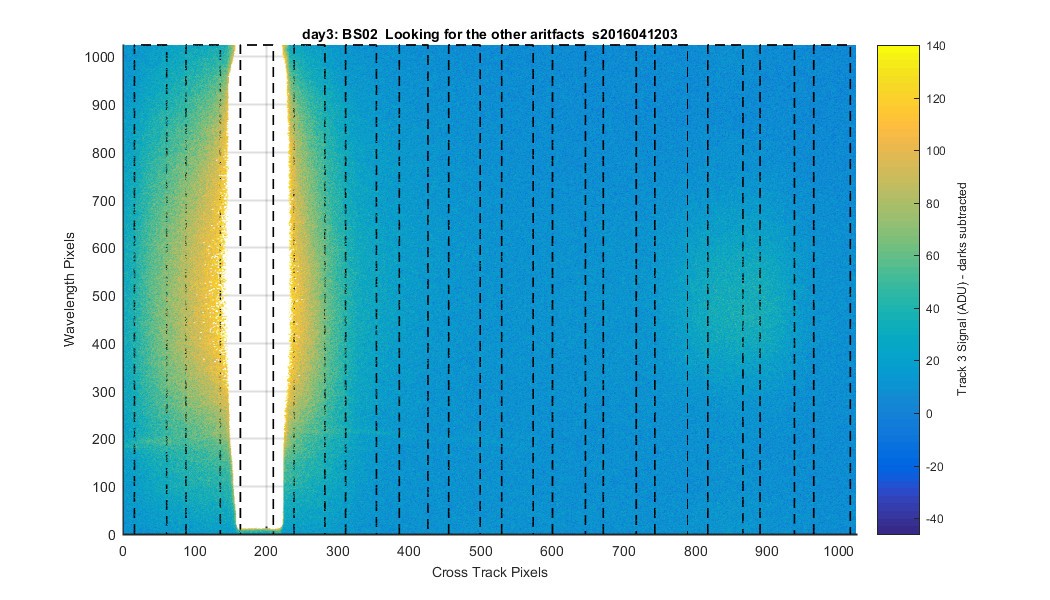

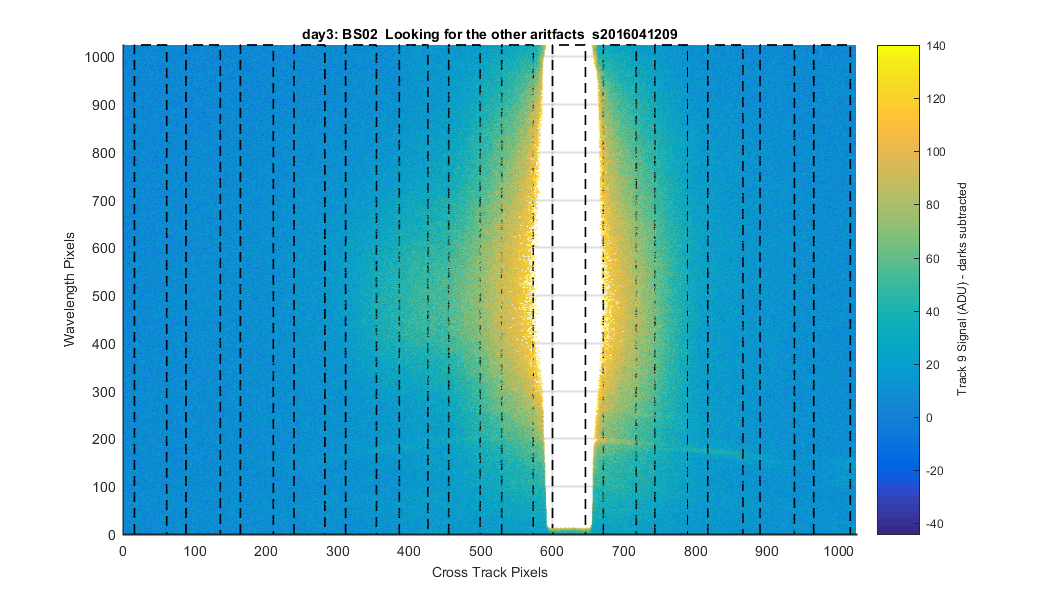

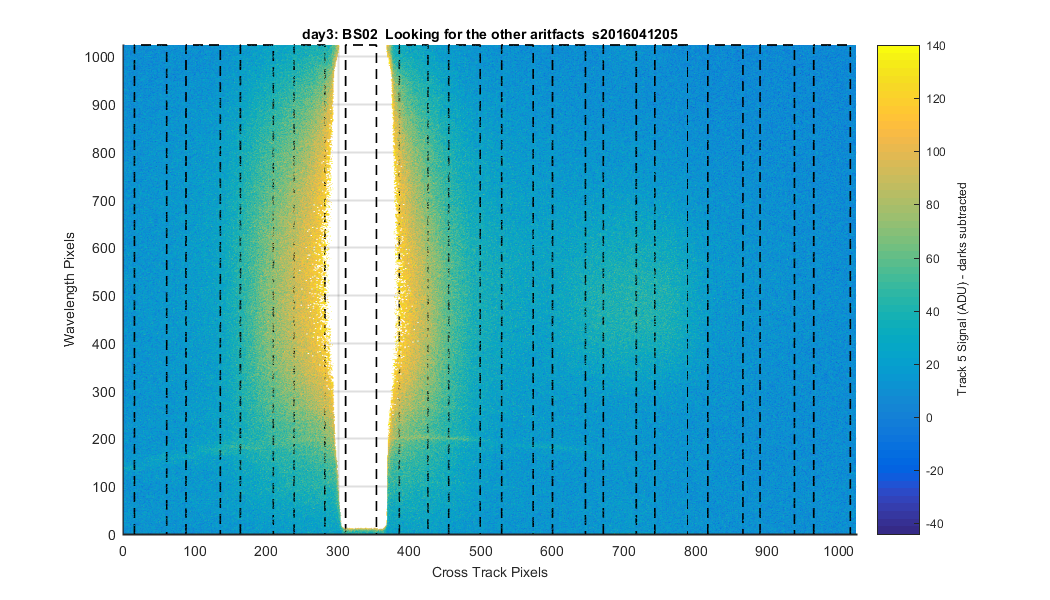

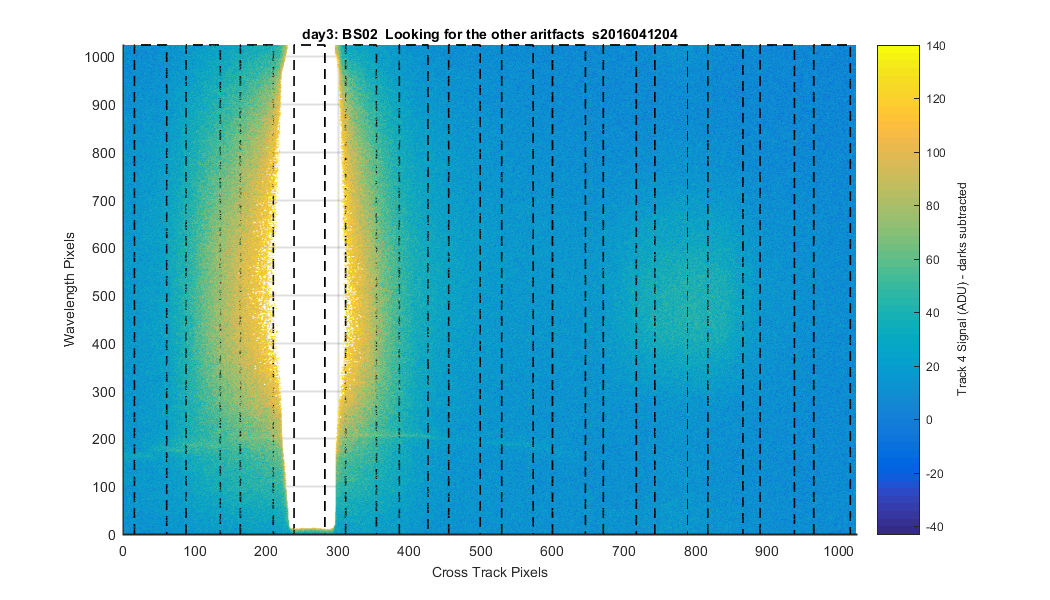

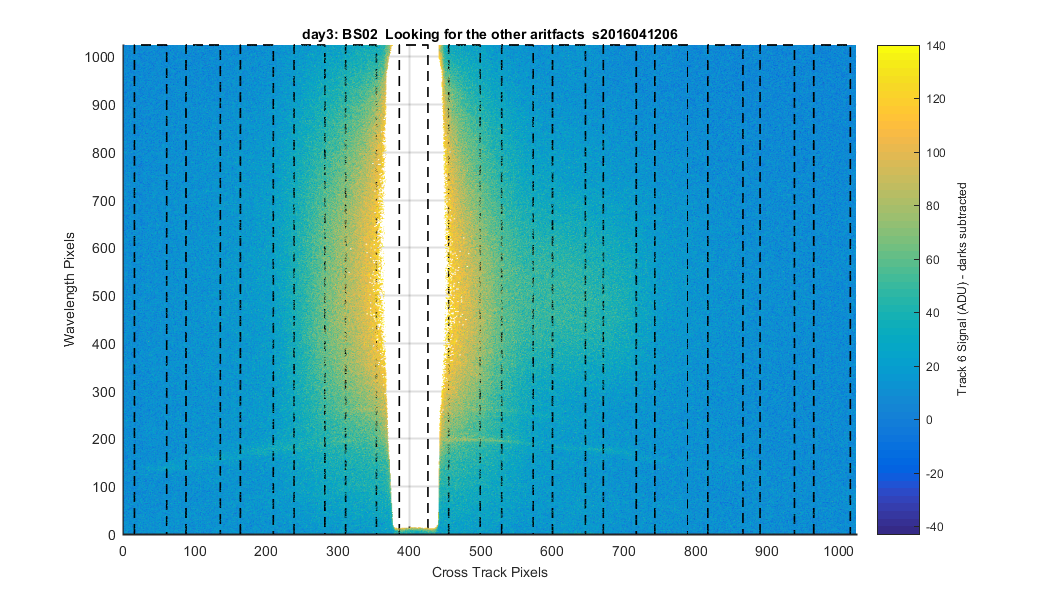

3. When looking at the full images there is a circular reflection in the image that is mirrored with the track

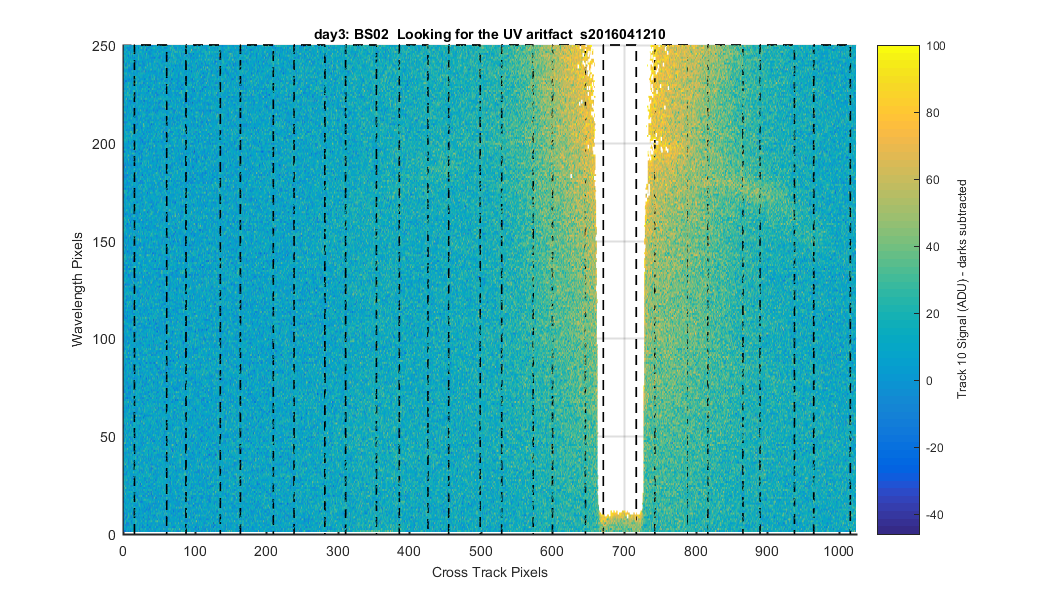

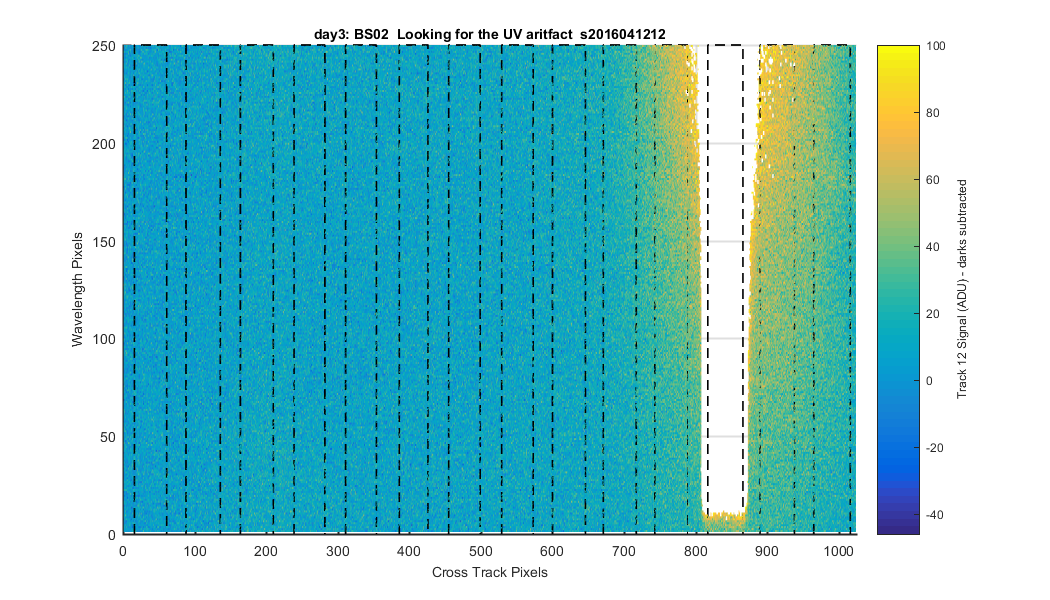

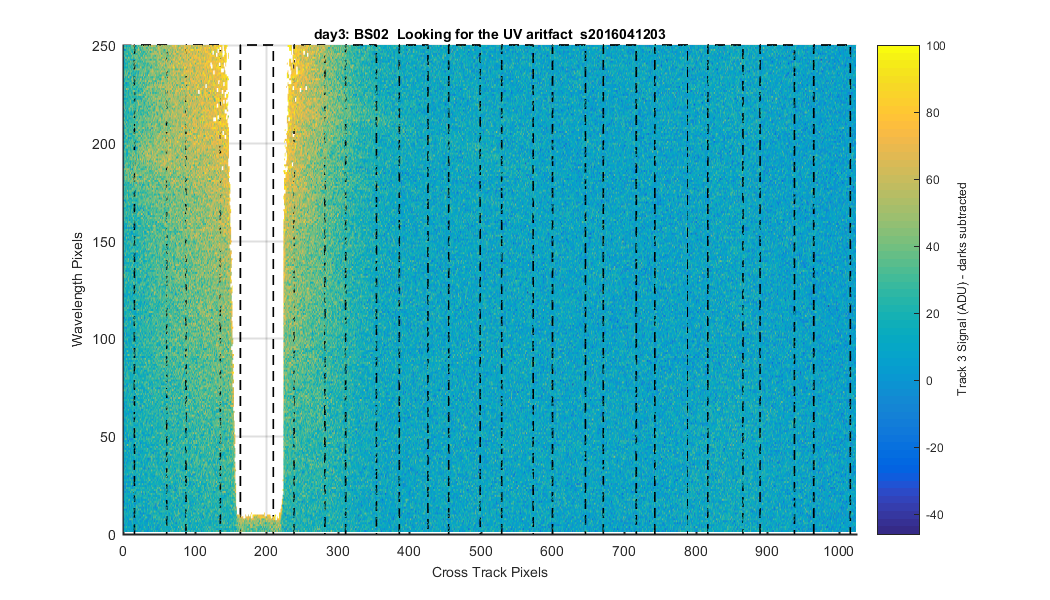

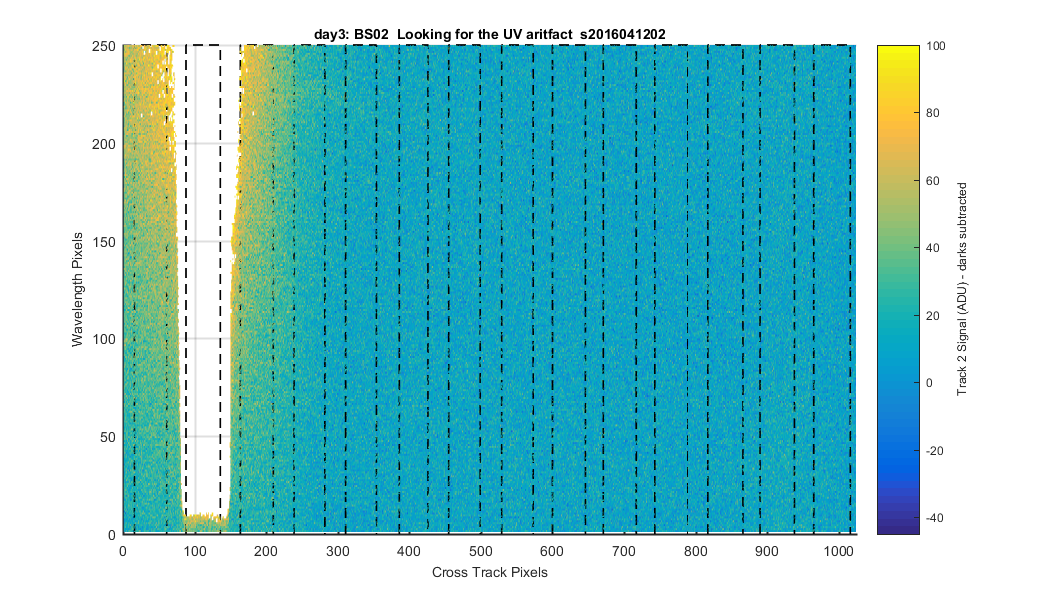

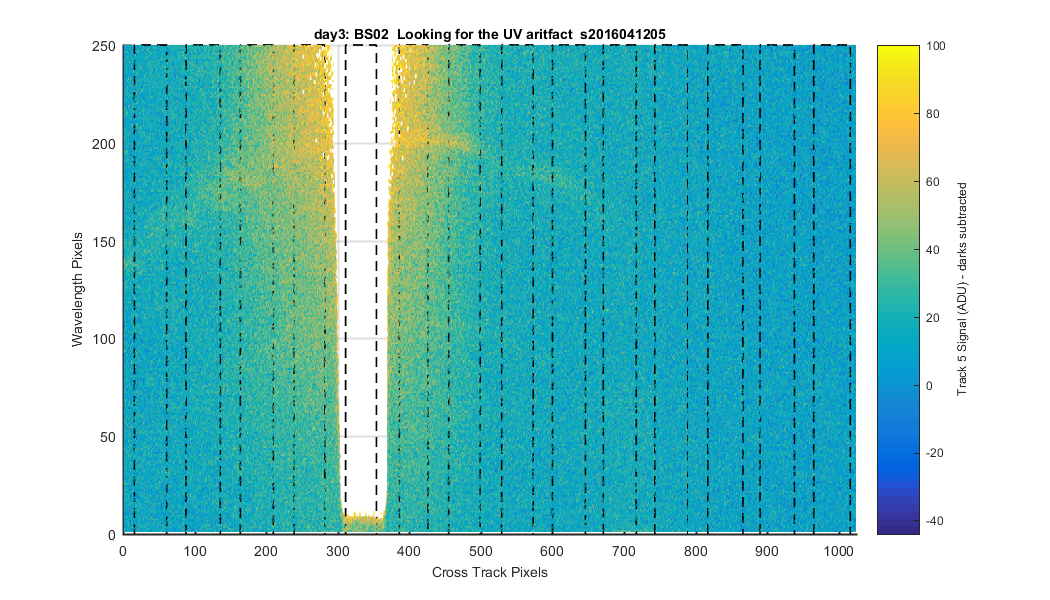

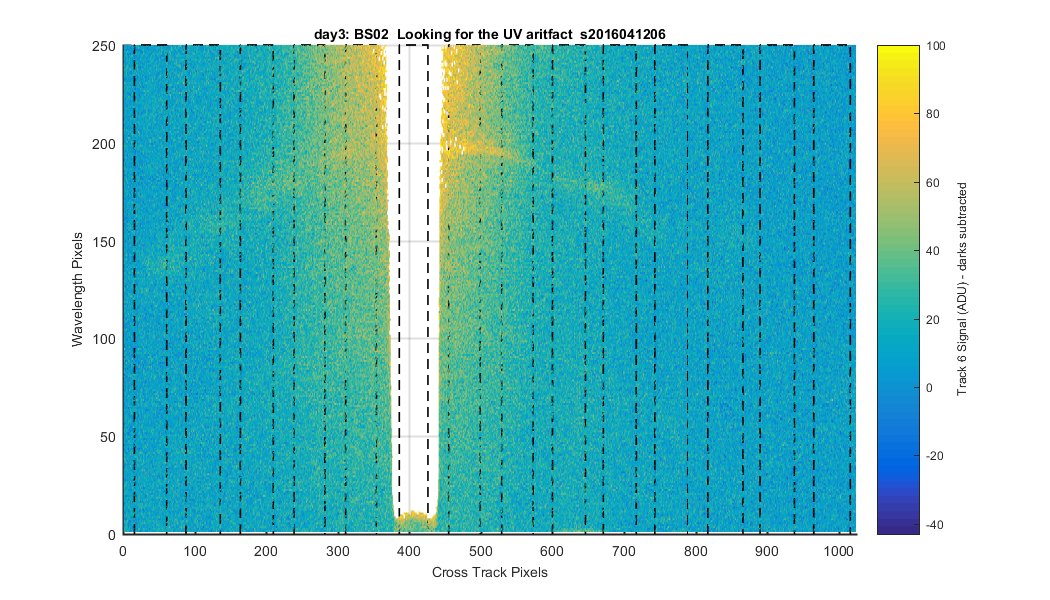

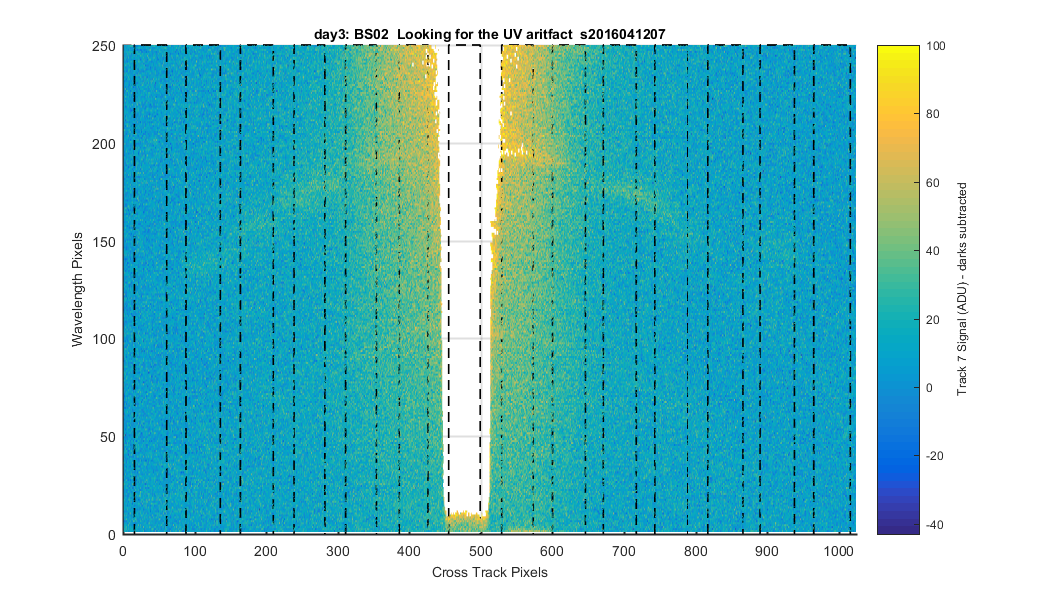

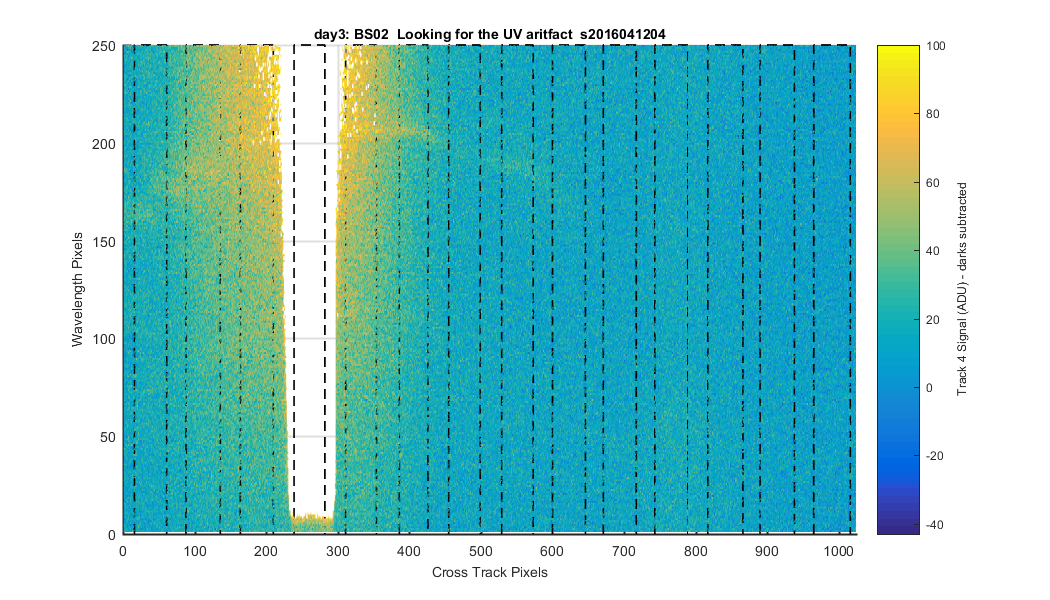

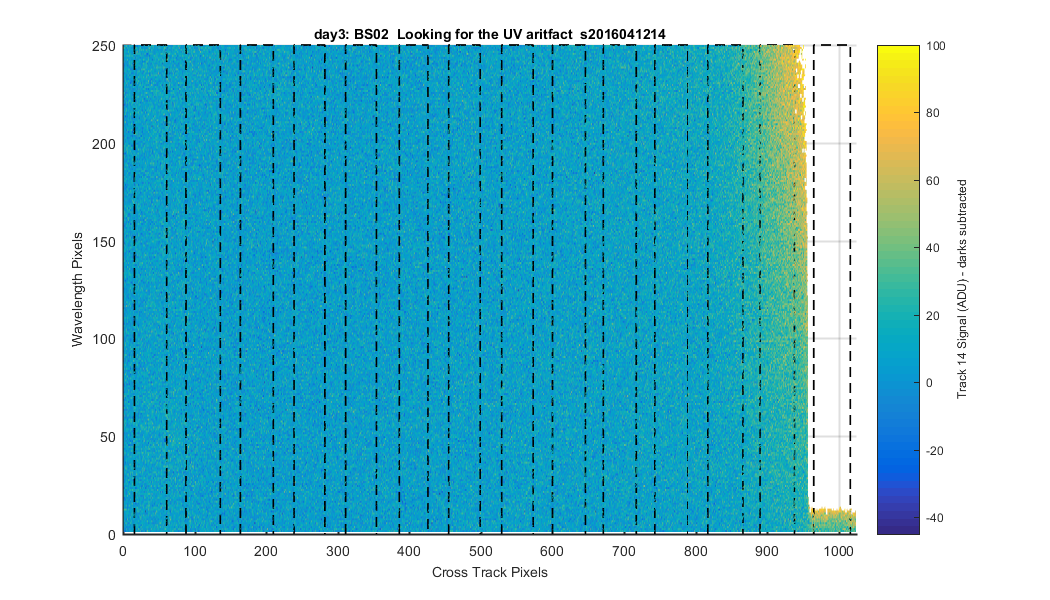

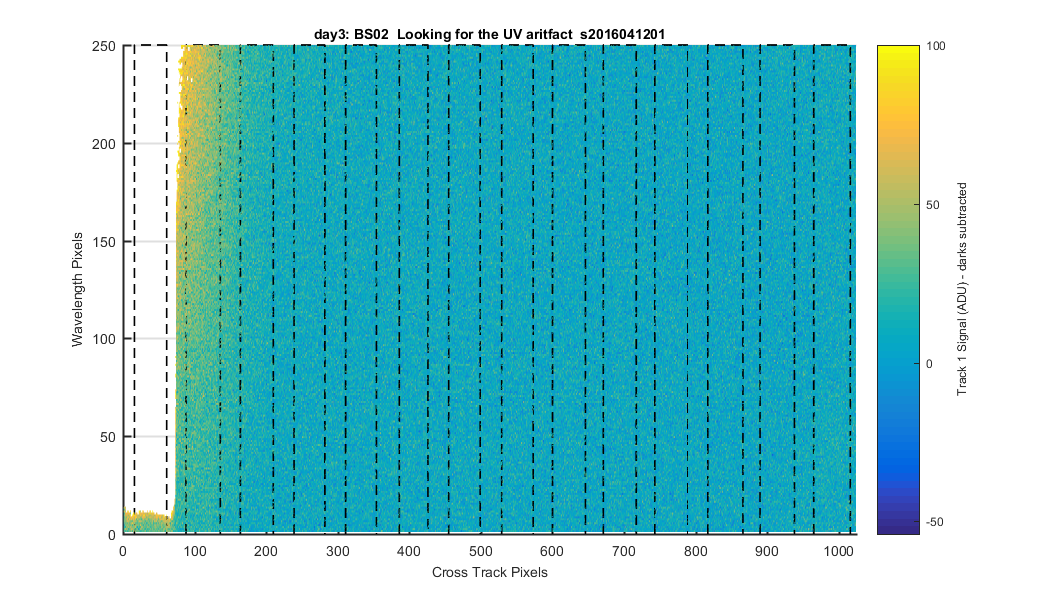

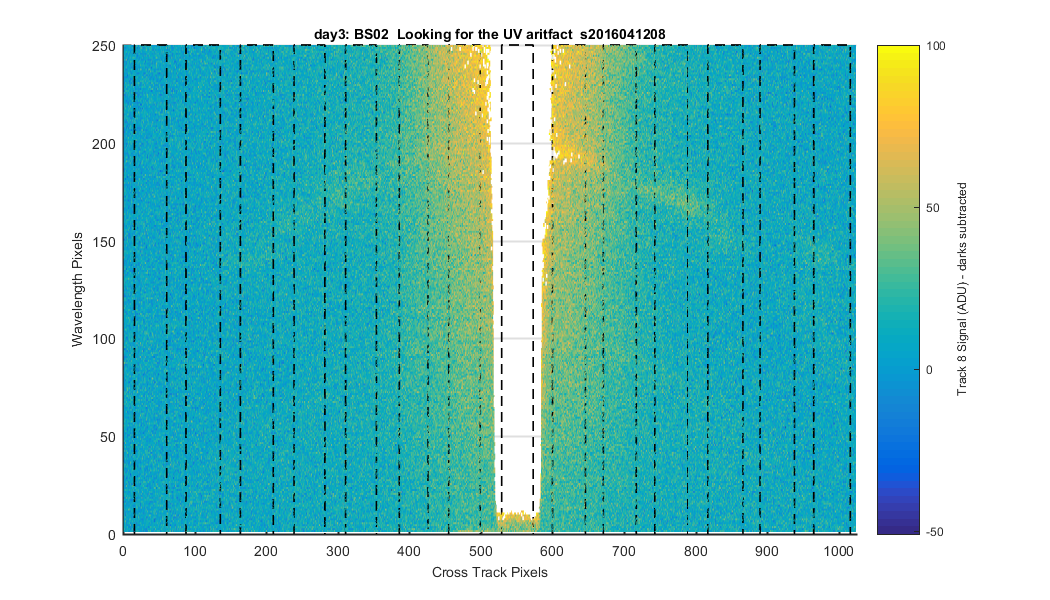

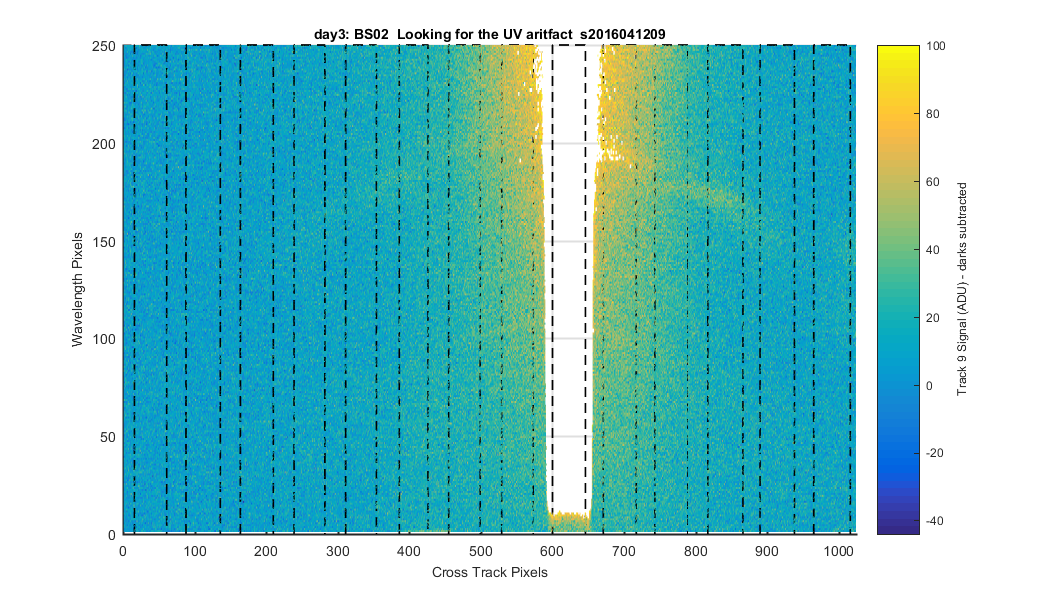

4. Need to look closer but I dont see a large UV artifact on this data set.

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

Figure 15

Figure 16

Figure 17

Figure 18

Figure 19

Figure 20

Figure 21

Figure 22

Figure 23

Figure 24

Figure 25

Figure 26

Figure 27

Figure 28

Figure 29

Figure 30

Figure 31

Figure 32

Figure 33

Figure 34

Figure 35

Figure 36

Figure 37

Figure 38

Figure 39

Figure 40

Figure 41

Figure 42

Figure 43

Figure 44

Figure 45

Figure 46

Figure 47

Figure 48

Figure 49

Figure 50

Figure 51

Figure 52

Figure 53

Figure 54

Figure 55

Figure 56

Figure 57

Figure 58

Figure 59
