Comparison of all the good integration cal data Mike has taken so far. There are two types of data label Yes and No in the legend. Yes data were collected with all tracks on and so have cross track contamination and the No data sets where eitehr collected as single tracks or the tracks where far enough apart to count as single track (I.E. Track 1 and 14). Colors are track numer, symbols tell if the data are cross track contaminated. The 5th order polynomial is fit for the Yes data are a solid line and the No data are a dashed line.

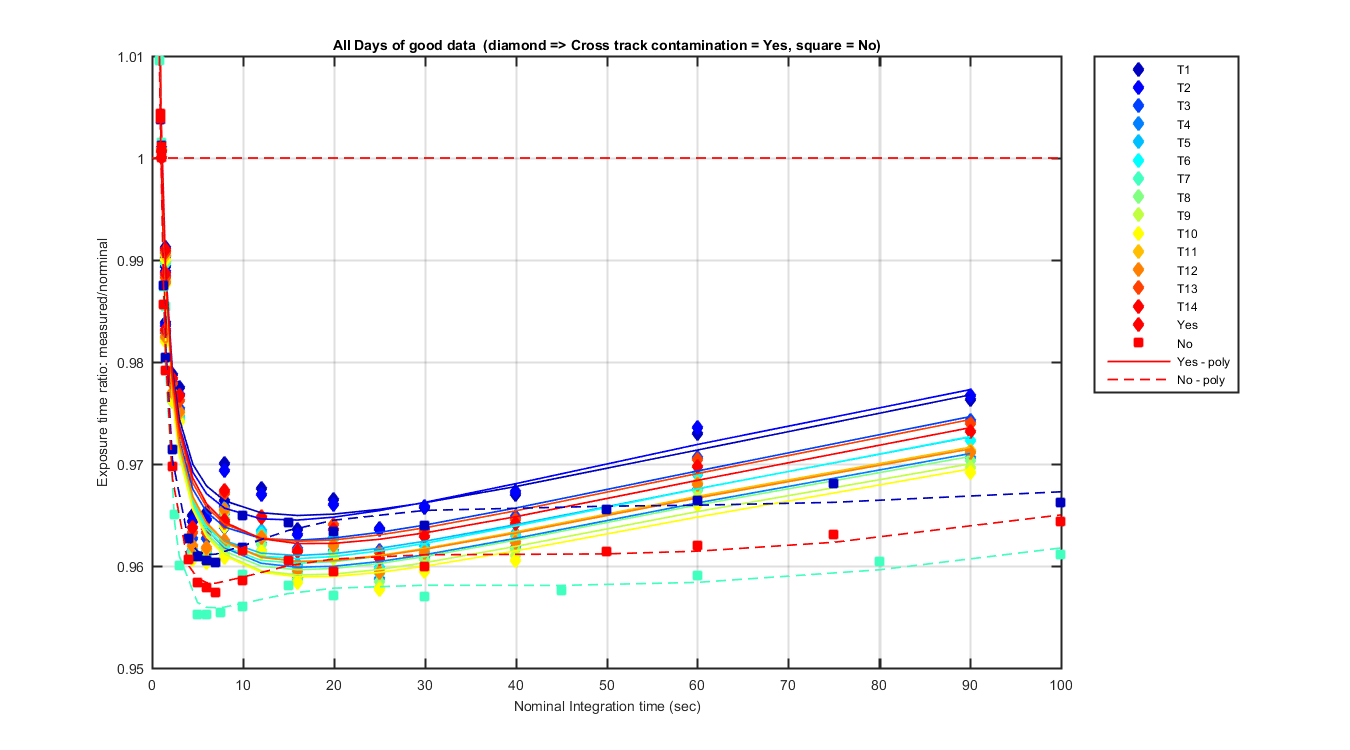

Figure 1

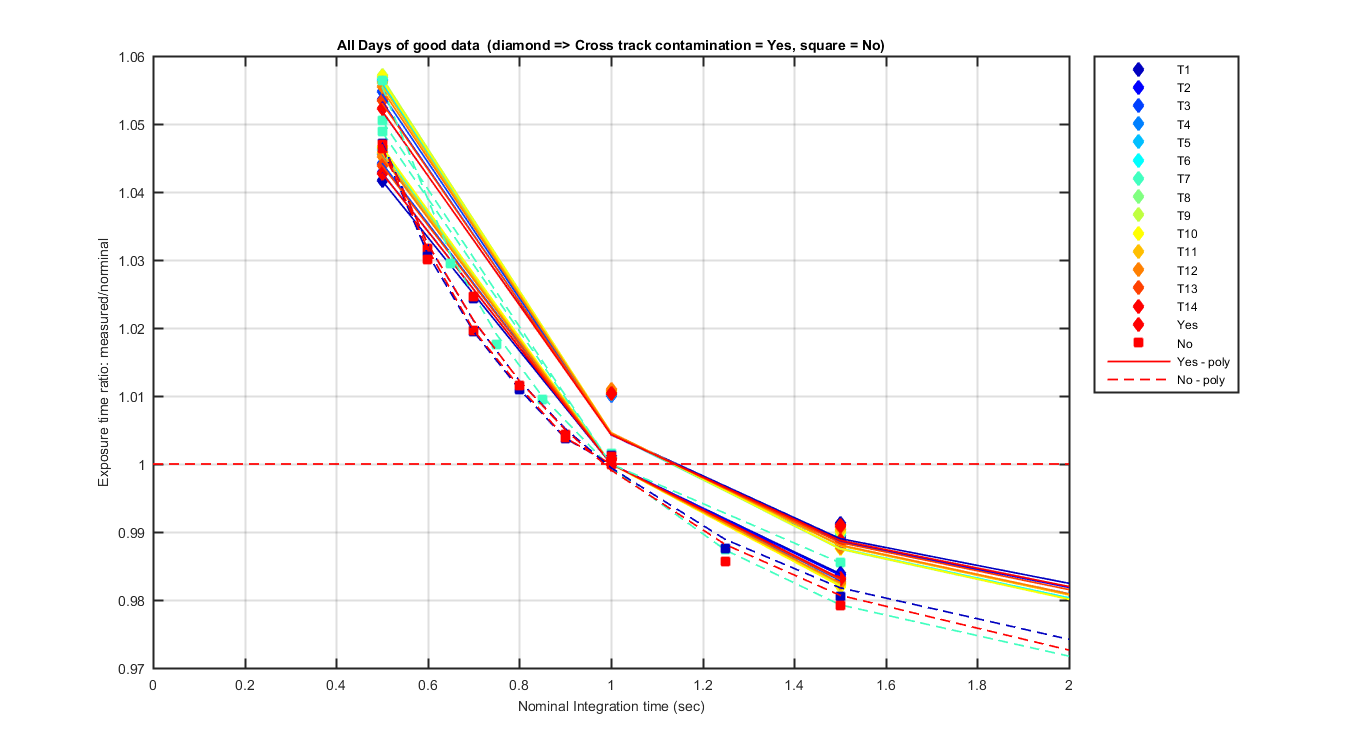

Figure 2

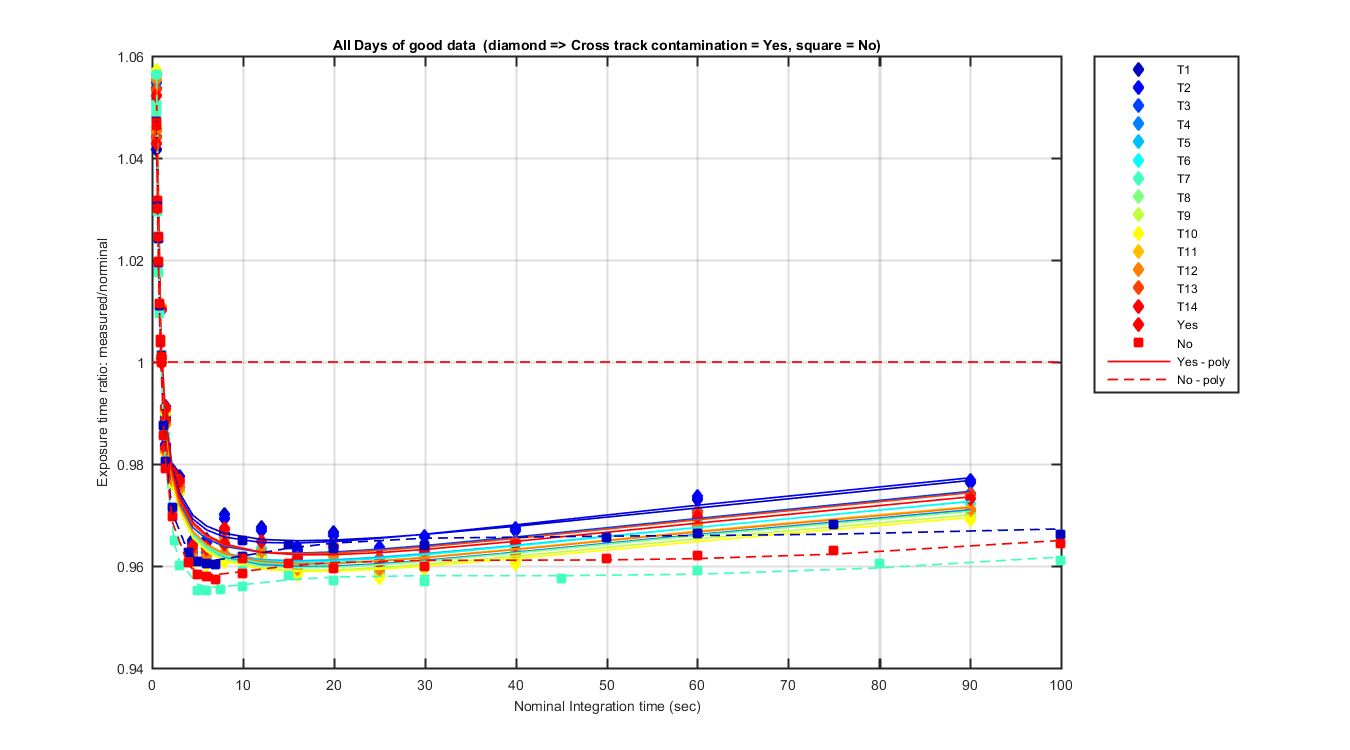

Figure 3

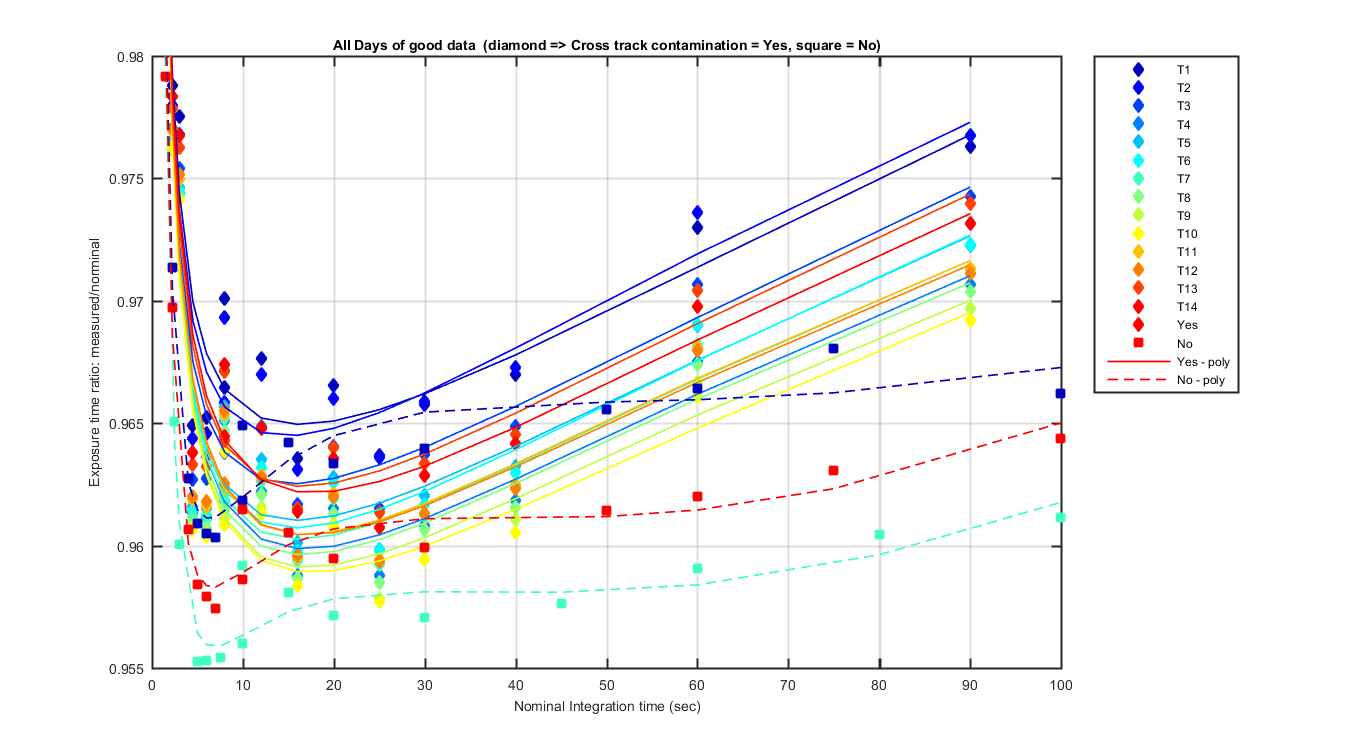

Figure 4
