REVISION DATE: 12-Apr-2016 11:36:31
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | NEXT | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Rotaton (deg) |
Wavelength (nm)(deg) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2016021121_img | Signal | NaN | 355 | 0.45 | Single Scan | -40 | 0 | F | 2016-02-11T01:43:46 | 4 | Image | 59863 | 3656.20 | 15.39 |

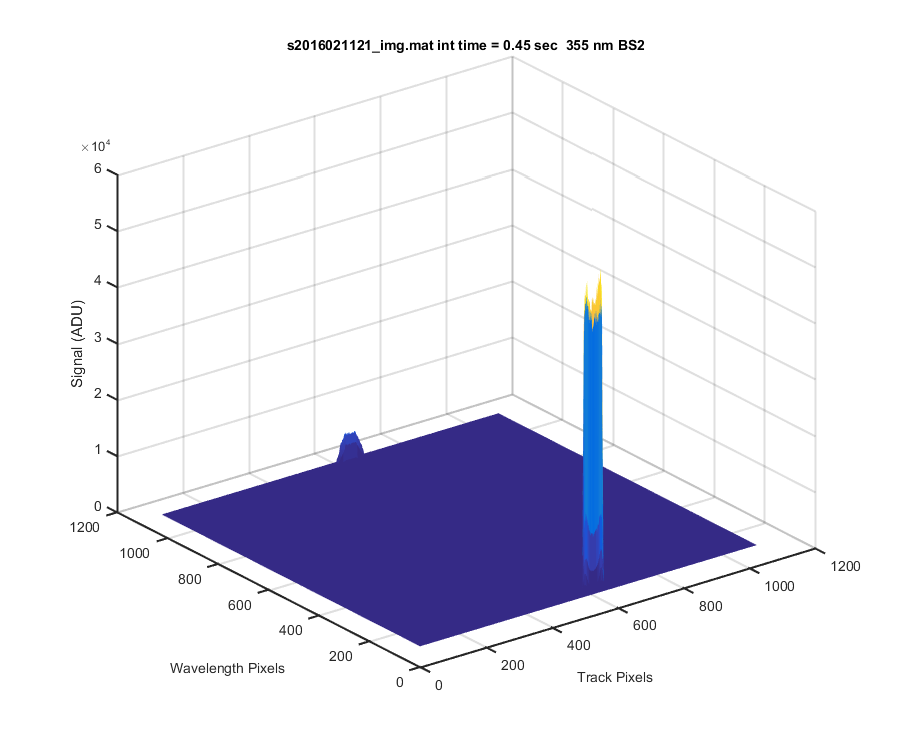

Figure 1

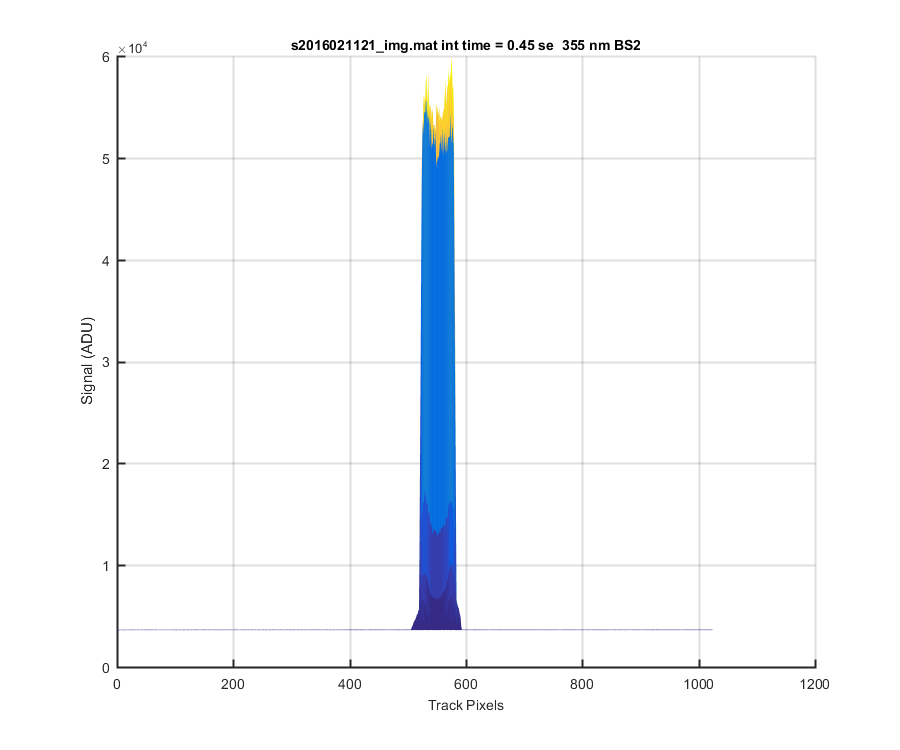

Figure 2
Figure 3

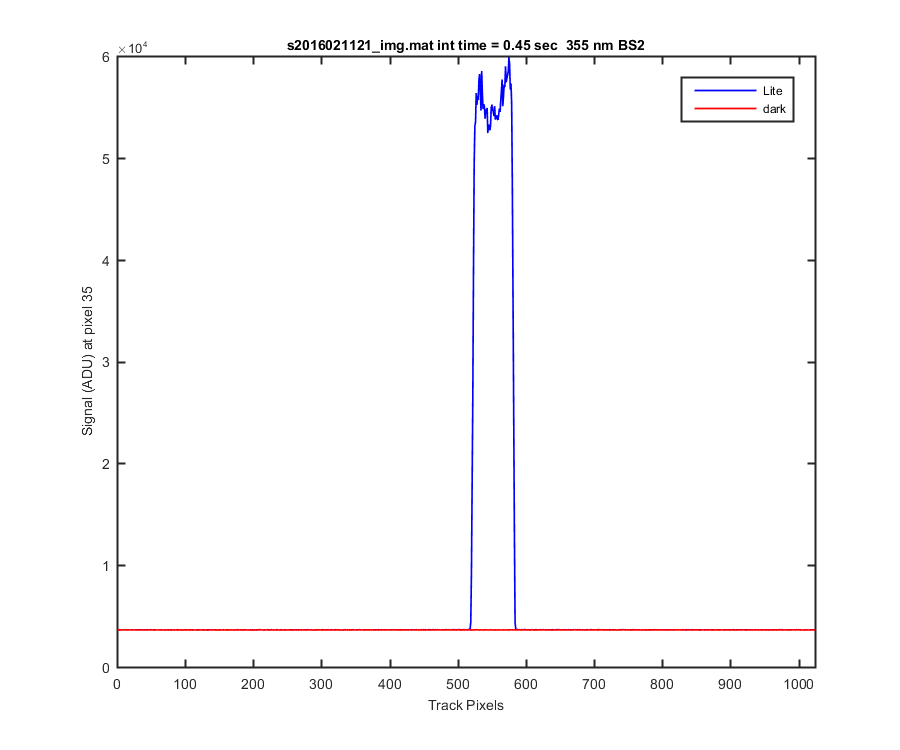

Figure 4

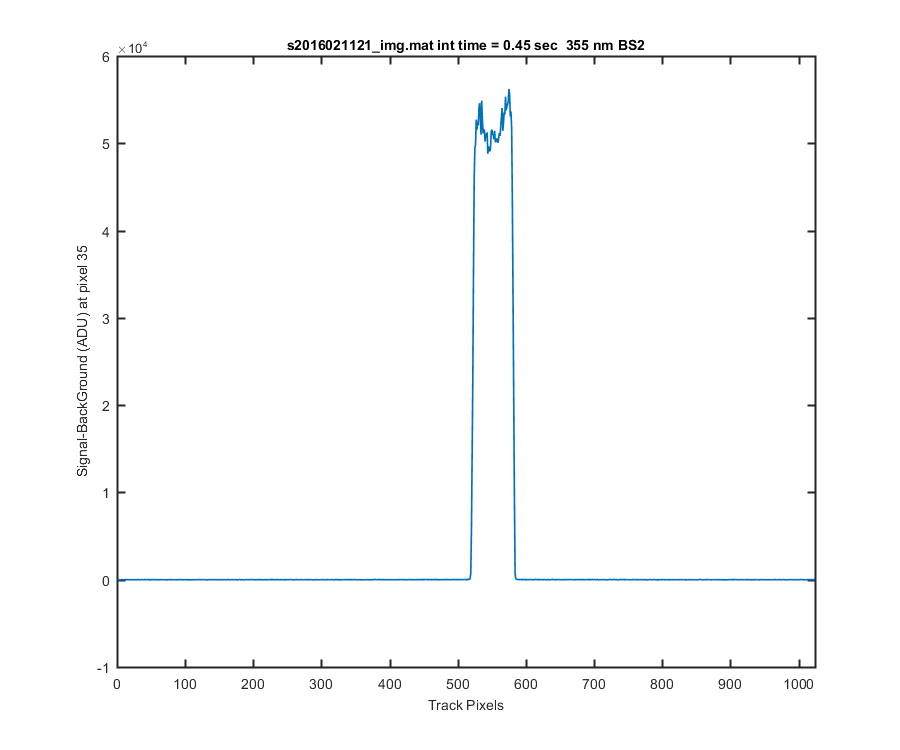

Figure 5

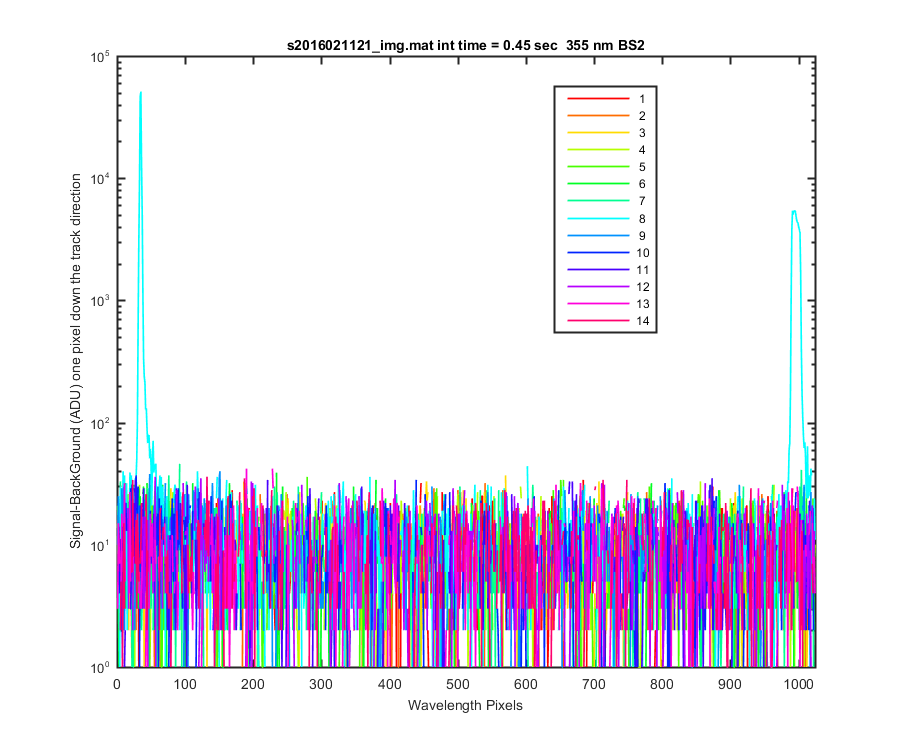

Figure 6
