REVISION DATE: 19-May-2016 11:25:28
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | NEXT | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Rotaton (deg) |
Wavelength (nm)(deg) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2016051914_img | Signal | NaN | NaN | 2.25 | Single Scan | -40 | 0 | F | 2016-05-19T05:50:55 | 4 | Image | 17686 | 4333.60 | 50.03 |

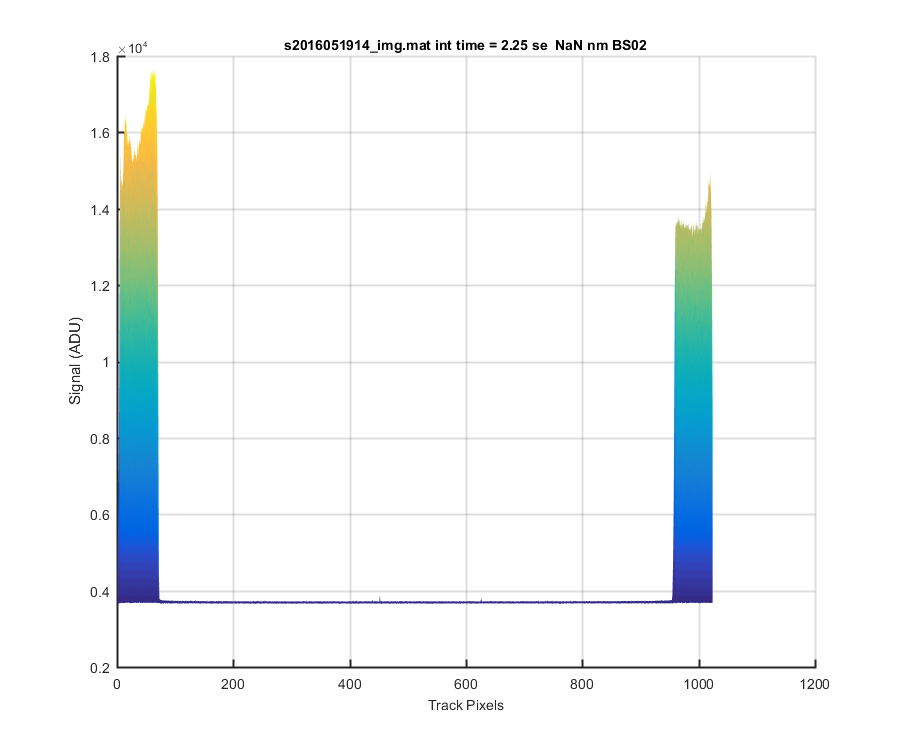

Figure 1

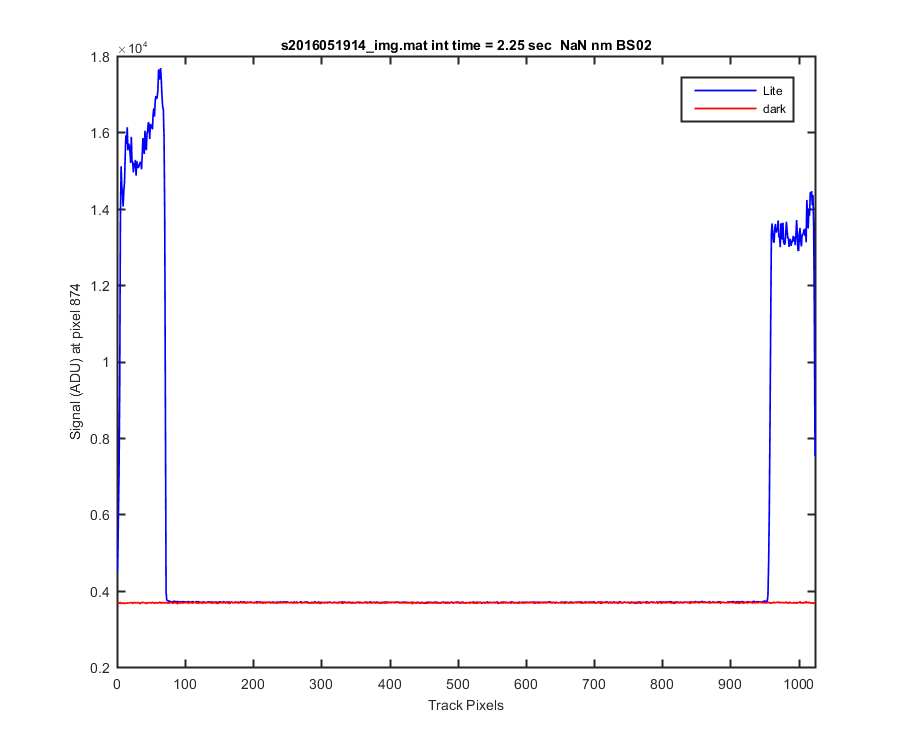

Figure 2

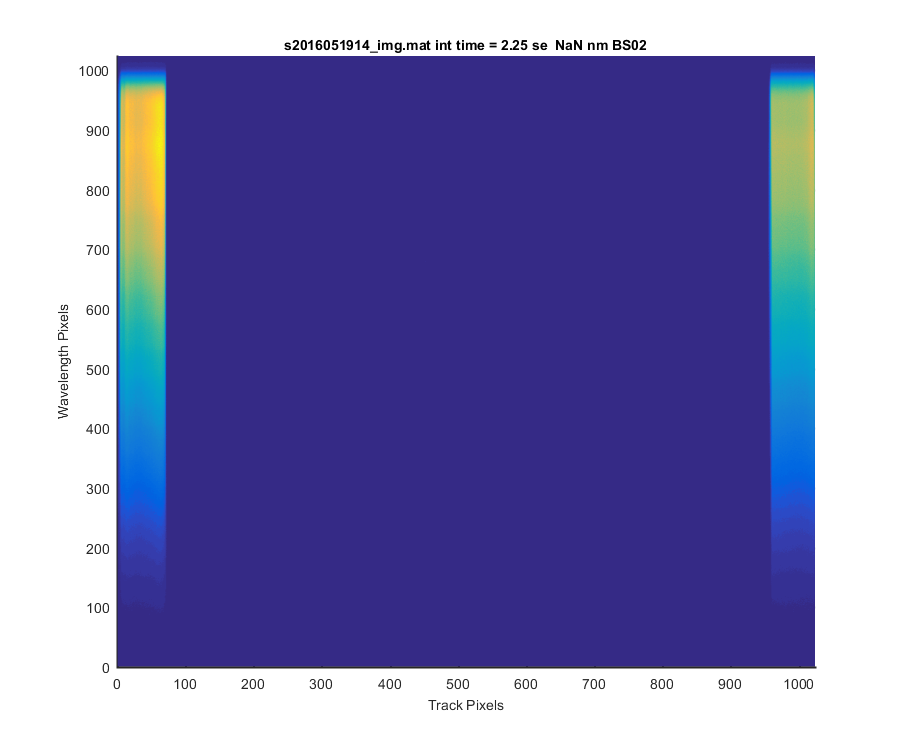

Figure 3

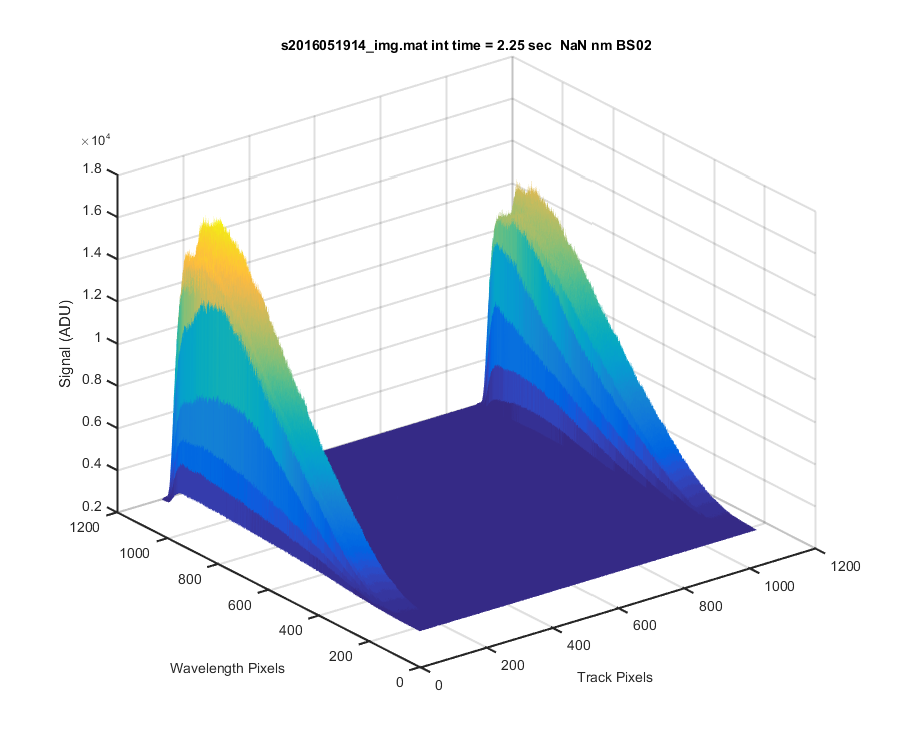

Figure 4

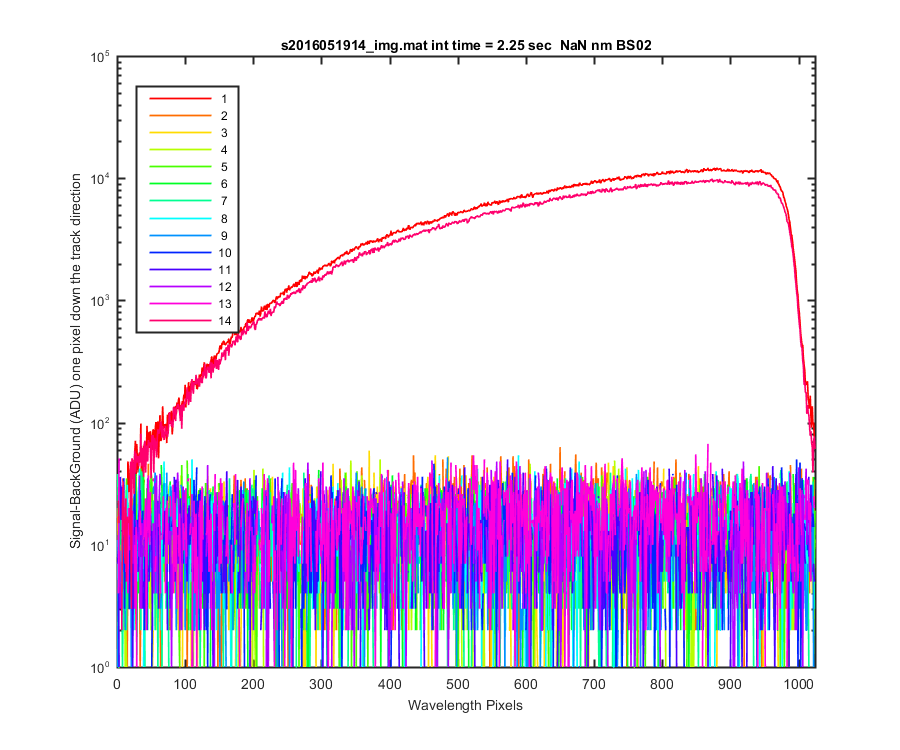

Figure 5

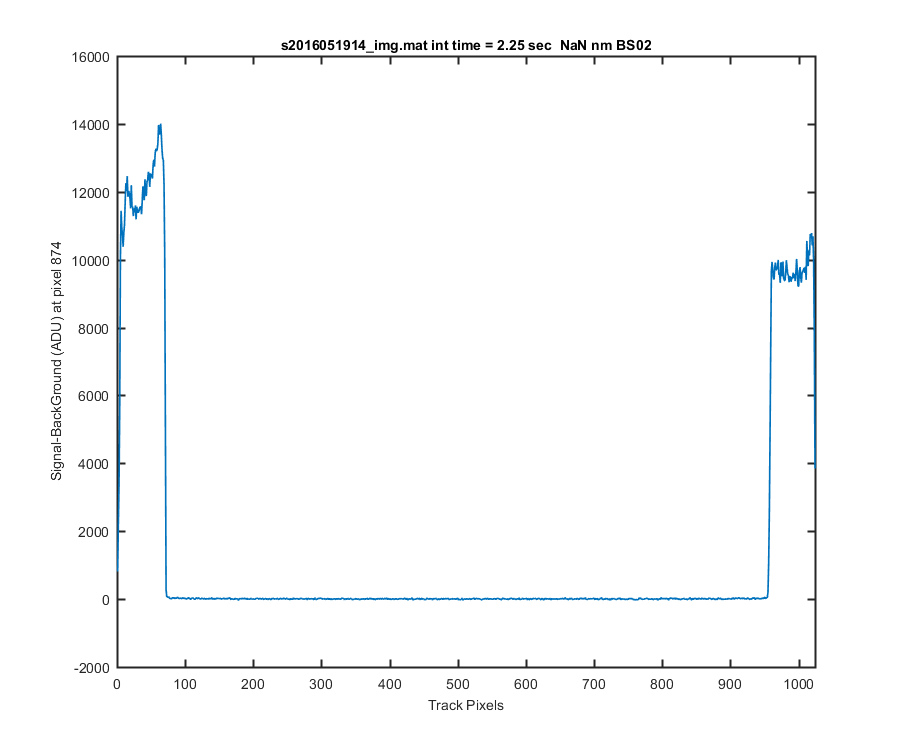

Figure 6
