plt_rsp_day2_ - BS1

REVISION DATE: 04-Apr-2016 13:54:25

Mike took lamp data with the OL455-18U onSo the FO jig was actually 9/32" from the sphere. Mike had also taken scans of the lamp on Mar 2016 where he scanned the OL425(L9)-S3W6D100 and the OL455-18U at 6" from the sphere aperature. He used previous MOS scans to transfer the radiance cal from the OL425(L9) to the OL455-18U. The only problem is that the BS1 did not take the data at 6" so this is a rough cal but probably the best we have done so far.

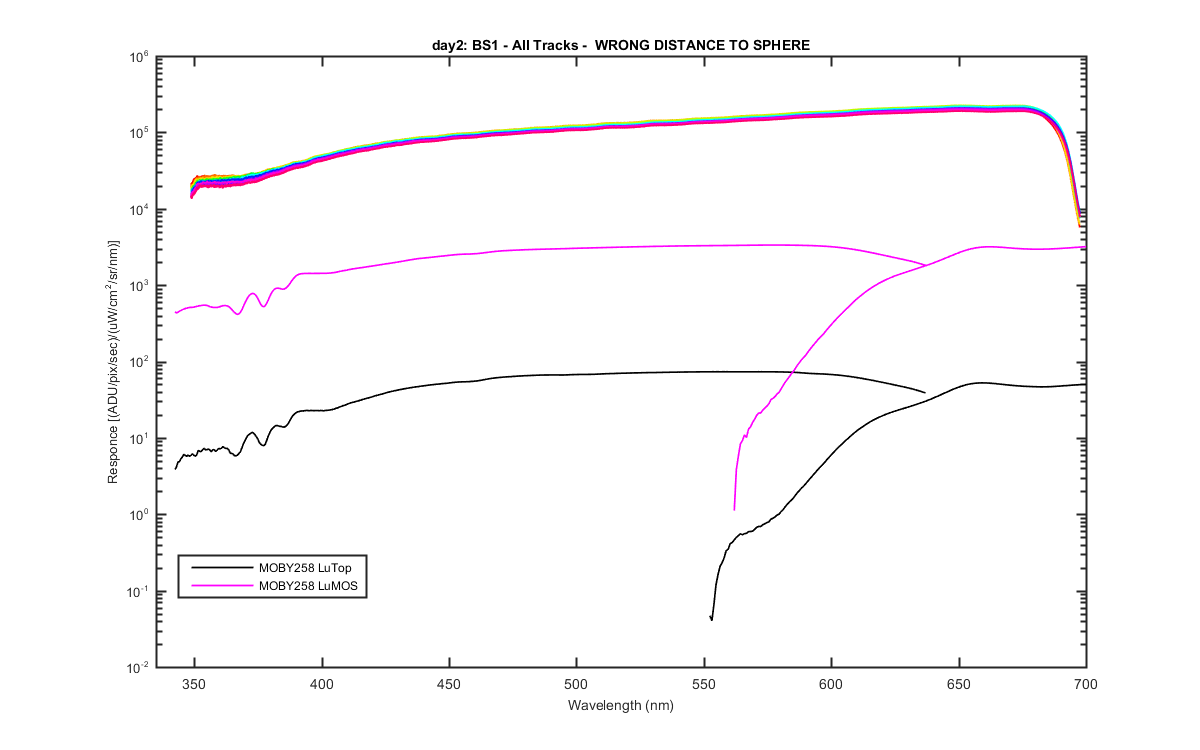

Figure 1

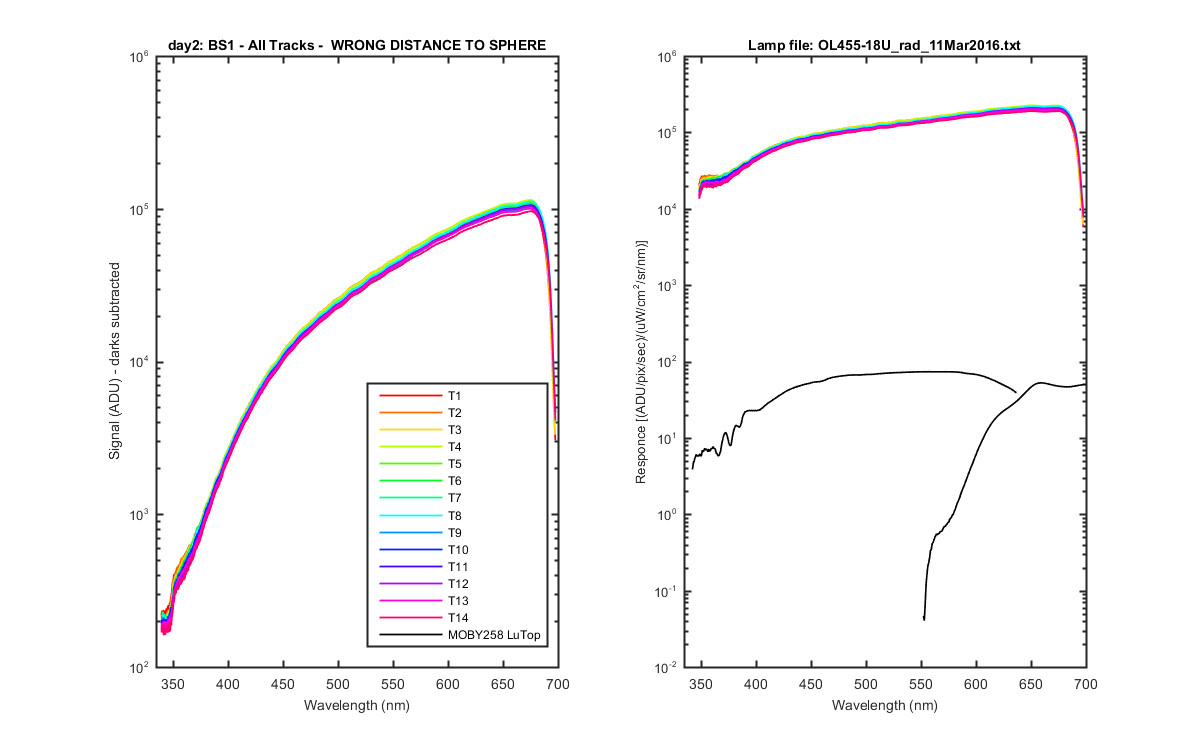

Figure 2


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2016-02\BS1cal\day02
Date: 04-Apr-2016 13:54:25
Created from plt_rsp_day2_(1)
