pltfindtracks_ - BS1

REVISION DATE: 30-Mar-2016 15:09:48

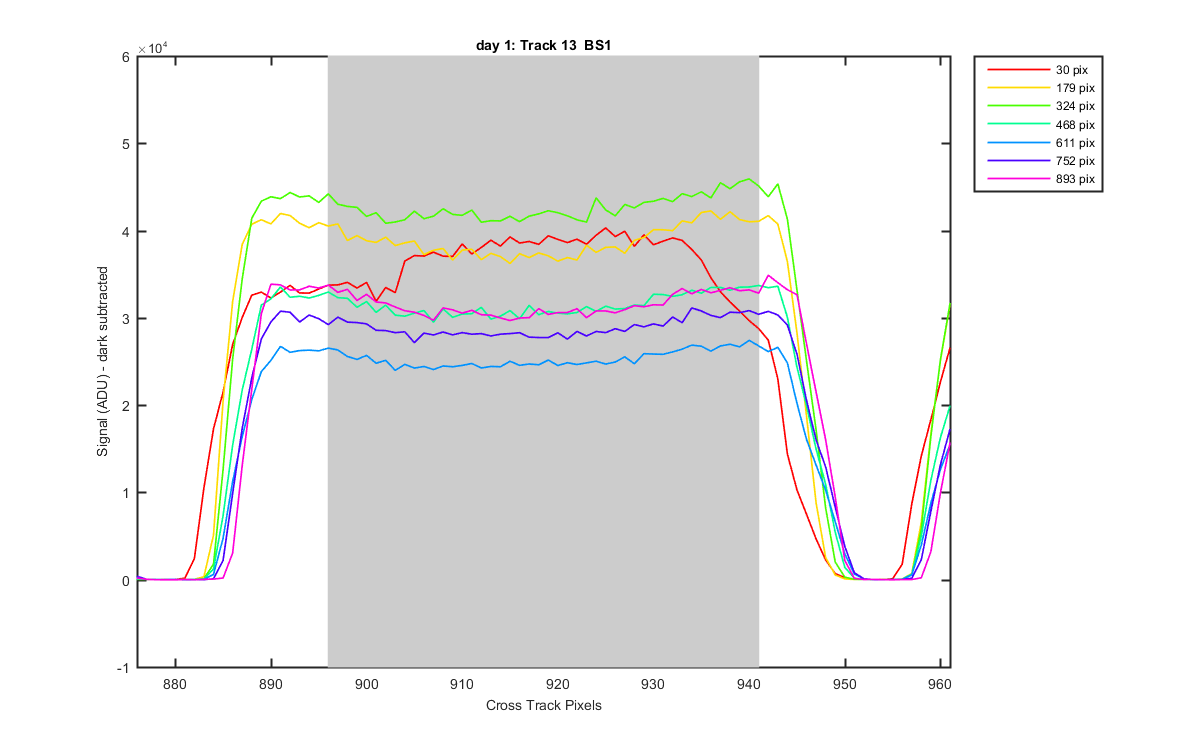

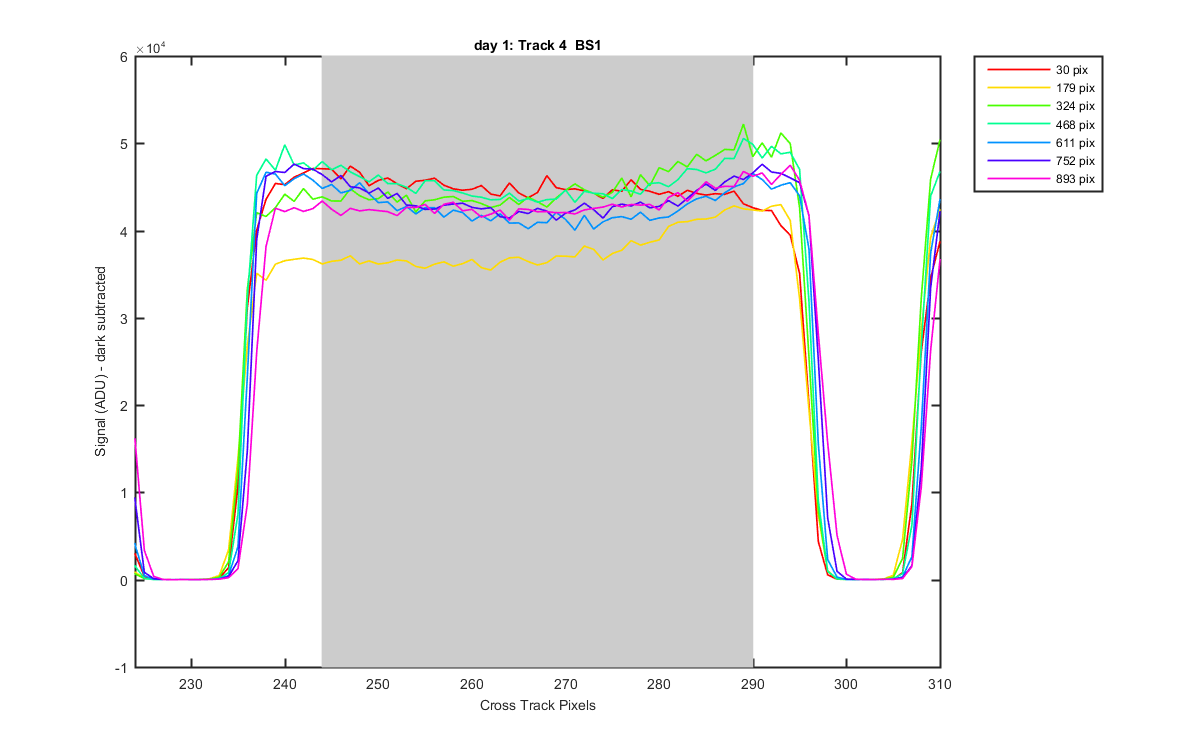

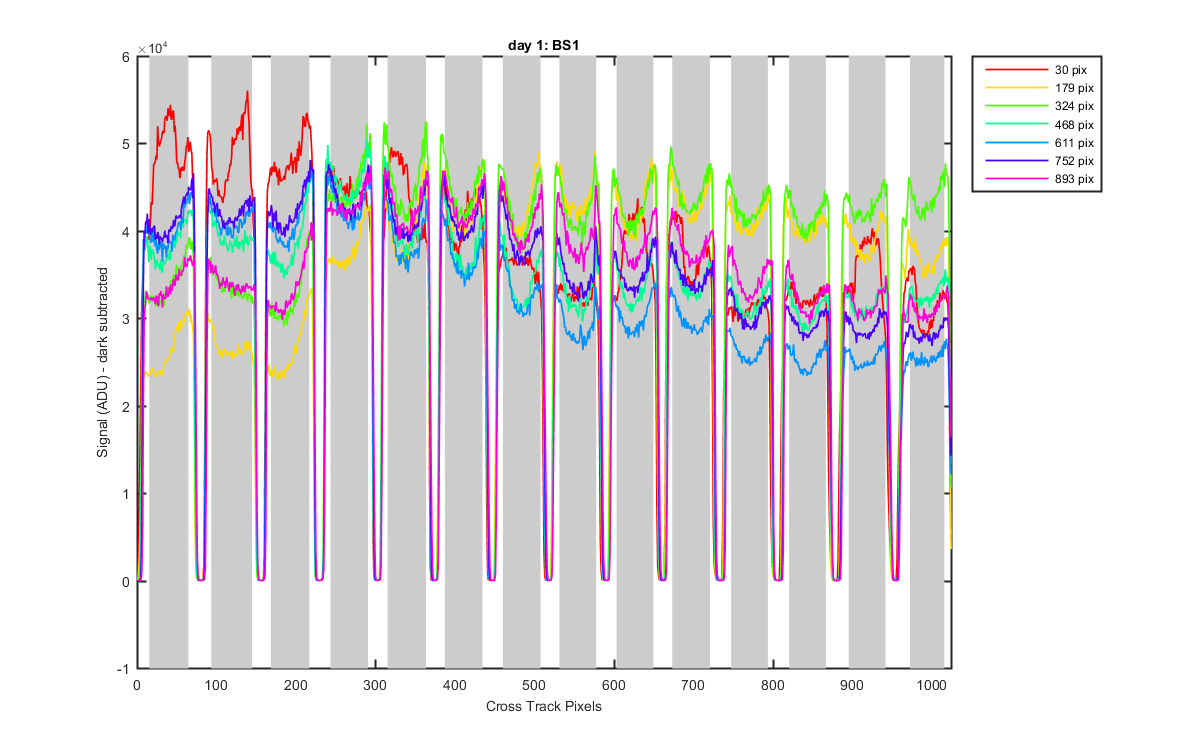

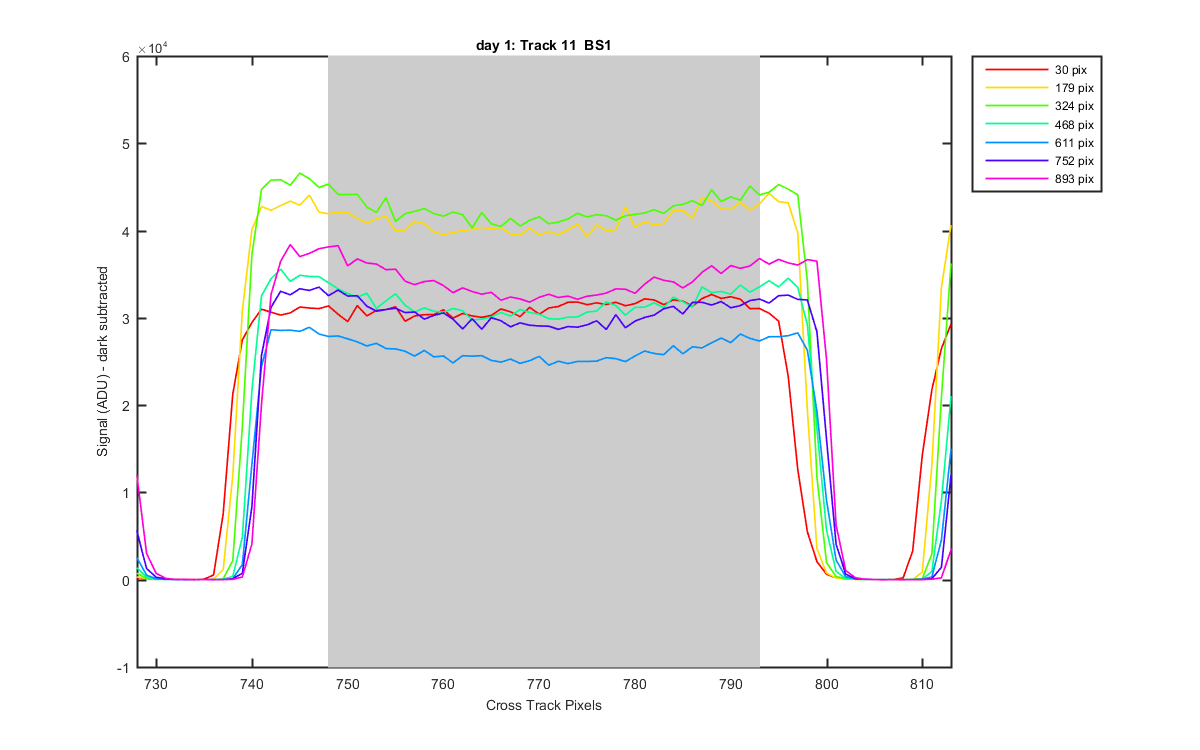

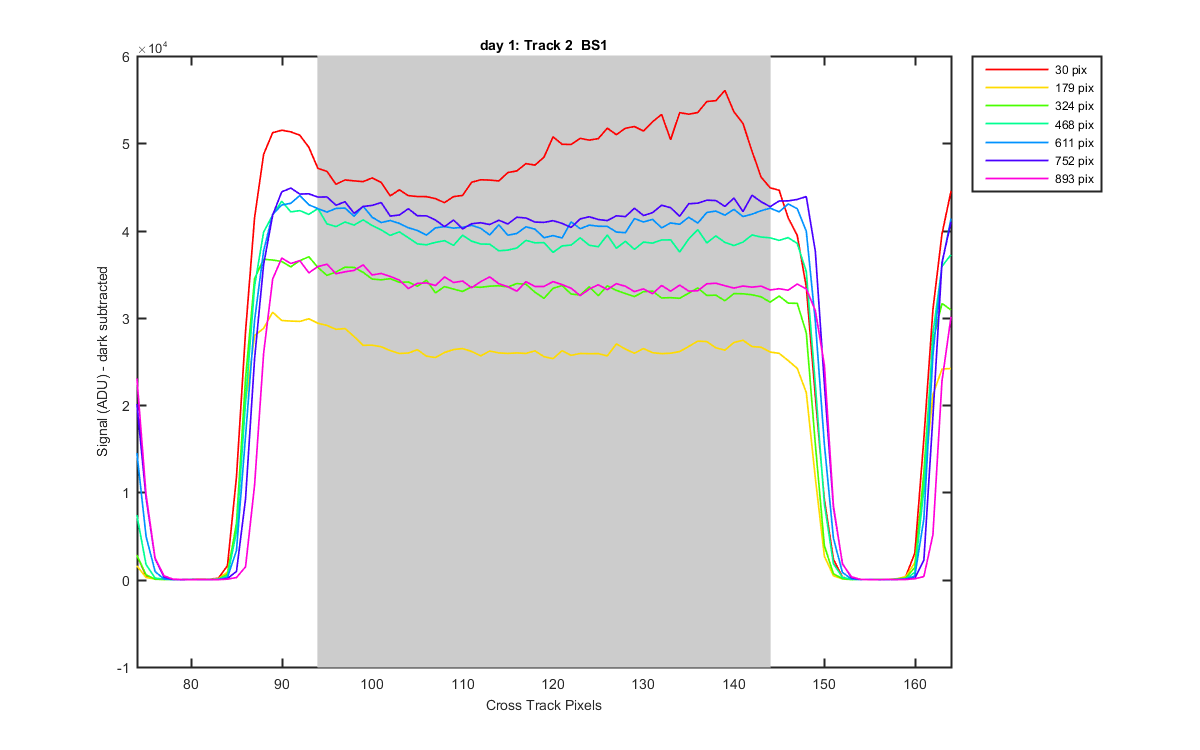

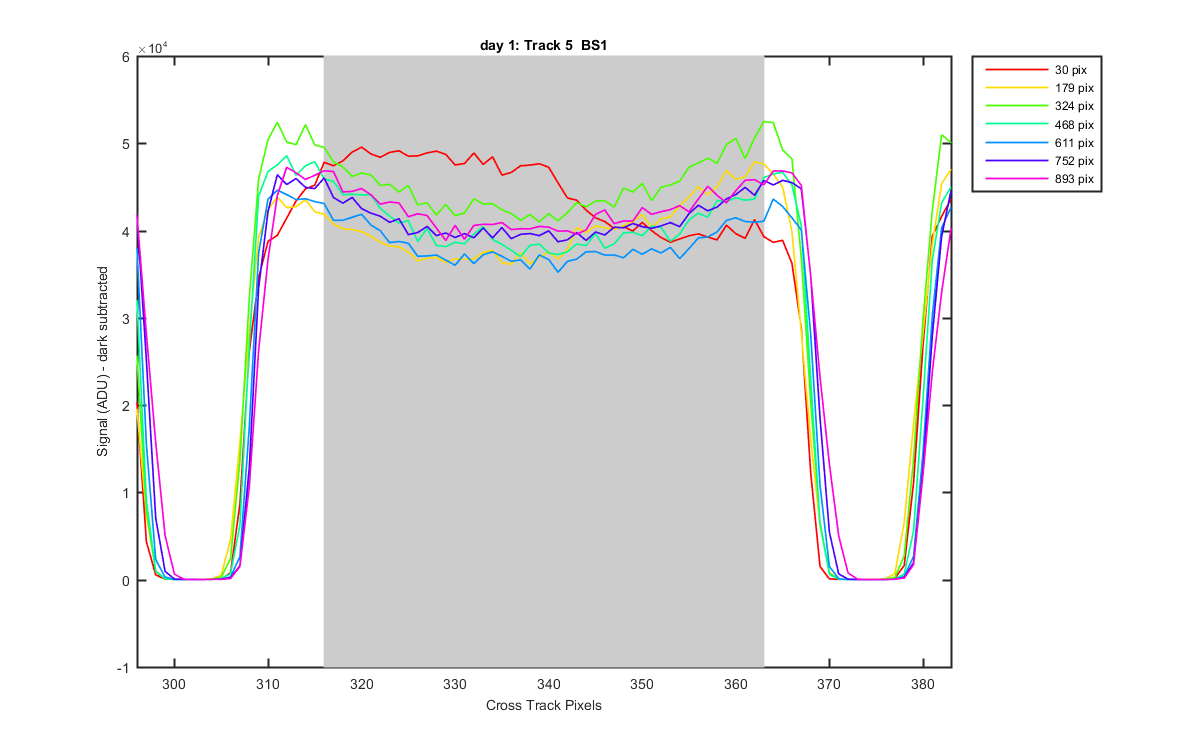

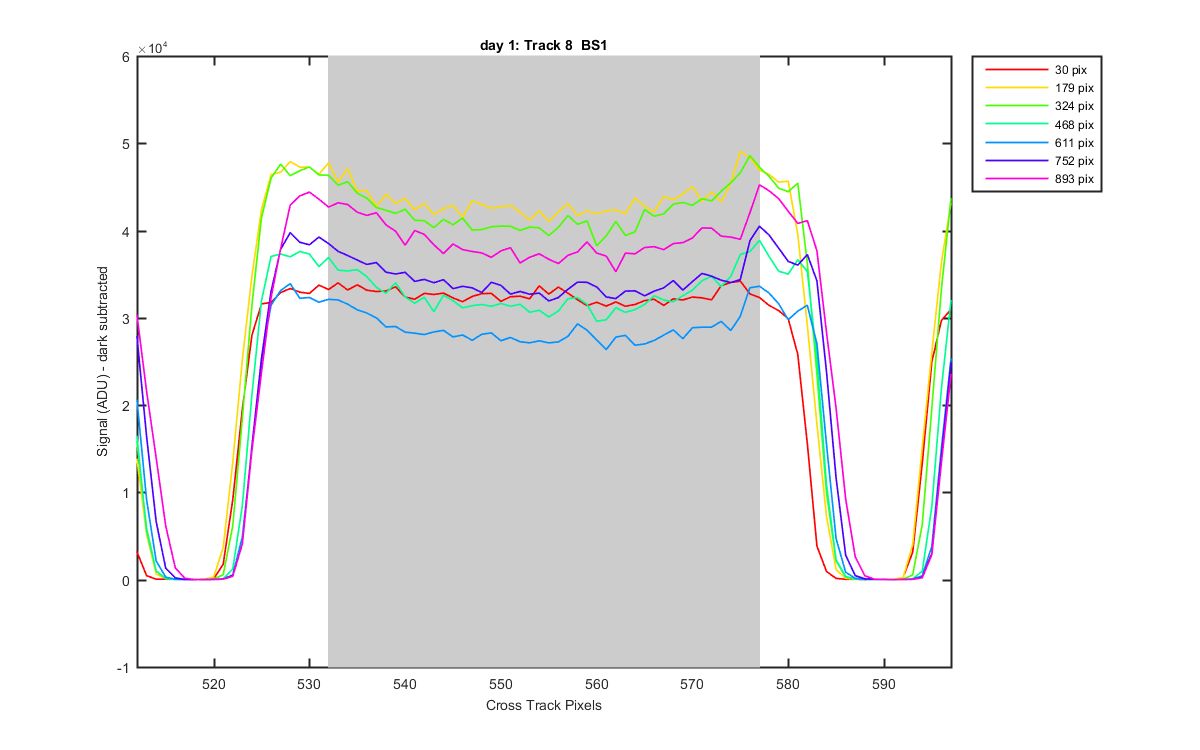

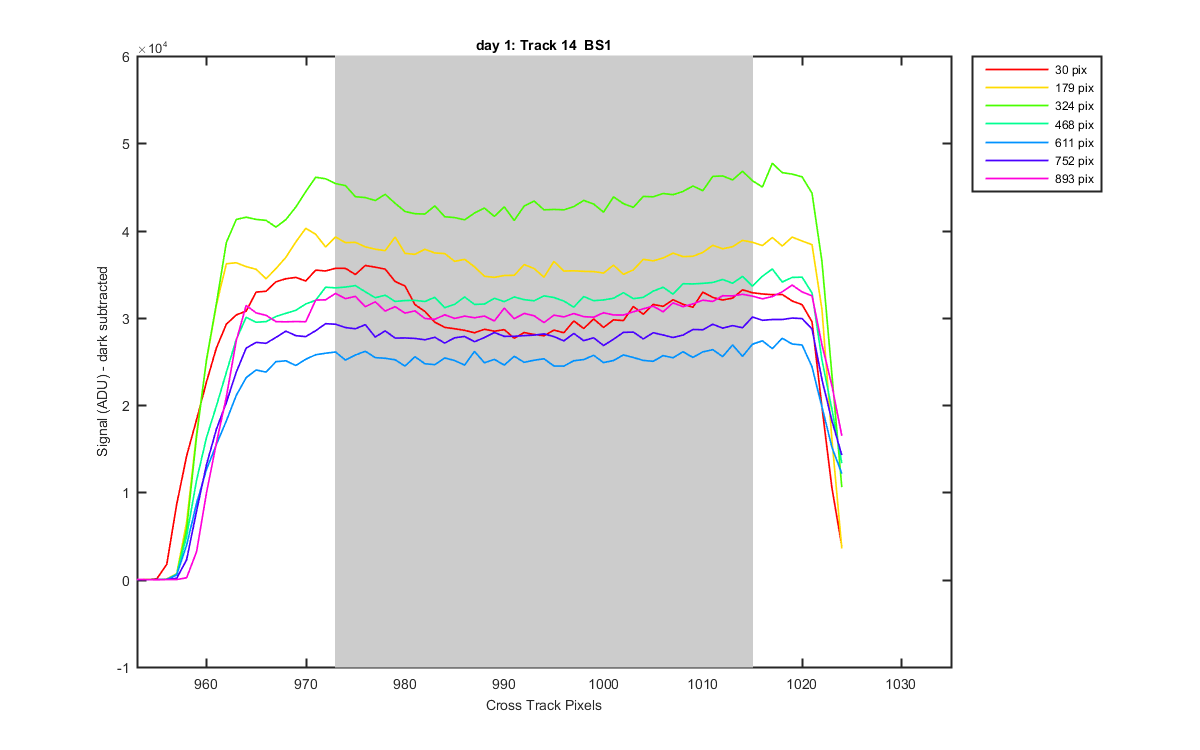

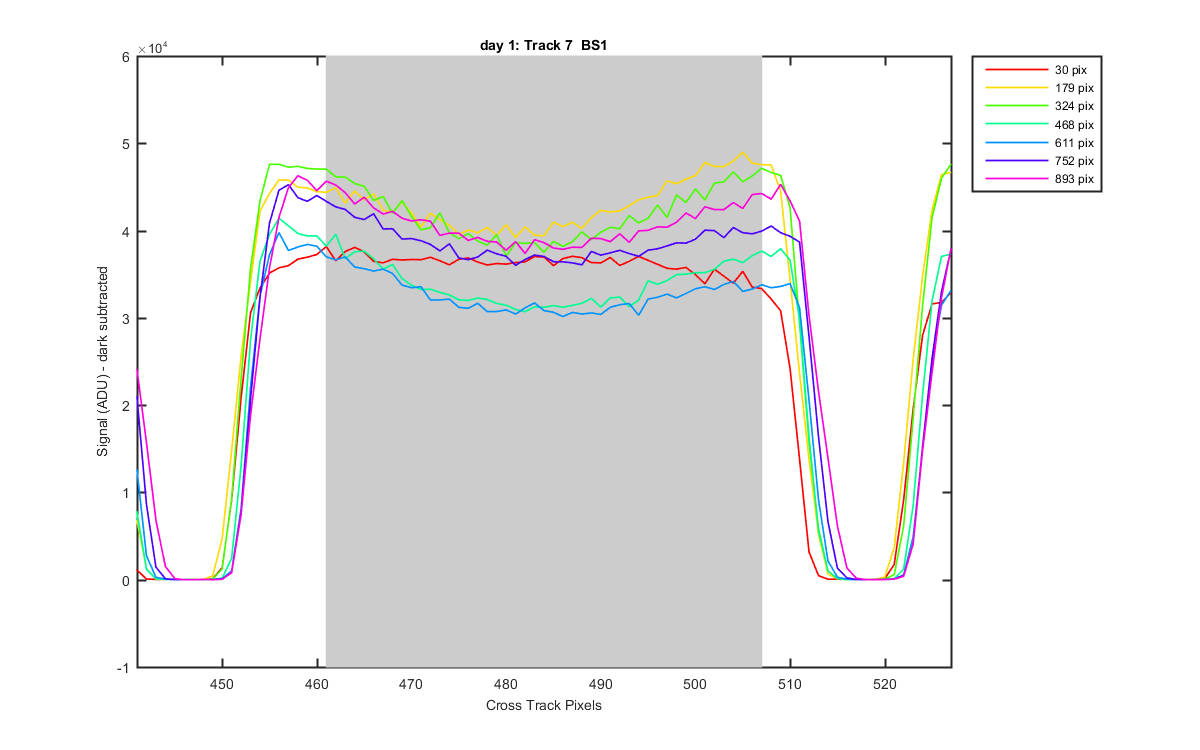

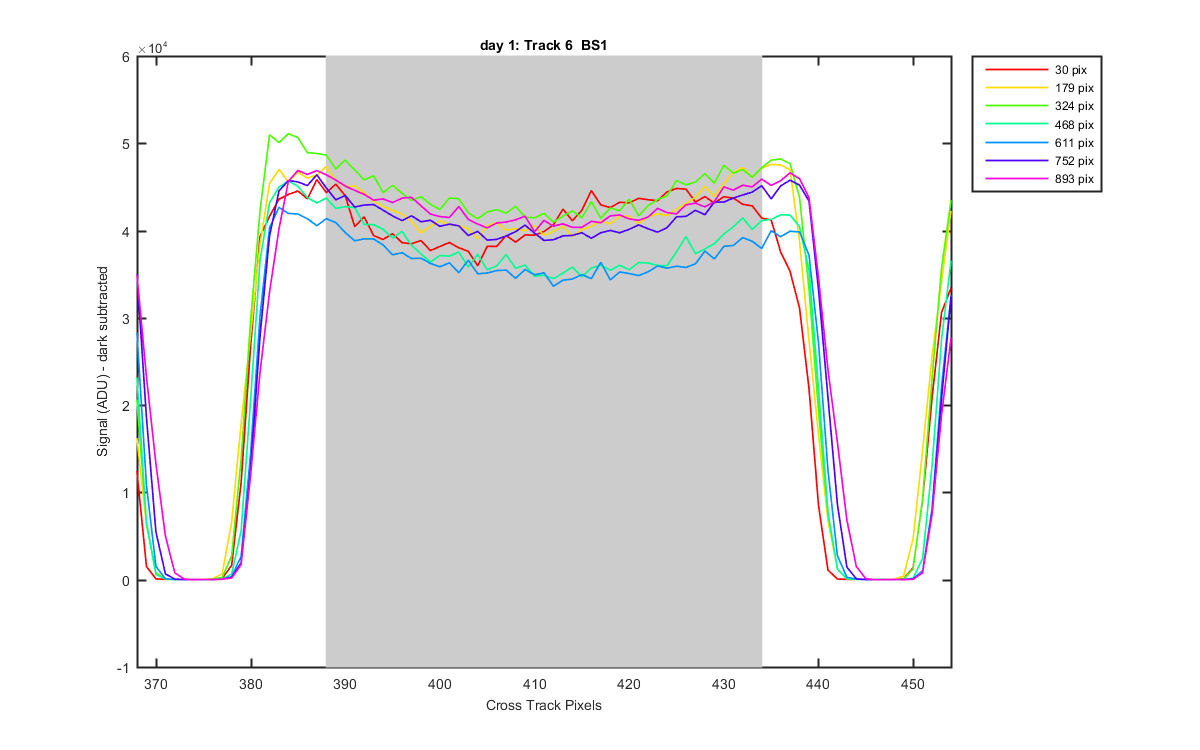

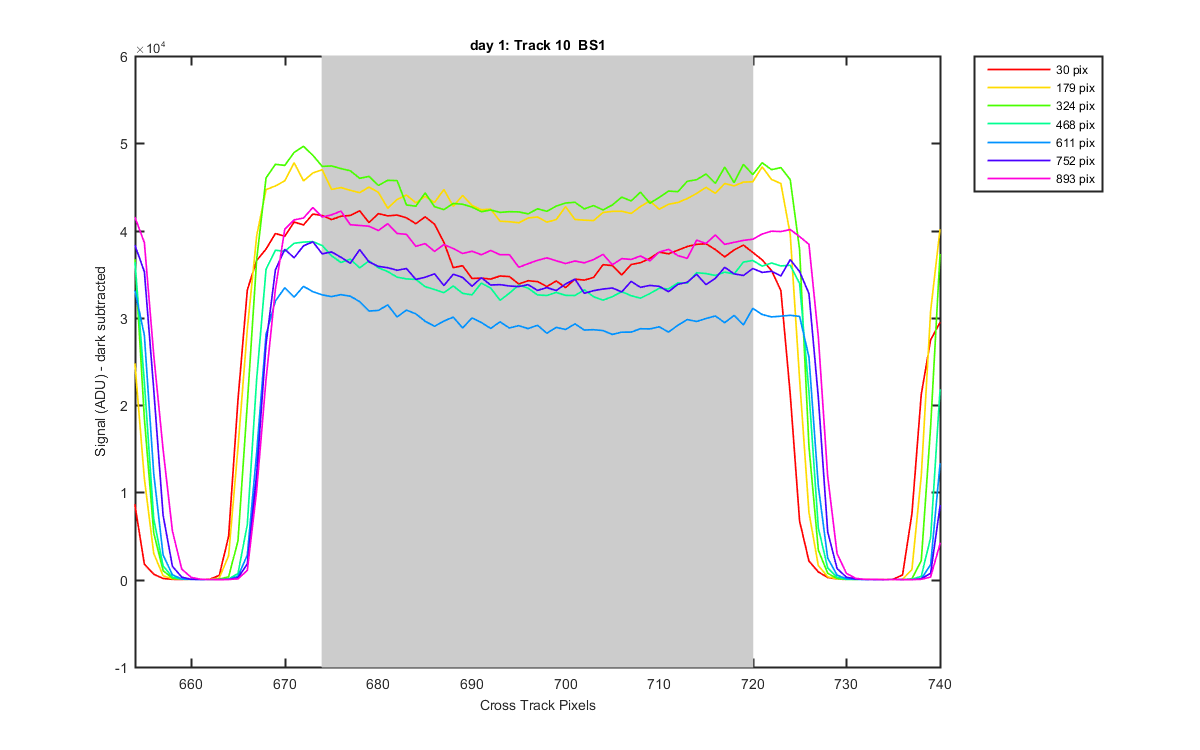

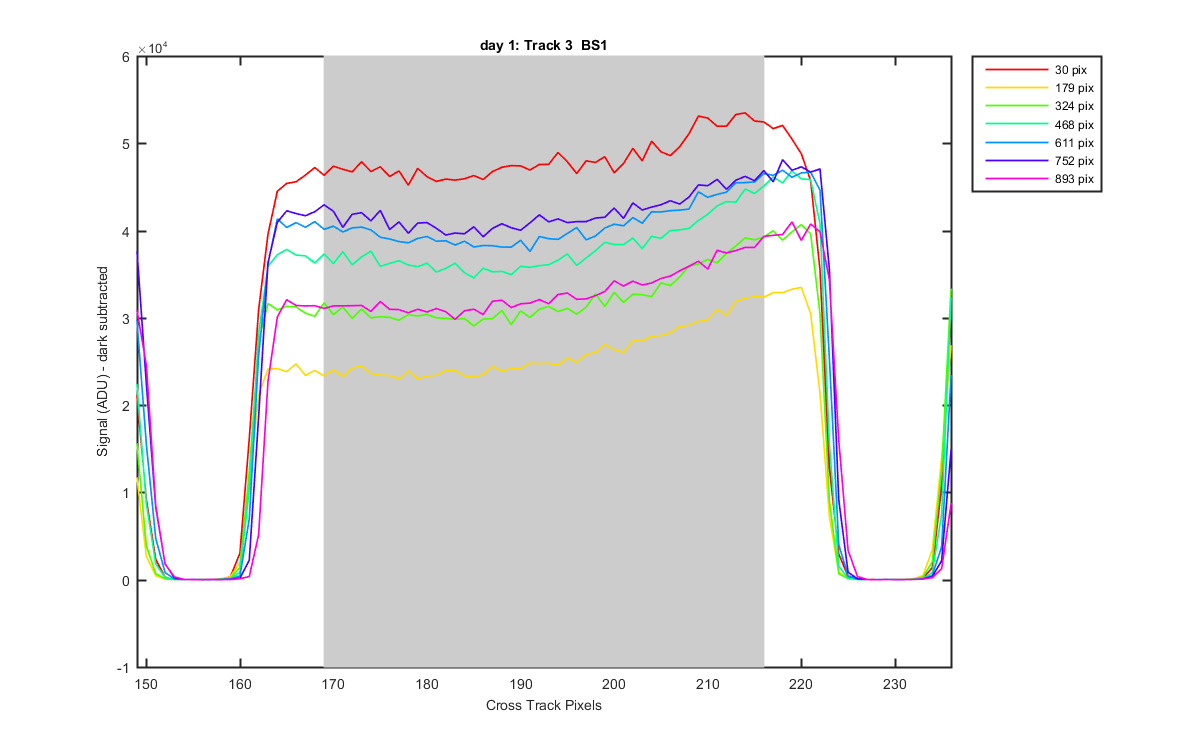

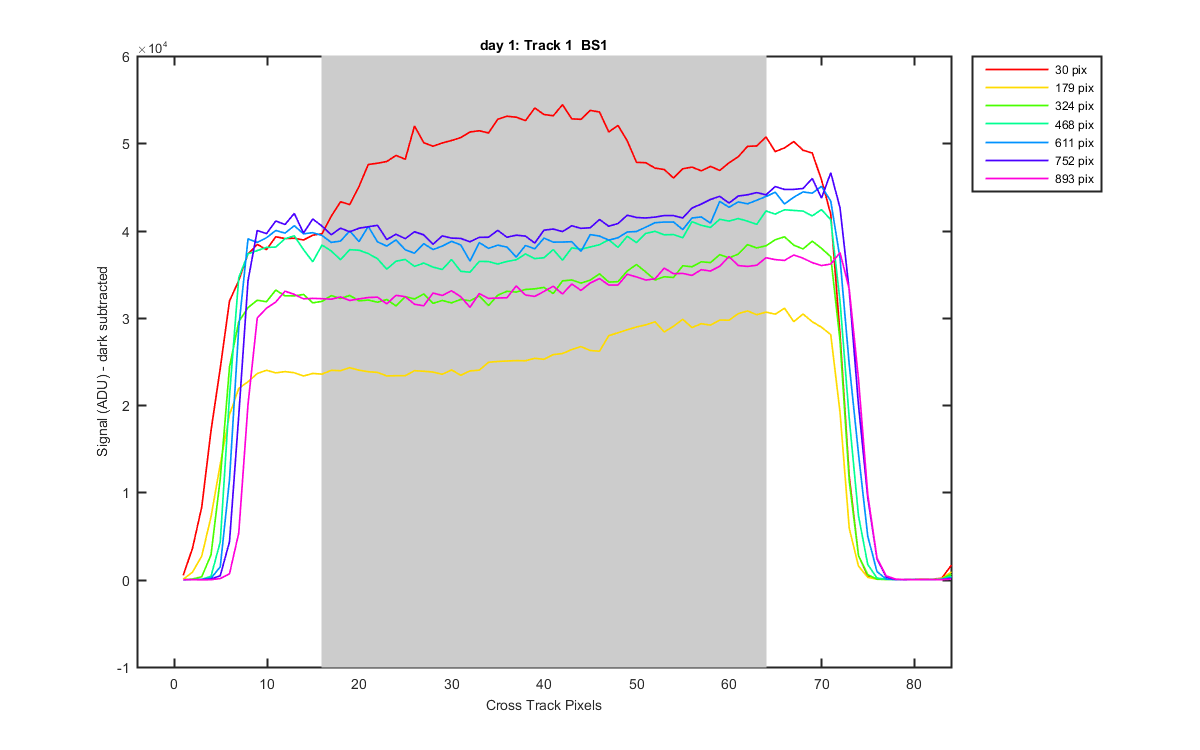

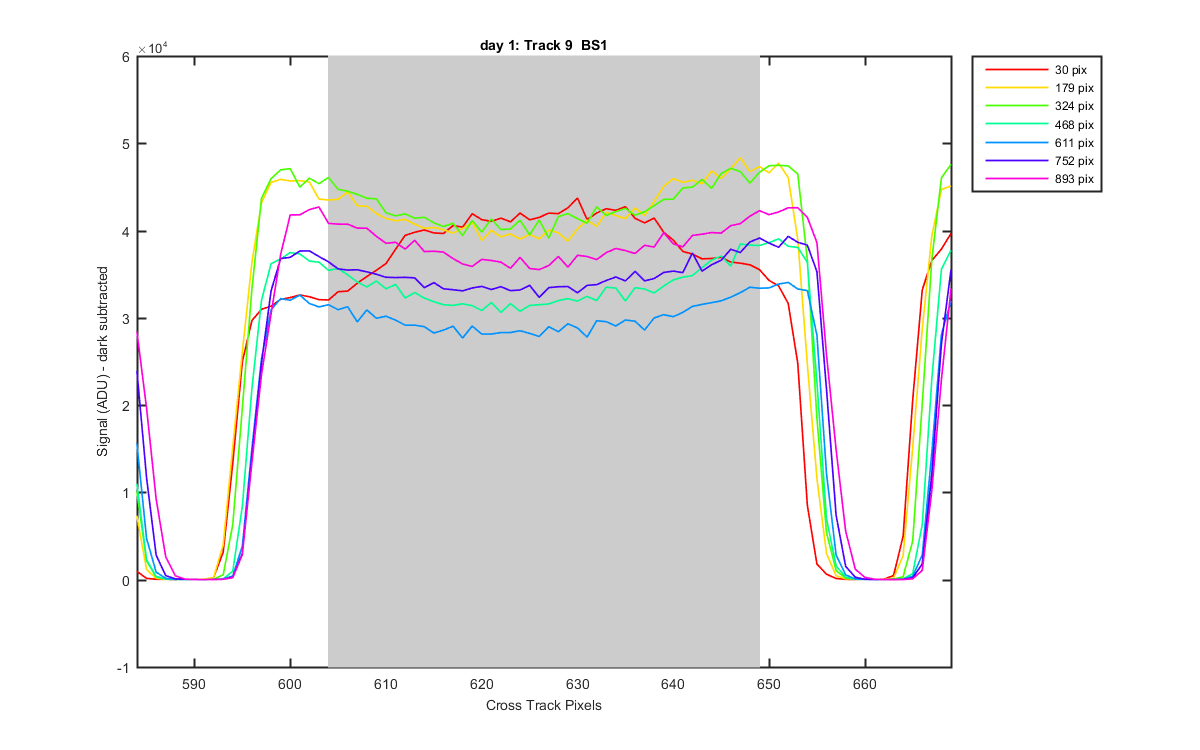

The graphs below show how I defined the tracks. Grey patches are what is averaged for each track. These are created from Laser data, 7 data sets. The track definitions are from the Haw-2015-03, some could probably use some minor adjustments. Track 3 pixel 30 line is only one that looks odd.


Track pixels:
Track:  1       2       3       4       5       6       7       8       9      10      11      12      13      14
Left:   16      94     169     244     316     388     461     532     604     674     748     821     896     973
Right:  64     144     216     290     363     434     507     577     649     720     793     866     941    1015

Figure 1


Figure 2


Figure 3


Figure 4


Figure 5


Figure 6


Figure 7


Figure 8


Figure 9


Figure 10


Figure 11


Figure 12


Figure 13


Figure 14


Figure 15


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2016-02\BS1cal\day1
Date: 30-Mar-2016 15:09:48
Created from pltfindtracks_(1)
