REVISION DATE: 30-Mar-2016 23:02:52
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | RAW HTML | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Rotaton (deg) |
Wavelength (nm)(deg) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2016033007_img | Signal | NaN | 650 | 1.2 | Single Scan | -40 | 0 | F | 2016-03-30T04:43:03 | 4 | Image | 50957 | 3563.57 | 41.49 |

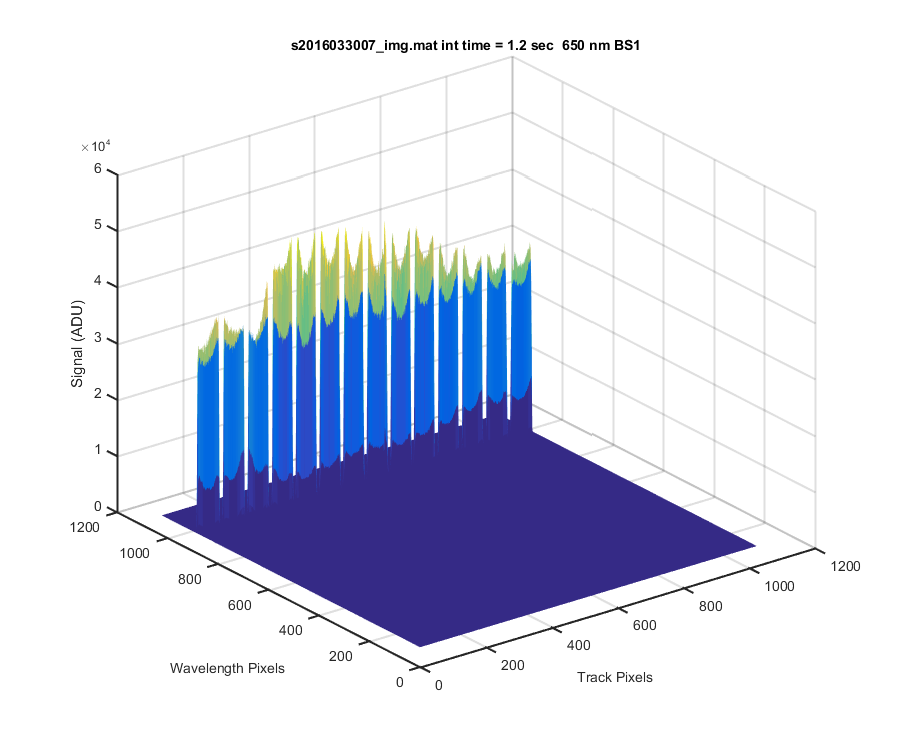

Figure 1

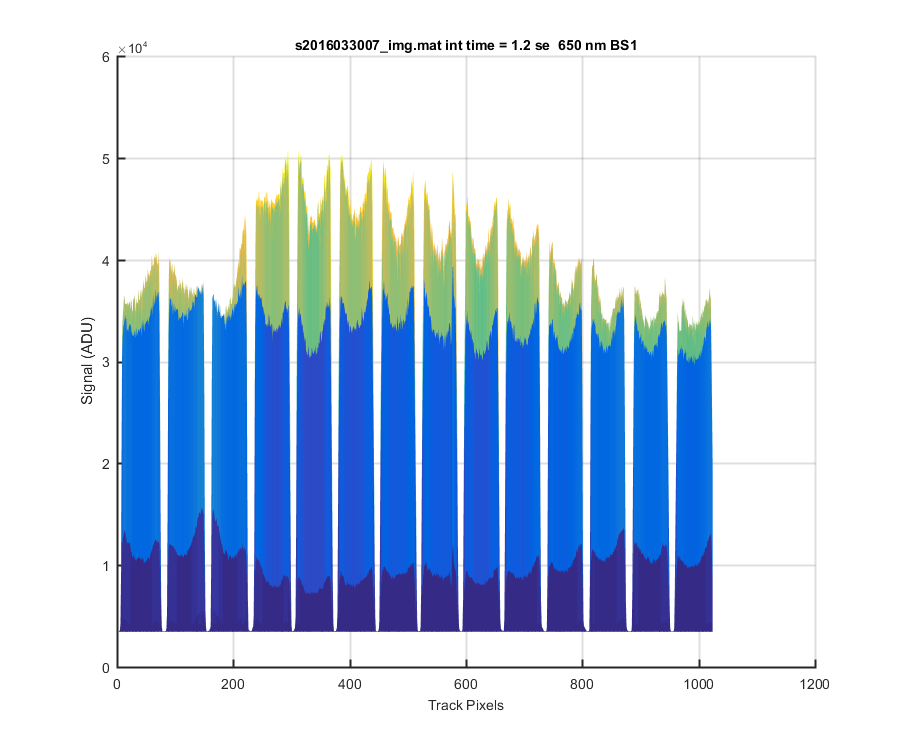

Figure 2

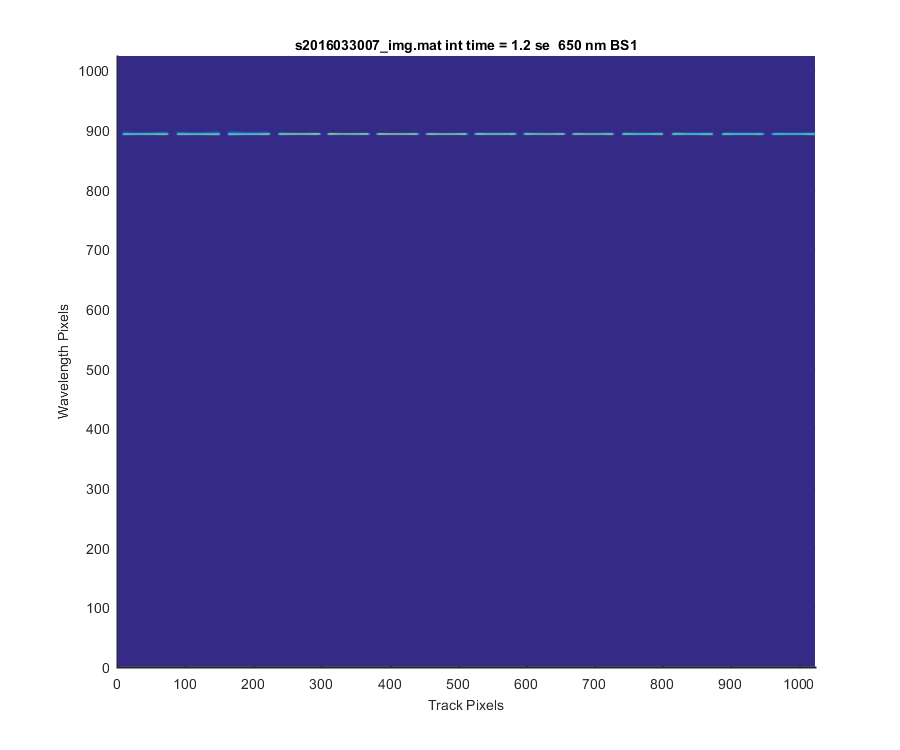

Figure 3

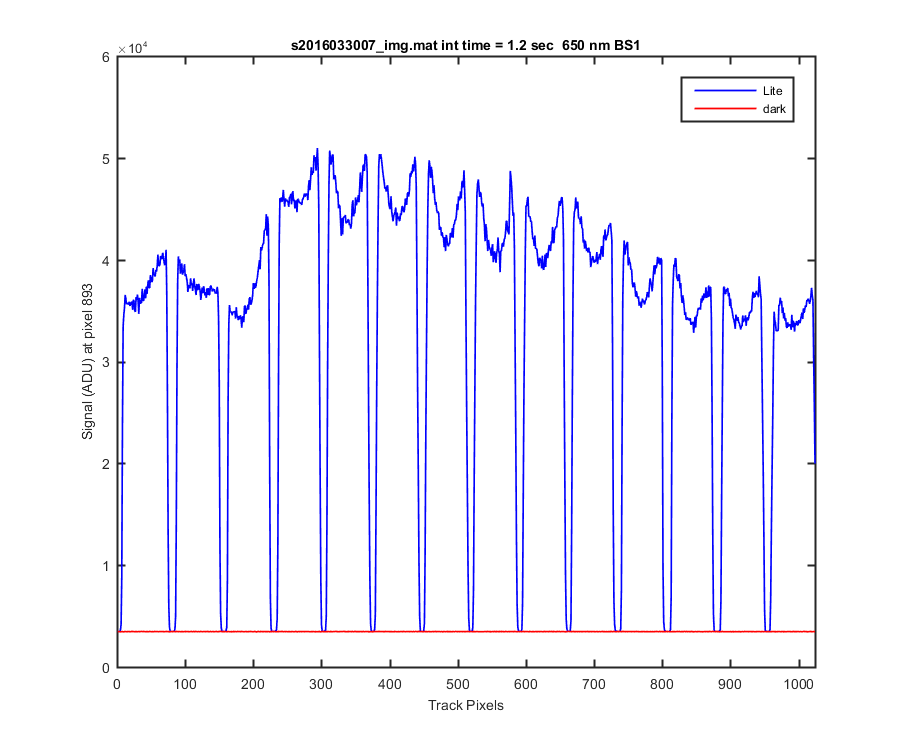

Figure 4

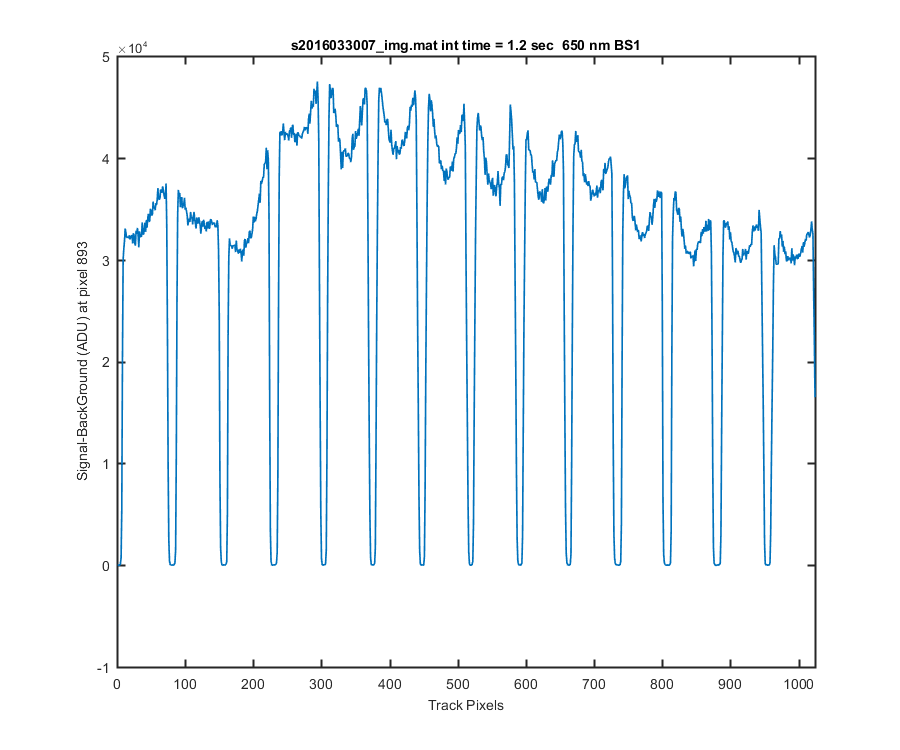

Figure 5

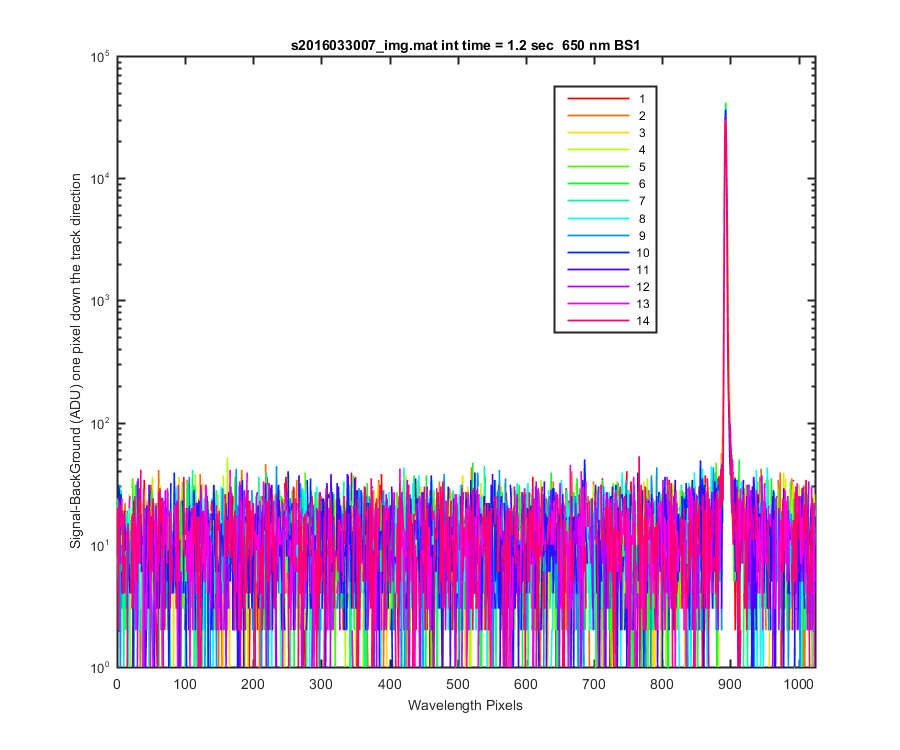

Figure 6
