plt_solar_day03_ - RS01

REVISION DATE: 18-Apr-2016 12:23:02

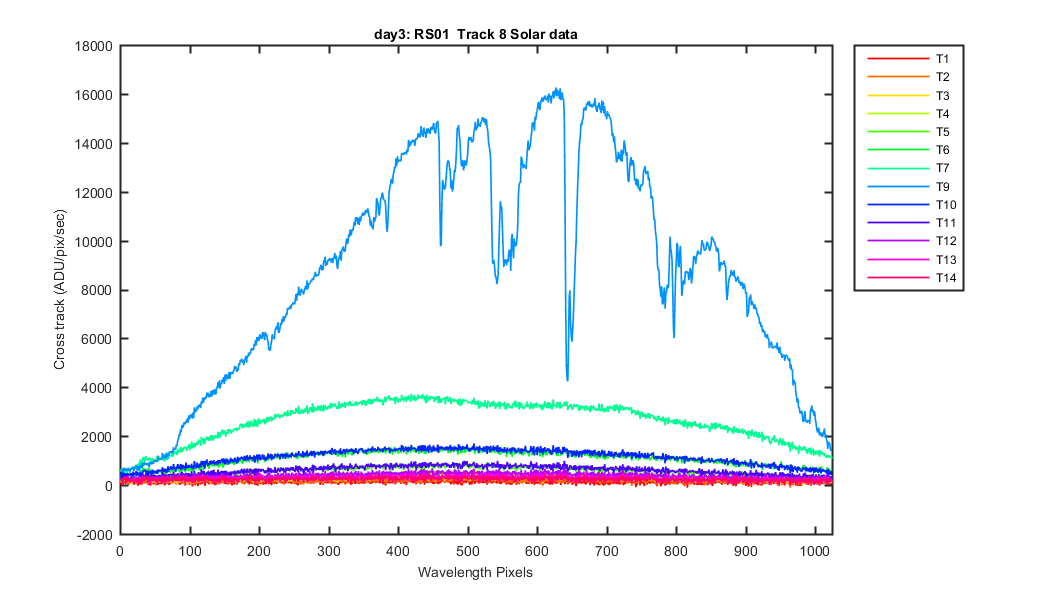

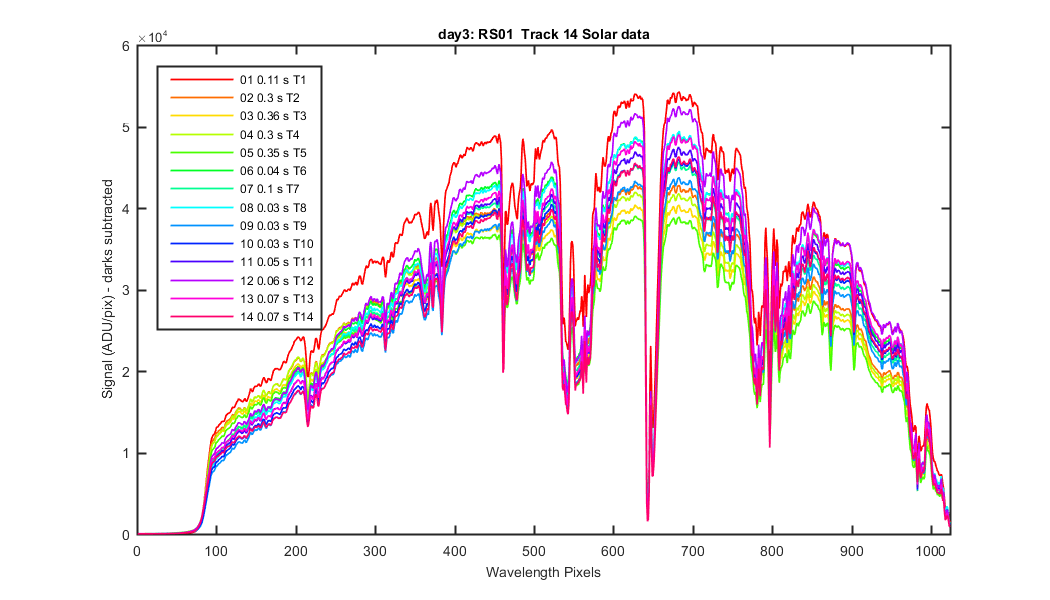

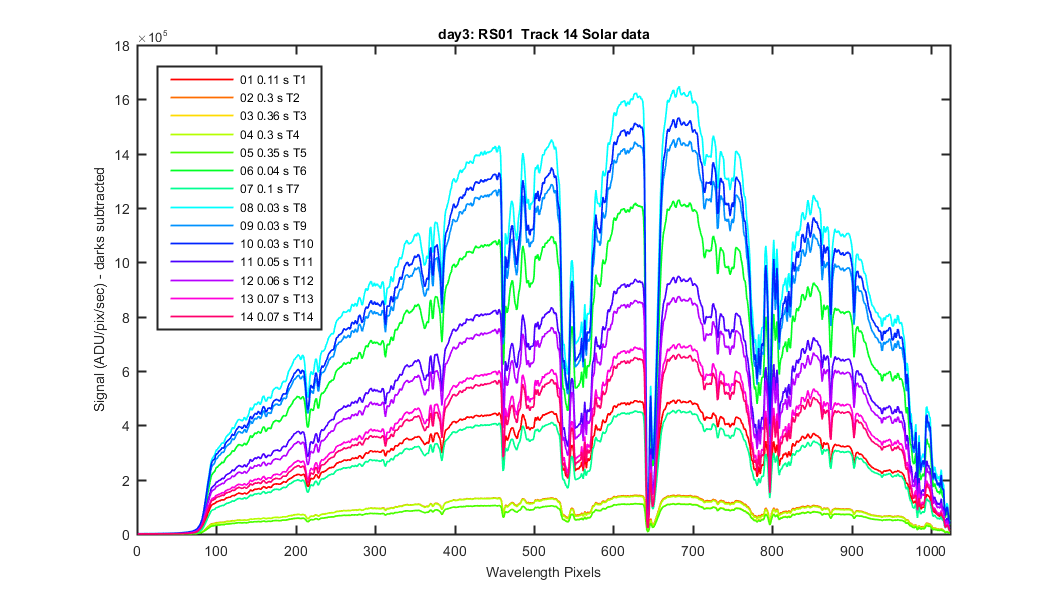

Fiber used where the long M259 Es FO#700. FO#700 bare tip was pointed at the gray plaque, then each of the 14x FOs from the RS01 bundle were connected to the other end, and I scanned sig & bac at somewhat differing exposure times to keep ~50k ADU signal. So there are 14x sig,bac scan pairs.

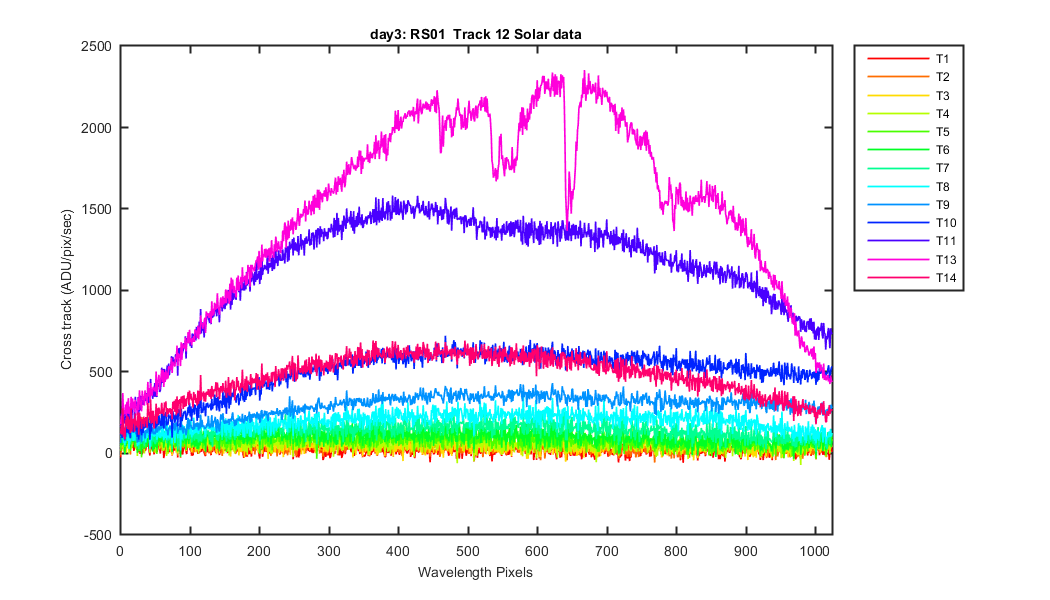

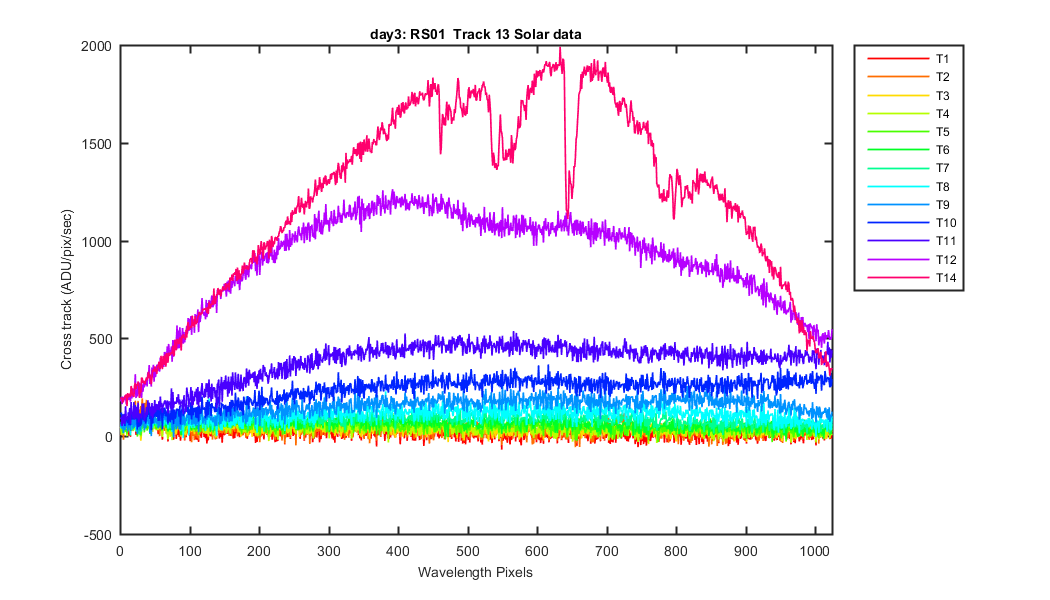

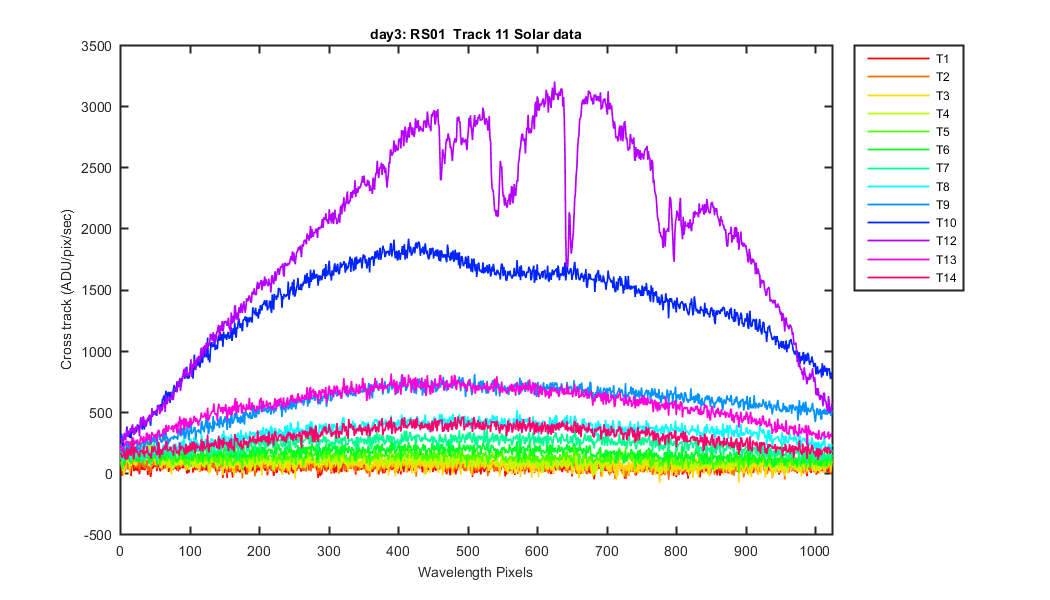

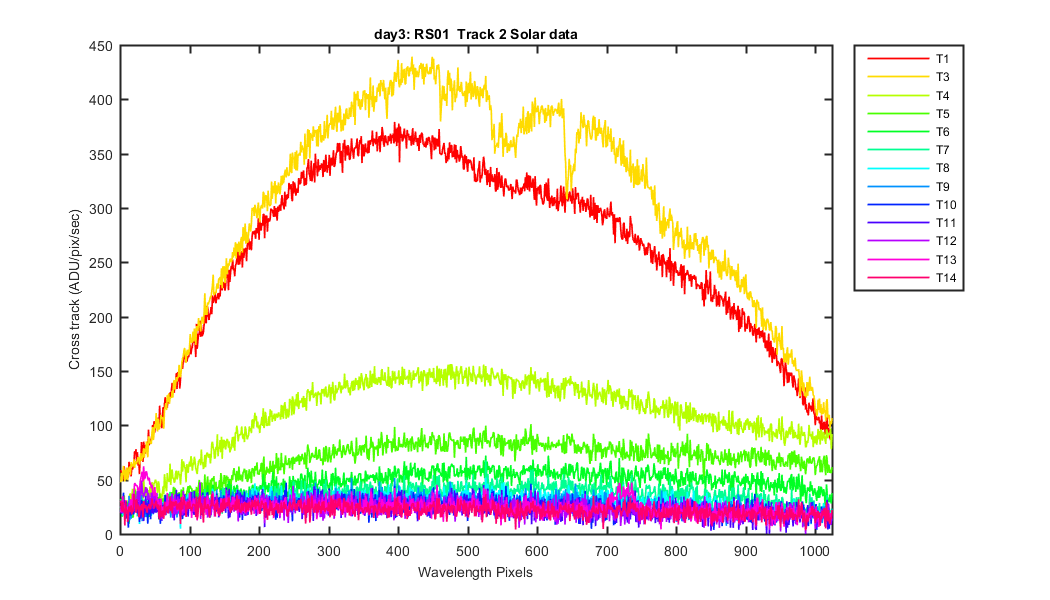

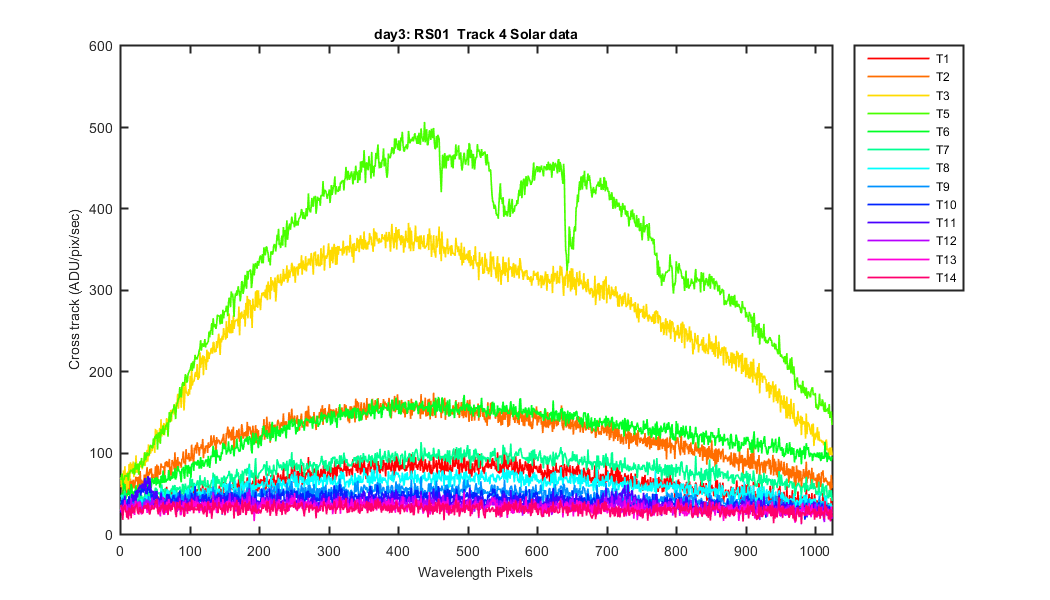

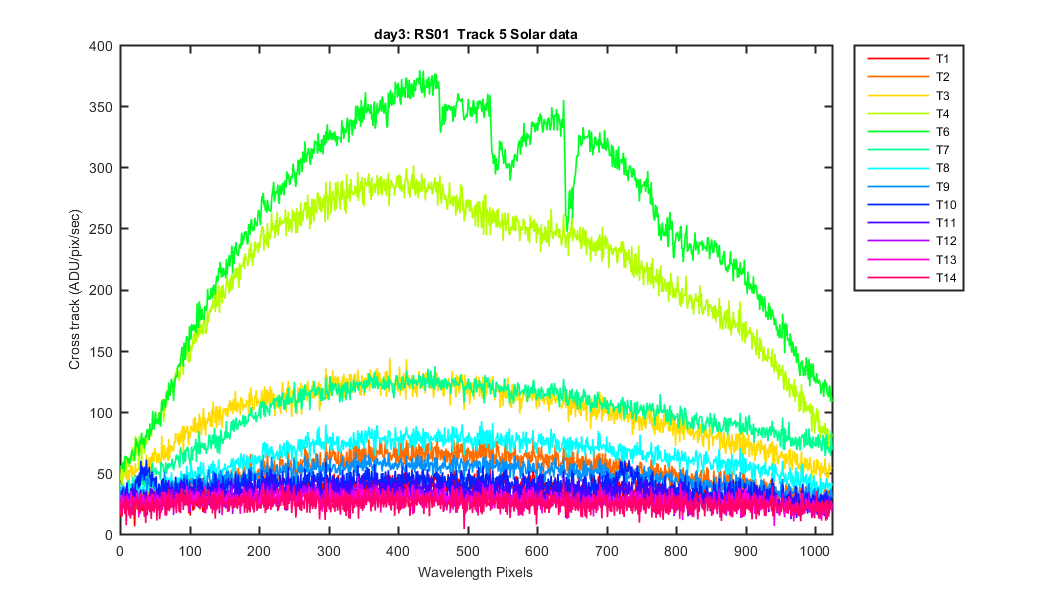

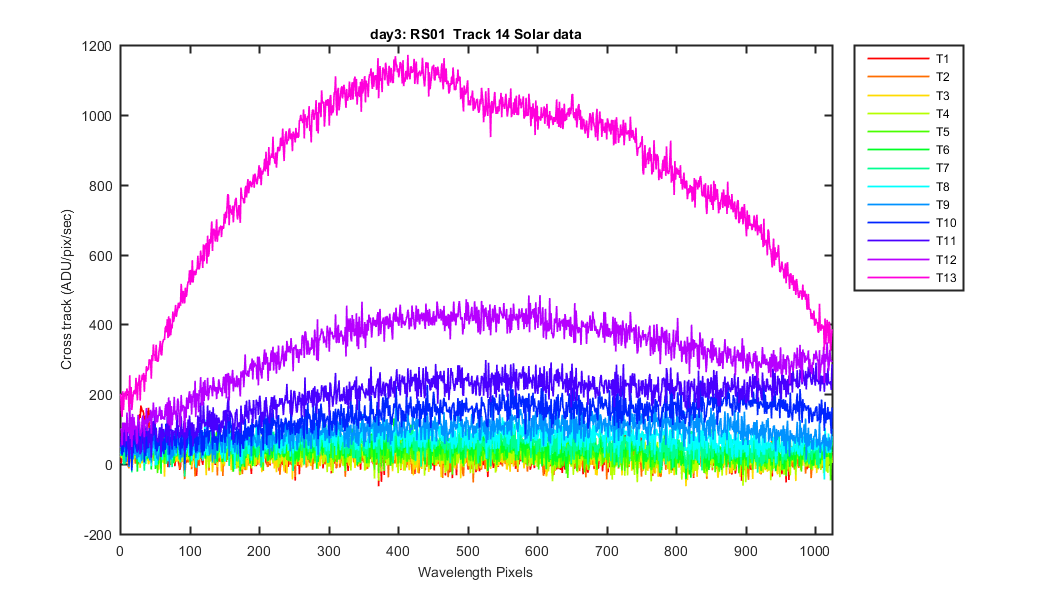

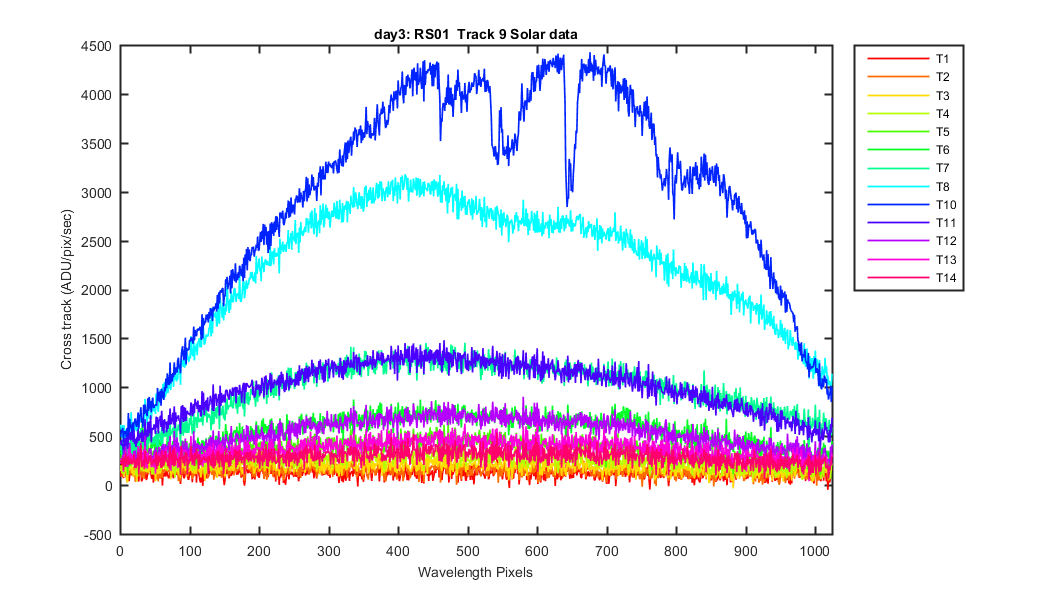

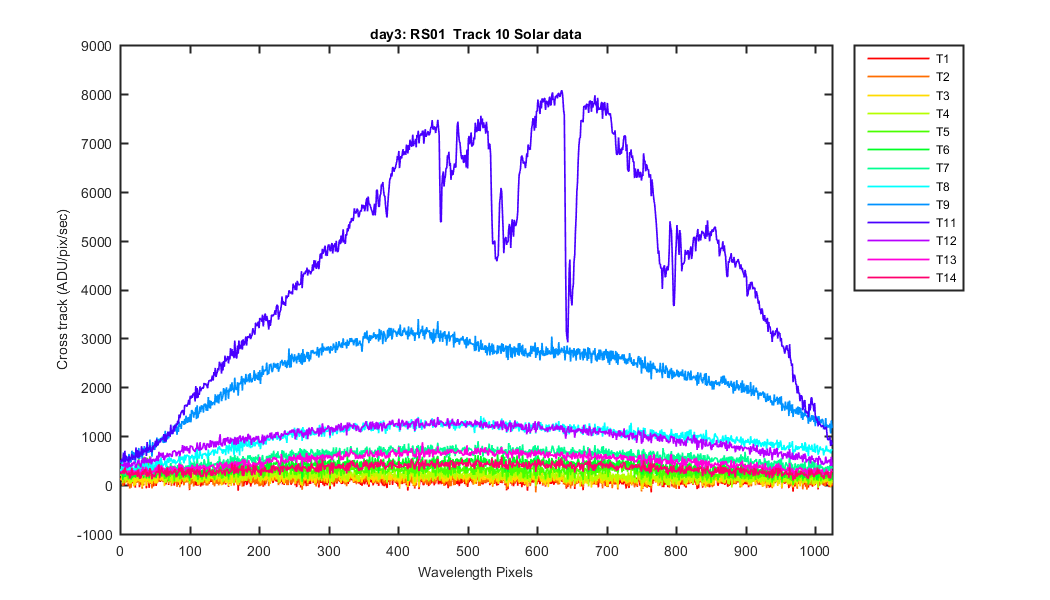

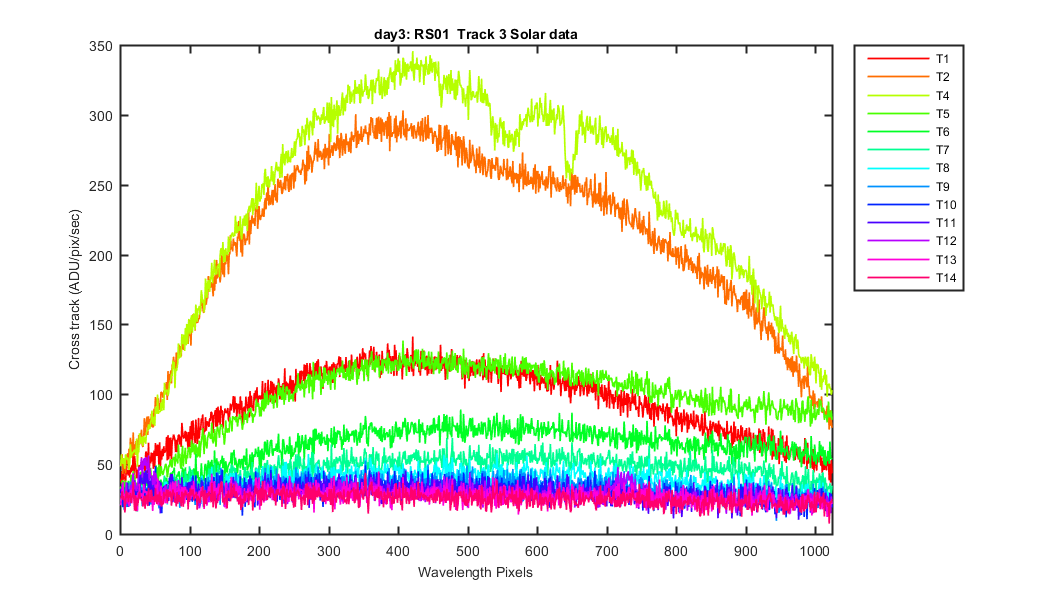

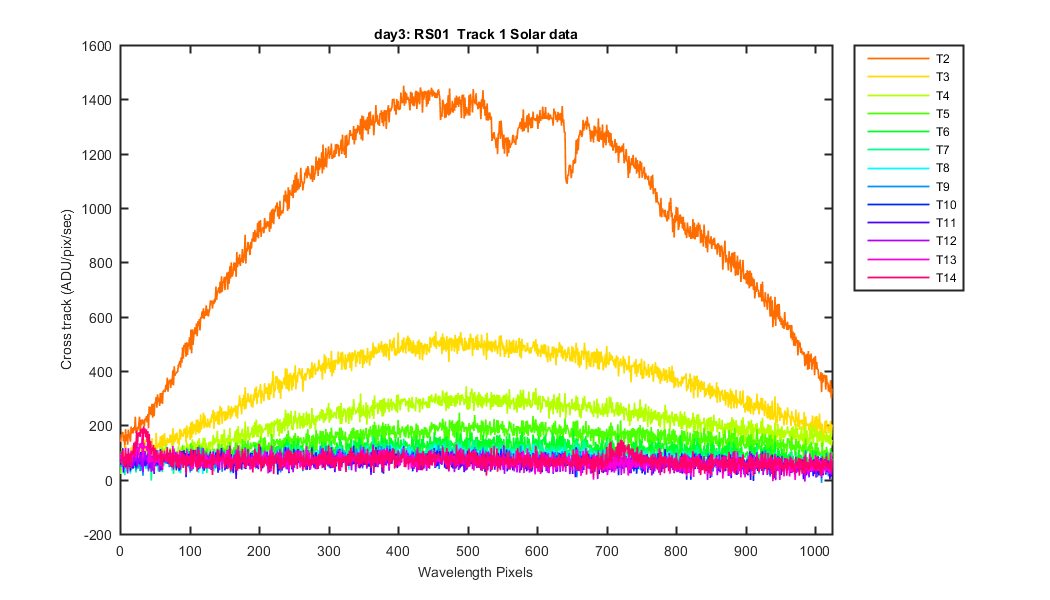

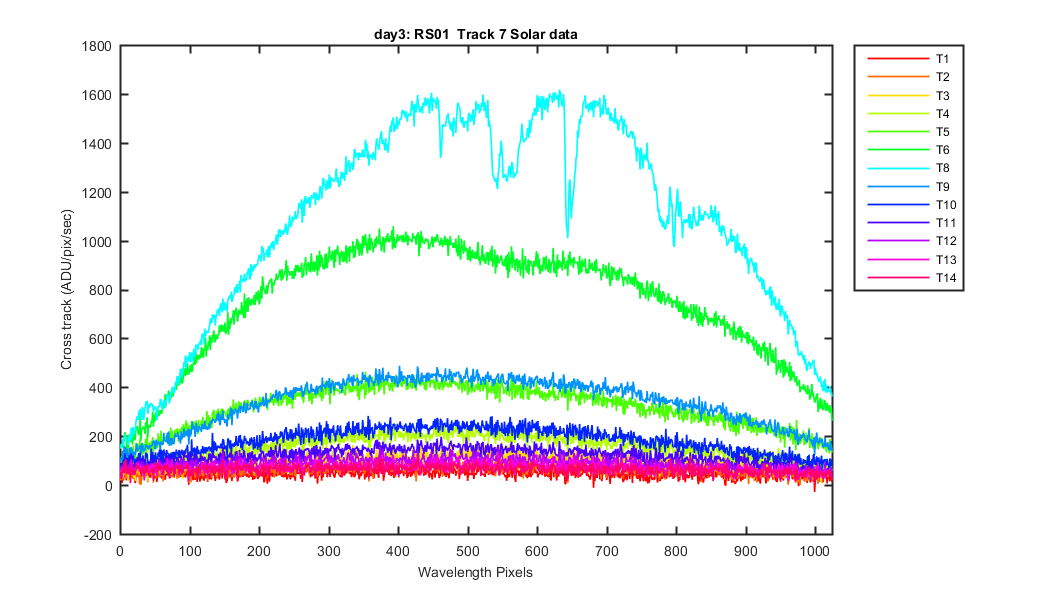

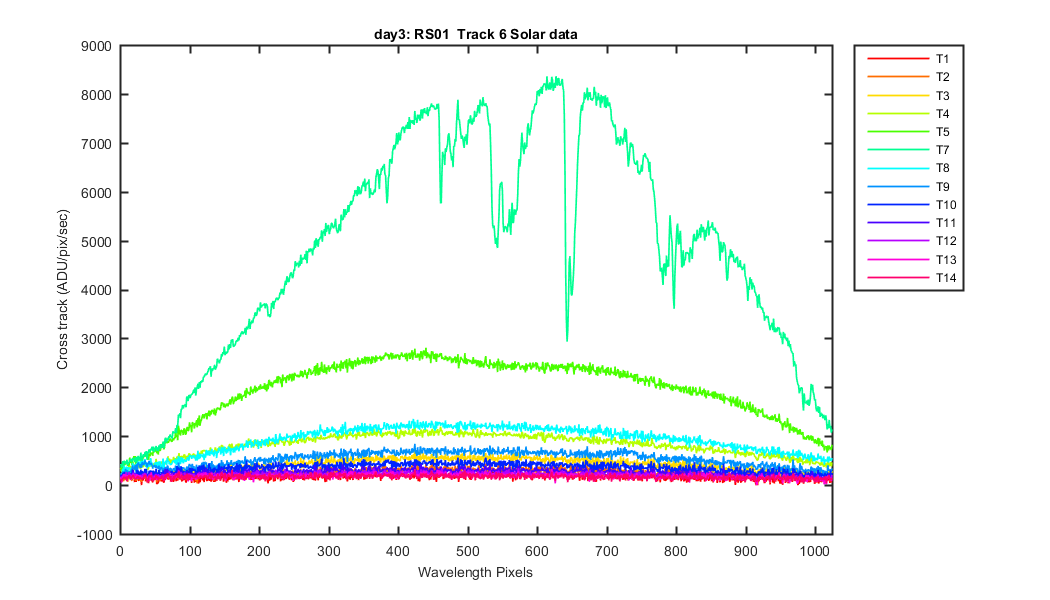

During Hawaii-2016-02 while collecting data with the BS01cfg003 we saw a UV artifact at pixels 0-30 when the spec was looking at the grey plaque outside. The BS01 was shipped to Hawaii. So we used Hawaii-2016-01, Day03, BS02 to get Solar data on all the tracks one at a time looking at the grey plaque. The graphs below are a repeat of these but for the RS01. Below I will note the features seen and issues.

Issues/questions:

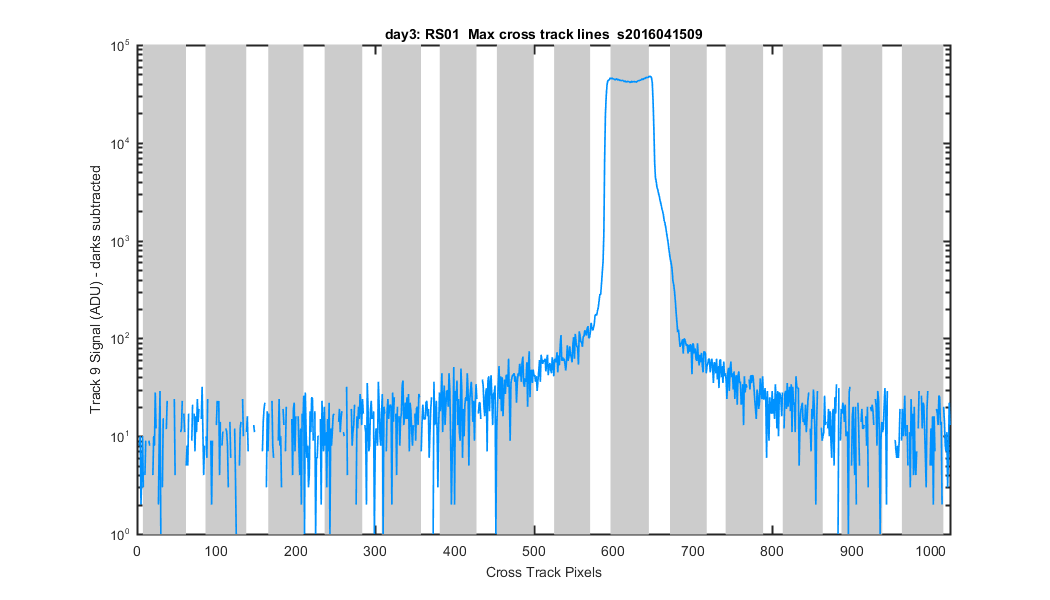

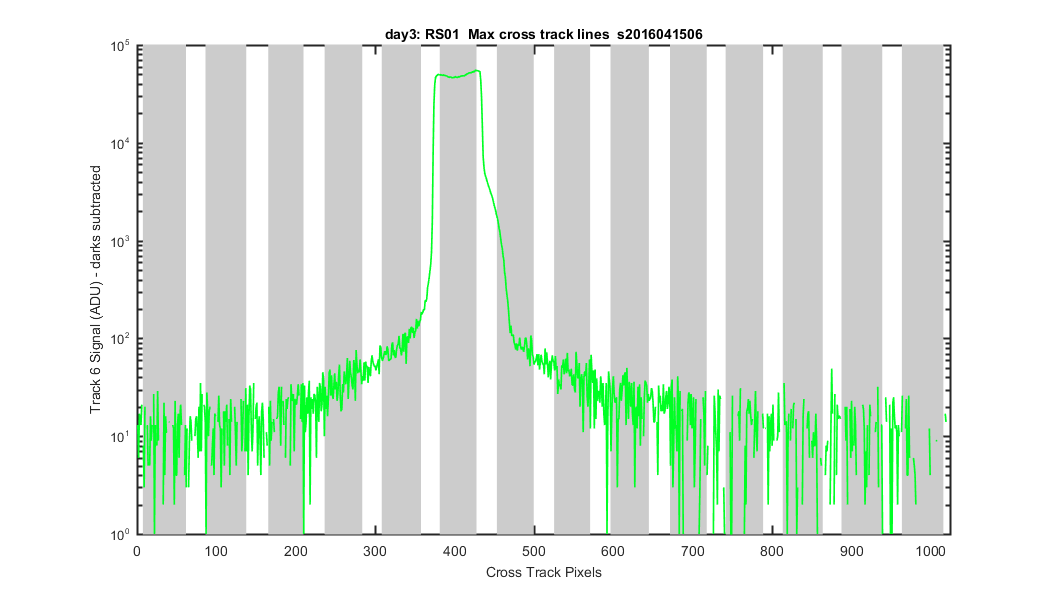

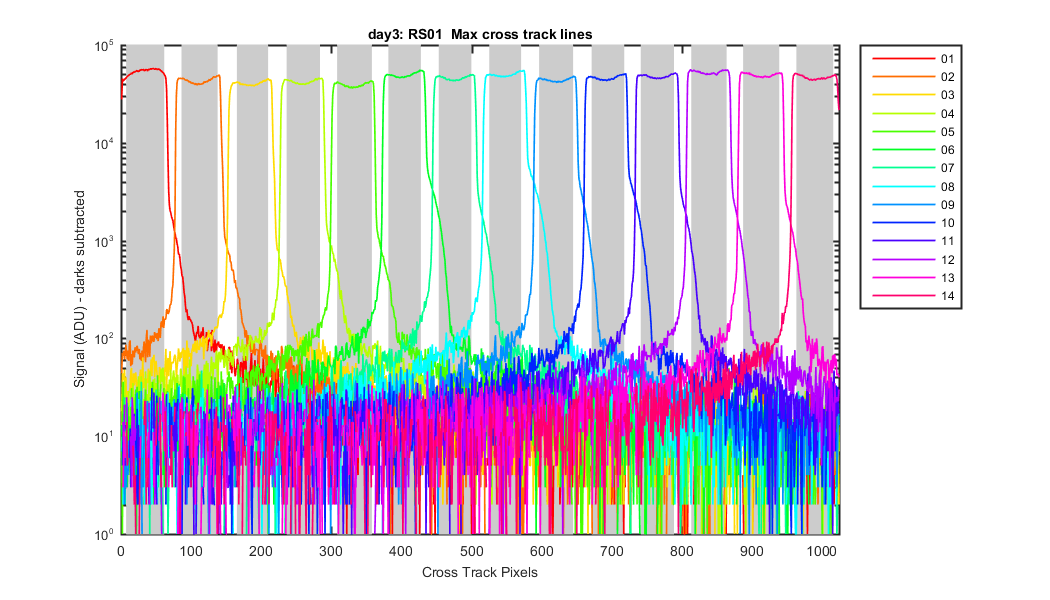

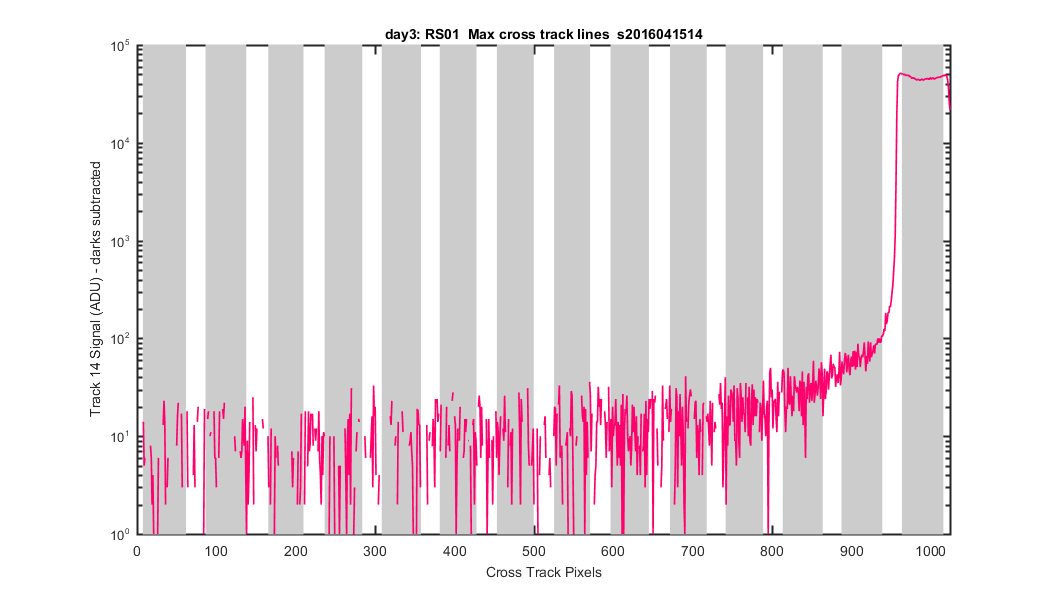

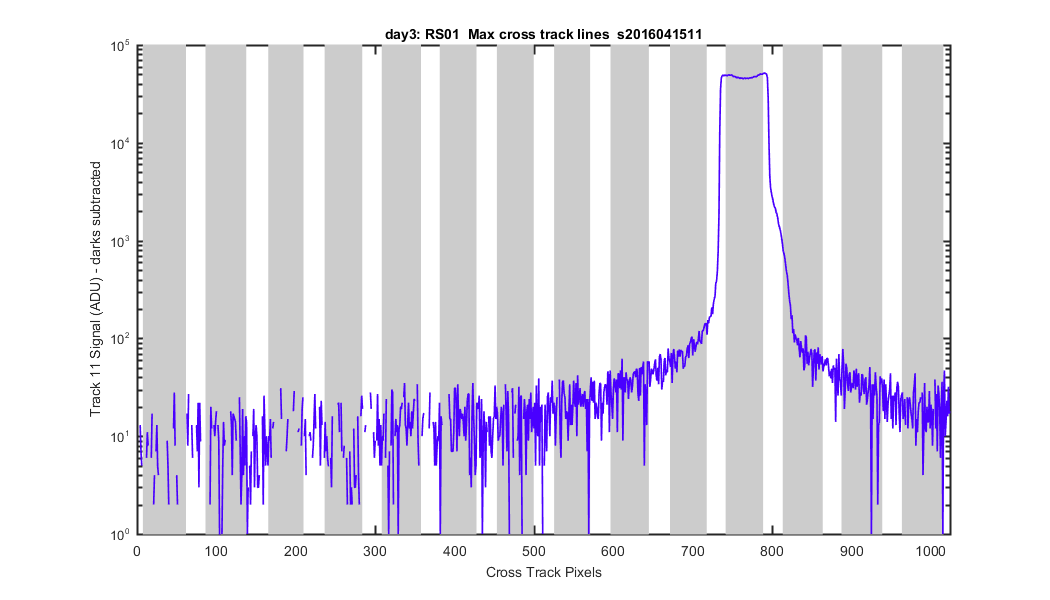

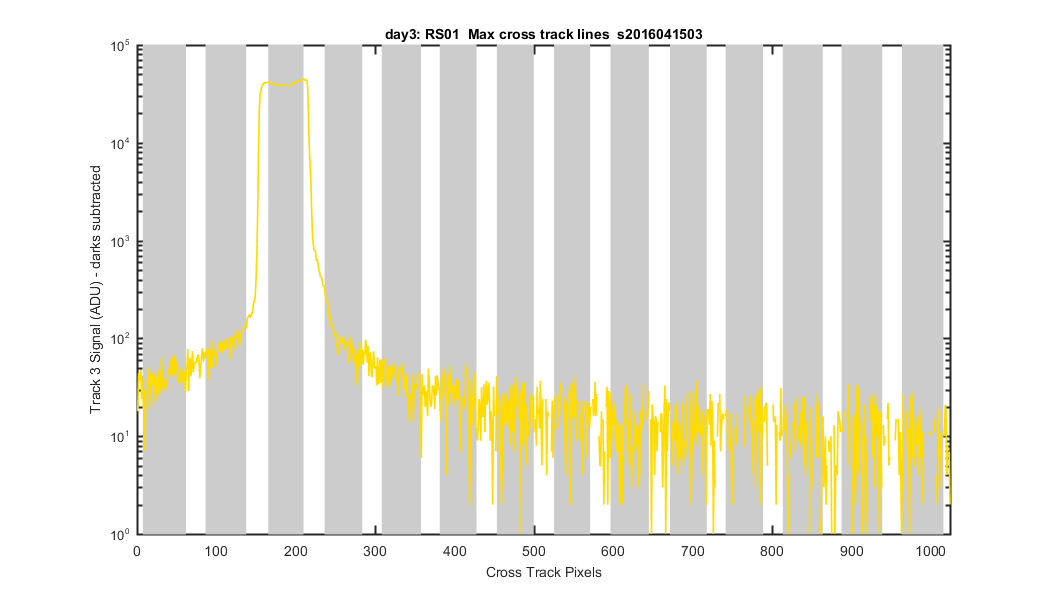

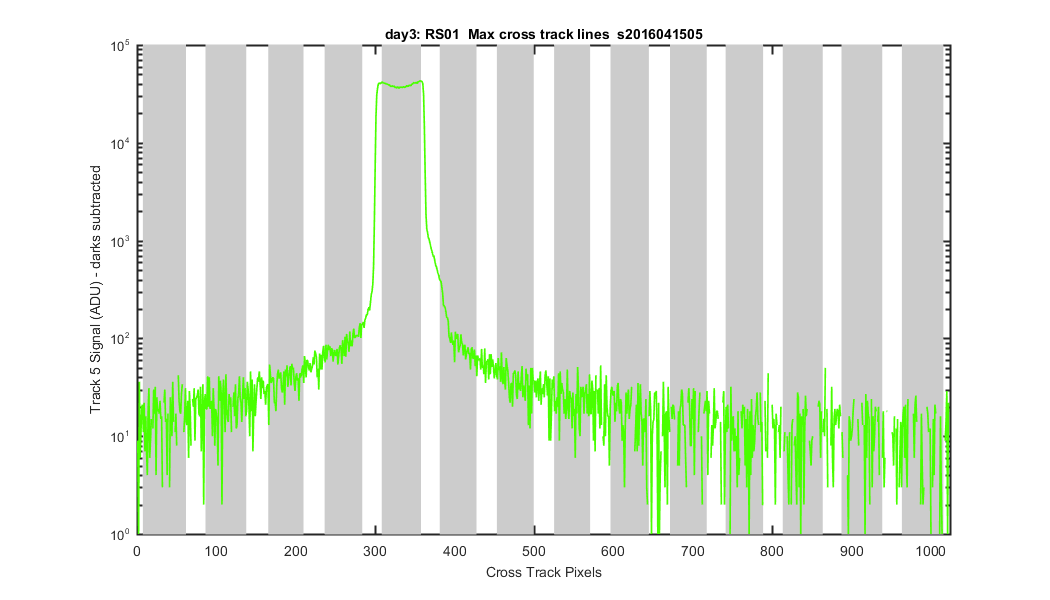

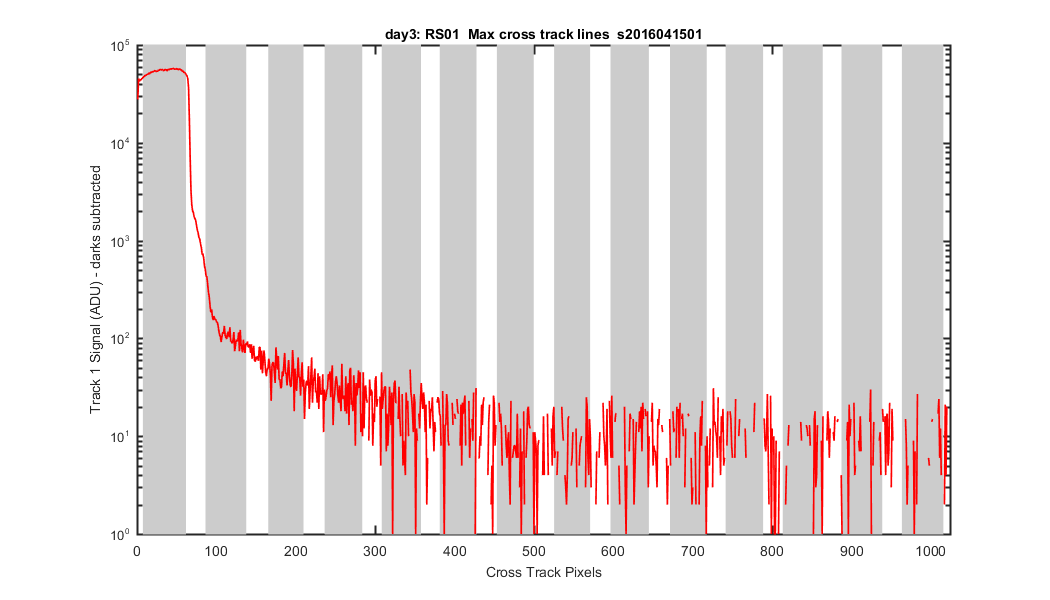

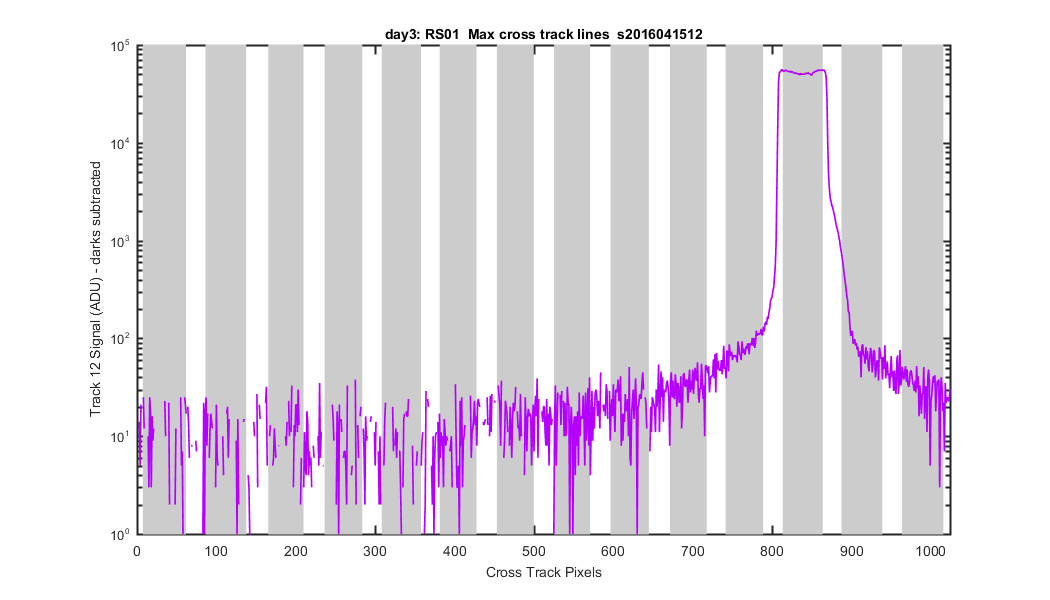

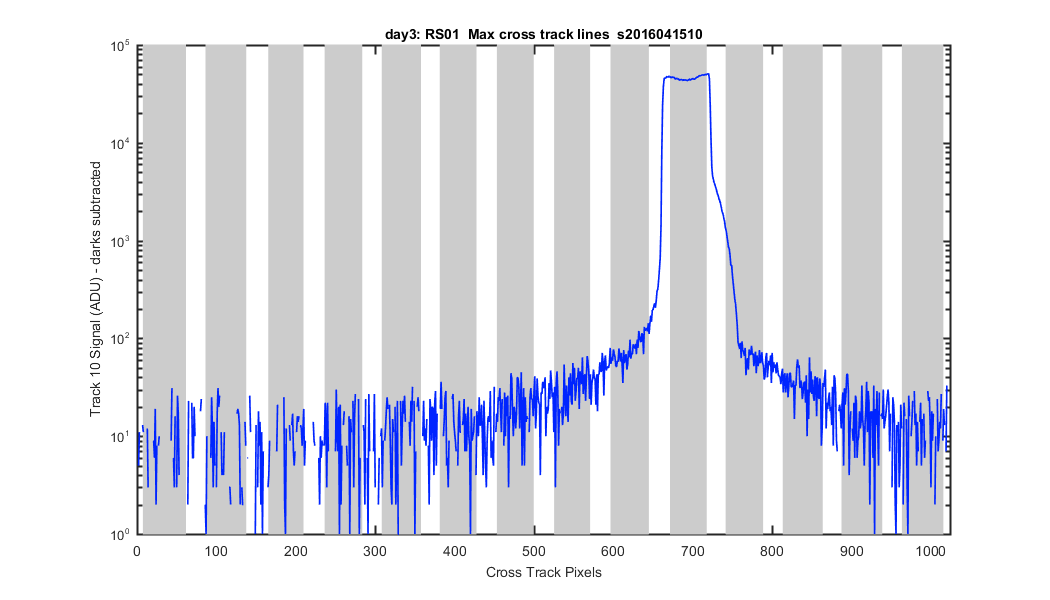

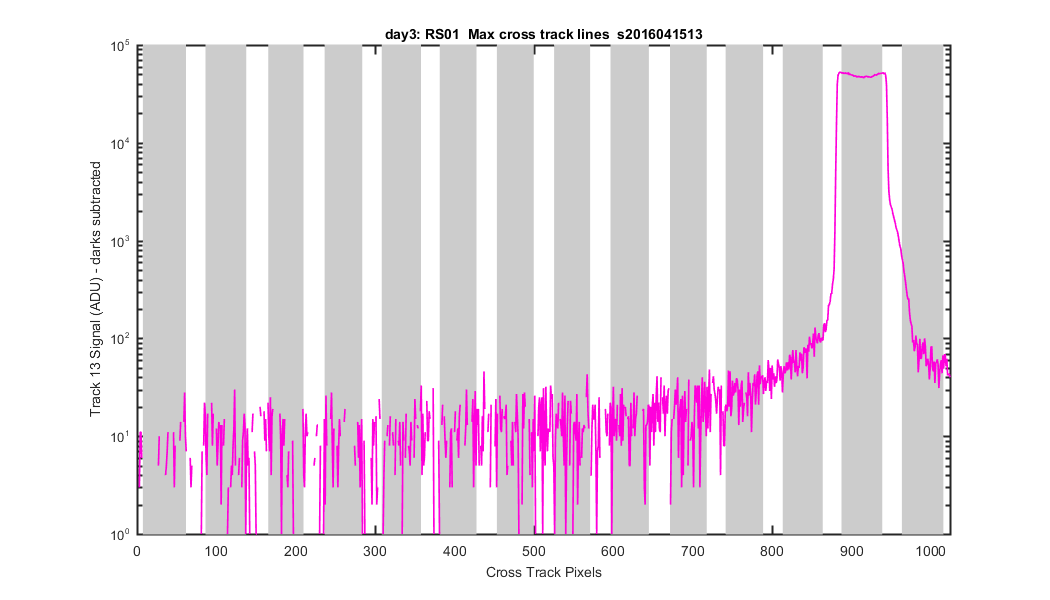

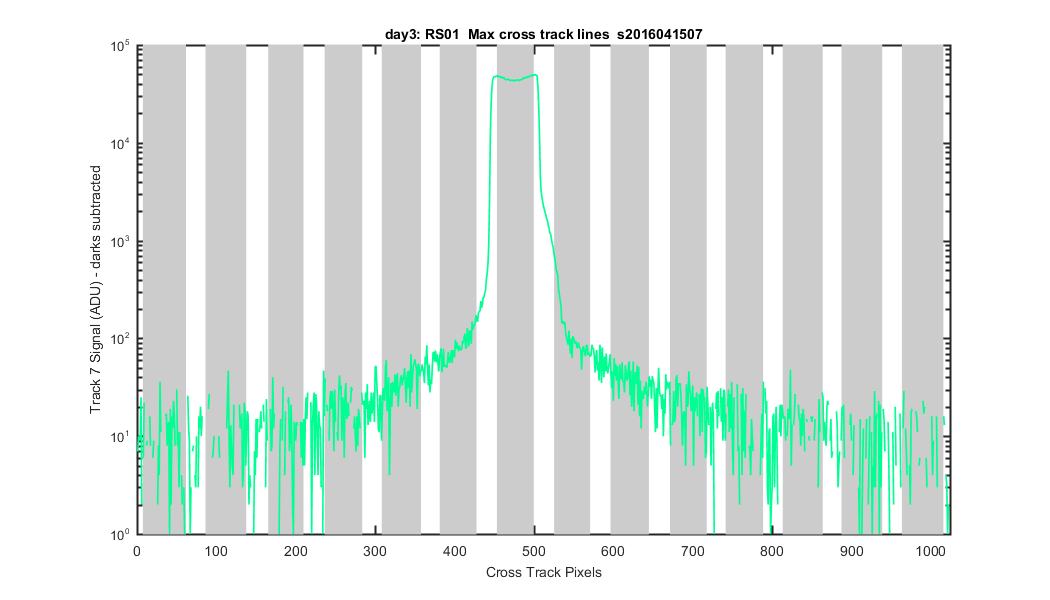

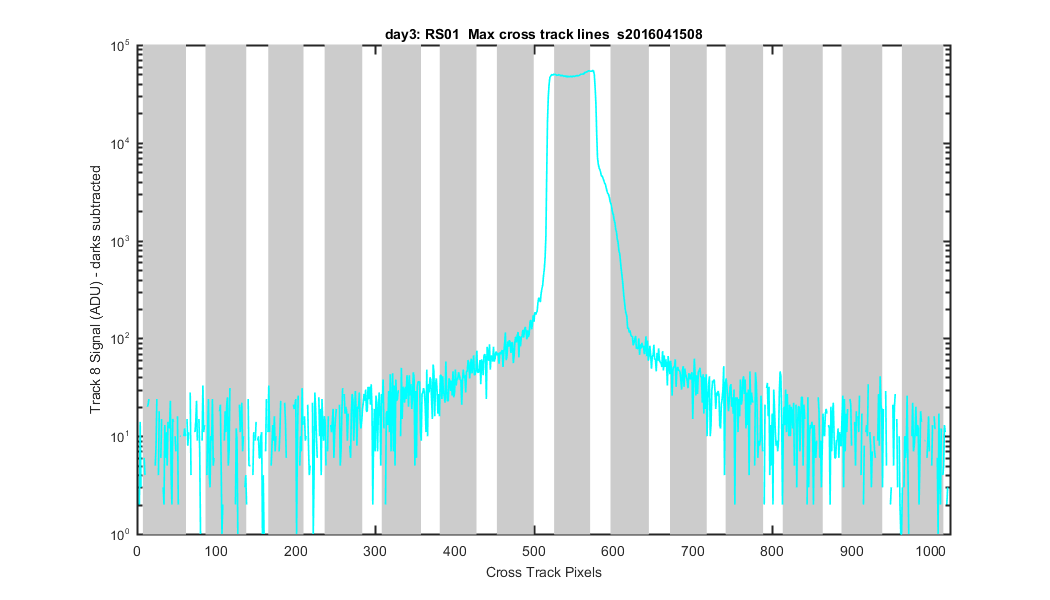

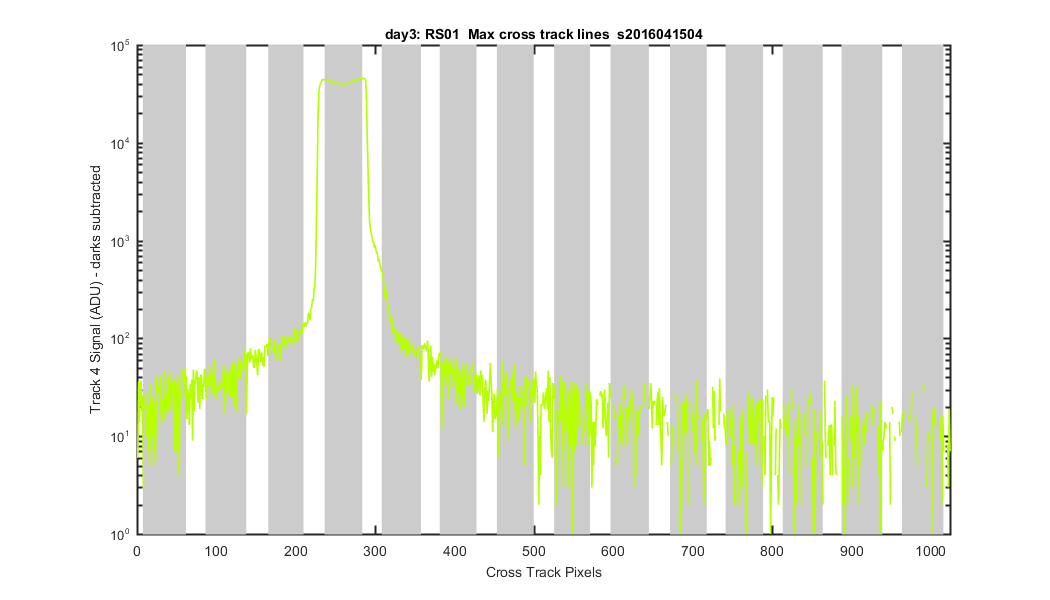

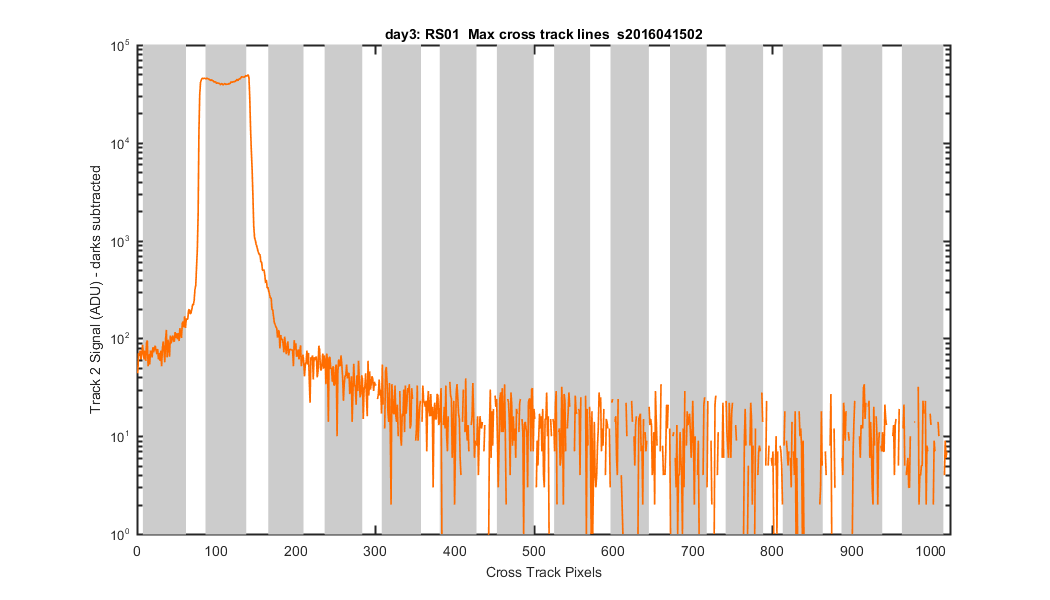

  1. Why is there a shoulder on the tracks again? Shoulder seems larger than on BS02. What is the "Shutter open & close delay" for this data set? Or is it the short intergration time?

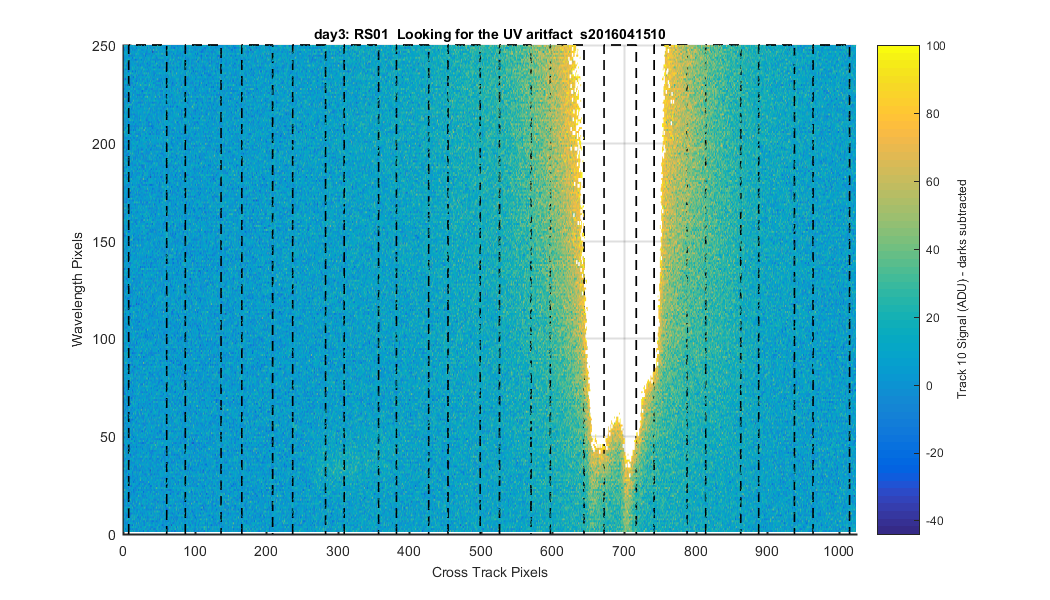

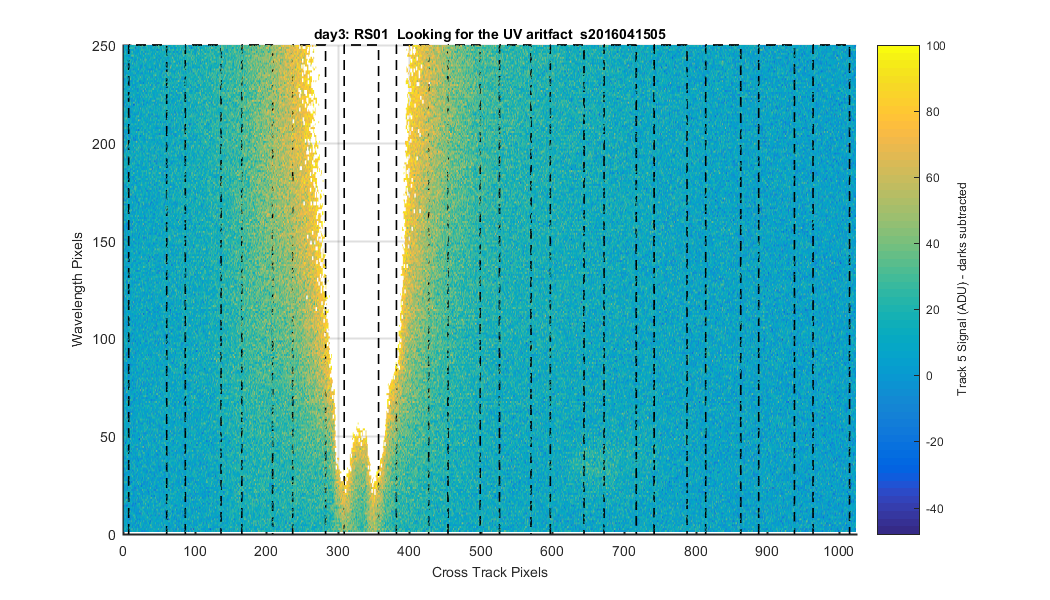

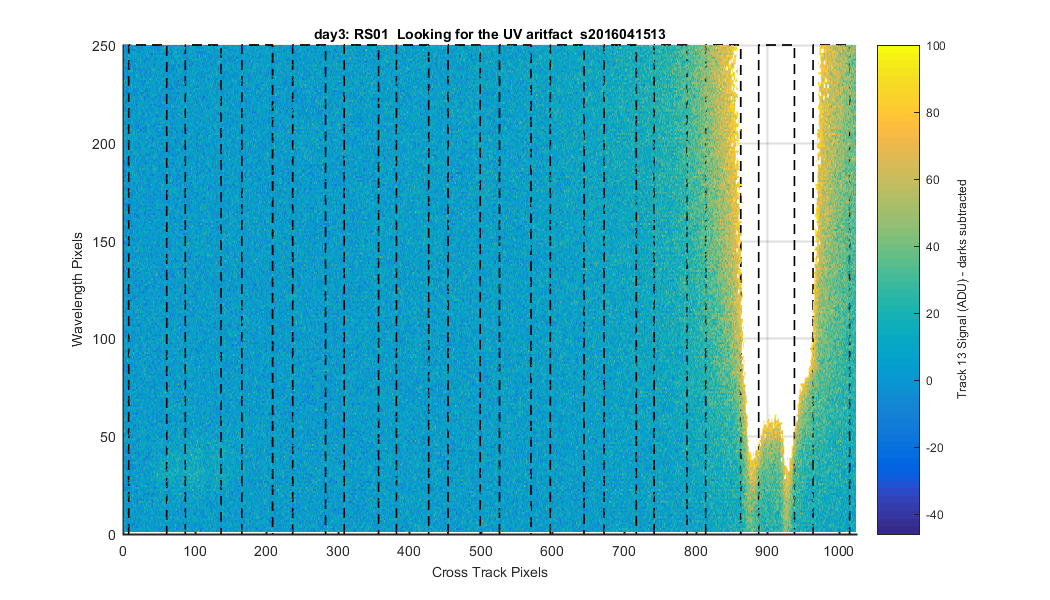

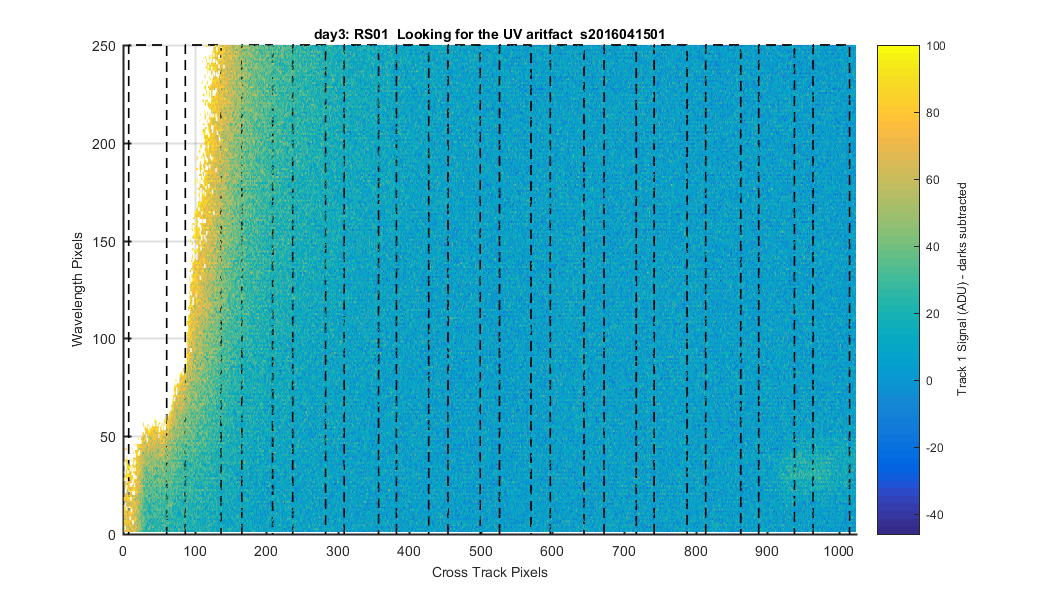

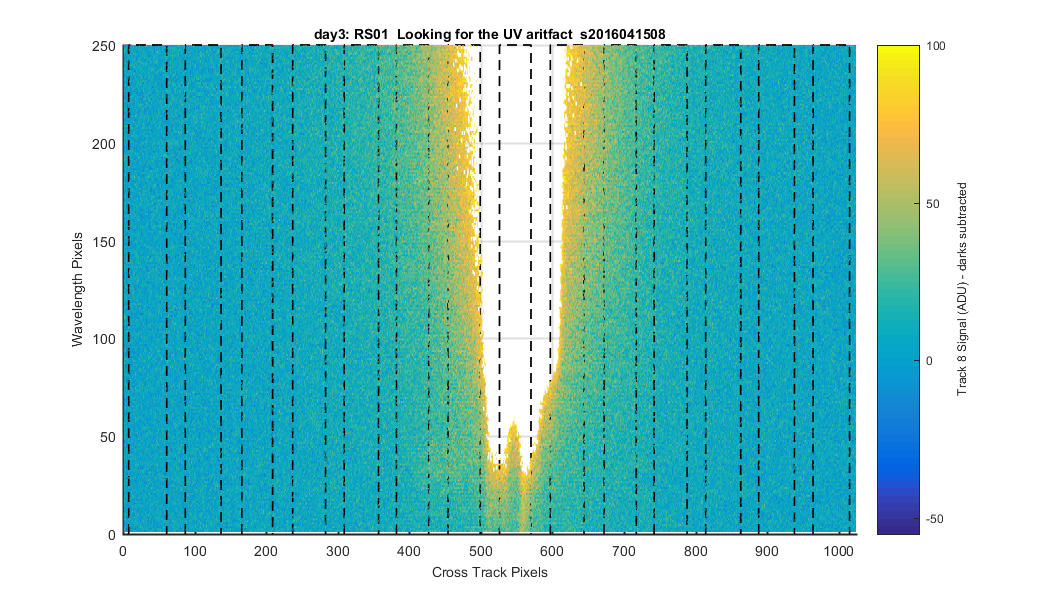

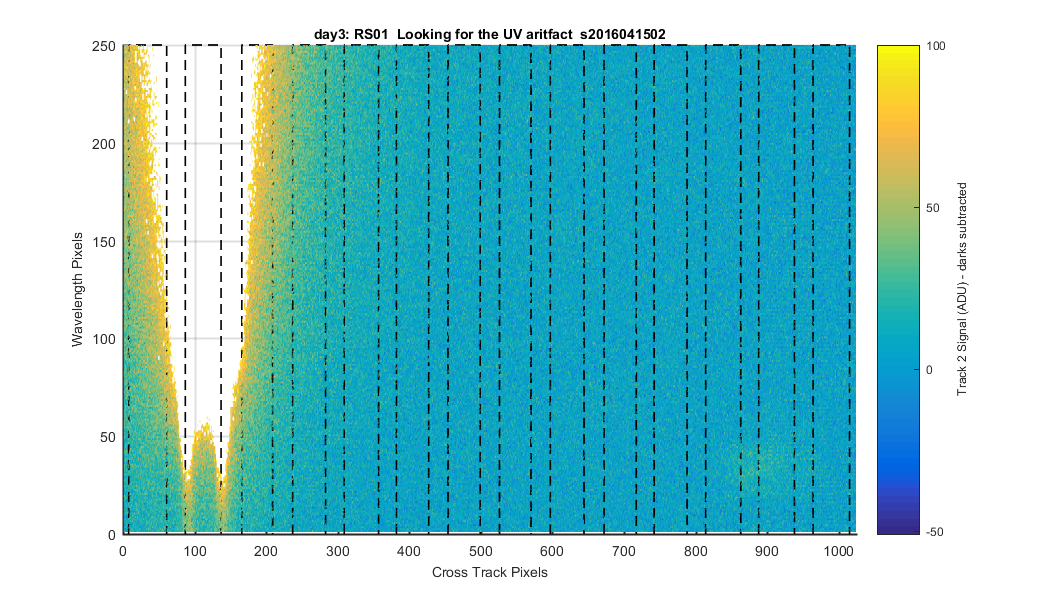

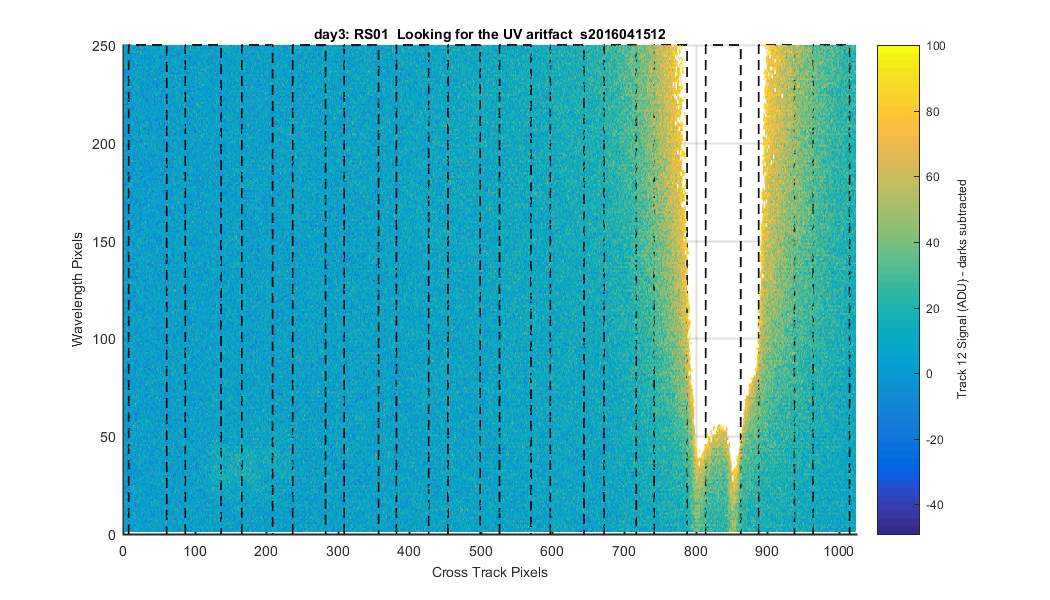

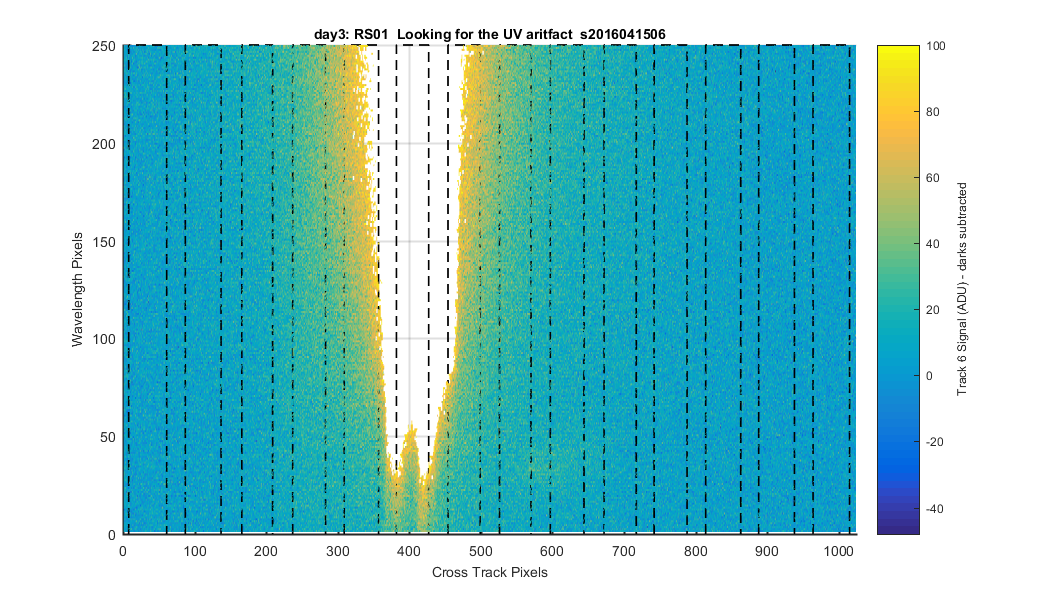

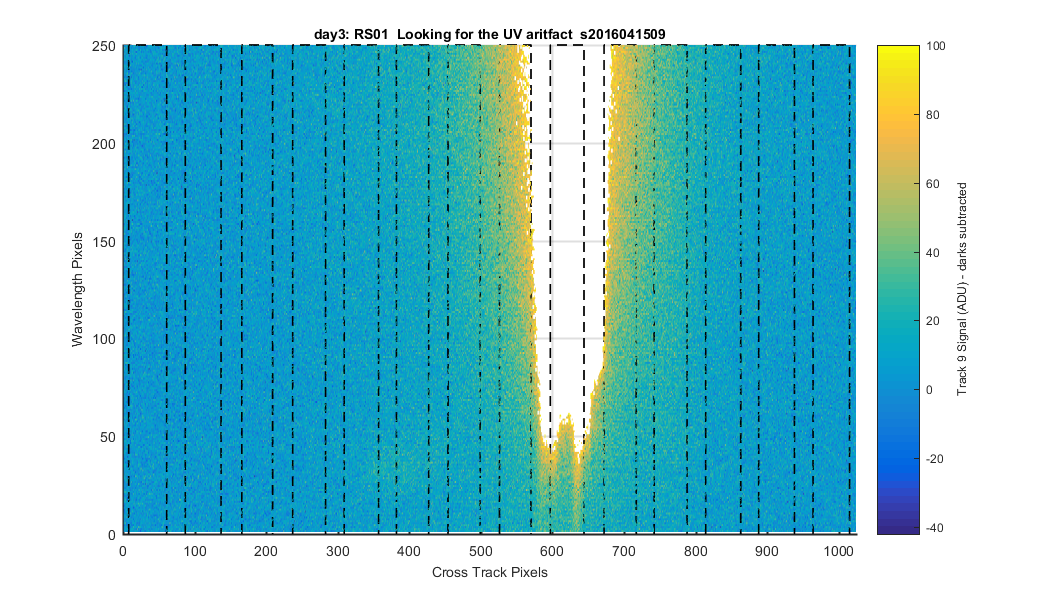

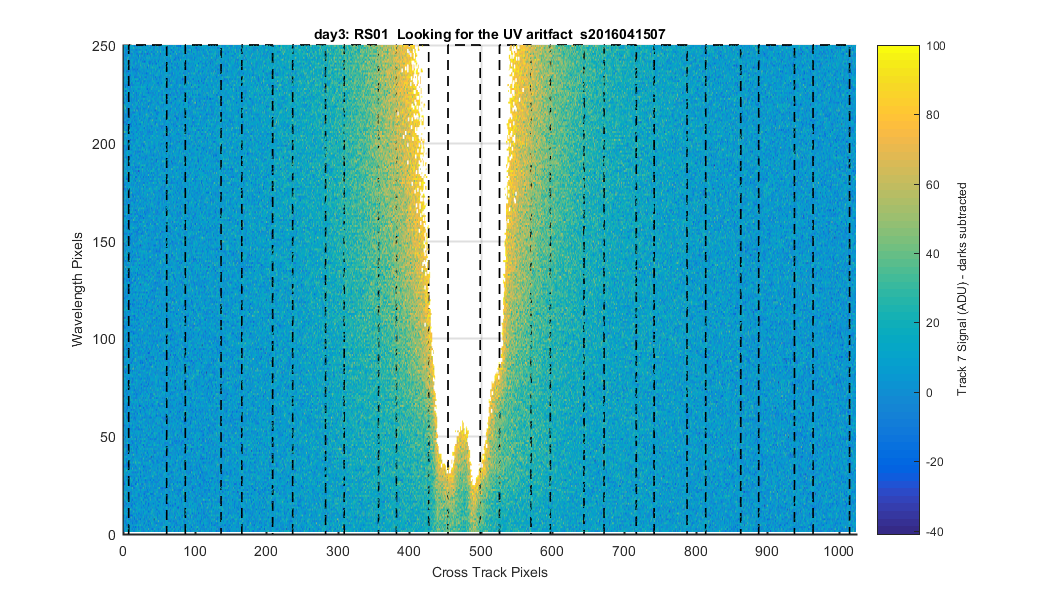

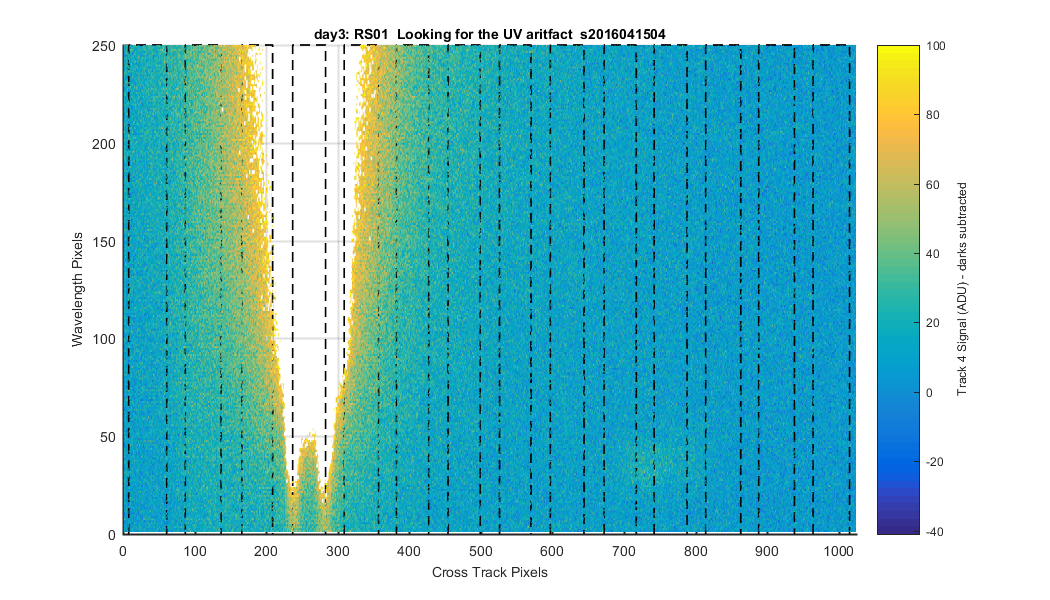

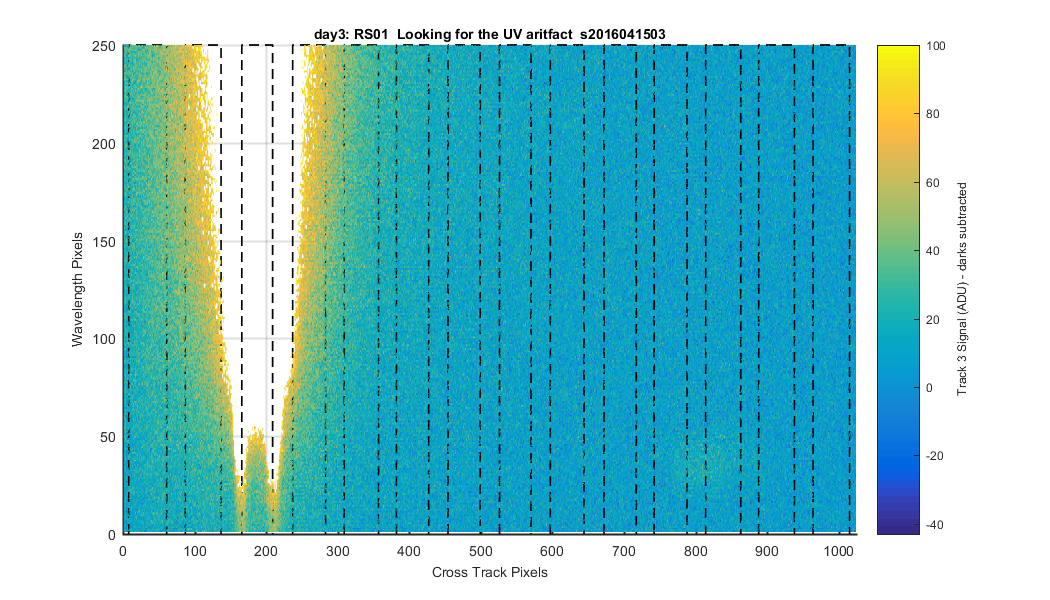

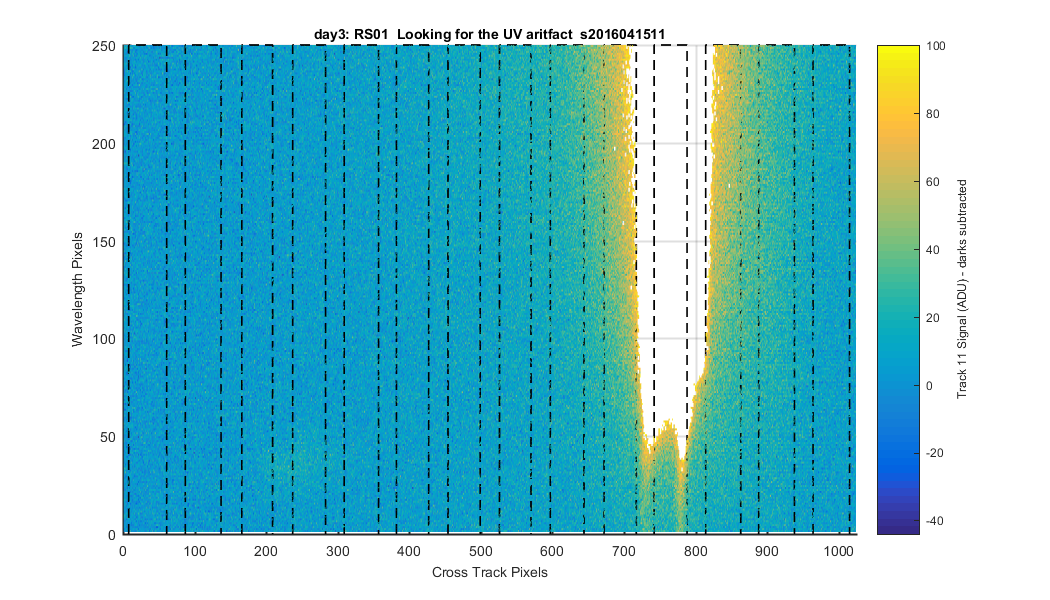

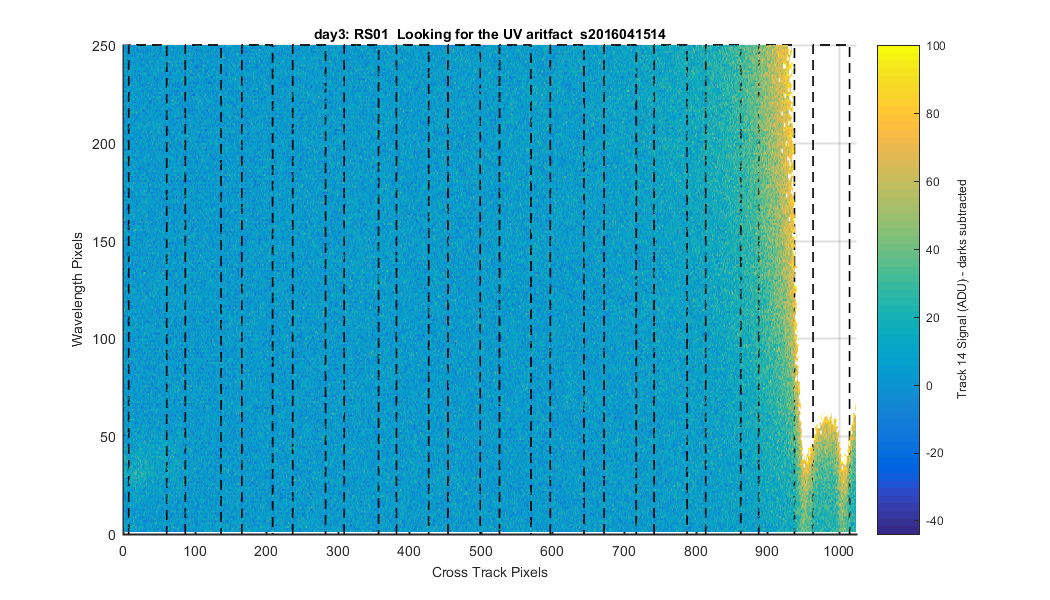

  2. Looking at the zoomed 0-250 images there is a VERY small reflection around pixel 20-45, might be Red version of the UV artifact, seems to be mirrored on the array.

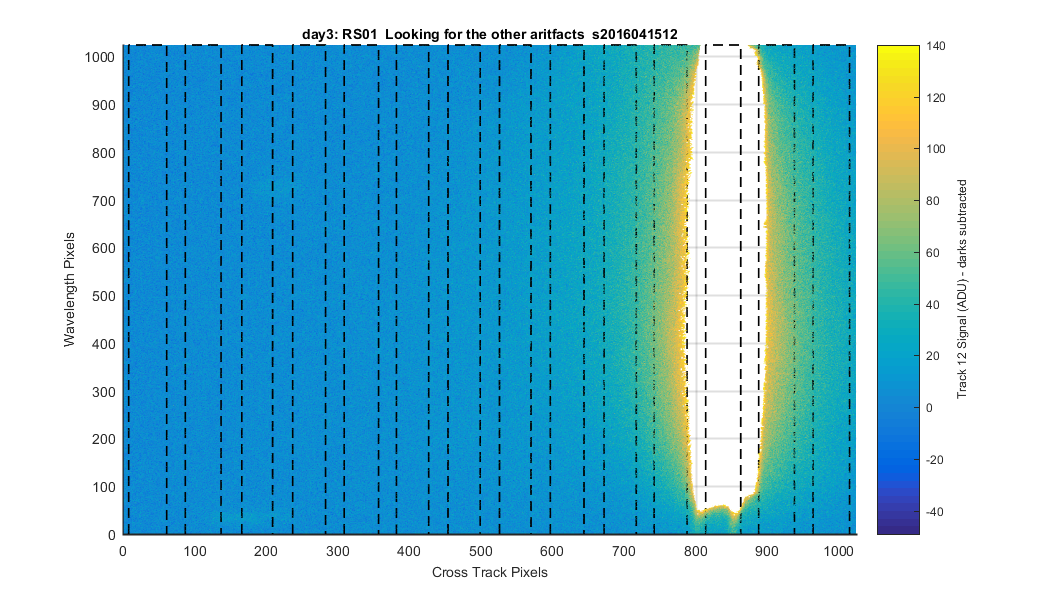

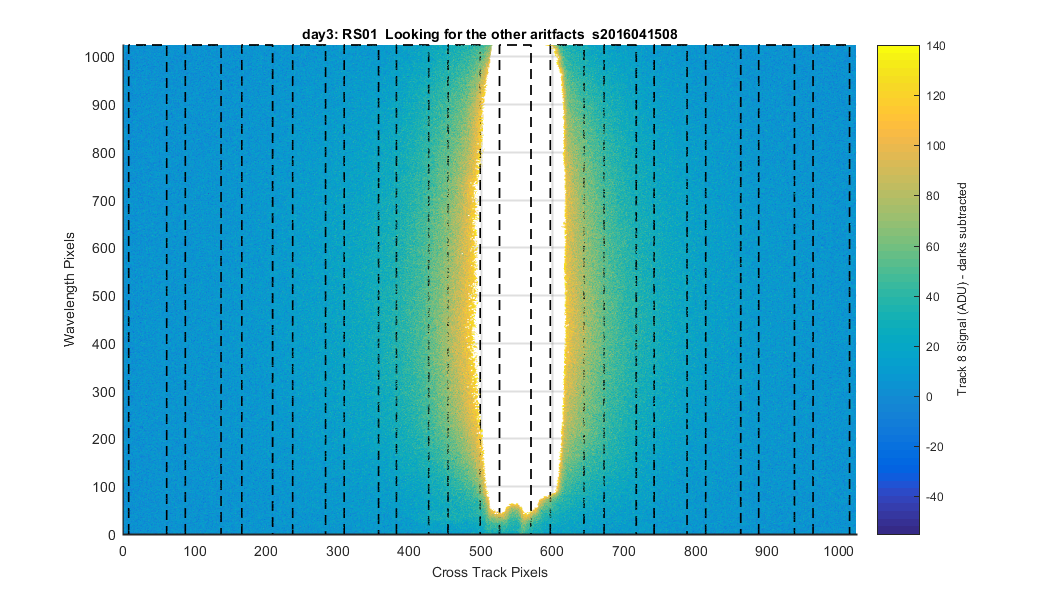

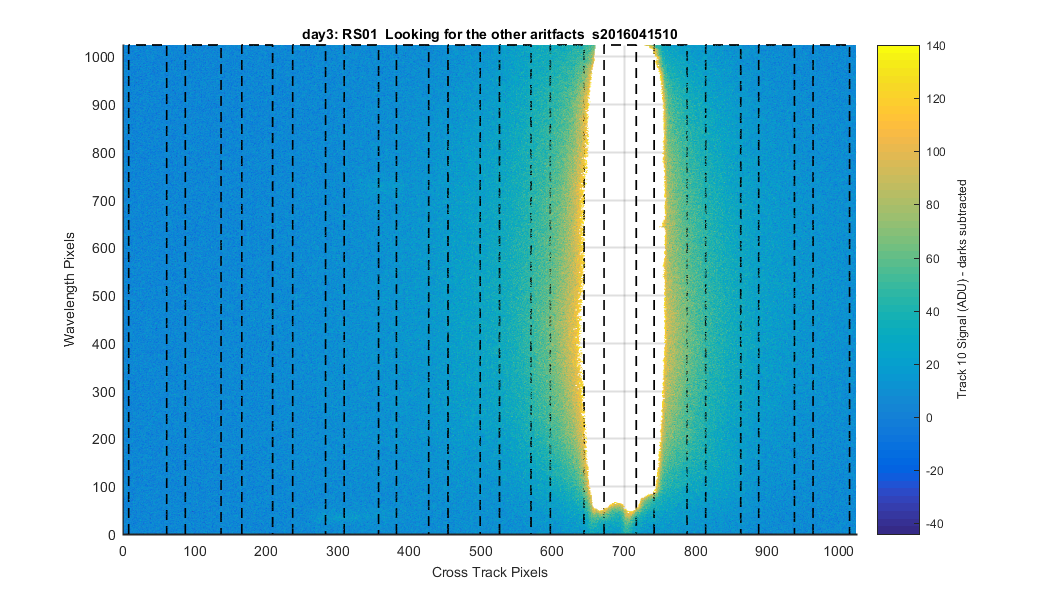

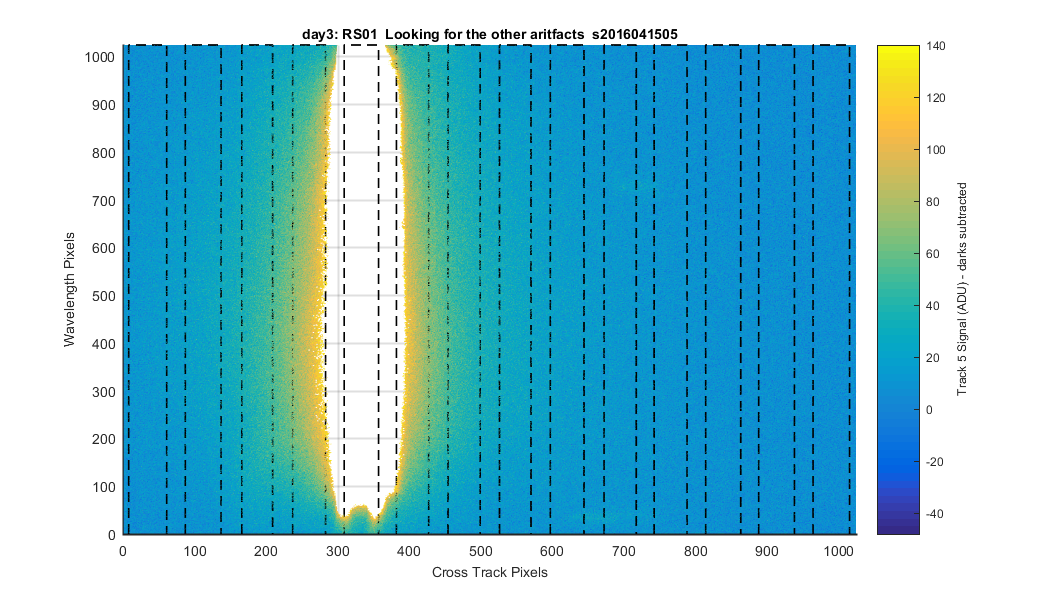

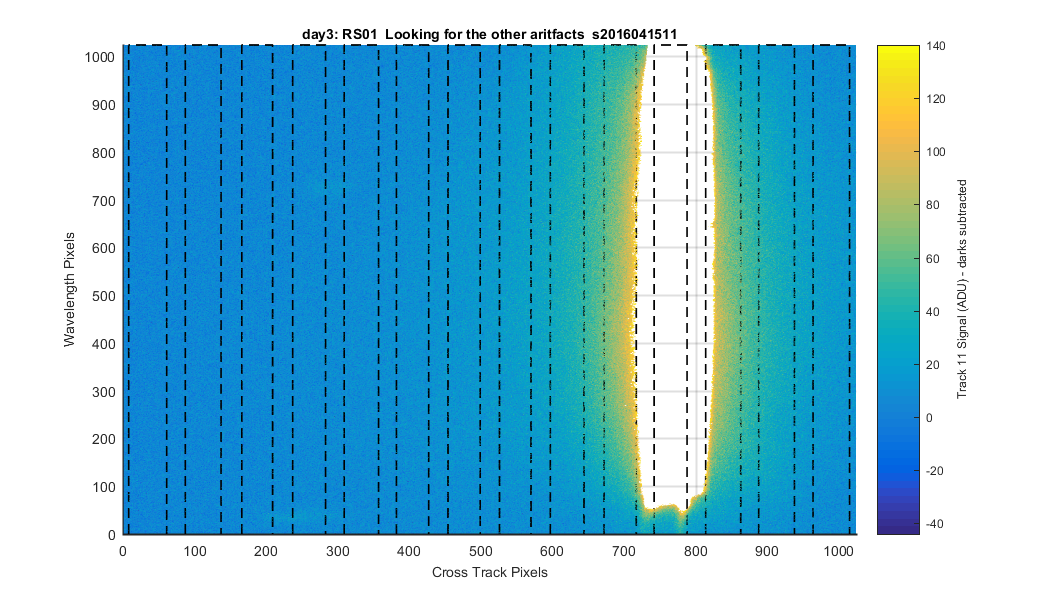

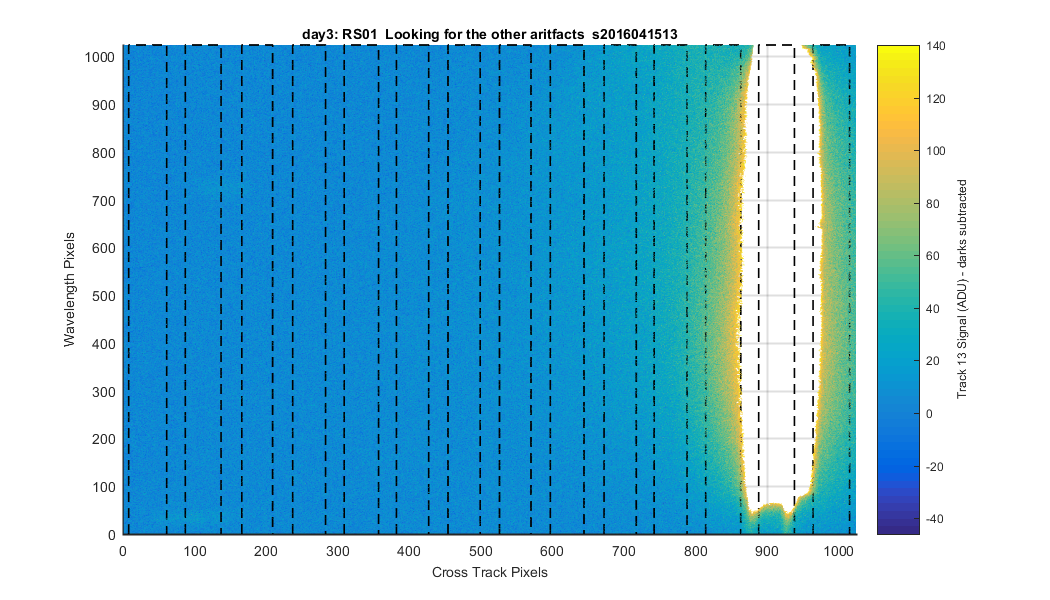

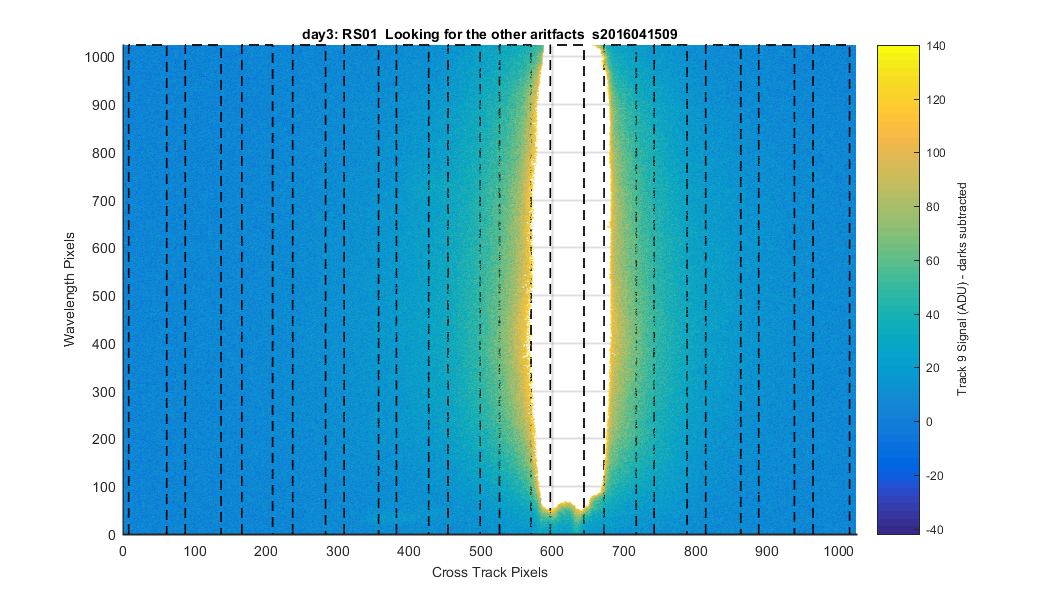

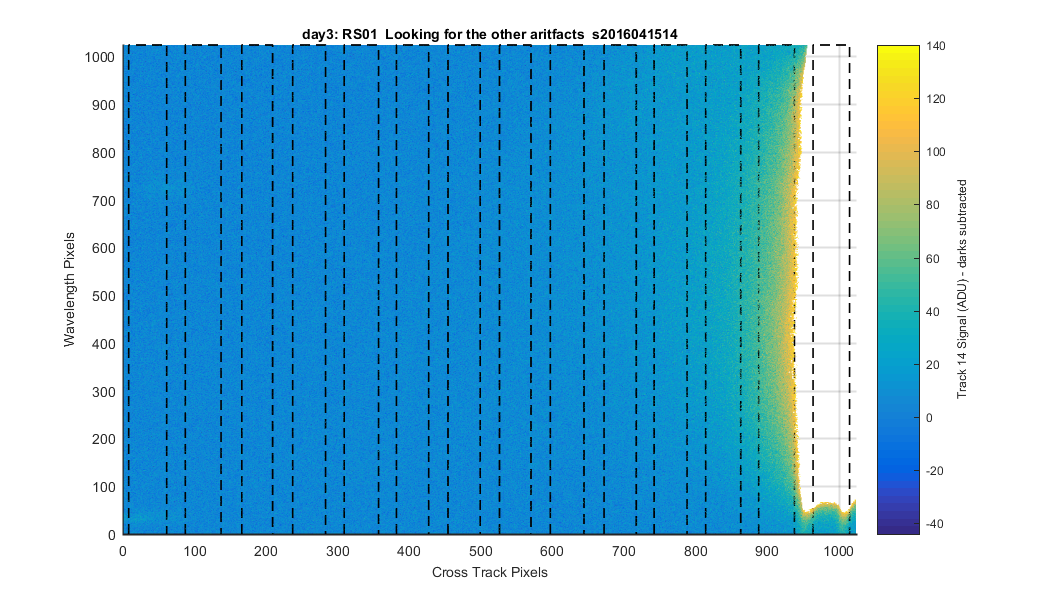

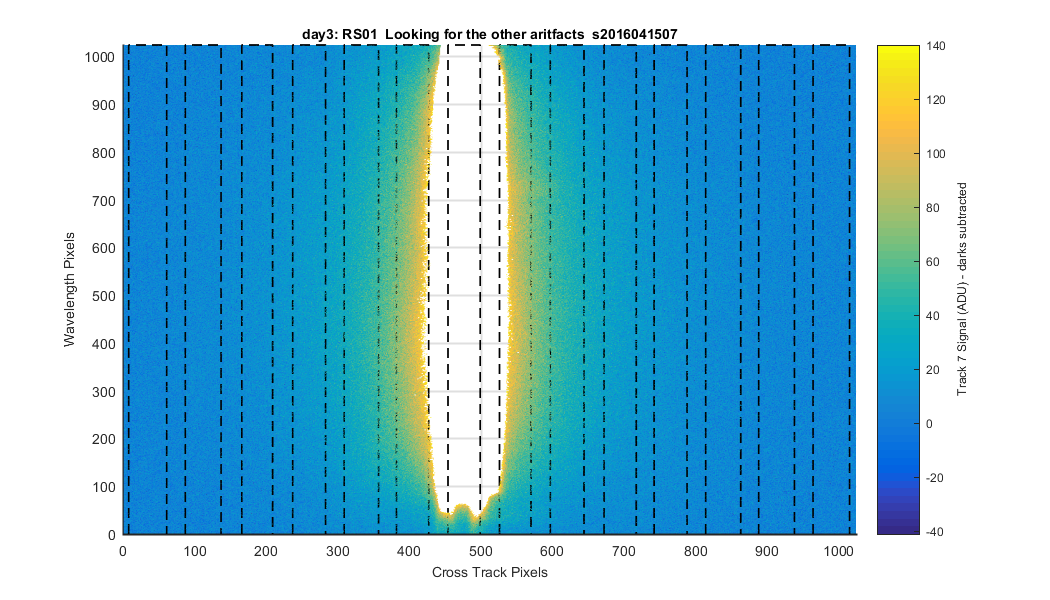

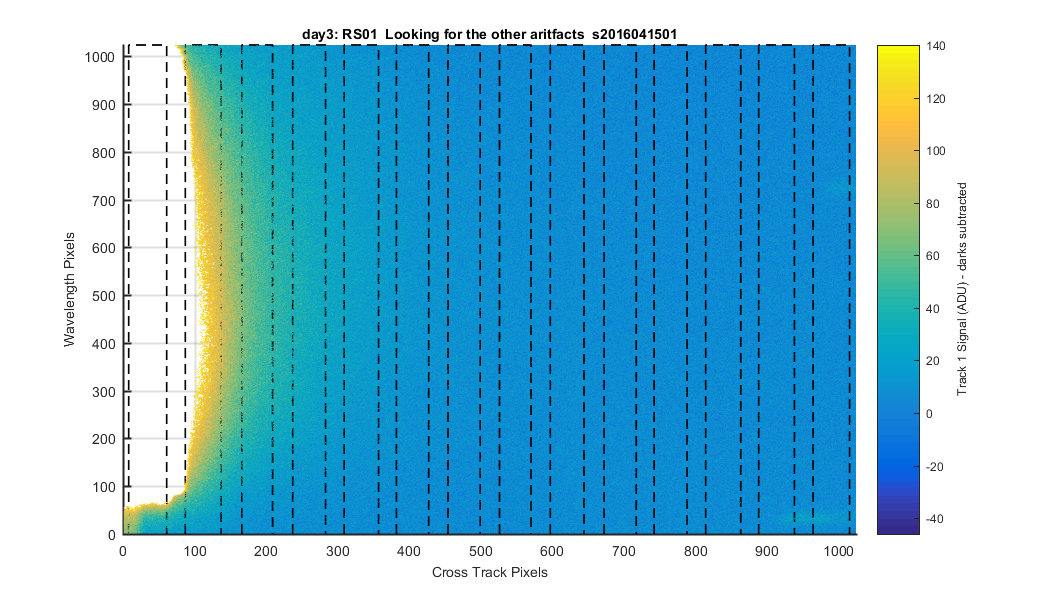

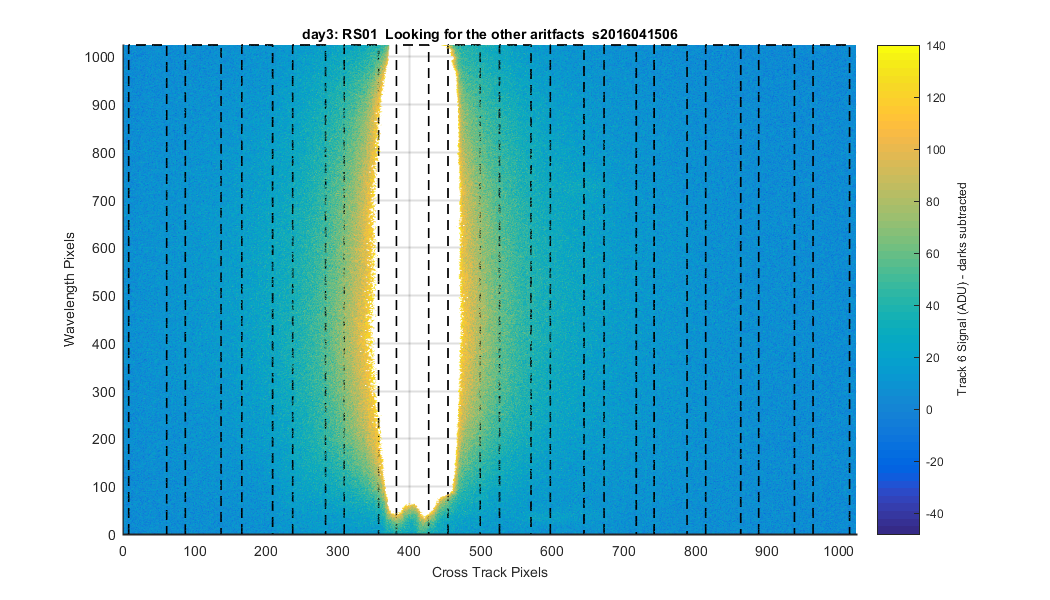

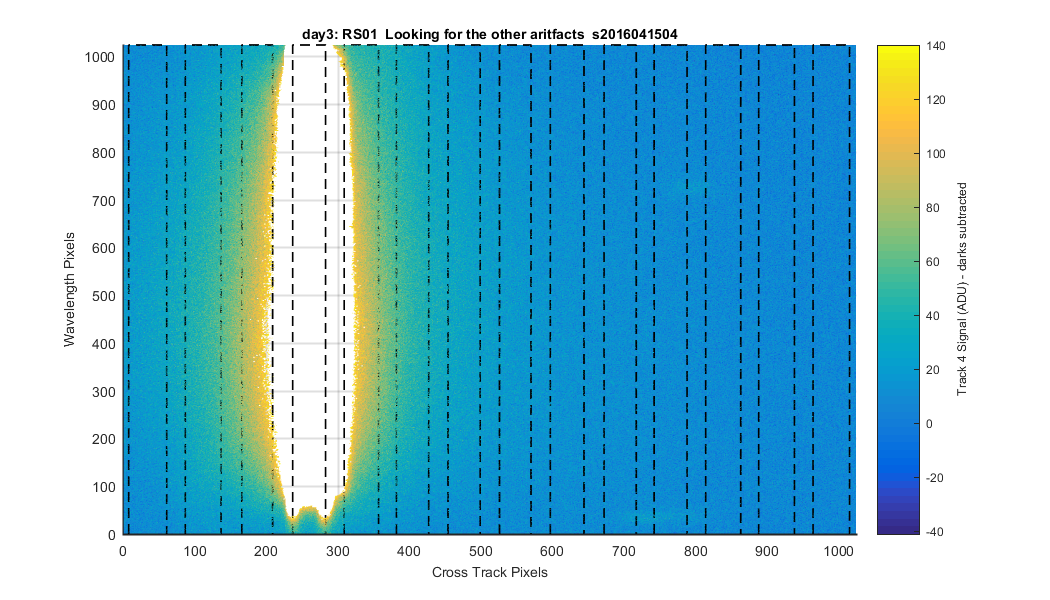

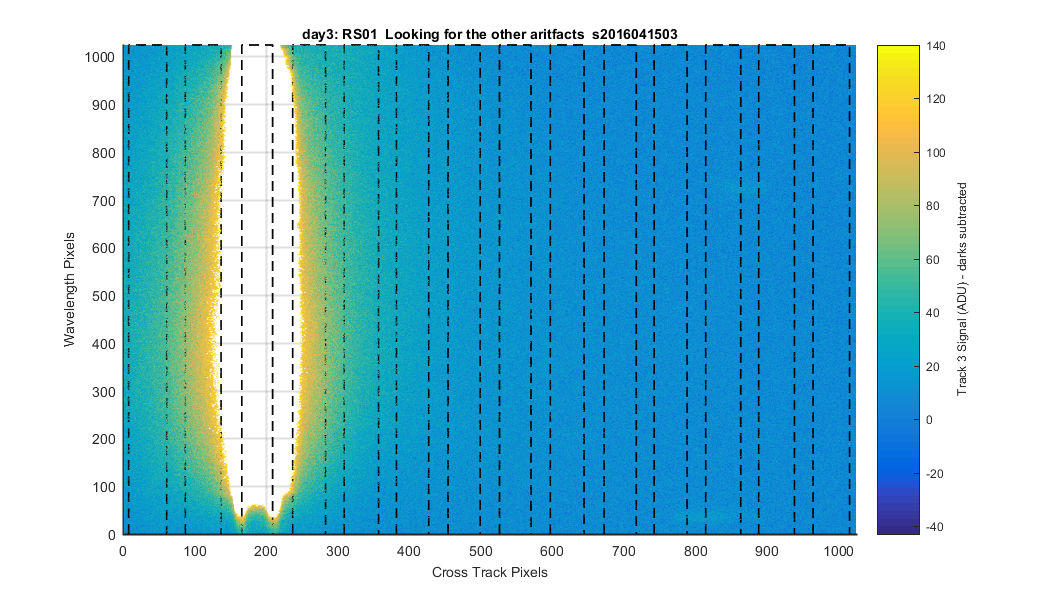

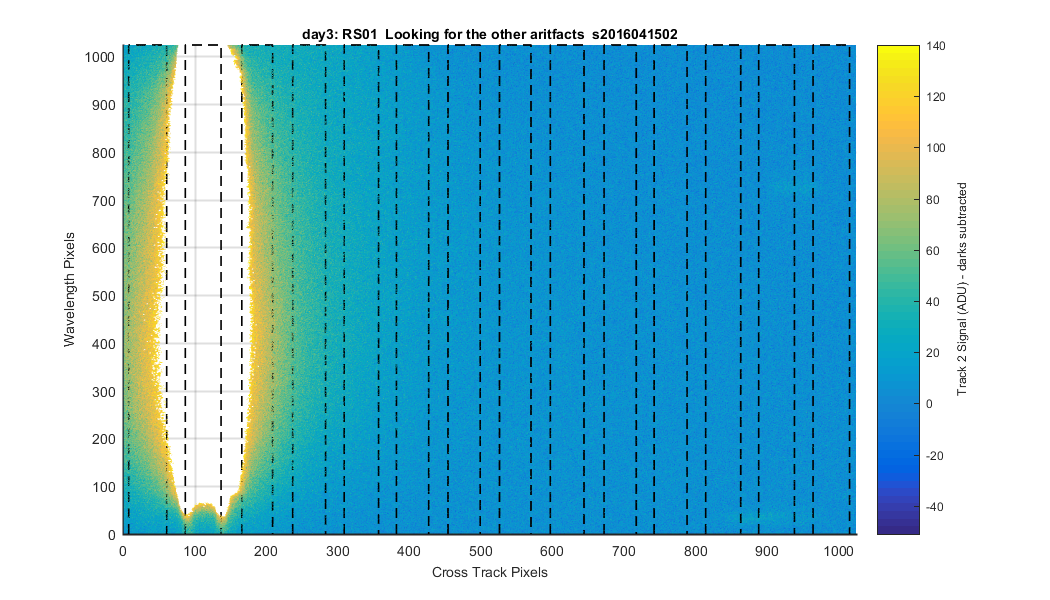

  3. When looking at the full images there is another circular reflection in the image that is mirrored with the track. It is around pixel 730 and only 20-30 pixels wide.

Figure 1


Figure 2


Figure 3


Figure 4


Figure 5


Figure 6


Figure 7


Figure 8


Figure 9


Figure 10


Figure 11


Figure 12


Figure 13


Figure 14


Figure 15


Figure 16


Figure 17


Figure 18


Figure 19


Figure 20


Figure 21


Figure 22


Figure 23


Figure 24


Figure 25


Figure 26


Figure 27


Figure 28


Figure 29


Figure 30


Figure 31


Figure 32


Figure 33


Figure 34


Figure 35


Figure 36


Figure 37


Figure 38


Figure 39


Figure 40


Figure 41


Figure 42


Figure 43


Figure 44


Figure 45


Figure 46


Figure 47


Figure 48


Figure 49


Figure 50


Figure 51


Figure 52


Figure 53


Figure 54


Figure 55


Figure 56


Figure 57


Figure 58


Figure 59
