plt_track_movement_ - RS01

REVISION DATE: 13-Apr-2016 10:31:52

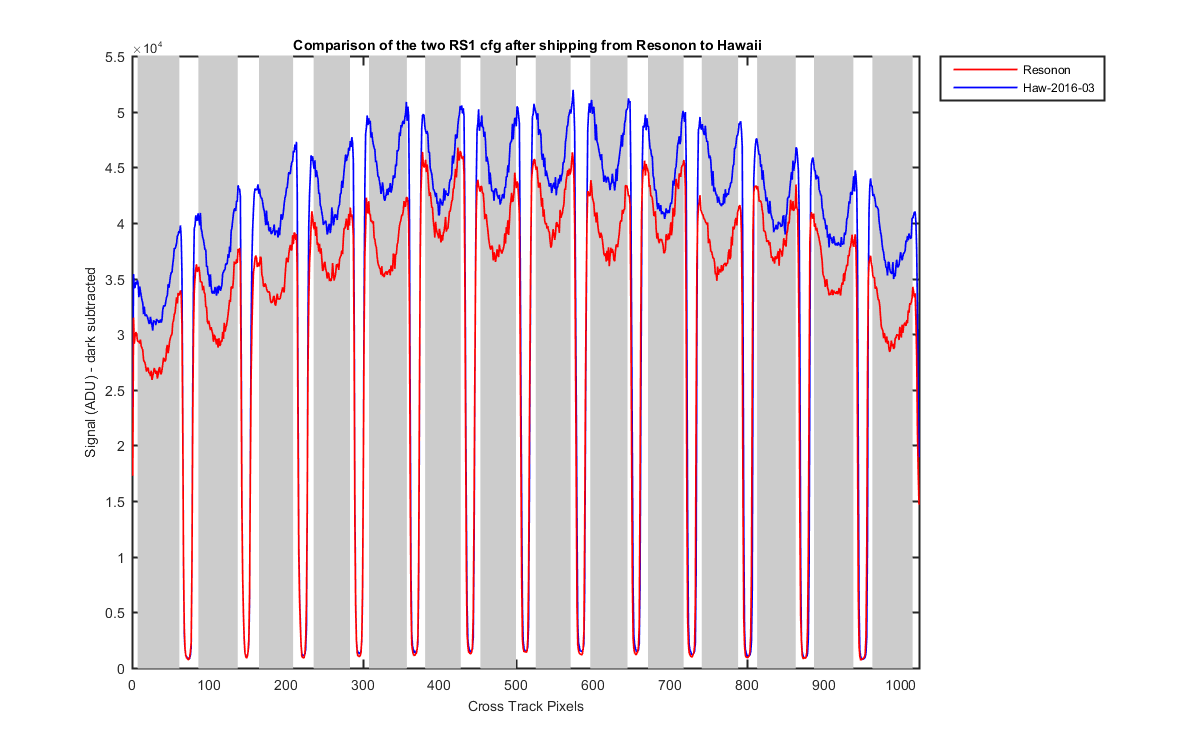

This is to compare the locations of the tracks from data collected in Hawaii for Hawaii-2016-03 RS01cfg001 and at Resonon before shipping (same config). Both data sets are all tracks on and the sources where lamp data.

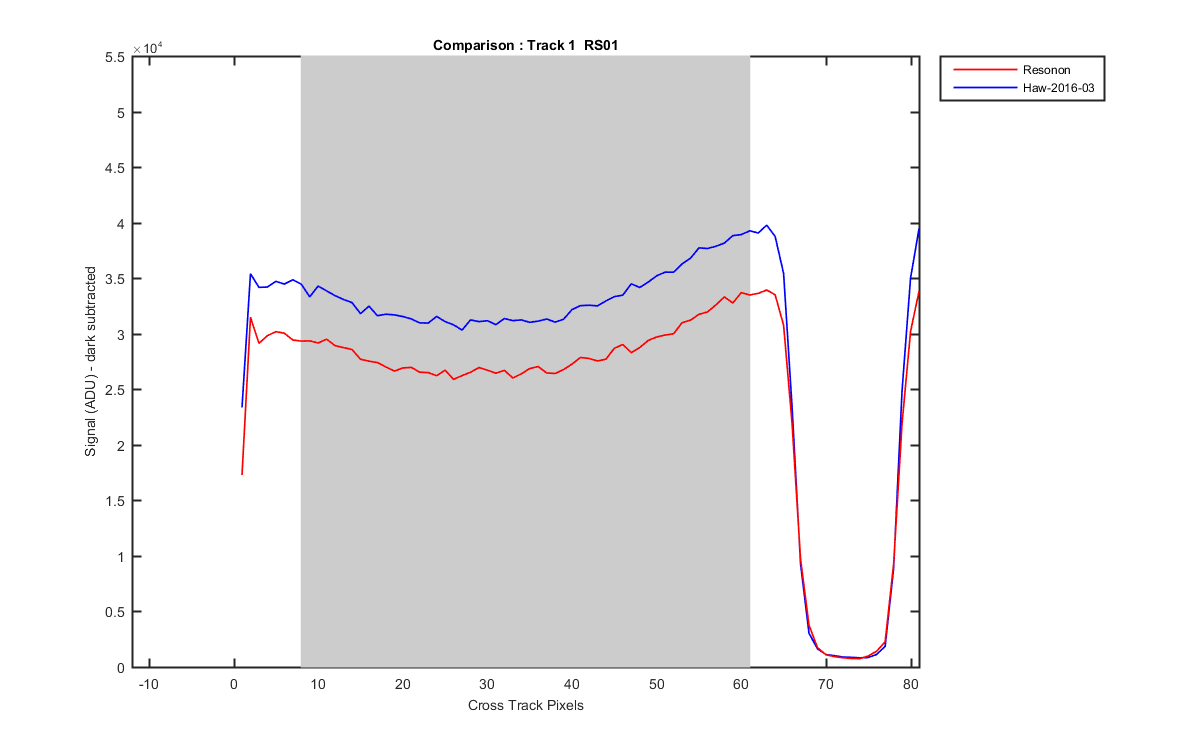

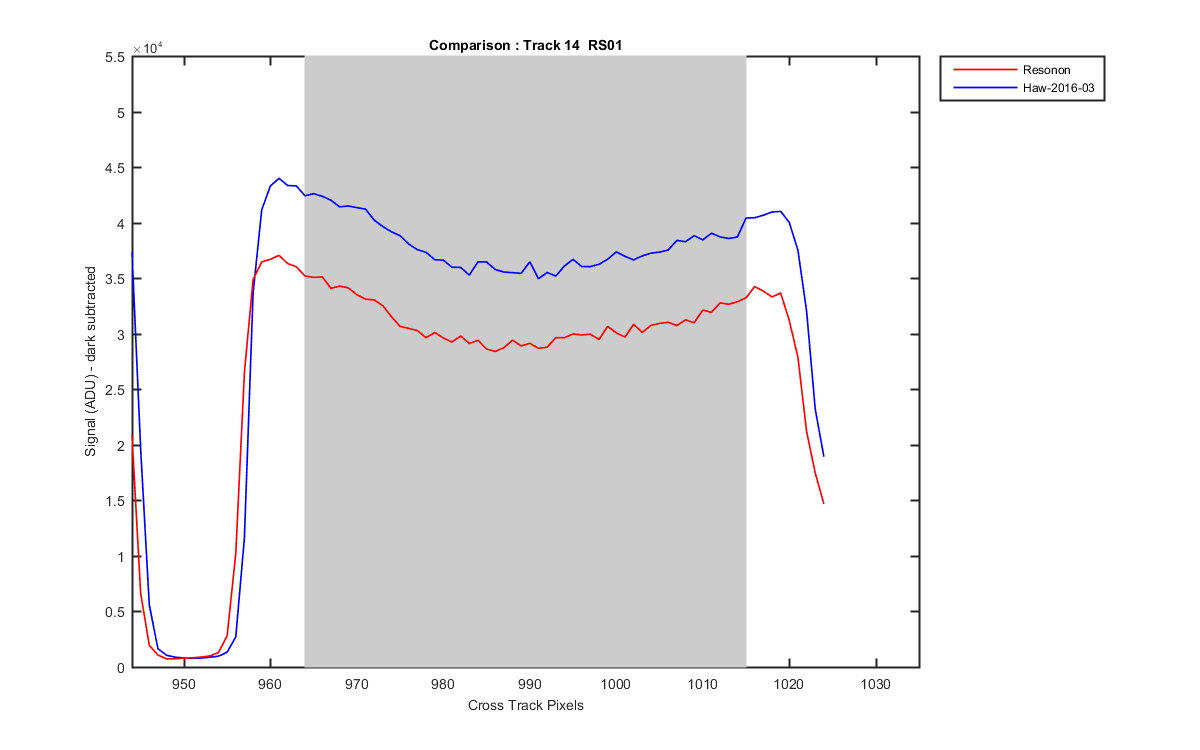

There is some movement. Track 1 looks good with track movement getting bigger towards track 14. I measured the movement in pixels at the 20,000 ADU level and it was less than 1 pixel. So pretty good.

Figure 1


Figure 2

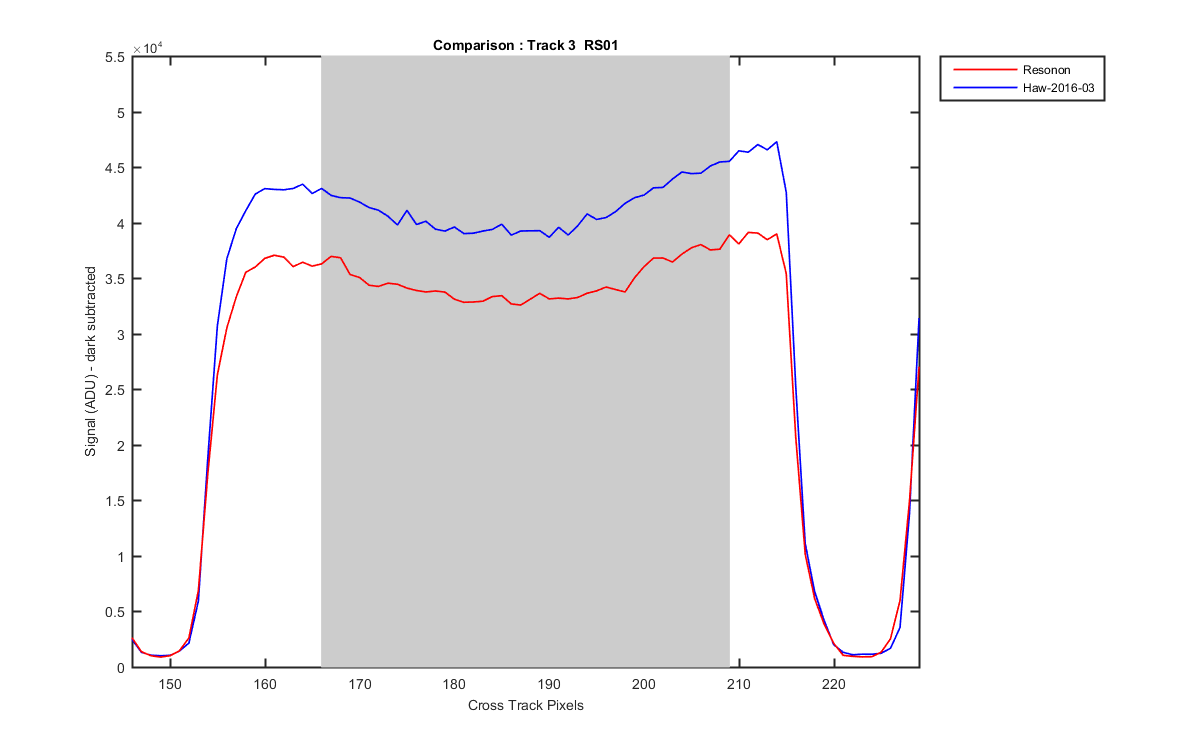

Figure 3


Figure 4

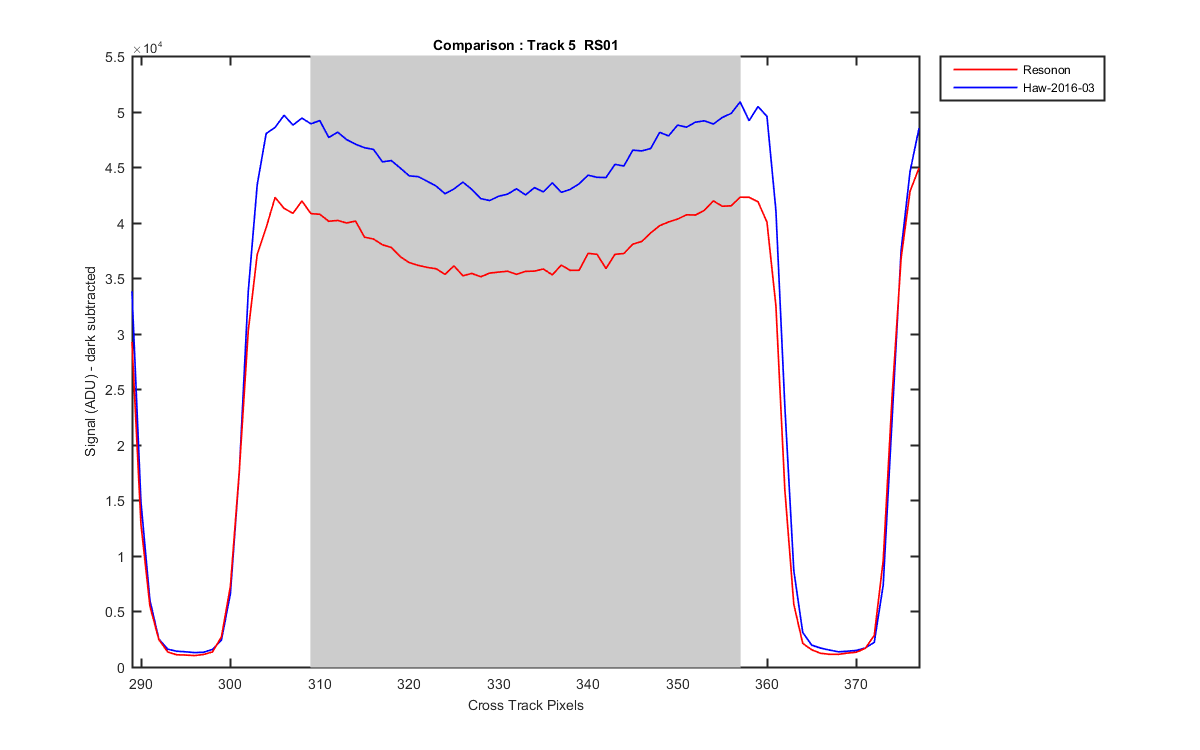

Figure 5

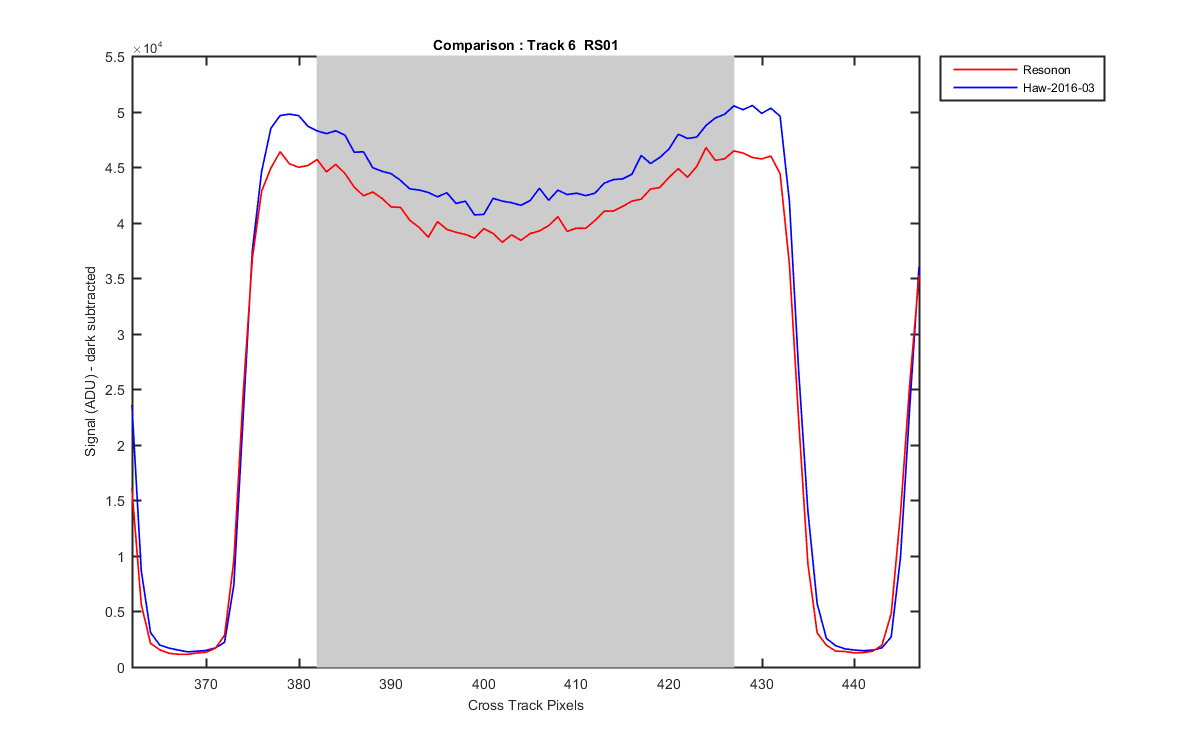

Figure 6

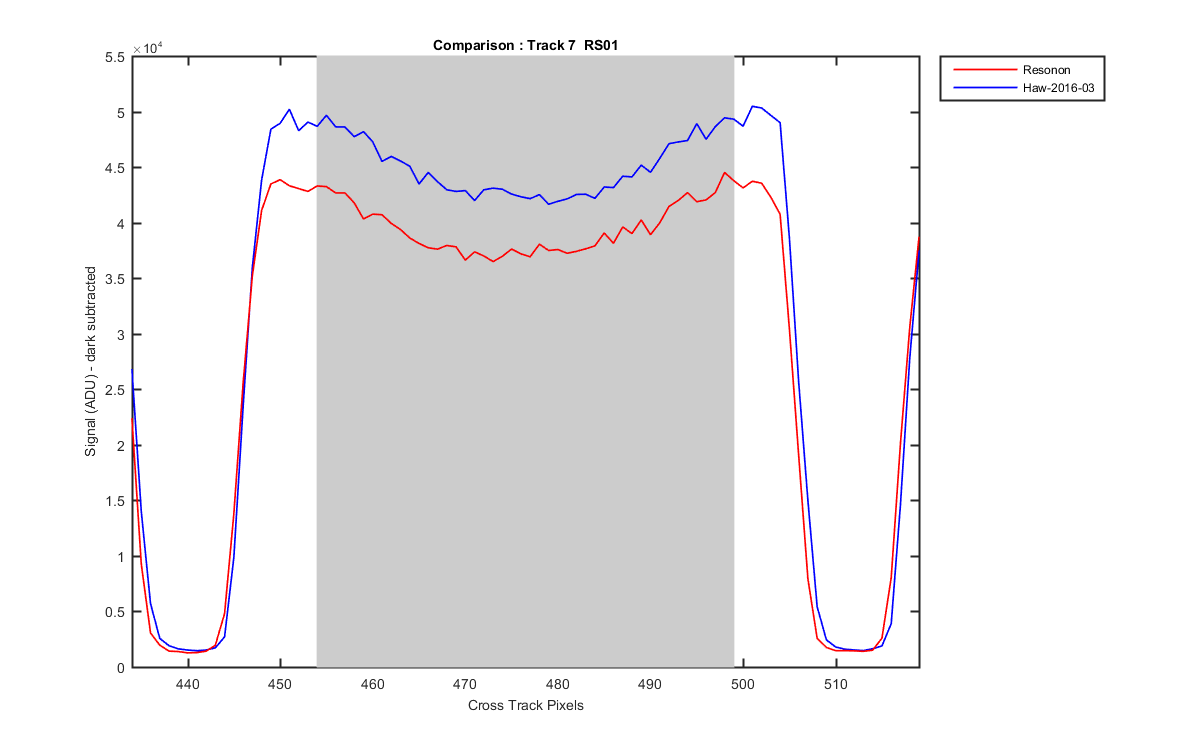

Figure 7

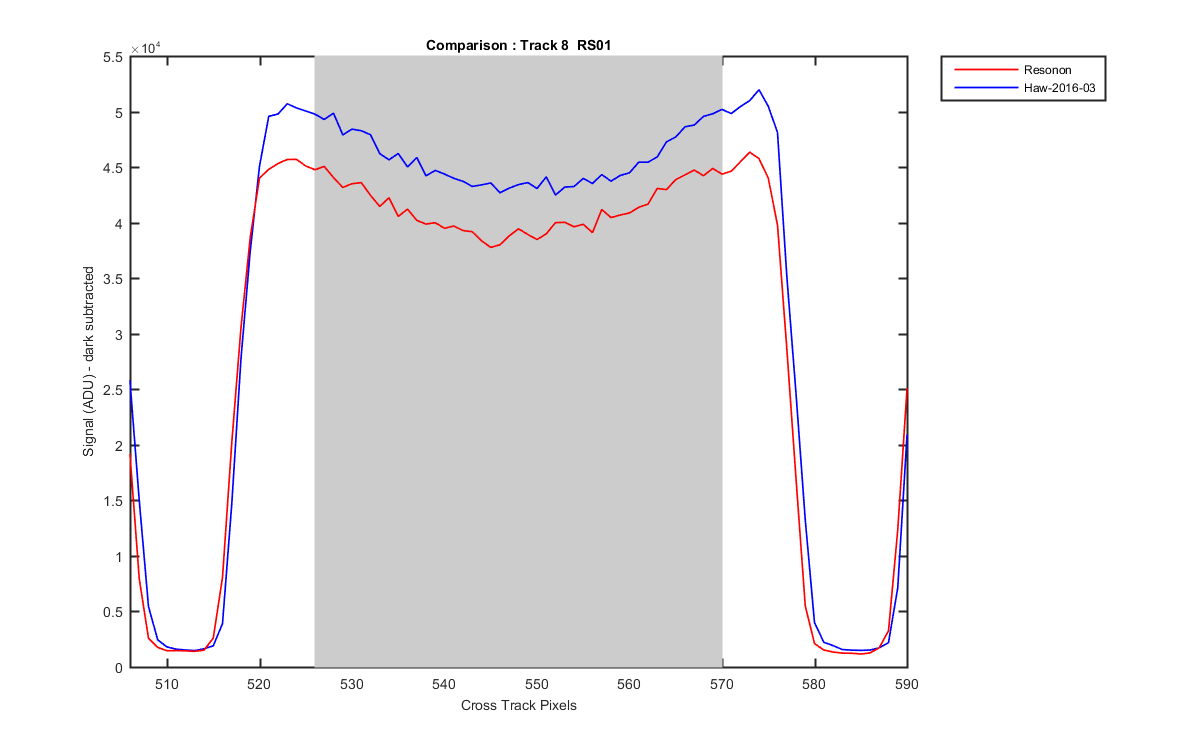

Figure 8

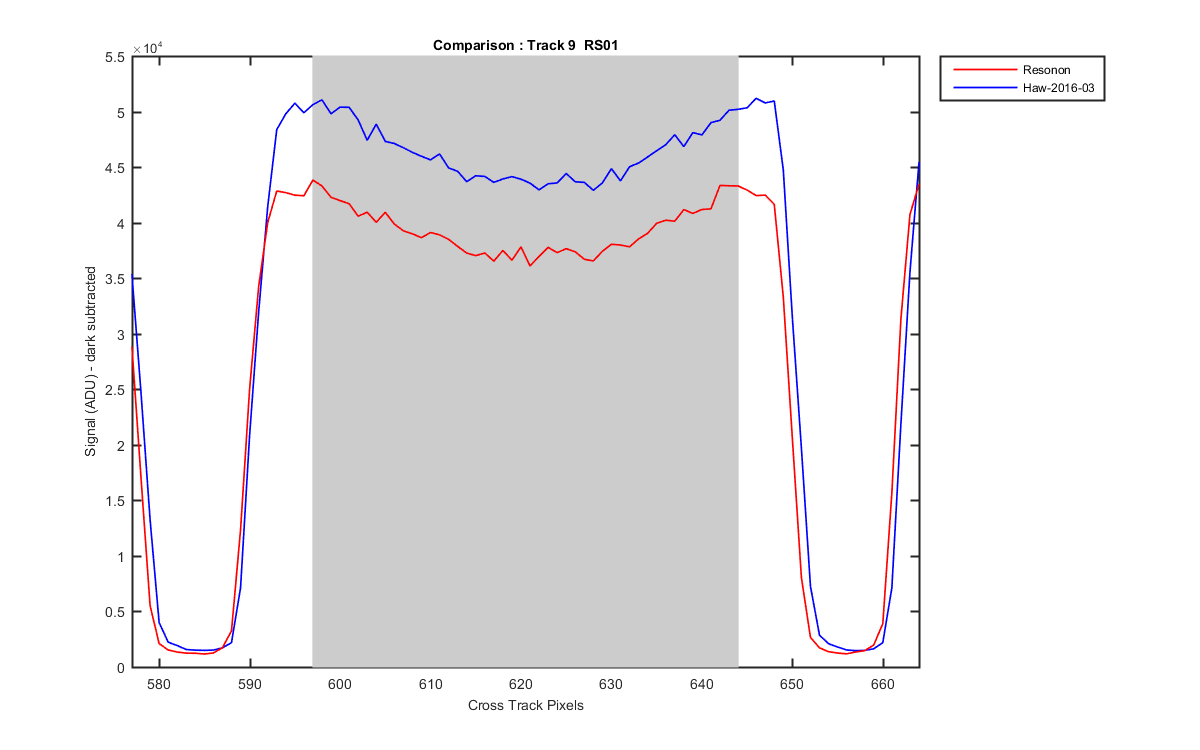

Figure 9

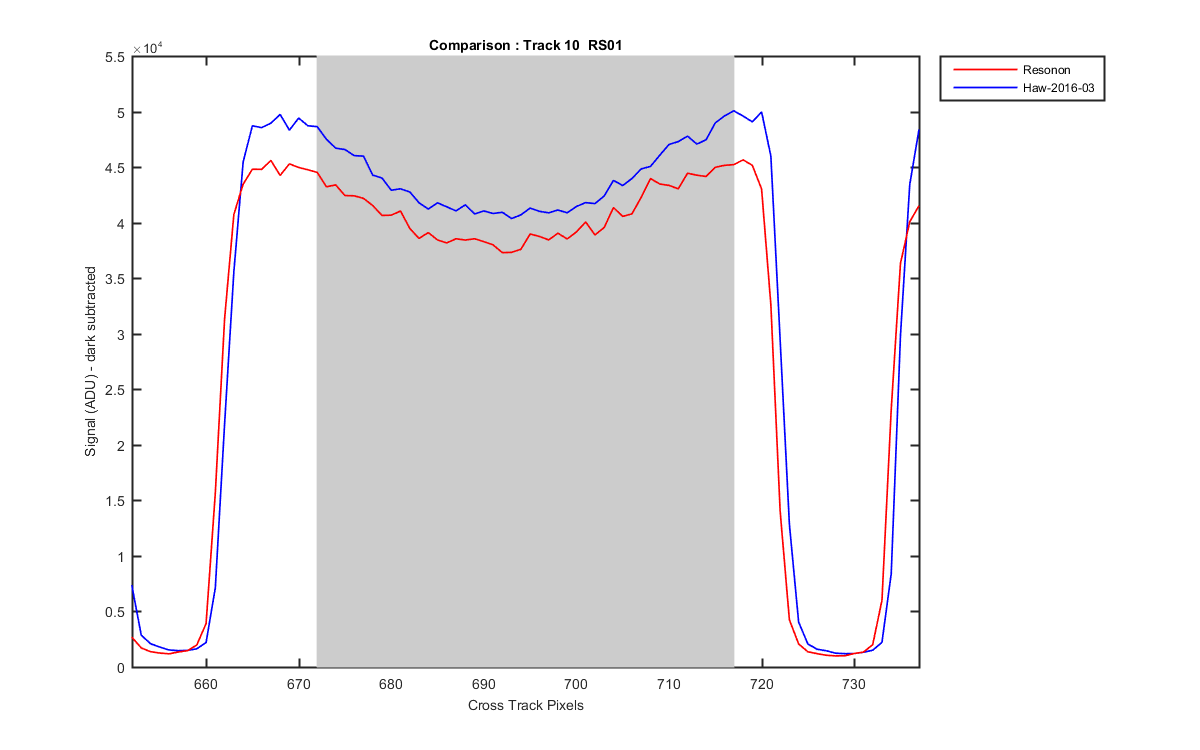

Figure 10


Figure 11


Figure 12


Figure 13


Figure 14


Figure 15


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2016-03\RS01cal\day01
Date: 13-Apr-2016 10:31:52
Created from plt_track_movement_(1)
