plt_wavecal_ - RS01

REVISION DATE: 14-Apr-2016 10:08:19

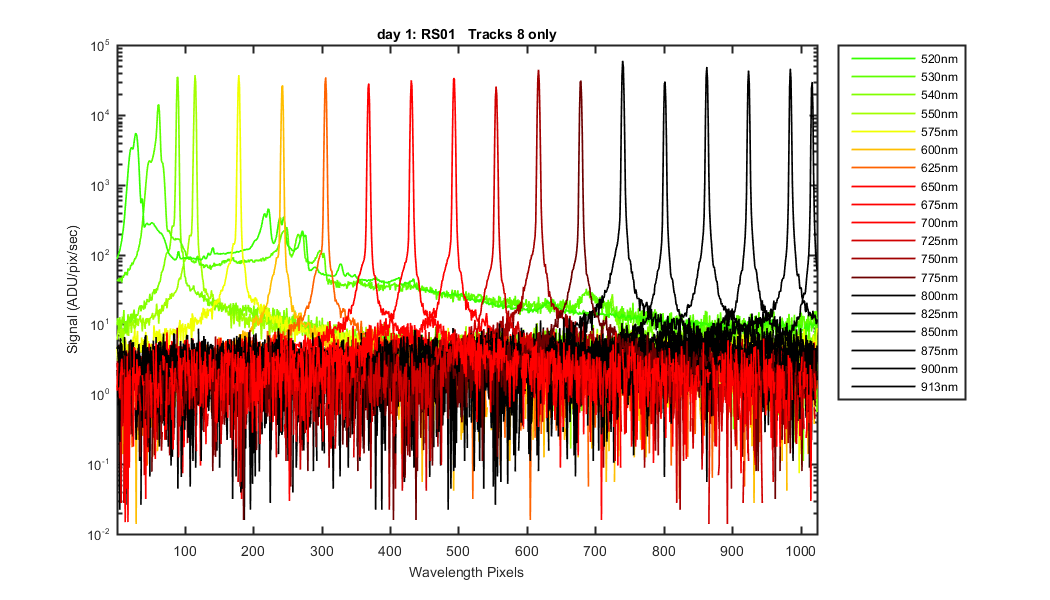

Mike tooks some laser data with all tracks on to get a approximate wavelength cal and get a first look at the stray light of the red spec. I found the pixel for each track and wavelength three ways. The simplest was to just find the maximum value for the track (this does not take into account that the wavelength may not be centered on the pixel. The second two ways are using Gausiann fitting programs: mygaussfit and gaussfit. They where downloaded from the Matlab userfiles so not guarantees of how they work. This should find a truier center pixel for the laser data. One other issue is how accurate the laser wavelengths are.

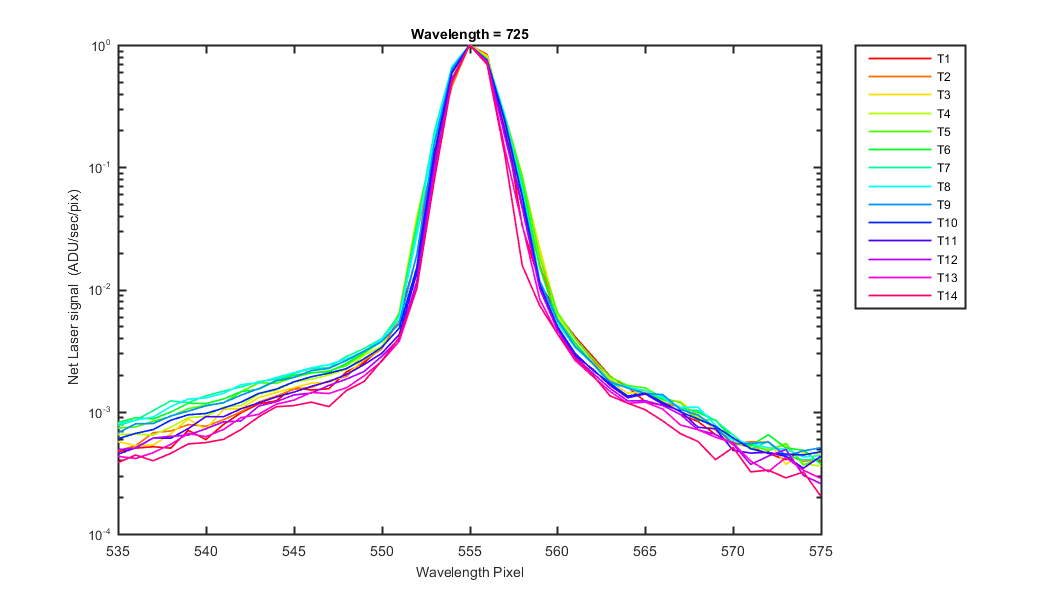

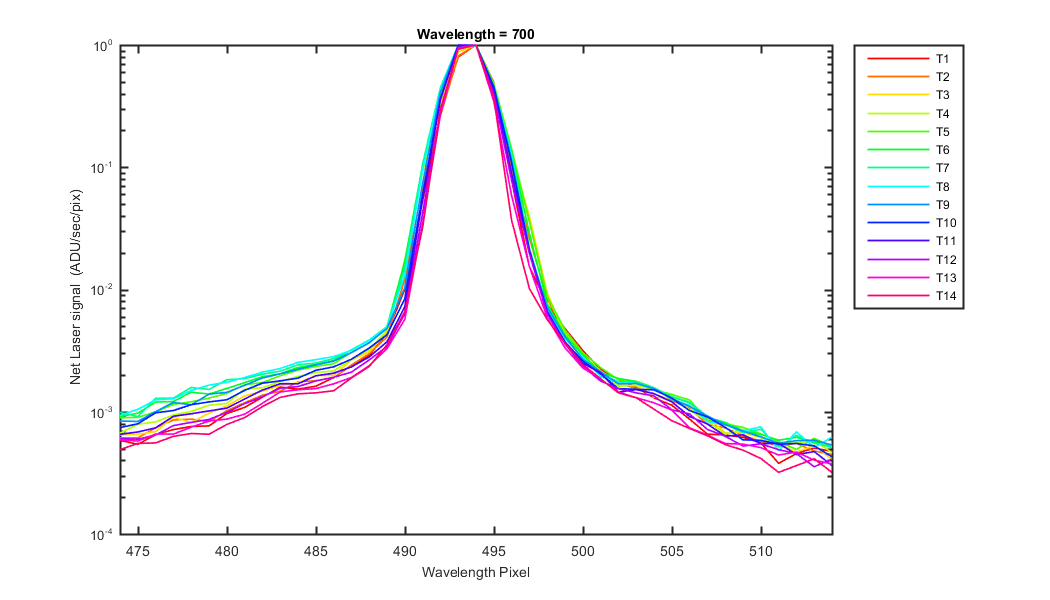

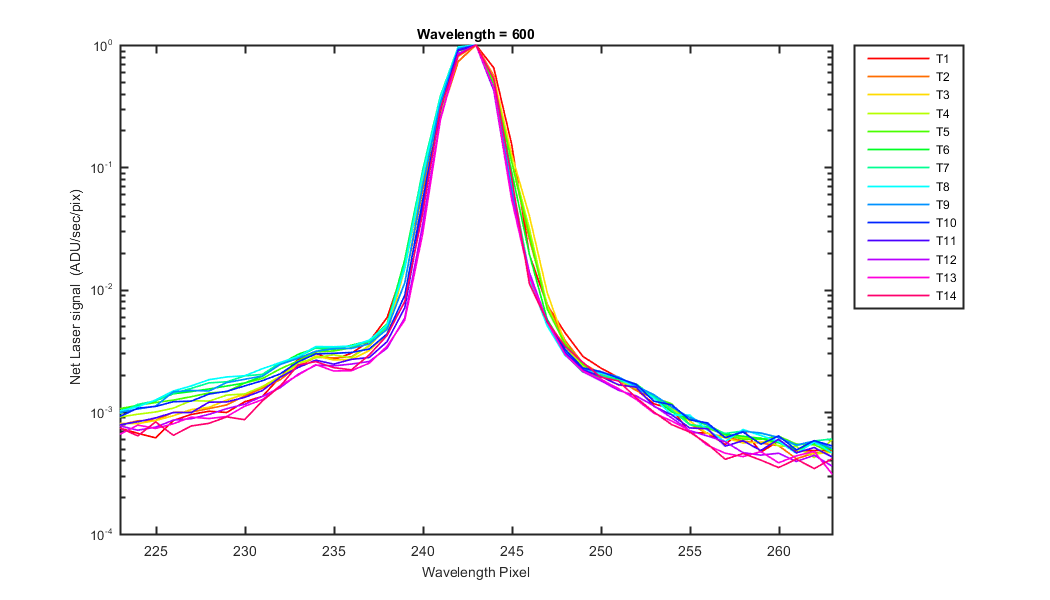

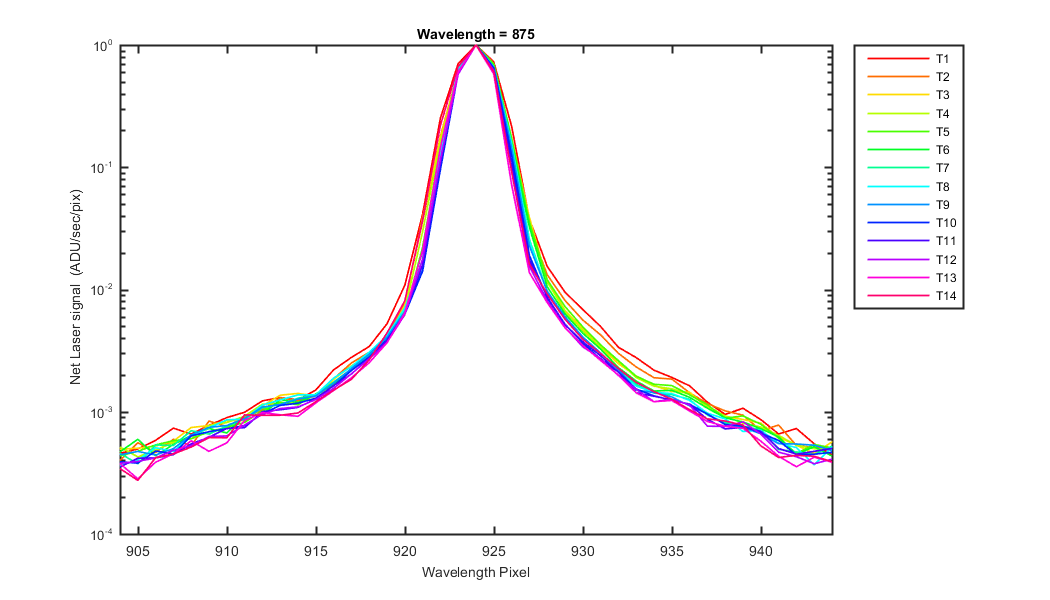

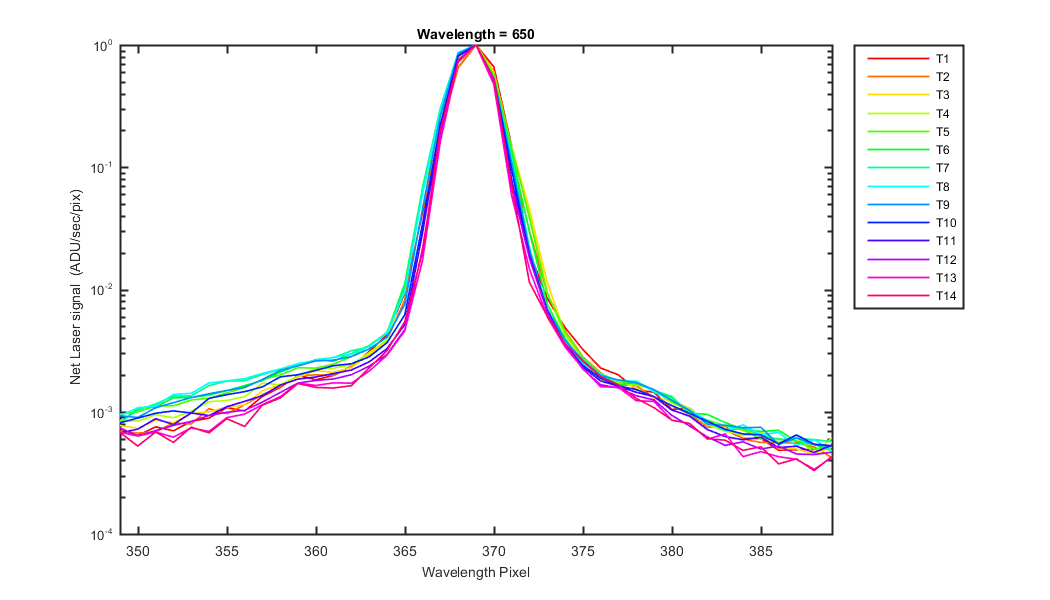

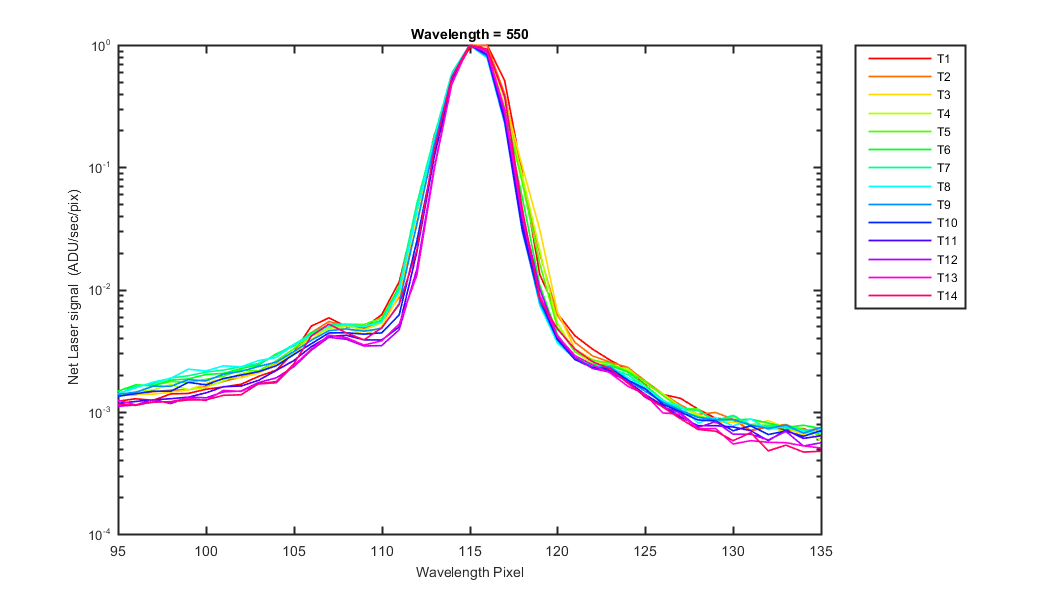

All the graphs just shows the data the track listing in the title or legend. The secondset of graphs shows the laser data taken and is zoomed in on the peaks. The last three shows the relationship between the Laser wavelength and its pixel for the three ways to get the laser pixels. A second order polynomial was used and I liked the laser peaks from the mygaussfit programs so that was the one I used create the wavelength cal. The bottom of the page is a listing of the tracks, laser wavelength and laser pixels used in the polynomial fits.

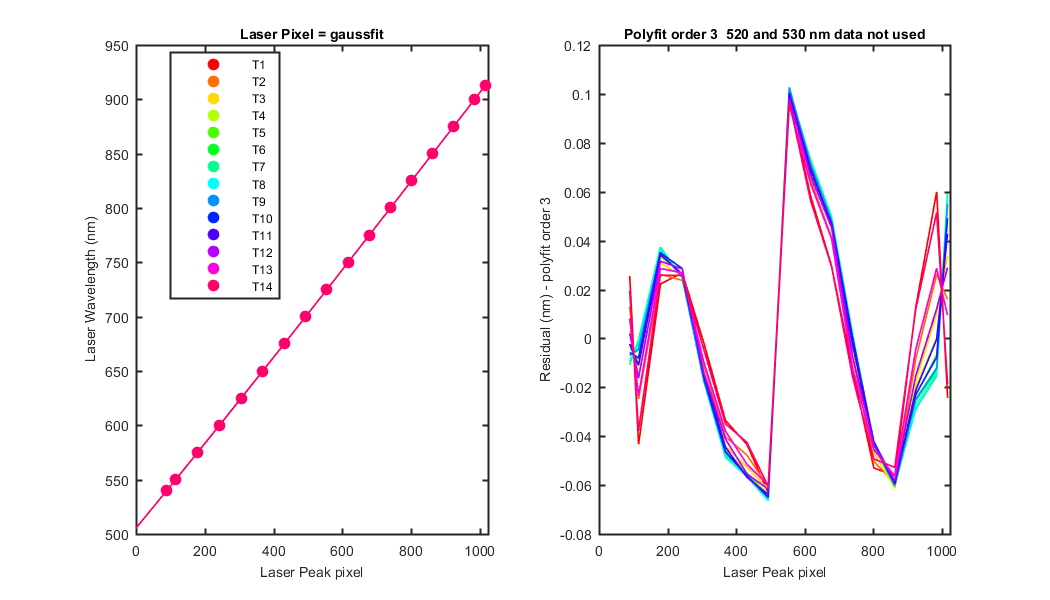

3nd order polynomial regressions
P(1,:) = [-9.23771e-09 2.64546e-05 0.383421 505.419 ];
P(2,:) = [-8.71438e-09 2.56007e-05 0.383765 505.402 ];
P(3,:) = [-8.33114e-09 2.49639e-05 0.384035 505.394 ];
P(4,:) = [-8.10996e-09 2.45812e-05 0.384202 505.399 ];
P(5,:) = [-7.94063e-09 2.42795e-05 0.384331 505.401 ];
P(6,:) = [-7.8137e-09 2.40787e-05 0.384415 505.417 ];
P(7,:) = [-7.63198e-09 2.37966e-05 0.384539 505.414 ];
P(8,:) = [-7.674e-09 2.38566e-05 0.384515 505.414 ];
P(9,:) = [-7.86861e-09 2.41279e-05 0.384426 505.408 ];
P(10,:) = [-7.89813e-09 2.41907e-05 0.3844 505.395 ];
P(11,:) = [-7.97411e-09 2.42909e-05 0.384379 505.4 ];
P(12,:) = [-8.10028e-09 2.44989e-05 0.384299 505.385 ];
P(13,:) = [-8.43546e-09 2.50343e-05 0.384079 505.406 ];
P(14,:) = [-9.20199e-09 2.6244e-05 0.383557 505.46 ];

Track 1 [min/max nm] = [505.803 915.863 ];
Track 2 [min/max nm] = [505.786 915.865 ];
Track 3 [min/max nm] = [505.778 915.877 ];
Track 4 [min/max nm] = [505.783 915.889 ];
Track 5 [min/max nm] = [505.785 915.889 ];
Track 6 [min/max nm] = [505.802 915.917 ];
Track 7 [min/max nm] = [505.799 915.94 ];
Track 8 [min/max nm] = [505.799 915.934 ];
Track 9 [min/max nm] = [505.792 915.911 ];
Track 10 [min/max nm] = [505.78 915.906 ];
Track 11 [min/max nm] = [505.785 915.912 ];
Track 12 [min/max nm] = [505.769 915.898 ];
Track 13 [min/max nm] = [505.79 915.895 ];
Track 14 [min/max nm] = [505.844 915.861 ];

Figure 1


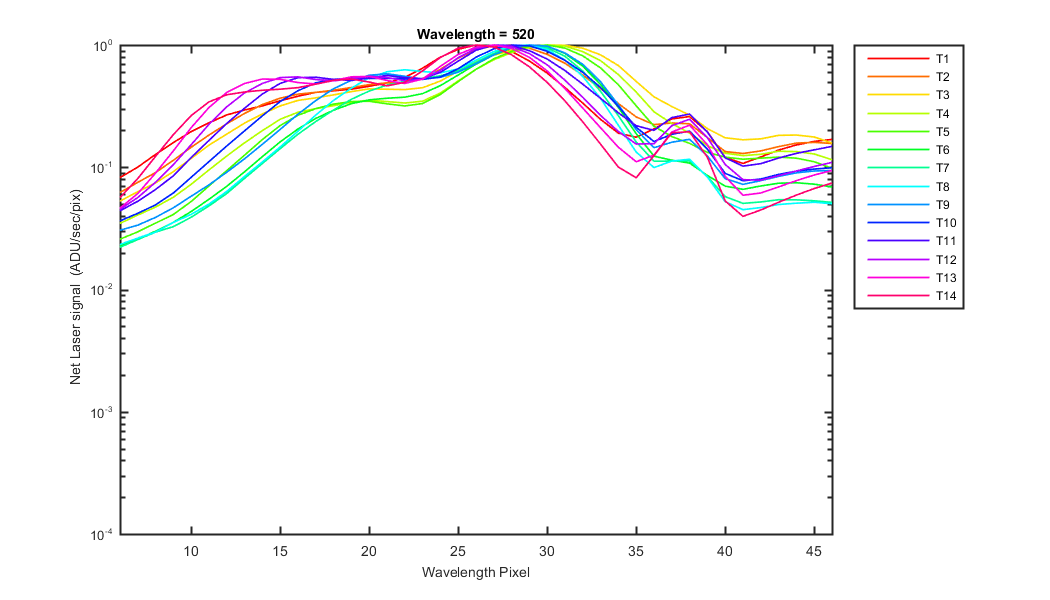

Figure 2

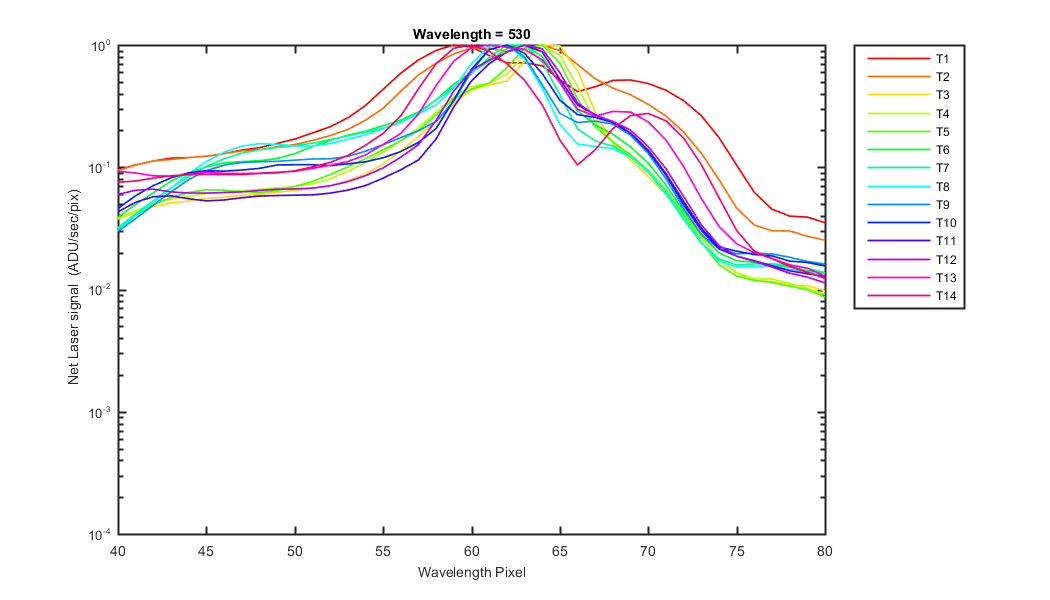

Figure 3


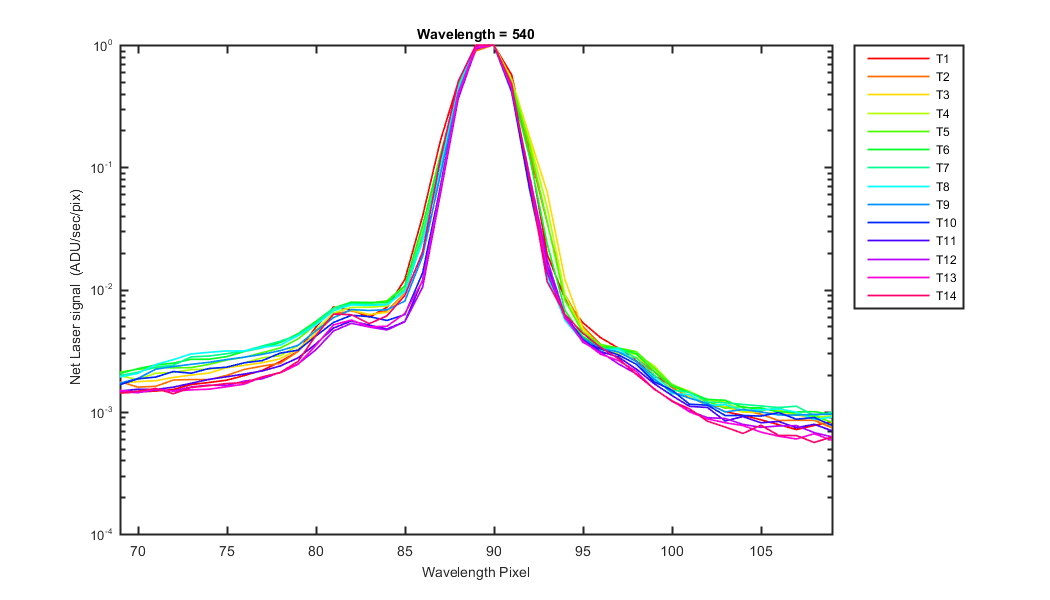

Figure 4


Figure 5

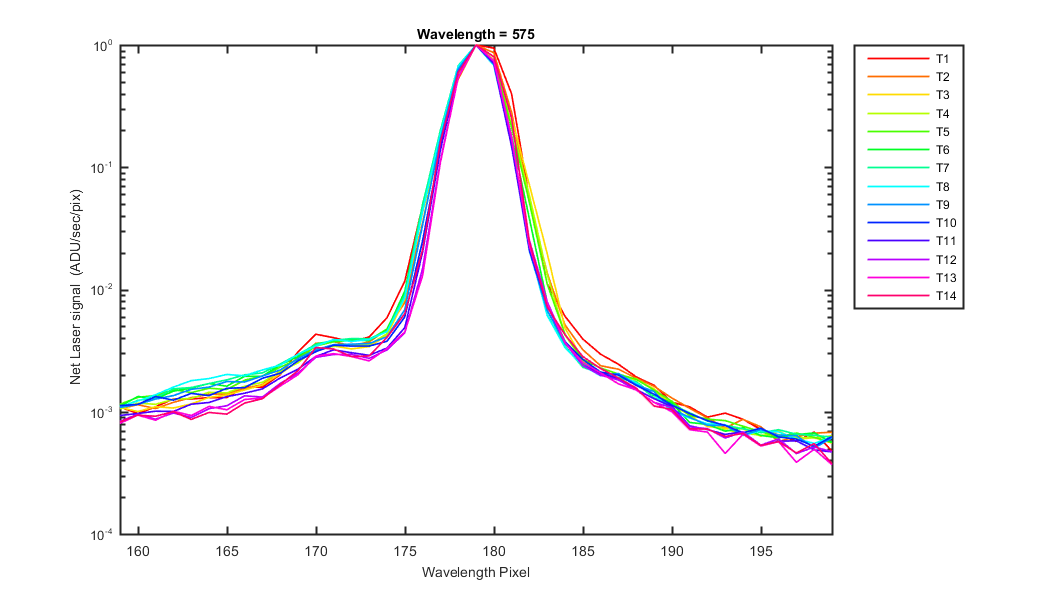

Figure 6


Figure 7


Figure 8


Figure 9

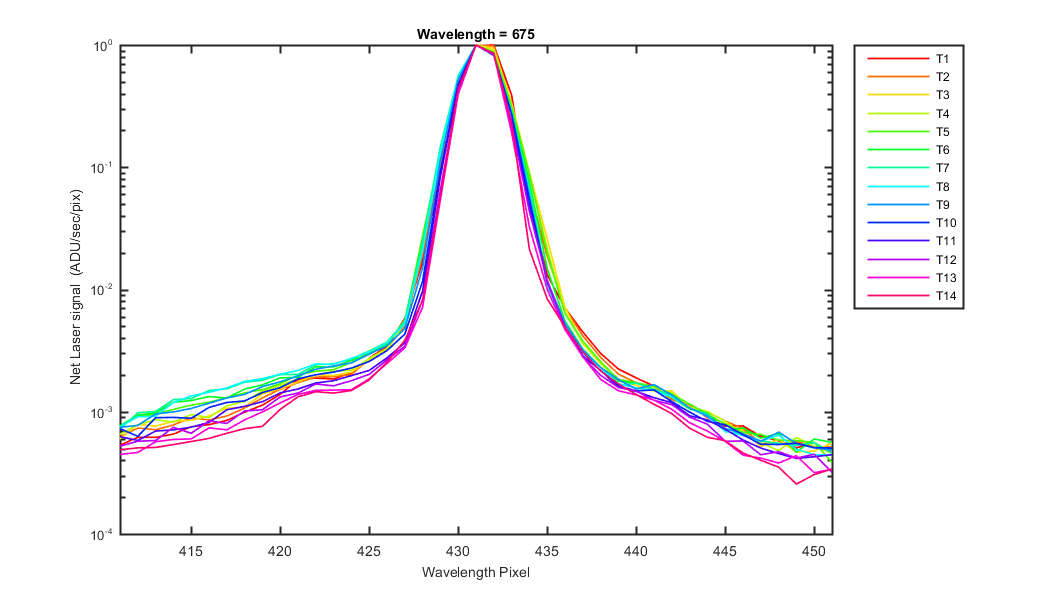

Figure 10


Figure 11


Figure 12


Figure 13


Figure 14


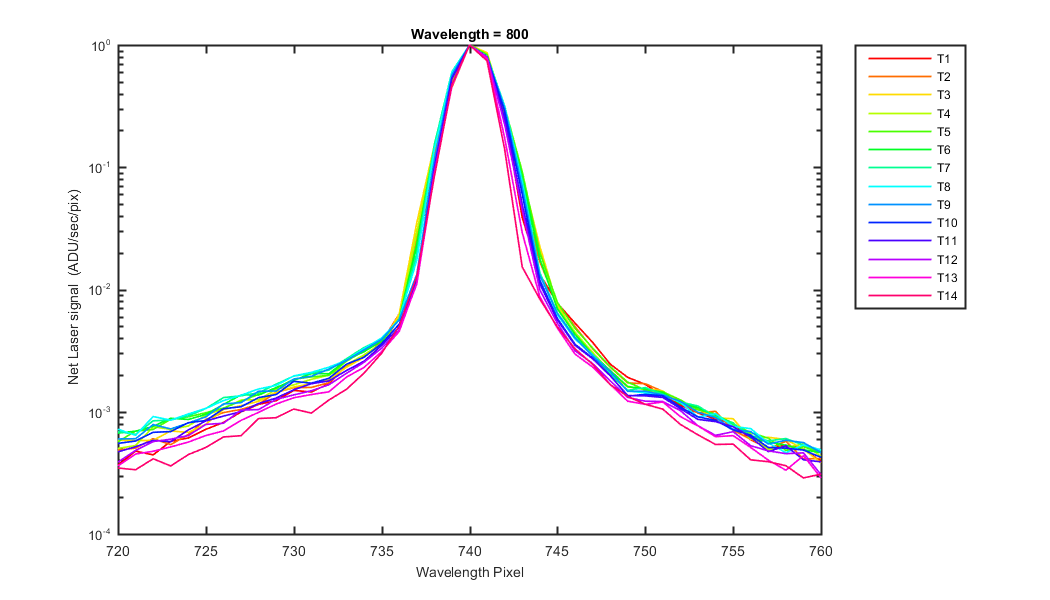

Figure 15

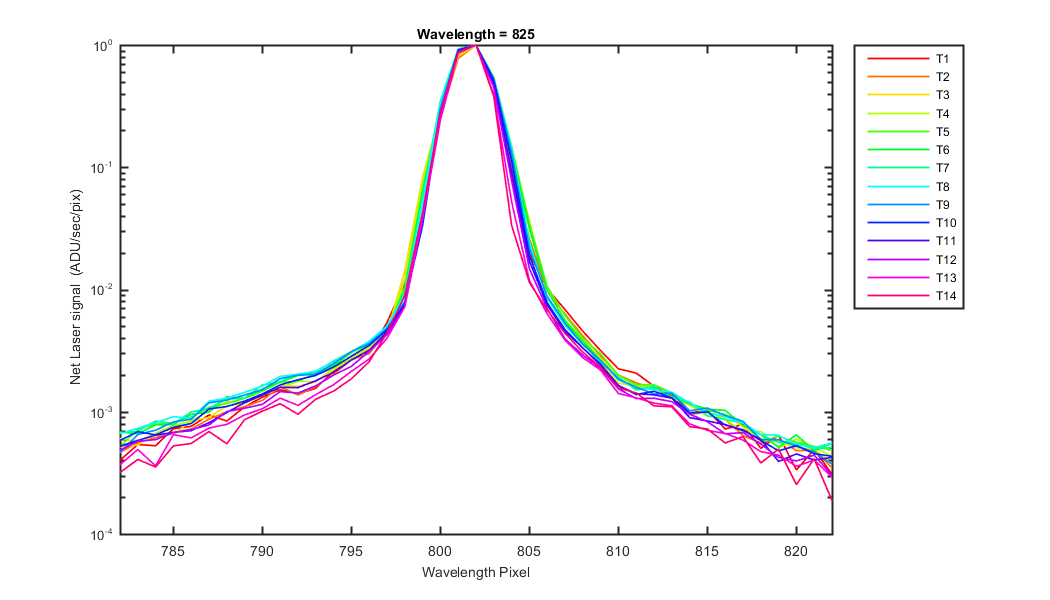

Figure 16


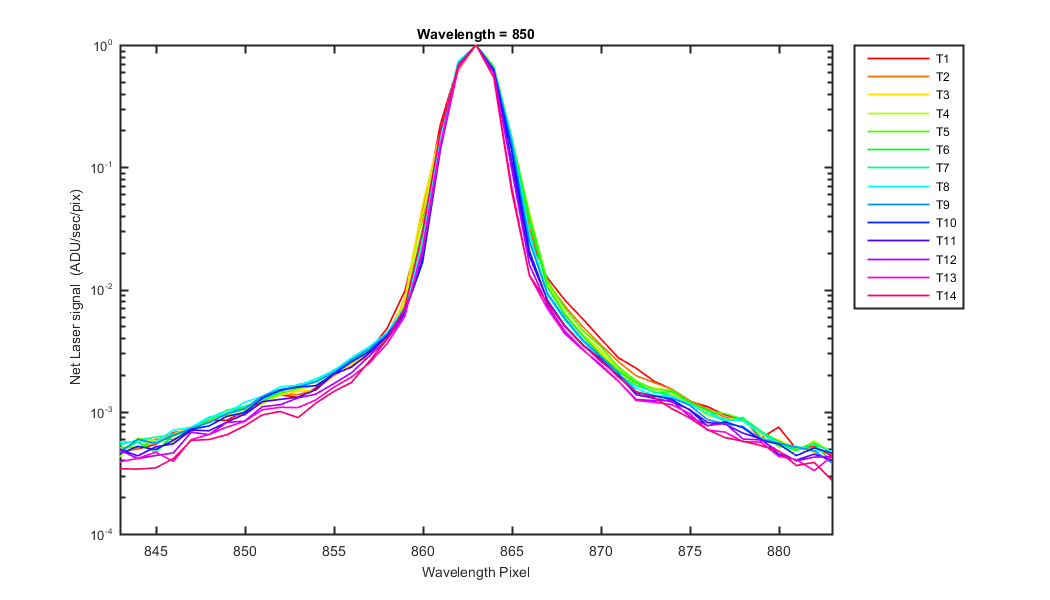

Figure 17


Figure 18


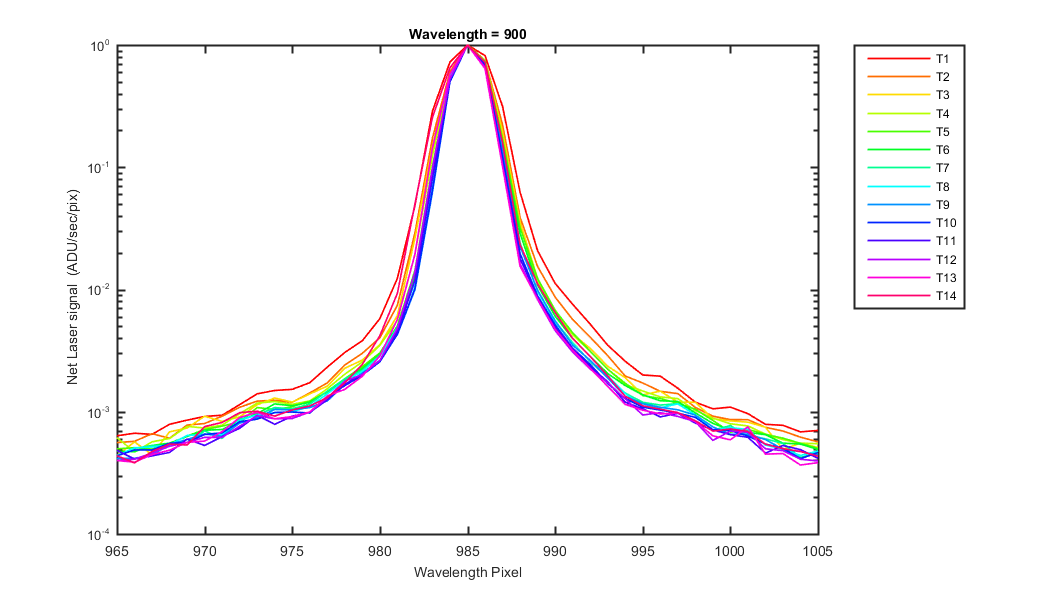

Figure 19


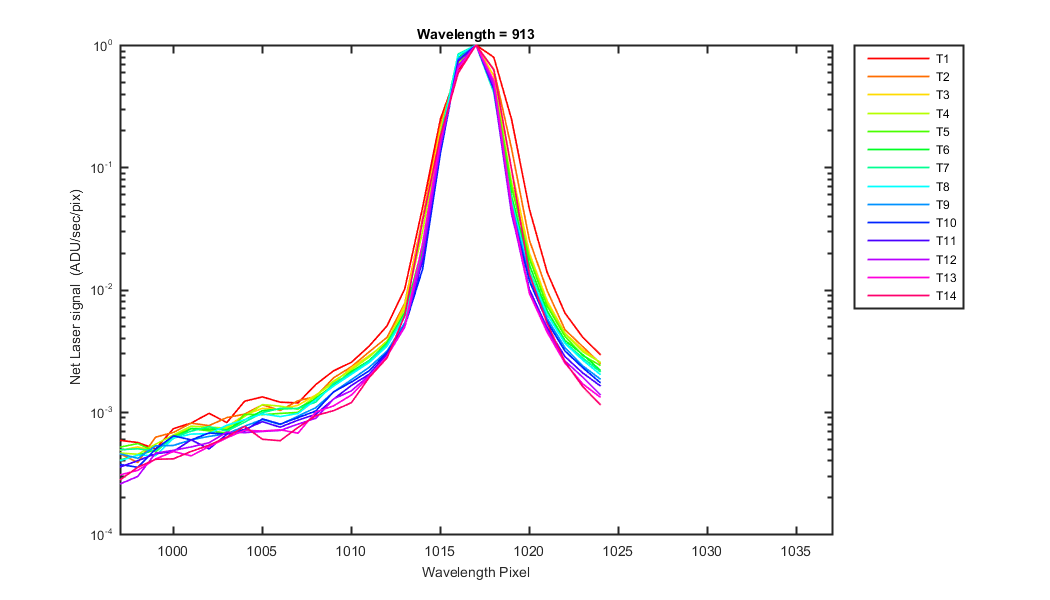

Figure 20


Figure 21


Figure 22


Figure 23




Track = The Resonon Track number
Lwave = Laser Wavelength

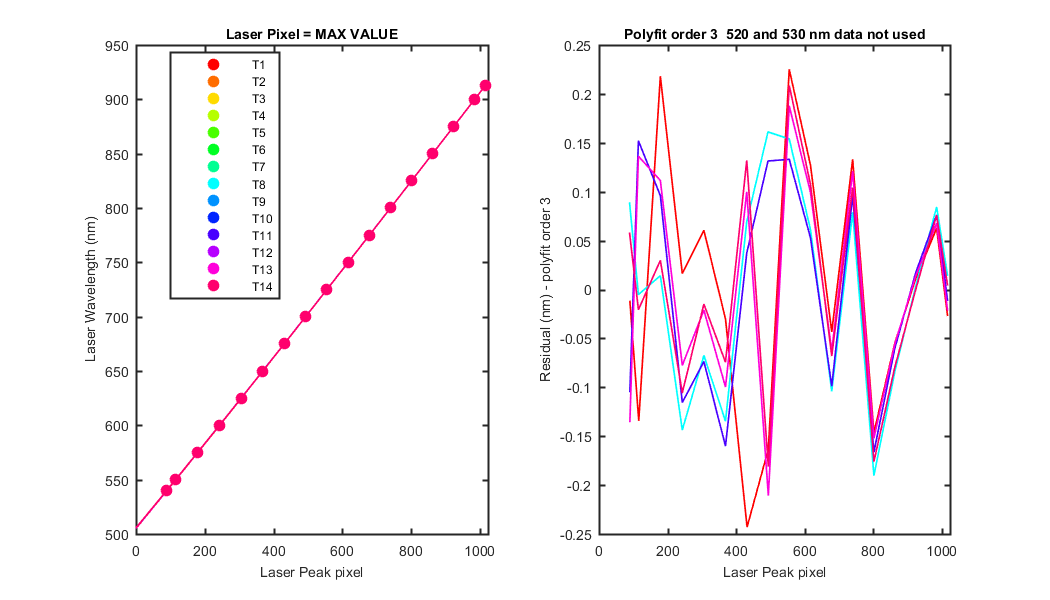

Lpix1 = Laser Pixel found using the max value of the track

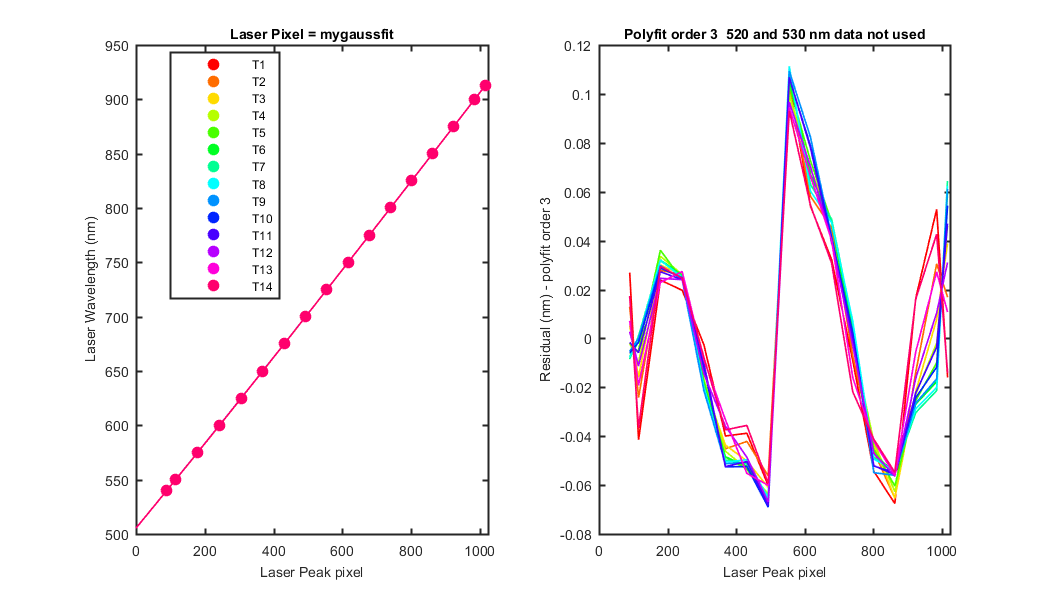

Lpix2 = Laser Pixel found using mygaussfit to fit the laser peak
Lpix3 = Laser Pixel found using gaussfit to fit the laser peak

Track Lwave Lpix1 Lpix2 Lpix3
    1    540       90      89.58      89.56
    2    540       90      89.60      89.60
    3    540       90      89.59      89.60
    4    540       90      89.57      89.57
    5    540       90      89.55      89.55
    6    540       89      89.49      89.50
    7    540       90      89.48      89.48
    8    540       89      89.48      89.48
    9    540       90      89.51      89.51
   10    540       90      89.55      89.54
   11    540       90      89.53      89.53
   12    540       90      89.57      89.57
   13    540       90      89.55      89.55
   14    540       89      89.48      89.47
    1    550      116     115.50     115.48
    2    550      115     115.42     115.42
    3    550      115     115.36     115.36
    4    550      115     115.29     115.29
    5    550      115     115.25     115.25
    6    550      115     115.18     115.18
    7    550      115     115.15     115.15
    8    550      115     115.16     115.16
    9    550      115     115.19     115.20
   10    550      115     115.24     115.25
   11    550      115     115.24     115.25
   12    550      115     115.31     115.32
   13    550      115     115.32     115.34
   14    550      115     115.34     115.35
    1    575      179     179.33     179.33
    2    575      179     179.27     179.27
    3    575      179     179.21     179.20
    4    575      179     179.14     179.14
    5    575      179     179.09     179.09
    6    575      179     179.03     179.02
    7    575      179     179.01     178.99
    8    575      179     179.01     178.99
    9    575      179     179.06     179.03
   10    575      179     179.10     179.08
   11    575      179     179.09     179.07
   12    575      179     179.16     179.14
   13    575      179     179.17     179.16
   14    575      179     179.17     179.17
    1    600      243     242.90     242.88
    2    600      243     242.82     242.82
    3    600      243     242.76     242.76
    4    600      243     242.69     242.69
    5    600      243     242.65     242.64
    6    600      243     242.58     242.57
    7    600      243     242.55     242.54
    8    600      243     242.56     242.55
    9    600      243     242.60     242.58
   10    600      243     242.63     242.62
   11    600      243     242.62     242.62
   12    600      243     242.69     242.68
   13    600      243     242.69     242.69
   14    600      243     242.73     242.72
    1    625      306     306.11     306.11
    2    625      306     306.09     306.07
    3    625      306     306.03     306.01
    4    625      306     305.96     305.95
    5    625      306     305.91     305.90
    6    625      306     305.85     305.84
    7    625      306     305.82     305.80
    8    625      306     305.82     305.80
    9    625      306     305.86     305.84
   10    625      306     305.88     305.88
   11    625      306     305.86     305.87
   12    625      306     305.93     305.93
   13    625      306     305.93     305.93
   14    625      306     305.96     305.95
    1    650      369     369.00     368.98
    2    650      369     368.96     368.94
    3    650      369     368.90     368.90
    4    650      369     368.84     368.84
    5    650      369     368.81     368.80
    6    650      369     368.74     368.73
    7    650      369     368.71     368.70
    8    650      369     368.72     368.70
    9    650      369     368.75     368.73
   10    650      369     368.79     368.77
   11    650      369     368.77     368.75
   12    650      369     368.79     368.80
   13    650      369     368.79     368.80
   14    650      369     368.83     368.82
    1    675      432     431.48     431.48
    2    675      431     431.45     431.45
    3    675      431     431.42     431.42
    4    675      431     431.36     431.37
    5    675      431     431.33     431.33
    6    675      431     431.26     431.26
    7    675      431     431.23     431.23
    8    675      431     431.23     431.24
    9    675      431     431.26     431.26
   10    675      431     431.30     431.30
   11    675      431     431.27     431.28
   12    675      431     431.32     431.34
   13    675      431     431.34     431.32
   14    675      431     431.31     431.32
    1    700      494     493.72     493.72
    2    700      494     493.70     493.70
    3    700      494     493.67     493.66
    4    700      494     493.62     493.62
    5    700      494     493.60     493.59
    6    700      493     493.53     493.53
    7    700      493     493.51     493.50
    8    700      493     493.51     493.51
    9    700      493     493.54     493.53
   10    700      494     493.58     493.56
   11    700      493     493.55     493.53
   12    700      494     493.59     493.58
   13    700      494     493.57     493.56
   14    700      494     493.57     493.57
    1    725      555     555.27     555.28
    2    725      555     555.27     555.28
    3    725      555     555.25     555.25
    4    725      555     555.21     555.20
    5    725      555     555.17     555.17
    6    725      555     555.11     555.12
    7    725      555     555.08     555.09
    8    725      555     555.08     555.10
    9    725      555     555.10     555.11
   10    725      555     555.14     555.15
   11    725      555     555.11     555.12
   12    725      555     555.18     555.17
   13    725      555     555.17     555.16
   14    725      555     555.15     555.14
    1    750      617     617.14     617.12
    2    750      617     617.14     617.12
    3    750      617     617.11     617.10
    4    750      617     617.06     617.06
    5    750      617     617.04     617.04
    6    750      617     617.00     616.99
    7    750      617     616.99     616.96
    8    750      617     617.00     616.97
    9    750      617     616.96     616.99
   10    750      617     616.99     617.02
   11    750      617     616.97     616.98
   12    750      617     617.02     617.03
   13    750      617     617.01     617.01
   14    750      617     617.00     617.00
    1    775      679     678.76     678.76
    2    775      679     678.76     678.77
    3    775      679     678.75     678.75
    4    775      679     678.72     678.72
    5    775      679     678.71     678.71
    6    775      679     678.66     678.65
    7    775      679     678.64     678.63
    8    775      679     678.64     678.64
    9    775      679     678.67     678.66
   10    775      679     678.69     678.68
   11    775      679     678.67     678.65
   12    775      679     678.70     678.68
   13    775      679     678.66     678.66
   14    775      679     678.64     678.64
    1    800      740     740.28     740.29
    2    800      740     740.32     740.32
    3    800      740     740.32     740.31
    4    800      740     740.29     740.29
    5    800      740     740.28     740.28
    6    800      740     740.23     740.23
    7    800      740     740.20     740.21
    8    800      740     740.20     740.22
    9    800      740     740.22     740.24
   10    800      740     740.25     740.25
   11    800      740     740.22     740.22
   12    800      740     740.25     740.26
   13    800      740     740.25     740.23
   14    800      740     740.21     740.19
    1    825      802     801.71     801.71
    2    825      802     801.74     801.75
    3    825      802     801.74     801.74
    4    825      802     801.72     801.72
    5    825      802     801.73     801.72
    6    825      802     801.69     801.68
    7    825      802     801.67     801.66
    8    825      802     801.68     801.66
    9    825      802     801.70     801.68
   10    825      802     801.71     801.69
   11    825      802     801.68     801.66
   12    825      802     801.69     801.68
   13    825      802     801.64     801.64
   14    825      802     801.60     801.60
    1    850      863     862.98     862.96
    2    850      863     863.02     863.00
    3    850      863     863.03     863.01
    4    850      863     863.01     862.99
    5    850      863     863.01     863.00
    6    850      863     862.94     862.95
    7    850      863     862.92     862.93
    8    850      863     862.92     862.94
    9    850      863     862.94     862.96
   10    850      863     862.96     862.97
   11    850      863     862.93     862.94
   12    850      863     862.96     862.95
   13    850      863     862.92     862.91
   14    850      863     862.89     862.86
    1    875      924     923.96     924.00
    2    875      924     924.07     924.05
    3    875      924     924.09     924.07
    4    875      924     924.08     924.06
    5    875      924     924.09     924.08
    6    875      924     924.04     924.04
    7    875      924     924.01     924.02
    8    875      924     924.02     924.03
    9    875      924     924.04     924.05
   10    875      924     924.05     924.05
   11    875      924     924.02     924.02
   12    875      924     924.03     924.02
   13    875      924     923.98     923.96
   14    875      924     923.93     923.91
    1    900      985     985.05     985.07
    2    900      985     985.12     985.12
    3    900      985     985.16     985.14
    4    900      985     985.16     985.14
    5    900      985     985.18     985.17
    6    900      985     985.14     985.13
    7    900      985     985.10     985.10
    8    900      985     985.11     985.11
    9    900      985     985.14     985.14
   10    900      985     985.15     985.14
   11    900      985     985.11     985.10
   12    900      985     985.10     985.09
   13    900      985     985.05     985.03
   14    900      985     985.06     985.00
    1    913     1017    1017.03    1017.11
    2    913     1017    1016.95    1016.94
    3    913     1017    1016.87    1016.87
    4    913     1017    1016.82    1016.82
    5    913     1017    1016.81    1016.81
    6    913     1017    1016.73    1016.74
    7    913     1017    1016.66    1016.68
    8    913     1017    1016.68    1016.71
    9    913     1017    1016.73    1016.75
   10    913     1017    1016.76    1016.78
   11    913     1017    1016.77    1016.77
   12    913     1017    1016.84    1016.83
   13    913     1017    1016.89    1016.87
   14    913     1017    1017.03    1017.00


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2016-03\RS01cal\day02
Date: 14-Apr-2016 10:08:19
Created from plt_wavecal_(1)
