pltcrosstrack_laser_ - RS01

REVISION DATE: 14-Apr-2016 10:25:19

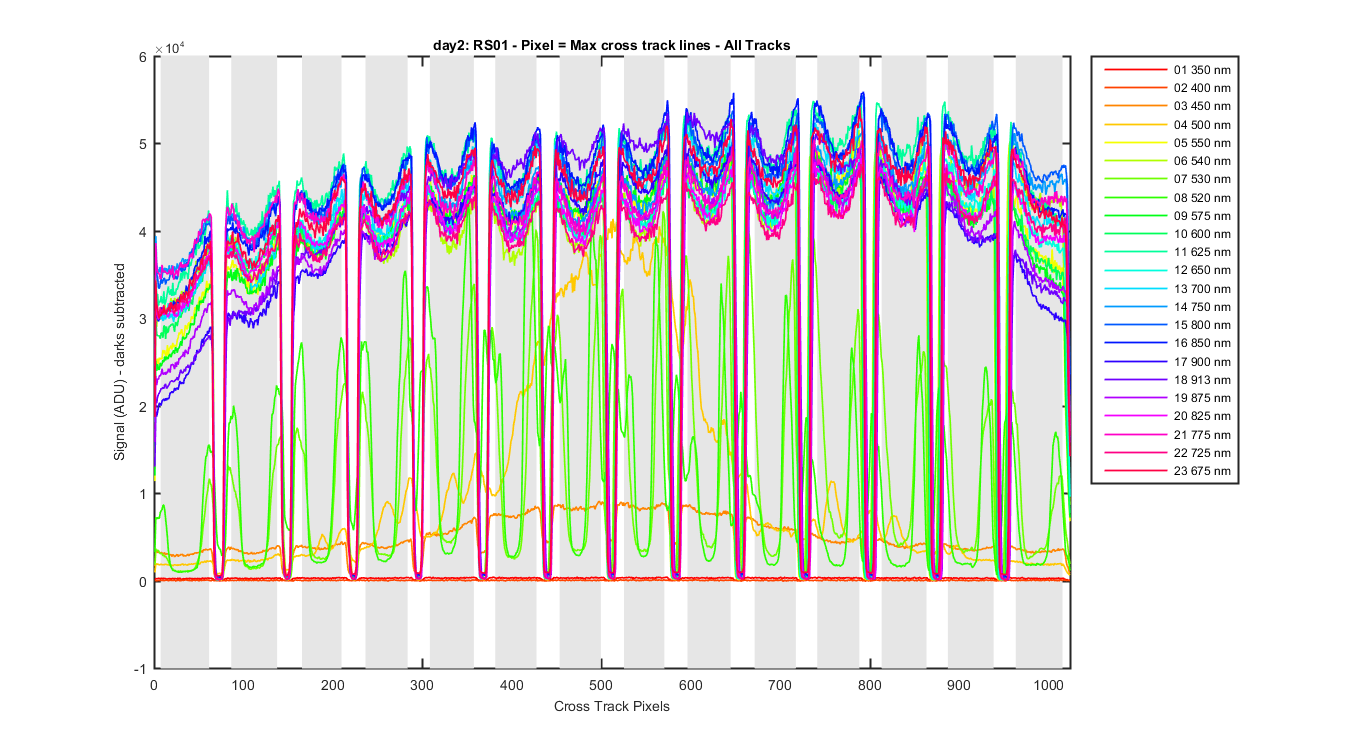

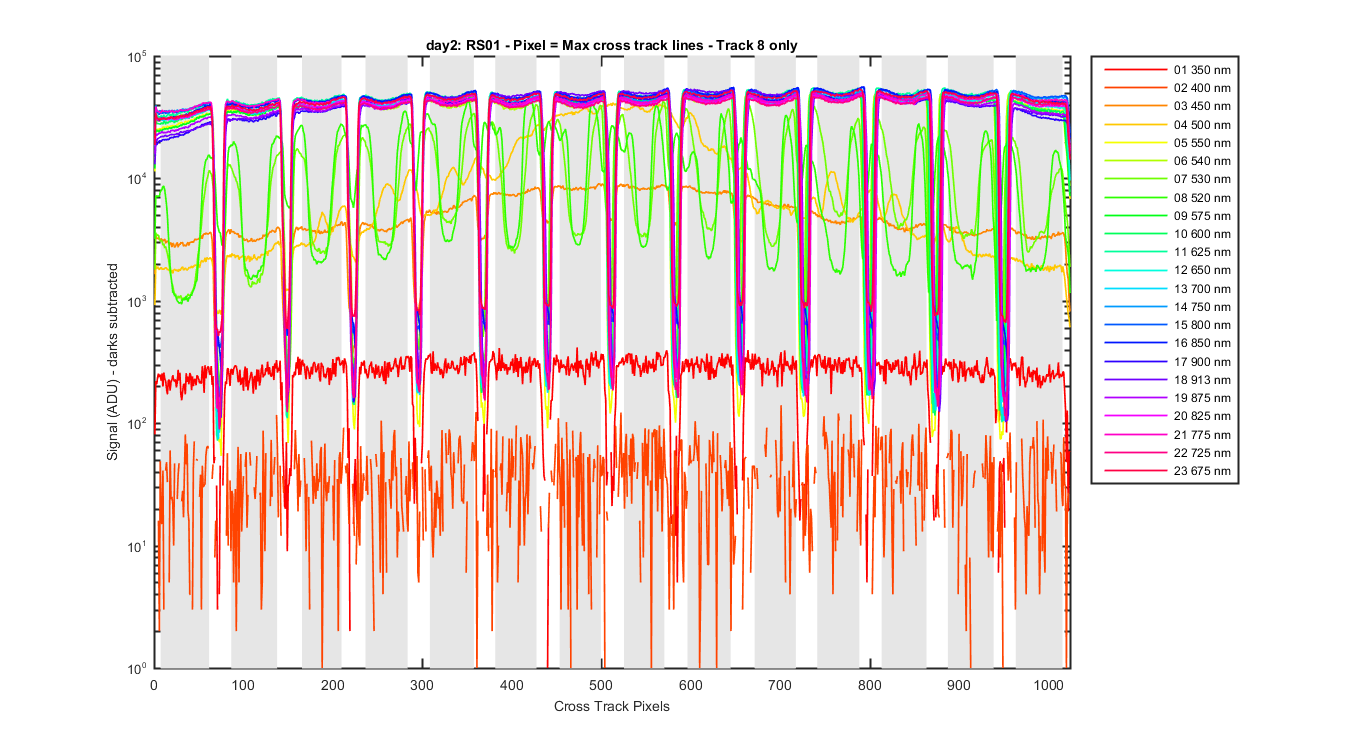

Using the laser data I wanted to look at the cross-track stray light. The two graphs shows the cross track light at the wavelength pixel of the max value for track 8. Why is there any light showing up on the off ccd wavelengths?? The min and max wavelengths are 505 to 915.

Figure 1


Figure 2


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2016-03\RS01cal\day02
Date: 14-Apr-2016 10:25:19
Created from pltcrosstrack_laser_(1)
