s2016041412_img

REVISION DATE: 14-Apr-2016 09:47:45

Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.

Table caption: Andor Ikon Camera data, NOT divided by intgration time (no darks are subtractd)
Previous HOME NEXT
Filename Type Rotaton
(deg)
Wavelength (nm)(deg) Total Exposure Time Acquisition mode Temperature Gain Baseline Clamp file creation date Pre Amplifier Gain Readout mode Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
s2016041412_img Signal NaN 650 1.5 Single Scan -40 0 F 2016-04-14T05:22:06 4 Image 52284 3654.43 45.88

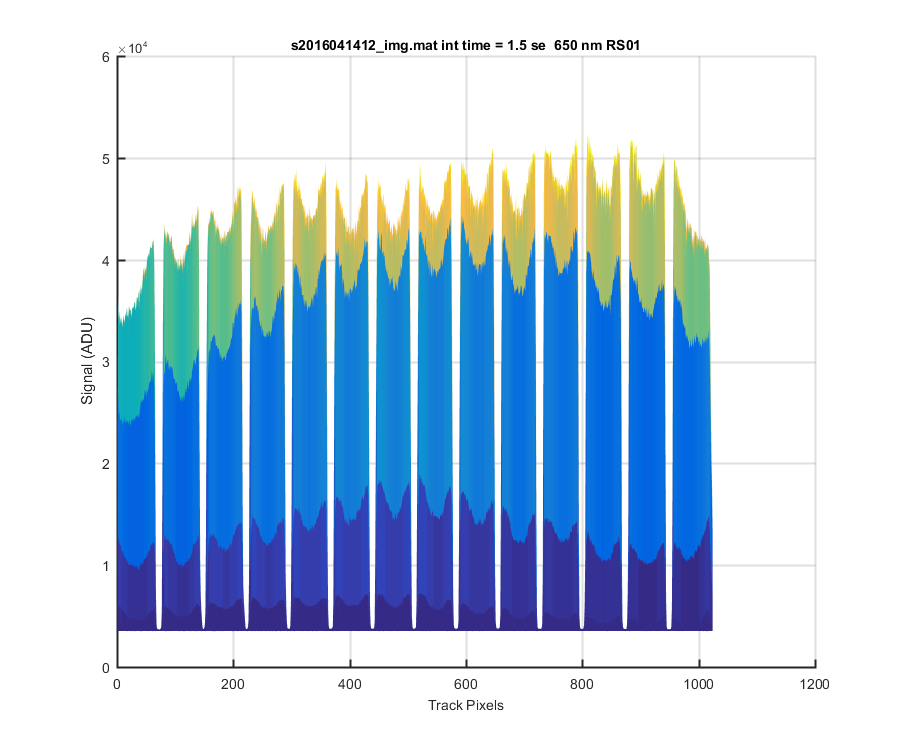

Figure 1

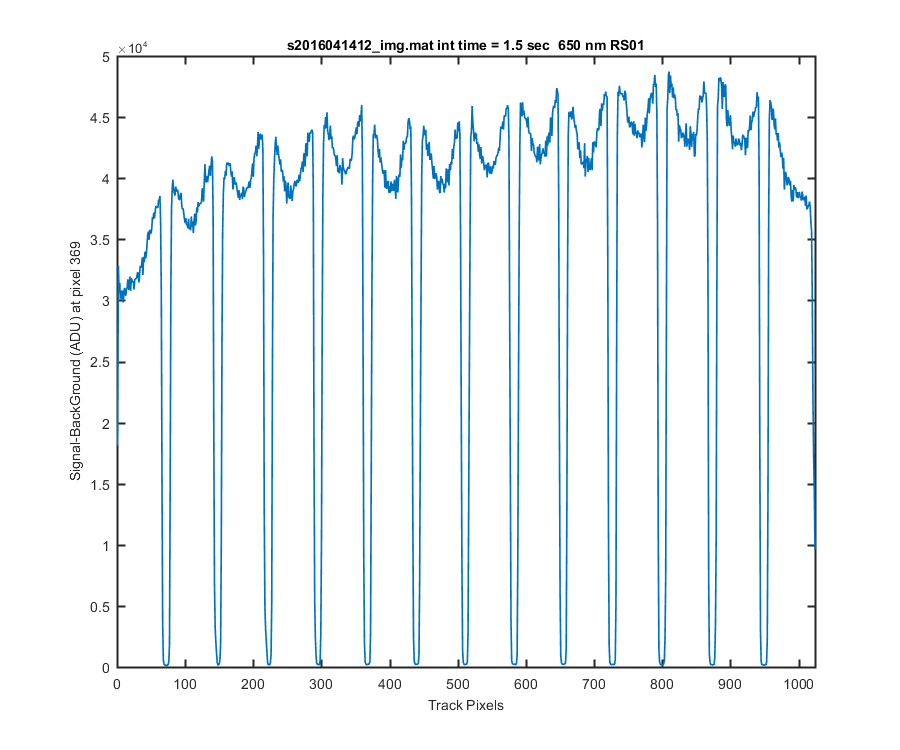

Figure 2

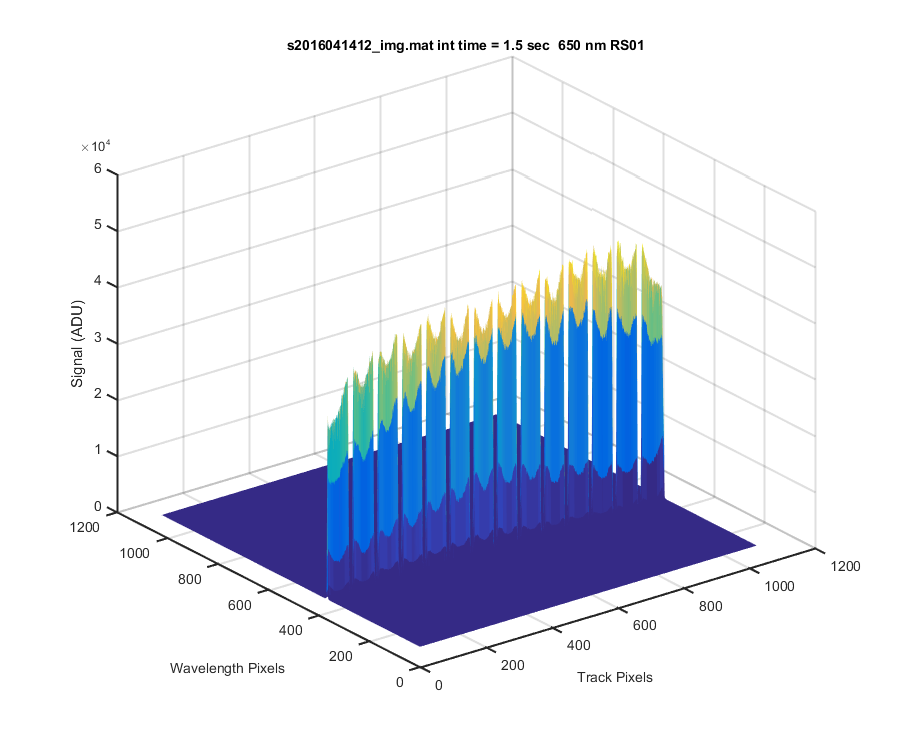

Figure 3

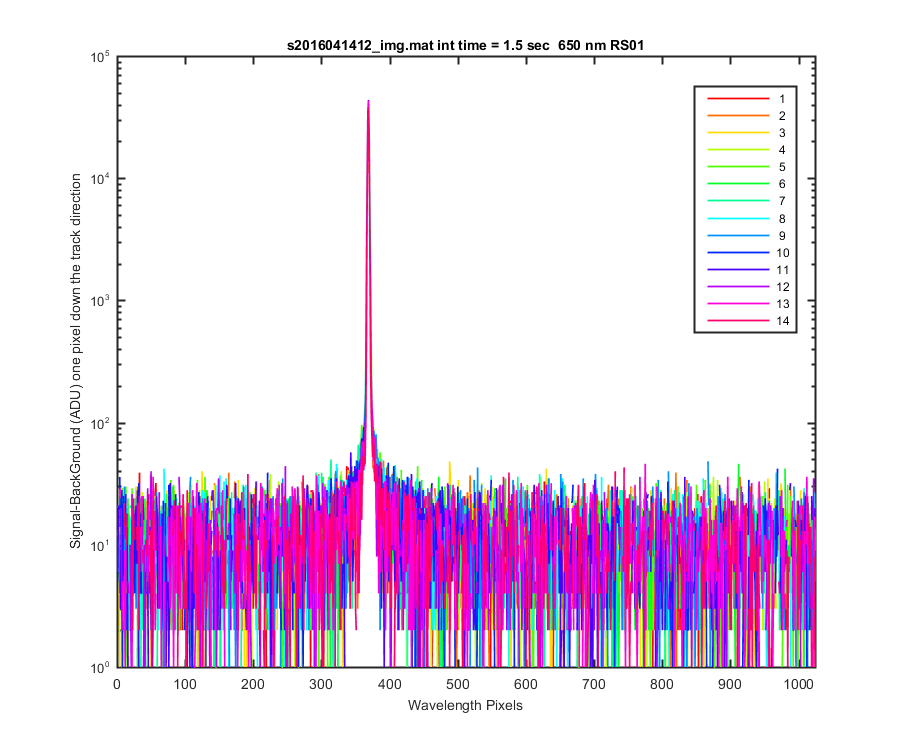

Figure 4

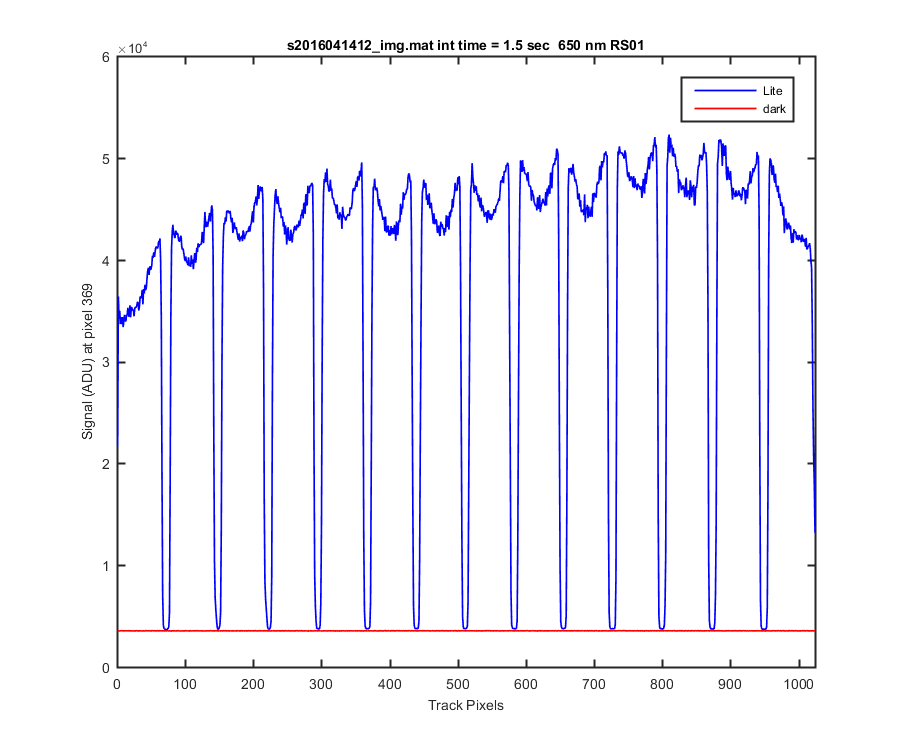

Figure 5

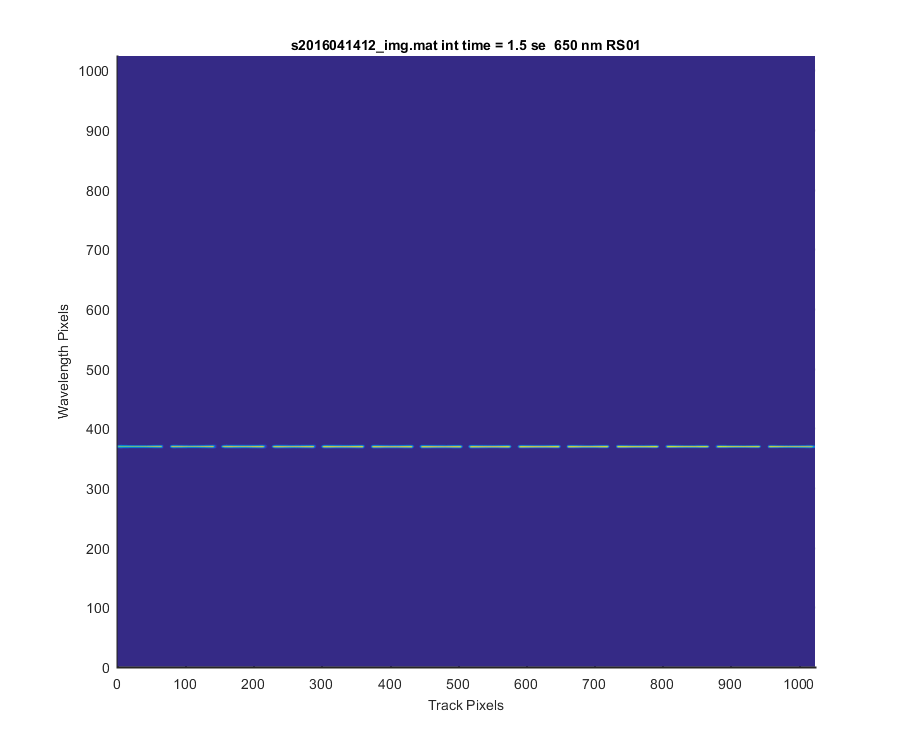

Figure 6


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2016-03\RS01cal\day02
Date: 14-Apr-2016 09:47:45
