REVISION DATE: 14-Apr-2016 09:47:45

Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.

Table caption: Andor Ikon Camera data, NOT divided by intgration time (no darks are subtractd)
Previous HOME NEXT
Filename Type Rotaton
(deg)
Wavelength (nm)(deg) Total Exposure Time Acquisition mode Temperature Gain Baseline Clamp file creation date Pre Amplifier Gain Readout mode Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
s2016041419_img Signal NaN 875 1 Single Scan -40 0 F 2016-04-14T05:42:20 4 Image 53184 3632.41 43.04

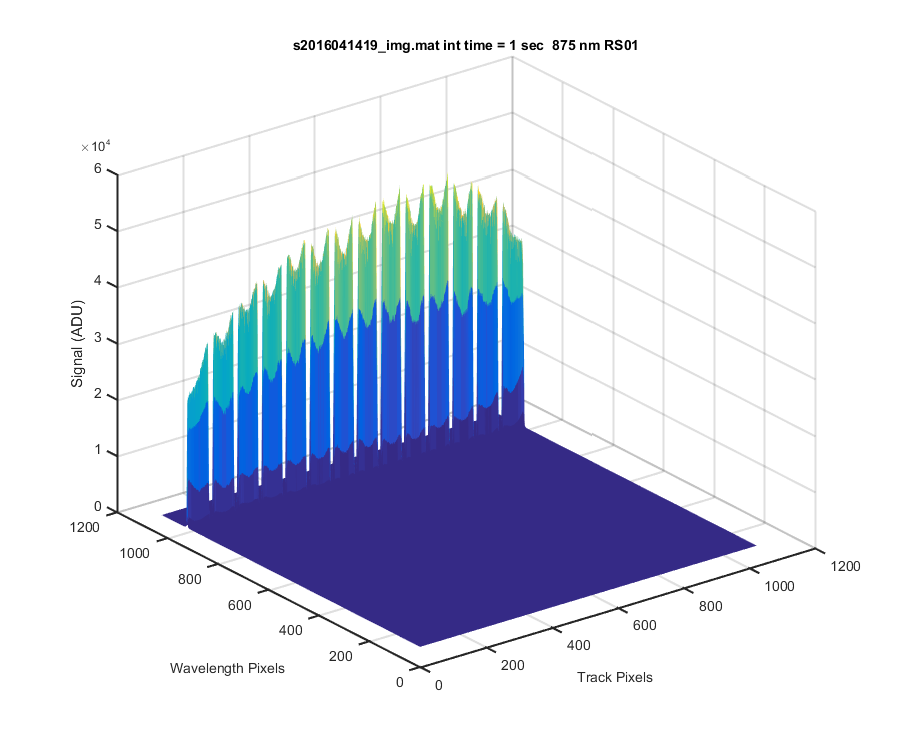

Figure 1

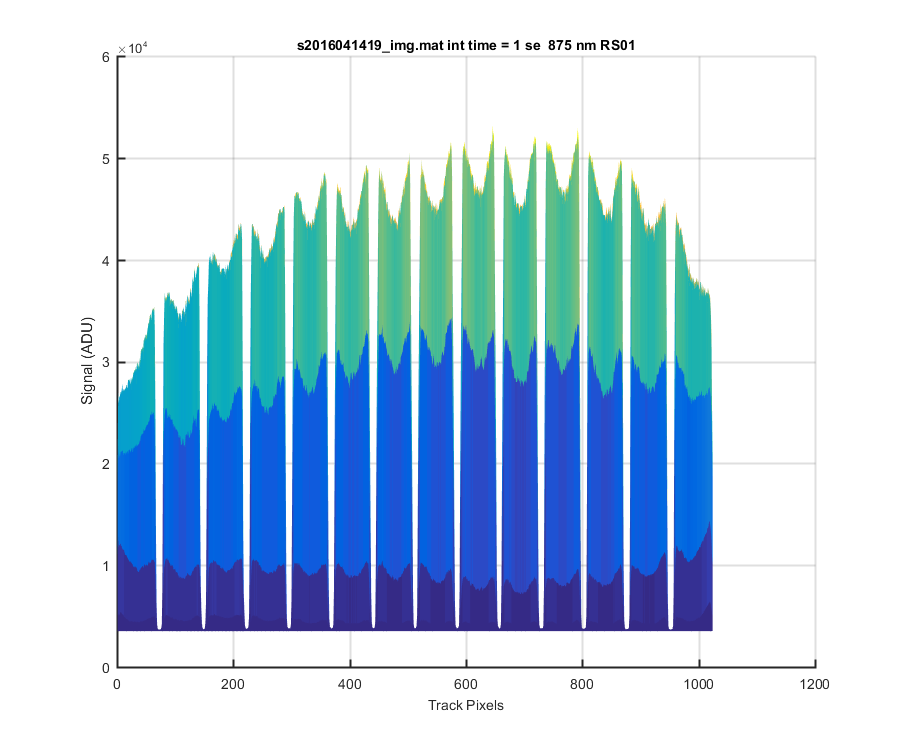

Figure 2

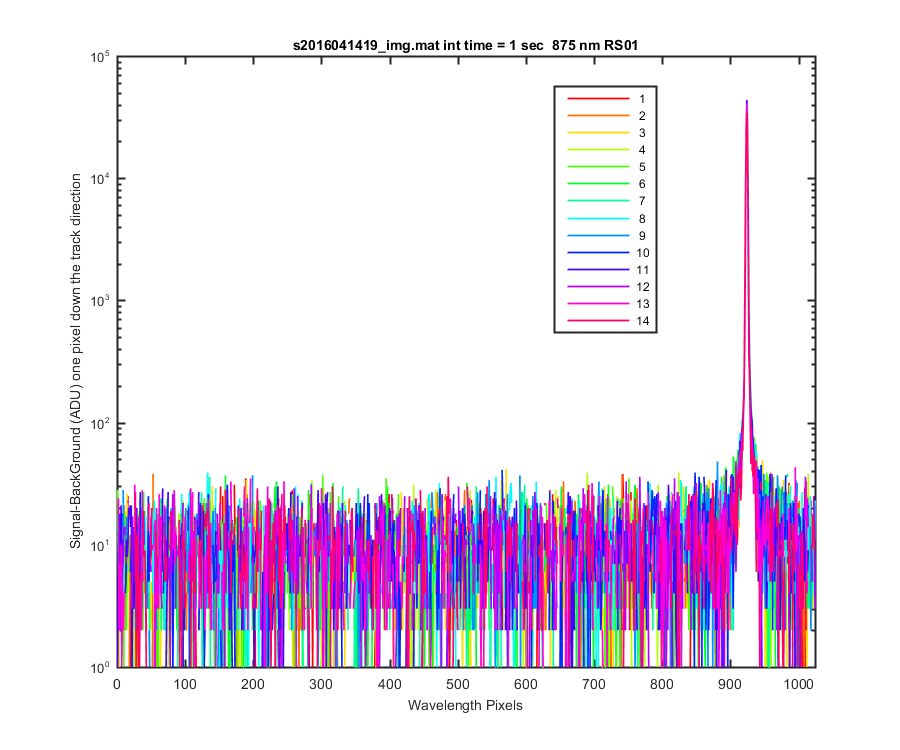

Figure 3

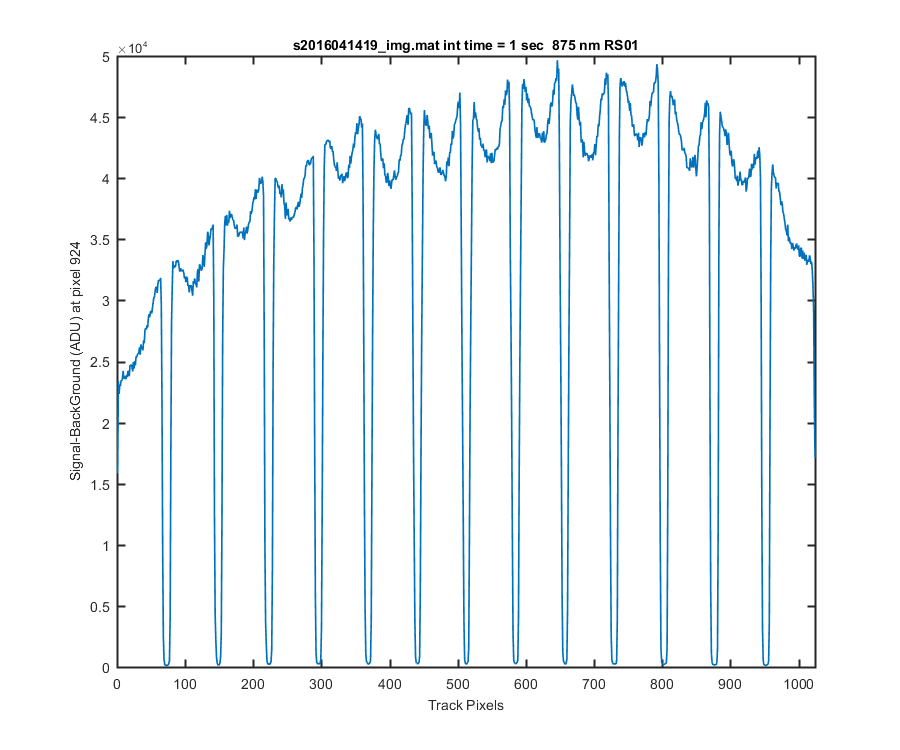

Figure 4

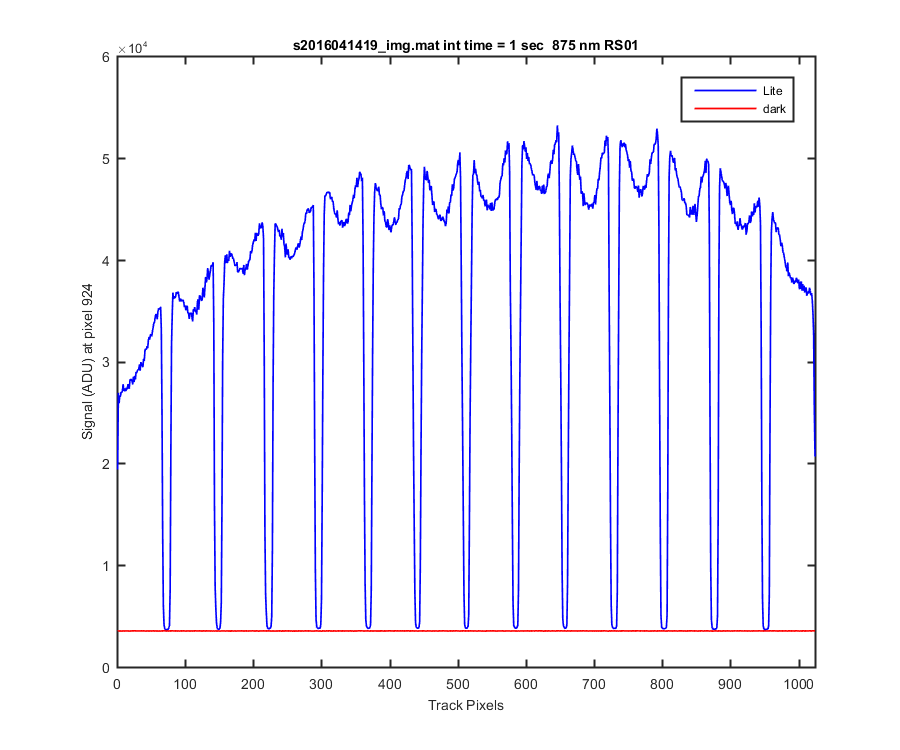

Figure 5


Figure 6


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2016-03\RS01cal\day02
Date: 14-Apr-2016 09:47:45
