REVISION DATE: 14-Sep-2016 10:18:23
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | NEXT | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Rotaton (deg) |
Wavelength (nm)(deg) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2016091406_img | Signal | NaN | NaN | 6 | Single Scan | -40 | 0 | F | 2016-09-14T03:59:15 | 4 | Image | 47072 | 4974.60 | 105.51 |

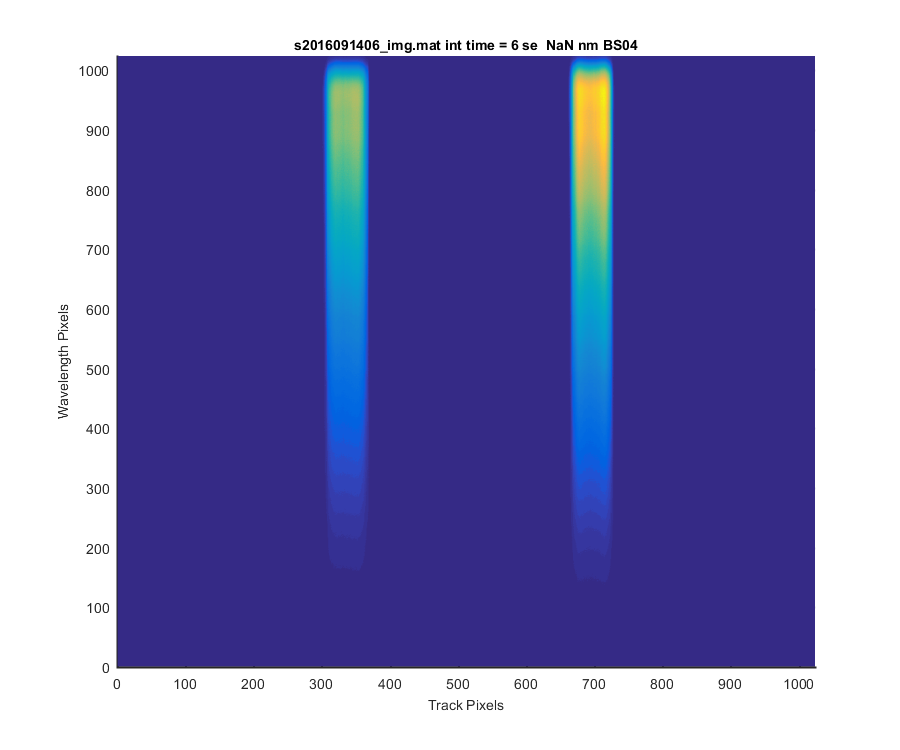

Figure 1

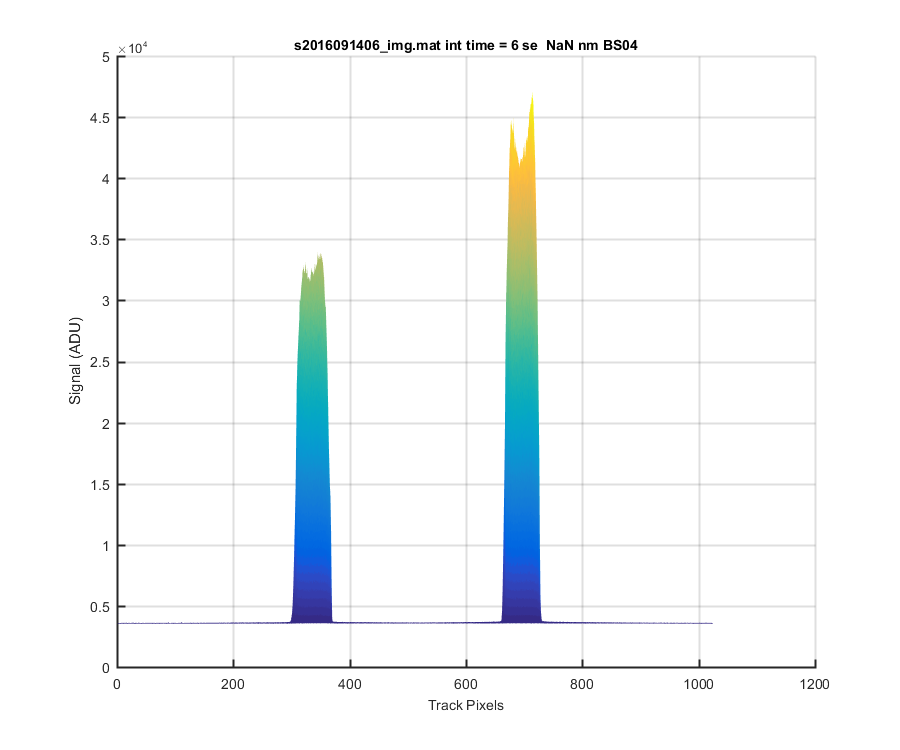

Figure 2

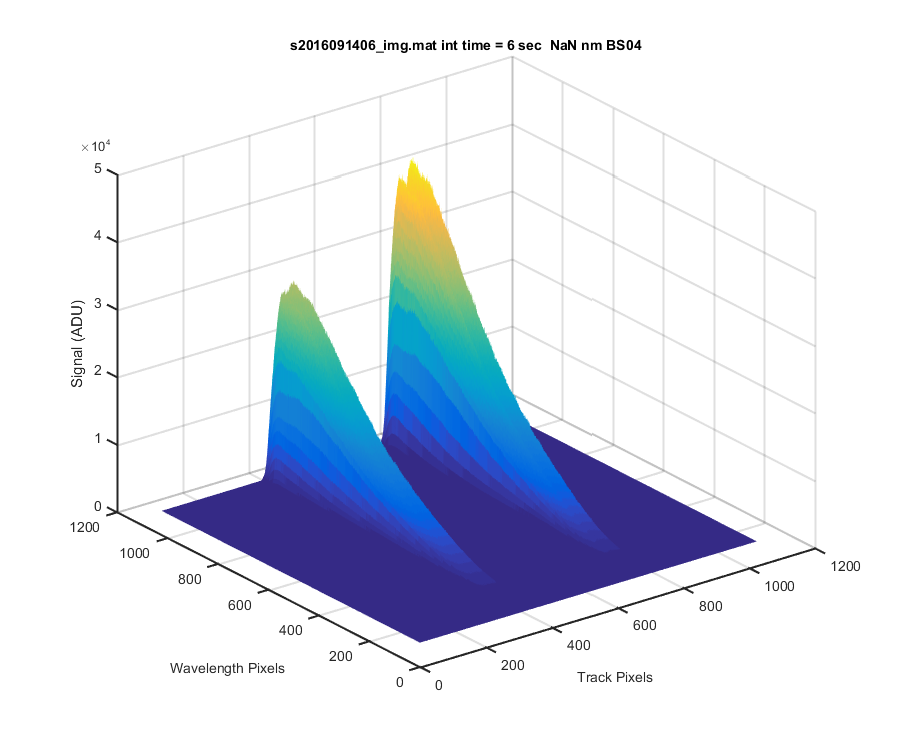

Figure 3

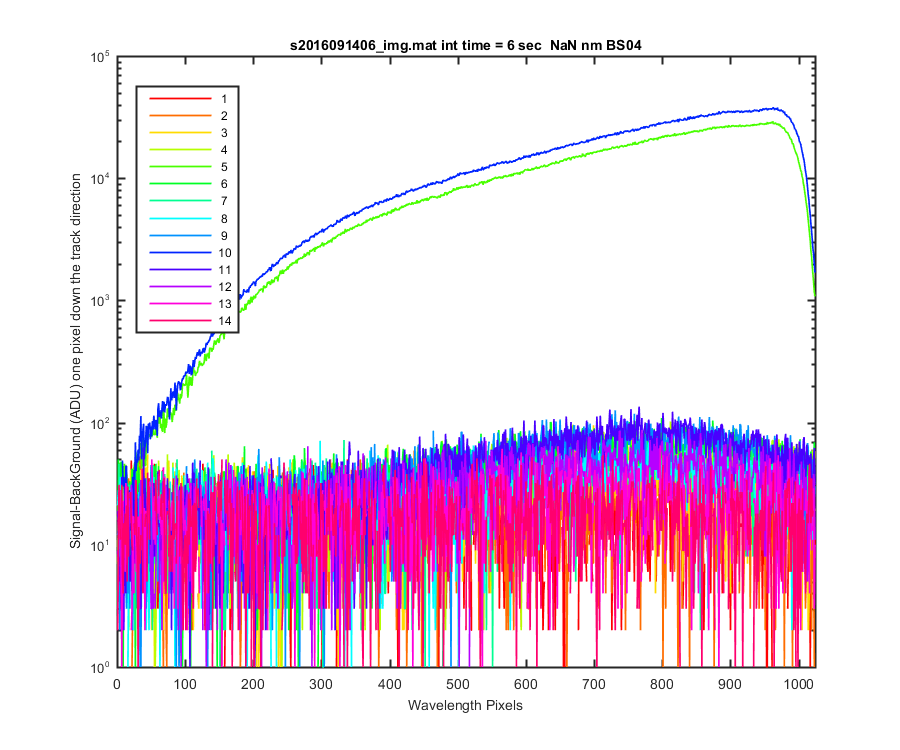

Figure 4

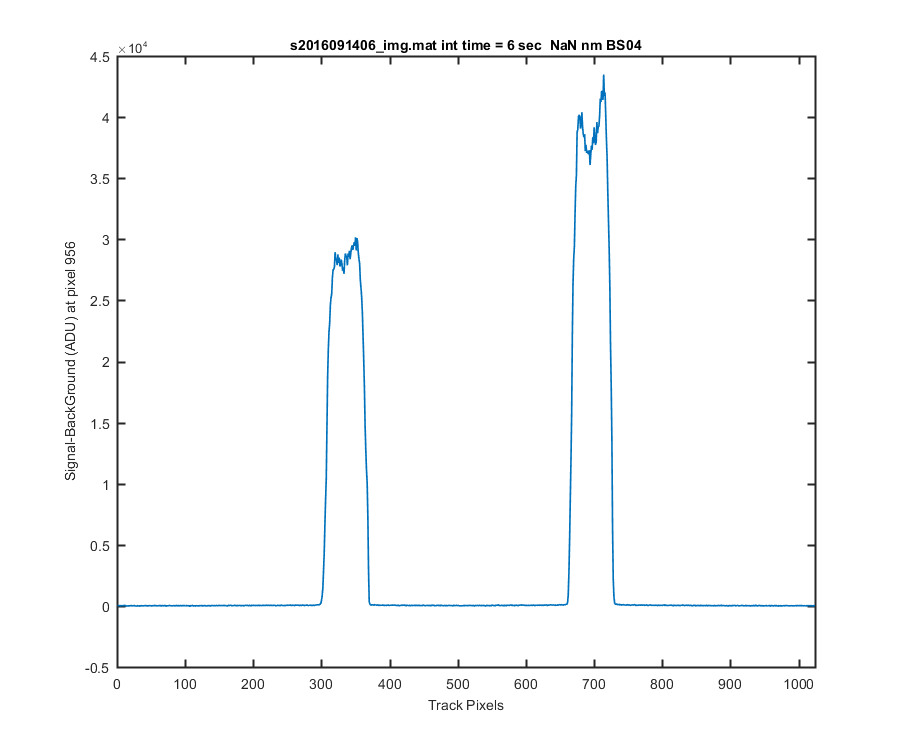

Figure 5
Figure 6
