plt_chktrkmovement_day01_ - BS01

REVISION DATE: 16-Sep-2016 14:39:20

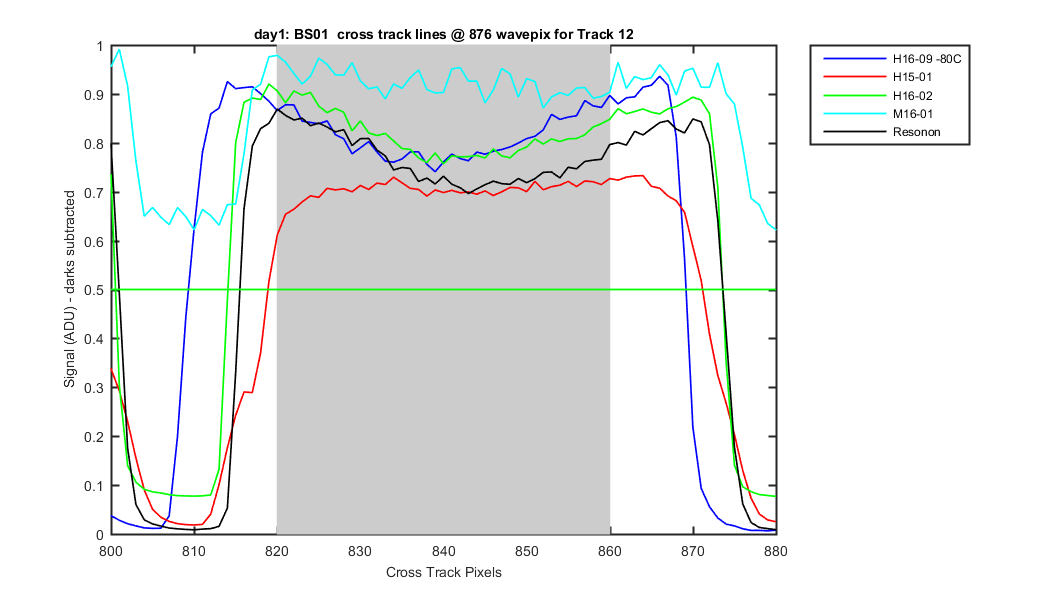

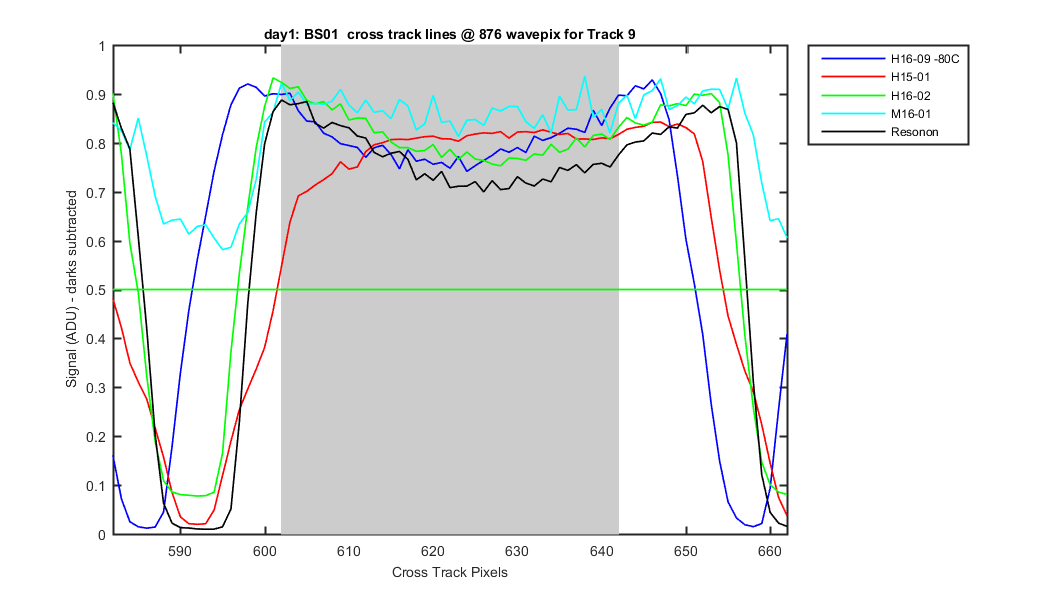

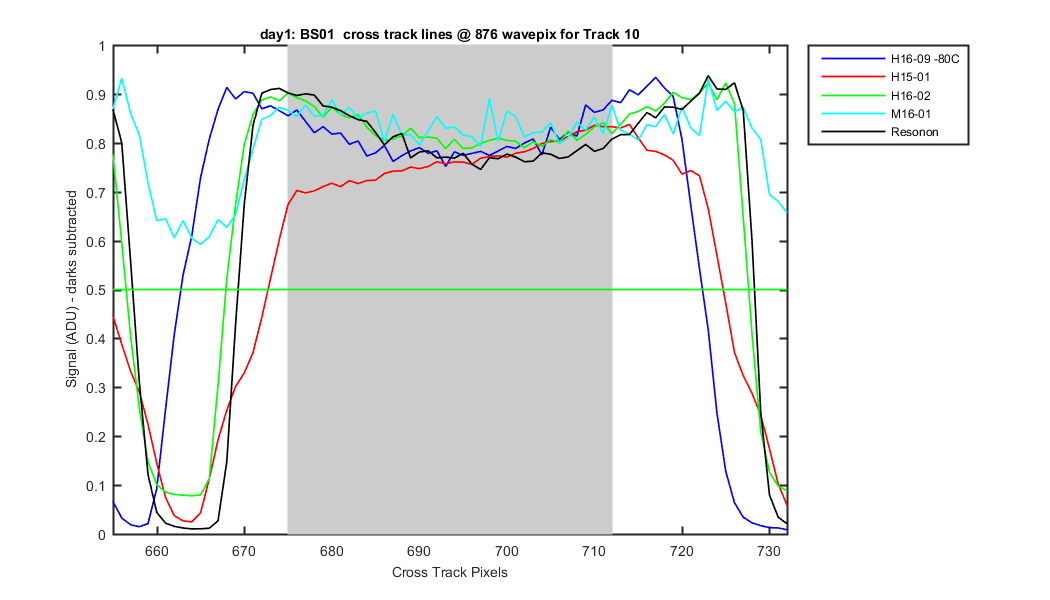

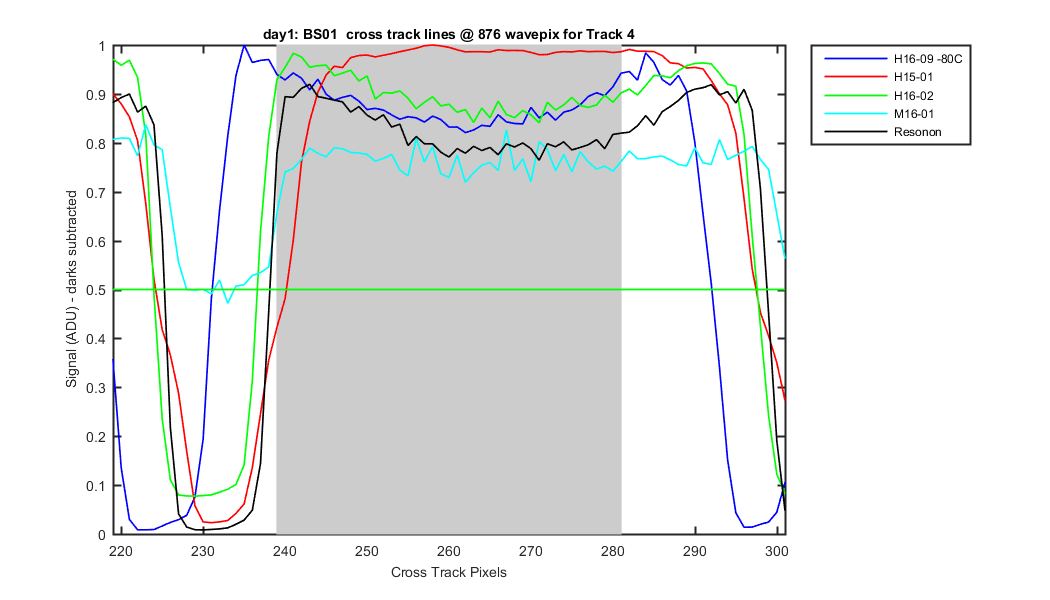

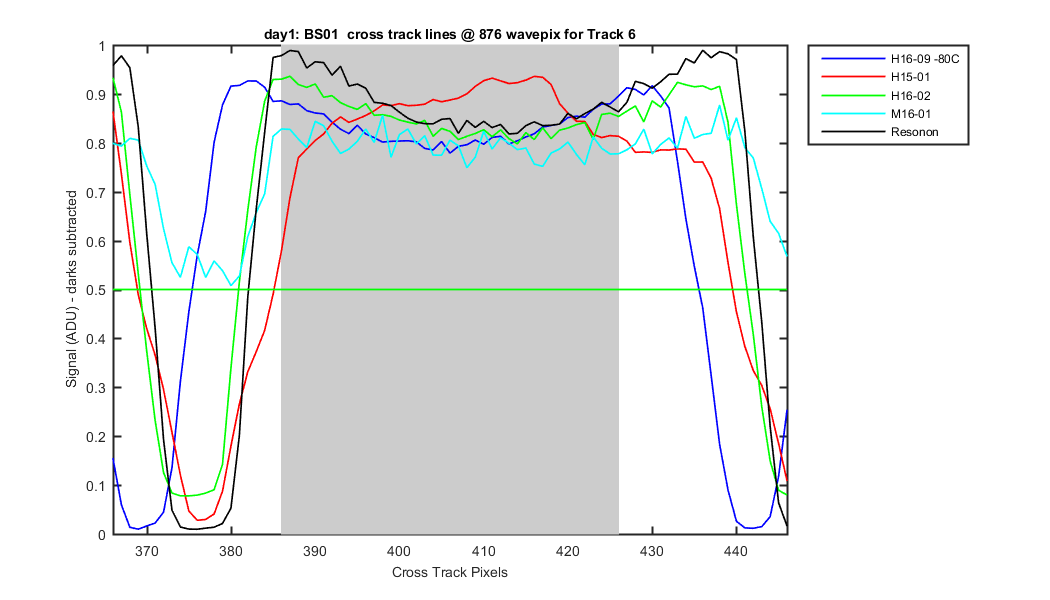

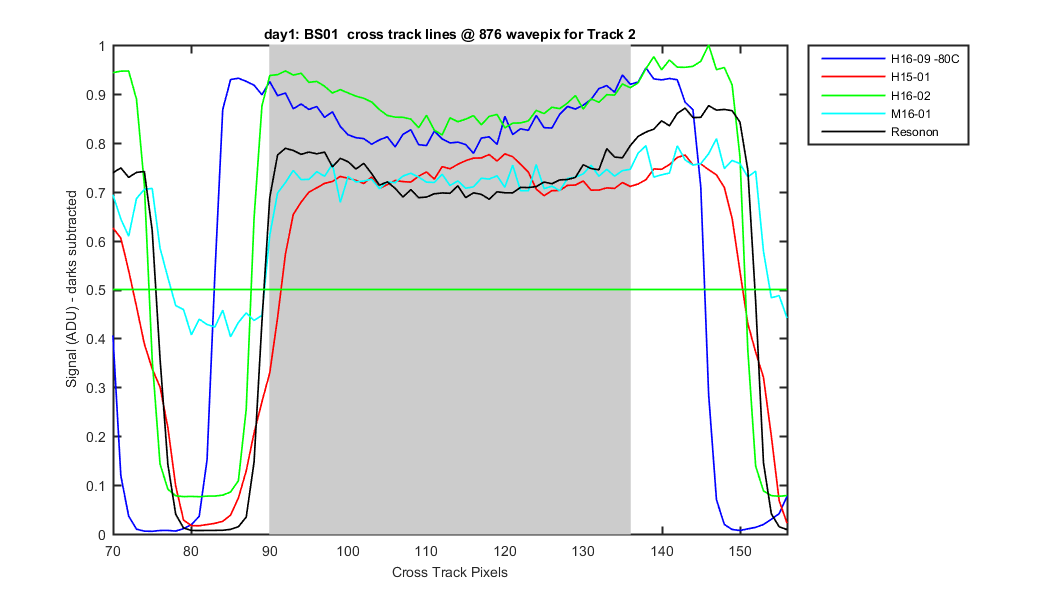

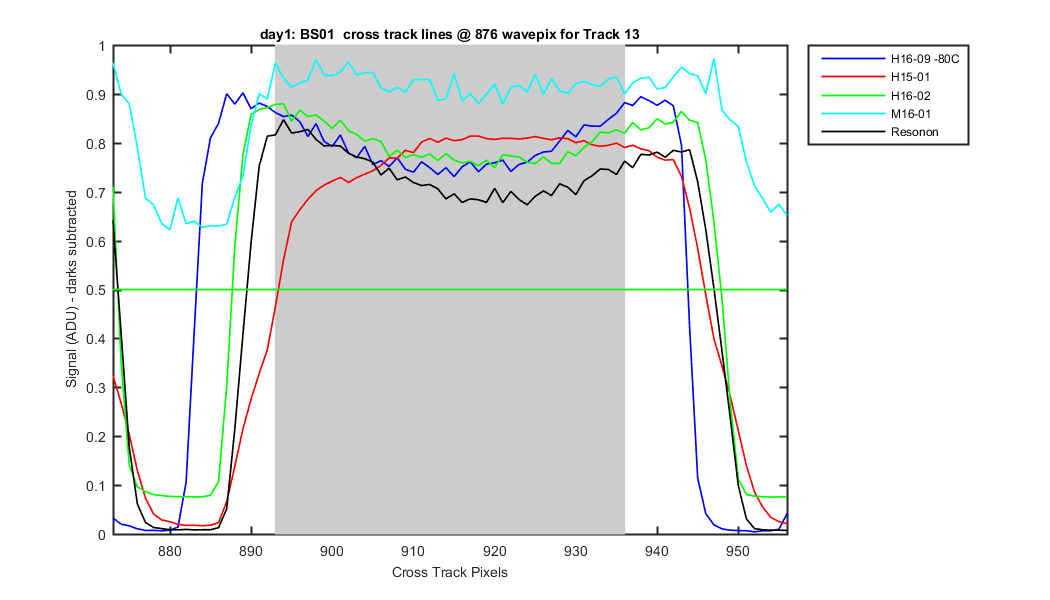

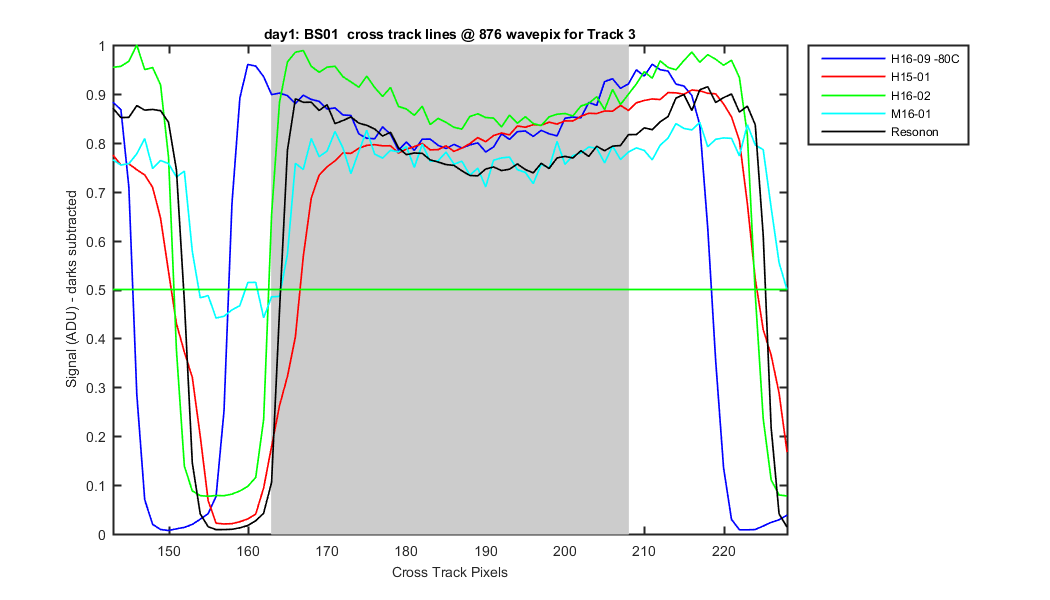

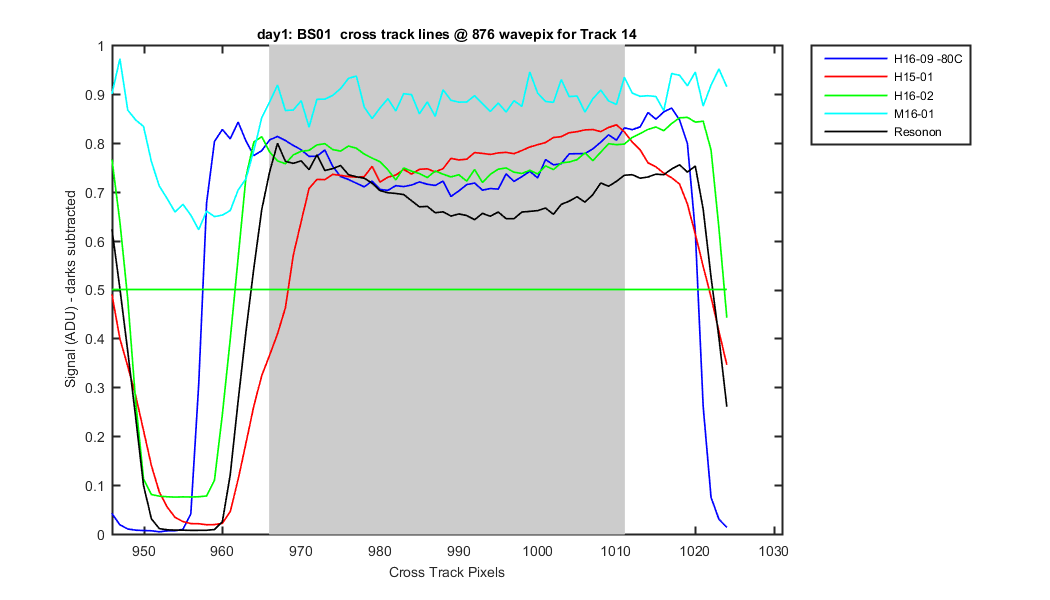

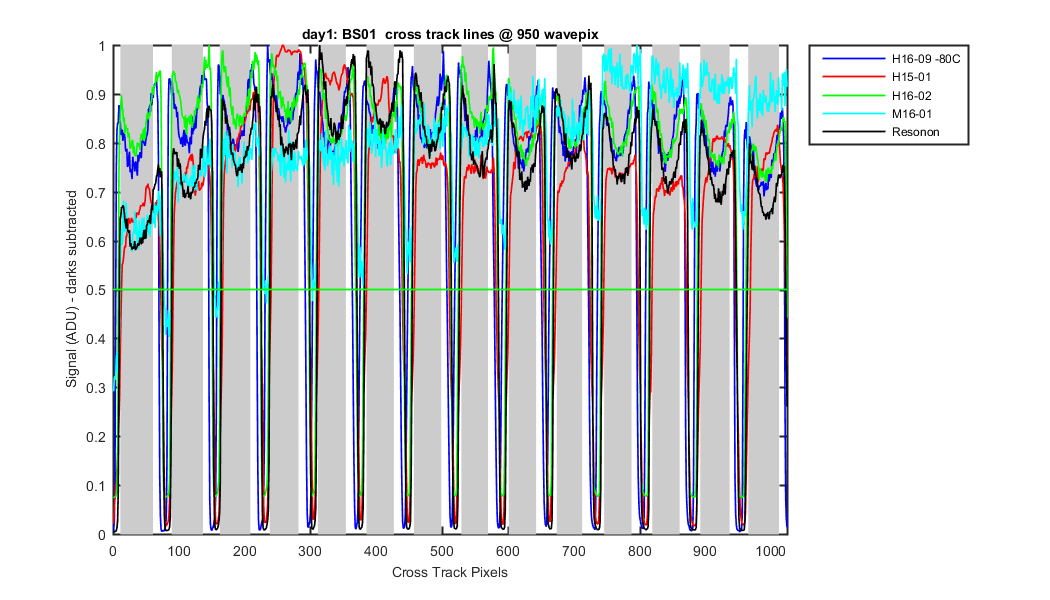

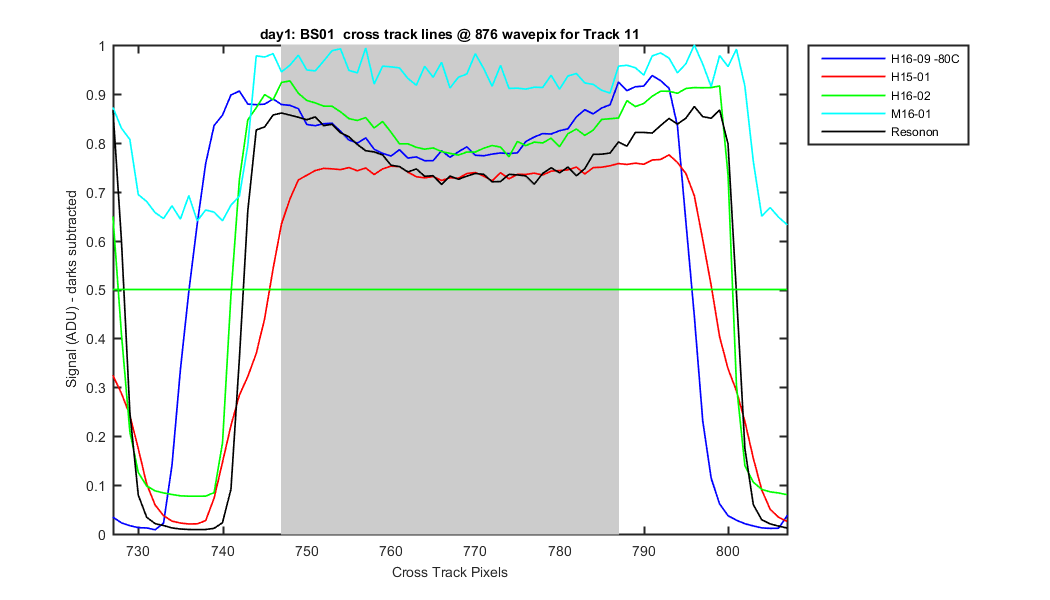

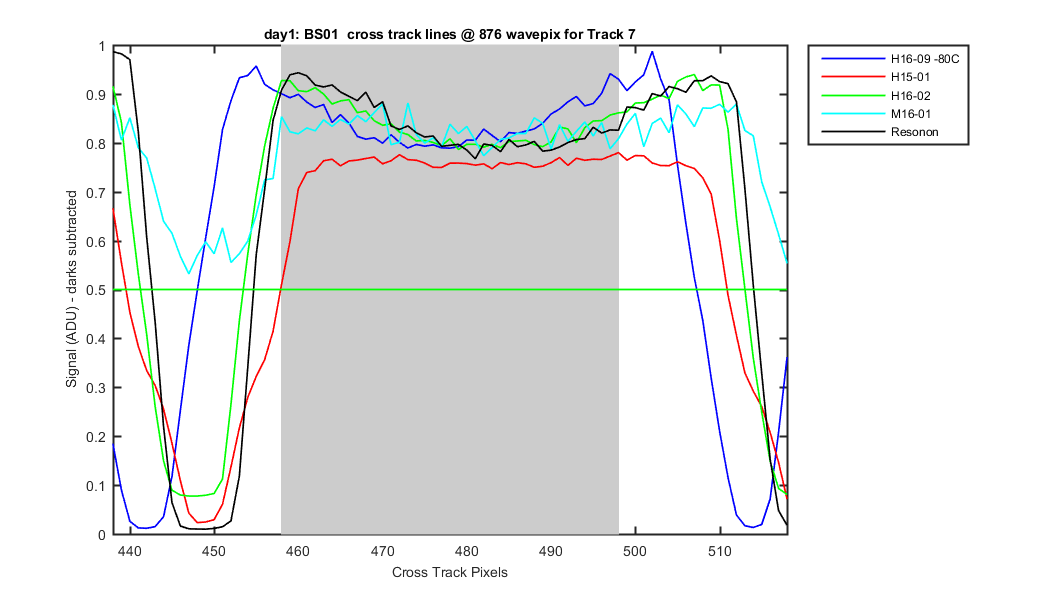

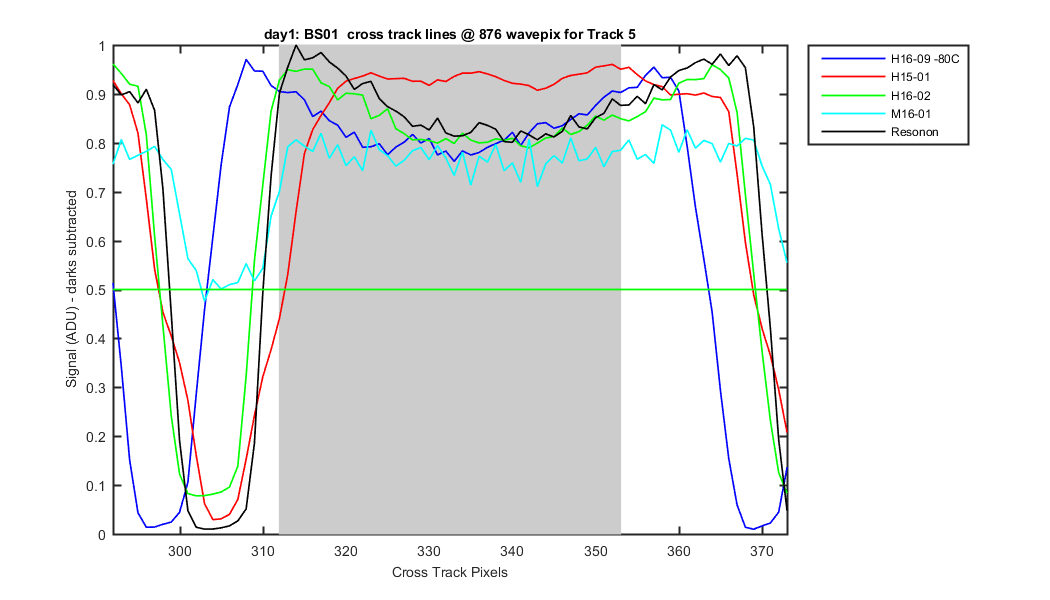

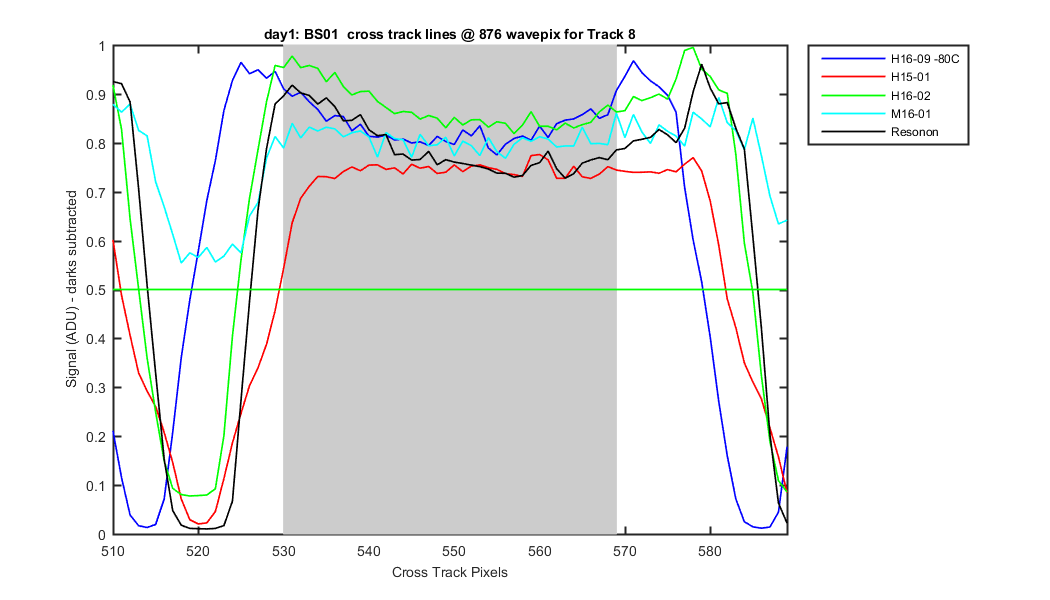

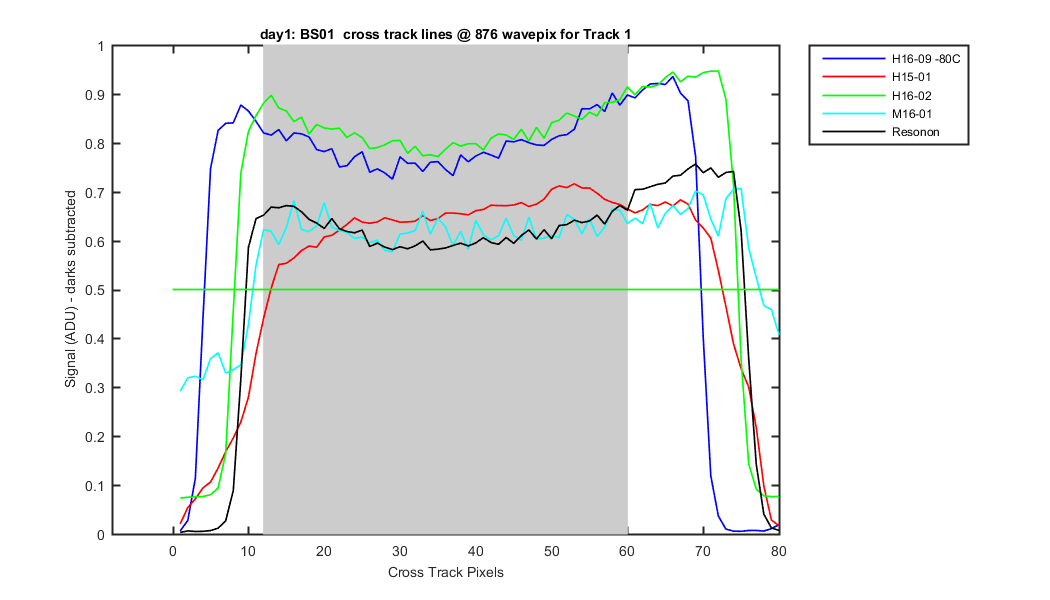

Mike took the first set of BS01 data since the BS01 was shipped from Miami to Resonon and Resonon to Hawaii. The graphs below compare the Resonon Lamps/laser/solar data to the Lamp data Mike took in Hawaii to see how much the tracks moved. For the Hawaii-2016-09 data set I used file 12 which was at -80C The spec was realigned at Resonon which will is likely to have changed the track definitions. So the changes from the last Miami -> Resonon -> Hawaii is not moviment caused by shipping.

Figure 1


Figure 2


Figure 3


Figure 4


Figure 5


Figure 6


Figure 7


Figure 8


Figure 9


Figure 10


Figure 11


Figure 12


Figure 13


Figure 14


Figure 15


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2016-09\BS01data\day01
Date: 16-Sep-2016 14:39:20
Created from plt_chktrkmovement_day01_(1)
