plt_darks_day5_ - BS01

REVISION DATE: 13-Dec-2016 15:18:37

Mike collected background and dark scans (where "dark" is a SOLIS "signal" scan with the lights out, and the SOLIS "background" does not fire the shutter...) at 0.1 to 60 sec exposure time to look for any possible sine-wave noise. These data are a repeat for the day 4 darks but with the Gain set to 2 (what is used in MOBY261 data) and not Gain 4 as in th day 4 data.

The idea where was to see if the noise we are seeing on the MOBY261 in-water darks is from the MOBY power system. We already checked the program to see if it cause the problem and it looked good. So this the the check of the MOBY power system but this time with Gain 2. /

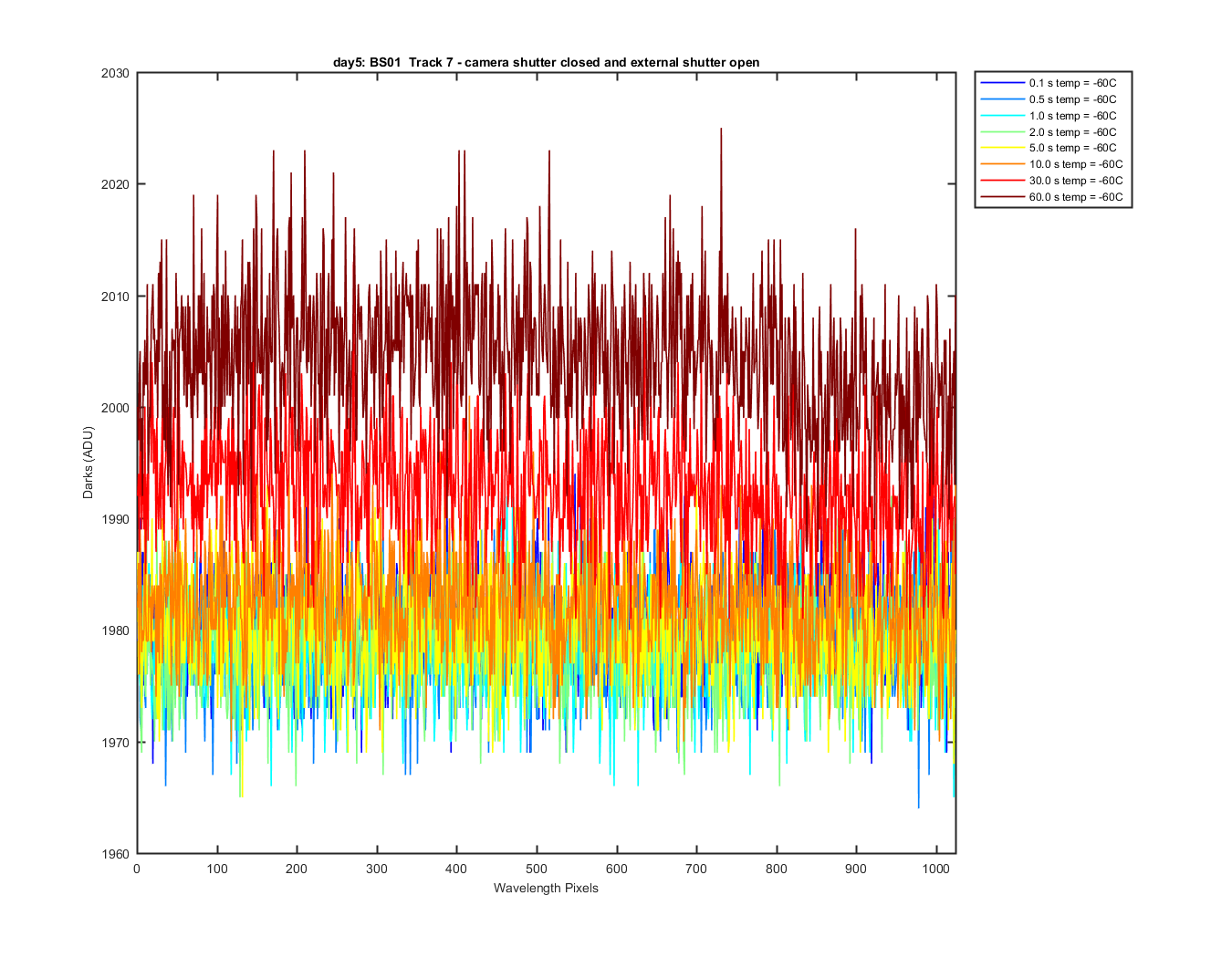

Track 7 all the dark files.

Figure 1

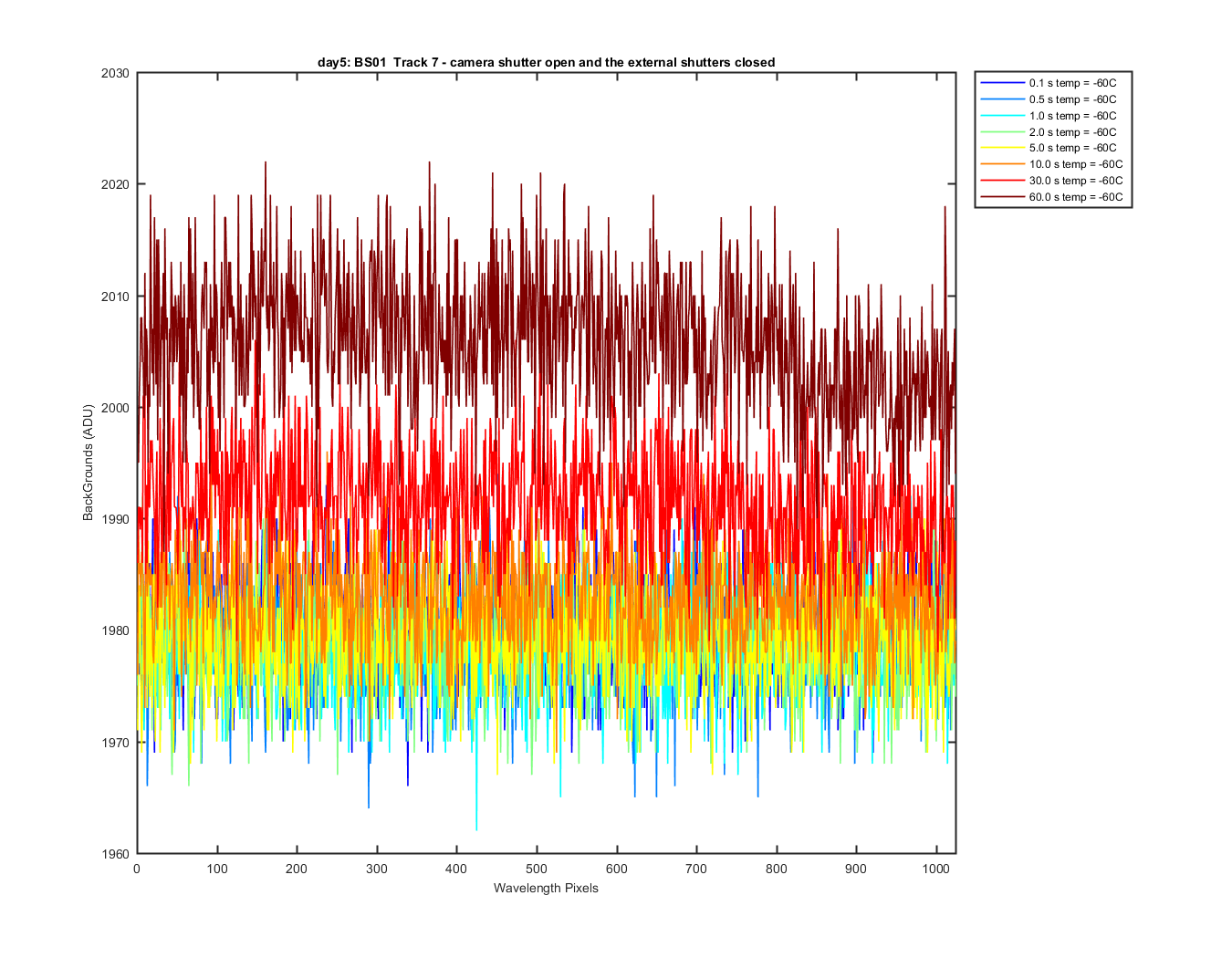

Track 7 all the background files.

Figure 2

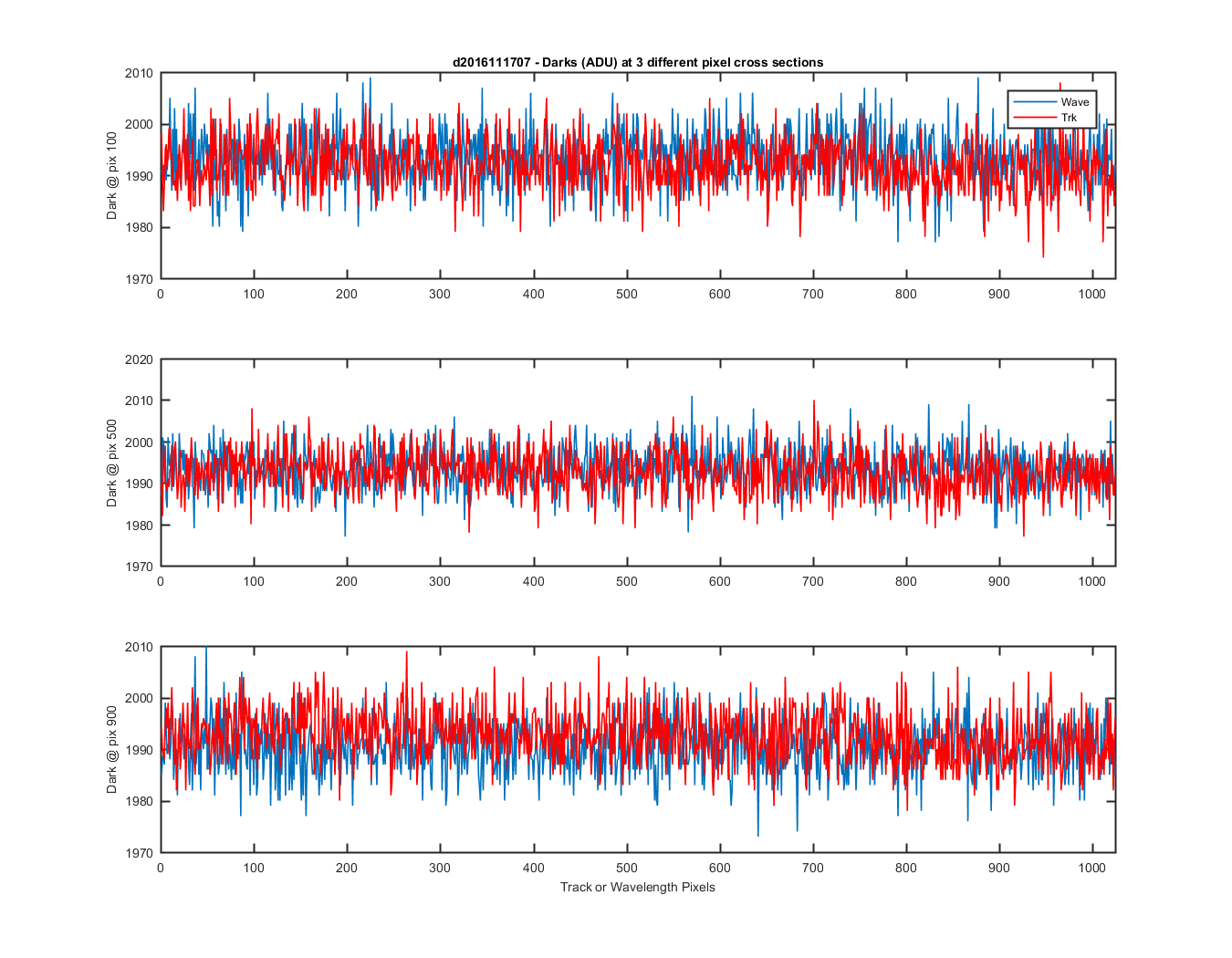

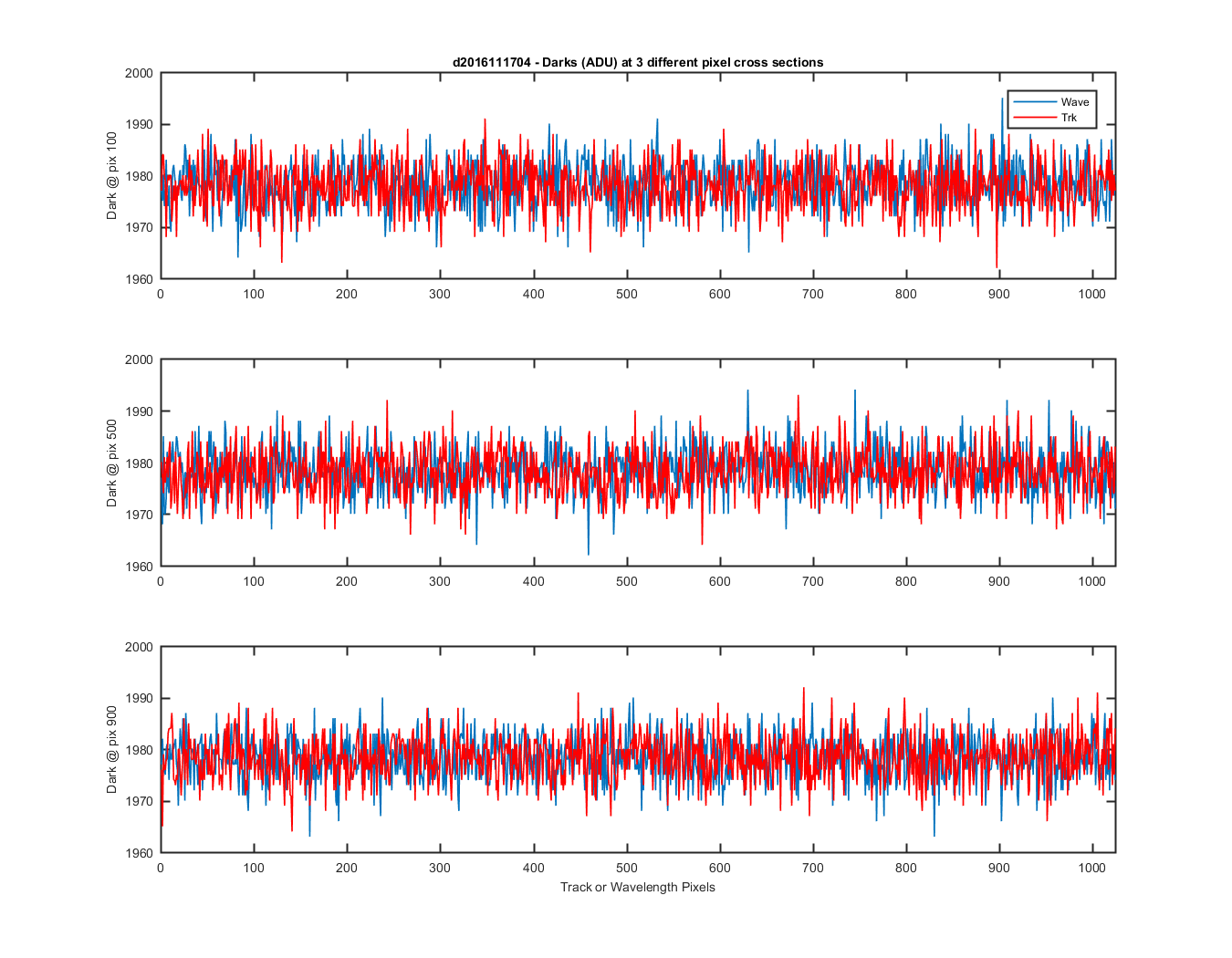

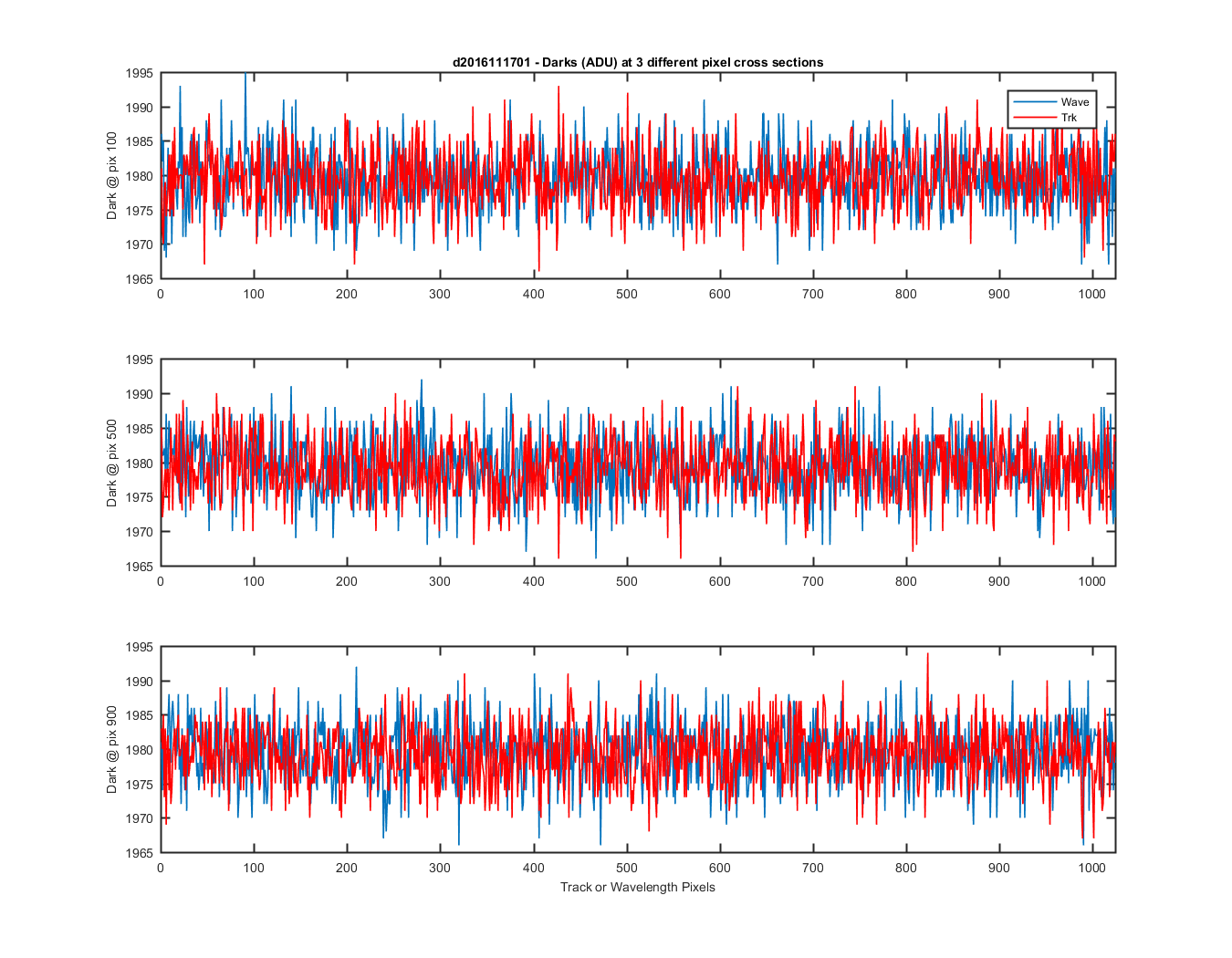

Darks showing for pixel x in the track and wavelength direction (every third dark file)

Figure 3


Figure 4


Figure 5

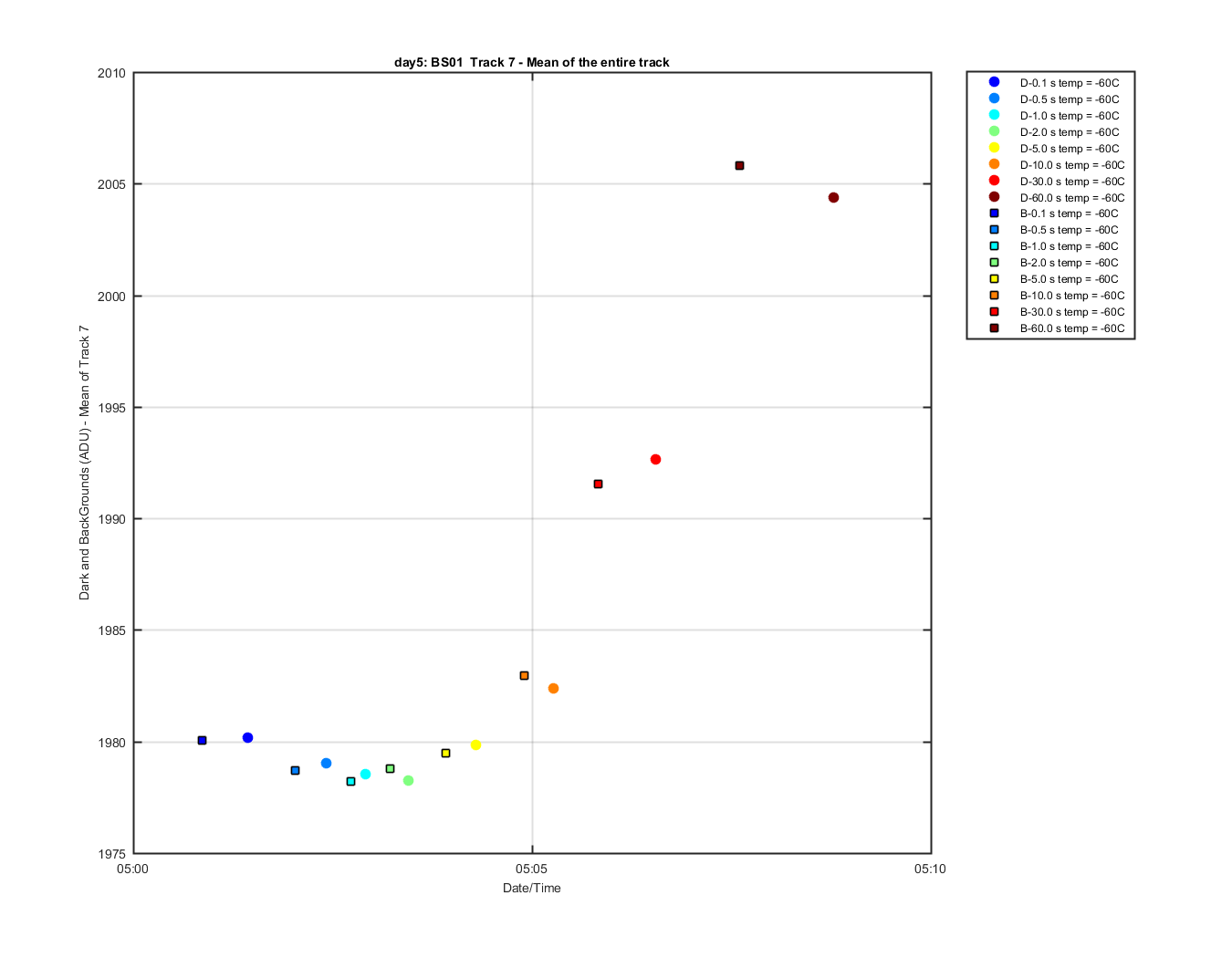

track 7 mean for every third file against time

Figure 6

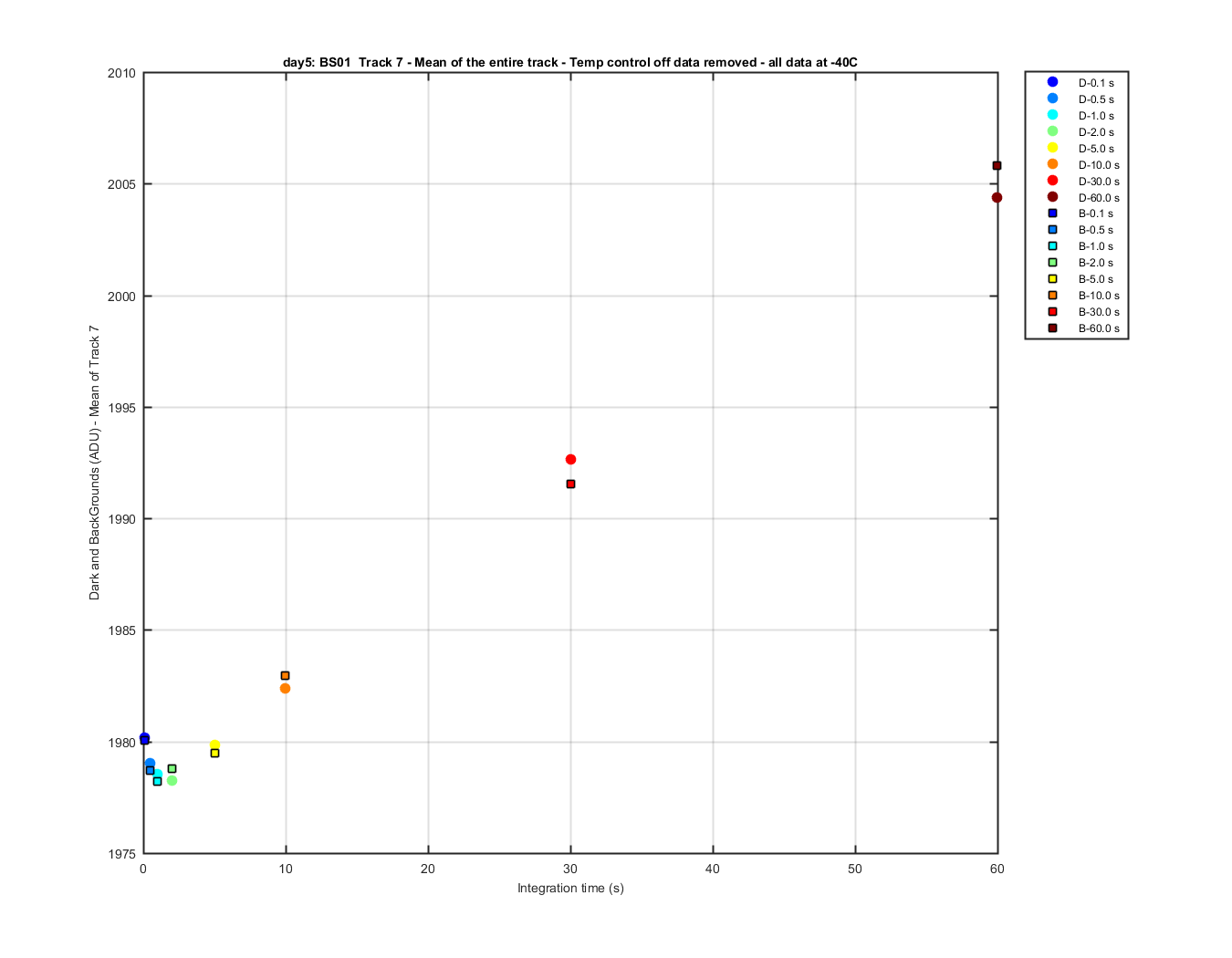

The same data verses int time

Figure 7

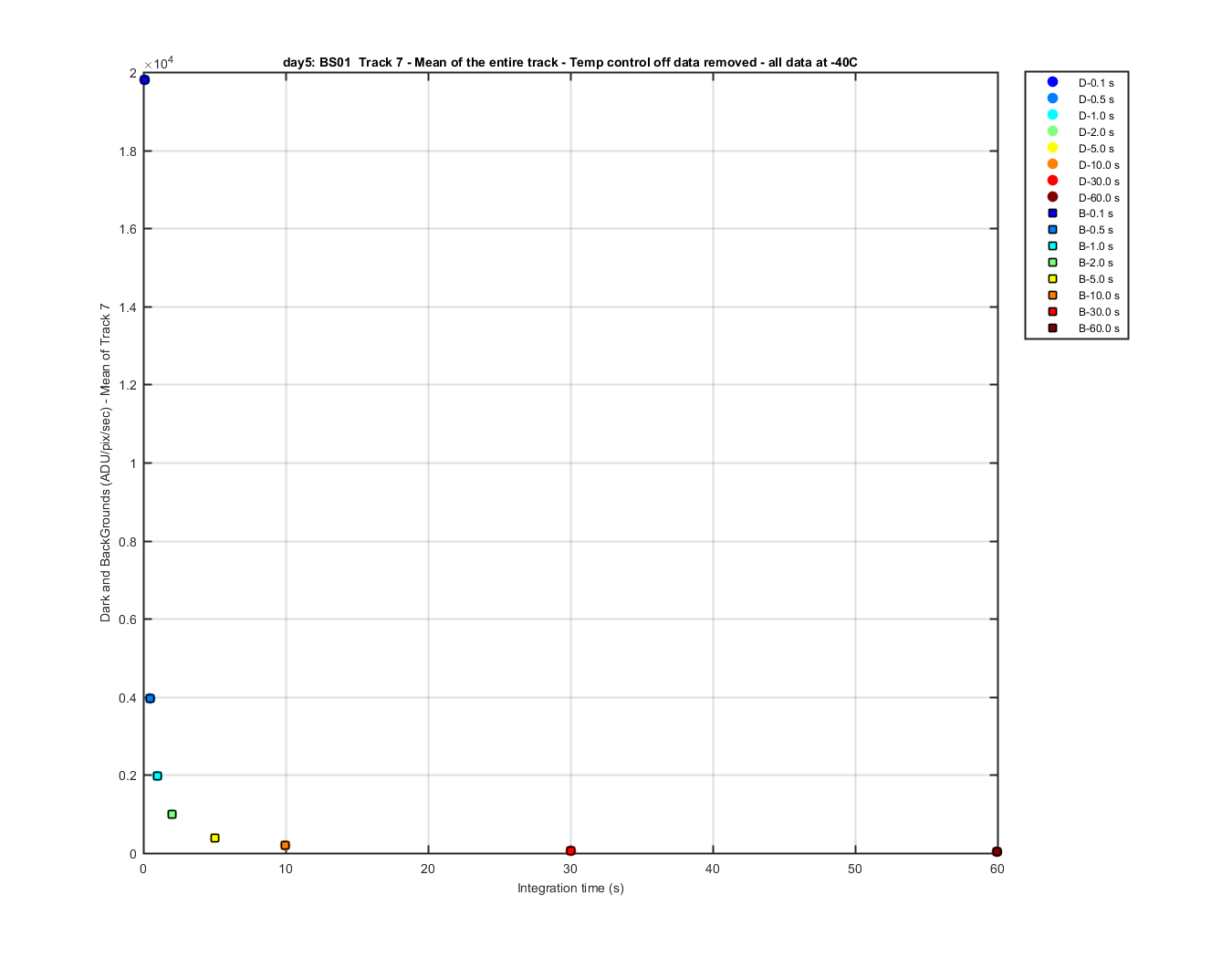

The same data divided by int time

Figure 8

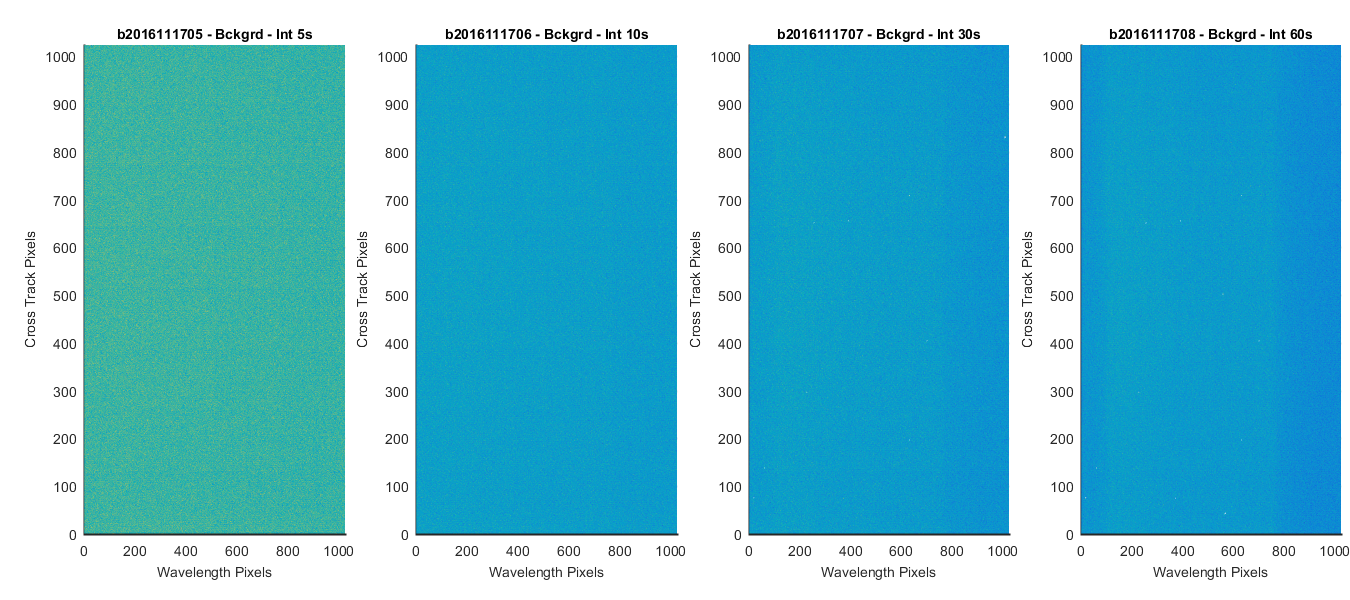

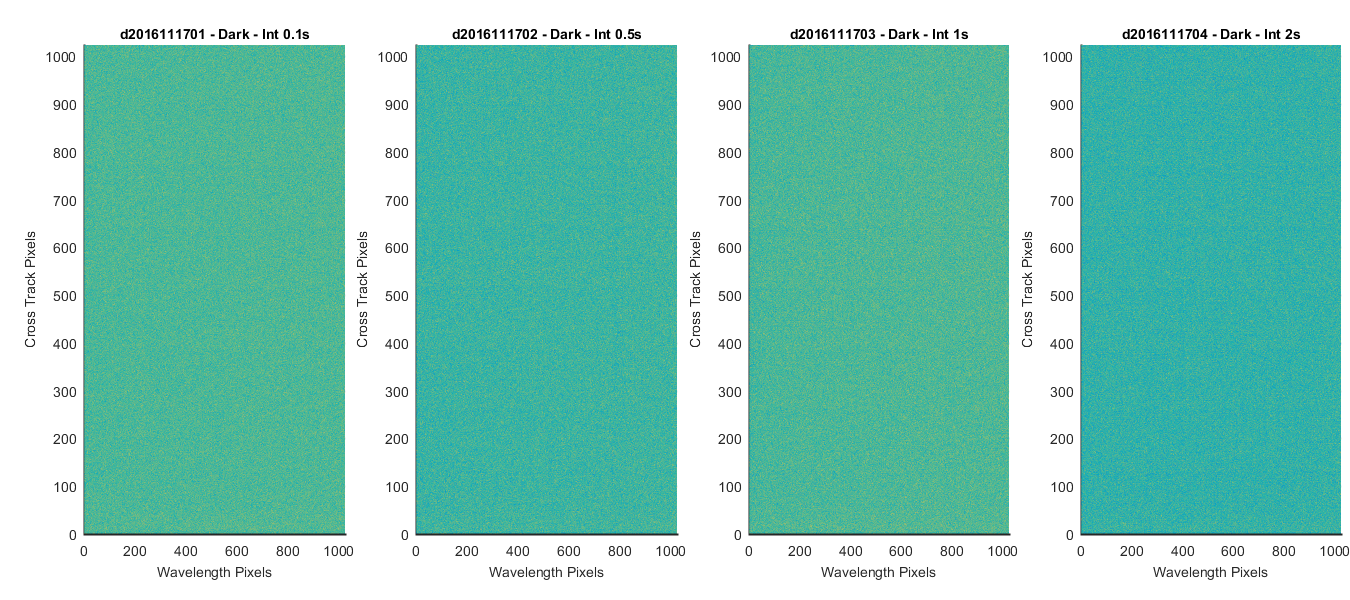

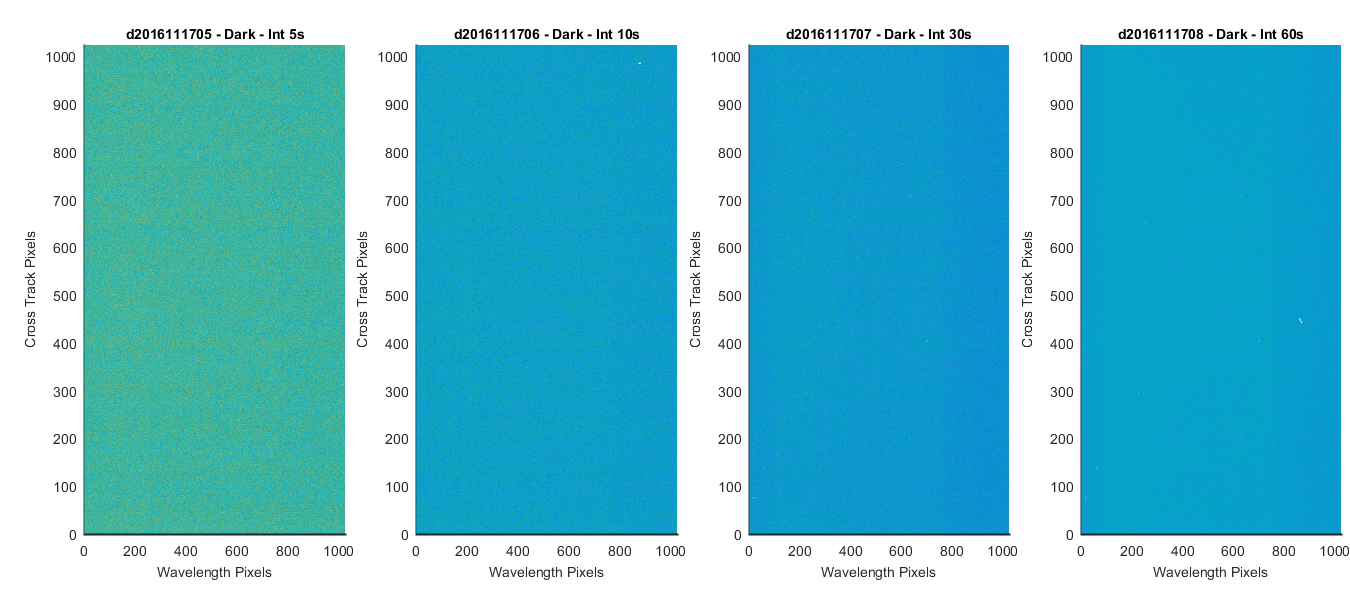

Images of the dark and background repeats for this data set. All the darks had the temp control flag on and temp set to -60C.

Figure 1


Figure 2


Figure 3


Figure 4


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2016-09\BS01data\day05
Date: 13-Dec-2016 15:18:37
Created from plt_darks_day5_(1)
