plt_es_rsp_ - BS01

REVISION DATE: 31-Oct-2017 11:48:01

This is Mikes Es system response data for Es on the BS01 after the Es Heads are on, shutters in place and the iris adjusted.

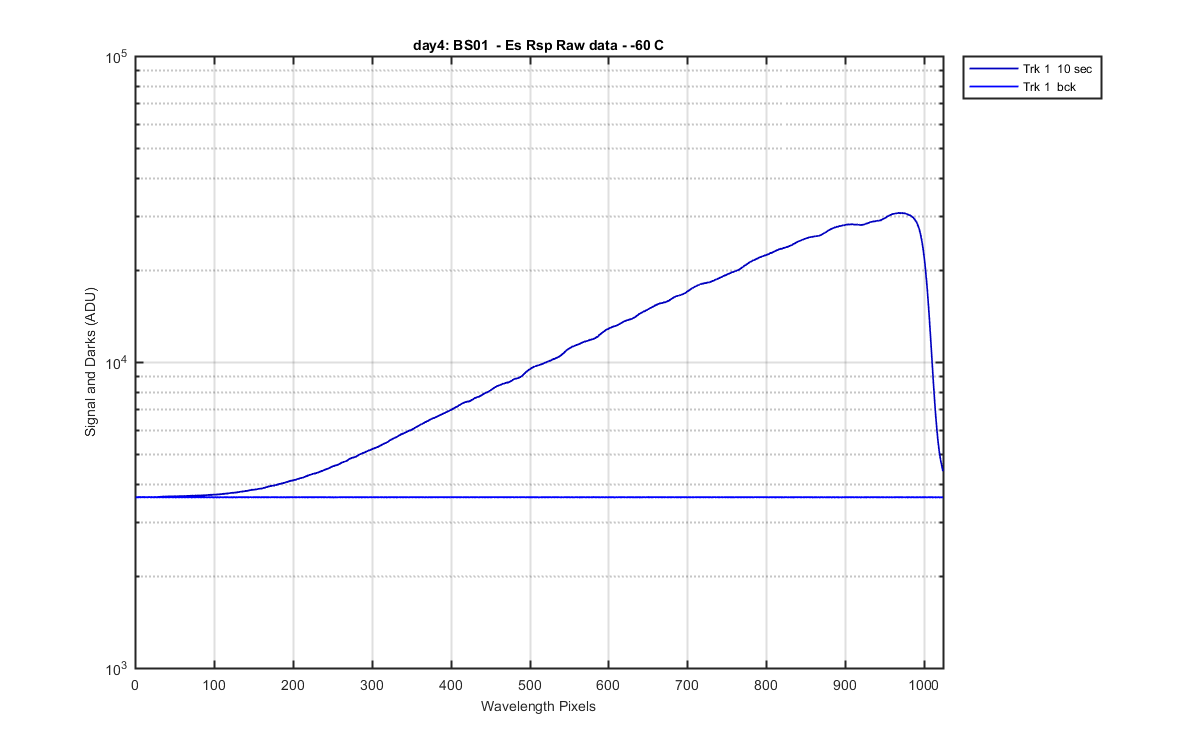

5 lites and 5 Backgrounds meaned for Es Track

Figure 1

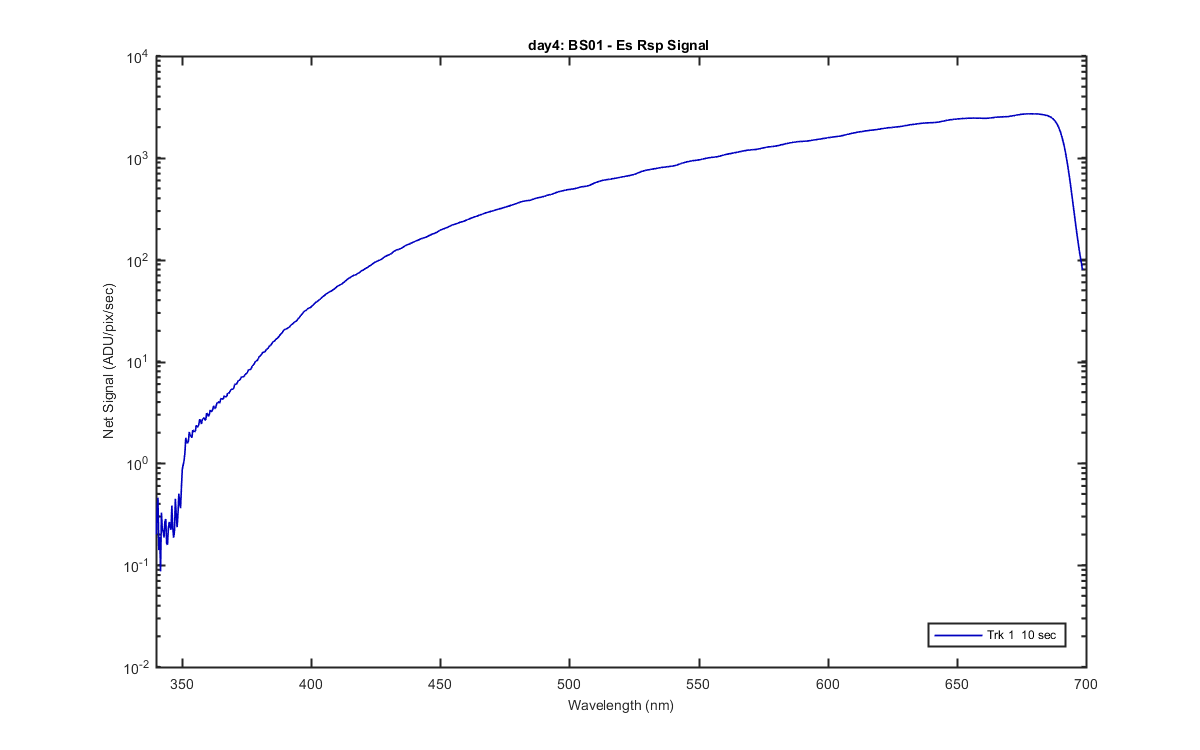

Net signal (ADU/pix/sec) - dark subtracted

Figure 2

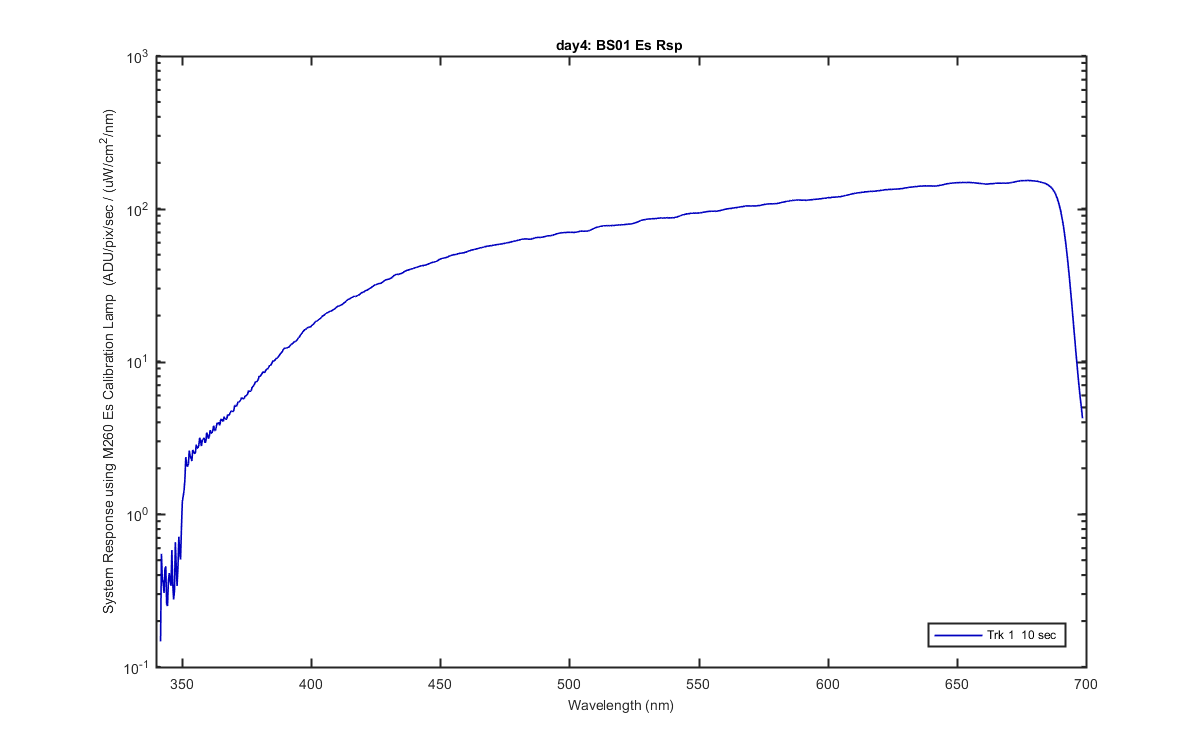

Net signals divided by the MOBY260 Es cal lamp data (interpolated to BS01 wavelengths)

Figure 3

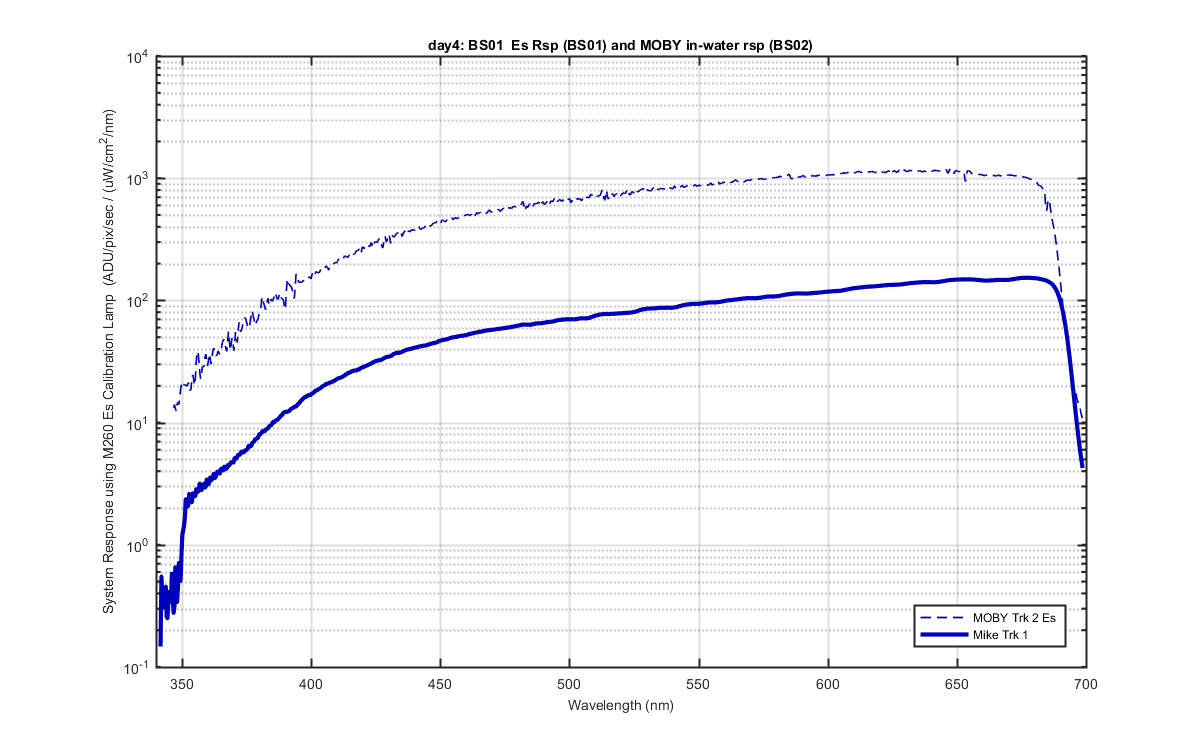

Comparing Mikes BS01 system response to the BS02 "in-water" system response from MOBY261.

Figure 4

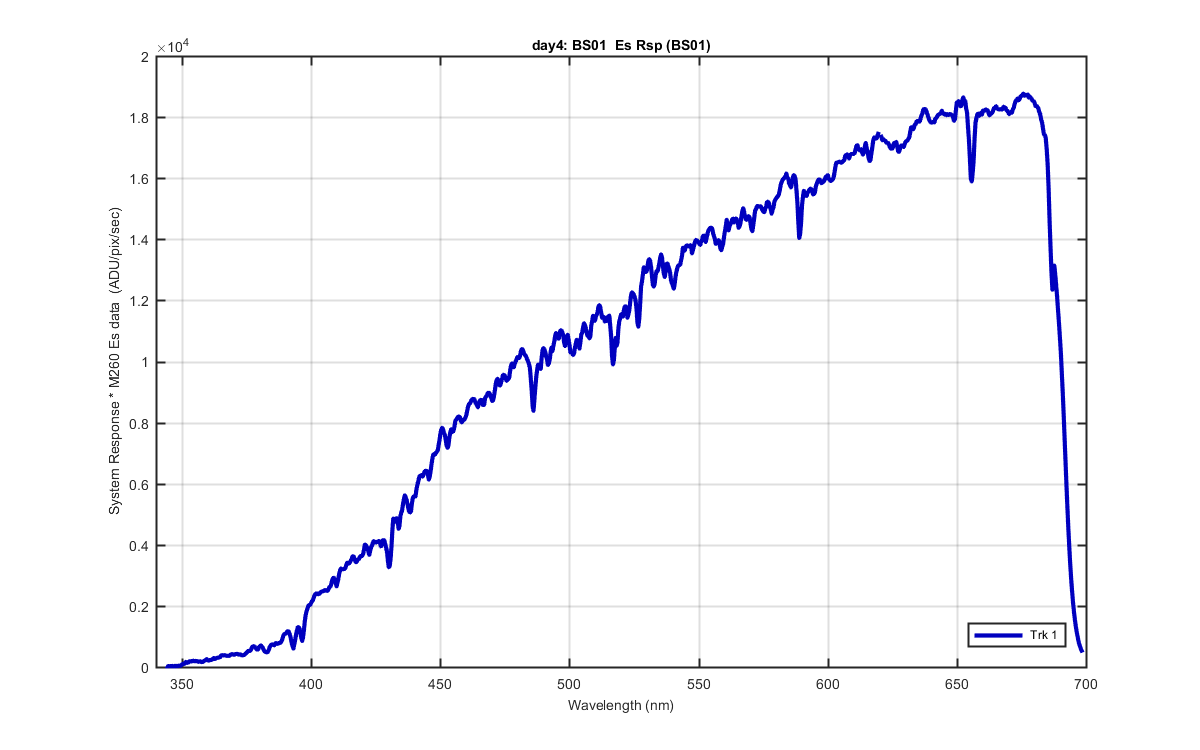

Trying to figure out exposure times, not sure I am thinking about this correctly. But I multiplied Mikes rough response by a in-water (good) M260 Es data set and got the below graph for Es. I think the units are now ADU/pix/sec. So what int time will get the data to 50K. The below table shows the max int time for the Es track, if I did my math right. Help please Mike.

Trk  Max ADU   Exposure to get 50K ADU
 1   21087     2.37

Figure 5


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2017-01\BS01data\day04
Date: 31-Oct-2017 11:48:01
Created from plt_es_rsp_(1)
