plt_esrsp_repeat_ - BS01

REVISION DATE: 31-Oct-2017 11:48:07

There were 5x sig,bac pairs of FEL scans, then I disconnected the end-block - where the bottom of the BS fibers terminate - then re-attached said end-block, and collected another 5x sig,bac pairs. The idea was to see if the end-block attachment is repeatable, because that is what will happen tomorrow.

Below are the graphs showing the difference between the two data sets. Looks pretty good.

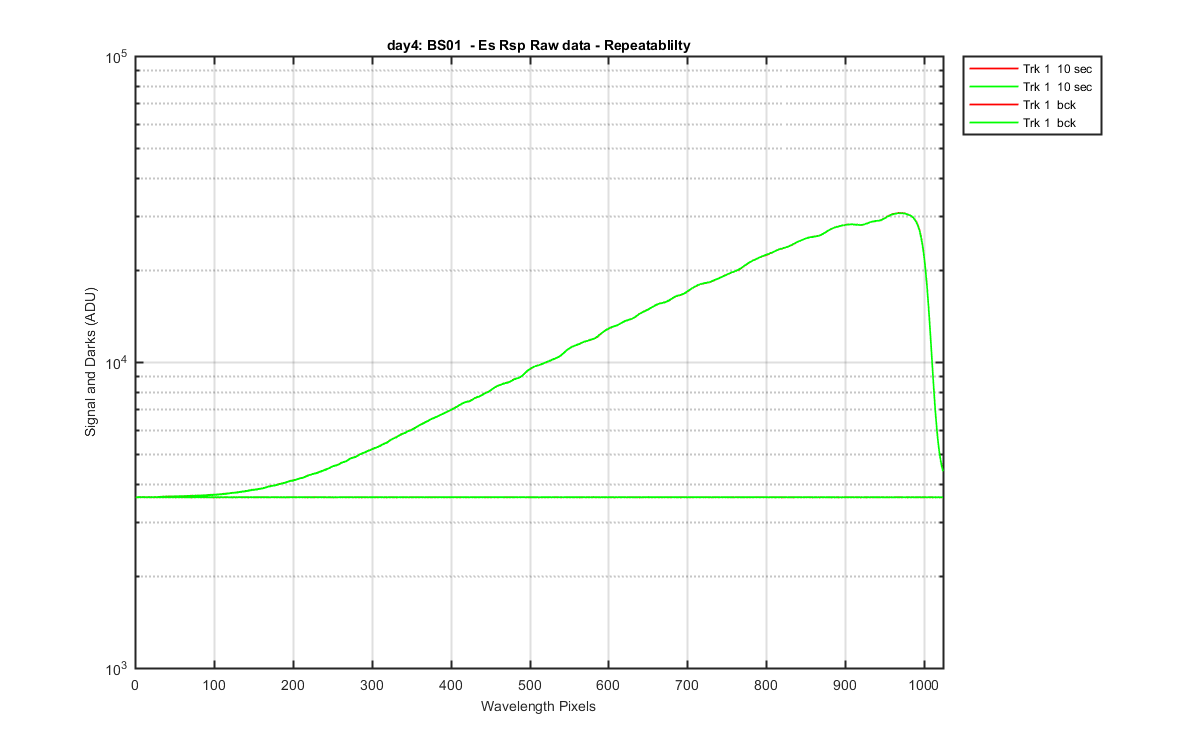

Figure 1

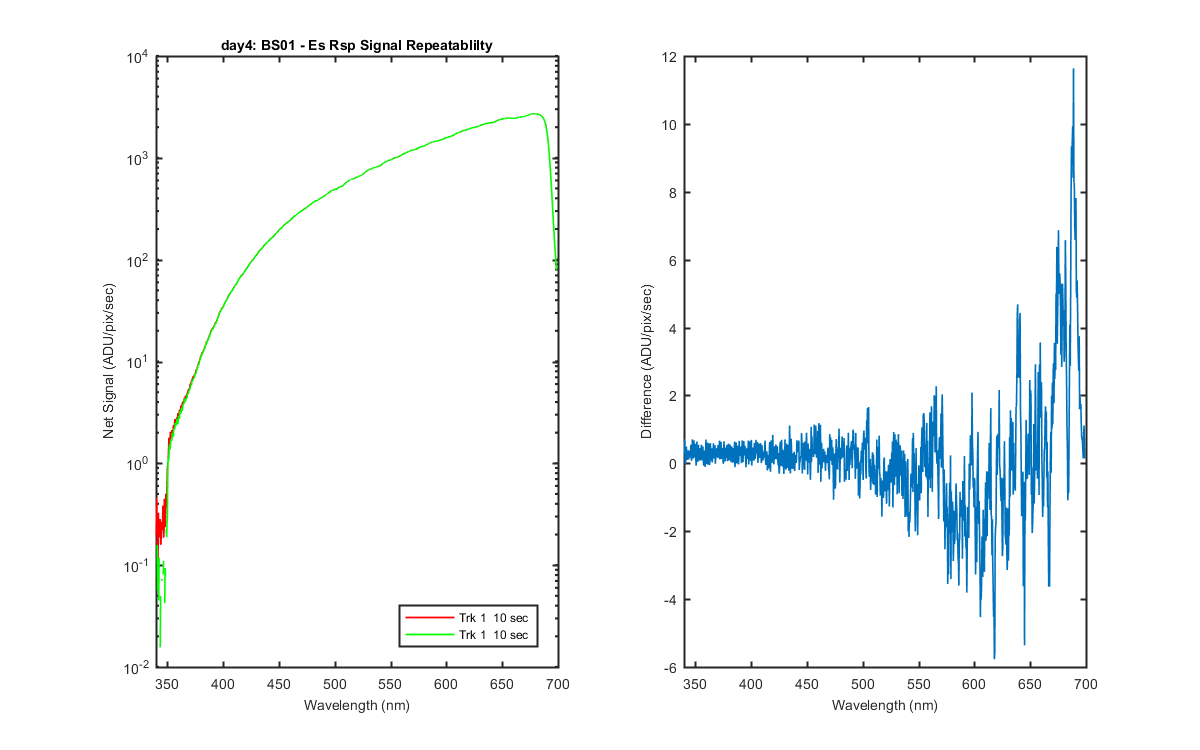

Figure 2

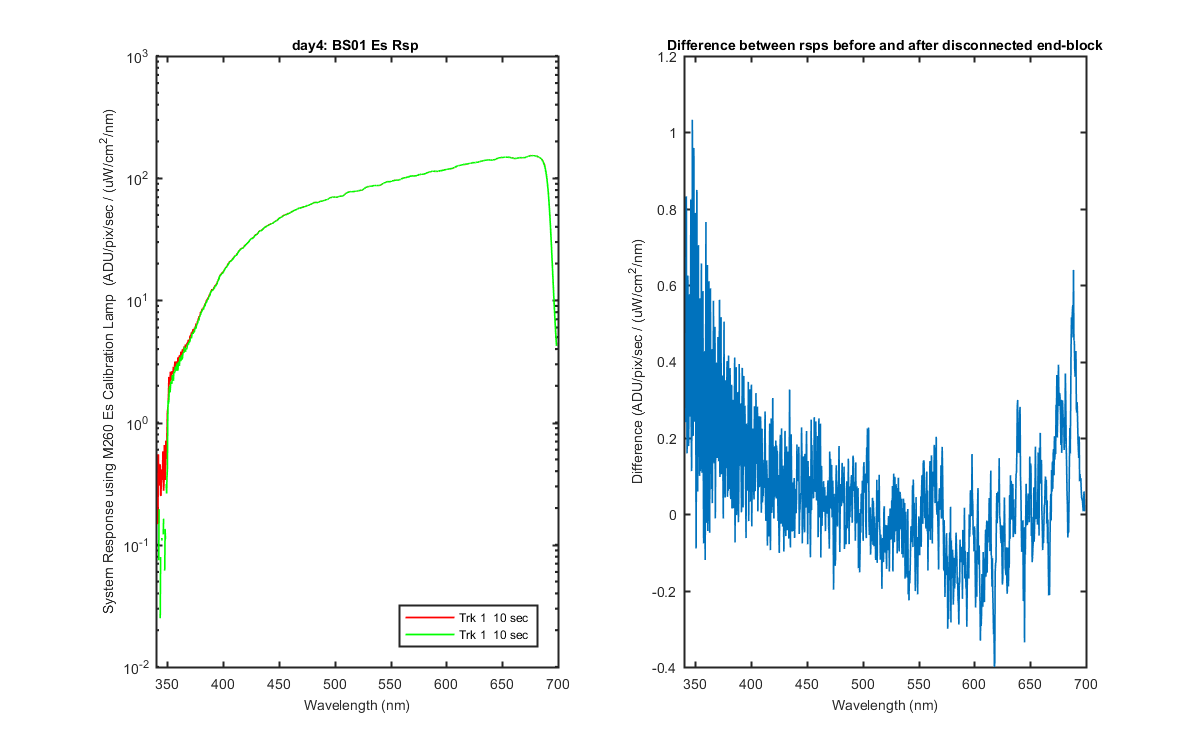

Figure 3

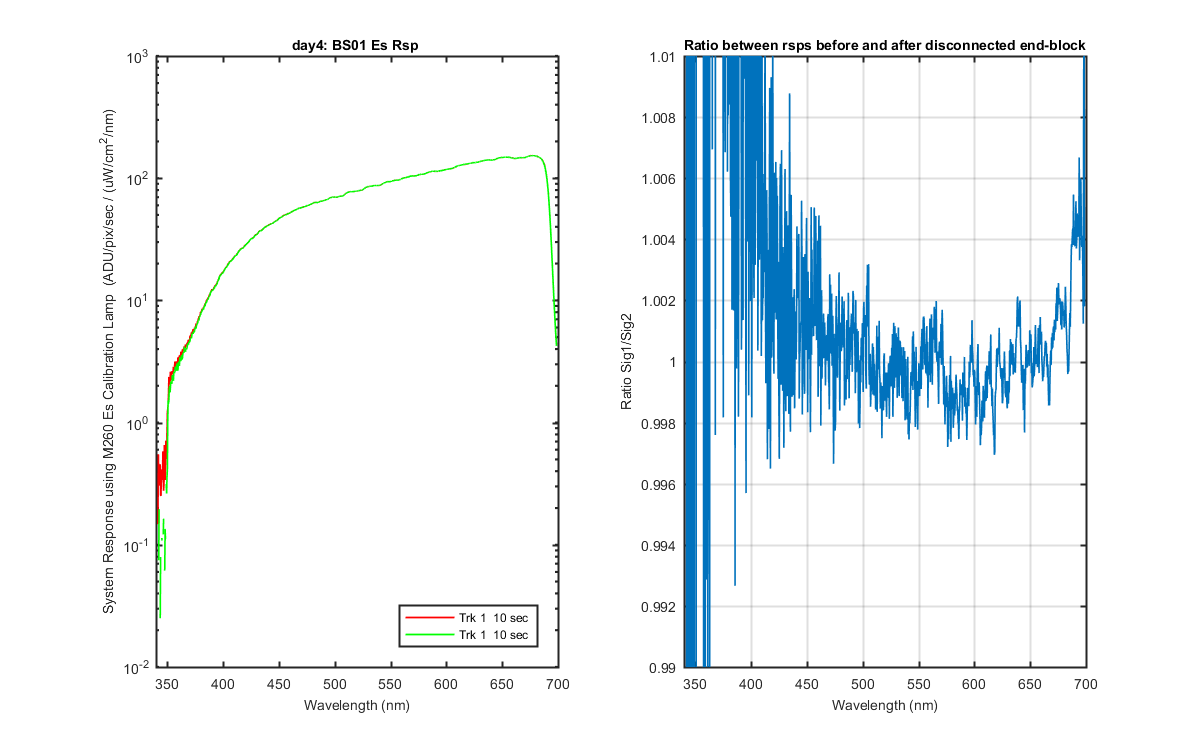

Figure 4


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2017-01\BS01data\day04
Date: 31-Oct-2017 11:48:07
Created from plt_esrsp_repeat_(1)
