plt_rough_rsp_ - BS01

REVISION DATE: 31-Oct-2017 11:46:26

This is Mikes Rough system response data for LuTop, LuMid and LuBot on the BS01 after the Lu Heads are on, shutters in place and the iris adjusted.

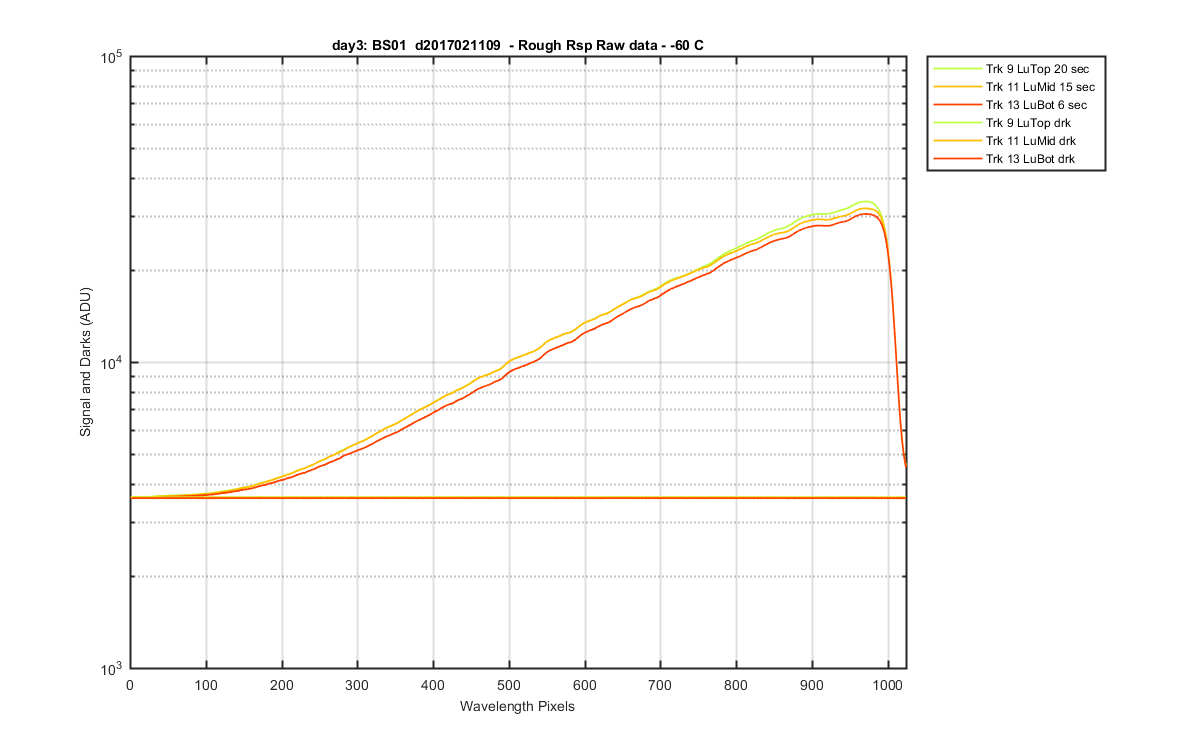

5 lites and 3 darks meaned for each Lu Track

Figure 1

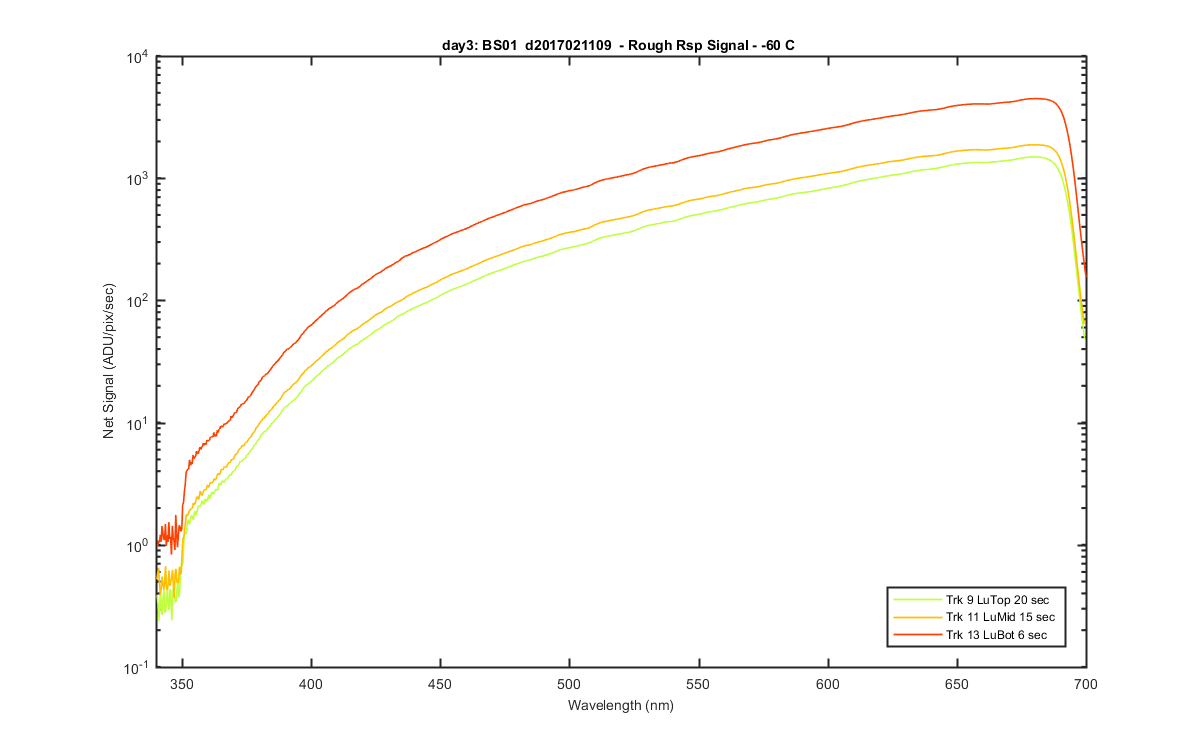

Net signal (ADU/pix/sec) - dark subtracted

Figure 2

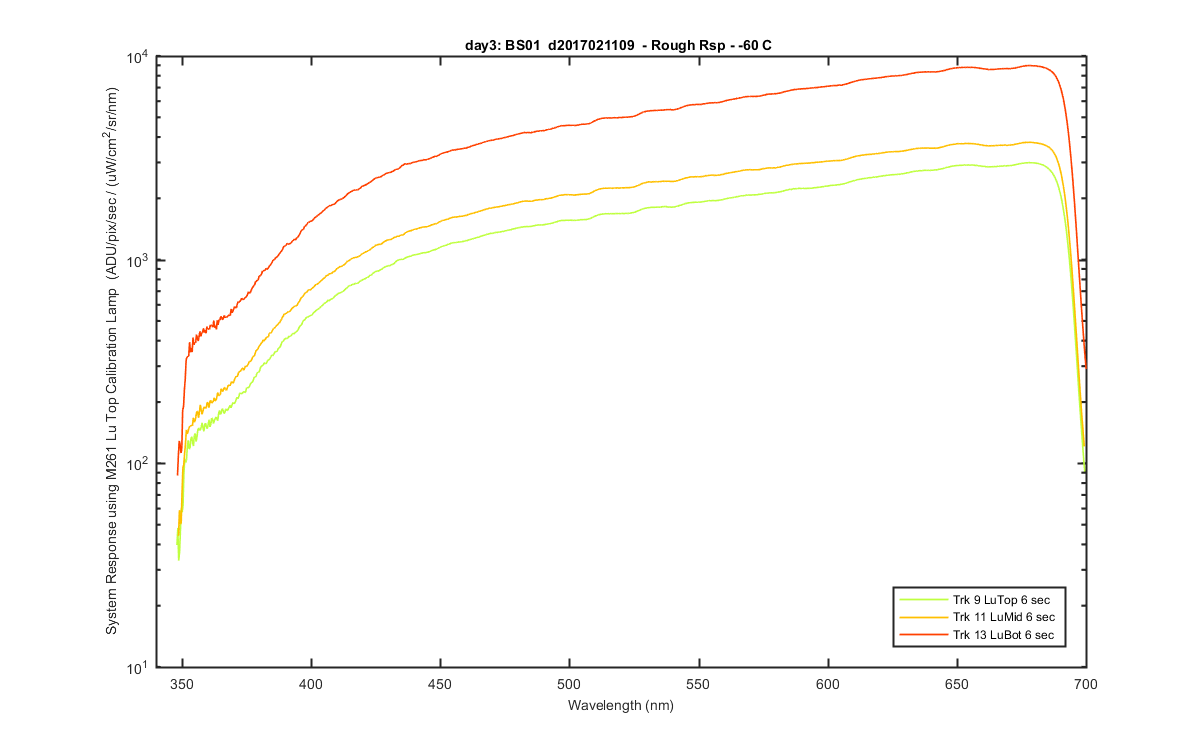

Net signals divided by the MOBY261 LuTop cal lamp data (interpolated to BS01 wavelengths)

Figure 3

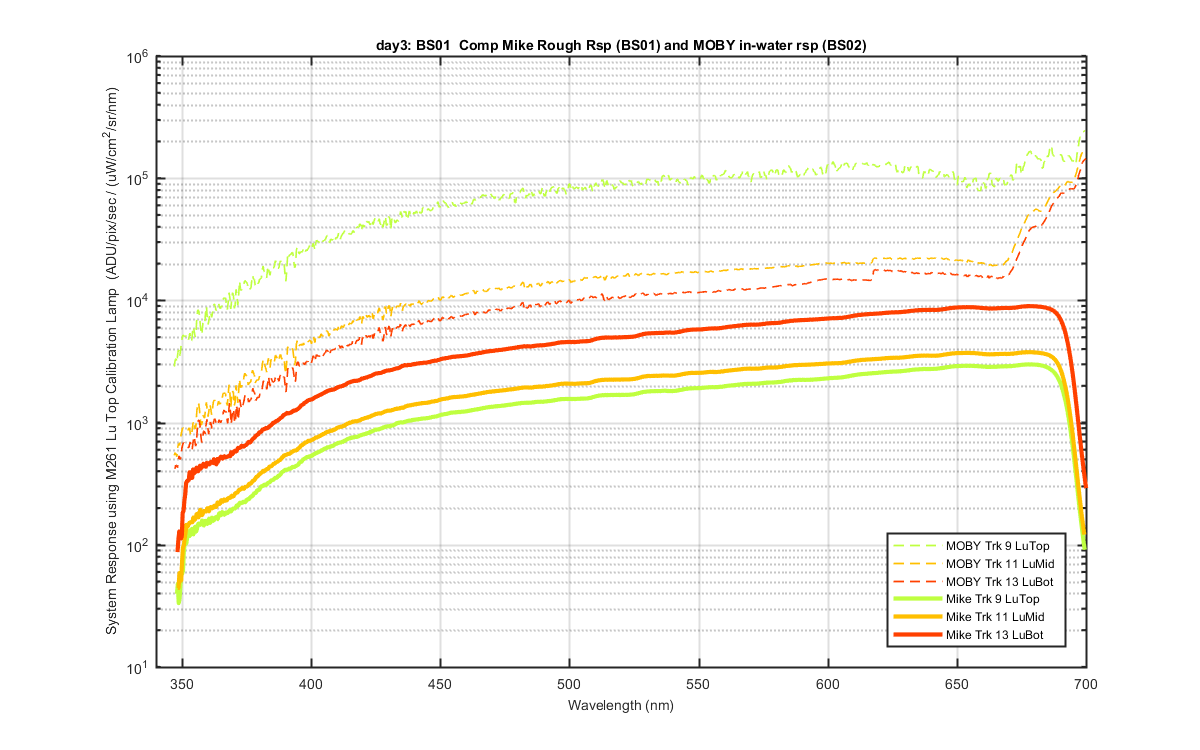

Comparing Mikes BS01 system response to the BS02 "in-water" system response from MOBY261.

Figure 4

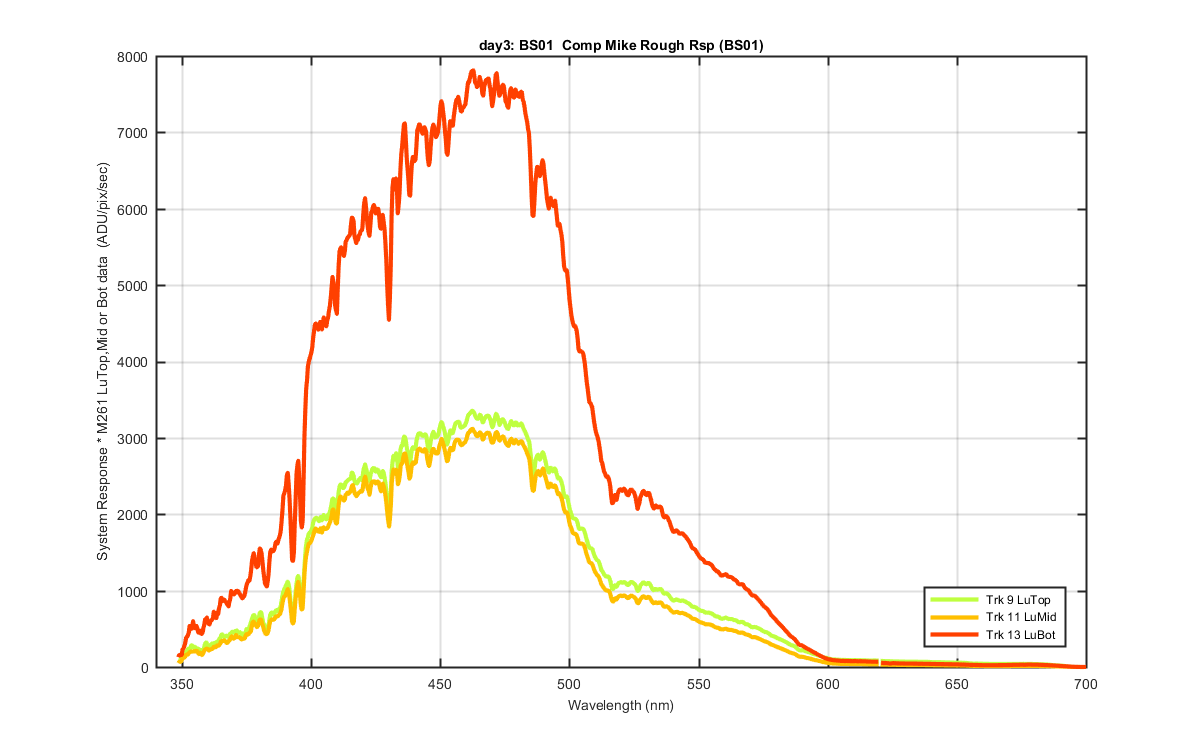

Trying to figure out exposure times, not sure I am thinking about this correctly. But I multiplied Mikes rough response by a in-water (good) LuTop, Mid or Bot data set and got the below graph for each Track. I think the units are now ADU/pix/sec. So what int time will get the data to 50K. The below table shows the max int time for each Lu track, if I did my math right. Help please Mike.

Trk  Max ADU   Exposure to get 50K ADU
 9   4232      11.8
11   4012      12.4
13   10507     4.7

Figure 5


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2017-01\BS01data\day03
Date: 31-Oct-2017 11:46:26
Created from plt_rough_rsp_(1)
