pltlaser_day05_details_ - BS03

REVISION DATE: 04-Apr-2017 16:32:30

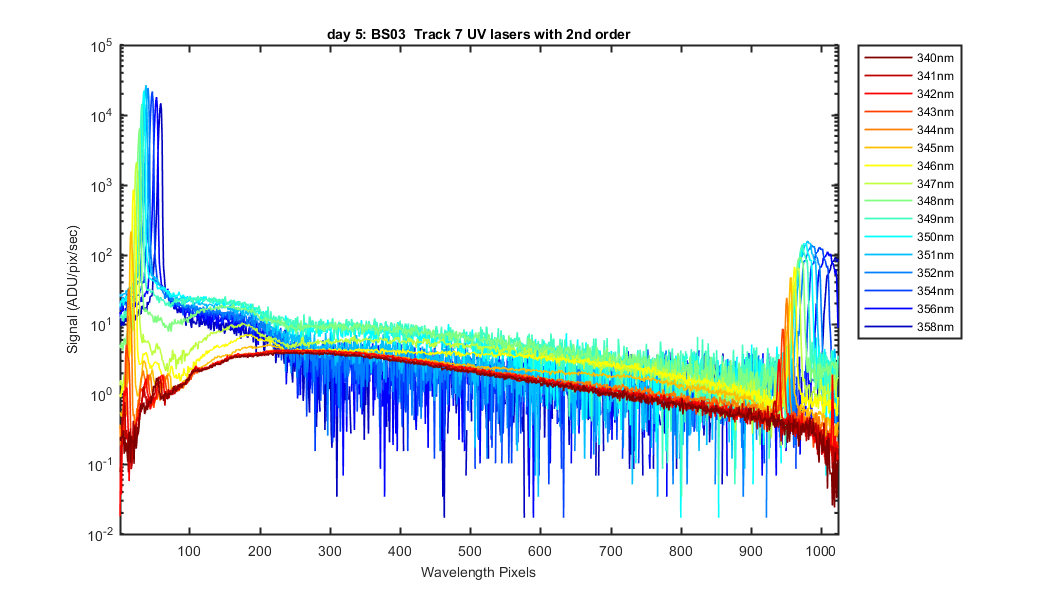

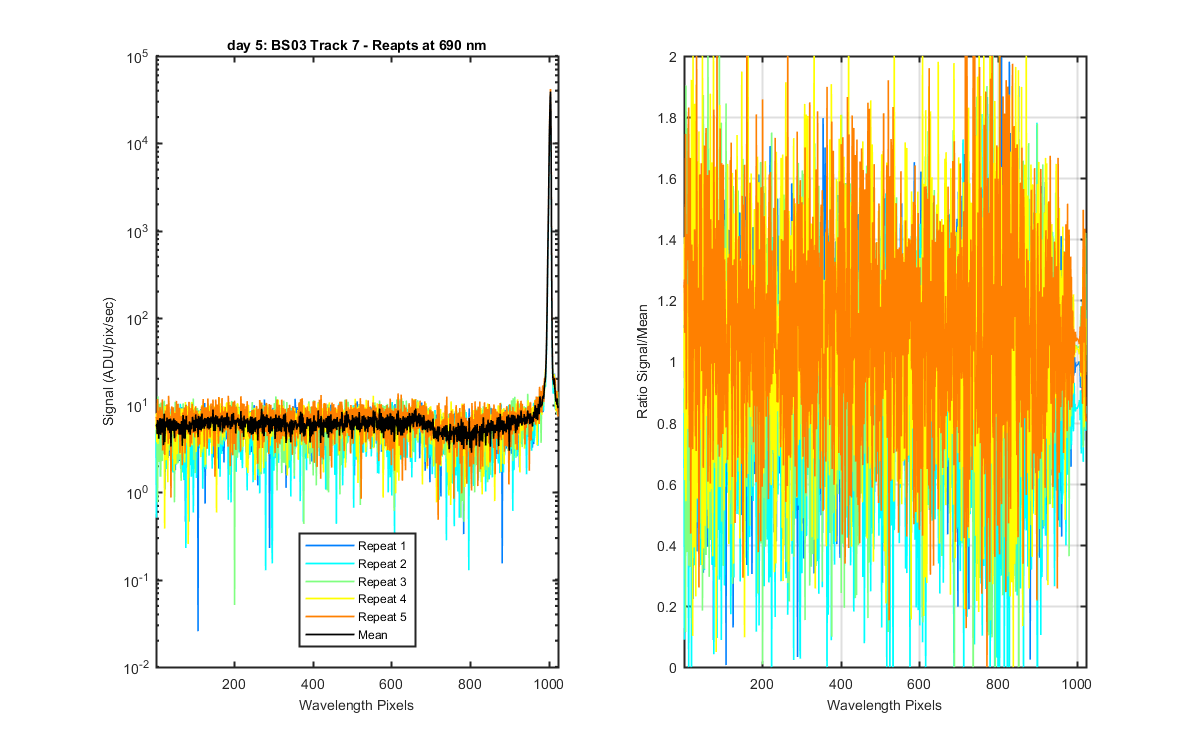

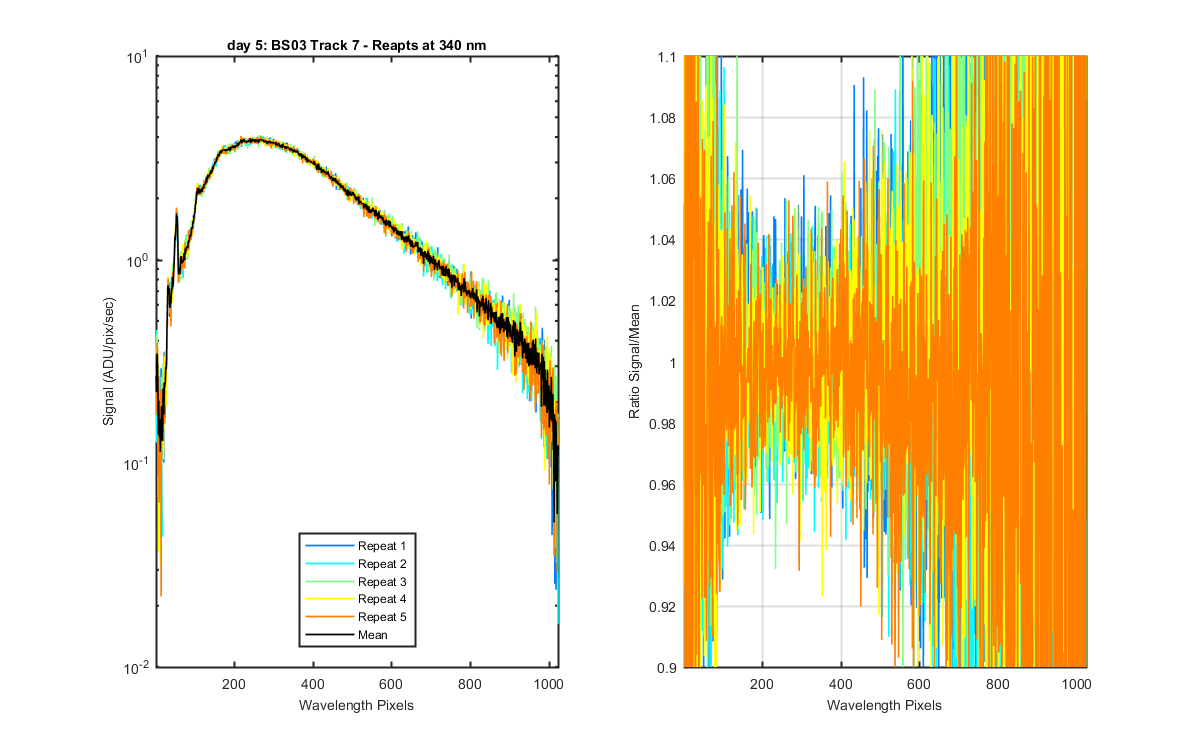

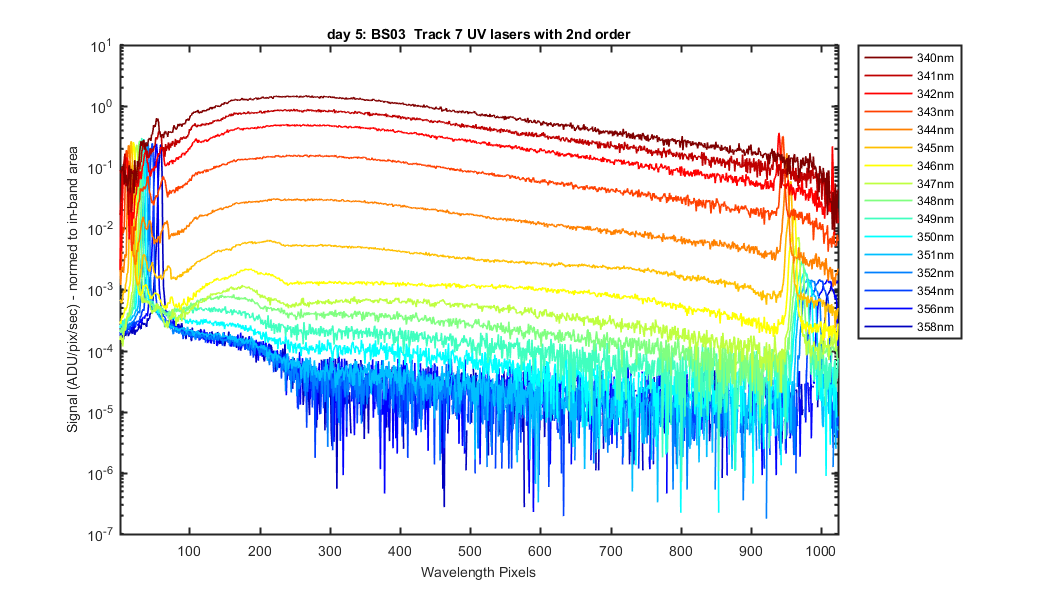

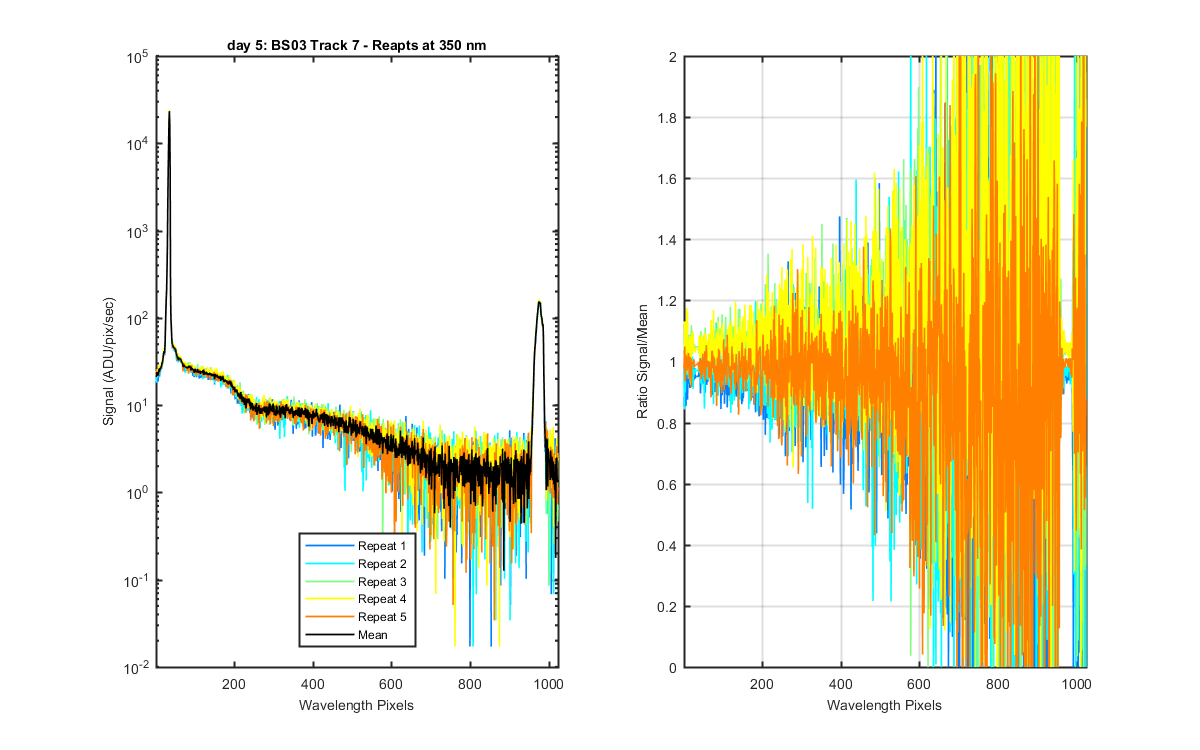

This shows the laser data collected by Mike on day 5. Data was collected with all tracks on. The first 4 figures shows the 5 repeats at the 4 different wavelengths, looks good. The last graphs shows the UV data with the second order alone and a graphs with the laser data divided by the in-band area.

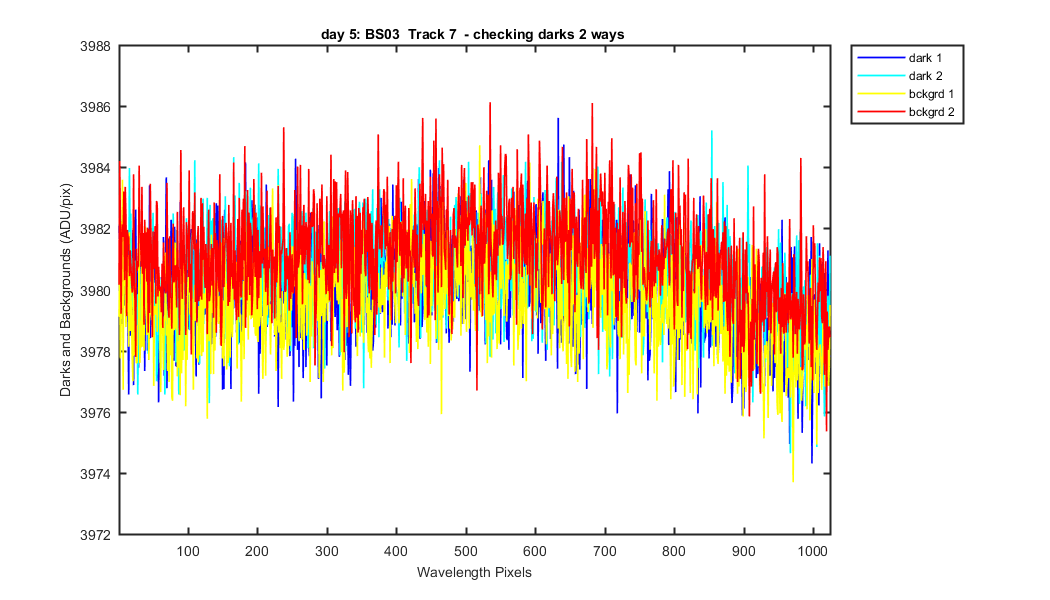

Mikes email on day 5 about the darks collected: I also collected 2x dark scans. The first was darkened by disconnecting the lasers FO from the sphere. The second was darkened by re-connecting the FO @ the sphere and setting the pump-laser to off. The difference between the two darks (and the first 5x sig,bac @ 340 nm) would be that drk #2 had the possibility that ambient light between the laser & the lasers FO coupler could possibly get into the sphere via the FO. I think/hope dark #2 is "dark".

Figure 1


Figure 2


Figure 3


Figure 4


Figure 5


Figure 6


Figure 7


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2017-02\BS03data\day05
Date: 04-Apr-2017 16:32:30
Created from pltlaser_day05_details_(1)
