BS03 - Saddle Shape

Saddle Shape - BS03

REVISION DATE: 06-Apr-2017 18:04:51

The idea here is to look at the change in the saddle shape for the same wavelength/pix and tracks. The tables show greater details about the files chosen like the intergration time and gain and max ADU (before normalization). I have removed the saturated data. I also removed the integration times below 0.2 seconds for the lamp data. I then normalized the laser and lamp data between 0 and 1 for ease of comparison. I used the laser wavelengths to chose which wavelength to create graphs for. Plotted first is the laser data, note integration times may be different, use the table to check this. Then I added the lamp data. This will show the saddle shape with a different source. I looked for lamp data with the track specified illuminated and then picked only 5 intergration times. The 5 integration times are spread eavenly from lowest to greatest to give an idea if int time matters. The ylabel says the units are ADU, so the data are not divided by integration time or number of pixels. But if a dark or back ground file exists then the darks have been subtracted. And they exist for 99% of the files.

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
5	16	1	352	41	1.5	4	35618
2	3	1	lamp	41	1	4	4101
1	1	1	lamp	41	2	4	4503
1	1	1	lamp	41	2	4	4503
2	5	1	lamp	41	3	4	4368
2	5	1	lamp	41	3	4	4368
5	16	2	352	41	1.5	4	37791
2	3	2	lamp	41	1	4	4101
1	1	2	lamp	41	2	4	4503
1	1	2	lamp	41	2	4	4503
2	5	2	lamp	41	3	4	4368
2	5	2	lamp	41	3	4	4368
5	16	7	352	41	1.5	4	39112
2	3	7	lamp	41	1	4	4101
1	1	7	lamp	41	2	4	4503
1	1	7	lamp	41	2	4	4503
2	5	7	lamp	41	3	4	4368
2	5	7	lamp	41	3	4	4368
5	16	14	352	41	1.5	4	37129
2	3	14	lamp	41	1	4	4101
1	1	14	lamp	41	2	4	4503
1	1	14	lamp	41	2	4	4503
2	5	14	lamp	41	3	4	4368
2	5	14	lamp	41	3	4	4368

Figure 1

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val

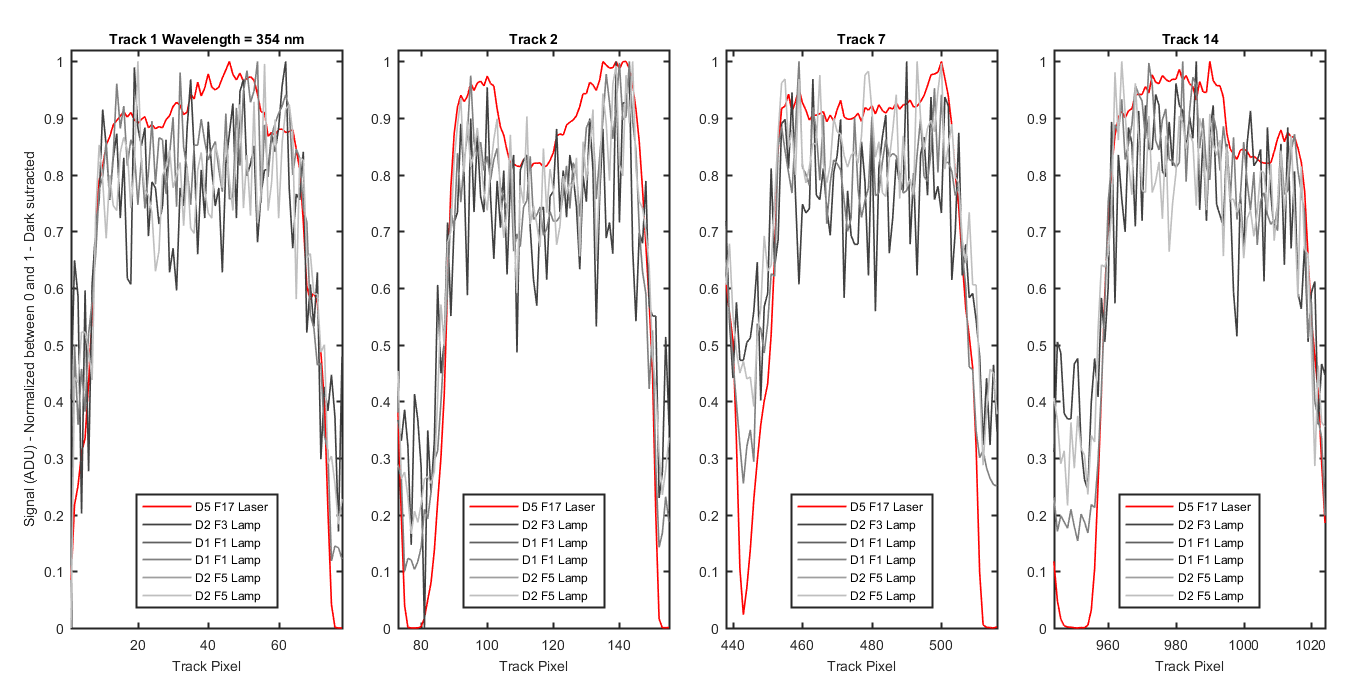

5	17	1	354	47	1.5	4	31876
2	3	1	lamp	47	1	4	4117
1	1	1	lamp	47	2	4	4518
1	1	1	lamp	47	2	4	4518
2	5	1	lamp	47	3	4	4375
2	5	1	lamp	47	3	4	4375
5	17	2	354	47	1.5	4	33563
2	3	2	lamp	47	1	4	4117
1	1	2	lamp	47	2	4	4518
1	1	2	lamp	47	2	4	4518
2	5	2	lamp	47	3	4	4375
2	5	2	lamp	47	3	4	4375
5	17	7	354	47	1.5	4	35432
2	3	7	lamp	47	1	4	4117
1	1	7	lamp	47	2	4	4518
1	1	7	lamp	47	2	4	4518
2	5	7	lamp	47	3	4	4375
2	5	7	lamp	47	3	4	4375
5	17	14	354	47	1.5	4	33708
2	3	14	lamp	47	1	4	4117
1	1	14	lamp	47	2	4	4518
1	1	14	lamp	47	2	4	4518
2	5	14	lamp	47	3	4	4375
2	5	14	lamp	47	3	4	4375

Figure 2

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val

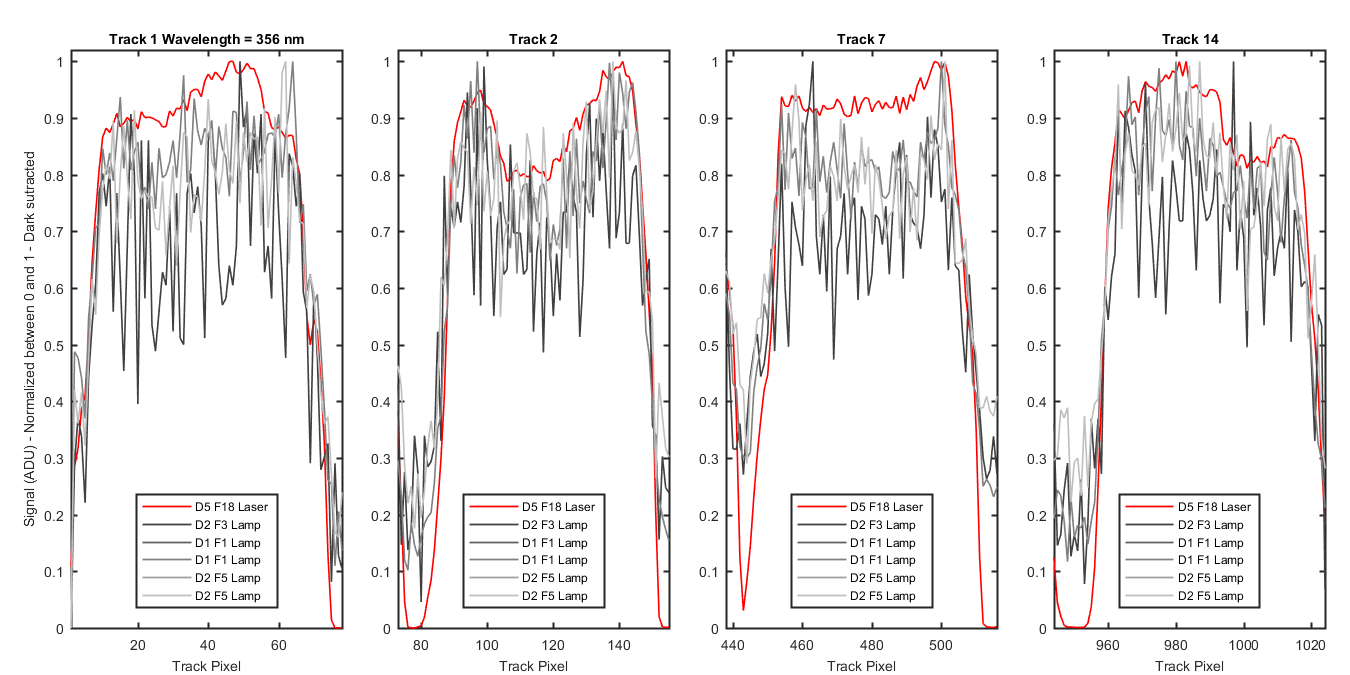

5	18	1	356	54	1.5	4	27191
2	3	1	lamp	54	1	4	4115
1	1	1	lamp	54	2	4	4575
1	1	1	lamp	54	2	4	4575
2	5	1	lamp	54	3	4	4404
2	5	1	lamp	54	3	4	4404
5	18	2	356	53	1.5	4	28583
2	3	2	lamp	53	1	4	4118
1	1	2	lamp	53	2	4	4572
1	1	2	lamp	53	2	4	4572
2	5	2	lamp	53	3	4	4404
2	5	2	lamp	53	3	4	4404
5	18	7	356	53	1.5	4	29131
2	3	7	lamp	53	1	4	4118
1	1	7	lamp	53	2	4	4572
1	1	7	lamp	53	2	4	4572
2	5	7	lamp	53	3	4	4404
2	5	7	lamp	53	3	4	4404
5	18	14	356	53	1.5	4	27859
2	3	14	lamp	53	1	4	4118
1	1	14	lamp	53	2	4	4572
1	1	14	lamp	53	2	4	4572
2	5	14	lamp	53	3	4	4404
2	5	14	lamp	53	3	4	4404

Figure 3

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val

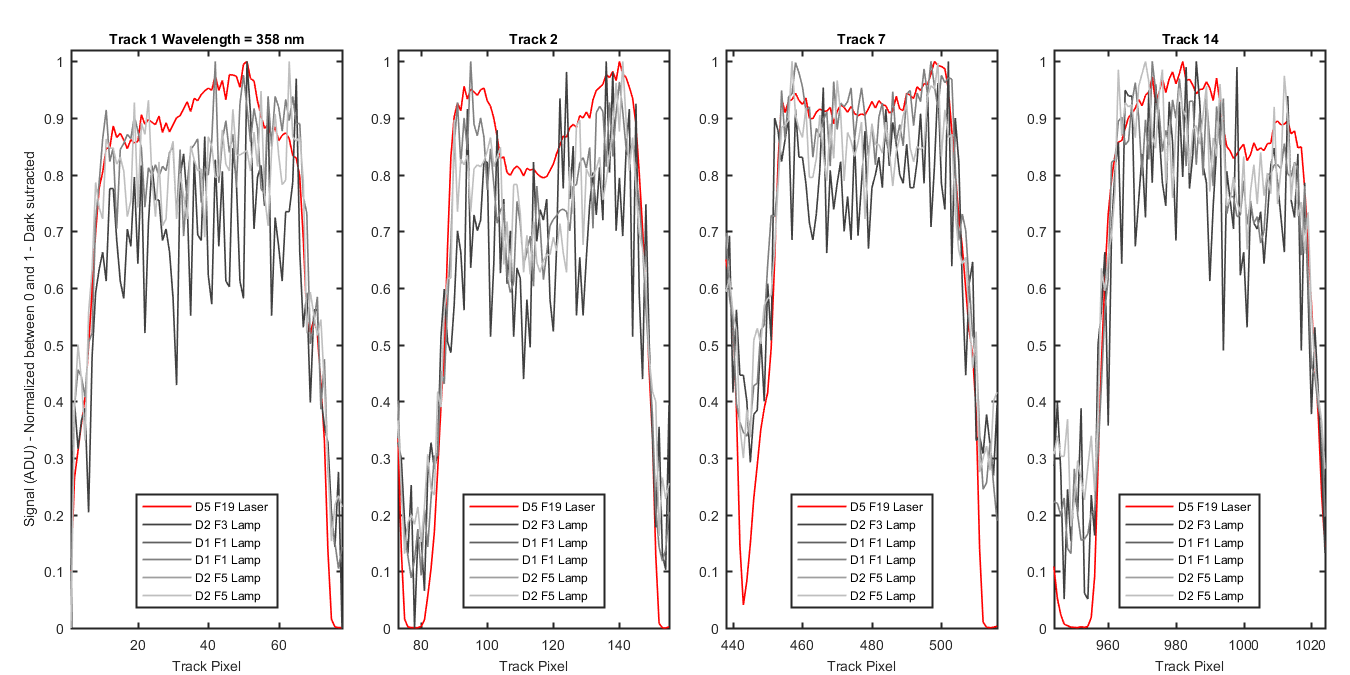

5	19	1	358	60	1.5	4	23218
2	3	1	lamp	60	1	4	4114
1	1	1	lamp	60	2	4	4600
1	1	1	lamp	60	2	4	4600
2	5	1	lamp	60	3	4	4433
2	5	1	lamp	60	3	4	4433
5	19	2	358	60	1.5	4	23024
2	3	2	lamp	60	1	4	4114
1	1	2	lamp	60	2	4	4600
1	1	2	lamp	60	2	4	4600
2	5	2	lamp	60	3	4	4433
2	5	2	lamp	60	3	4	4433
5	19	7	358	59	1.5	4	23905
2	3	7	lamp	59	1	4	4121
1	1	7	lamp	59	2	4	4609
1	1	7	lamp	59	2	4	4609
2	5	7	lamp	59	3	4	4418
2	5	7	lamp	59	3	4	4418
5	19	14	358	60	1.5	4	22356
2	3	14	lamp	60	1	4	4114
1	1	14	lamp	60	2	4	4600
1	1	14	lamp	60	2	4	4600
2	5	14	lamp	60	3	4	4433
2	5	14	lamp	60	3	4	4433

Figure 4

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
5	29	1	375	110	3	4	34328
2	3	1	lamp	110	1	4	4222
1	1	1	lamp	110	2	4	5023
1	1	1	lamp	110	2	4	5023
2	5	1	lamp	110	3	4	4748
2	5	1	lamp	110	3	4	4748
5	29	2	375	110	3	4	37178
2	3	2	lamp	110	1	4	4222
1	1	2	lamp	110	2	4	5023
1	1	2	lamp	110	2	4	5023
2	5	2	lamp	110	3	4	4748
2	5	2	lamp	110	3	4	4748
5	29	7	375	110	3	4	39085
2	3	7	lamp	110	1	4	4222
1	1	7	lamp	110	2	4	5023
1	1	7	lamp	110	2	4	5023
2	5	7	lamp	110	3	4	4748
2	5	7	lamp	110	3	4	4748
5	29	14	375	111	3	4	34700
2	3	14	lamp	111	1	4	4239
1	1	14	lamp	111	2	4	5071
1	1	14	lamp	111	2	4	5071
2	5	14	lamp	111	3	4	4721
2	5	14	lamp	111	3	4	4721

Figure 5

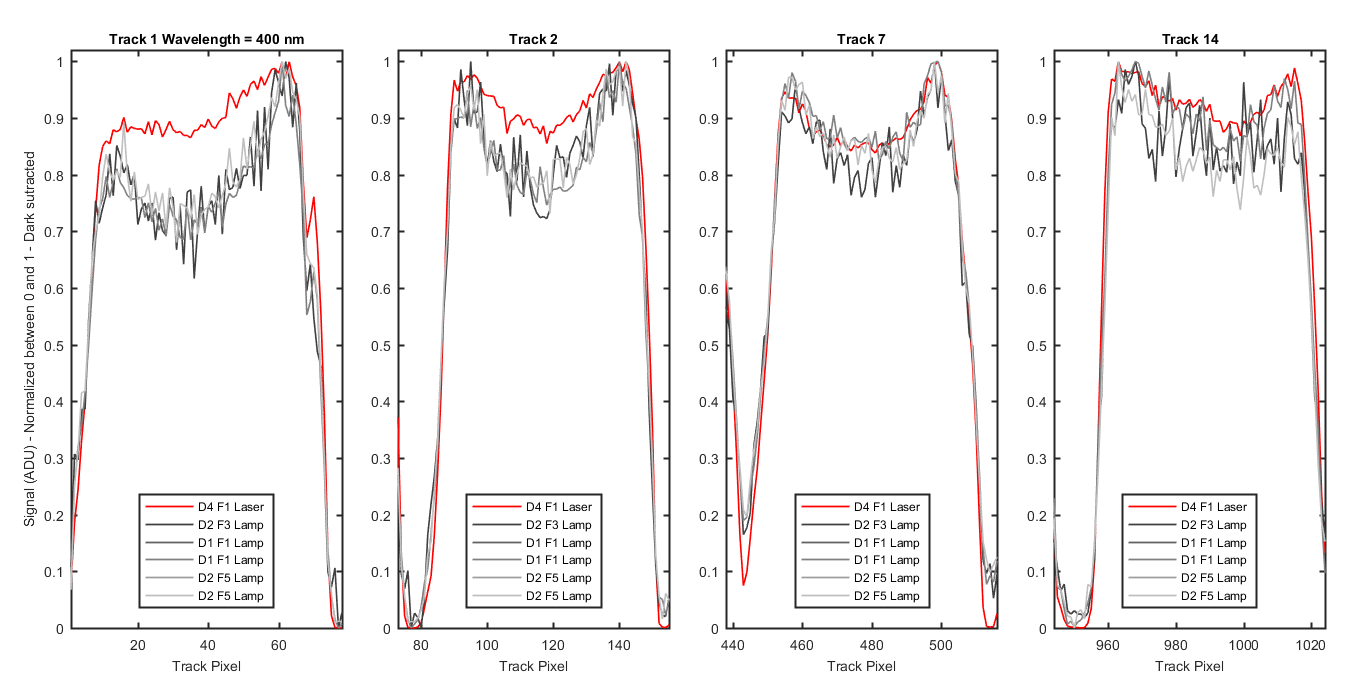

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
4	1	1	400	184	4	4	34250
2	3	1	lamp	184	1	4	4599
1	1	1	lamp	184	2	4	6458
1	1	1	lamp	184	2	4	6458
2	5	1	lamp	184	3	4	5776
2	5	1	lamp	184	3	4	5776
4	1	2	400	184	4	4	34713
2	3	2	lamp	184	1	4	4599
1	1	2	lamp	184	2	4	6458
1	1	2	lamp	184	2	4	6458
2	5	2	lamp	184	3	4	5776
2	5	2	lamp	184	3	4	5776
4	1	7	400	184	4	4	37404
2	3	7	lamp	184	1	4	4599
1	1	7	lamp	184	2	4	6458
1	1	7	lamp	184	2	4	6458
2	5	7	lamp	184	3	4	5776
2	5	7	lamp	184	3	4	5776
4	1	14	400	184	4	4	34091
2	3	14	lamp	184	1	4	4599
1	1	14	lamp	184	2	4	6458
1	1	14	lamp	184	2	4	6458
2	5	14	lamp	184	3	4	5776
2	5	14	lamp	184	3	4	5776

Figure 6

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val

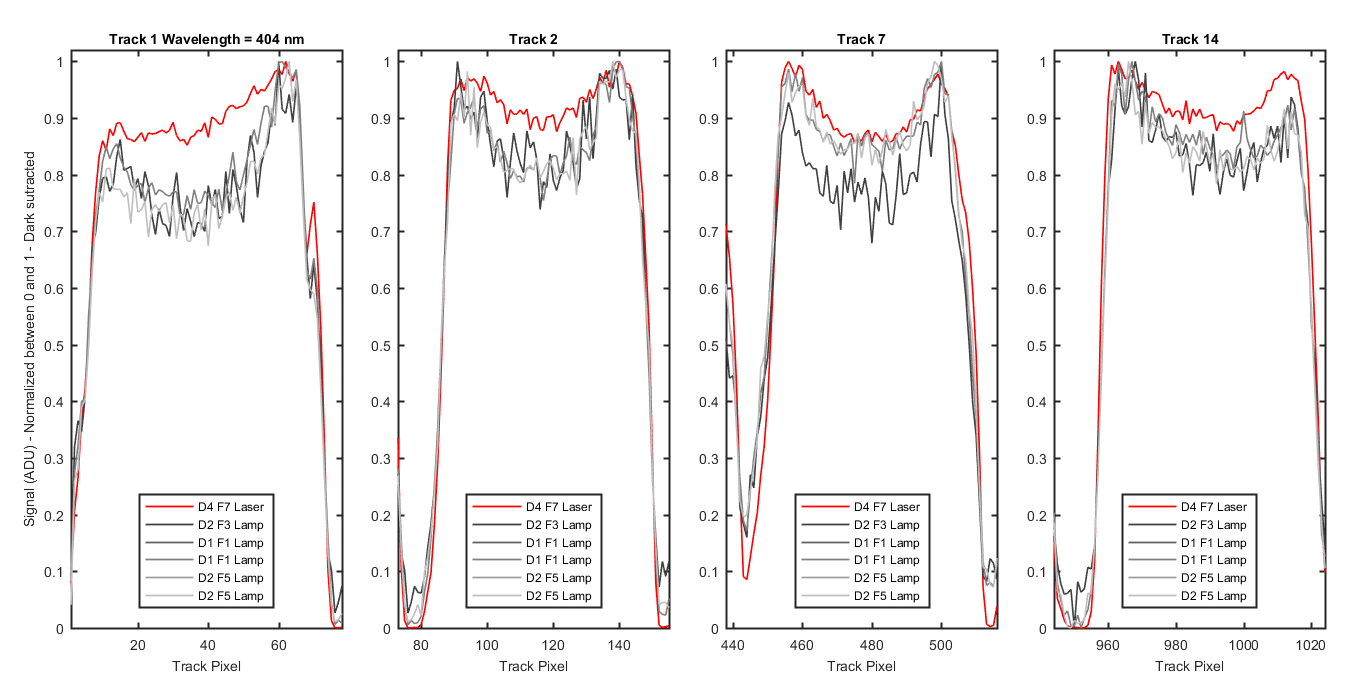

4	7	1	404	196	6	4	31873
2	3	1	lamp	196	1	4	4675
1	1	1	lamp	196	2	4	6713
1	1	1	lamp	196	2	4	6713
2	5	1	lamp	196	3	4	5964
2	5	1	lamp	196	3	4	5964
4	7	2	404	196	6	4	31587
2	3	2	lamp	196	1	4	4675
1	1	2	lamp	196	2	4	6713
1	1	2	lamp	196	2	4	6713
2	5	2	lamp	196	3	4	5964
2	5	2	lamp	196	3	4	5964
4	7	7	404	195	6	4	33929
2	3	7	lamp	195	1	4	4676
1	1	7	lamp	195	2	4	6681
1	1	7	lamp	195	2	4	6681
2	5	7	lamp	195	3	4	6019
2	5	7	lamp	195	3	4	6019
4	7	14	404	196	6	4	32288
2	3	14	lamp	196	1	4	4675
1	1	14	lamp	196	2	4	6713
1	1	14	lamp	196	2	4	6713
2	5	14	lamp	196	3	4	5964
2	5	14	lamp	196	3	4	5964

Figure 7

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
5	30	1	425	257	1	4	35916
2	3	1	lamp	257	1	4	5178
1	1	1	lamp	257	2	4	8425
1	1	1	lamp	257	2	4	8425
2	5	1	lamp	257	3	4	7391
2	5	1	lamp	257	3	4	7391
5	30	2	425	257	1	4	36190
2	3	2	lamp	257	1	4	5178
1	1	2	lamp	257	2	4	8425
1	1	2	lamp	257	2	4	8425
2	5	2	lamp	257	3	4	7391
2	5	2	lamp	257	3	4	7391
5	30	7	425	256	1	4	39408
2	3	7	lamp	256	1	4	5146
1	1	7	lamp	256	2	4	8373
1	1	7	lamp	256	2	4	8373
2	5	7	lamp	256	3	4	7448
2	5	7	lamp	256	3	4	7448
5	30	14	425	257	1	4	35861
2	3	14	lamp	257	1	4	5178
1	1	14	lamp	257	2	4	8425
1	1	14	lamp	257	2	4	8425
2	5	14	lamp	257	3	4	7391
2	5	14	lamp	257	3	4	7391

Figure 8

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
4	10	1	450	329	1	4	35527
2	3	1	lamp	329	1	4	5928
1	1	1	lamp	329	2	4	11079
1	1	1	lamp	329	2	4	11079
2	5	1	lamp	329	3	4	9757
2	5	1	lamp	329	3	4	9757
4	10	2	450	329	1	4	36358
2	3	2	lamp	329	1	4	5928
1	1	2	lamp	329	2	4	11079
1	1	2	lamp	329	2	4	11079
2	5	2	lamp	329	3	4	9757
2	5	2	lamp	329	3	4	9757
4	10	7	450	329	1	4	39483
2	3	7	lamp	329	1	4	5928
1	1	7	lamp	329	2	4	11079
1	1	7	lamp	329	2	4	11079
2	5	7	lamp	329	3	4	9757
2	5	7	lamp	329	3	4	9757
4	10	14	450	329	1	4	34435
2	3	14	lamp	329	1	4	5928
1	1	14	lamp	329	2	4	11079
1	1	14	lamp	329	2	4	11079
2	5	14	lamp	329	3	4	9757
2	5	14	lamp	329	3	4	9757

Figure 9

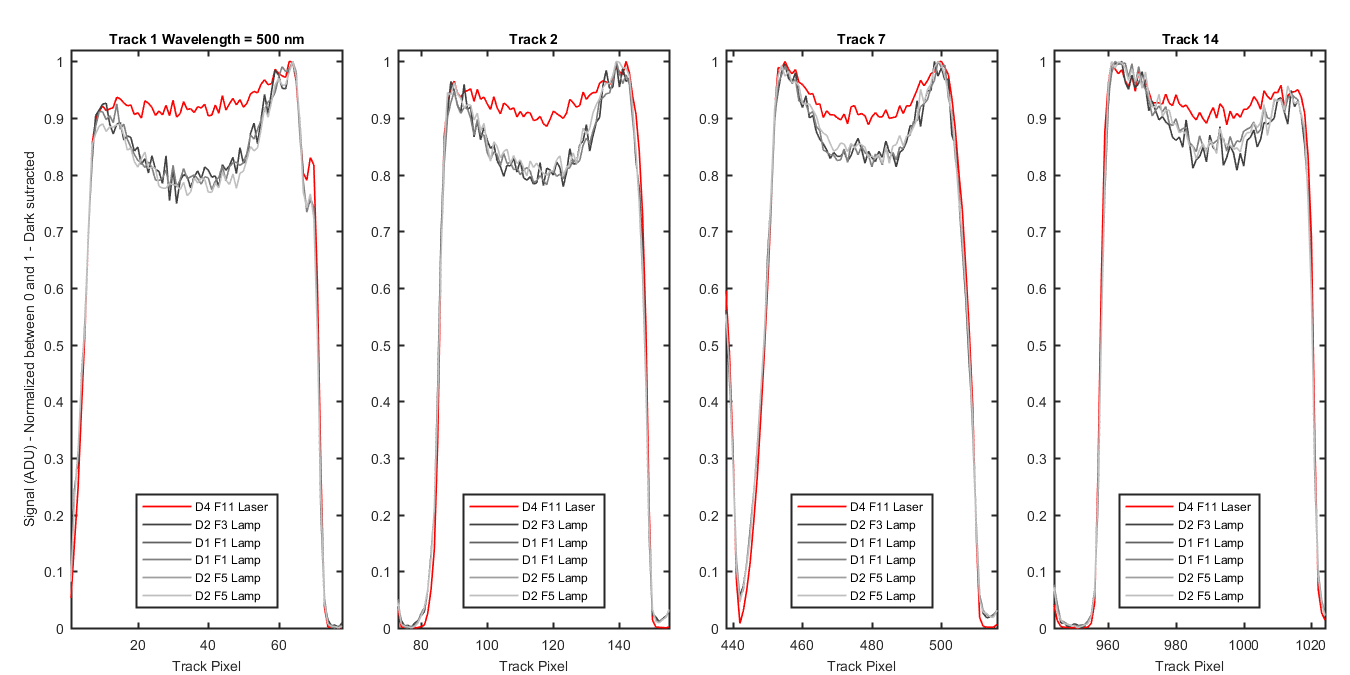

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
4	11	1	500	472	1.4	4	37177
2	3	1	lamp	472	1	4	7748
1	1	1	lamp	472	2	4	17062
1	1	1	lamp	472	2	4	17062
2	5	1	lamp	472	3	4	15166
2	5	1	lamp	472	3	4	15166
4	11	2	500	472	1.4	4	39173
2	3	2	lamp	472	1	4	7748
1	1	2	lamp	472	2	4	17062
1	1	2	lamp	472	2	4	17062
2	5	2	lamp	472	3	4	15166
2	5	2	lamp	472	3	4	15166
4	11	7	500	472	1.4	4	41456
2	3	7	lamp	472	1	4	7748
1	1	7	lamp	472	2	4	17062
1	1	7	lamp	472	2	4	17062
2	5	7	lamp	472	3	4	15166
2	5	7	lamp	472	3	4	15166
4	11	14	500	472	1.4	4	35769
2	3	14	lamp	472	1	4	7748
1	1	14	lamp	472	2	4	17062
1	1	14	lamp	472	2	4	17062
2	5	14	lamp	472	3	4	15166
2	5	14	lamp	472	3	4	15166

Figure 10

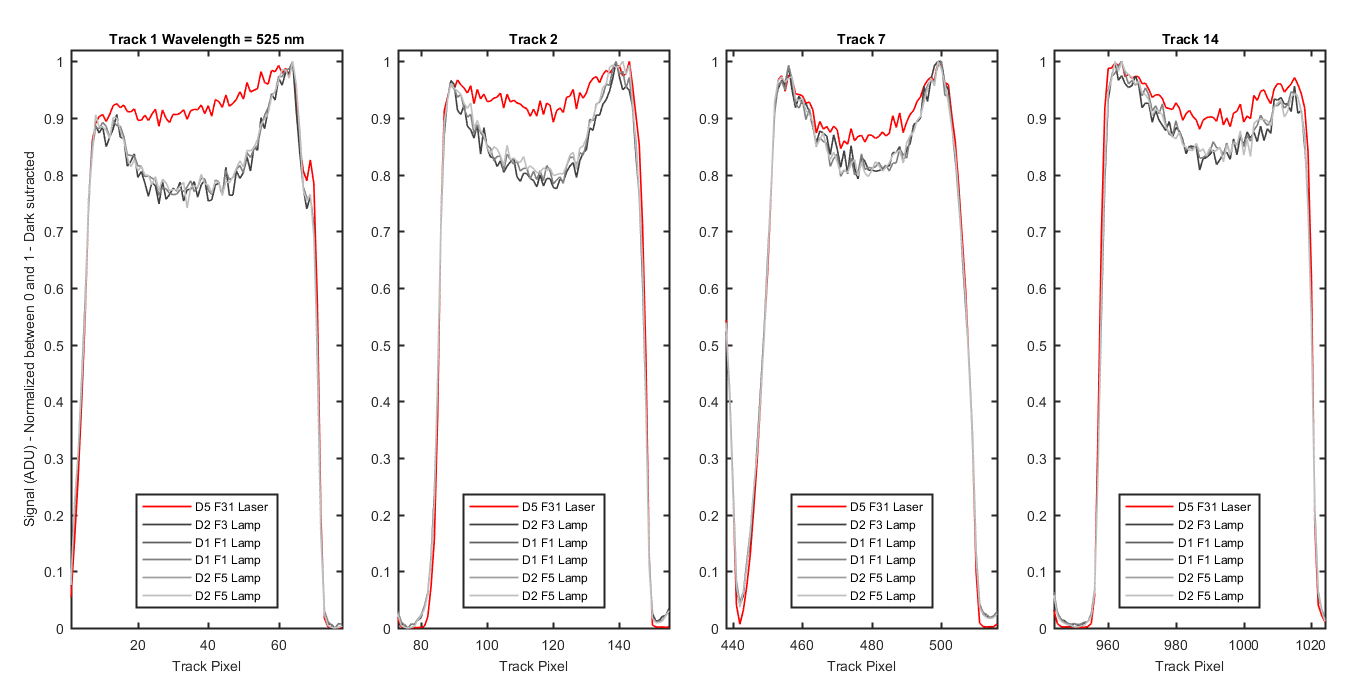

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
5	31	1	525	543	1	4	33023
2	3	1	lamp	543	1	4	8884
1	1	1	lamp	543	2	4	20401
1	1	1	lamp	543	2	4	20401
2	5	1	lamp	543	3	4	18420
2	5	1	lamp	543	3	4	18420
5	31	2	525	543	1	4	34438
2	3	2	lamp	543	1	4	8884
1	1	2	lamp	543	2	4	20401
1	1	2	lamp	543	2	4	20401
2	5	2	lamp	543	3	4	18420
2	5	2	lamp	543	3	4	18420
5	31	7	525	543	1	4	36956
2	3	7	lamp	543	1	4	8884
1	1	7	lamp	543	2	4	20401
1	1	7	lamp	543	2	4	20401
2	5	7	lamp	543	3	4	18420
2	5	7	lamp	543	3	4	18420
5	31	14	525	543	1	4	31793
2	3	14	lamp	543	1	4	8884
1	1	14	lamp	543	2	4	20401
1	1	14	lamp	543	2	4	20401
2	5	14	lamp	543	3	4	18420
2	5	14	lamp	543	3	4	18420

Figure 11

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
4	12	1	550	614	1	4	30956
2	3	1	lamp	614	1	4	10411
1	1	1	lamp	614	2	4	25372
1	1	1	lamp	614	2	4	25372
2	5	1	lamp	614	3	4	22851
2	5	1	lamp	614	3	4	22851
4	12	2	550	614	1	4	32587
2	3	2	lamp	614	1	4	10411
1	1	2	lamp	614	2	4	25372
1	1	2	lamp	614	2	4	25372
2	5	2	lamp	614	3	4	22851
2	5	2	lamp	614	3	4	22851
4	12	7	550	614	1	4	34765
2	3	7	lamp	614	1	4	10411
1	1	7	lamp	614	2	4	25372
1	1	7	lamp	614	2	4	25372
2	5	7	lamp	614	3	4	22851
2	5	7	lamp	614	3	4	22851
4	12	14	550	614	1	4	30343
2	3	14	lamp	614	1	4	10411
1	1	14	lamp	614	2	4	25372
1	1	14	lamp	614	2	4	25372
2	5	14	lamp	614	3	4	22851
2	5	14	lamp	614	3	4	22851

Figure 12

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
5	32	1	575	684	1	4	36979
2	3	1	lamp	684	1	4	12200
1	1	1	lamp	684	2	4	30693
1	1	1	lamp	684	2	4	30693
2	5	1	lamp	684	3	4	27747
2	5	1	lamp	684	3	4	27747
5	32	2	575	684	1	4	38567
2	3	2	lamp	684	1	4	12200
1	1	2	lamp	684	2	4	30693
1	1	2	lamp	684	2	4	30693
2	5	2	lamp	684	3	4	27747
2	5	2	lamp	684	3	4	27747
5	32	7	575	684	1	4	41669
2	3	7	lamp	684	1	4	12200
1	1	7	lamp	684	2	4	30693
1	1	7	lamp	684	2	4	30693
2	5	7	lamp	684	3	4	27747
2	5	7	lamp	684	3	4	27747
5	32	14	575	684	1	4	36301
2	3	14	lamp	684	1	4	12200
1	1	14	lamp	684	2	4	30693
1	1	14	lamp	684	2	4	30693
2	5	14	lamp	684	3	4	27747
2	5	14	lamp	684	3	4	27747

Figure 13

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
4	13	1	600	754	3	4	34558
2	3	1	lamp	754	1	4	14183
1	1	1	lamp	754	2	4	37431
1	1	1	lamp	754	2	4	37431
2	5	1	lamp	754	3	4	33972
2	5	1	lamp	754	3	4	33972
4	13	2	600	754	3	4	35467
2	3	2	lamp	754	1	4	14183
1	1	2	lamp	754	2	4	37431
1	1	2	lamp	754	2	4	37431
2	5	2	lamp	754	3	4	33972
2	5	2	lamp	754	3	4	33972
4	13	7	600	754	3	4	39380
2	3	7	lamp	754	1	4	14183
1	1	7	lamp	754	2	4	37431
1	1	7	lamp	754	2	4	37431
2	5	7	lamp	754	3	4	33972
2	5	7	lamp	754	3	4	33972
4	13	14	600	754	3	4	32698
2	3	14	lamp	754	1	4	14183
1	1	14	lamp	754	2	4	37431
1	1	14	lamp	754	2	4	37431
2	5	14	lamp	754	3	4	33972
2	5	14	lamp	754	3	4	33972

Figure 14

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val

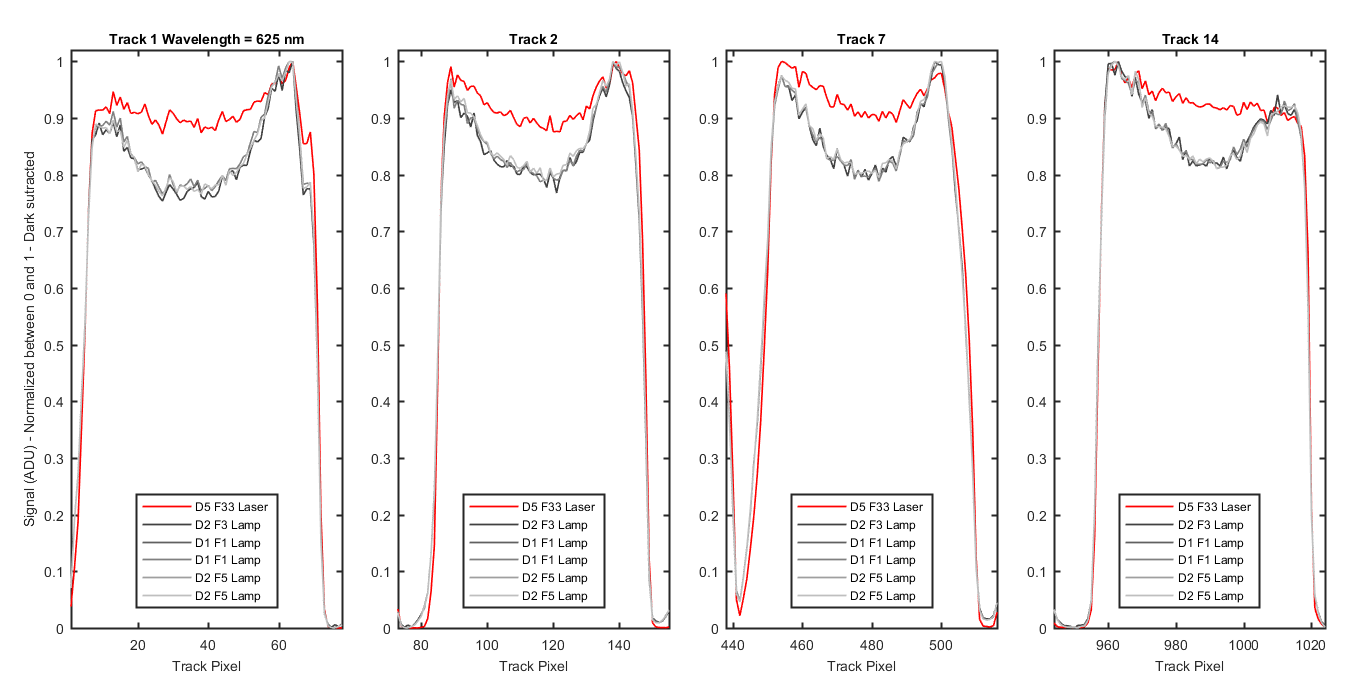

5	33	1	625	824	1	4	37488
2	3	1	lamp	824	1	4	16352
1	1	1	lamp	824	2	4	44571
1	1	1	lamp	824	2	4	44571
2	5	1	lamp	824	3	4	40068
2	5	1	lamp	824	3	4	40068
5	33	2	625	824	1	4	38228
2	3	2	lamp	824	1	4	16352
1	1	2	lamp	824	2	4	44571
1	1	2	lamp	824	2	4	44571
2	5	2	lamp	824	3	4	40068
2	5	2	lamp	824	3	4	40068
5	33	7	625	824	1	4	41169
2	3	7	lamp	824	1	4	16352
1	1	7	lamp	824	2	4	44571
1	1	7	lamp	824	2	4	44571
2	5	7	lamp	824	3	4	40068
2	5	7	lamp	824	3	4	40068
5	33	14	625	824	1	4	33562
2	3	14	lamp	824	1	4	16352
1	1	14	lamp	824	2	4	44571
1	1	14	lamp	824	2	4	44571
2	5	14	lamp	824	3	4	40068
2	5	14	lamp	824	3	4	40068

Figure 15

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
4	14	1	650	894	1.2	4	34598
2	3	1	lamp	894	1	4	18053
1	1	1	lamp	894	2	4	49925
1	1	1	lamp	894	2	4	49925
2	5	1	lamp	894	3	4	45559
2	5	1	lamp	894	3	4	45559
4	14	2	650	894	1.2	4	34979
2	3	2	lamp	894	1	4	18053
1	1	2	lamp	894	2	4	49925
1	1	2	lamp	894	2	4	49925
2	5	2	lamp	894	3	4	45559
2	5	2	lamp	894	3	4	45559
4	14	7	650	894	1.2	4	38009
2	3	7	lamp	894	1	4	18053
1	1	7	lamp	894	2	4	49925
1	1	7	lamp	894	2	4	49925
2	5	7	lamp	894	3	4	45559
2	5	7	lamp	894	3	4	45559
4	14	14	650	894	1.2	4	29035
2	3	14	lamp	894	1	4	18053
1	1	14	lamp	894	2	4	49925
1	1	14	lamp	894	2	4	49925
2	5	14	lamp	894	3	4	45559
2	5	14	lamp	894	3	4	45559

Figure 16

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
5	34	1	666	939	1	4	33132
2	3	1	lamp	939	1	4	19038
1	1	1	lamp	939	2	4	52912
1	1	1	lamp	939	2	4	52912
2	5	1	lamp	939	3	4	48292
2	5	1	lamp	939	3	4	48292
5	34	2	666	939	1	4	34416
2	3	2	lamp	939	1	4	19038
1	1	2	lamp	939	2	4	52912
1	1	2	lamp	939	2	4	52912
2	5	2	lamp	939	3	4	48292
2	5	2	lamp	939	3	4	48292
5	34	7	666	939	1	4	36110
2	3	7	lamp	939	1	4	19038
1	1	7	lamp	939	2	4	52912
1	1	7	lamp	939	2	4	52912
2	5	7	lamp	939	3	4	48292
2	5	7	lamp	939	3	4	48292
5	34	14	666	939	1	4	26231
2	3	14	lamp	939	1	4	19038
1	1	14	lamp	939	2	4	52912
1	1	14	lamp	939	2	4	52912
2	5	14	lamp	939	3	4	48292
2	5	14	lamp	939	3	4	48292

Figure 17

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
4	17	1	670	950	2.5	4	41568
5	35	1	670	950	1	4	33576
2	3	1	lamp	950	1	4	18772
1	1	1	lamp	950	2	4	52094
1	1	1	lamp	950	2	4	52094
2	5	1	lamp	950	3	4	47589
2	5	1	lamp	950	3	4	47589
4	17	2	670	950	2.5	4	42570
5	35	2	670	950	1	4	34407
2	3	2	lamp	950	1	4	18772
1	1	2	lamp	950	2	4	52094
1	1	2	lamp	950	2	4	52094
2	5	2	lamp	950	3	4	47589
2	5	2	lamp	950	3	4	47589
4	17	7	670	950	2.5	4	44966
5	35	7	670	950	1	4	36393
2	3	7	lamp	950	1	4	18772
1	1	7	lamp	950	2	4	52094
1	1	7	lamp	950	2	4	52094
2	5	7	lamp	950	3	4	47589
2	5	7	lamp	950	3	4	47589
4	17	14	670	950	2.5	4	33555
5	35	14	670	950	1	4	26613
2	3	14	lamp	950	1	4	18772
1	1	14	lamp	950	2	4	52094
1	1	14	lamp	950	2	4	52094
2	5	14	lamp	950	3	4	47589
2	5	14	lamp	950	3	4	47589

Figure 18

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
4	16	1	680	978	3.5	4	36597
2	3	1	lamp	978	1	4	16946
1	1	1	lamp	978	2	4	45690
1	1	1	lamp	978	2	4	45690
2	5	1	lamp	978	3	4	42033
2	5	1	lamp	978	3	4	42033
4	16	2	680	978	3.5	4	38759
2	3	2	lamp	978	1	4	16946
1	1	2	lamp	978	2	4	45690
1	1	2	lamp	978	2	4	45690
2	5	2	lamp	978	3	4	42033
2	5	2	lamp	978	3	4	42033
4	16	7	680	978	3.5	4	39406
2	3	7	lamp	978	1	4	16946
1	1	7	lamp	978	2	4	45690
1	1	7	lamp	978	2	4	45690
2	5	7	lamp	978	3	4	42033
2	5	7	lamp	978	3	4	42033
4	16	14	680	977	3.5	4	29652
2	3	14	lamp	977	1	4	17194
1	1	14	lamp	977	2	4	46609
1	1	14	lamp	977	2	4	46609
2	5	14	lamp	977	3	4	42397
2	5	14	lamp	977	3	4	42397

Figure 19

File informatin for the data plotted below
Day	Filenum	Track	Wavlength	plotted Pixel	Int Time (S)	Gain	Max plotted Val
4	15	1	690	1005	1.2	4	36747
5	36	1	690	1005	1	4	36083
5	37	1	690	1005	1	4	30728
5	38	1	690	1005	1	4	37500
5	39	1	690	1005	1	4	37409
5	40	1	690	1005	1	4	38583
2	3	1	lamp	1005	1	4	10066
1	1	1	lamp	1005	2	4	23543
1	1	1	lamp	1005	2	4	23543
2	5	1	lamp	1005	3	4	21613
2	5	1	lamp	1005	3	4	21613
4	15	2	690	1005	1.2	4	39067
5	36	2	690	1005	1	4	37706
5	37	2	690	1005	1	4	32502
5	38	2	690	1005	1	4	39665
5	39	2	690	1005	1	4	39347
5	40	2	690	1005	1	4	40486
2	3	2	lamp	1005	1	4	10066
1	1	2	lamp	1005	2	4	23543
1	1	2	lamp	1005	2	4	23543
2	5	2	lamp	1005	3	4	21613
2	5	2	lamp	1005	3	4	21613
4	15	7	690	1005	1.2	4	41041
5	36	7	690	1005	1	4	39919
5	37	7	690	1005	1	4	34274
5	38	7	690	1005	1	4	42048
5	39	7	690	1005	1	4	41578
5	40	7	690	1005	1	4	42691
2	3	7	lamp	1005	1	4	10066
1	1	7	lamp	1005	2	4	23543
1	1	7	lamp	1005	2	4	23543
2	5	7	lamp	1005	3	4	21613
2	5	7	lamp	1005	3	4	21613
4	15	14	690	1004	1.2	4	29626
5	36	14	690	1004	1	4	29589
5	37	14	690	1004	1	4	25506
5	38	14	690	1004	1	4	31190
5	39	14	690	1004	1	4	30960
5	40	14	690	1004	1	4	31850
2	3	14	lamp	1004	1	4	10481
1	1	14	lamp	1004	2	4	24973
1	1	14	lamp	1004	2	4	24973
2	5	14	lamp	1004	3	4	23171
2	5	14	lamp	1004	3	4	23171

Figure 20

pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2017-02\BS03data\day05
Date: 06-Apr-2017 18:04:51
Created from pltsaddle_shape_day05_(1)
