REVISION DATE: 03-Apr-2017 11:39:59
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks/bkgrd subtracted.
| Previous | HOME | NEXT | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Rotaton (deg) |
Wavelength (nm)(deg) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2017033113_img | Signal | NaN | 600 | 3 | Single Scan | -60 | 0 | F | 2017-03-31T04:06:52 | 4 | Image | 43328 | 4032.23 | 33.95 |

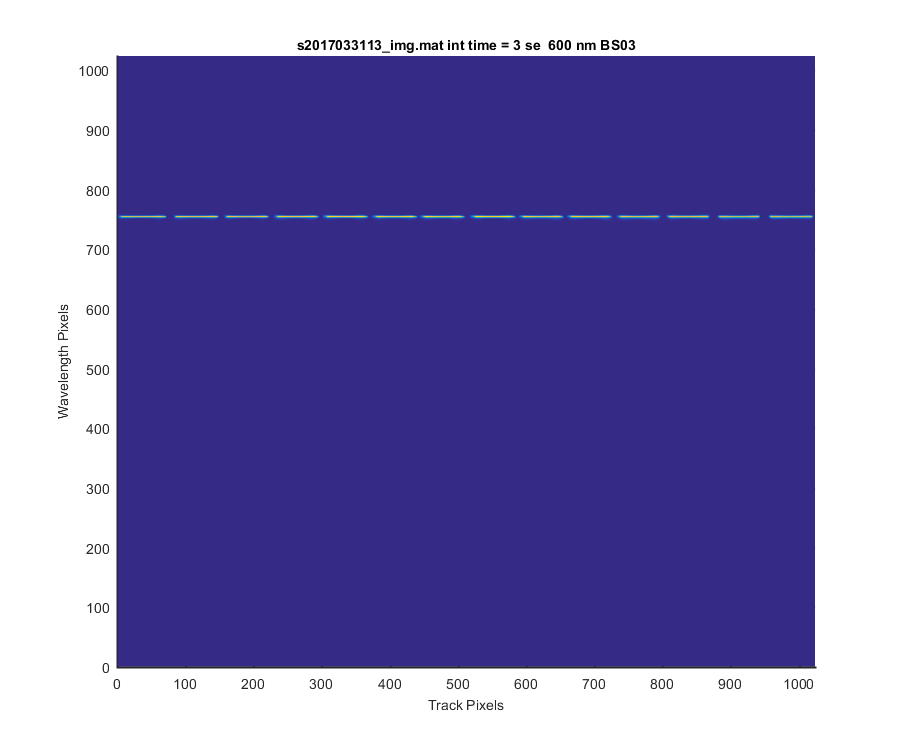

Figure 1

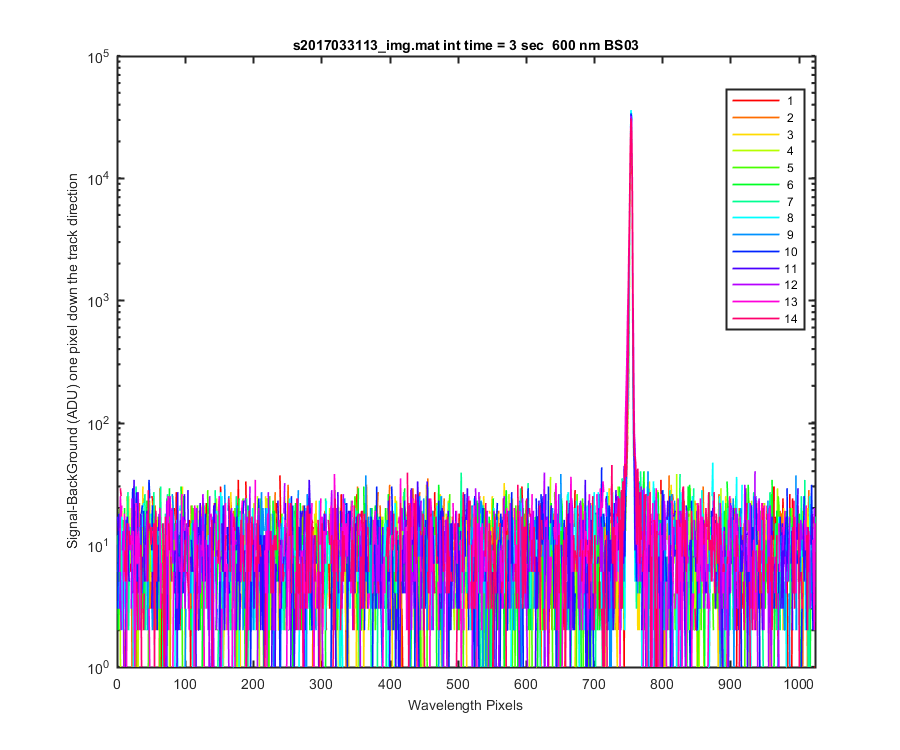

Figure 2

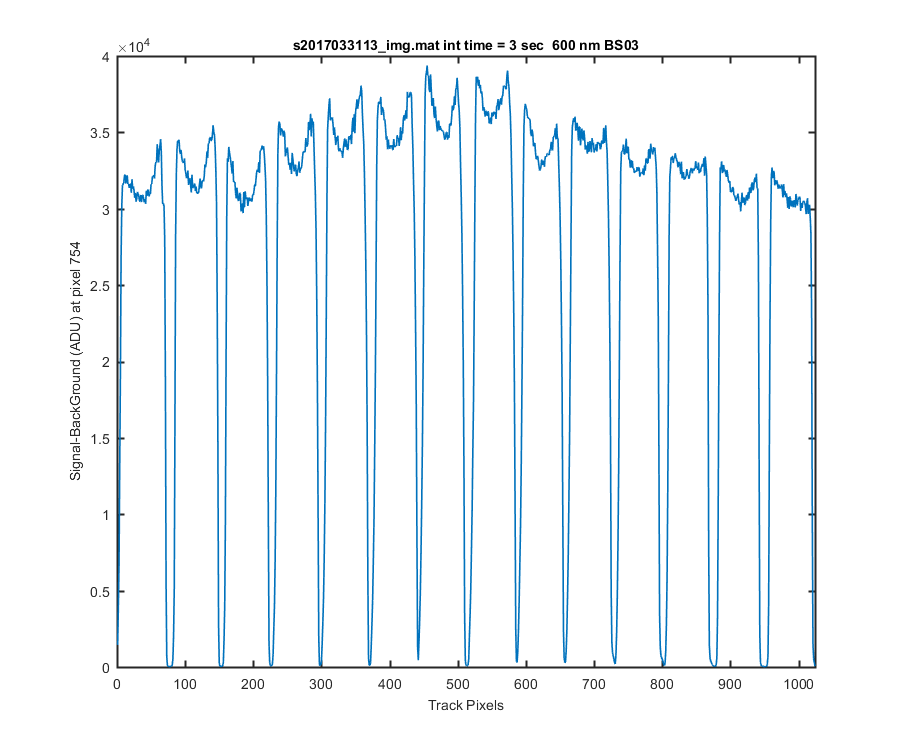

Figure 3

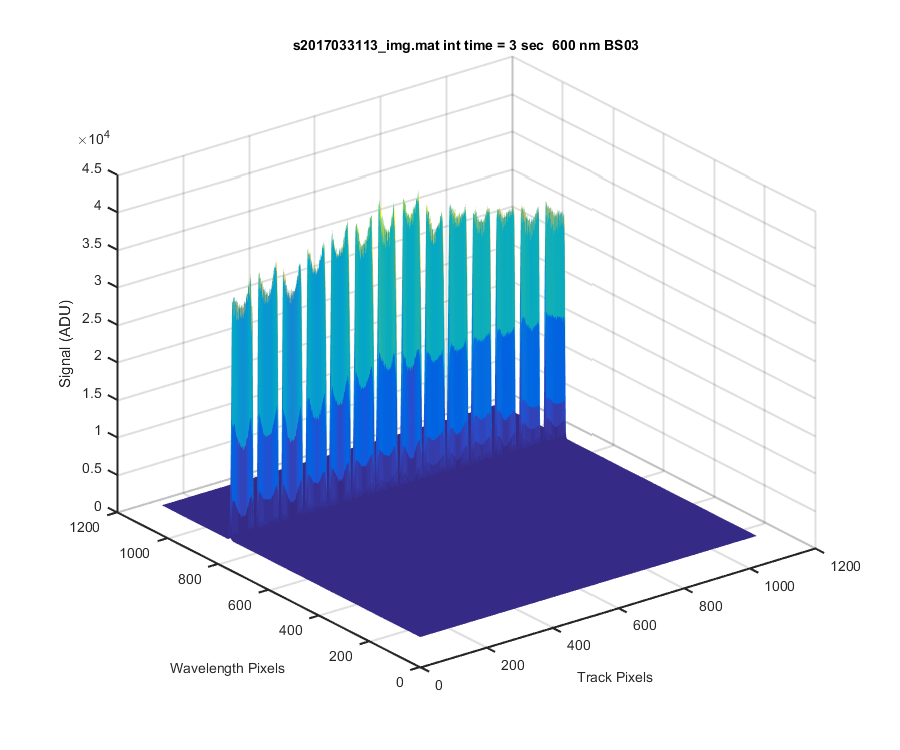

Figure 4

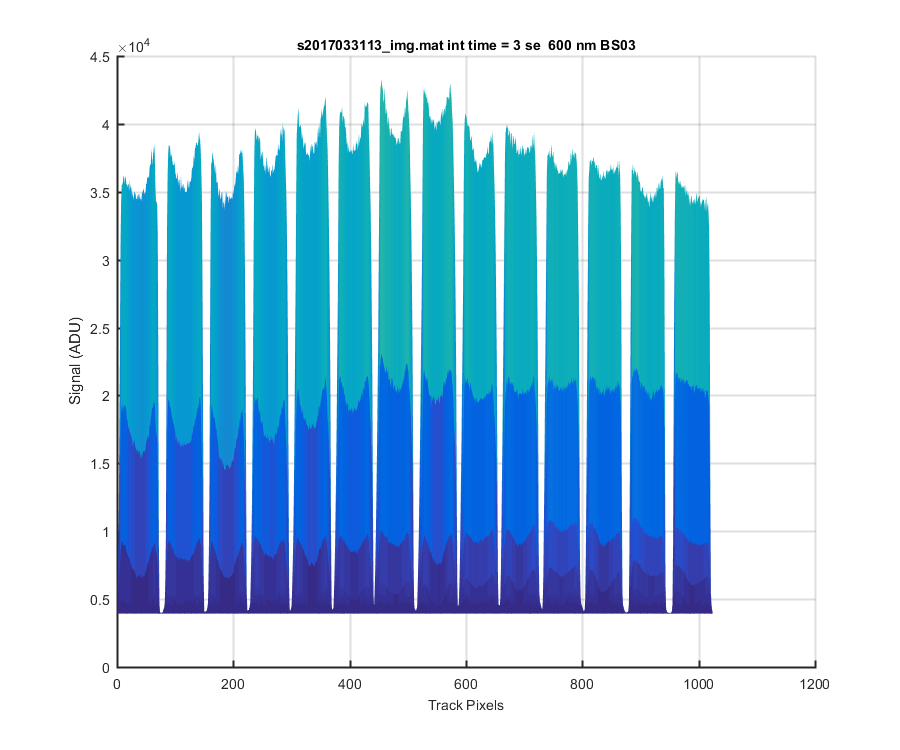

Figure 5

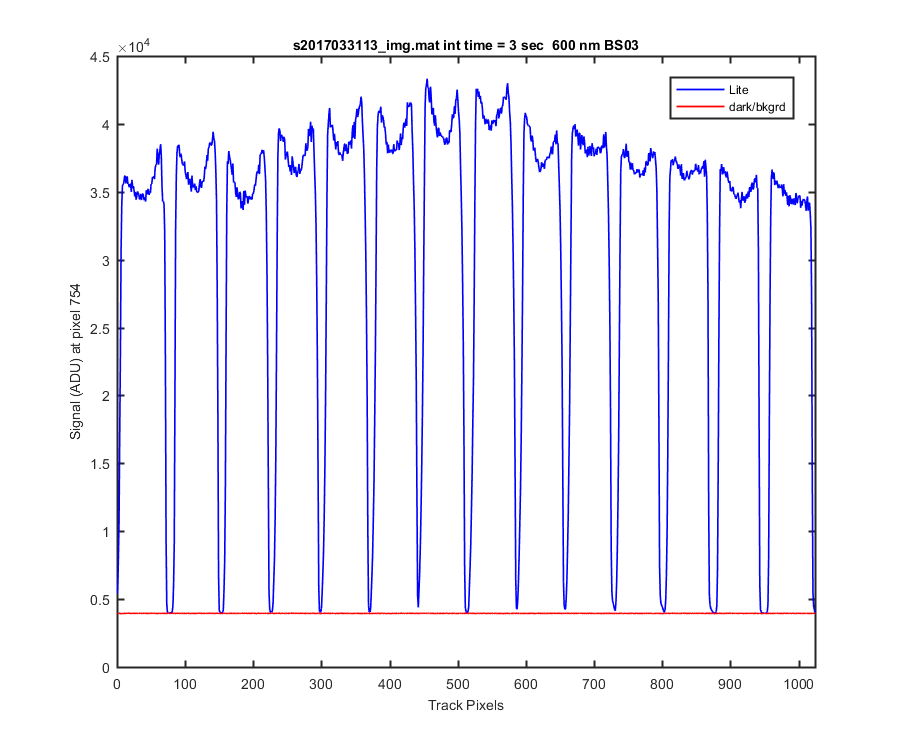

Figure 6
