REVISION DATE: 04-Apr-2017 15:54:03
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks/bkgrd subtracted.
| Previous | HOME | NEXT | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Rotaton (deg) |
Wavelength (nm)(deg) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2017040444_img | Signal | NaN | 950 | 30 | Single Scan | -60 | 0 | F | 2017-04-04T05:51:07 | 4 | Image | 15065 | 3977.48 | 0.42 |

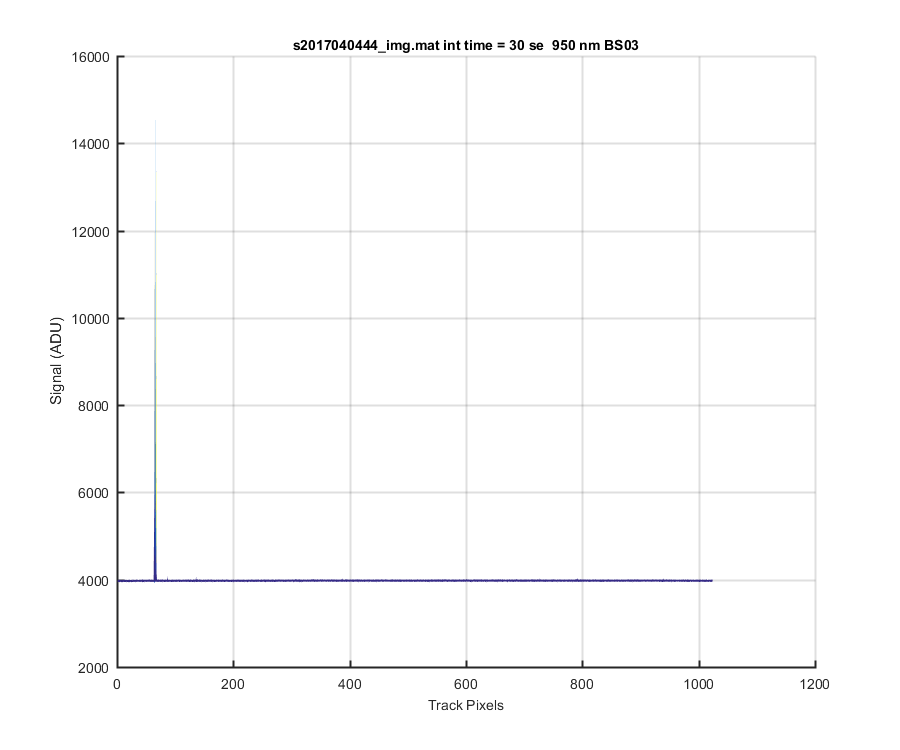

Figure 1

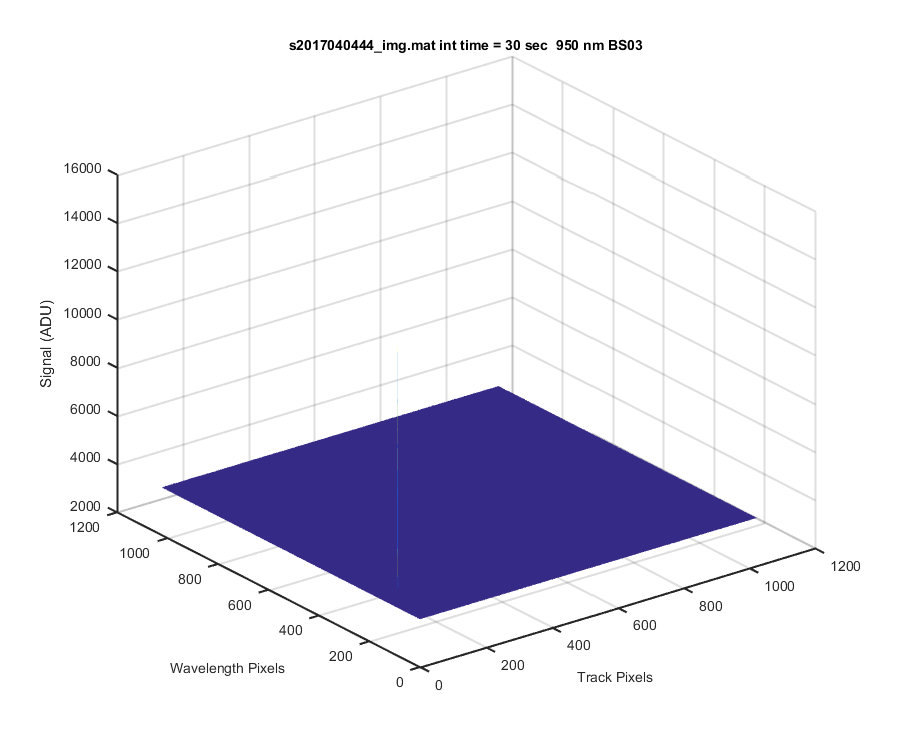

Figure 2

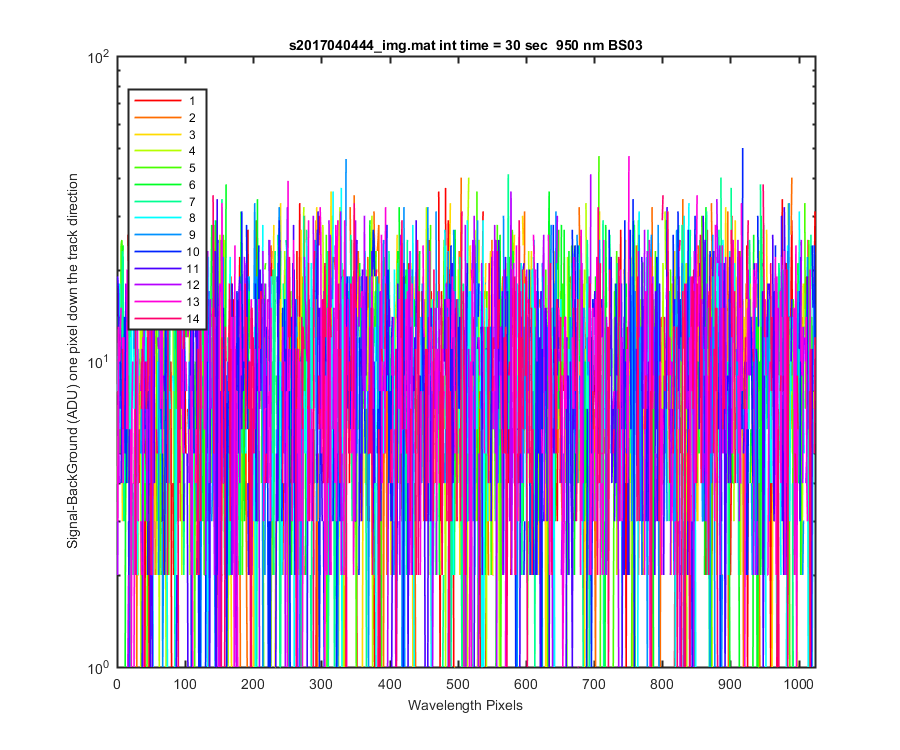

Figure 3

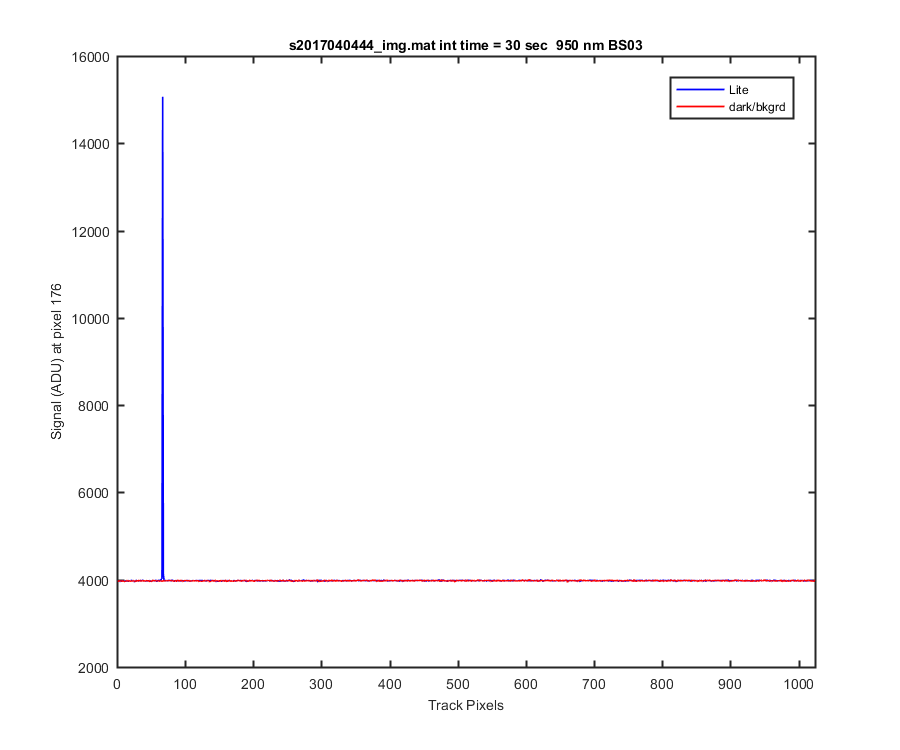

Figure 4

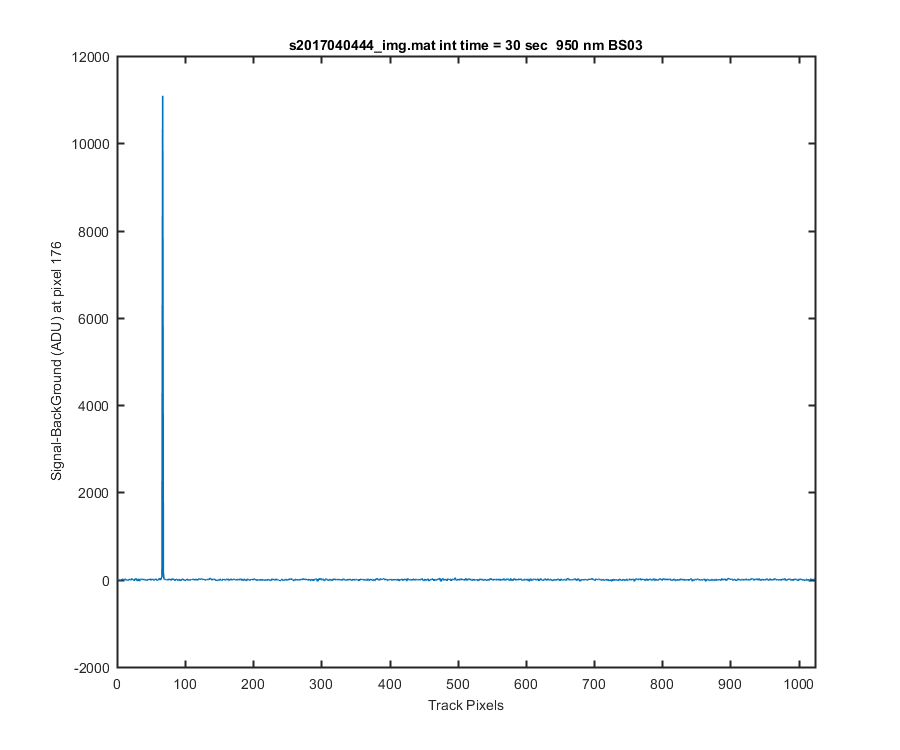

Figure 5
Figure 6
