This is Mikes Es system response data for Es on the BS03 after the Es Heads are on, shutters in place and the iris adjusted. I used the F601c3.txt file from Mike as the lamp file.

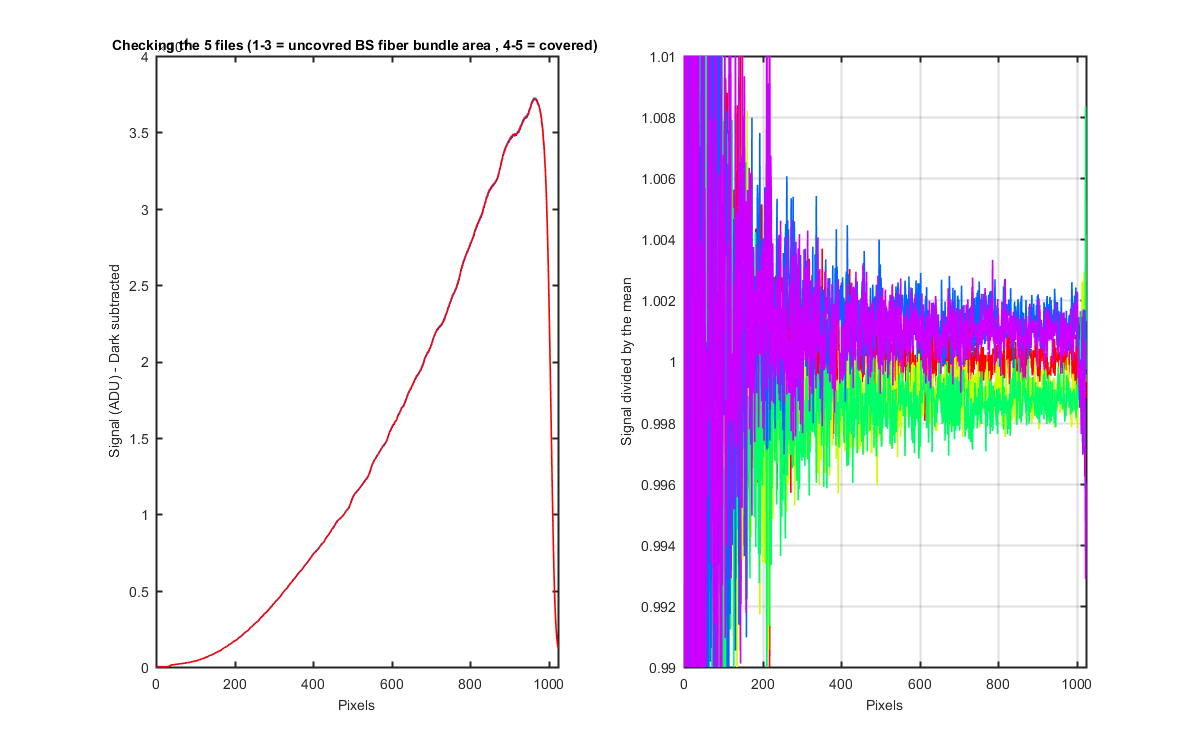

5 lites and 5 Backgrounds meaned for Es Track

Figure 1

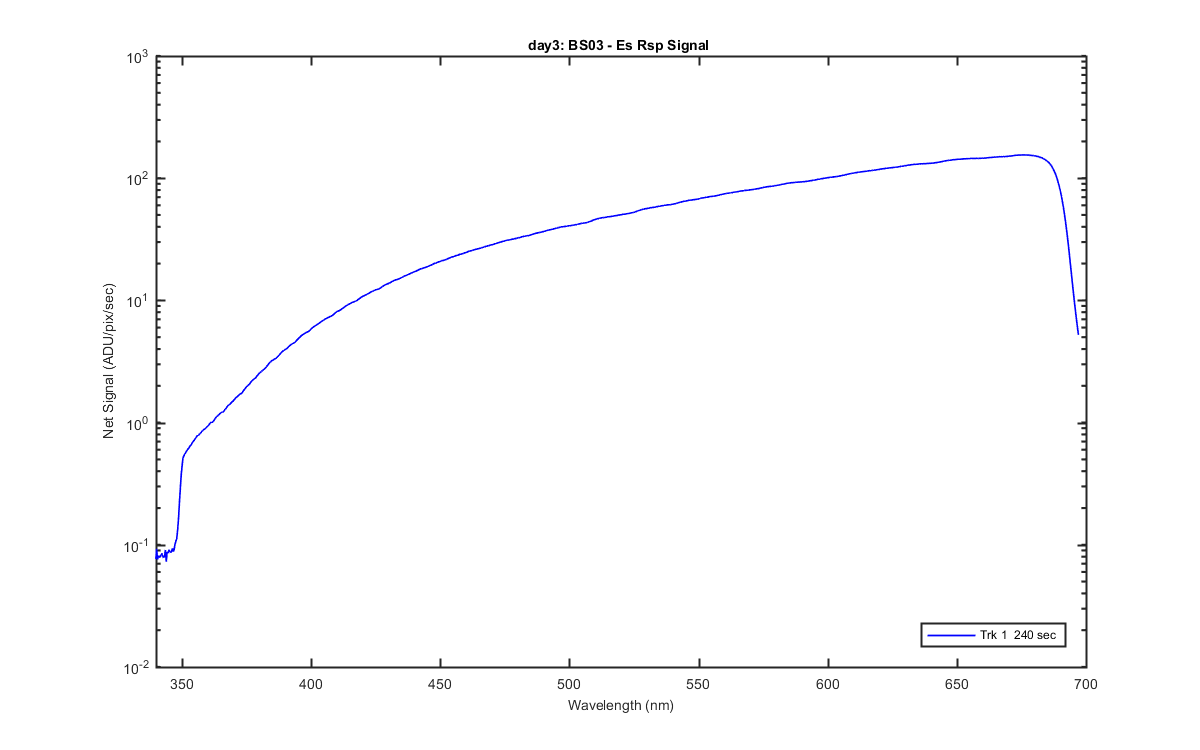

Net signal (ADU/pix/sec) - dark subtracted

Figure 2

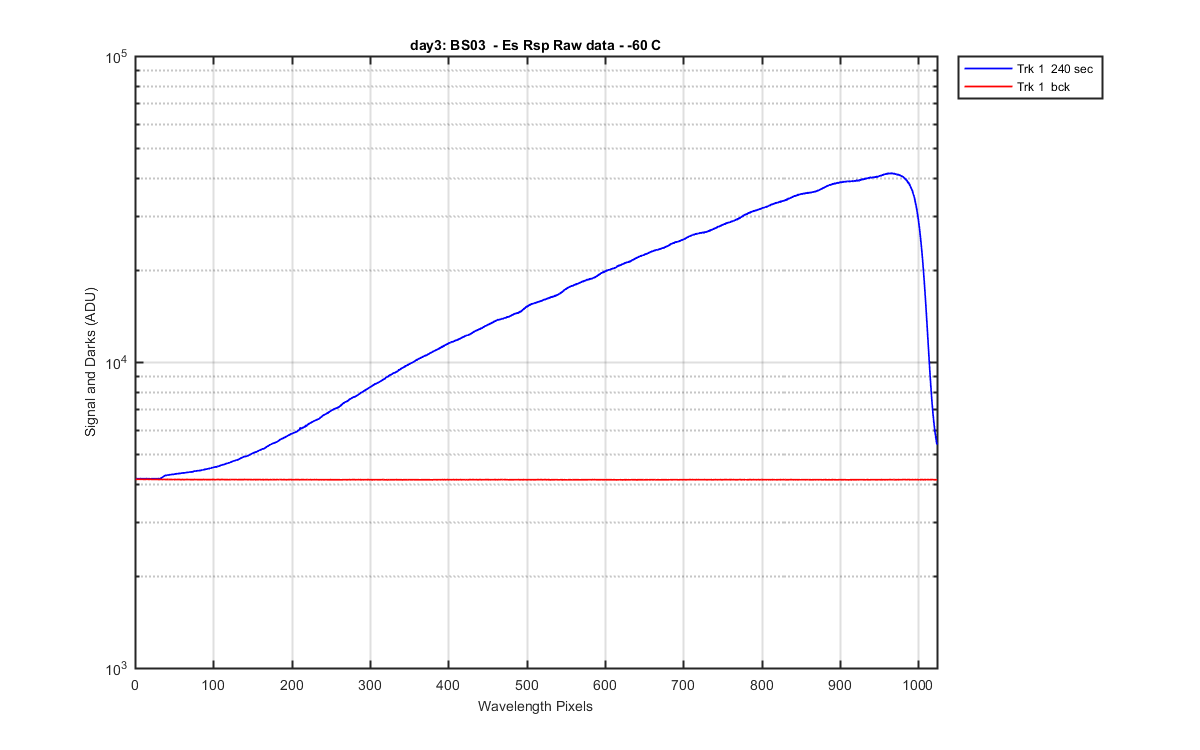

Net signals divided by the F601c3.txt Es cal lamp data (interpolated to BS03 wavelengths)

Figure 3

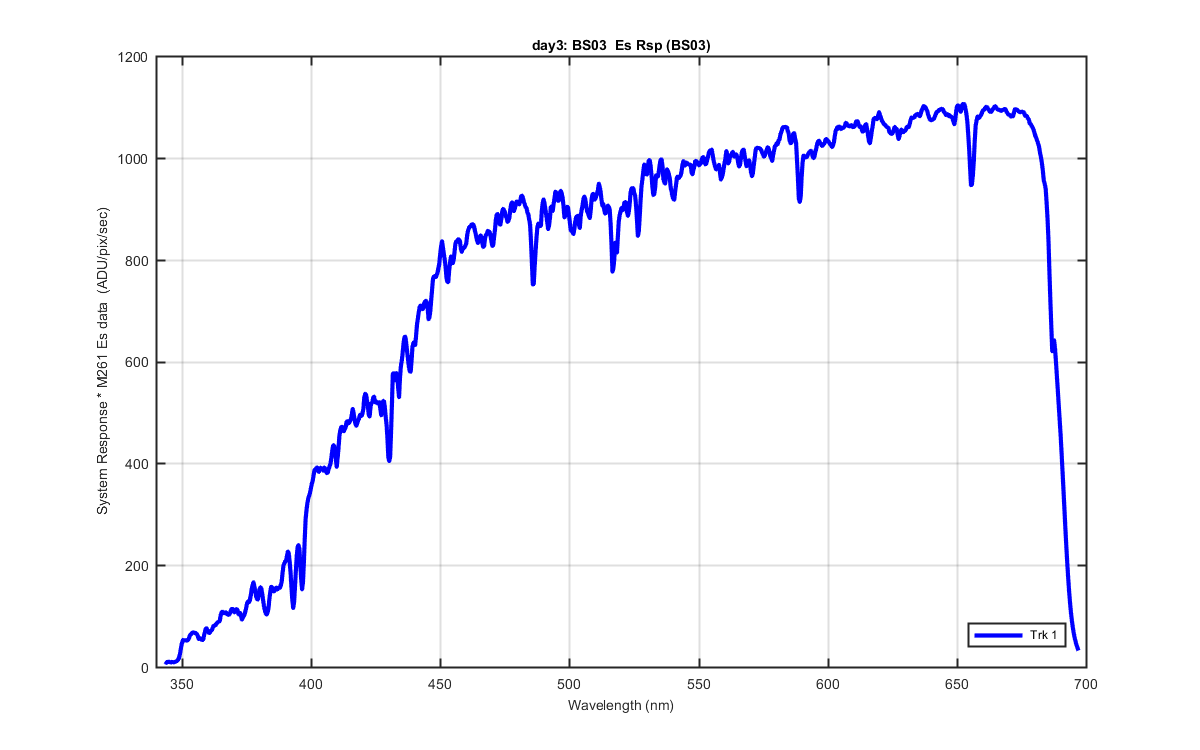

Trying to figure out exposure times, not sure I am thinking about this correctly. But I multiplied Mikes rough response by a in-water (good) M260 Es data set and got the below graph for Es. I think the units are now ADU/pix/sec. So what int time will get the data to 50K. The below table shows the max int time for the Es track, if I did my math right. Help please Mike.

Trk  Max ADU   Exposure to get 50K ADU
 1    1288     38.8

Figure 4

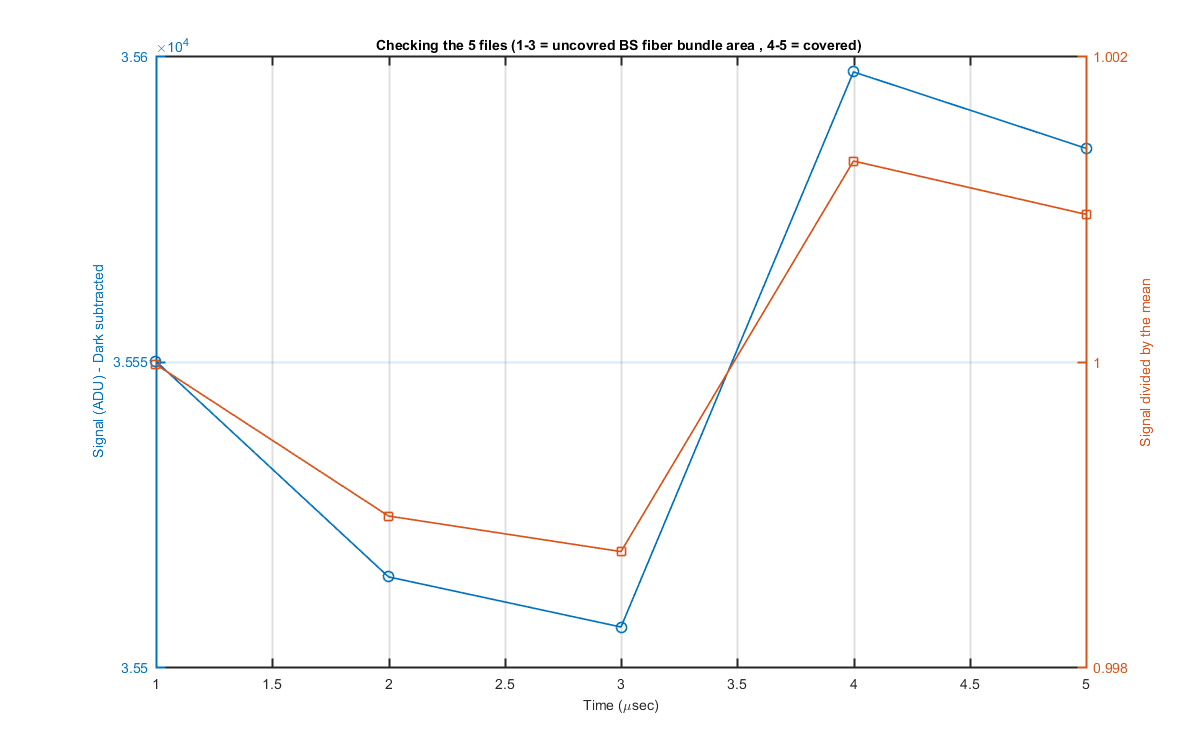

Figure 5

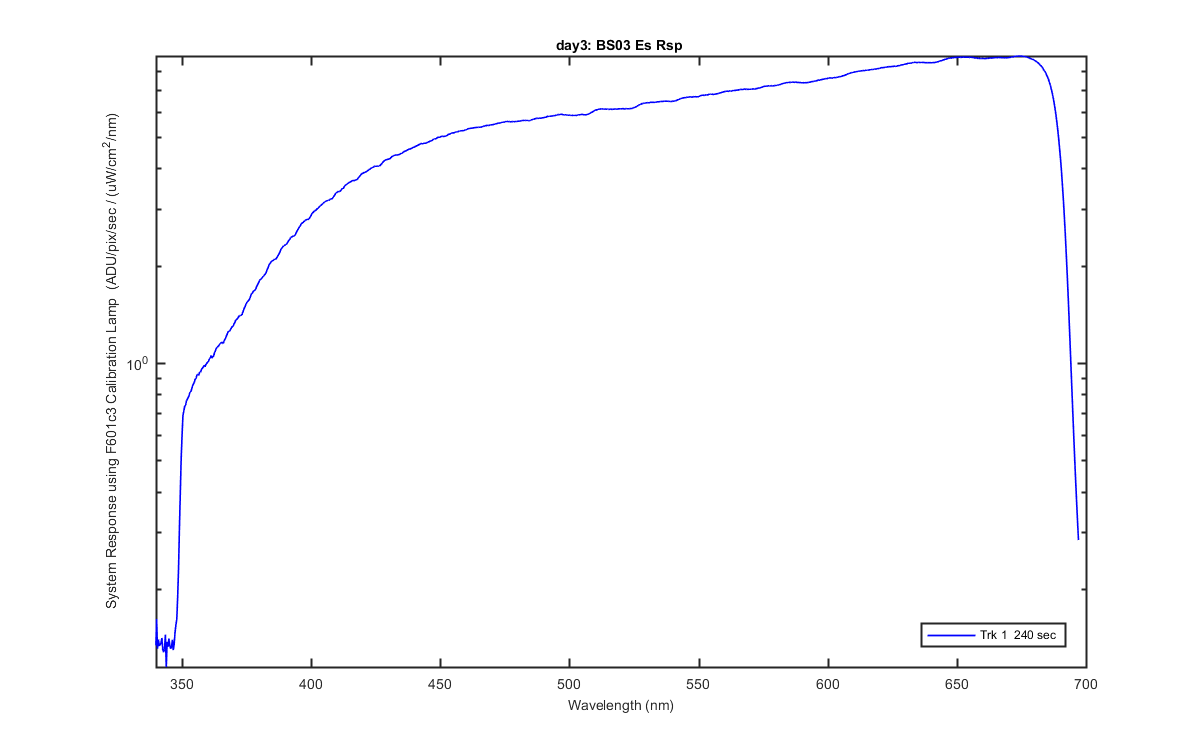

Figure 6


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Hawaii-2017-05\bscal\day03
Date: 26-Jan-2018 15:51:16
Created from plt_es_rsp_(1)
