bs_20190117_g166_84_02_022

REVISION DATE: 17-Jan-2019 18:38:13

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: BS03 Data
Previous HOME NEXT
Filename/Fit# Type file creation date Total Exposure Time Tracks on Temperature Gain Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
bs_20190117_g166_84_02_022 / 20190117 Dark 17-Jan-2019 04:25:51 15 9 -60 -60 4 6175 4012.4572 0.23931

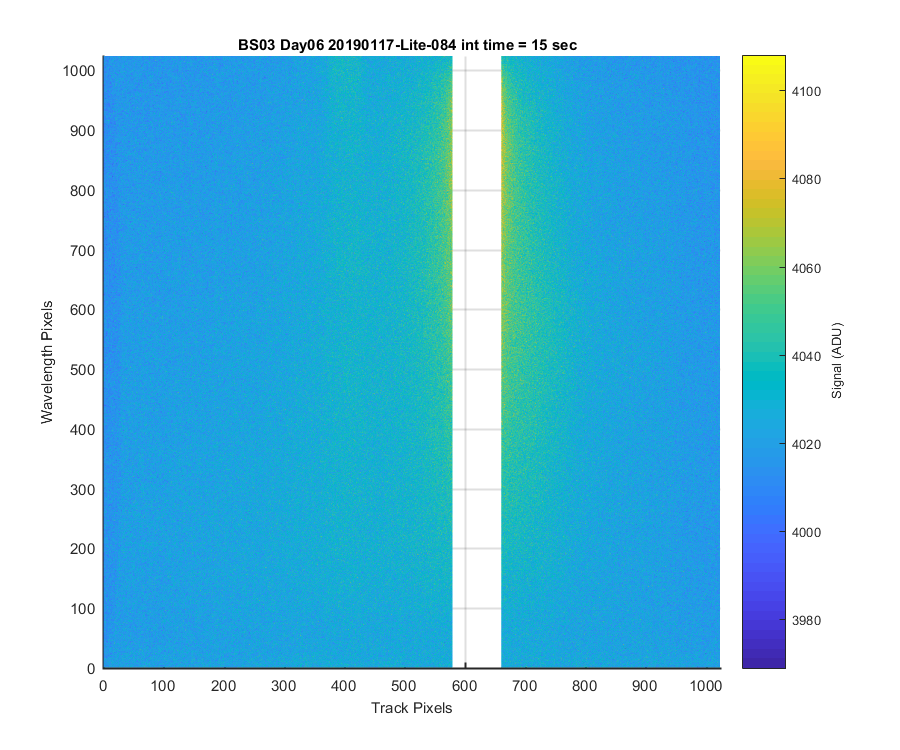

Figure 1

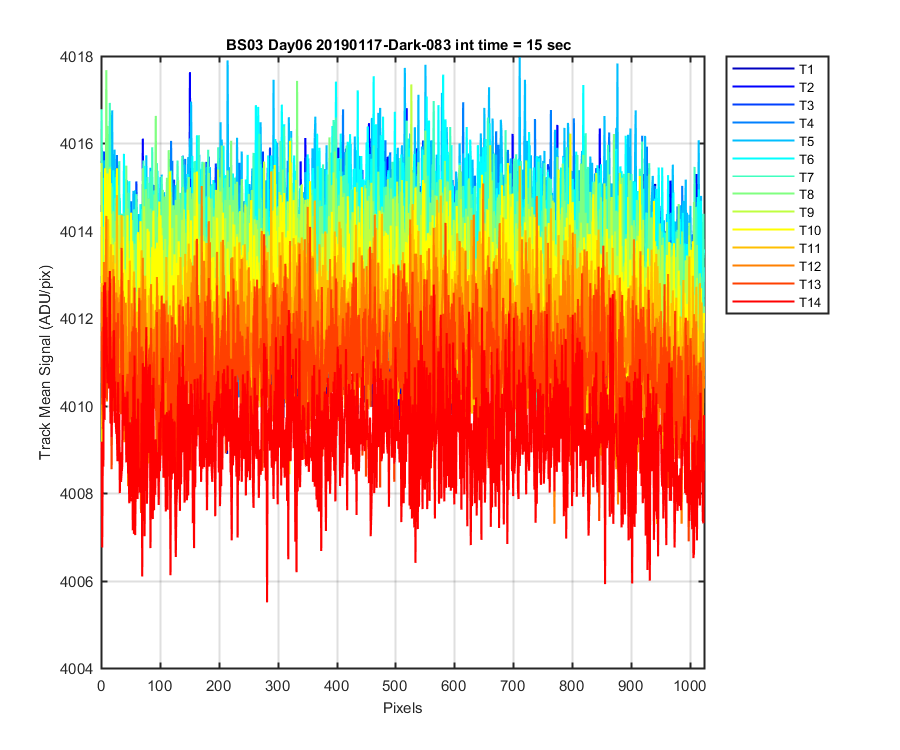

Figure 2

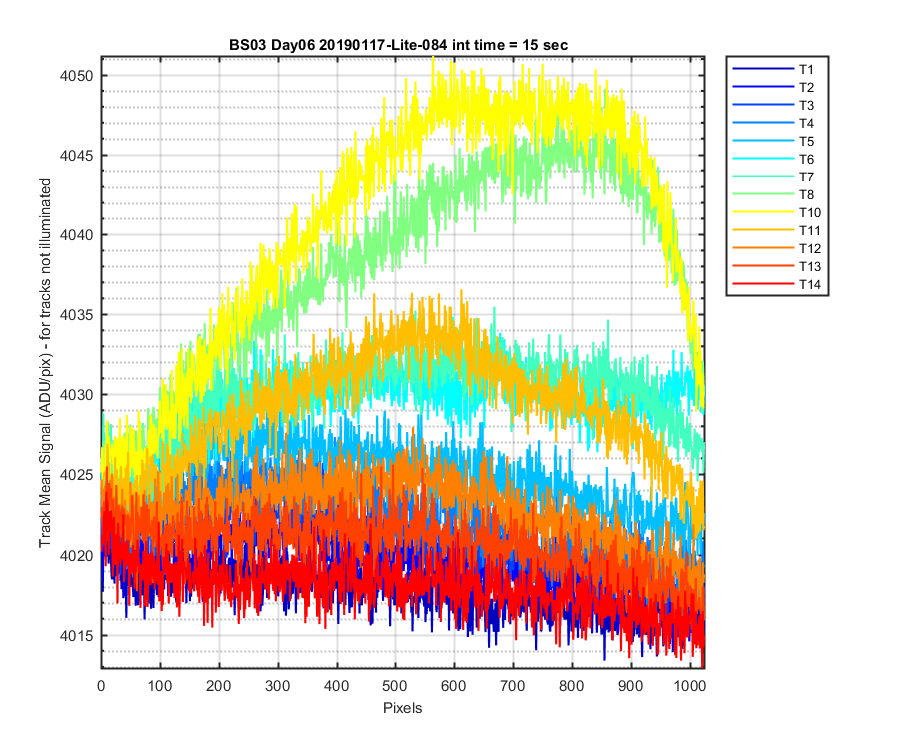

Figure 3

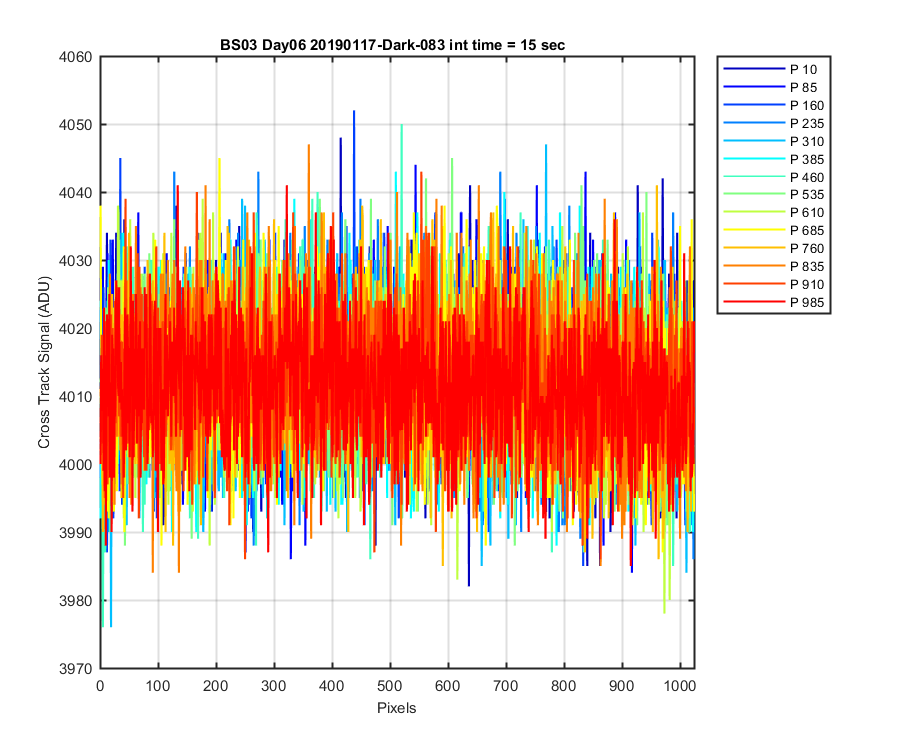

Figure 4
pwd: E:\zflora\mldata2\mobyrefresh\characterization\Hawaii-2019-01\BS3cal
Date: 17-Jan-2019 18:38:13
Created from mkhtml2_(1)

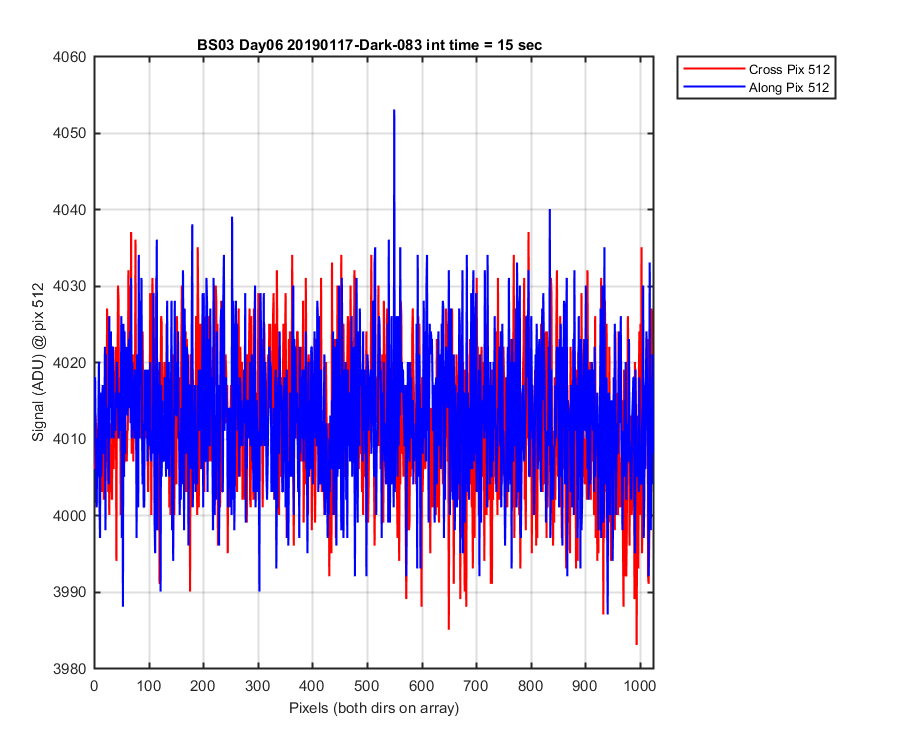

Figure 5
Figure 6
Figure 7
Figure 8
pwd: E:\zflora\mldata2\mobyrefresh\characterization\Hawaii-2019-01\BS3cal
Date: 17-Jan-2019 18:38:13
Created from mkhtml2_(1)
