RS04 - Fraun lines and movement

plyday01_repeats_ - RS04

REVISION DATE: 21-Feb-2019 09:24:42

Looking for the effect of bending the fiber and loops. The E# in the legend are the number if the dark-light-dark data set number that produced the net scan being plotted. PDmonitor data are from the OL455 txt data files not from Mikes log sheets.

Day 1 Track6, was just repeats of removing and replacing the Lu head to make sure there was no change there.
Day 2 Track6, the bending started (B in the legend with a angle in degrees).
Day 3 Track6, was large loops near the Lu head (hd in legend).
Day 4 Track6, was more large loops some at the Lu Head (hd in legend) and some near the spectrograph (Sp in legend)
Day 5 Track9, all have a 90 deg bend near head and then loops added at head and spec.
Day 6 Track9, tighter loops added at head and spec (11").
Day 7 Track9, Even tighter loops added at spec with loops and bends.
Day 8 Track9, Repeat/ finishing of even tighter loops added at spec with loops and bends from day 7.
Day 9 Track9, 2 tight loops @ spec and 1 tight loop at head then vertical and horizontal.

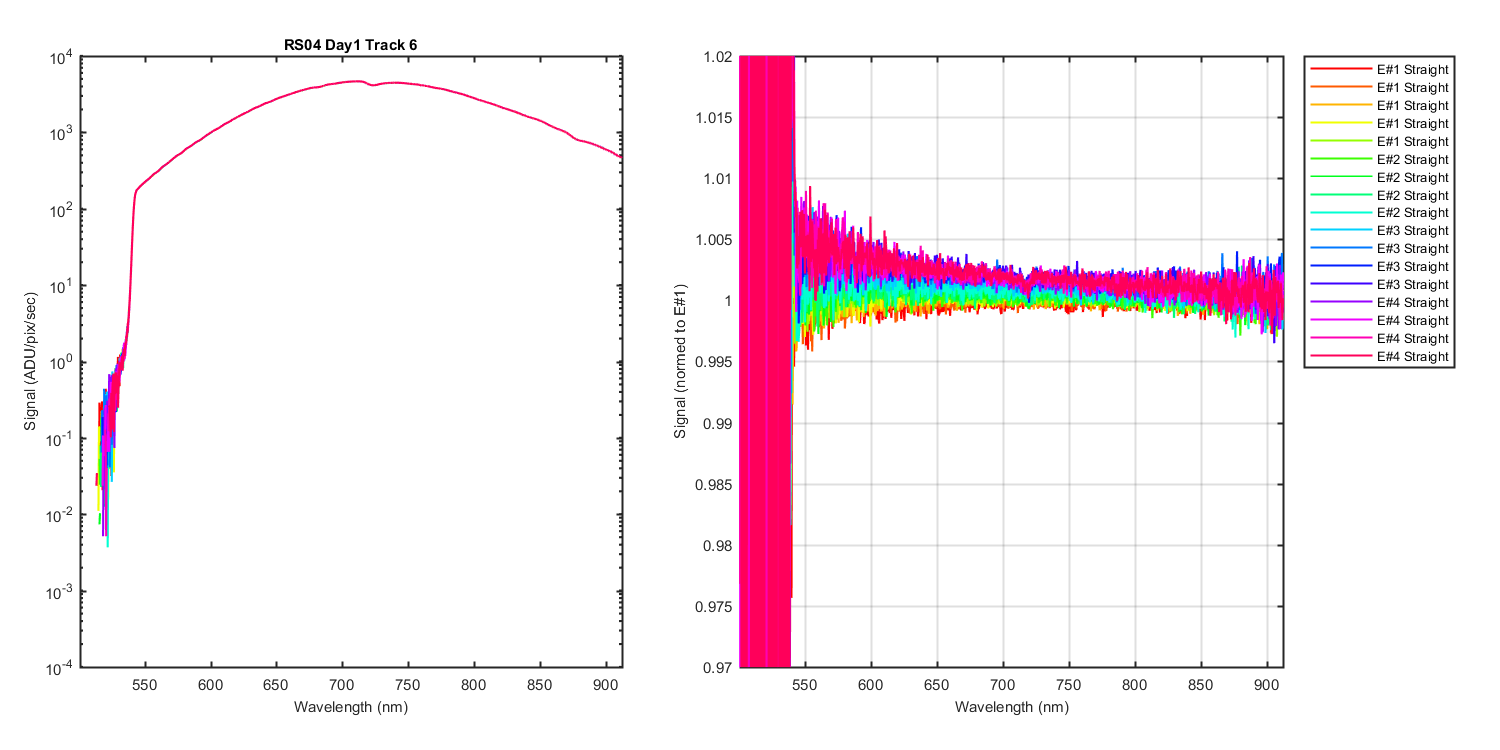

Figure 1 : Day 1 - Track 6 with LuBot Head and 20 ft 7 inches in fiber. Test to removed and replace the Lu Head to check for stability before adding bends and loops.
E#1 = Straight
E#2 = Straight
E#3 = Straight
E#4 = Straight

Figure 2 : Day 2 - Track 6 with LuBot Head and 20 ft 7 inches in fiber. Alternate straight and a 90 degree bend near the Lu Head
E#5 = Straight
E#6 = Bend 90 @ L Head
E#7 = Straight
E#8 = Bend 90 @ L Head
E#9 = Straight

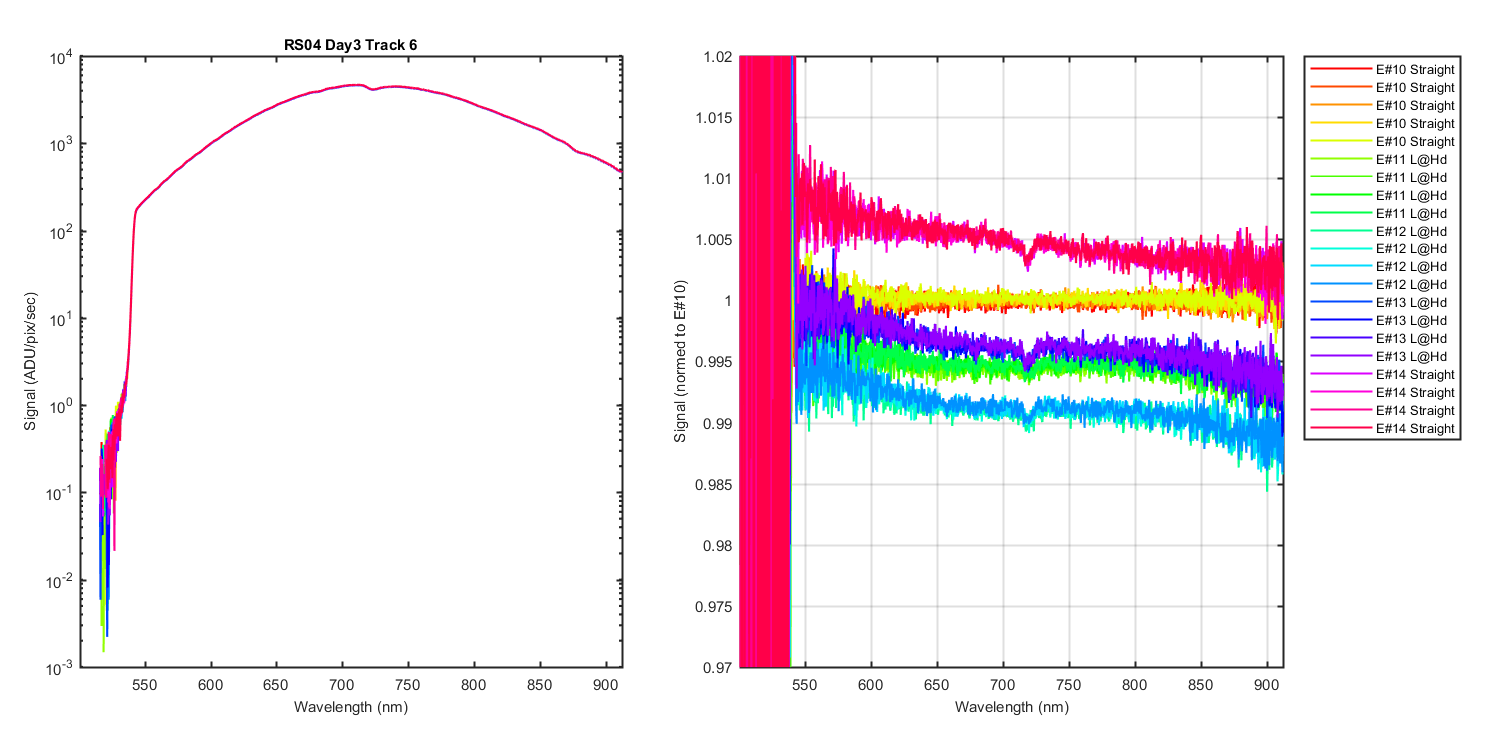

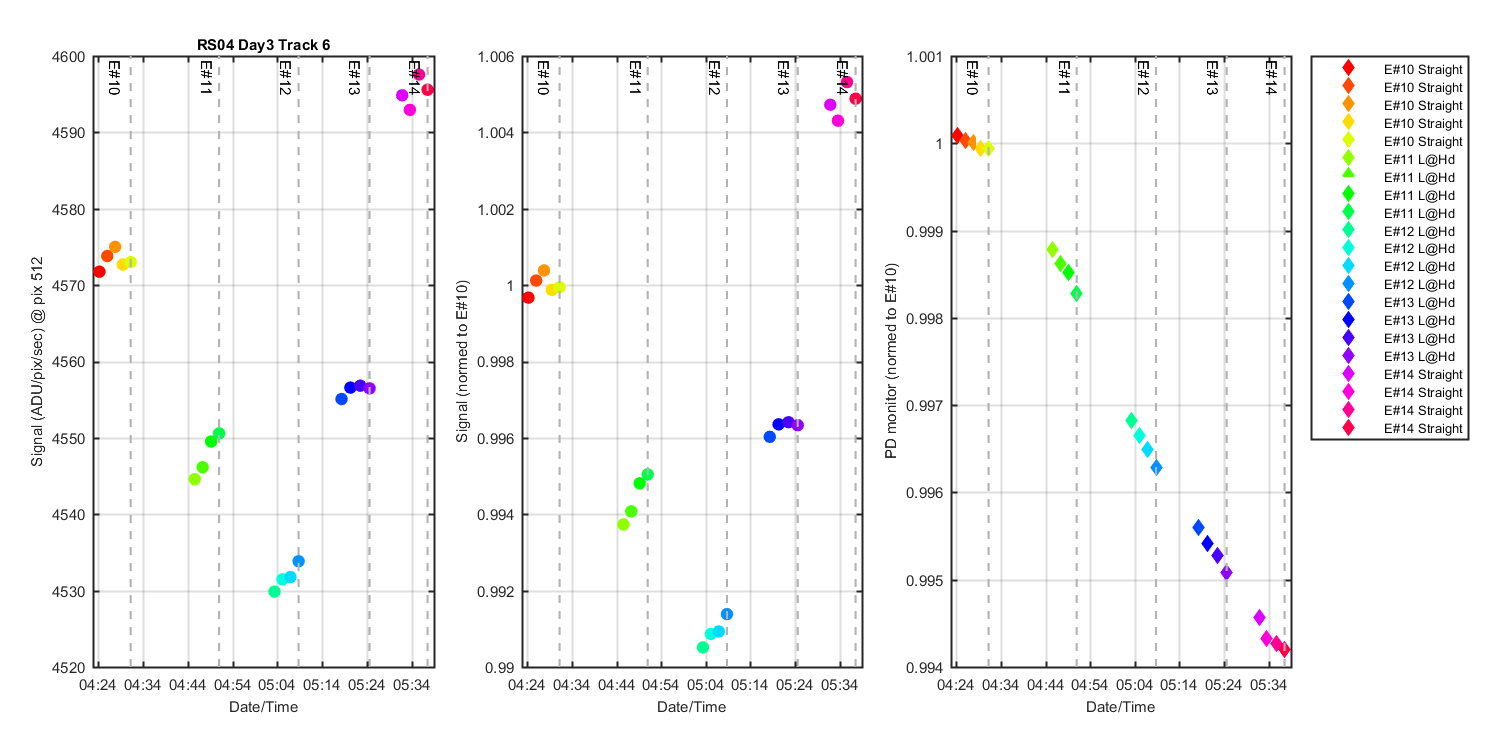

Figure 3 : Day 3 - Track 6 with LuBot Head and 20 ft 7 inches in fiber.
E#10 = Straight
E#11 = 1 19" loop near Lu Head
E#12 = 2 19" loop near Lu Head
E#13 = 1 19" loop near Lu Head
E#14 = Straight

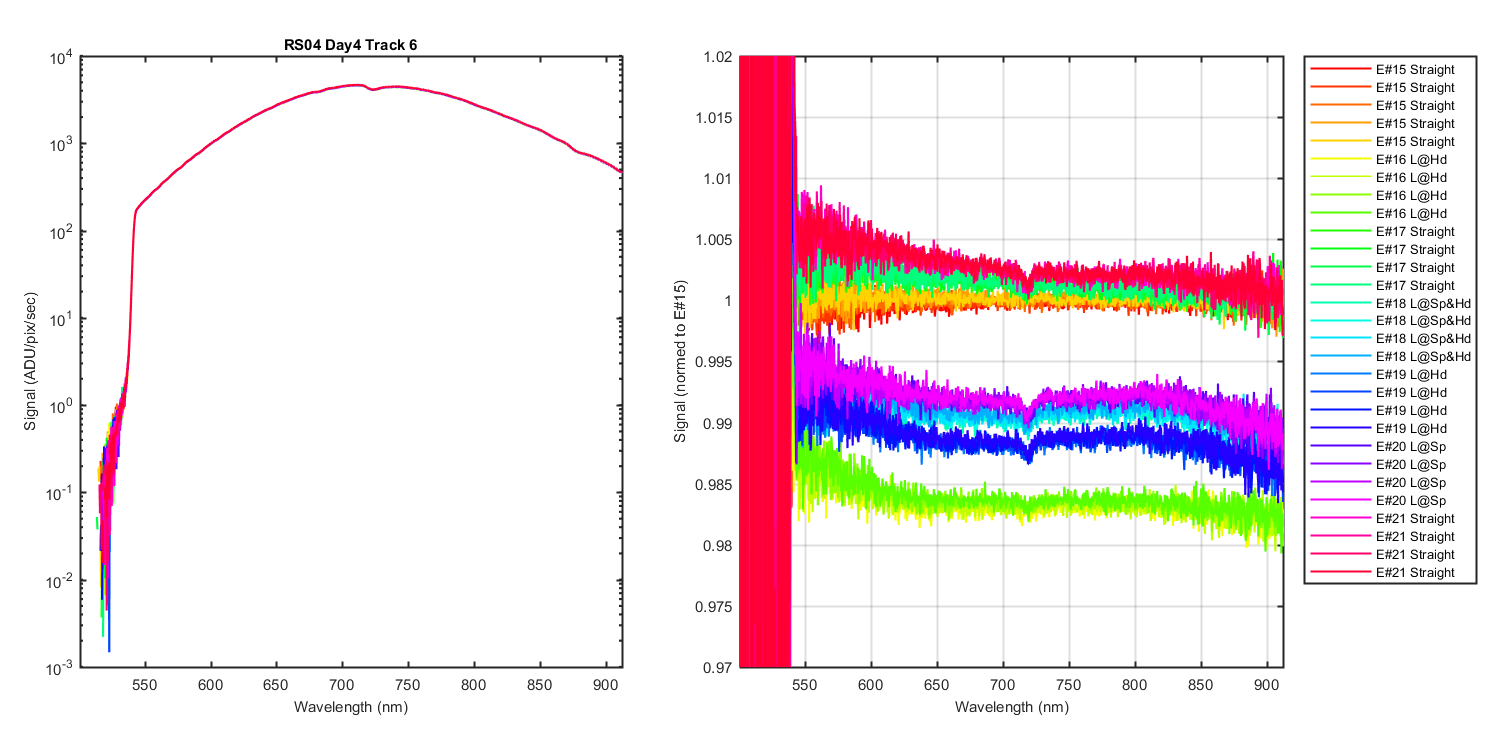

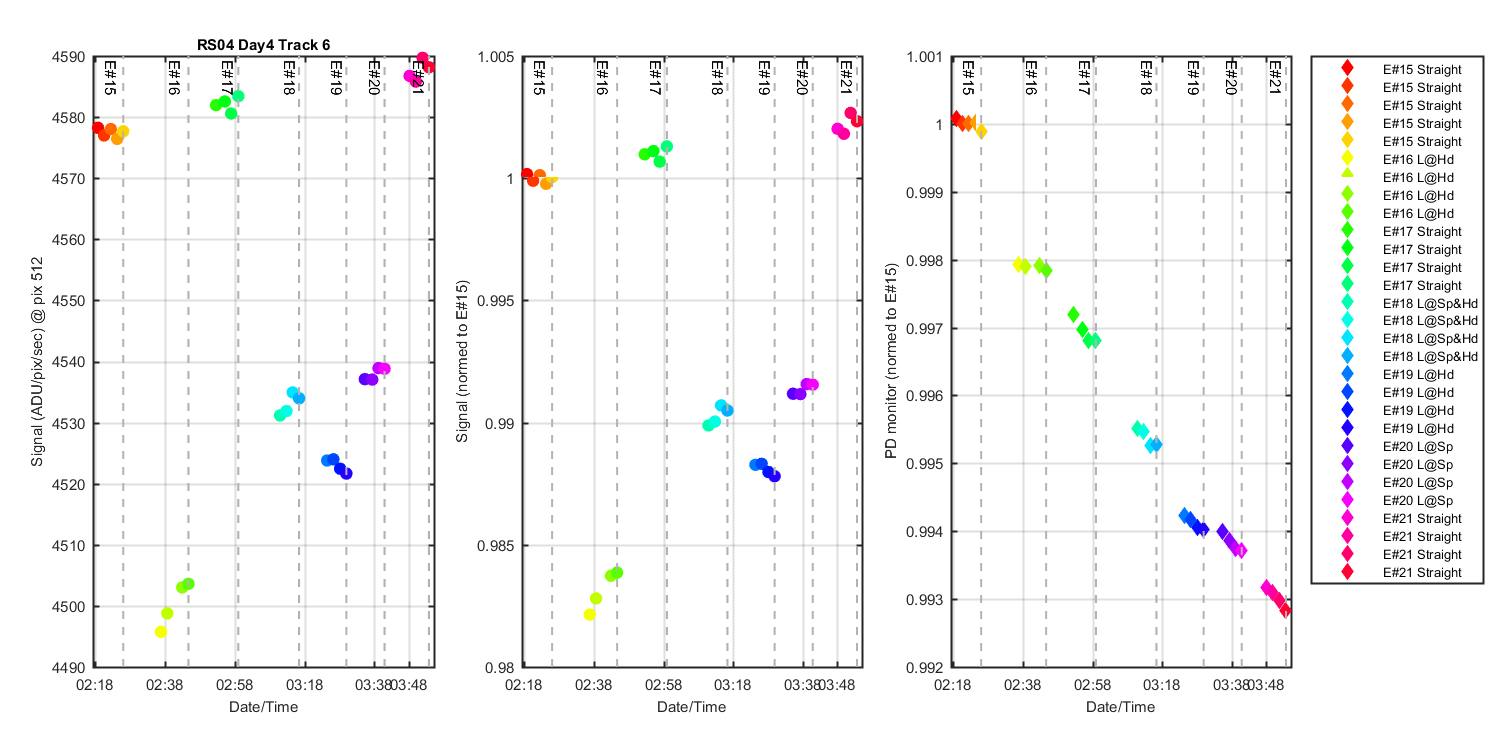

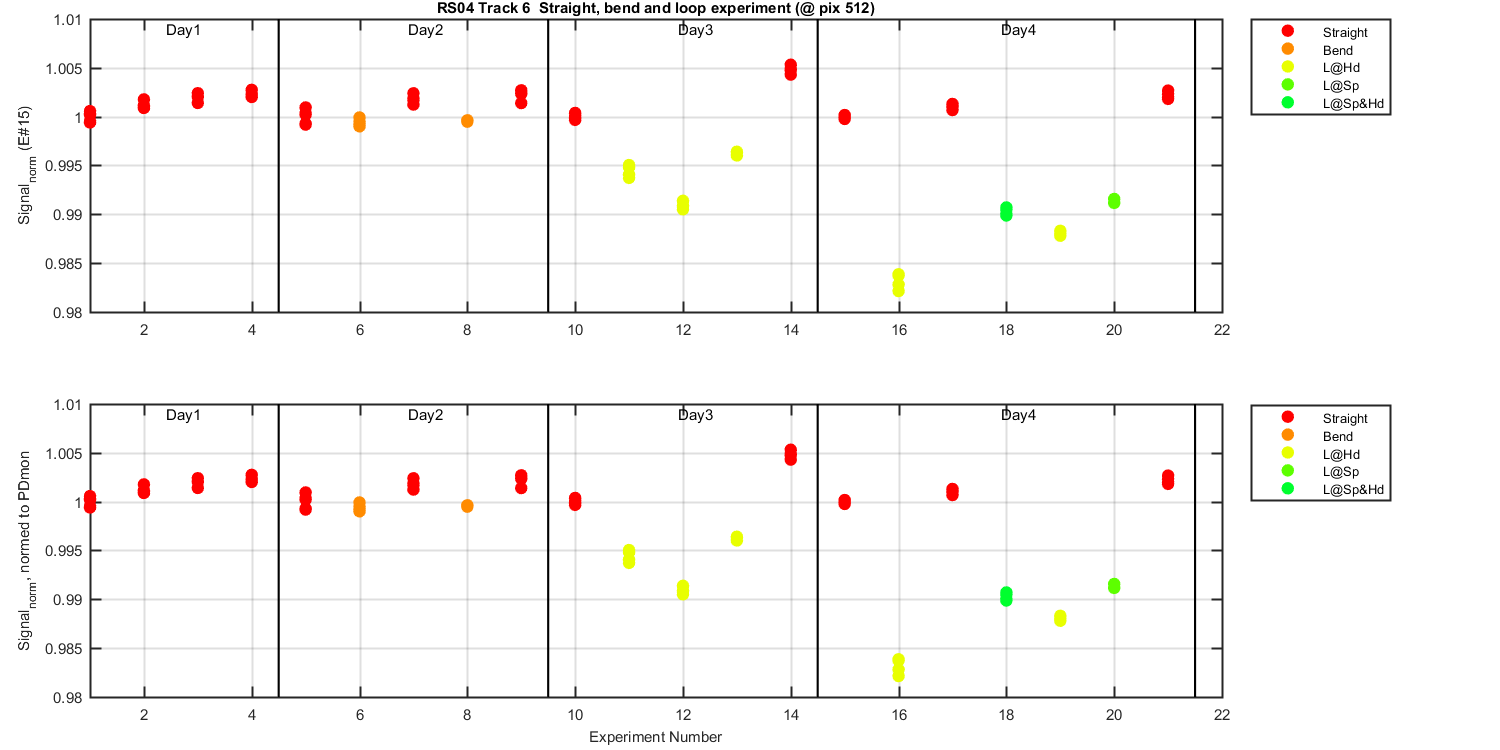

Figure 4 : Day 4 - Track 6 with LuBot Head and 20 ft 7 inches in fiber.
E#15 = Straight
E#16 = 4 14" loop near Lu Head
E#17 = Straight
E#18 = 1 14" loop near spec
E#19 = 1 14" loop near spec + 1 16" coil near Lu Head
E#20 = 1 14" loop near spec
E#21 = Straight

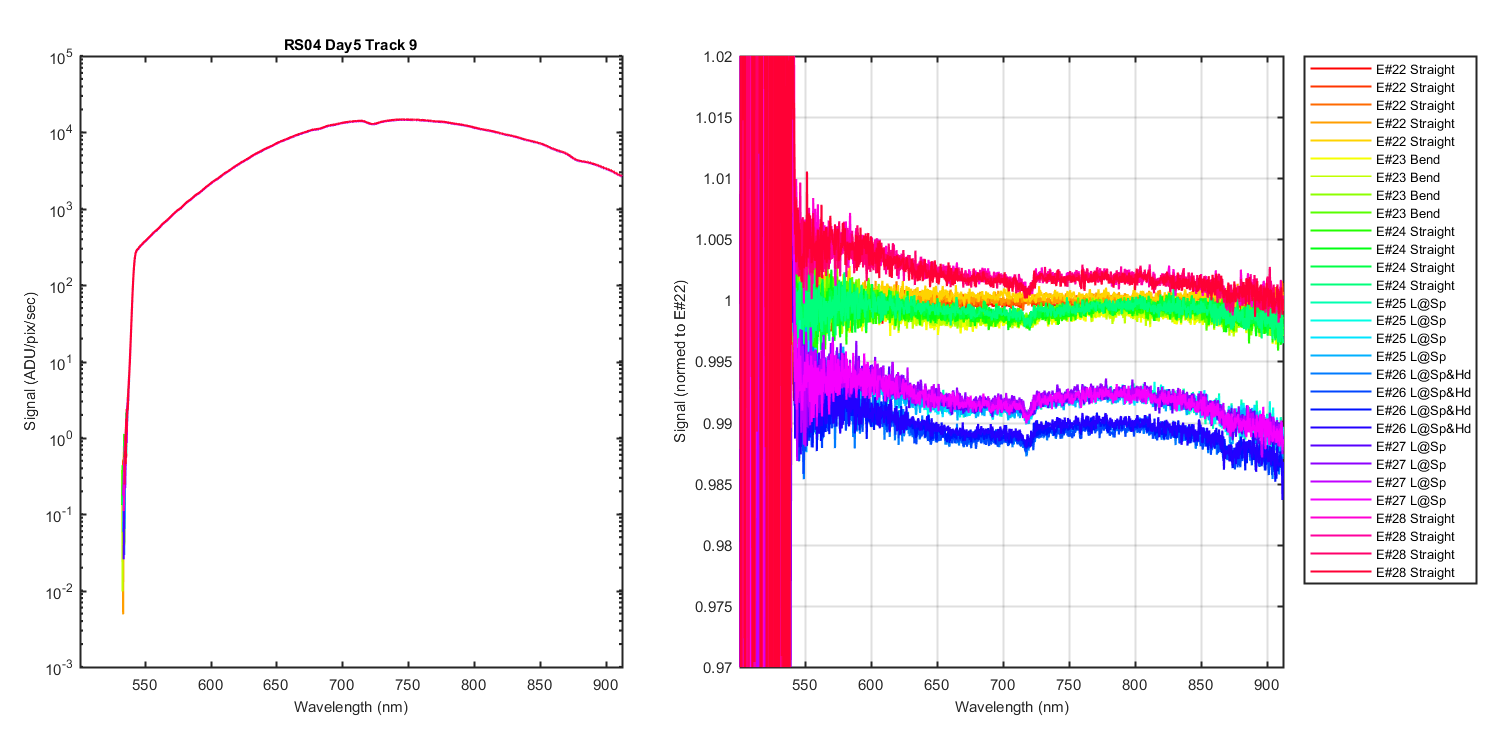

Figure 5 : Day 5 - Track 9 with LuBot Head and 20 ft 7 inches in fiber.
E#22 = Straight
E#23 = 90 deg bend near Lu Head
E#24 = Straight
E#25 = 1 14" loop near spec
E#26 = 1 14" loop near spec + 1 16" coil near Lu head
E#27 = 1 14" loop near spec
E#28 = Straight

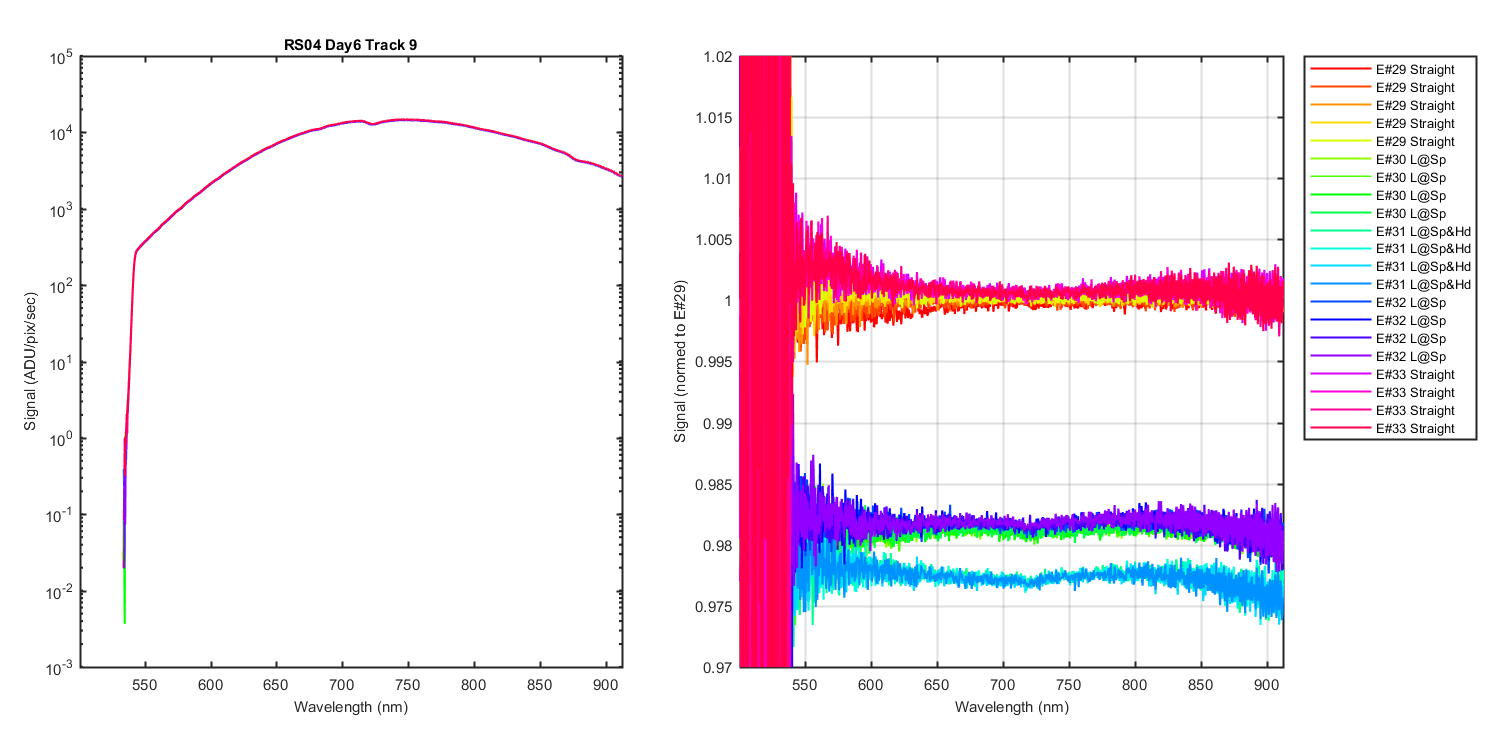

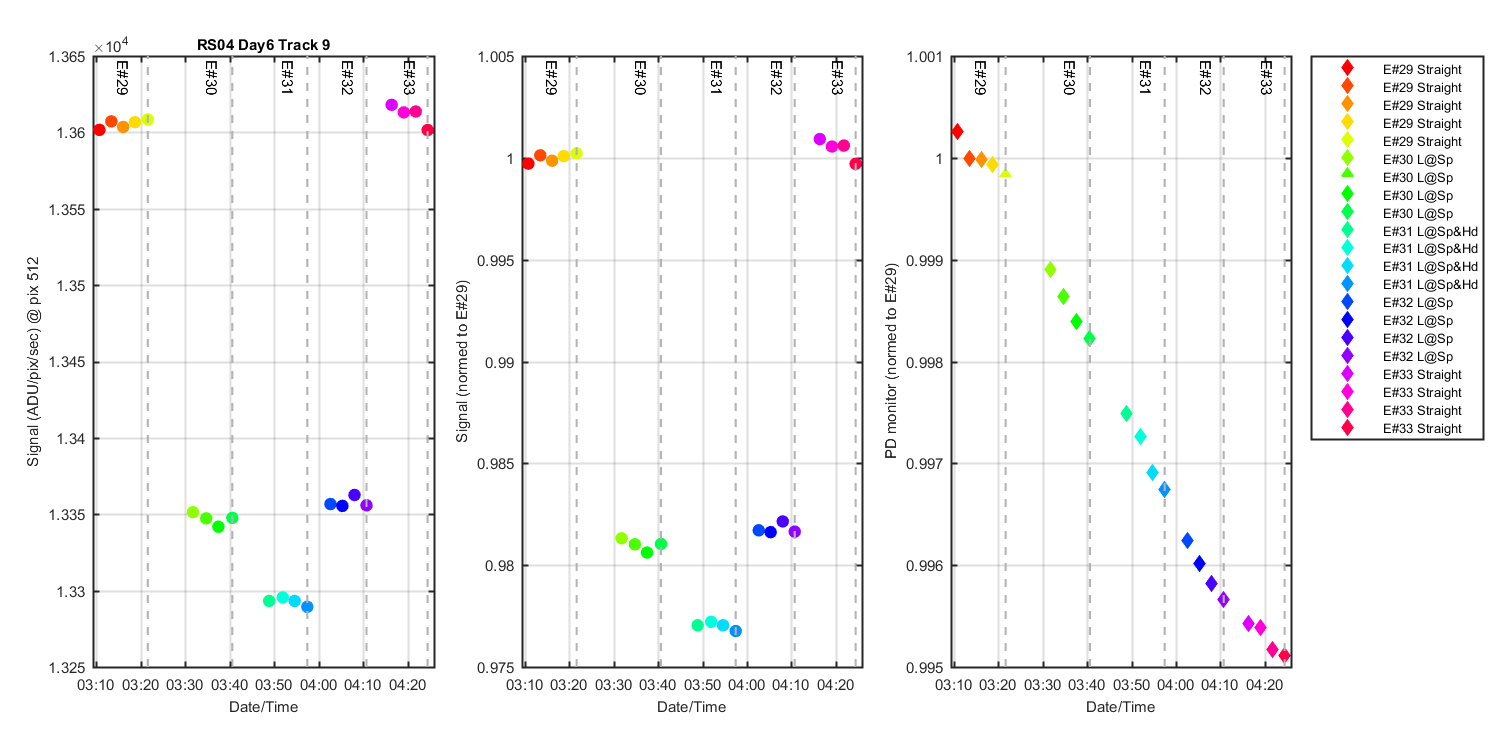

Figure 6 : Day 6 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Tighter loops
E#29 = Straight
E#30 = 1 11" loop near spec
E#31 = 1 11" loop near spec + 1 11" coil near Lu head
E#32 = 1 11" loop near spec
E#33 = Straight

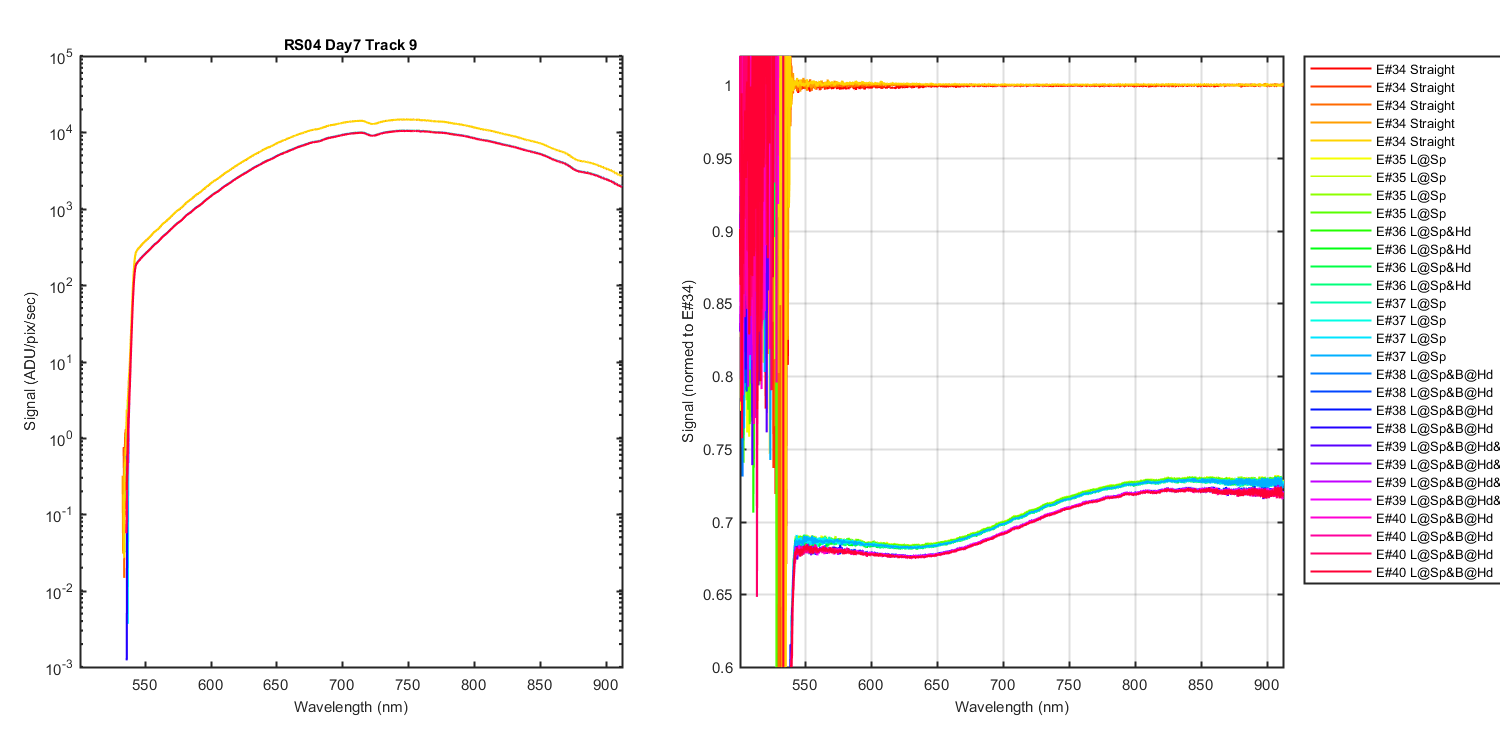

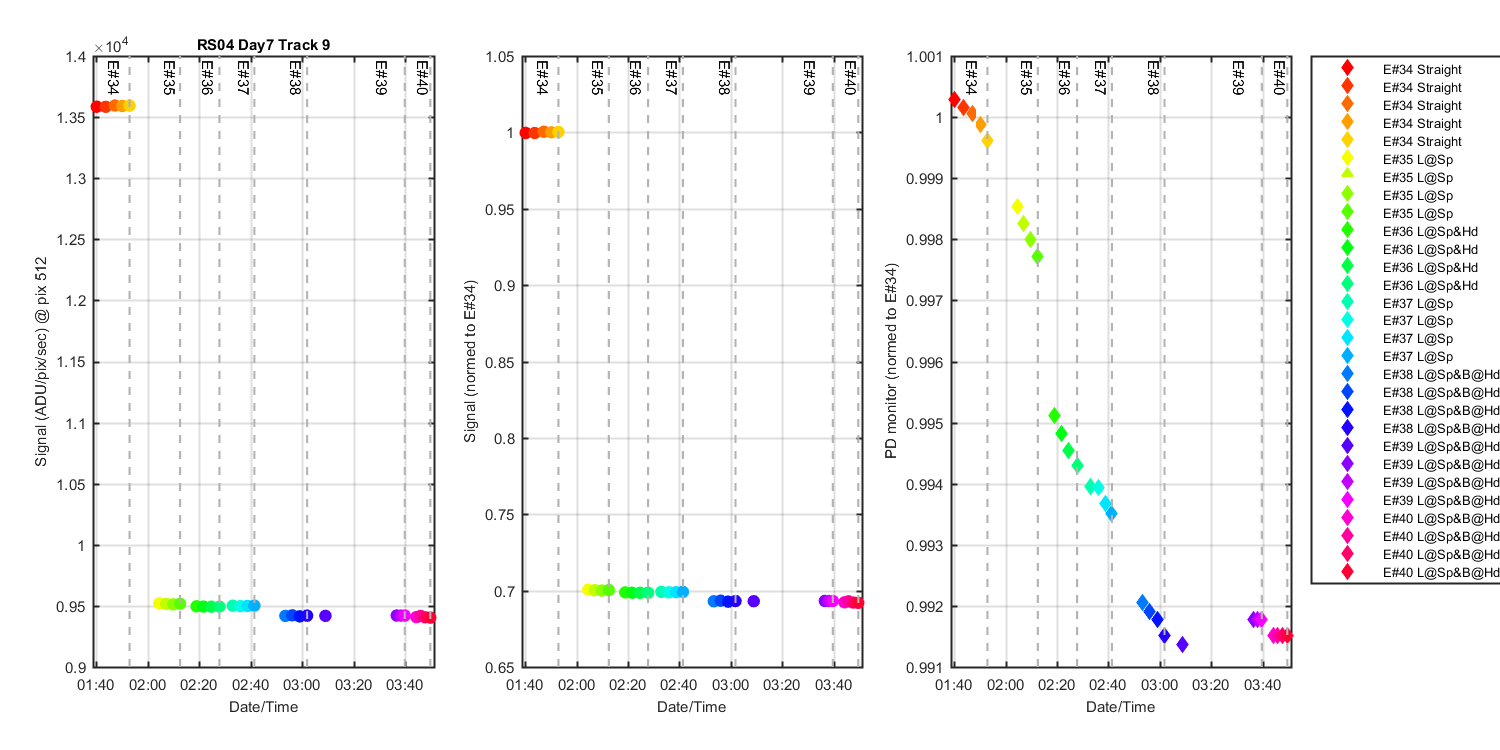

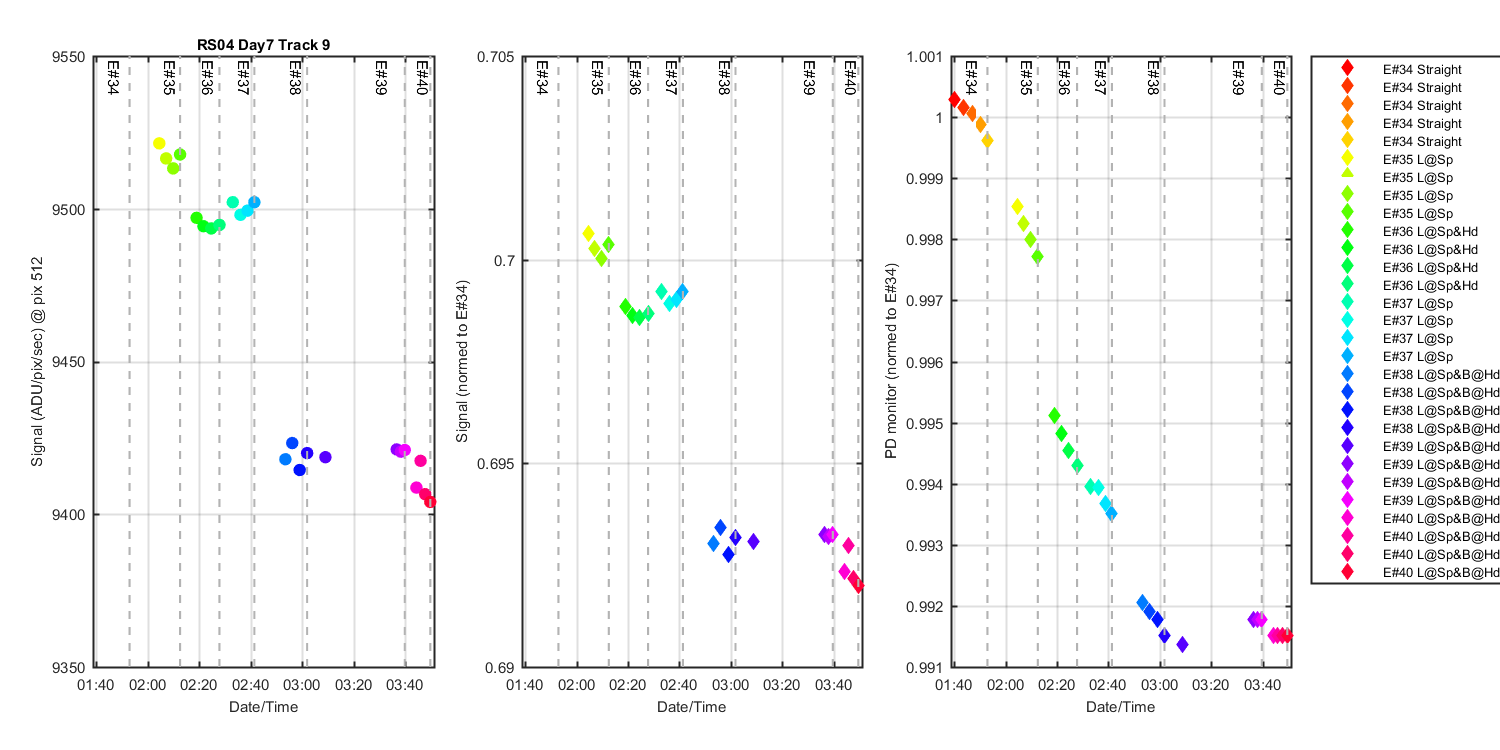

Figure 7 : Day 7 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Even Tighter loops
E#34 = Straight
E#35 = 2x 2.5" loop near spec
E#36 = 2x 2.5" loop near spec + 1 11" loop near Lu head
E#37 = 2x 2.5" loop near
E#38 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head
E#39 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop between spec and head
BS got too hot, following exp is RS only (see RS graphs for the rest of the exp)
E#40 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop between spec and head

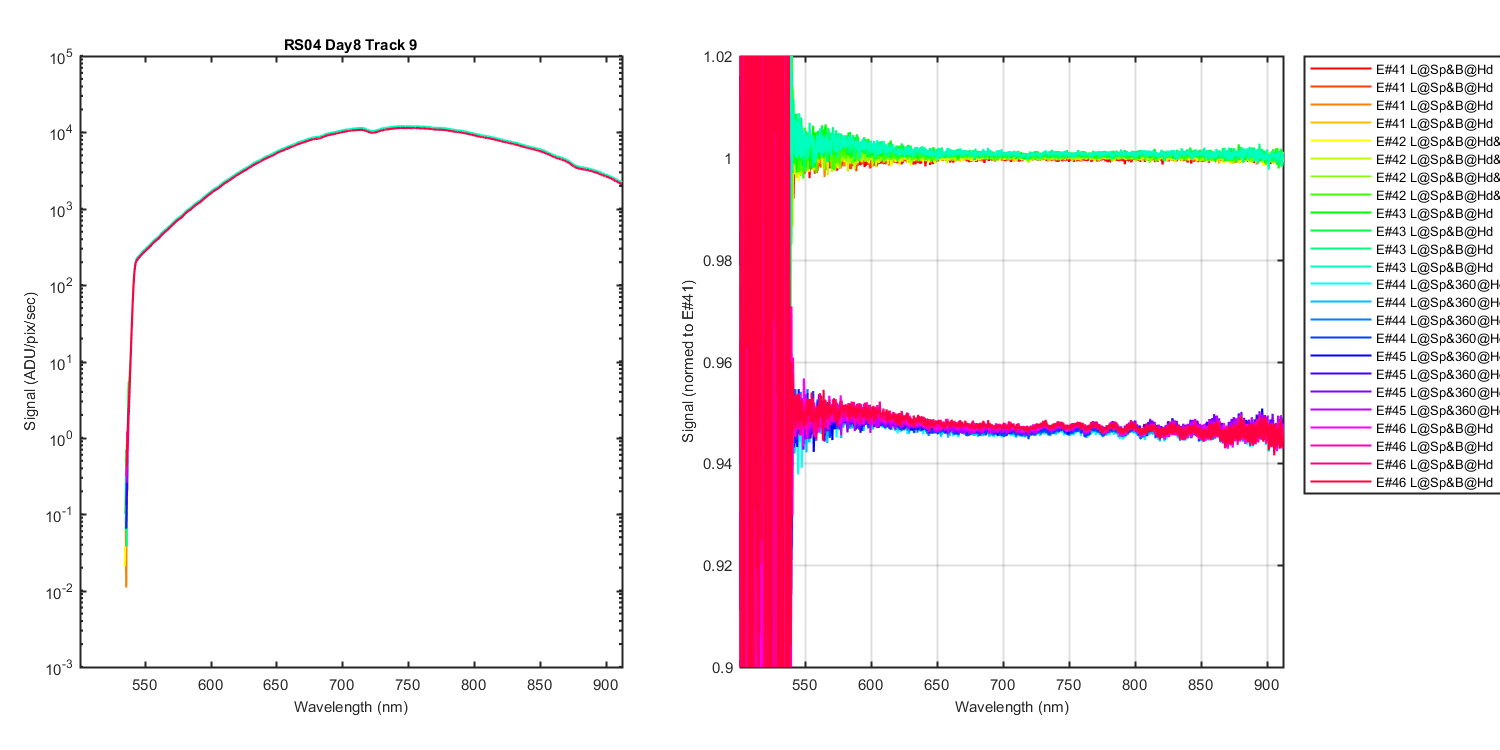

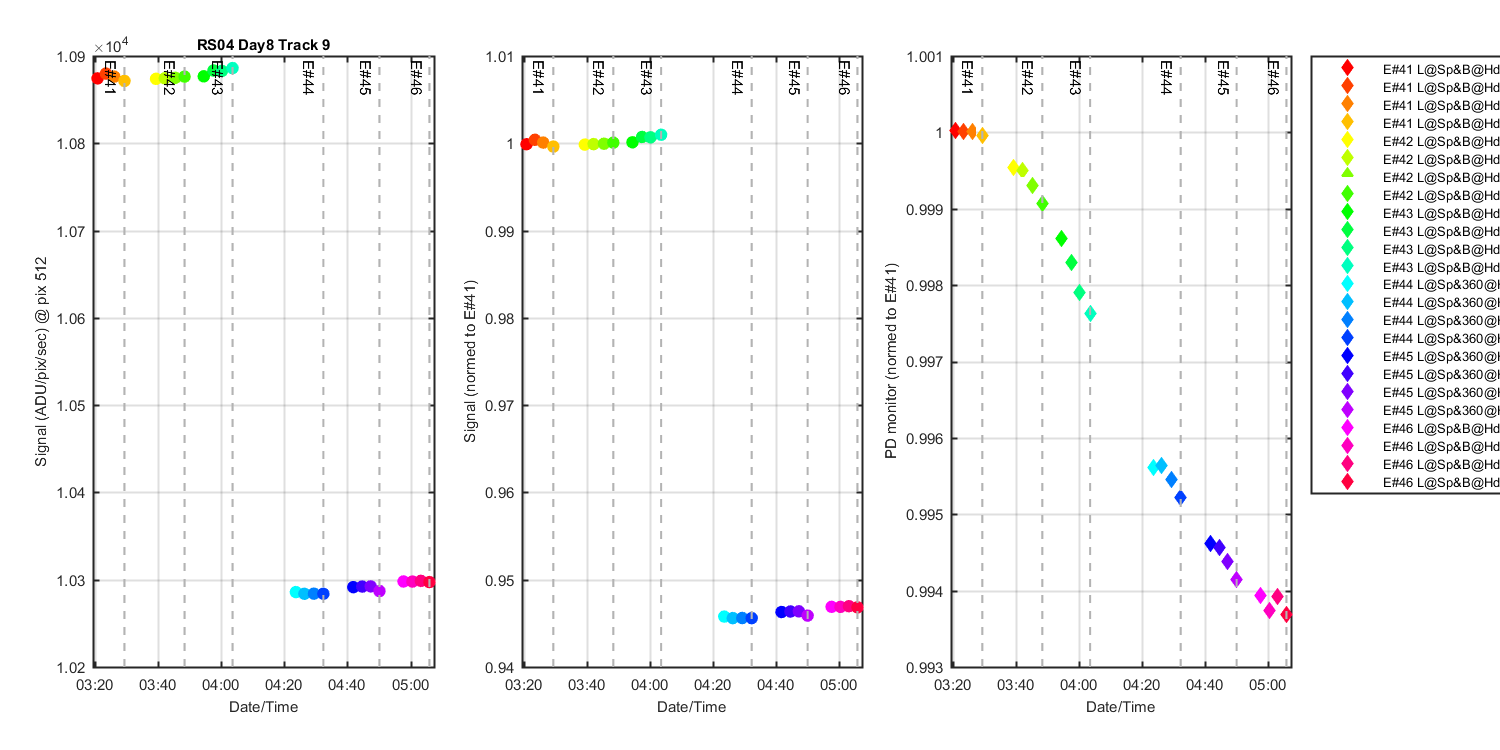

Figure 8 : Day 8 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Even Tighter loops repeat and new stuff
E#41 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + straight FO
E#42 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop near head
E#43 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + straight FO
E#44 = 2x 2.5" loop near spec + 1 360deg bend near Lu head + straight FO
E#45 = 2x 2.5" loop near spec + 1 360deg bend near Lu head + 1 11" loop near head
E#46 = 2x 2.5" loop near spec + 1 360deg bend near Lu head + straight FO

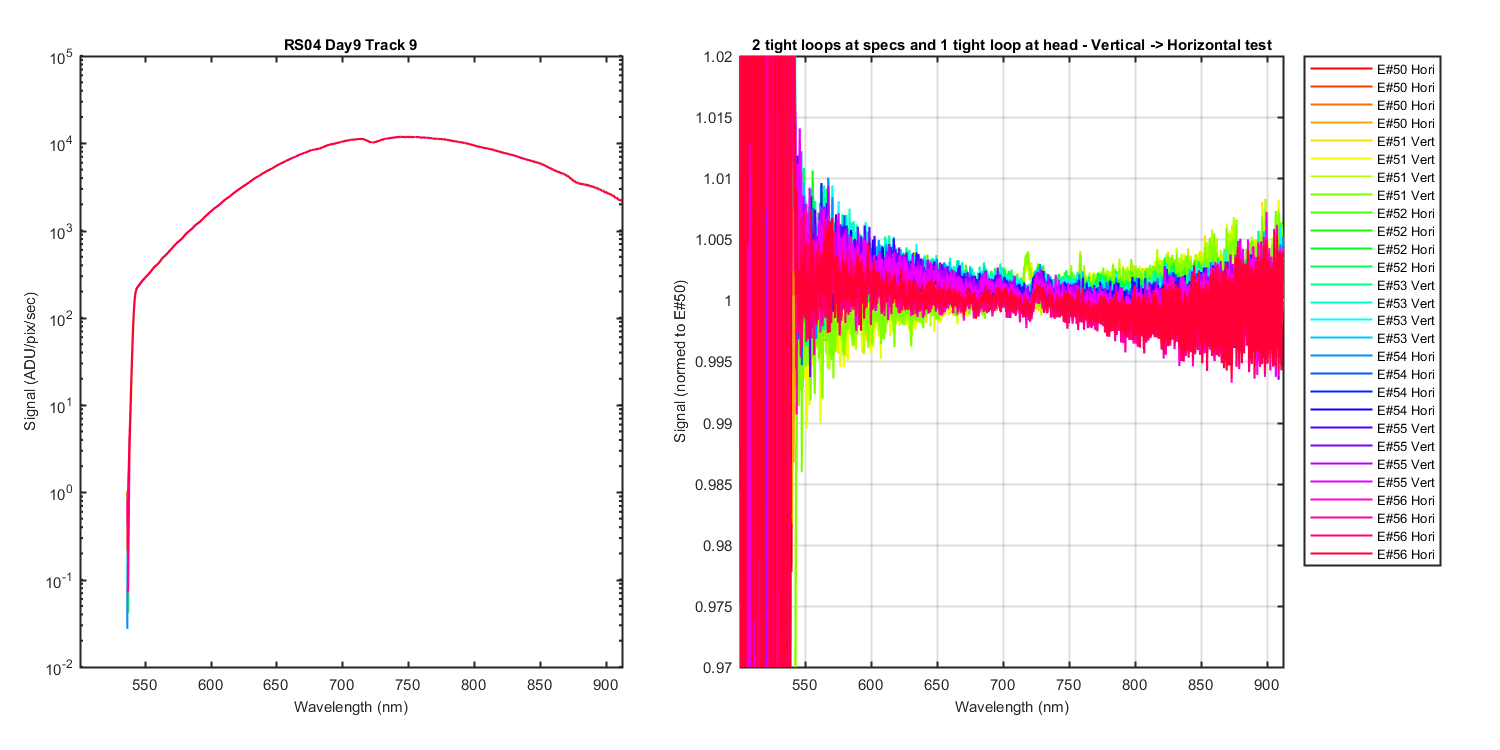

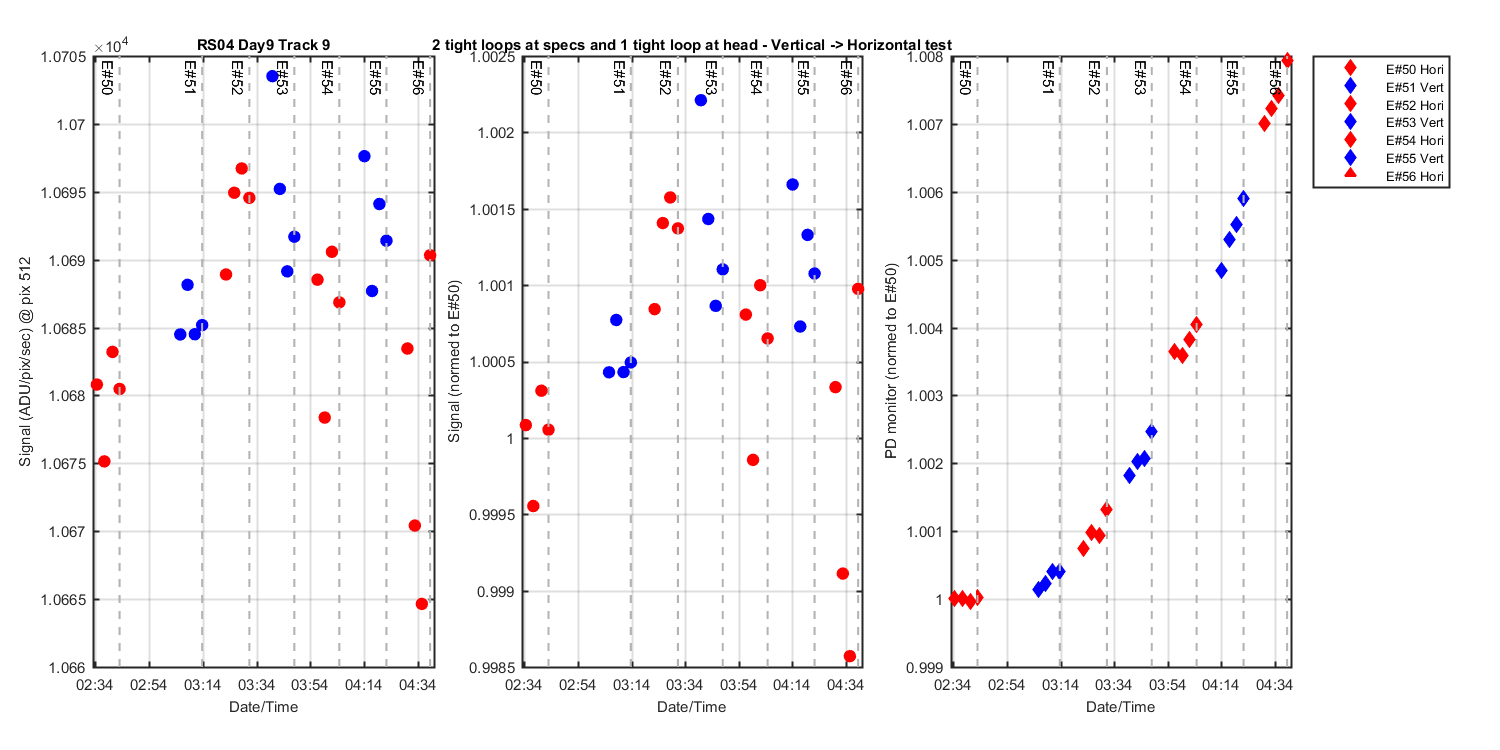

Figure 9 : Day 9 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Even Tighter loops repeat and new stuff
E#50 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Horizontal
E#51 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Vertical
E#52 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Vertical
E#53 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Horizontal
E#54 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Vertical
E#455 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Horizontal
Experiment Means (middle panel)
Exp# 50 Hori 1
Exp# 51 Vert 1.0005
Exp# 52 Hori 1.0013
Exp# 53 Vert 1.0014
Exp# 54 Hori 1.0006
Exp# 55 Vert 1.0012
Exp# 56 Hori 0.99975

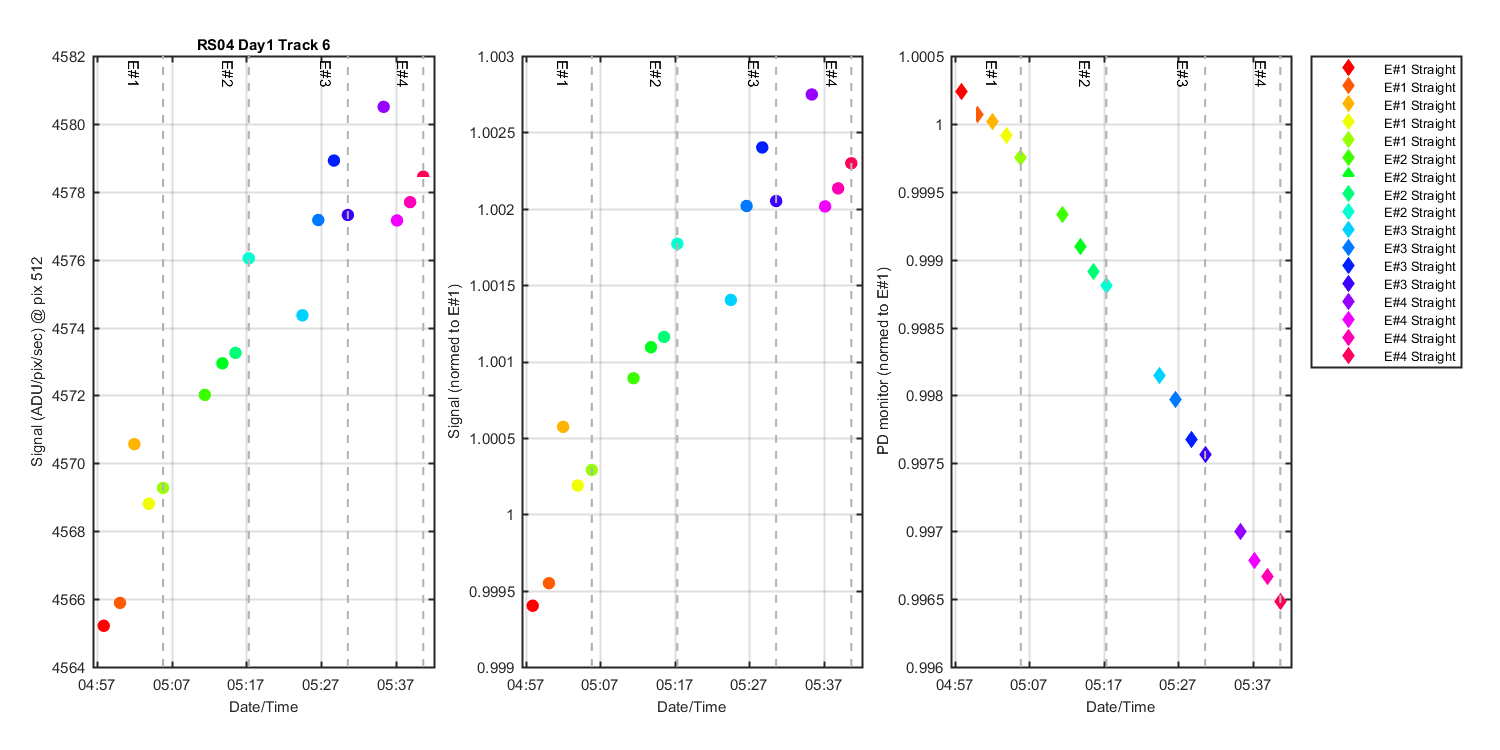

Figure 10 : Day 1 - Track 6 with LuBot Head and 20 ft 7 inches in fiber. Test to removed and replace the Lu Head to check for stability before adding bends and loops. E#1 = Straight
E#2 = Straight
E#3 = Straight
E#4 = Straight

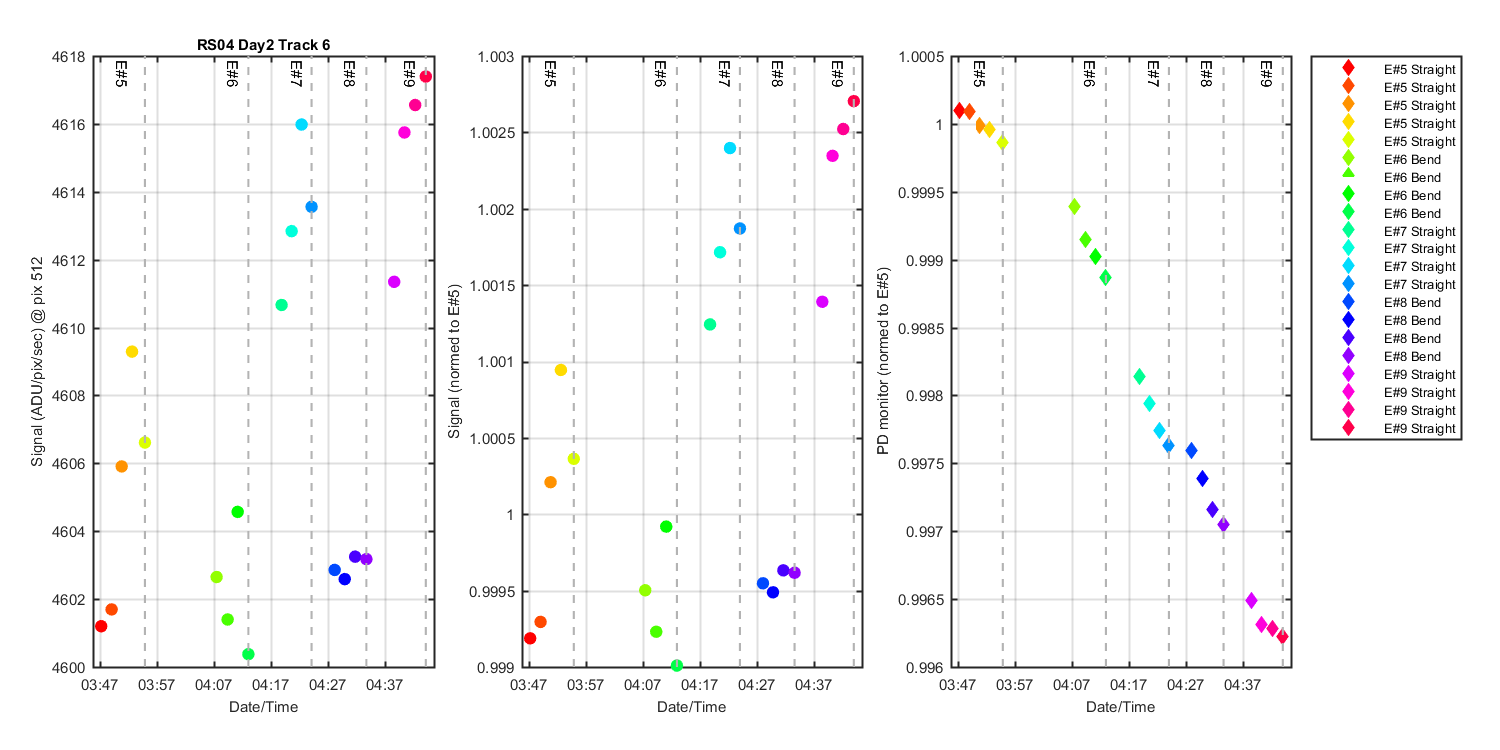

: Day 2 - Track 6 with LuBot Head and 20 ft 7 inches in fiber. Alternate straight and a 90 degree bend near the Lu Head E#5 = Straight
E#6 = Bend 90 @ L Head
E#7 = Straight
E#8 = Bend 90 @ L Head
E#9 = Straight
: Day 3 - Track 6 with LuBot Head and 20 ft 7 inches in fiber.
E#10 = Straight
E#11 = 1 19" loop near Lu Head
E#12 = 2 19" loop near Lu Head
E#13 = 1 19" loop near Lu Head
E#14 = Straight

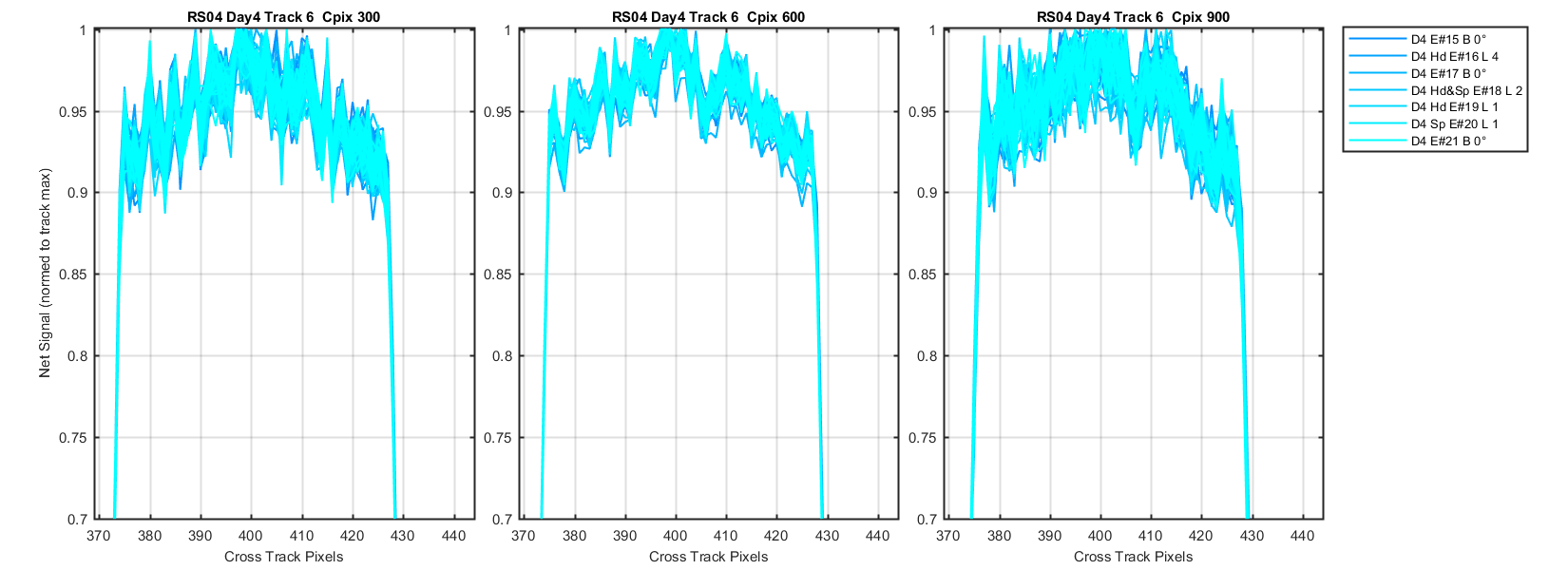

: Day 4 - Track 6 with LuBot Head and 20 ft 7 inches in fiber.
E#15 = Straight
E#16 = 4 14" loop near Lu Head
E#17 = Straight
E#18 = 1 14" loop near spec
E#19 = 1 14" loop near spec + 1 16" coil near Lu Head
E#20 = 1 14" loop near spec
E#21 = Straight

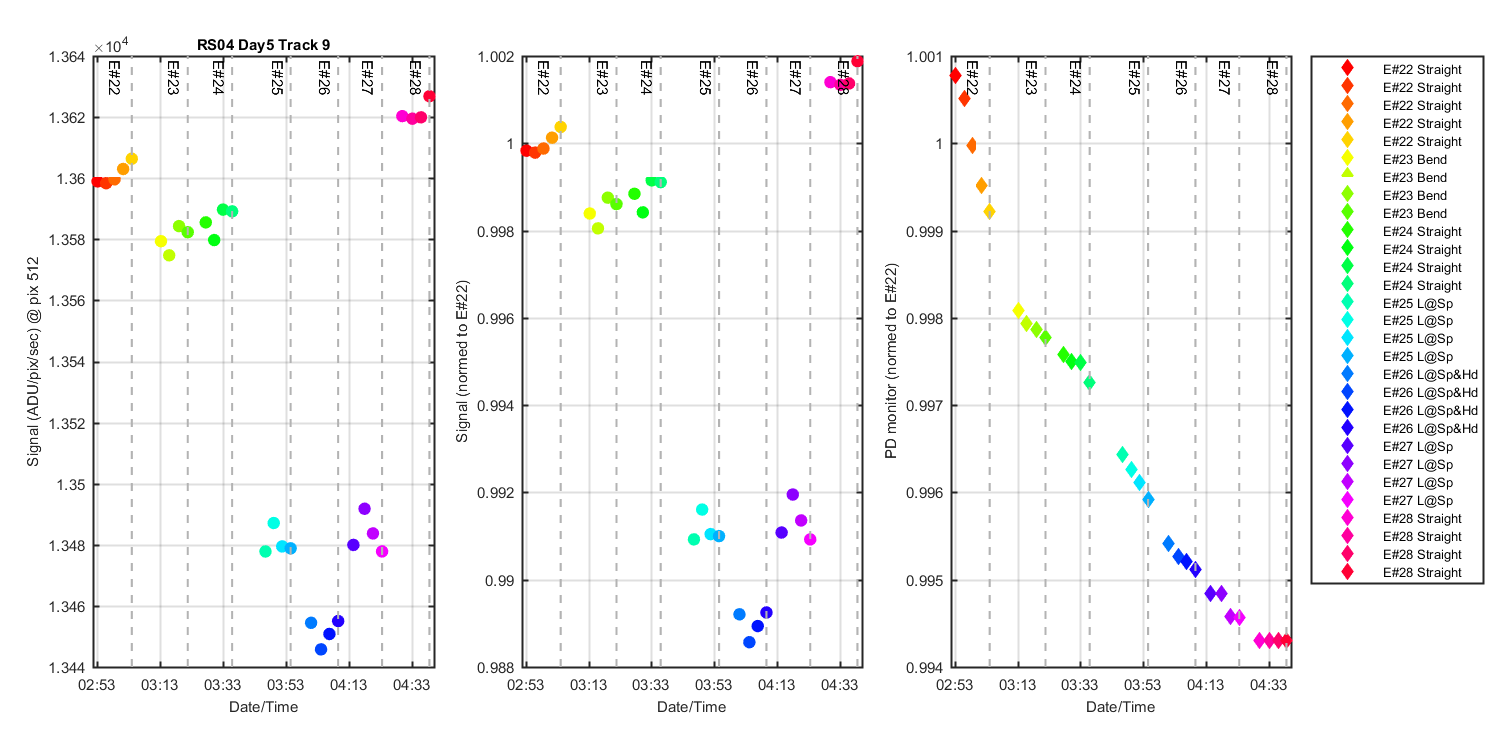

Figure 11 : Day 5 - Track 9 with LuBot Head and 20 ft 7 inches in fiber.
E#22 = Straight
E#23 = 90 deg bend near Lu Head
E#24 = Straight
E#25 = 1 14" loop near spec
E#26 = 1 14" loop near spec + 1 16" coil near Lu head
E#27 = 1 14" loop near spec
E#28 = Straight

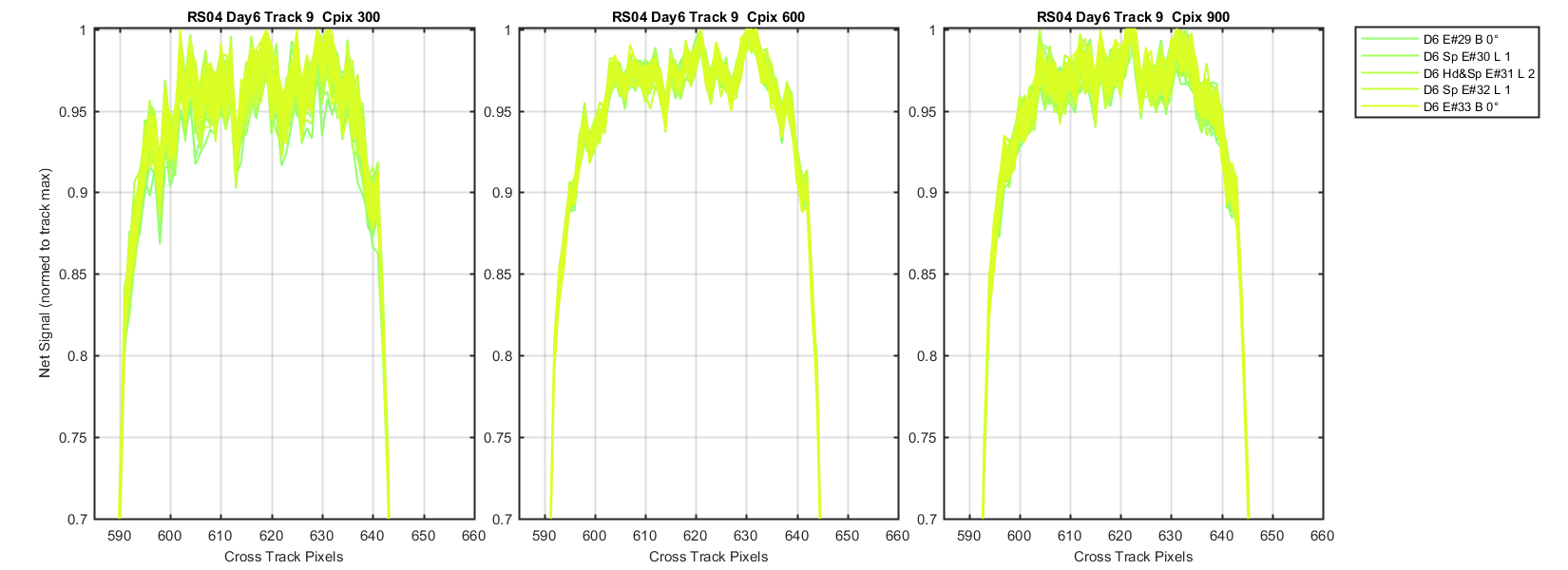

: Day 6 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Tighter loops
E#29 = Straight
E#30 = 1 11" loop near spec
E#31 = 1 11" loop near spec + 1 11" coil near Lu head
E#32 = 1 11" loop near spec
E#33 = Straight
: Day 7 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Even Tighter loops
E#34 = Straight
E#35 = 2x 2.5" loop near spec
E#36 = 2x 2.5" loop near spec + 1 11" loop near Lu head
E#37 = 2x 2.5" loop near
E#38 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head
E#39 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop between spec and head
BS got too hot, following exp is RS only (see RS graphs for the rest of the exp)
E#40 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop between spec and head
: Day 8 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Even Tighter loops repeat and new stuff
E#41 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + straight FO
E#42 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop near head
E#43 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + straight FO
E#44 = 2x 2.5" loop near spec + 1 360deg bend near Lu head + straight FO
E#45 = 2x 2.5" loop near spec + 1 360deg bend near Lu head + 1 11" loop near head
E#46 = 2x 2.5" loop near spec + 1 360deg bend near Lu head + straight FO

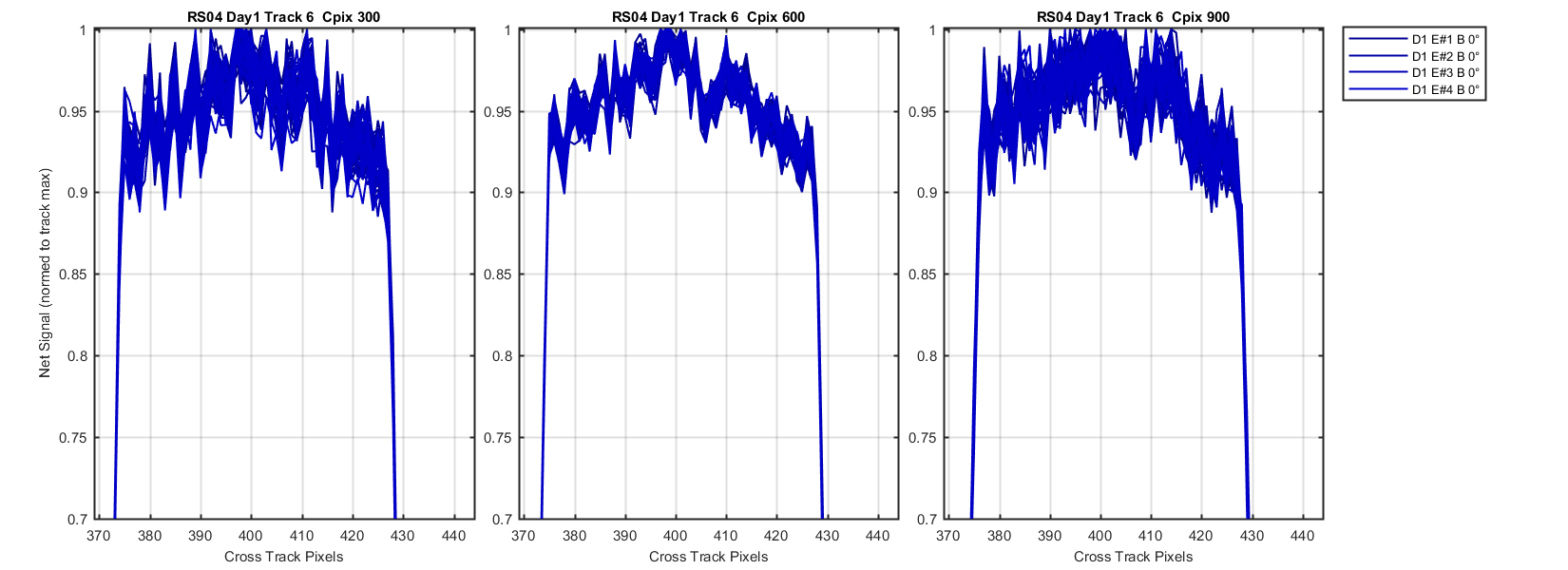

Figure 12 : Day 1 - Track 6 with LuBot Head and 20 ft 7 inches in fiber. Test to removed and replace the Lu Head to check for stability before adding bends and loops.
E#1 = Straight
E#2 = Straight
E#3 = Straight
E#4 = Straight

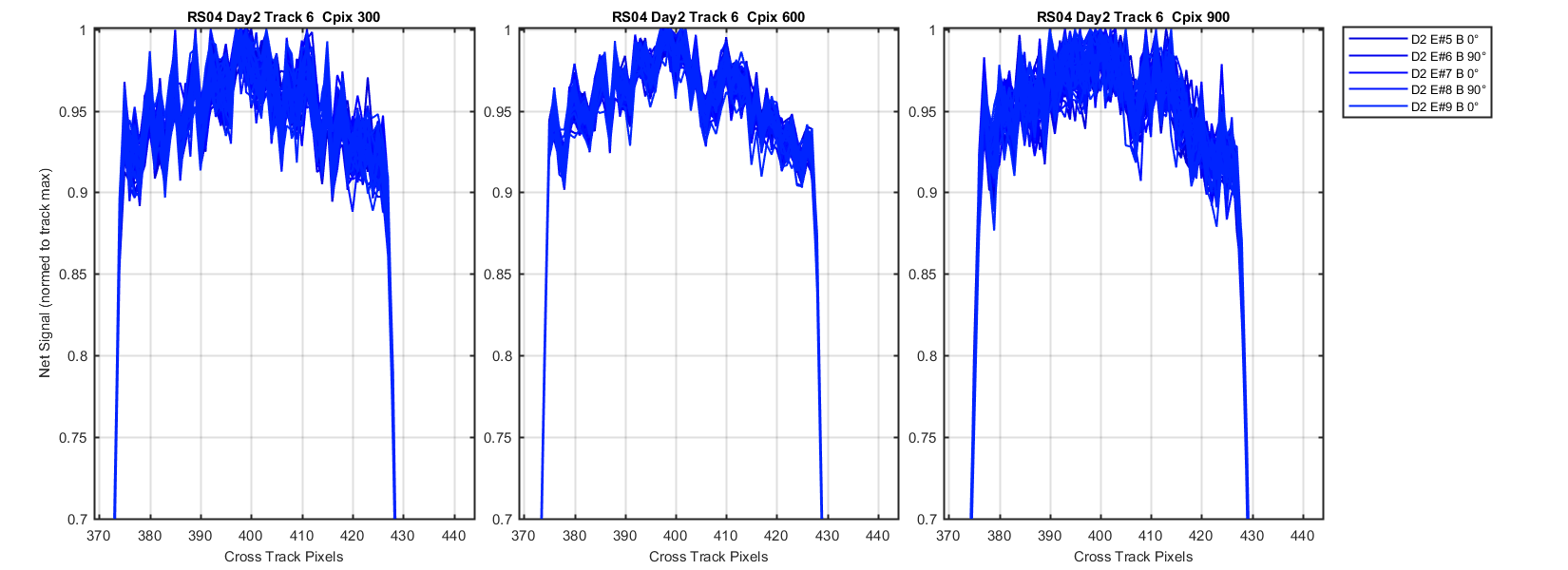

Figure 13 : Day 2 - Track 6 with LuBot Head and 20 ft 7 inches in fiber. Alternate straight and a 90 degree bend near the Lu Head
E#5 = Straight
E#6 = Bend 90 @ L Head
E#7 = Straight
E#8 = Bend 90 @ L Head
E#9 = Straight

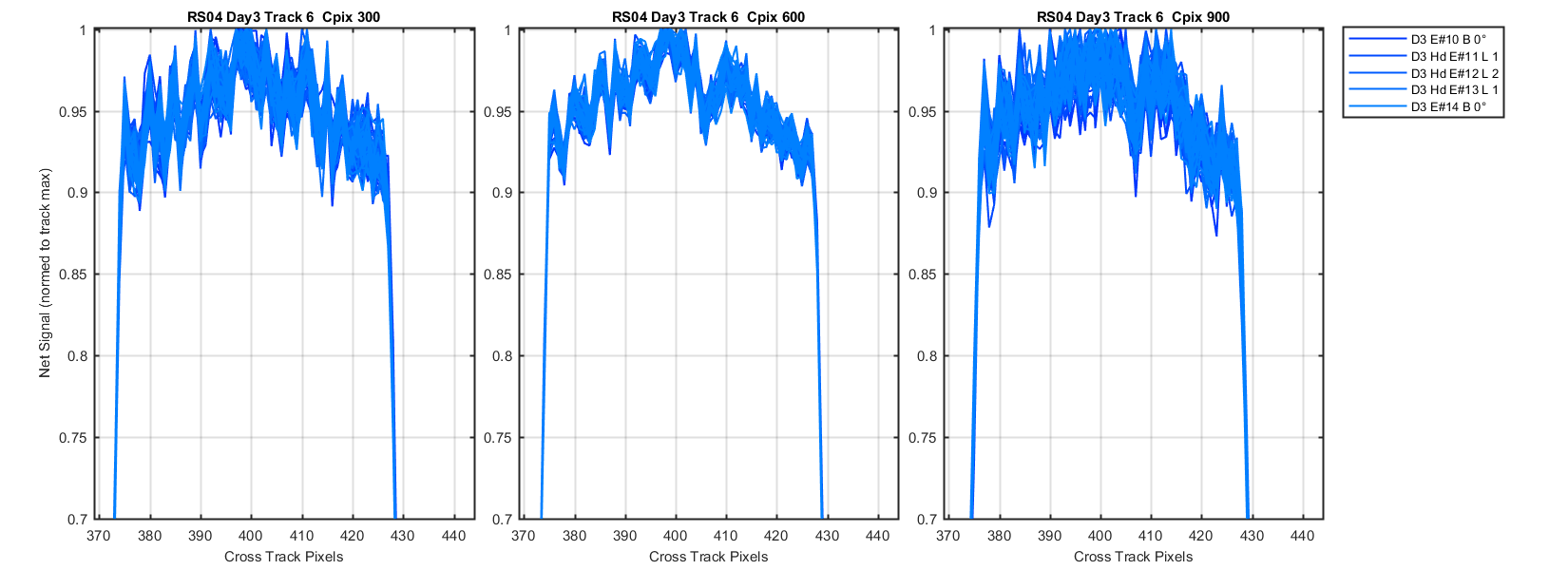

Figure 14 : Day 3 - Track 6 with LuBot Head and 20 ft 7 inches in fiber.
E#10 = Straight
E#11 = 1 19" loop near Lu Head
E#12 = 2 19" loop near Lu Head
E#13 = 1 19" loop near Lu Head
E#14 = Straight

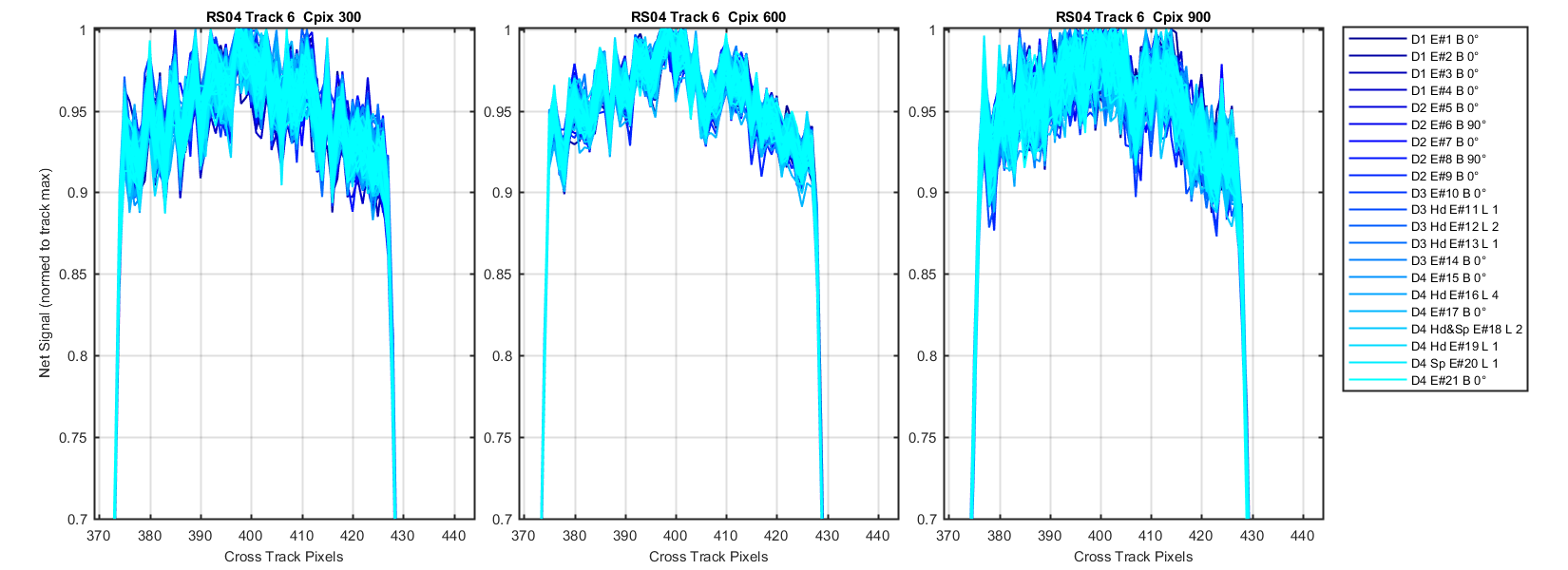

Figure 15 : Day 4 - Track 6 with LuBot Head and 20 ft 7 inches in fiber.
E#15 = Straight
E#16 = 4 14" loop near Lu Head
E#17 = Straight
E#18 = 1 14" loop near spec
E#19 = 1 14" loop near spec + 1 16" coil near Lu Head
E#20 = 1 14" loop near spec
E#21 = Straight

Figure 16 : Day 5 - Track 9 with LuBot Head and 20 ft 7 inches in fiber.
E#22 = Straight
E#23 = 90 deg bend near Lu Head
E#24 = Straight
E#25 = 1 14" loop near spec
E#26 = 1 14" loop near spec + 1 16" coil near Lu head
E#27 = 1 14" loop near spec
E#28 = Straight

Figure 17 : Day 6 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Tighter loops
E#29 = Straight
E#30 = 1 11" loop near spec
E#31 = 1 11" loop near spec + 1 11" coil near Lu head
E#32 = 1 11" loop near spec
E#33 = Straight

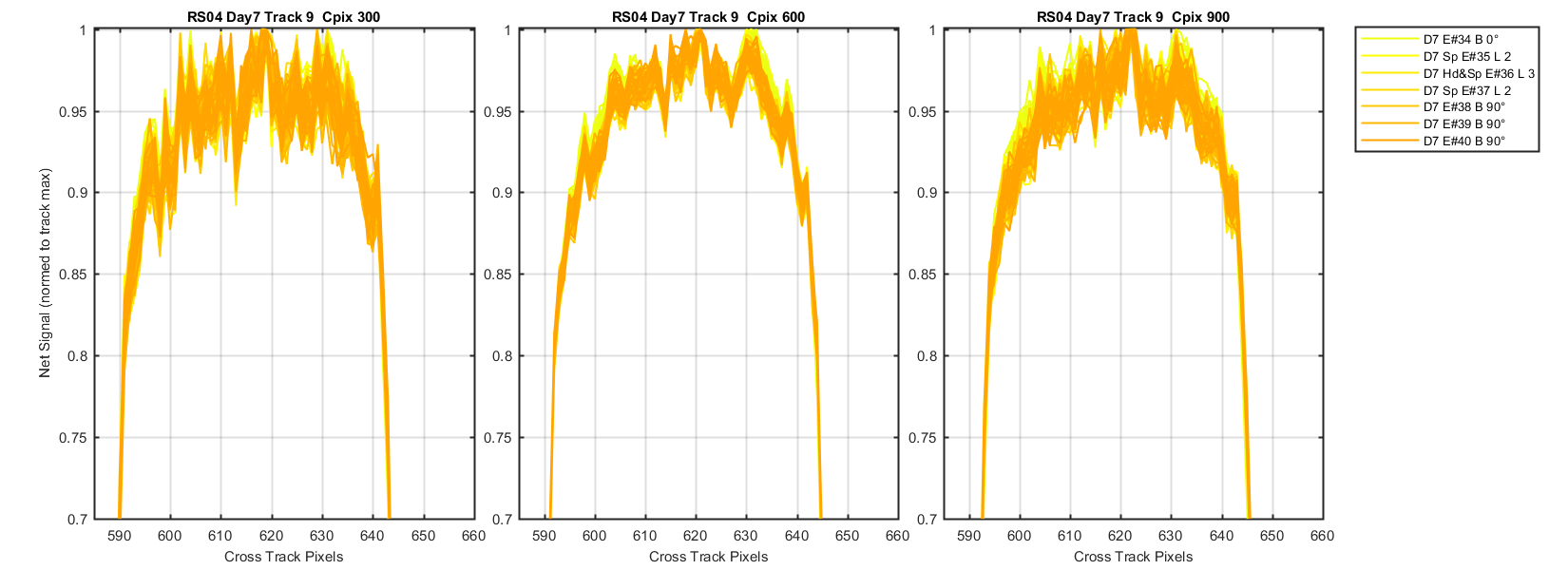

Figure 18 : Day 7 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Even Tighter loops
E#34 = Straight
E#35 = 2x 2.5" loop near spec
E#36 = 2x 2.5" loop near spec + 1 11" loop near Lu head
E#37 = 2x 2.5" loop near
E#38 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head
E#39 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop between spec and head
BS got too hot, following exp is RS only (see RS graphs for the rest of the exp)
E#40 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop between spec and head

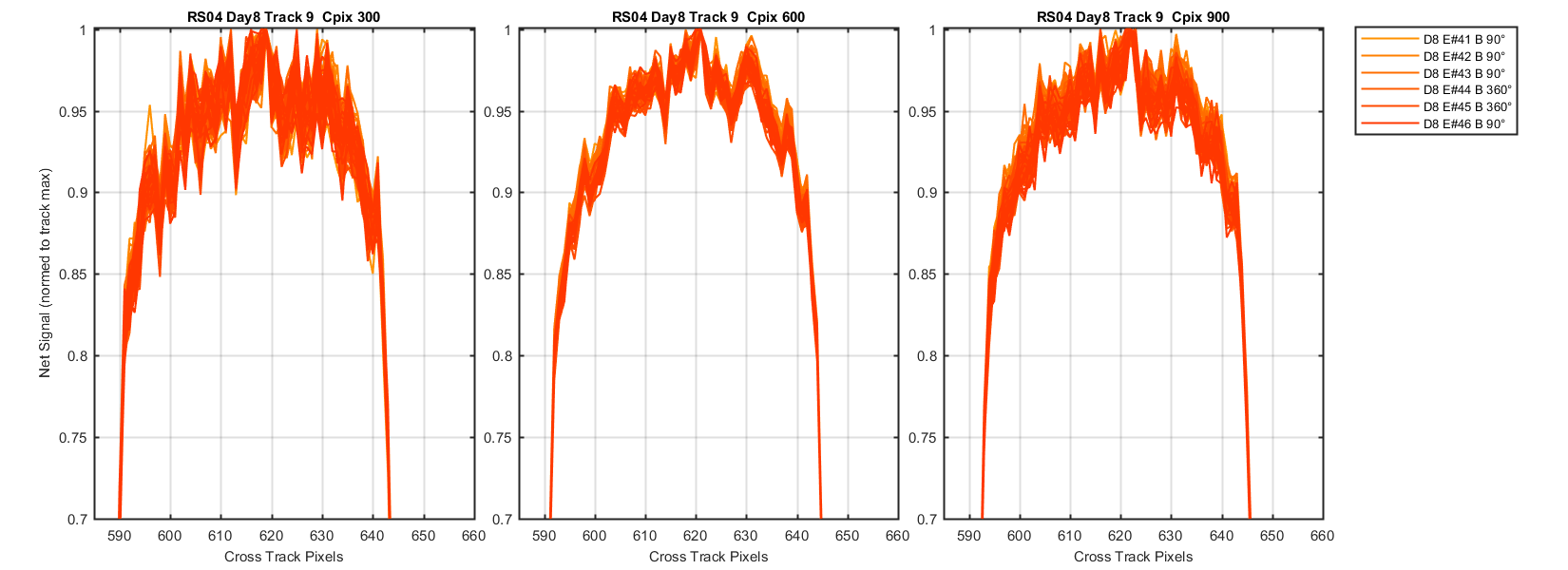

Figure 19 : Day 8 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Even Tighter loops repeat and new stuff
E#41 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + straight FO
E#42 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop near head
E#43 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + straight FO
E#44 = 2x 2.5" loop near spec + 1 360deg bend near Lu head + straight FO
E#45 = 2x 2.5" loop near spec + 1 360deg bend near Lu head + 1 11" loop near head
E#46 = 2x 2.5" loop near spec + 1 360deg bend near Lu head + straight FO

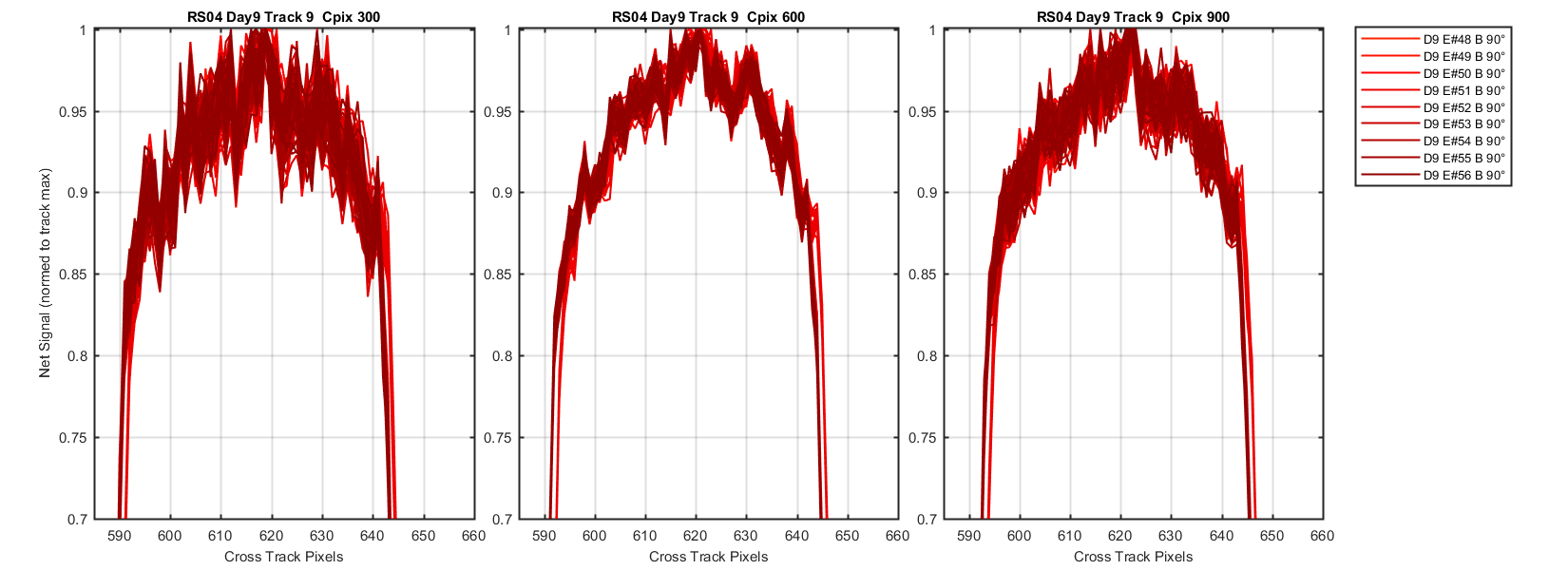

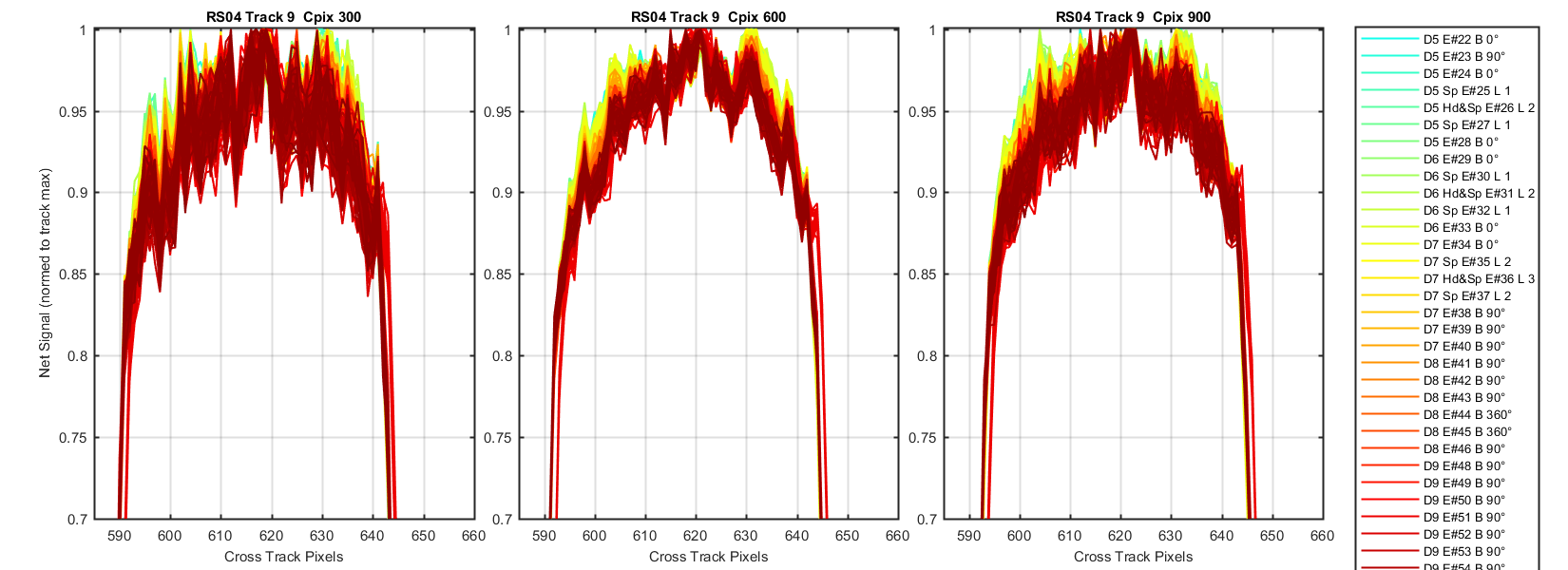

Figure 20 : Day 9 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Even Tighter loops repeat and new stuff
E#50 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Horizontal
E#51 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Vertical
E#52 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Vertical
E#53 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Horizontal
E#54 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Vertical
E#455 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Horizontal
Experiment Means (middle panel)
Exp# 50 Hori 1
Exp# 51 Vert 1.0005
Exp# 52 Hori 1.0013
Exp# 53 Vert 1.0014
Exp# 54 Hori 1.0006
Exp# 55 Vert 1.0012
Exp# 56 Hori 0.99975

Figure 21 : Day 7 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Even Tighter loops
E#34 = Straight
E#35 = 2x 2.5" loop near spec
E#36 = 2x 2.5" loop near spec + 1 11" loop near Lu head
E#37 = 2x 2.5" loop near
E#38 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head
E#39 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop between spec and head
BS got too hot, following exp is RS only (see RS graphs for the rest of the exp)
E#40 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop between spec and head

Figure 22

Figure 23

Figure 24 : Day 1 - Track 6 with LuBot Head and 20 ft 7 inches in fiber. Test to removed and replace the Lu Head to check for stability before adding bends and loops.
E#1 = Straight
E#2 = Straight
E#3 = Straight
E#4 = Straight

Figure 25 : Day 2 - Track 6 with LuBot Head and 20 ft 7 inches in fiber. Alternate straight and a 90 degree bend near the Lu Head
E#5 = Straight
E#6 = Bend 90 @ L Head
E#7 = Straight
E#8 = Bend 90 @ L Head
E#9 = Straight

Figure 26 : Day 3 - Track 6 with LuBot Head and 20 ft 7 inches in fiber.
E#10 = Straight
E#11 = 1 19" loop near Lu Head
E#12 = 2 19" loop near Lu Head
E#13 = 1 19" loop near Lu Head
E#14 = Straight

Figure 27 : Day 4 - Track 6 with LuBot Head and 20 ft 7 inches in fiber.
E#15 = Straight
E#16 = 4 14" loop near Lu Head
E#17 = Straight
E#18 = 1 14" loop near spec
E#19 = 1 14" loop near spec + 1 16" coil near Lu Head
E#20 = 1 14" loop near spec
E#21 = Straight

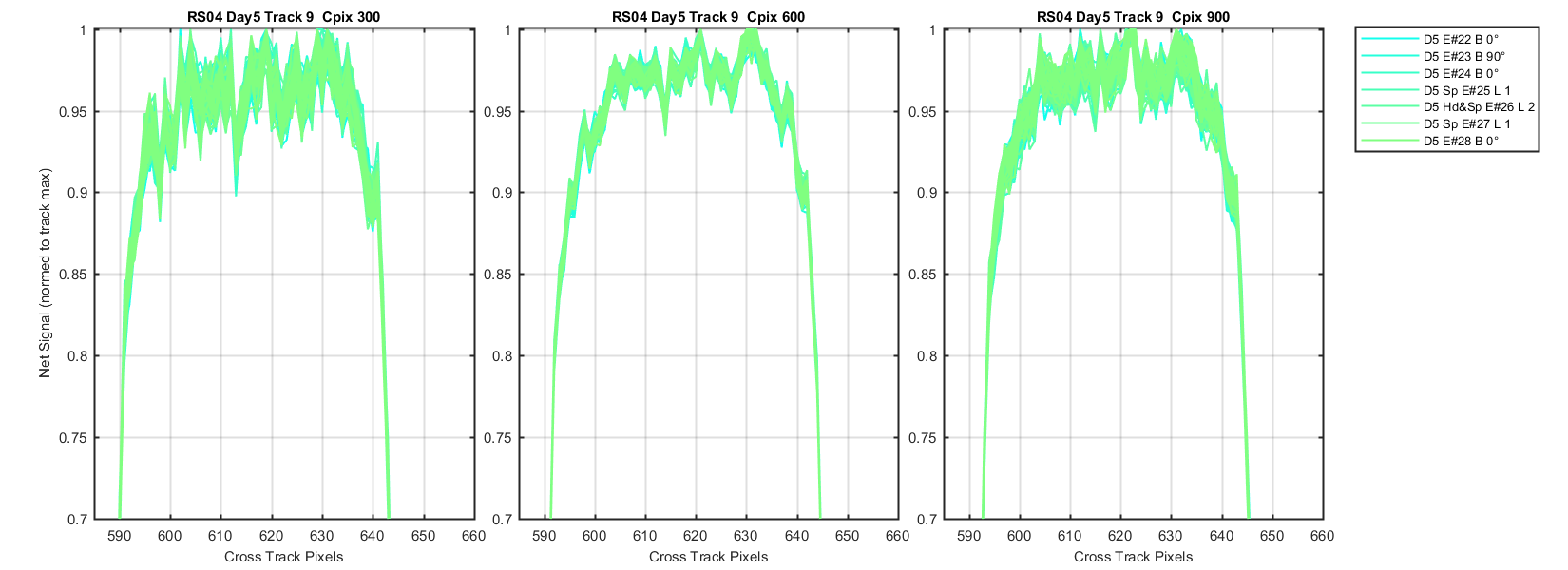

Figure 28 : Day 5 - Track 9 with LuBot Head and 20 ft 7 inches in fiber.
E#22 = Straight
E#23 = 90 deg bend near Lu Head
E#24 = Straight
E#25 = 1 14" loop near spec
E#26 = 1 14" loop near spec + 1 16" coil near Lu head
E#27 = 1 14" loop near spec
E#28 = Straight

Figure 29 : Day 6 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Tighter loops
E#29 = Straight
E#30 = 1 11" loop near spec
E#31 = 1 11" loop near spec + 1 11" coil near Lu head
E#32 = 1 11" loop near spec
E#33 = Straight

Figure 30 : Day 7 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Even Tighter loops
E#34 = Straight
E#35 = 2x 2.5" loop near spec
E#36 = 2x 2.5" loop near spec + 1 11" loop near Lu head
E#37 = 2x 2.5" loop near
E#38 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head
E#39 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop between spec and head
BS got too hot, following exp is RS only (see RS graphs for the rest of the exp)
E#40 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop between spec and head

Figure 31 : Day 8 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Even Tighter loops repeat and new stuff
E#41 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + straight FO
E#42 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + 1 11" loop near head
E#43 = 2x 2.5" loop near spec + 1 2.5" bend near Lu head + straight FO
E#44 = 2x 2.5" loop near spec + 1 360deg bend near Lu head + straight FO
E#45 = 2x 2.5" loop near spec + 1 360deg bend near Lu head + 1 11" loop near head
E#46 = 2x 2.5" loop near spec + 1 360deg bend near Lu head + straight FO

Figure 32 : Day 9 - Track 9 with LuBot Head and 20 ft 7 inches in fiber. Even Tighter loops repeat and new stuff
E#50 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Horizontal
E#51 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Vertical
E#52 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Vertical
E#53 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Horizontal
E#54 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Vertical
E#455 = 2x 2.5" loop near spec + 1 2.5" loop near Lu head - Horizontal

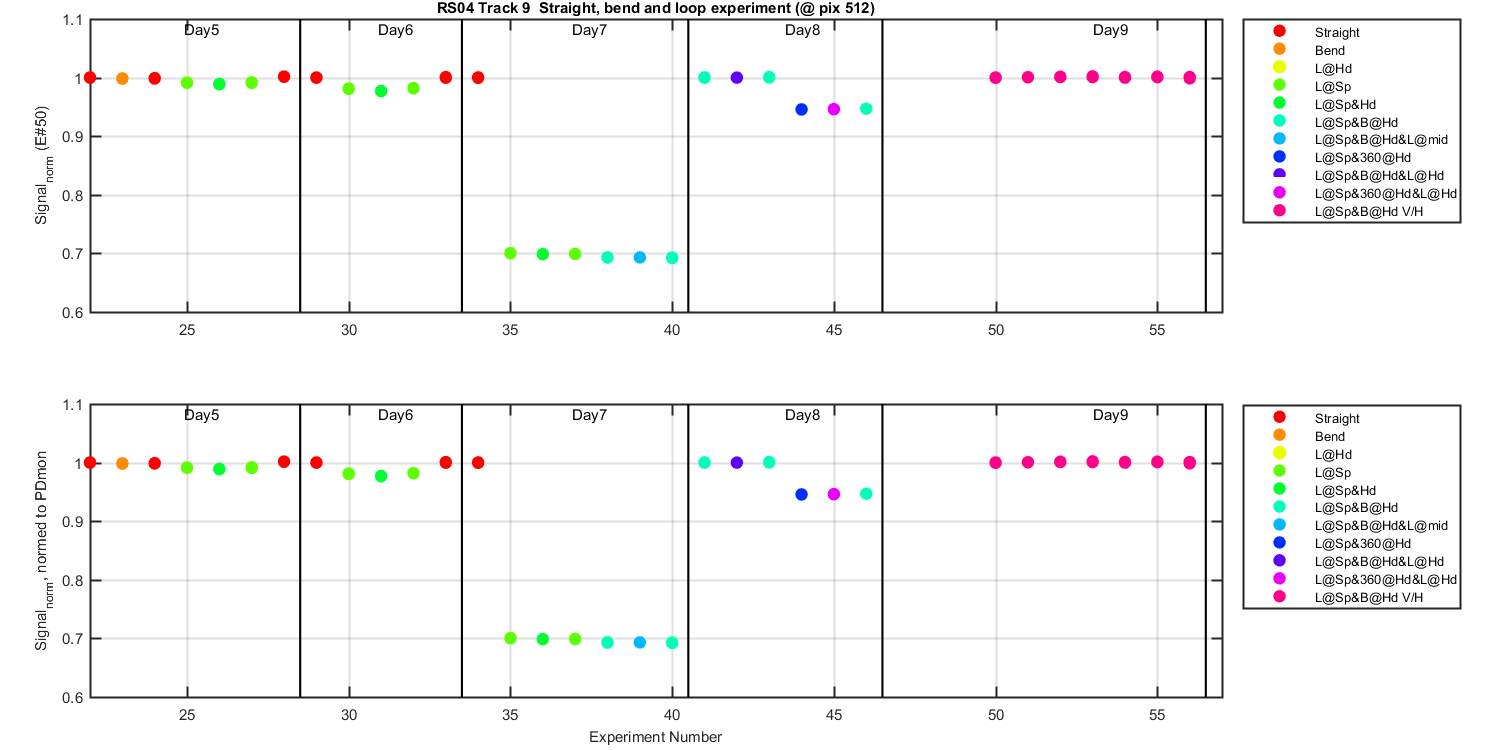

Experiment Means (middle panel)
Exp# 50 Hori 1
Exp# 51 Vert 1.0005
Exp# 52 Hori 1.0013
Exp# 53 Vert 1.0014
Exp# 54 Hori 1.0006
Exp# 55 Vert 1.0012
Exp# 56 Hori 0.99975

pwd: E:\zflora\mldata2\mobyrefresh\characterization\Hawaii-2019-01\RS4cal
Date: 21-Feb-2019 09:24:42
Created from plyday01_repeats_(1)
