rs_20190117_g128_64_01_006

REVISION DATE: 17-Jan-2019 21:13:22

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: RS04 Data
Previous HOME NEXT
Filename/Fit# Type file creation date Total Exposure Time Tracks on Temperature Gain Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
rs_20190117_g128_64_01_006 / 20190117 Dark 17-Jan-2019 04:10:16 3 9 -60 -60 4 4958 3681.1442 0.2135

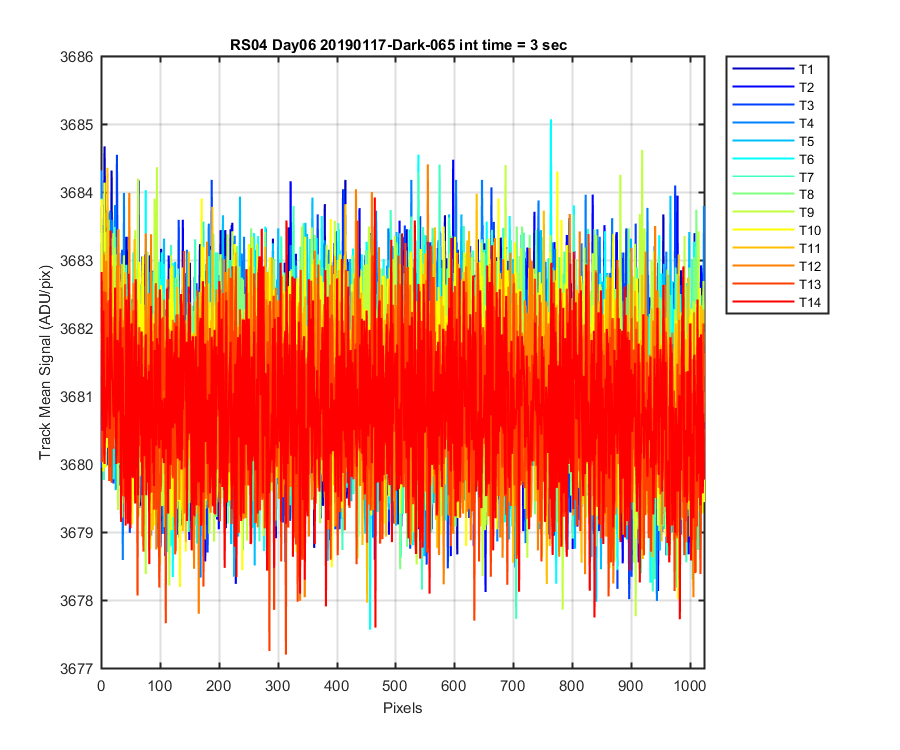

Figure 1

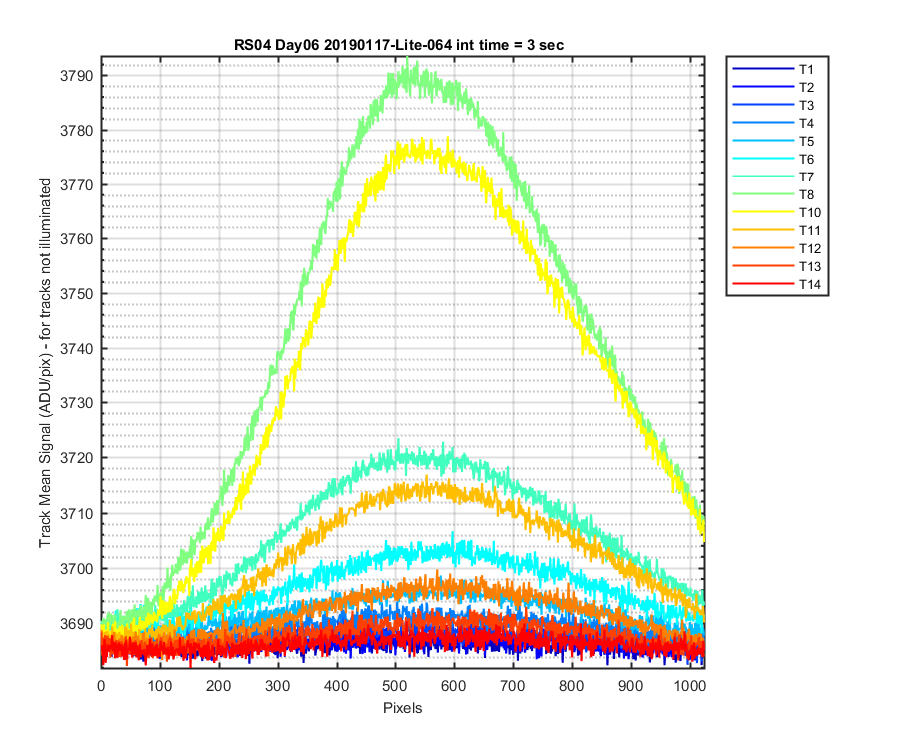

Figure 2

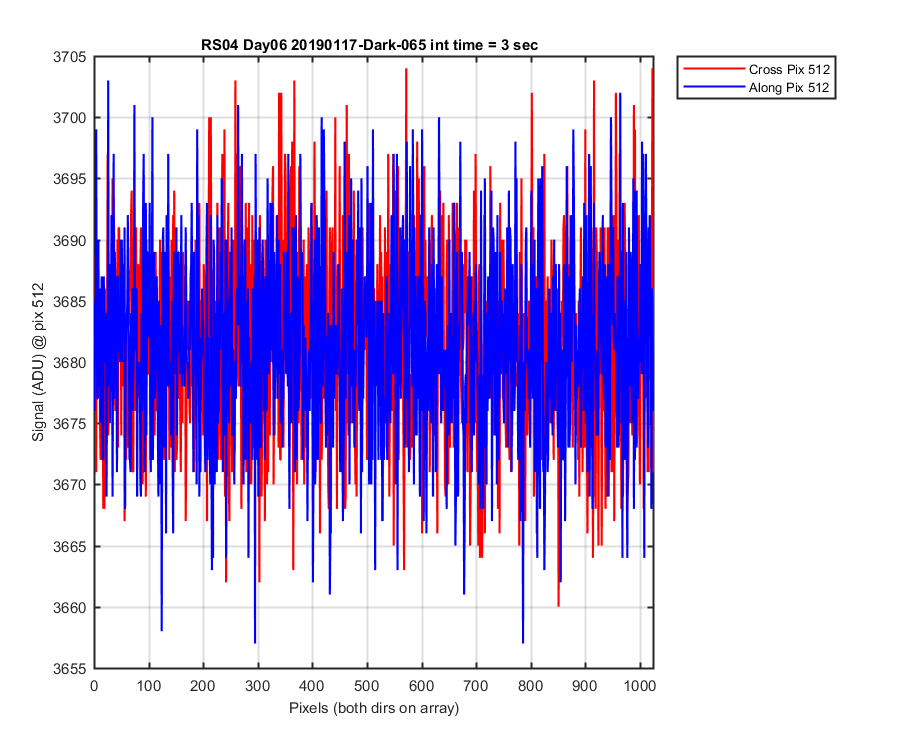

Figure 3

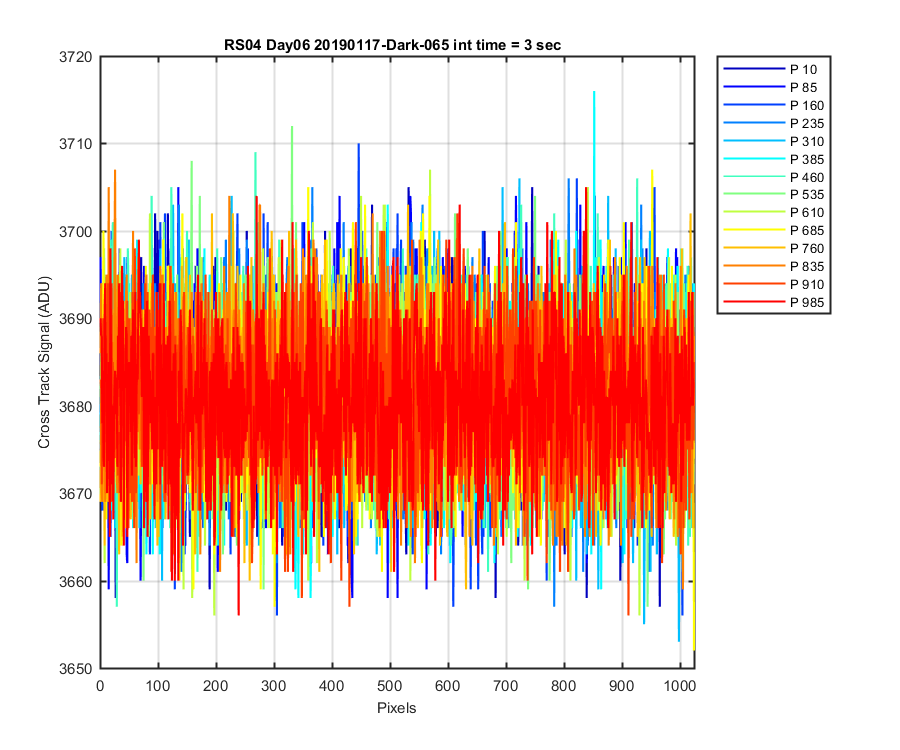

Figure 4
pwd: E:\zflora\mldata2\mobyrefresh\characterization\Hawaii-2019-01\RS4cal
Date: 17-Jan-2019 21:13:22
Created from mkhtml2_(1)

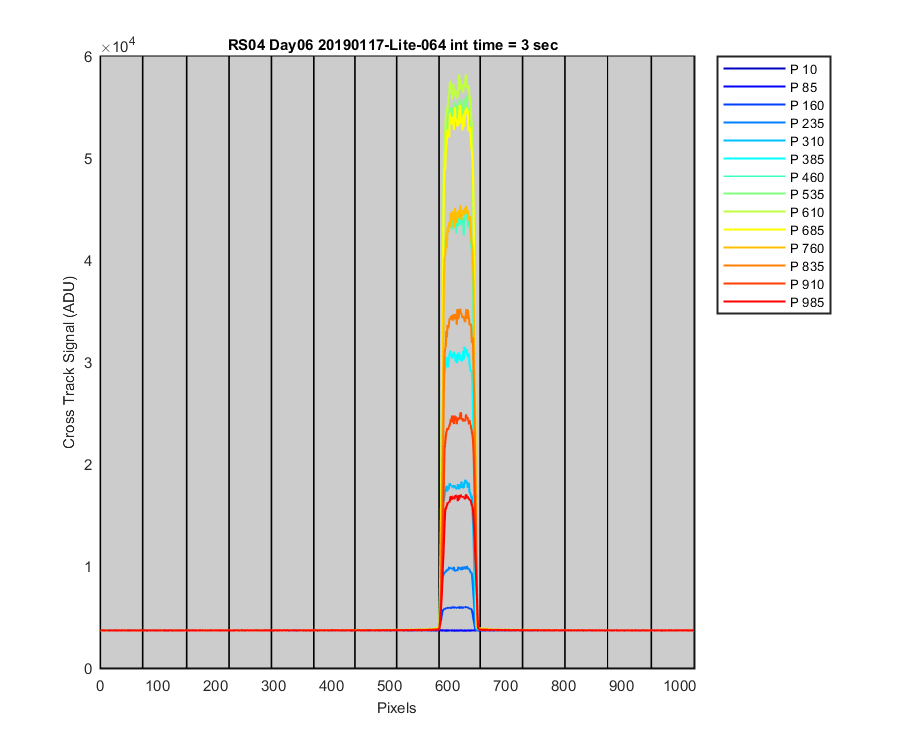

Figure 5
Figure 6
Figure 7
Figure 8
pwd: E:\zflora\mldata2\mobyrefresh\characterization\Hawaii-2019-01\RS4cal
Date: 17-Jan-2019 21:13:22
Created from mkhtml2_(1)
