BS_20190719_024242_raw01 - Day 3

REVISION DATE: 19-Jul-2019 13:03:45

Exerimental BS or RS data starting to put data into new Vaux setup.


Table caption: BS03 Data
Dataset# Filename / Fit# Type file creation date Total Exposure Time Tracks on Temperature Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
15 BS_20190719_024242_raw01 / 001 Background 19-Jul-2019 02:42:42 1 6 -40 4 3648 3608.6075 0.21966
15 BS_20190719_024242_raw01 / 002 Background 19-Jul-2019 02:43:21 1 6 -40 4 3650 3608.472 0.2193
15 BS_20190719_024242_raw01 / 001 Lite 19-Jul-2019 02:43:55 1 6 -40 4 58667 3856.2202 66.2748
15 BS_20190719_024242_raw01 / 002 Lite 19-Jul-2019 02:44:36 1 6 -40 4 58245 3855.9092 66.3313
15 BS_20190719_024242_raw01 / 003 Lite 19-Jul-2019 02:44:56 1 6 -40 4 58515 3856.2839 66.3817
15 BS_20190719_024242_raw01 / 004 Lite 19-Jul-2019 02:45:22 1 6 -40 4 58553 3855.8637 66.3114
15 BS_20190719_024242_raw01 / 003 Background 19-Jul-2019 02:45:39 1 6 -40 4 3646 3608.6839 0.21947
15 BS_20190719_024242_raw01 / 004 Background 19-Jul-2019 02:45:54 1 6 -40 4 3647 3608.5109 0.2197
16 BS_20190719_024242_raw01 / 005 Background 19-Jul-2019 02:56:44 1 6 -40 4 3644 3607.2124 0.21989
16 BS_20190719_024242_raw01 / 006 Background 19-Jul-2019 02:57:16 1 6 -40 4 3646 3606.909 0.2197
16 BS_20190719_024242_raw01 / 005 Lite 19-Jul-2019 02:58:30 1 6 -40 4 59614 3766.3258 54.8094
16 BS_20190719_024242_raw01 / 006 Lite 19-Jul-2019 02:58:44 1 6 -40 4 59739 3766.5614 54.8005
16 BS_20190719_024242_raw01 / 007 Lite 19-Jul-2019 02:58:58 1 6 -40 4 59501 3766.5715 54.7612
16 BS_20190719_024242_raw01 / 008 Lite 19-Jul-2019 02:59:10 1 6 -40 4 59684 3766.9301 54.8054
16 BS_20190719_024242_raw01 / 007 Background 19-Jul-2019 03:00:32 1 6 -40 4 3654 3607.9011 0.22036
16 BS_20190719_024242_raw01 / 008 Background 19-Jul-2019 03:00:46 1 6 -40 4 3651 3607.7978 0.2203
17 BS_20190719_024242_raw01 / 009 Background 19-Jul-2019 03:10:34 2 6 -40 4 3652 3612.9728 0.22004
17 BS_20190719_024242_raw01 / 010 Background 19-Jul-2019 03:10:55 2 6 -40 4 3652 3613.0817 0.22054
17 BS_20190719_024242_raw01 / 009 Lite 19-Jul-2019 03:11:20 2 6 -40 4 44334 3703.9499 35.5589
17 BS_20190719_024242_raw01 / 010 Lite 19-Jul-2019 03:11:35 2 6 -40 4 44152 3703.8989 35.5525
17 BS_20190719_024242_raw01 / 011 Lite 19-Jul-2019 03:11:53 2 6 -40 4 44364 3703.9526 35.5682
17 BS_20190719_024242_raw01 / 012 Lite 19-Jul-2019 03:12:07 2 6 -40 4 44008 3704.0886 35.5908
17 BS_20190719_024242_raw01 / 011 Background 19-Jul-2019 03:12:22 2 6 -40 4 3655 3612.8786 0.22232
17 BS_20190719_024242_raw01 / 012 Background 19-Jul-2019 03:12:36 2 6 -40 4 3654 3612.8904 0.22204
18 BS_20190719_024242_raw01 / 013 Background 19-Jul-2019 03:20:48 2 6 -40 4 3650 3611.1252 0.22008
18 BS_20190719_024242_raw01 / 014 Background 19-Jul-2019 03:21:12 2 6 -40 4 3652 3611.3045 0.22044
18 BS_20190719_024242_raw01 / 013 Lite 19-Jul-2019 03:21:33 2 6 -40 4 40666 3691.6639 31.6787
18 BS_20190719_024242_raw01 / 014 Lite 19-Jul-2019 03:22:01 2 6 -40 4 40851 3691.4909 31.6863
18 BS_20190719_024242_raw01 / 015 Lite 19-Jul-2019 03:22:18 2 6 -40 4 40654 3691.6725 31.7126
18 BS_20190719_024242_raw01 / 016 Lite 19-Jul-2019 03:22:44 2 6 -40 4 40867 3691.5374 31.7322
18 BS_20190719_024242_raw01 / 015 Background 19-Jul-2019 03:23:06 2 6 -40 4 3650 3611.6792 0.22147
18 BS_20190719_024242_raw01 / 016 Background 19-Jul-2019 03:23:21 2 6 -40 4 3650 3611.595 0.22181
19 BS_20190719_024242_raw01 / 017 Background 19-Jul-2019 03:35:29 20 6 -40 4 3657 3616.2579 0.23667
19 BS_20190719_024242_raw01 / 018 Background 19-Jul-2019 03:36:04 20 6 -40 4 3660 3617.9268 0.23833
19 BS_20190719_024242_raw01 / 017 Lite 19-Jul-2019 03:37:01 20 6 -40 4 12097 3649.7213 10.1093
19 BS_20190719_024242_raw01 / 018 Lite 19-Jul-2019 03:37:50 20 6 -40 4 12048 3650.038 10.1197
19 BS_20190719_024242_raw01 / 019 Lite 19-Jul-2019 03:38:26 20 6 -40 4 12041 3650.3179 10.1208
19 BS_20190719_024242_raw01 / 020 Lite 19-Jul-2019 03:39:01 20 6 -40 4 12059 3650.5516 10.1303
19 BS_20190719_024242_raw01 / 019 Background 19-Jul-2019 03:39:57 20 6 -40 4 4446 3617.0333 0.2424
19 BS_20190719_024242_raw01 / 020 Background 19-Jul-2019 03:40:33 20 6 -40 4 3660 3617.6252 0.23823

Grouped Image file: BS_20190719_N001_grouped.html
Grouped Image file: BS_20190719_N003_grouped.html
Grouped Image file: BS_20190719_N005_grouped.html
Grouped Image file: BS_20190719_N006_grouped.html
Grouped Image file: BS_20190719_N007_grouped.html
Grouped Image file: BS_20190719_N009_grouped.html
Grouped Image file: BS_20190719_N020_grouped.html
Grouped Image file: BS_20190719_N022_grouped.html

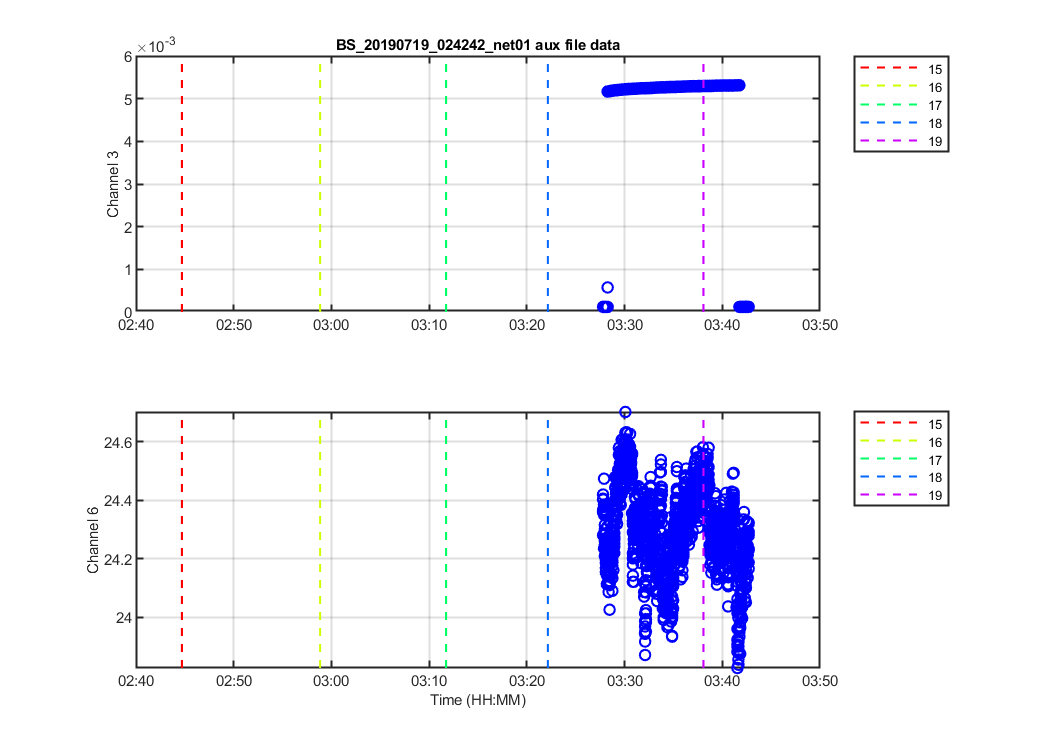

Figure 1A: Mikes Lamp monitoring log files. One shows the whole data set and one shows only the data with FITS files. black * is the number from Mikes logsheet.

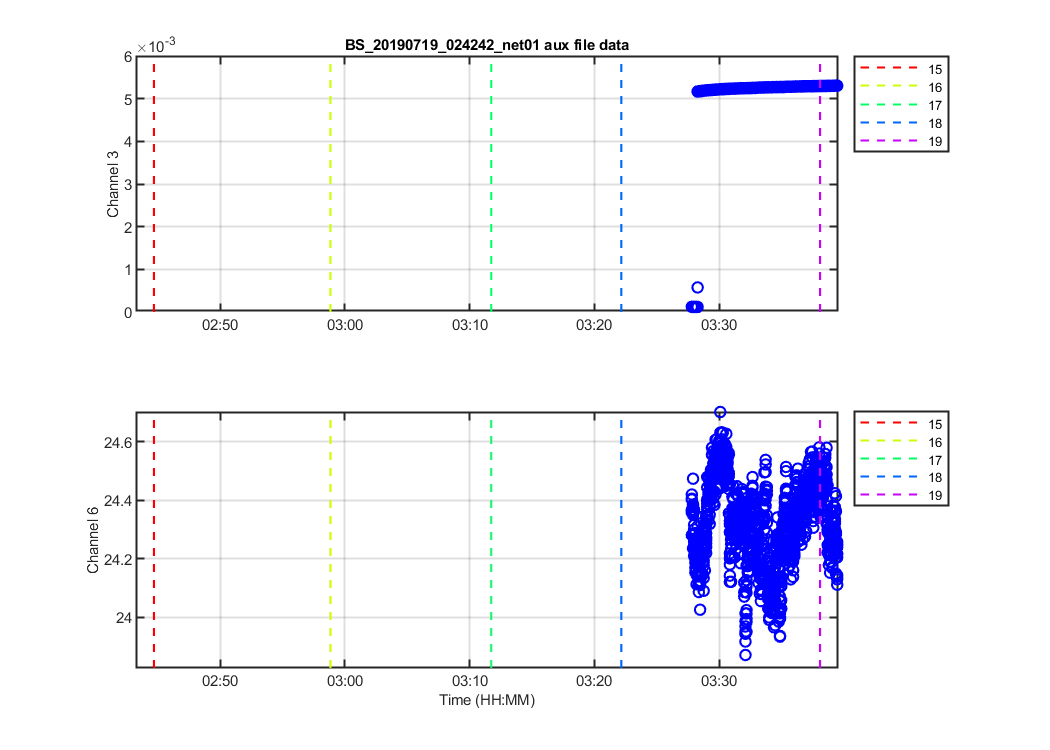

Figure 2A: Mikes Lamp monitoring log files. One shows the whole data set and one shows only the data with FITS files. black * is the number from Mikes logsheet.



Graphs below are of the Nets for a dataset. A dataset is a group of dark-lite-dark files that Mike says in his logsheet are collected together. One net = darks before and after averaged then , lights averaged, then avg_lite-avg_dark and the avg_net divided by intergration time for each track.

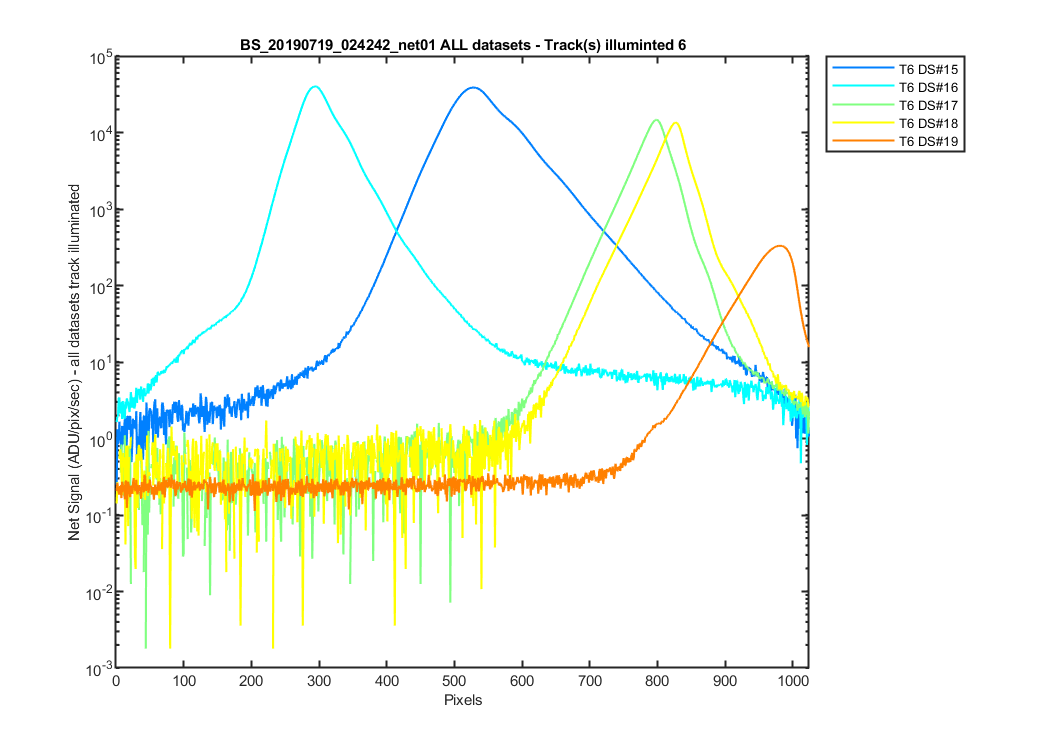

Figure 1B: All the net data sets with a track illuminated. This shows ALL the net tracks with light on them.

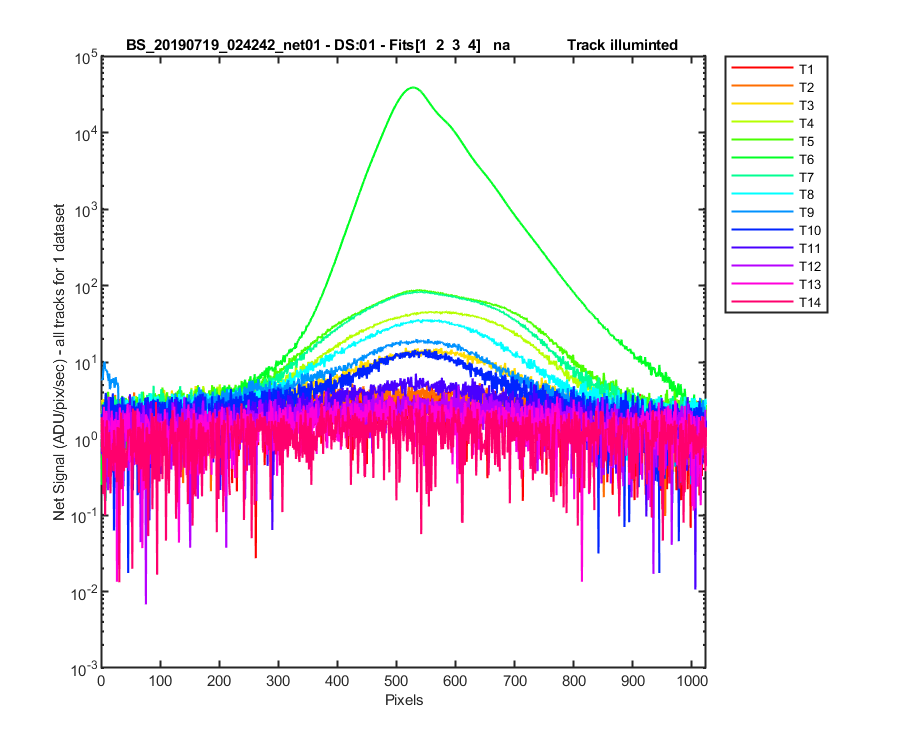

Figure 2B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

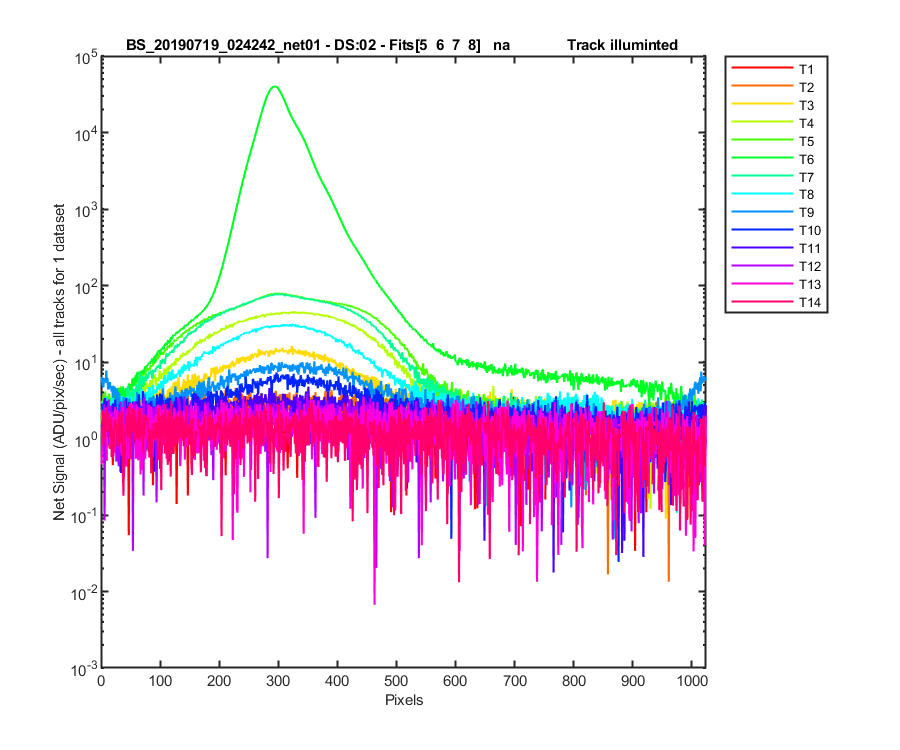

Figure 3B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

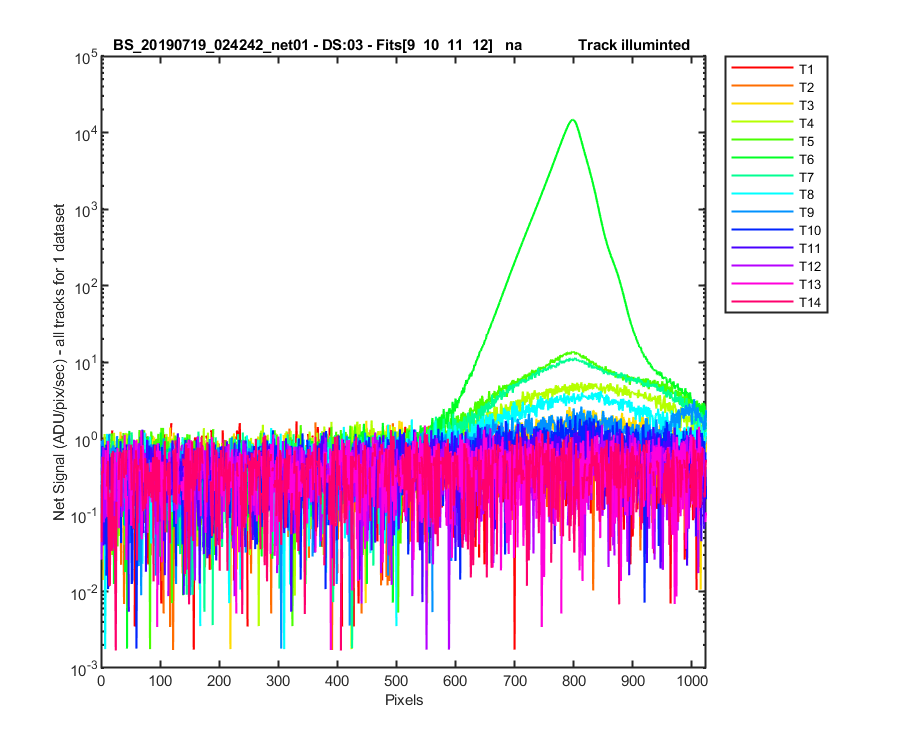

Figure 4B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.



Figure 5B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

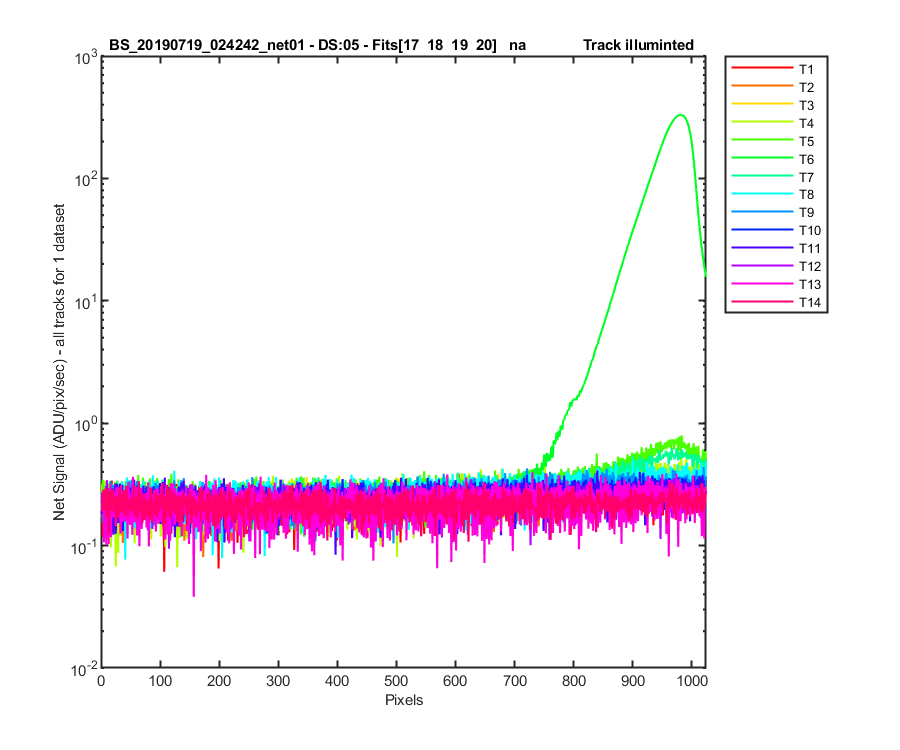

Figure 6B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.
