BS_20190827_052527_raw01 - Day 4

REVISION DATE: 28-Aug-2019 12:57:14

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: BS03 Data
Dataset# Filename / Fit# Type file creation date Total Exposure Time Tracks on Laser
Wavelength (nm)		 Saturated? Temperature Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
20 BS_20190827_052527_raw01 / 001 Background 27-Aug-2019 05:25:27 0.1 6 372 No -40 4 3663 3623.6595 0.21304
20 BS_20190827_052527_raw01 / 002 Background 27-Aug-2019 05:26:11 0.1 6 372 No -40 4 3662 3622.2408 0.21267
20 BS_20190827_052527_raw01 / 001 Lite 27-Aug-2019 05:28:09 0.1 6 372 No -40 4 52687 3631.176 13.6416
20 BS_20190827_052527_raw01 / 002 Lite 27-Aug-2019 05:29:45 0.1 6 372 No -40 4 52361 3630.5651 13.6272
20 BS_20190827_052527_raw01 / 003 Lite 27-Aug-2019 05:30:39 0.1 6 372 No -40 4 52631 3630.6183 13.6607
20 BS_20190827_052527_raw01 / 004 Lite 27-Aug-2019 05:31:26 0.1 6 372 No -40 4 52679 3630.5543 13.6242
20 BS_20190827_052527_raw01 / 003 Background 27-Aug-2019 05:32:17 0.1 6 372 No -40 4 3662 3622.0339 0.21302
20 BS_20190827_052527_raw01 / 004 Background 27-Aug-2019 05:33:09 0.1 6 372 No -40 4 3658 3620.3342 0.21297
21 BS_20190827_052527_raw01 / 005 Background 27-Aug-2019 05:38:22 20 6 NaN - -40 4 3676 3636.0762 0.23669
21 BS_20190827_052527_raw01 / 007 Background 27-Aug-2019 05:38:22 20 6 NaN - -40 4 3676 3636.0762 0.23669
21 BS_20190827_052527_raw01 / 006 Background 27-Aug-2019 05:39:08 20 6 NaN - -40 4 3677 3636.6512 0.23709
21 BS_20190827_052527_raw01 / 008 Background 27-Aug-2019 05:39:08 20 6 NaN - -40 4 3677 3636.6512 0.23709
21 BS_20190827_052527_raw01 / 005 Lite 27-Aug-2019 05:40:13 20 6 NaN - -40 4 3685 3639.4043 0.24231
21 BS_20190827_052527_raw01 / 006 Lite 27-Aug-2019 05:41:16 20 6 NaN - -40 4 3680 3638.9191 0.24231
21 BS_20190827_052527_raw01 / 007 Lite 27-Aug-2019 05:41:58 20 6 NaN - -40 4 8414 3639.8287 0.28441
21 BS_20190827_052527_raw01 / 008 Lite 27-Aug-2019 05:42:50 20 6 NaN - -40 4 4837 3640.0108 0.2464
22 BS_20190827_052527_raw01 / 009 Background 27-Aug-2019 05:53:26 0.035 6 407 Yes -40 4 3658 3617.8182 0.21263
22 BS_20190827_052527_raw01 / 010 Background 27-Aug-2019 05:54:20 0.035 6 407 Yes -40 4 3653 3616.2982 0.21231
22 BS_20190827_052527_raw01 / 009 Lite 27-Aug-2019 05:55:12 0.035 6 407 Yes -40 4 63610 3633.1387 23.3731
22 BS_20190827_052527_raw01 / 010 Lite 27-Aug-2019 05:57:52 0.035 6 407 Yes -40 4 63609 3633.2751 23.3993
22 BS_20190827_052527_raw01 / 011 Lite 27-Aug-2019 05:58:29 0.035 6 407 Yes -40 4 63599 3632.9665 23.337
22 BS_20190827_052527_raw01 / 012 Lite 27-Aug-2019 05:59:16 0.035 6 407 Yes -40 4 63591 3632.1362 23.2337
22 BS_20190827_052527_raw01 / 011 Background 27-Aug-2019 06:00:31 0.035 6 407 Yes -40 4 3656 3617.1312 0.21298
22 BS_20190827_052527_raw01 / 012 Background 27-Aug-2019 06:01:21 0.035 6 407 Yes -40 4 3656 3615.7994 0.21246
Grouped Image file: BS_20190827_N001_grouped.html
Grouped Image file: BS_20190827_N002_grouped.html
Grouped Image file: BS_20190827_N003_grouped.html
Grouped Image file: BS_20190827_N005_grouped.html
Grouped Image file: BS_20190827_N006_grouped.html
Grouped Image file: BS_20190827_N007_grouped.html
Grouped Image file: BS_20190827_N009_grouped.html
Grouped Image file: BS_20190827_N020_grouped.html
Grouped Image file: BS_20190827_N022_grouped.html

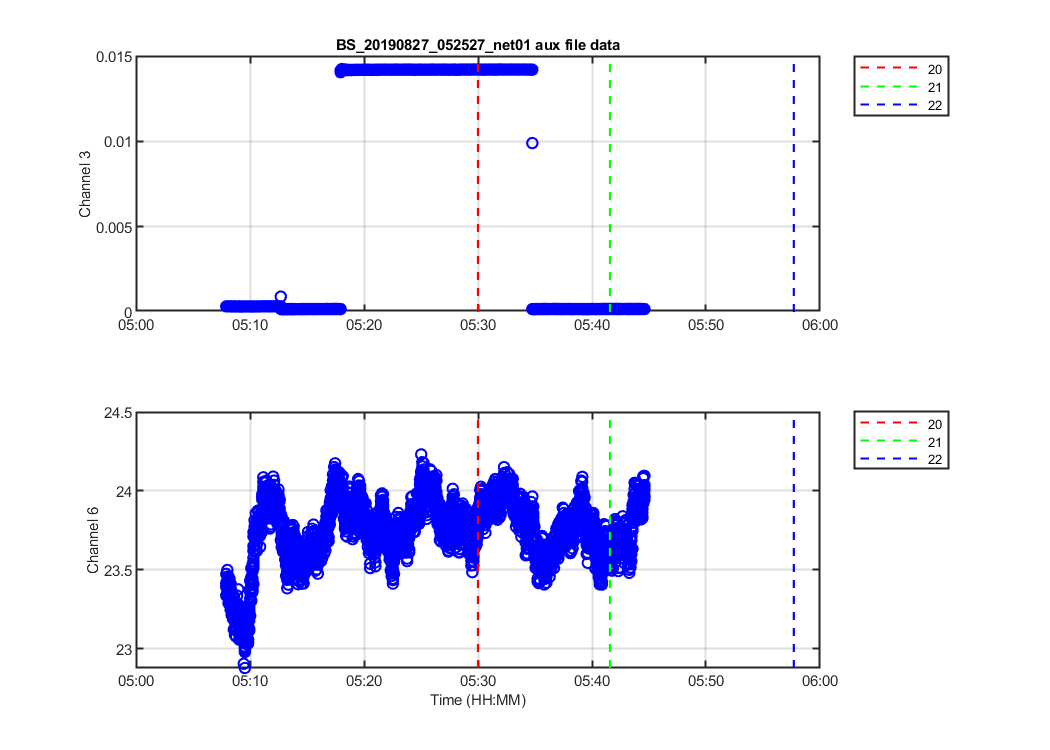

Figure 1A: Mikes Lamp monitoring log files. One shows the whole data set and one shows only the data with FITS files. black * is the number from Mikes logsheet.

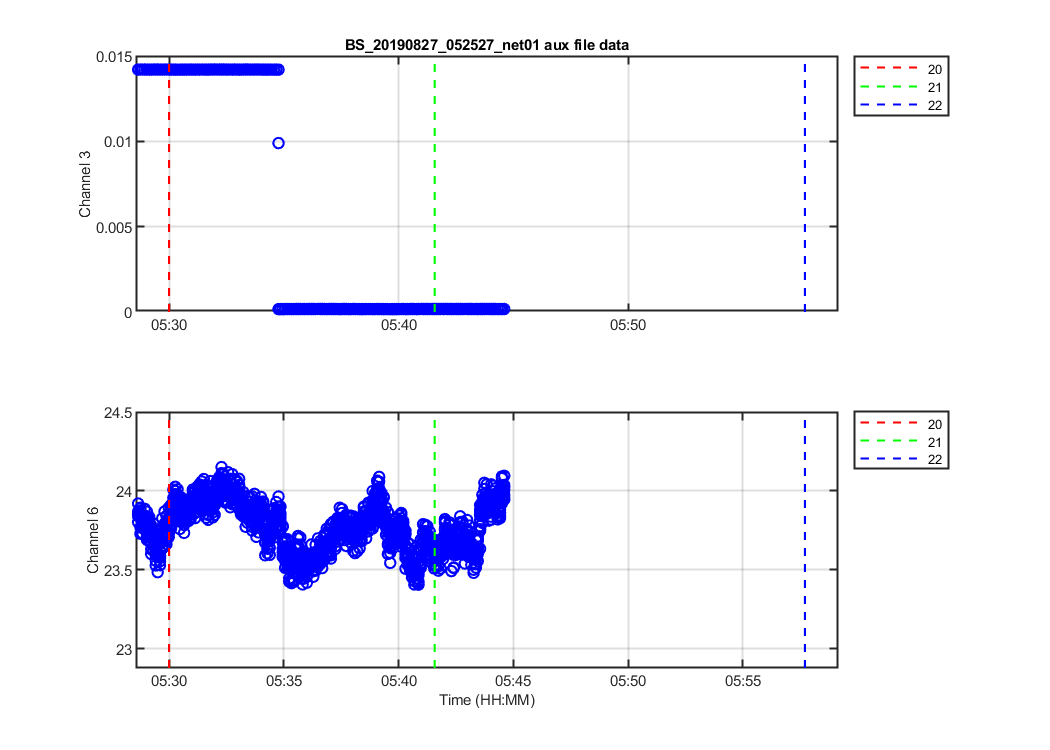

Figure 2A: Mikes Lamp monitoring log files. One shows the whole data set and one shows only the data with FITS files. black * is the number from Mikes logsheet.


Graphs below are of the Nets for a dataset. A dataset is a group of dark-lite-dark files that Mike says in his logsheet are collected together. One net = darks before and after averaged then , lights averaged, then avg_lite-avg_dark and the avg_net divided by intergration time for each track.

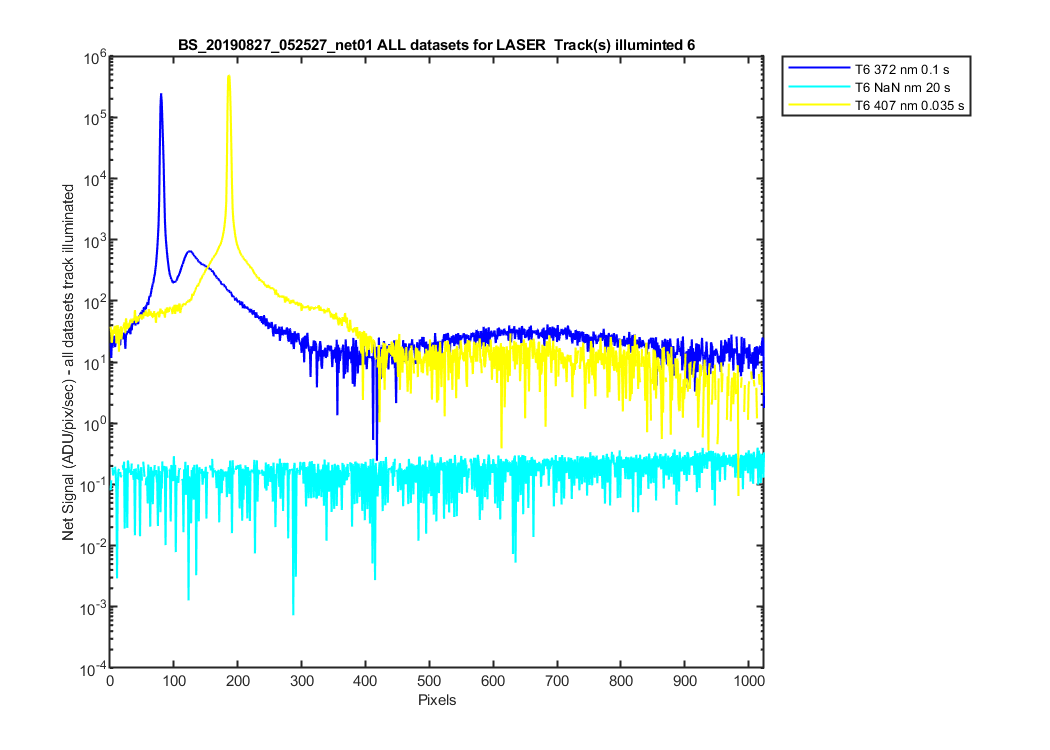

Figure 1B: All the net data sets with a track illuminated. This shows ALL the net tracks with light on them.

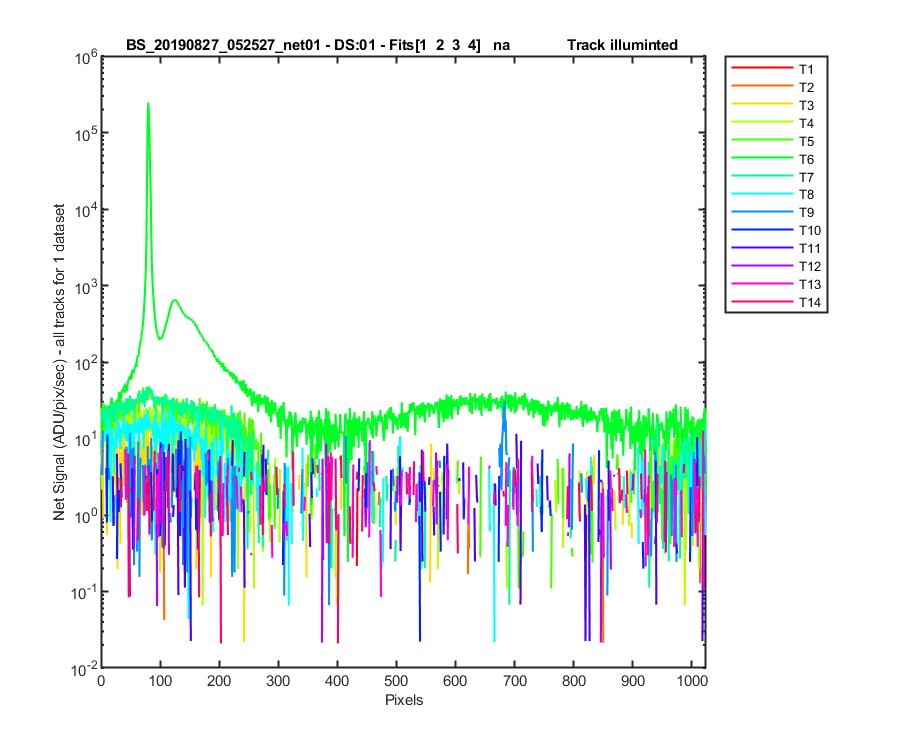

Figure 2B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

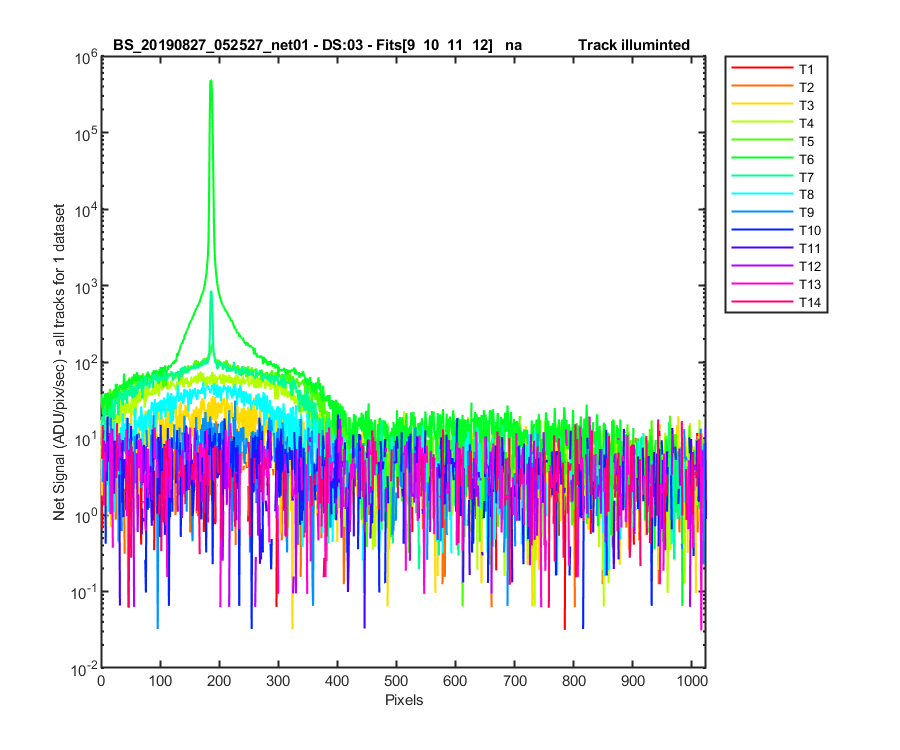

Figure 3B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

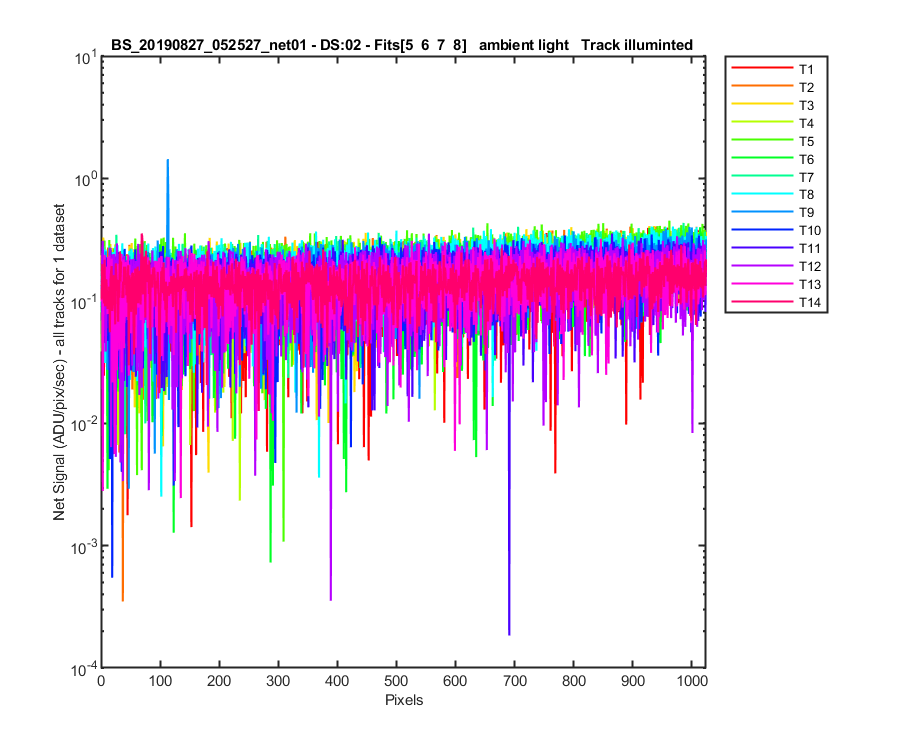

Figure 4B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.


pwd: E:\zflora\mldata2\mobyrefresh\characterization\Hawaii-2019-03\BS04
Date: 28-Aug-2019 12:57:15
Created from mkhtml2_(1)
