RS_20190719_024258_raw01 - Day 3

REVISION DATE: 19-Jul-2019 13:06:37

Exerimental BS or RS data starting to put data into new Vaux setup.


Table caption: RS03 Data
Dataset# Filename / Fit# Type file creation date Total Exposure Time Tracks on Temperature Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
15 RS_20190719_024258_raw01 / 001 Background 19-Jul-2019 02:42:58 2 6 -40 4 3714 3532.8342 0.27417
15 RS_20190719_024258_raw01 / 002 Background 19-Jul-2019 02:43:44 2 6 -40 4 3693 3535.0271 0.27829
15 RS_20190719_024258_raw01 / 001 Lite 19-Jul-2019 02:44:14 2 6 -40 4 46313 3657.4942 43.8148
15 RS_20190719_024258_raw01 / 002 Lite 19-Jul-2019 02:44:56 2 6 -40 4 46160 3659.5584 43.7906
15 RS_20190719_024258_raw01 / 003 Lite 19-Jul-2019 02:45:14 2 6 -40 4 46352 3658.9843 43.7694
15 RS_20190719_024258_raw01 / 004 Lite 19-Jul-2019 02:45:34 2 6 -40 4 46123 3659.316 43.7599
15 RS_20190719_024258_raw01 / 003 Background 19-Jul-2019 02:45:57 2 6 -40 4 3696 3532.5269 0.27343
15 RS_20190719_024258_raw01 / 004 Background 19-Jul-2019 02:46:14 2 6 -40 4 3706 3534.3008 0.27836
16 RS_20190719_024258_raw01 / 005 Background 19-Jul-2019 02:56:57 20 6 -40 4 5593 3840.5637 1.0861
16 RS_20190719_024258_raw01 / 006 Background 19-Jul-2019 02:57:35 20 6 -40 4 5500 3843.7657 1.097
16 RS_20190719_024258_raw01 / 005 Lite 19-Jul-2019 02:58:32 20 6 -40 4 5507 3846.1923 1.4181
16 RS_20190719_024258_raw01 / 006 Lite 19-Jul-2019 02:59:12 20 6 -40 4 5575 3851.3833 1.4328
16 RS_20190719_024258_raw01 / 007 Lite 19-Jul-2019 03:00:06 20 6 -40 4 5567 3850.974 1.4313
16 RS_20190719_024258_raw01 / 008 Lite 19-Jul-2019 03:00:38 20 6 -40 4 8986 3851.7765 1.4408
16 RS_20190719_024258_raw01 / 007 Background 19-Jul-2019 03:01:25 20 6 -40 4 5472 3840.4252 1.0864
16 RS_20190719_024258_raw01 / 008 Background 19-Jul-2019 03:02:08 20 6 -40 4 5541 3843.6416 1.0973
17 RS_20190719_024258_raw01 / 009 Background 19-Jul-2019 03:10:50 1.2 6 -40 4 3631 3522.8133 0.25185
17 RS_20190719_024258_raw01 / 010 Background 19-Jul-2019 03:11:07 1.2 6 -40 4 3642 3524.3038 0.25486
17 RS_20190719_024258_raw01 / 009 Lite 19-Jul-2019 03:11:36 1.2 6 -40 4 46704 3610.4182 38.8594
17 RS_20190719_024258_raw01 / 010 Lite 19-Jul-2019 03:12:05 1.2 6 -40 4 46839 3611.9705 38.8472
17 RS_20190719_024258_raw01 / 011 Lite 19-Jul-2019 03:12:19 1.2 6 -40 4 46927 3612.1123 38.8715
17 RS_20190719_024258_raw01 / 012 Lite 19-Jul-2019 03:12:48 1.2 6 -40 4 46613 3611.8351 38.8843
17 RS_20190719_024258_raw01 / 011 Background 19-Jul-2019 03:13:05 1.2 6 -40 4 3632 3522.6227 0.25225
17 RS_20190719_024258_raw01 / 012 Background 19-Jul-2019 03:13:21 1.2 6 -40 4 3632 3524.5956 0.25562
18 RS_20190719_024258_raw01 / 013 Background 19-Jul-2019 03:21:04 1.2 6 -40 4 3617 3522.8657 0.25153
18 RS_20190719_024258_raw01 / 014 Background 19-Jul-2019 03:21:41 1.2 6 -40 4 3622 3524.8527 0.25486
18 RS_20190719_024258_raw01 / 013 Lite 19-Jul-2019 03:22:01 1.2 6 -40 4 45248 3602.2315 35.6878
18 RS_20190719_024258_raw01 / 014 Lite 19-Jul-2019 03:22:23 1.2 6 -40 4 45839 3604.1115 35.6811
18 RS_20190719_024258_raw01 / 015 Lite 19-Jul-2019 03:22:34 1.2 6 -40 4 45860 3603.8843 35.7195
18 RS_20190719_024258_raw01 / 016 Lite 19-Jul-2019 03:22:46 1.2 6 -40 4 45392 3603.8438 35.7215
18 RS_20190719_024258_raw01 / 015 Background 19-Jul-2019 03:23:02 1.2 6 -40 4 3624 3522.8856 0.25147
18 RS_20190719_024258_raw01 / 016 Background 19-Jul-2019 03:23:24 1.2 6 -40 4 3615 3524.5057 0.2551
19 RS_20190719_024258_raw01 / 017 Background 19-Jul-2019 03:35:46 1 6 -40 4 3604 3519.5796 0.24661
19 RS_20190719_024258_raw01 / 018 Background 19-Jul-2019 03:37:00 1 6 -40 4 3585 3519.4253 0.24688
19 RS_20190719_024258_raw01 / 017 Lite 19-Jul-2019 03:37:15 1 6 -40 4 45806 3635.3544 43.4951
19 RS_20190719_024258_raw01 / 018 Lite 19-Jul-2019 03:37:37 1 6 -40 4 45482 3636.7544 43.4771
19 RS_20190719_024258_raw01 / 019 Lite 19-Jul-2019 03:37:50 1 6 -40 4 45943 3636.9483 43.5082
19 RS_20190719_024258_raw01 / 020 Lite 19-Jul-2019 03:38:04 1 6 -40 4 45762 3637.0919 43.4992
19 RS_20190719_024258_raw01 / 019 Background 19-Jul-2019 03:38:17 1 6 -40 4 3594 3519.4333 0.24655
19 RS_20190719_024258_raw01 / 020 Background 19-Jul-2019 03:38:30 1 6 -40 4 3610 3520.6942 0.2498

Grouped Image file: RS_20190719_N001_grouped.html
Grouped Image file: RS_20190719_N003_grouped.html
Grouped Image file: RS_20190719_N005_grouped.html
Grouped Image file: RS_20190719_N006_grouped.html
Grouped Image file: RS_20190719_N007_grouped.html
Grouped Image file: RS_20190719_N009_grouped.html
Grouped Image file: RS_20190719_N020_grouped.html
Grouped Image file: RS_20190719_N022_grouped.html

Graphs below are of the Nets for a dataset. A dataset is a group of dark-lite-dark files that Mike says in his logsheet are collected together. One net = darks before and after averaged then , lights averaged, then avg_lite-avg_dark and the avg_net divided by intergration time for each track.

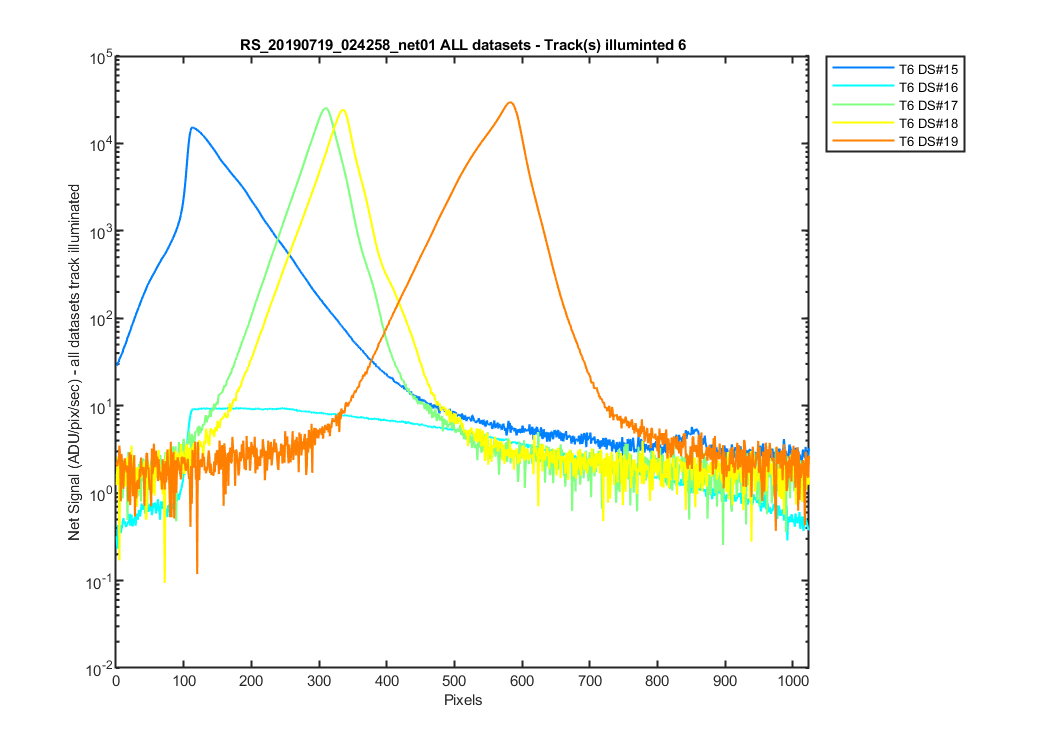

Figure 1B: All the net data sets with a track illuminated. This shows ALL the net tracks with light on them.

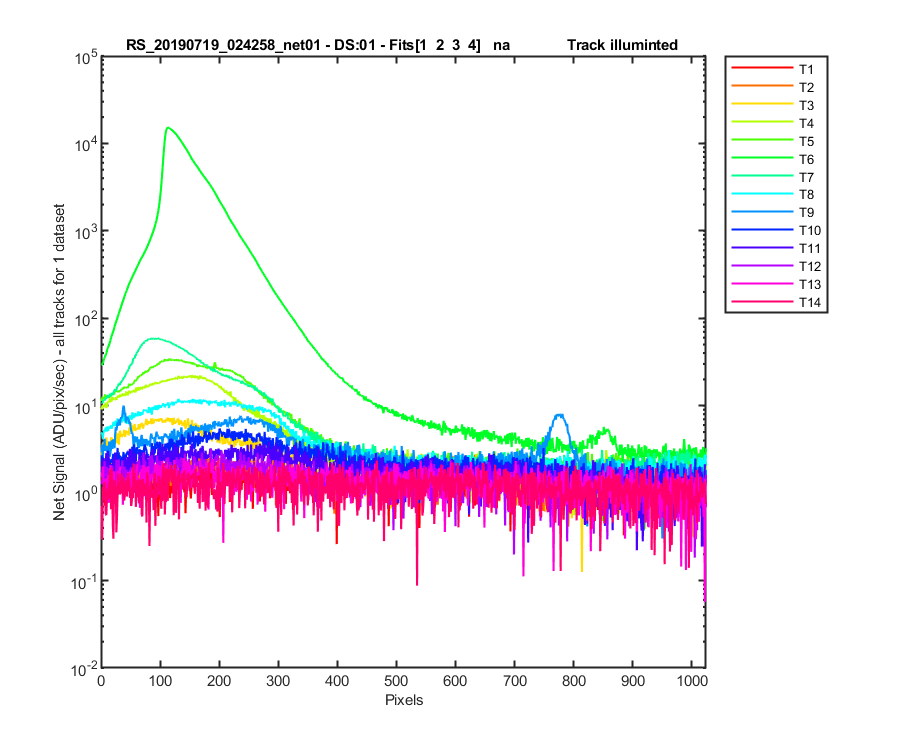

Figure 2B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.



Figure 3B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.



Figure 4B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.



Figure 5B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.



Figure 6B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.
