RS_20190827_052540_raw01 - Day 4

REVISION DATE: 28-Aug-2019 12:53:14

Exerimental BS or RS data starting to put data into new Vaux setup.


Table caption: RS03 Data
Dataset# Filename / Fit# Type file creation date Total Exposure Time Tracks on Laser
Wavelength (nm)
Saturated? Temperature Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
20 RS_20190827_052540_raw01 / 001 Background 27-Aug-2019 05:25:40 30 6 372 No -40 4 6706 4004.106 1.5329
20 RS_20190827_052540_raw01 / 002 Background 27-Aug-2019 05:27:05 30 6 372 No -40 4 6618 4006.2059 1.542
20 RS_20190827_052540_raw01 / 001 Lite 27-Aug-2019 05:28:20 30 6 372 No -40 4 6645 4036.167 5.5944
20 RS_20190827_052540_raw01 / 002 Lite 27-Aug-2019 05:29:52 30 6 372 No -40 4 6569 4040.9799 5.597
20 RS_20190827_052540_raw01 / 003 Lite 27-Aug-2019 05:30:47 30 6 372 No -40 4 6656 4041.8659 5.5944
20 RS_20190827_052540_raw01 / 004 Lite 27-Aug-2019 05:31:39 30 6 372 No -40 4 6632 4043.0101 5.5913
20 RS_20190827_052540_raw01 / 003 Background 27-Aug-2019 05:32:29 30 6 372 No -40 4 6586 4004.7486 1.5319
20 RS_20190827_052540_raw01 / 004 Background 27-Aug-2019 05:33:22 30 6 372 No -40 4 7993 4006.4602 1.5503
21 RS_20190827_052540_raw01 / 005 Background 27-Aug-2019 05:38:39 20 6 NaN - -40 4 5590 3831.5549 1.081
21 RS_20190827_052540_raw01 / 007 Background 27-Aug-2019 05:38:39 20 6 NaN - -40 4 5590 3831.5549 1.081
21 RS_20190827_052540_raw01 / 006 Background 27-Aug-2019 05:39:22 20 6 NaN - -40 4 5549 3834.6942 1.0907
21 RS_20190827_052540_raw01 / 008 Background 27-Aug-2019 05:39:22 20 6 NaN - -40 4 5549 3834.6942 1.0907
21 RS_20190827_052540_raw01 / 005 Lite 27-Aug-2019 05:40:26 20 6 NaN - -40 4 5509 3830.5354 1.0766
21 RS_20190827_052540_raw01 / 006 Lite 27-Aug-2019 05:41:29 20 6 NaN - -40 4 5586 3834.2833 1.0909
21 RS_20190827_052540_raw01 / 007 Lite 27-Aug-2019 05:42:16 20 6 NaN - -40 4 5578 3834.7051 1.0933
21 RS_20190827_052540_raw01 / 008 Lite 27-Aug-2019 05:43:04 20 6 NaN - -40 4 6084 3835.0914 1.0961
22 RS_20190827_052540_raw01 / 009 Background 27-Aug-2019 05:53:39 30 6 407 Yes -40 4 6644 4005.2135 1.5292
22 RS_20190827_052540_raw01 / 010 Background 27-Aug-2019 05:54:34 30 6 407 Yes -40 4 6617 4007.4567 1.5388
22 RS_20190827_052540_raw01 / 009 Lite 27-Aug-2019 05:55:25 30 6 407 Yes -40 4 6554 4021.8689 3.1685
22 RS_20190827_052540_raw01 / 010 Lite 27-Aug-2019 05:55:25 30 6 407 Yes -40 4 6554 4021.8689 3.1685
22 RS_20190827_052540_raw01 / 011 Lite 27-Aug-2019 05:58:40 30 6 407 Yes -40 4 6604 4027.6002 3.1688
22 RS_20190827_052540_raw01 / 012 Lite 27-Aug-2019 05:59:29 30 6 407 Yes -40 4 6624 4027.8281 3.1666
22 RS_20190827_052540_raw01 / 011 Background 27-Aug-2019 06:00:44 30 6 407 Yes -40 4 6598 4004.6954 1.5314
22 RS_20190827_052540_raw01 / 012 Background 27-Aug-2019 06:01:34 30 6 407 Yes -40 4 6618 4008.5191 1.5413

Grouped Image file: RS_20190827_N001_grouped.html
Grouped Image file: RS_20190827_N002_grouped.html
Grouped Image file: RS_20190827_N003_grouped.html
Grouped Image file: RS_20190827_N005_grouped.html
Grouped Image file: RS_20190827_N006_grouped.html
Grouped Image file: RS_20190827_N007_grouped.html
Grouped Image file: RS_20190827_N009_grouped.html
Grouped Image file: RS_20190827_N020_grouped.html
Grouped Image file: RS_20190827_N022_grouped.html

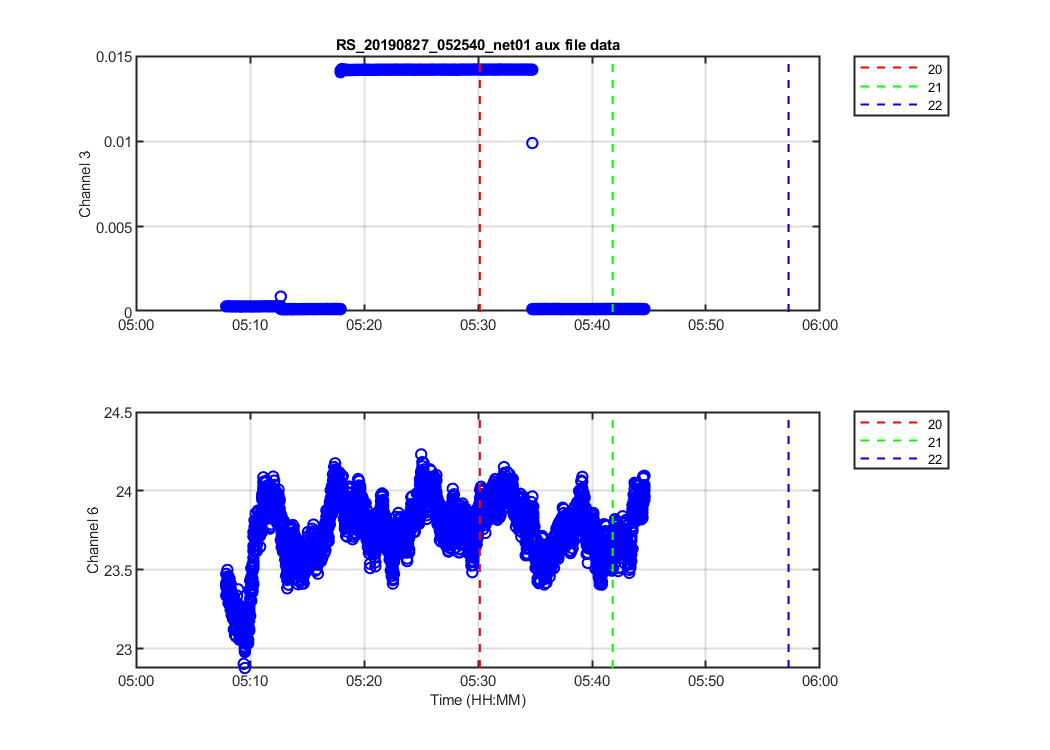

Figure 1A: Mikes Lamp monitoring log files. One shows the whole data set and one shows only the data with FITS files. black * is the number from Mikes logsheet.

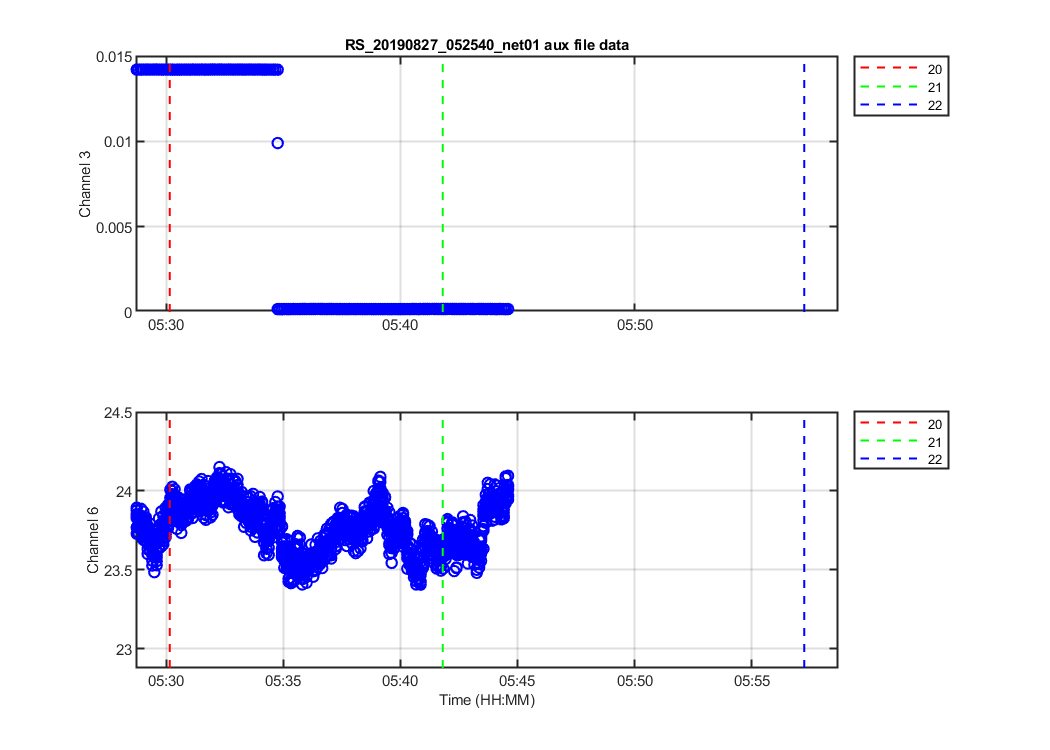

Figure 2A: Mikes Lamp monitoring log files. One shows the whole data set and one shows only the data with FITS files. black * is the number from Mikes logsheet.



Graphs below are of the Nets for a dataset. A dataset is a group of dark-lite-dark files that Mike says in his logsheet are collected together. One net = darks before and after averaged then , lights averaged, then avg_lite-avg_dark and the avg_net divided by intergration time for each track.

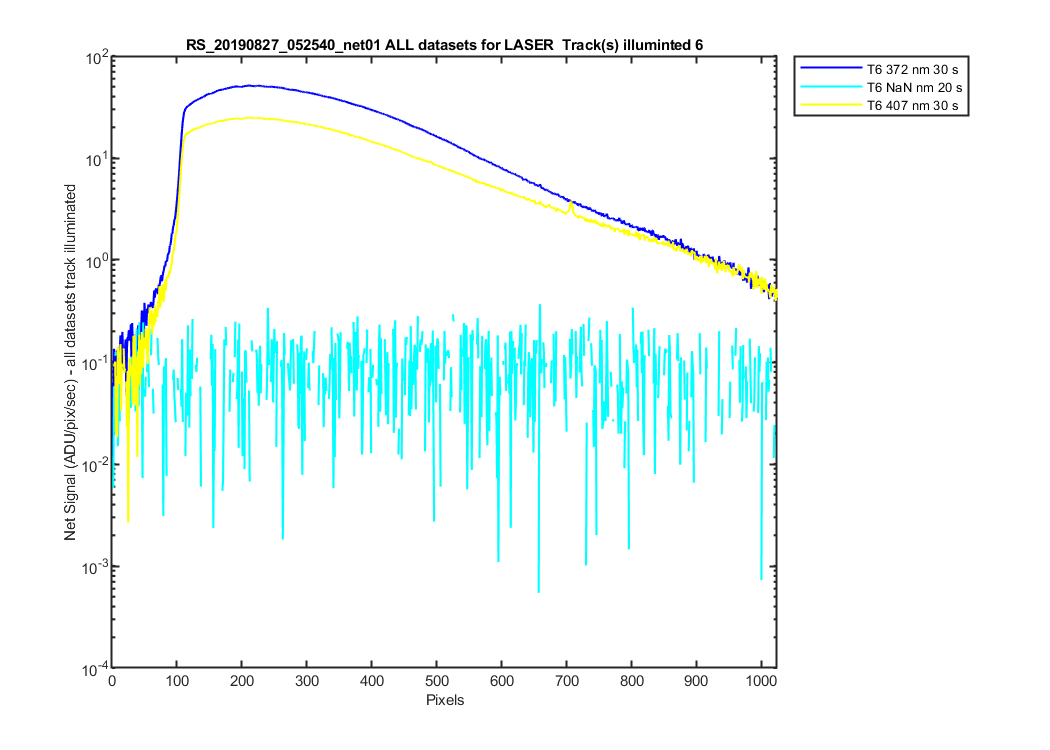

Figure 1B: All the net data sets with a track illuminated. This shows ALL the net tracks with light on them.

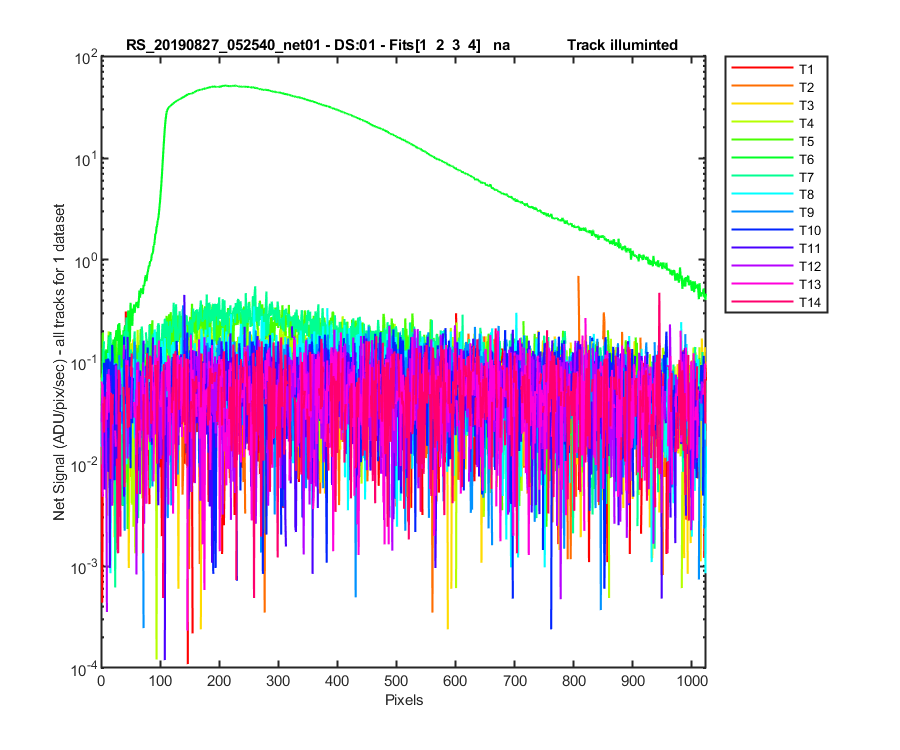

Figure 2B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

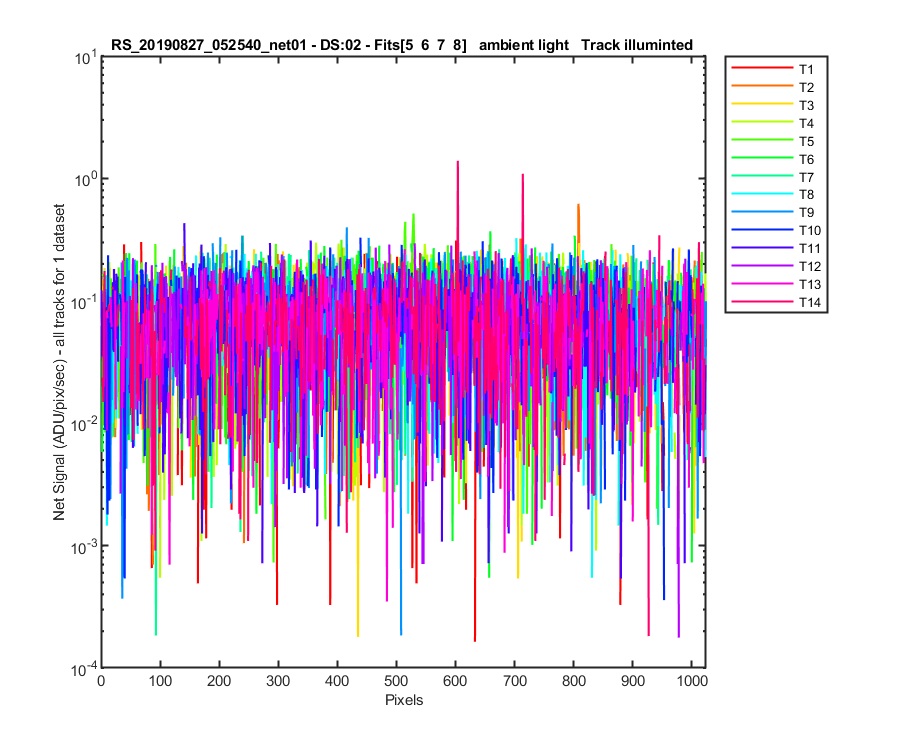

Figure 3B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

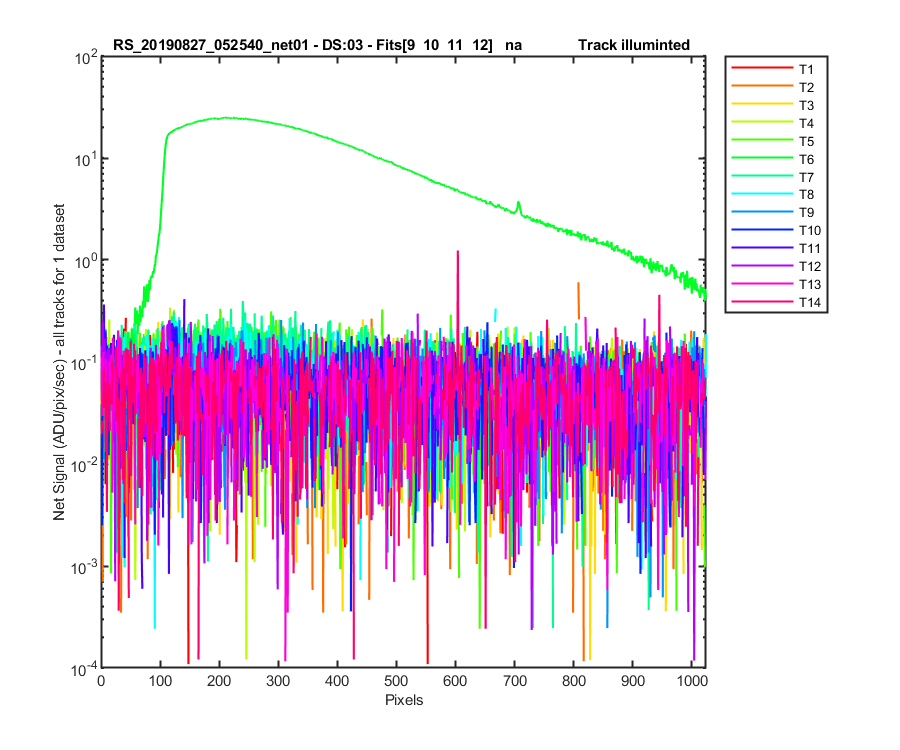

Figure 4B: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.
